GAIA4E: A TOOL SUPPORTING THE

DESIGN OF MAS USING GAIA

Luca Cernuzzi

1,2

DISMI, Universitá di Modena e Reggio Emilia, Reggio Emilia, Italy

cernuzzi.luca @unimore.it

DEI, Universidad Católica “Nuestra Seóra de la Asunción”, Campus Universitario, Asunción, Paraguay

Franco Zambonelli

DISMI, Universitá di Modena e Reggio Emilia, Reggio Emilia, Italy

Keywords: CASE tool, Gaia, Eclipse, Multiagent Systems Design, Software Engineering.

Abstract: Different efforts have been devoted to improve the original version of Gaia methodology. The more relevant

is the official extension of Gaia, exploiting the organizational abstractions to provide clear guidelines for the

analysis and design of complex and open multiagent systems. However, now a day a successful design

methodology should include some other strategic factors like the support of a specific CASE tool to

simplify the work of the designer. Such a tool supporting the Gaia design process may facilitate the

adoption of the methodology in the industrial arena. The present study introduces Gaia4E, a plug-in for the

ECLIPSE environment which covers all the phases of Gaia allowing agent engineers to produce and

document the corresponding models.

1 INTRODUCTION

The Agent Oriented Software Engineering – AOSE

discipline has grown in the last few years and many

AOSE methodologies have been proposed

(Ciancarini and Wooldridge, 2001). Some of them,

(e.g. Giorgini et al. 2005; Gómez and Pavón 2003;

Zambonelli et al. 2003) are strongly mentioned in

the specialized literature. To achieve an extensive

success a methodology should include different

strategic factors. Among others, we can mention the

use of a standard and well known design language

(like UML), the support of a specific CASE tool to

simplify the work of the designer and the attention

for the automatic production of large parts of code.

Such strategic factors may facilitate a broader

introduction of the agent oriented methodologies in

the industry practice. Among them, our mainly

interest in this paper is to focus on creating and

adopting tools that may support engineers in

developing multi-agent systems according to a

particular methodology as advocated in (Zambonelli

and Omicini, 2004).

When developing an agent-based system, several

tools are necessary during the different stages of the

process. In the design phase we need tools allowing

the specification of the system (also using formal

languages when needed), its validation and

(possibly) offering good automatic code generation

capabilities.

We are especially interested in the need of such tools

for Gaia due to its large acceptation in the agent

community.

The Gaia methodology (Zambonelli et al. 2003),

explicitly focus on using organizational abstractions

to drive the analysis and design of complex and open

multiagent systems (MAS). It models both the

macro (social) aspect and the micro (agent internals)

aspect of a MAS. The design process proposed in

Gaia introduces different models, each of them with

its own notation. Some extensions of Gaia

considered the adoption of more standard notations

based on AUML (Cernuzzi and Zambonelli 2004;

Cernuzzi et al. 2004), but no proposal have focused

on tools supporting the Gaia process.

In this work, we present the design tool Gaia4E

(standing for: Gaia for ECLIPSE) which covers all

Cernuzzi L. and Zambonelli F. (2009).

GAIA4E: A TOOL SUPPORTING THE DESIGN OF MAS USING GAIA.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Software Agents and Internet Computing, pages 82-88

DOI: 10.5220/0001984700820088

 SciTePress

the phases of Gaia allowing agent engineers to

document the corresponding models.

Trying to facilitate a larger acceptance and

adoption of such a tool we have implemented it as a

plug-in for the ECLIPSE environment, widely used

in the object oriented software engineering

community. The ECLIPSE Project is an open source

initiative that allows the integration of different tools

into a single “environment” (for more information,

interested reader may see the ECLIPSE web site:

http://www.eclipse.org/). Eclipse may be considered

a kind of universal tool platform - an open extensible

IDE for almost anything related to software

engineering design. The incorporation of new tools

into the platform is possible trough plug-ins that

provides new functionalities to the environment.

The paper is structured as follow: section 2

briefly introduces Gaia methodology with its

process, and its models and their relations; section 3

presents the Gai4E tool using an illustrating example

to clarify the concept and notations; and section 4

concludes.

2 GAIA IN A NUTSHELL

Gaia (Zambonelli et al. 2003) focuses on the use of

organizational abstractions to drive the analysis and

design of MASs. Gaia models both the macro

(social) aspect and the micro (agent internals) aspect

of a MAS, and devotes a specific effort to model the

organizational structure and the organizational rules

that govern the global behavior of the agents in the

organization. Gaia proposes three mainly phases,

namely, the analysis, the architectural design, and

the detailed design.

The goal of the analysis phase in Gaia, covering

the requirements in term of functions and activities,

is to firstly identify which loosely couple sub-

organizations possibly compose the whole systems

and then, for each of these, to produce four basic

abstract models: (i) the environmental model, to

capture the characteristics of the MAS operational

environment; (ii) a preliminary roles model, to

capture the key task-oriented activities to be played

in the MAS; (iii) a preliminary interactions model, to

capture basic inter-dependencies between roles; and

(iv) a set of organizational rules, expressing global

constraints/directives that must underlie the MAS

functioning.

The above analysis models are used as input to

the architectural design phase which is in charge of

defining the most proper organizational structure for

the MAS, i.e., the topology of interactions in the

MAS and the control regime of these interactions,

which most effectively enables to fulfil the MAS

goals. The definition of the organizational structure

has to account for a variety of factors, including the

need of reflecting the structure of the real-world

organization, the characteristics of the environment,

the need of simplifying the enactment of the

organizational rules, as well as the obvious need to

keep the design as simple as possible. Once the most

appropriate organizational structure is defined, the

roles and interactions models identified in the

analysis phase (which were preliminary, in that they

were not situated in any actual organizational

structure) can be finalized, to account for all

possibly newly identified interactions and roles.

Past the architectural design phase, the detailed

design involves identifying: (i) an agent model, i.e.,

the set of agent classes in the MAS, implementing

the identified roles, and the specific instances of

these classes; and (ii) a services model, expressing

services and interaction protocols to be provided

within agent classes. The result of the design phase

is assumed to be something that could be

implemented in a technology neutral way.

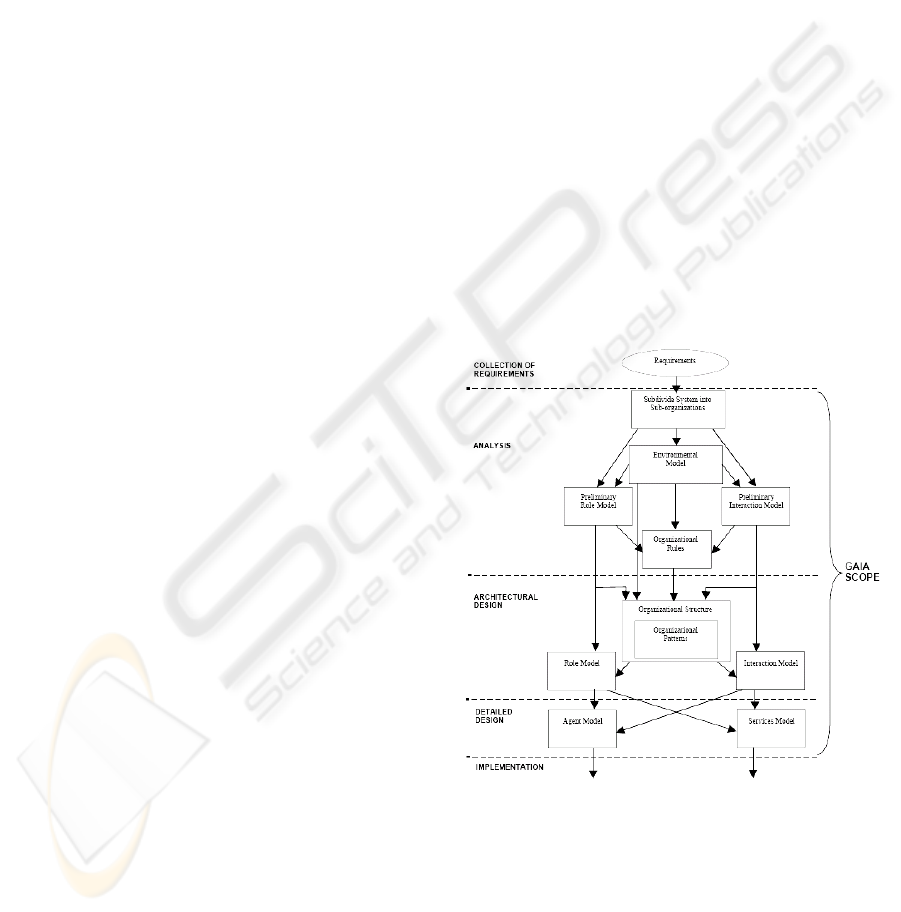

Figure 1: Models of the Gaia methodology and their

relations in the Gaia process.

3 GAIA4E: A DESIGN TOOL

SUPPORTING GAIA

Now a day a successful design methodology should

include some other strategic factors like the support

GAIA4E: A TOOL SUPPORTING THE DESIGN OF MAS USING GAIA

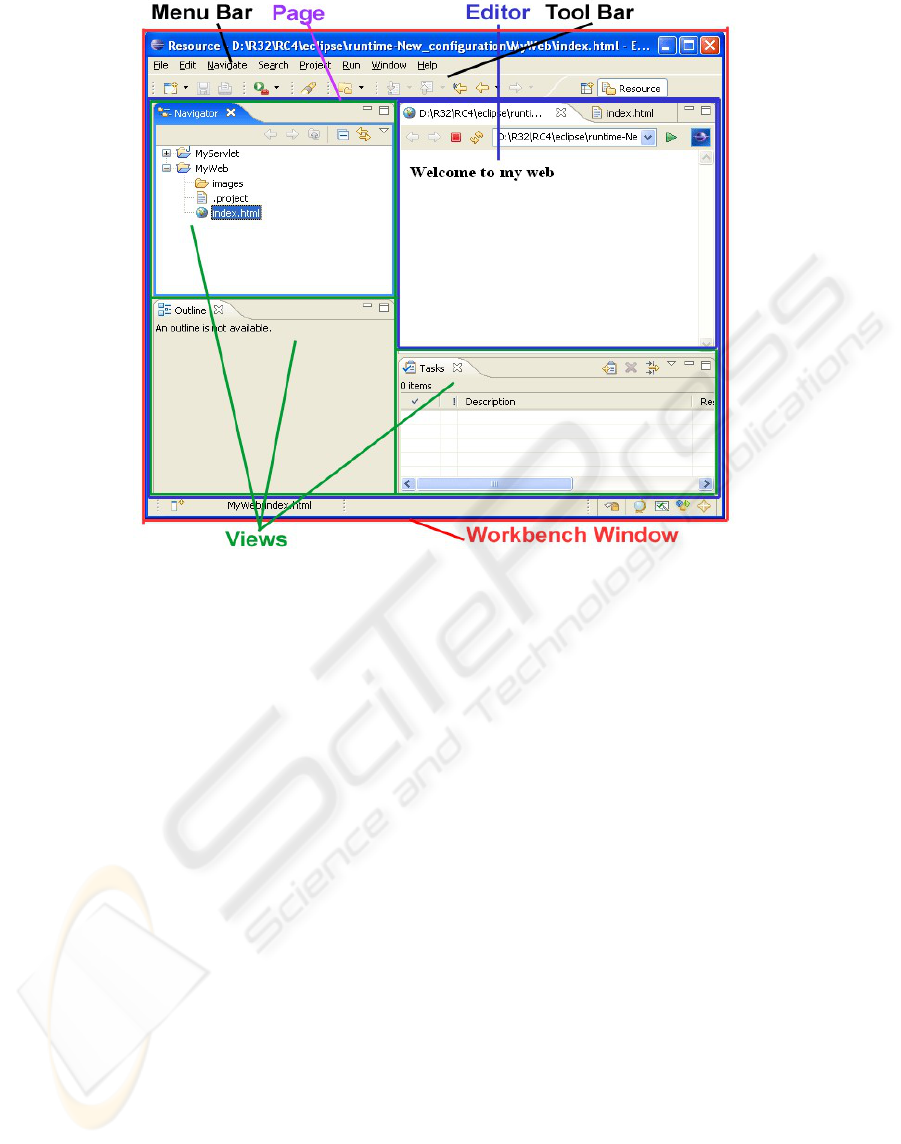

Figure 2: General view of the Eclipse environment.

of a specific CASE tool to simplify the work of the

designer (Zambonelli and Omicini, 2004).

In this section we present Gaia4E (standing for:

Gaia for ECLIPSE), a design tool which covers all

the phases of Gaia, allowing agent engineers to

document the corresponding models according the

specific notations, and which has been implemented

as a plug-in for the ECLIPSE environment.

ECLIPSE may be considered a kind of open IDE

which functionalities could be extended trough plug-

ins that are incorporated to the environment.

In order to gain a better understanding of the

Gaia4E Plugin, we need to grasp a few concepts

related to the Eclipse Platform. The next two

paragraphs are straight forward quotations of the

Platform Plug-in Developer Guide document that

comes within the Eclipse Help Contents.

“The Eclipse platform is structured around the

concept of plug-ins. Plug-ins are structured bundles

of code and/or data that contribute function to the

system. Function can be contributed in the form of

code libraries (Java classes with public API),

platform extensions, or even documentation. Plug-

ins can define extension points, well-defined places

where other plug-ins can add functionality.”

“The workbench UI plug-in implements

workbench UI and defines a number of extension

points that allow other plug-ins to contribute menu

and toolbar actions, drag and drop operations,

dialogs, wizards, and custom views and editors.”

The main components in the GUI layout of an

Eclipse plug-in are views and editors. An editor is

typically used to edit or browse a document or input

object (generally a file). A view is more commonly

used to navigate a hierarchy of information or

display and edit properties for the active editor.

The Gaia4E plug-in makes its main contribution

to the UI by extending dialogs and wizards, through

one custom editor and two views and arranges them

all by providing a specific perspective.

The Gaia perspective includes three different

views (see Figure 2). First, located to the left side of

the window is the Eclipse Navigator view which

allows designer to open an already existing project,

to create a new project, etc. The second view, called

Gaia properties and situated in the bottom right side,

shows the properties of the specific component

selected in the active Gaia4E Editor, and allows the

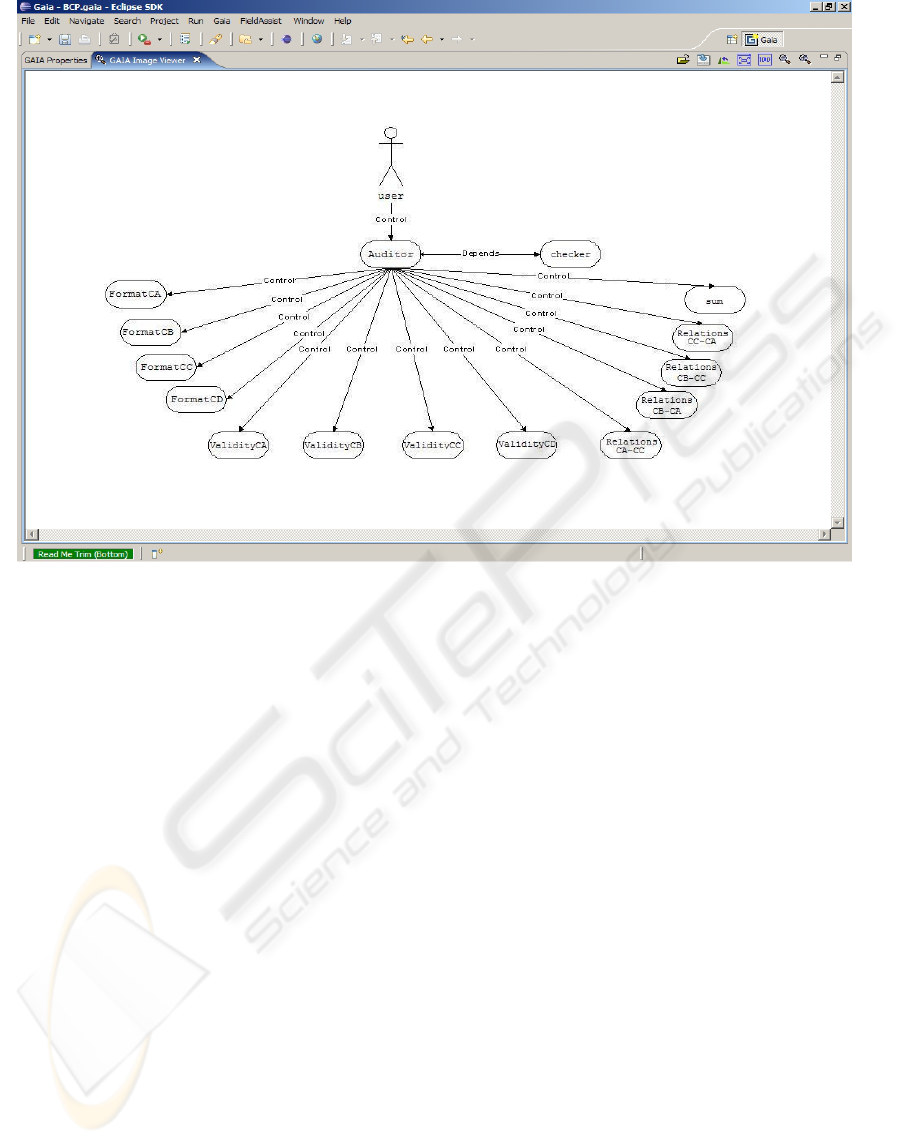

user to modify it. The third view is called the

Gaia4E Image Viewer and is located in the same

space as the former (reachable by clicking its

corresponding tab). The purpose of this view is to

show an image related to the topology of an

Organization in the Architectural Phase.

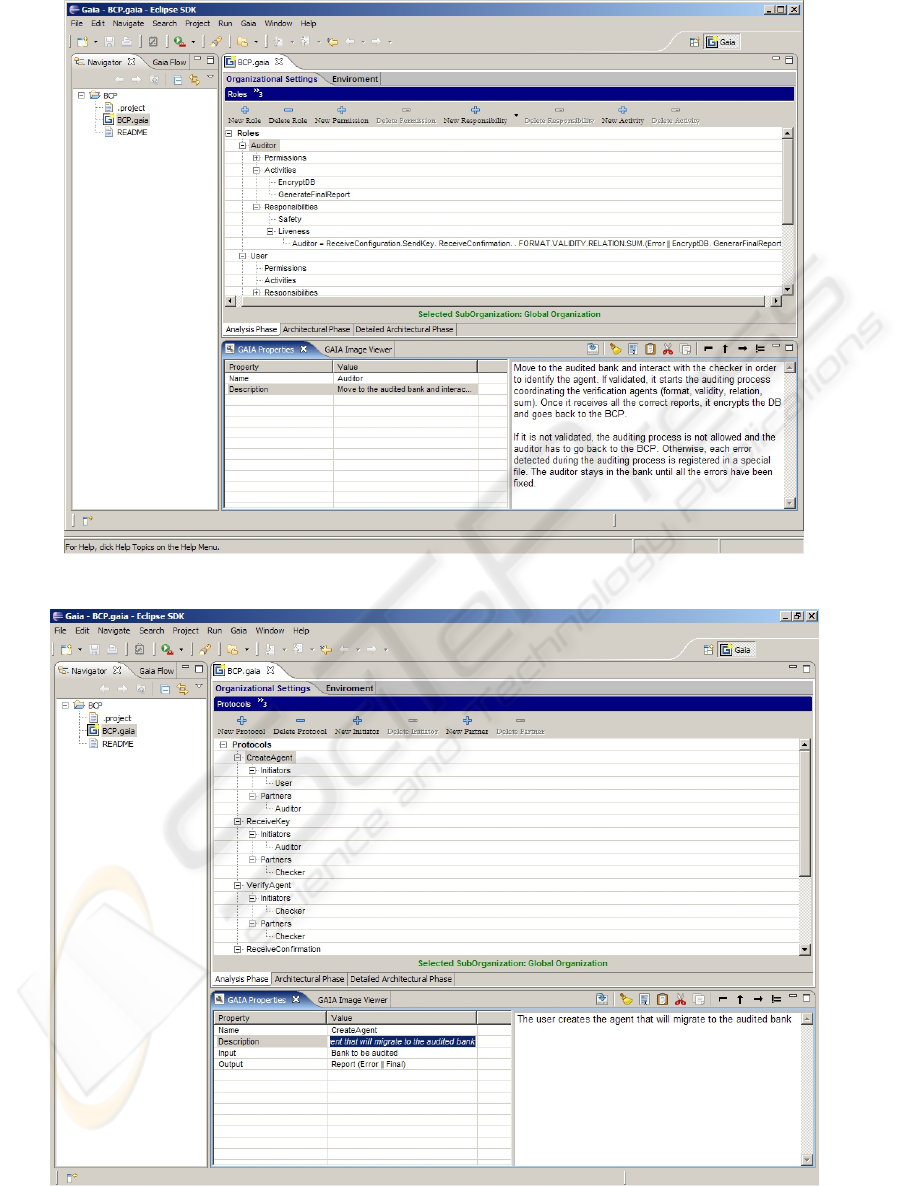

At last, the editor, known as Gaia4E Editor, lets

the user work on a Gaia document file (.gaia

ICEIS 2009 - International Conference on Enterprise Information Systems

extension). The editor is tabbed in the bottom of its

window in response to the three phases covered by

the methodology (Analysis, Architectural Design

and Detailed Design). The user should choose the

tab according to the phase she or he wants to work

on. After selecting the phase the designer is able to

add/delete/modify whatever aspects are involved in

that particular phase. For example if the user wants

to delete a role specified in the preliminary roles

model for the Organization X, the user must click in

the lower tab “Analysis”, select the X organization

in the “Sub-Organizations tree” and go by means of

the upper tab to the roles tree, select the role to be

deleted and click the delete button in the editor’s

toolbar.

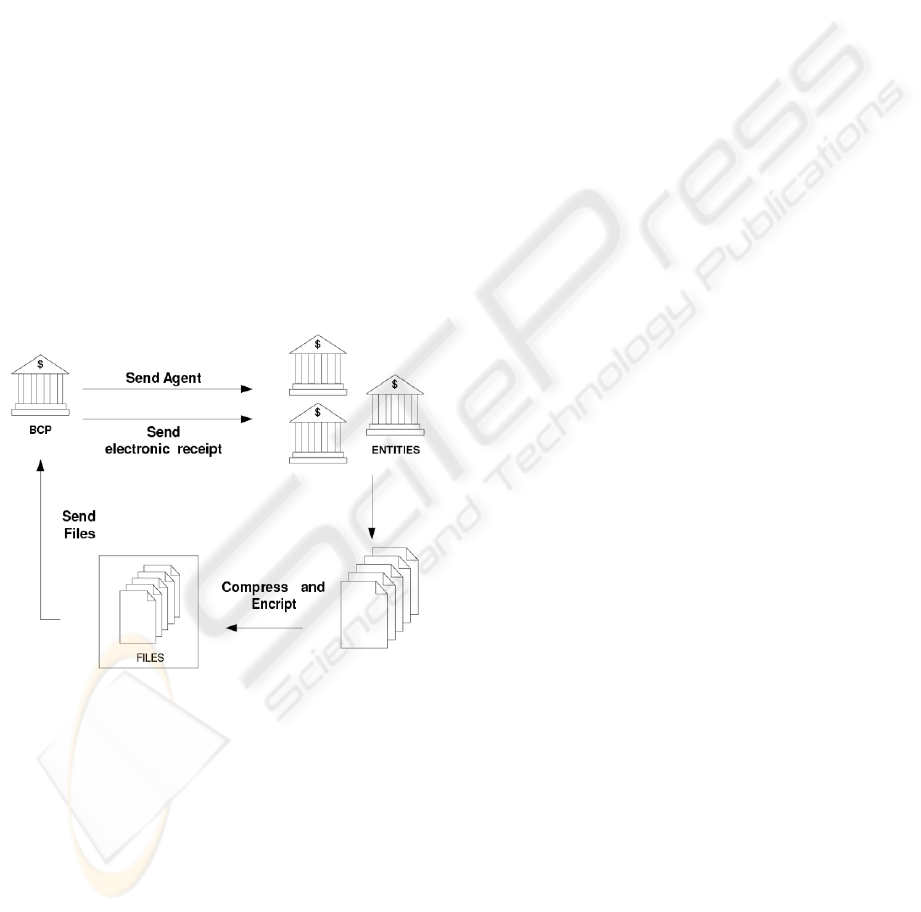

To better understand the tool we presents each

model supported by the Gaia4E using an illustrative

example: an auditing agents-based system for the

Central Bank of Paraguay (BCP – Banco Central del

Paraguay). A multi-layer agent architecture for

remote auditing in public institutions has been

proposed to solve some deficiencies of the BCP

which is in charge of the auditing process of the

financial-account management of the credit firms.

Figure 3: The model of the auditing system for the BCP.

Figure 3 shows the proposed model. As the

reader may observe, the BCP sends different agents

to the financial institutions that the BCP needs to

audit. In each financial institution the files are

validate and modified up to reach the correct

information and format. Once the proper agent has

completed its auditing activities, the obtained file are

compressed and encrypted before being sent back to

the BCP. Finally, the BCP sends an electronic

receipt to the audited institution.

The experimental results achieved with the

Auditing Agents BCP system solve the problems

identified in the actual working model of the BCP.

3.1 Modelling the BCP Auditing

System with GAIA4E

Possible Sub-organizations. The auditing system

includes four different processes: the correct format

verification, the information validity verification, the

verification of the relationships between files (also

called referential integrity), and the verification of

the sum of the debit for each client. Each

verification process operates on different data files

and includes multiple check activities, one for each

of these four different files. Thus, it is natural to

think in four different sub-organizations, one for

each verification process.

Environmental Model. In this application the

environmental model comprises the data bases of the

audited banks (accessible if the agent has the

corresponding permissions), a set of reports

generated by the different agents, and the data base

of the BCP.

Preliminary Roles Model. In this model designers

capture the basic functional requirements of the

application in terms of the roles that the different

actors can play. Independently from the

organizational structure, the main role is the Auditor

which will be in charge of the general auditing

process. Moreover, other roles are those related to

each of the four verification processes previously

identified. Other roles would may appear in the

design phase. For space reasons we just present the

Auditor role schema (figure 4).

Preliminary Interaction Model. As for the

preliminary roles model, and although this model

may experience changes once the organizational

structure is defined, some preliminary interaction

protocols could be identified. For this model a

representative example is presented in figure 5 (for

space reasons all the formats, validities and relations

verifications are grouped in one agent class for each

type).

Organizational Rules. The organizational rules are

invariants that agents, playing the corresponding

roles, have to observe for maintaining a correct

behaviour of the organization.

Different kind of rules may be defined for the BCP

auditing system, but for space reasons we just

present some examples of the complete set.

GAIA4E: A TOOL SUPPORTING THE DESIGN OF MAS USING GAIA

Figure 4: The Auditor Role schemata in Gaia4E.

Figure 5: The CreateAgent Protocol Model in Gaia4E.

ICEIS 2009 - International Conference on Enterprise Information Systems

Figure 6: The global view of the Organizational Structure in Gaia4E.

Some of these rules may also control the order of

the activities. For example, rule 1 means that

CreateAgent has to be executed before of

ProgrammingAgent; while rule 2 states that

ReceiveConfirmation precedes the warning for an

ErrorKey or the request for a specific auditing

process (in this case the format auditing).

Other rules may specify different constraints for the

general behaviour of the organization. For example,

rule 4 means that if an Auditor has been validated all

the corresponding reports (for Format, Validity,

Relation and Sum) must exist.

1. CreateAgent

→

ProgramminAgent

2. ReceiveConfirmation

→

ErrorKey | RequestAuditFormat

3. Key

≠

null

∀

Auditor, confirmation=true

→

ReportFCA

≠

null

∧

ReportFCB

≠

null

∧

ReportFCC

≠

null

∧

ReportFCD

≠

null

∧

ReportVCA

≠

null

∧

ReportVCB

≠

null

∧

InformeVCC

≠

null

∧

ReportVCD

≠

null

∧

ReportRCA-CC

≠

null

∧

ReportRCB-CA

≠

null

∧

ReportRCB-CC

≠

null

∧

ReportRCC-CA

≠

null

∧

ReportSum

≠

null

∀

Auditor, home=true

∧

FinalReport

≠

null

→

change

BD BCP

Organizational Structure. Since the user has the

control over the system, she/he is in charge of the

creation of the auditor agent. This auditor agent in

turn, depends on the checker agent that is in charge

of auditor validation. The auditing process starts

once the auditor creates all the agents in charge of

the different verification processes for the audited

bank. Those agents prepare and send a report

according to the corresponding validation results.

Since the auditor has created all the verification

agents, it controls those agents and may eventually

decide to eliminate them at any moment.

Thus, a natural organizational structure is

presented in figure 6. It is worth to outlines that

Gaia4E offers designers to associate graphical files

to the documentations. Thus, for the specification of

the topology of the organization it is possible to

model it with other graphics environments and then

insert the model into the Gaia4E corresponding area.

Detailed Design. The detailed design of Gaia

considers the Agent Model, in which each role

corresponds to a class, and the Service Model. For

each auditing process, one Auditor and one Checker

agents are instantiated while the other agents

(Format, Validity, Relation, and Sum) may or may

not be instantiated. If the Auditor agent is not

recognized by the Checker these other agents are not

GAIA4E: A TOOL SUPPORTING THE DESIGN OF MAS USING GAIA

instantiated, in all other cases, the verification agents

are created when necessary until all errors have been

corrected.

In the Service Model the designers identify the

services associated to each class specifying inputs,

outputs, pre and post-conditions. Inputs and outputs

are derived from the Protocols (for the services

associated to the agent interaction) and from the

Environmental Model (for the services that operate

on the resources). Pre and post-conditions derive

from the safety properties of roles, from the

organizational rules, from constraints on the

availability of the resources, and from specific

values of resources or data from other agents. For

example the service “RequestAuditFormat” needs

the “User Configuration” as input; it has the pre-

condition “Confirmation=True”, and the post-

condition “FormatCA≠NULL and

FormatCB≠NULL and FormatCC≠NULL and

FormatCD≠NULL”.

Gaia and Gaia4E do not cover the development

and implementation stages. For those activities, in

the BCP Auditing System we adopt the Aglets

Software Development Kit (ASDK).

4 CONCLUSIONS

In this work, we presented the design tool Gaia4E

(standing for: Gaia for ECLIPSE) which supports

the work of agent engineers covering all the phases

and the models of Gaia. Trying to facilitate a larger

acceptance and adoption of such a tool we have

implemented it as a plug-in for the Eclipse

environment, widely used in software engineering

community (especially, in the object oriented arena).

Such strategic factors may facilitate a broader

introduction of the Gaia methodology in the industry

practice. The Gaia4E CASE was adopted in different

industrial projects; one of them was presented in the

previous section to illustrate the tool.

Due to the adherence to Gaia, Gaia4E suffer the

same limitations. Among them, it does not cover the

requirement elicitation phase and the

implementation. Moreover, Gaia4E adopts the same

notations of the original Gaia. Consequently,

relevant improvement to the design tool may be

derived from improvements in the Gaia process and

notations. In this sense, we are working to include

Gaia+AUML (Cernuzzi and Zambonelli 2004;

Cernuzzi et al. 2004) into Gaia4E. Additionally, we

are exploring methods and notations to be

harmonically included into the Gaia process to cover

the requirement elicitation phase. Finally, a really

attractive open issue which may strongly improve

the acceptance of Gaia4E is the capability of the

automatic generation of independent agents with

their respective software code.

ACKNOWLEDGEMENTS

This work was partially supported by the Italian

MUR in the frame of the PRIN project "MEnSA -

Agent oriented methodologies: engineering of

interactions and relationship with the

infrastructures".

REFERENCES

Cernuzzi, L., Zambonelli, F., 2004. Experiencing AUML

in the Gaia Methodology. In: Proceedings of 6th

International Conference on Enterprise Information

Systems - ICEIS 2004 (Vol. 3, pp. 283-288), Portugal.

Cernuzzi, L., Juan, T., Sterling, L., and Zambonelli, F.,

2004. The Gaia Methodology. (Chapter book) in

Methodologies and Software Engineering for Agent

Systems. The Agent-Oriented Software Engineering

handbook. F. Bergenti, M.-P. Gleizes and F.

Zambonelli Editors, (pp. 69-88), Kluwer Publishing.

Ciancarini, P., Wooldridge, M., 2001. Agent-Oriented

Software Engineering. Proceedings of the 1st

International Workshop on Agent-Oriented Software

Engineering, Springer Verlag, LNCS, Vol. 1957, 1-24.

ECLIPSE: available in http://www.eclipse.org/

Giorgini, P., Kolp, M., Mylopoulos, J., Castro, J., 2005.

Tropos: A Requirements-Driven Methodology for

Agent-Oriented Software. (Book Chapter) In: Agent-

Oriented Methodologies. Idea Group, 20-45.

Gómez, J., Pavón, J., 2003. Agent Oriented Software

Engineering with INGENIAS. Proceedings of the 3rd

Central and Eastern Europe Conference on

Multiagent Systems, Springer Verlag, LNCS 2691, pp.

394-403.

Zambonelli, F., Wooldridge, M., Jennings, N. R., 2003.

Developing Multiagent Systems: The Gaia

Methodology. ACM Transaction on Software

Engineering and Methodology, vol. 12, Nº 3, 417-470.

Zambonelli, F., Omicini, A., 2004. Challenges and

Research Directions in Agent-Oriented Software

Engineering. Journal of Autonomous Agents and

Multiagent Systems, vol. 9, Nº 3, Kluwer Academic

Publishers, 253-283

ICEIS 2009 - International Conference on Enterprise Information Systems
