FedDW: A TOOL FOR QUERYING FEDERATIONS OF DATA

WAREHOUSES

Architecture, Use Case and Implementation

Stefan Berger and Michael Schreﬂ

Department of Business Informatics – Data & Knowledge Engineering

University of Linz, Altenberger Str. 69, Linz, Austria

Keywords:

Data integration systems, Heterogeneous data sources, Federated data warehouses, Distributed query process-

ing, Software engineering.

Abstract:

Recently, Federated Data Warehouses – collections of autonomous and heterogeneous Data Marts – have be-

come increasingly attractive as they enable the exchange of business information across organization bound-

aries. The advantage of federated architectures is that users may access the global, mediated schema with

OLAP applications, while the Data Marts need not be changed and retain full autonomy. Although the un-

derlying concepts are mature, tool support for Federated DWs has been poor so far. This paper presents the

prototype of the “FedDW” Query Tool that supports distributed query processing in federations of ROLAP

Data Marts. It acts as middleware component that reformulates user queries according to semantic correspon-

dences between the autonomous Data Marts. We explain FedDW’s architecture, demonstrate a use-case and

explain our implementation. We regard our proof-of-concept prototype as a ﬁrst step towards the development

of industrial strength query tools for DW federations.

1 INTRODUCTION

Data Warehouses (DWs) are complex and very large

databases optimized for the support of analytical de-

cision making. Typically, a DW collects and consoli-

dates all data in the scope of the enterprise from dis-

parate sources. More speciﬁc data repositories, called

Data Marts, may be derived from the DW to deliver

some subset of data to particular user groups (Inmon,

2005). The integration of DW systems often becomes

necessary due to business cooperations or mergers

and acquisitions between large-scaled companies.

Federated Data Warehouses (FDWs) are data in-

tegration systems, allowing transparent access to the

heterogeneous schemas of autonomous Data Marts.

Such systems provide a global, “mediated” schema by

storing semantic correspondences – called matches –

among the source schemas. At query time, the FDW

uses the matches to rewrite user queries.

Schema integration is the necessary prerequisite

for data integration systems to work. The two chal-

lenges of schema integration are schema matching

and data matching. The former means ﬁnding corre-

spondences among elements of autonomous schemas

– e.g., their attributes – whereas the latter aims at

identifying the real-world entities referred to by the

tuples (Doan and Halevy, 2005).

For example, consider the telecommunications

market and assume that two competing mobile net-

work providers – we call them “Red” and “Blue” –

have agreed upon sharing their DW data for strategic

decision making. This cooperation offers advantages

to both partners since the knowledge base for their

strategic business decisions broadens beyond theorig-

inal organizational boundaries. Therefore, it becomes

much easier for the two providersto analyze questions

such as “How much was last year’s turnover, grouped

by month and product?”, or “Which service plans are

most popular among 21–30 year old customers?”, etc.

Despite its obvious beneﬁts from the business per-

spective, the integration of autonomous Data Ware-

houses is difﬁcult and laborious for both, technical

and organizational reasons. Technically, numerous

heterogeneities among the schemas and data need to

be resolved. From the organizational viewpoint, DW

access is often restricted to ensure the privacy of con-

ﬁdential data. Thus, the complete physical combina-

tion of the autonomous DWs – which would be the

easiest solution – is often impractical, especially for

large-scaled systems. Such a situation commonly oc-

113

Berger S. and Schreﬂ M. (2009).

FedDW: A TOOL FOR QUERYING FEDERATIONS OF DATA WAREHOUSES - Architecture, Use Case and Implementation.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

113-122

DOI: 10.5220/0001985601130122

 SciTePress

curs in practice, sometimes even among the divisions

of a single company (Kimball, 2002).

In our example, Red and Blue decide to share

their Data Marts about phone connections (Figs. 1 and

2). Since both companies have developed their DW

schemas independently, numerous heterogeneities ex-

ist among the two Data Marts, although they represent

the same application domain. Obviously both fact ta-

bles can only be uniﬁed after some previous transfor-

mations of their schemas and their data. For example,

Red has modelled two measures, tn tel and tn misc

for turnovers generated with telephony and miscel-

laneous services, respectively (Fig. 1), whereas Blue

has chosen a single measure named turnover (Fig. 2).

Section 4 will detail the two example Data Marts and

demonstrate our approach to the integration problem.

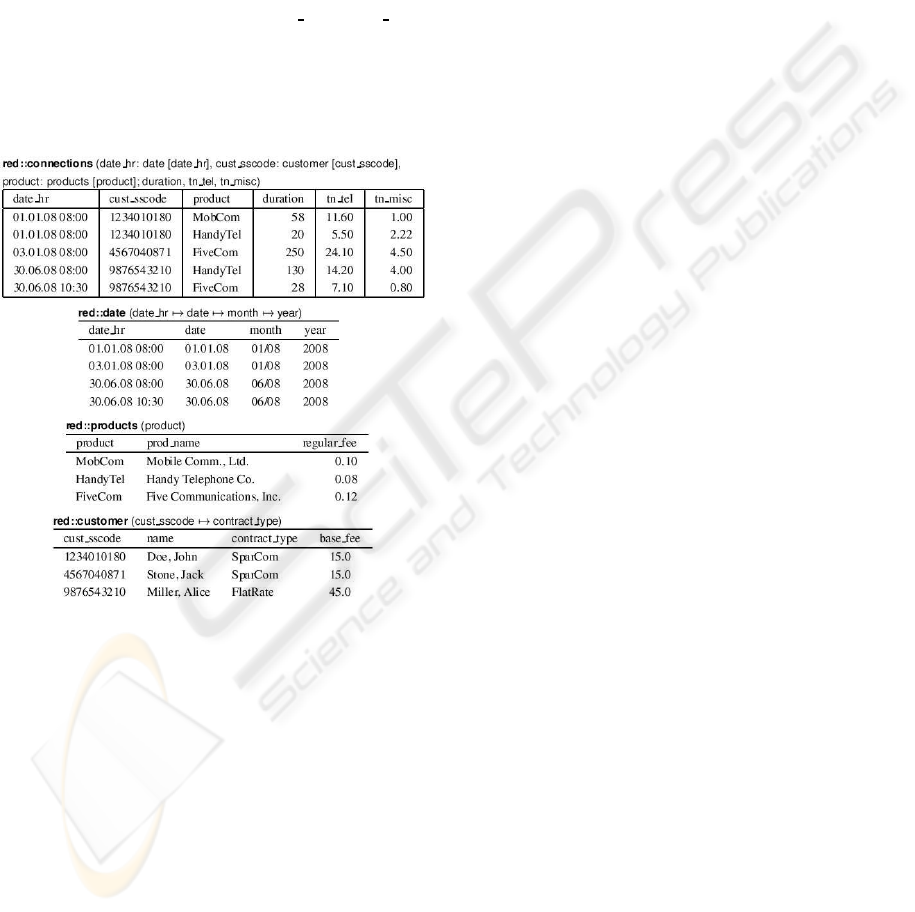

Figure 1: Fact and dimension tables of company “Red”.

Assuming that Red’s management wants to access

the integrated view on Blue’s and its own data as soon

as possible, current DW approaches fall short. Due to

the autonomy of both companies, the two “connec-

tions” Data Marts cannot be physically integrated un-

less Red and Blue would create a common central au-

thority. As the review of related work indicates (see

Section 2), there is need for approaches and tools ca-

pable of DW integration on the logical schema level.

Our previous work has studied Data Mart inte-

gration from the conceptual perspective. We intro-

duced the Dimension Algebra and Fact Algebra with

conversion operators for multi-dimensional schemas

and data, addressing all heterogeneities identiﬁed in

(Berger and Schreﬂ, 2006). Mappings formulated

with these operators overcome structural and data het-

erogeneity among the logical schemas of autonomous

Data Marts (Berger and Schreﬂ, 2008).

In this paper we present the prototype of FedDW,

a Query Tool for federations of ROLAP Data Marts.

The tool allows its users to match autonomous Data

Marts with SQL-MDi statements – that implement the

Dimension Algebra and Fact Algebra operators – and

formulate SQL queries over the global schema. When

evaluating end user queries, FedDW generatesa query

plan over the local Data Marts from the operator tree.

The main contribution of our paper is the proof-of-

concept implementation of a query tool for Data Mart

federations. To the best of our knowledge, FedDW

is the ﬁrst query tool that combines query answering

in federated systems with multi-dimensional data in-

tegration. Our prototype represents a useful ﬁrst step

towards the development of industrial strength query

tools for Federated Data Warehouses.

The paper is structured as follows. Sect. 2 reviews

previous approaches of DW integration. In Sections 3

and 4 we summarize FedDW’s functionality and illus-

trate its use, while Section 5 sketches the tool’s imple-

mentation. Finally, Section 6 concludes the paper.

2 STATE OF THE ART

Integration of heterogeneous data has been a ma-

jor challenge for the database community over the

past decades (Halevy et al., 2006; Doan and Halevy,

2005). Lately, the more sophisticated problem of Data

Warehouse integration has drawn the attention of re-

searchers. In the following subsections we brieﬂy re-

view previous effort made in these directions.

2.1 Multi-system Query Languages

The ﬁrst approaches towards interoperability of het-

erogeneous databases have developed multi-database

query languages. Multi-database systems are

“lightweight” federations without a global schema. In

these systems, the user is responsible for matching

the heterogeneities among data when formulating the

query.

Multi-database languages extend standard query

languages with conﬂict resolution features for schema

and data heterogeneity. The most useful approach

for the Data Warehousing area is nD-SQL. The nD-

SQL language introduces powerful schema trans-

formations – e.g., variables ranging over attribute

names and other meta-data – and even supports multi-

dimensional data (Gingras and Lakshmanan, 1998).

Aggregation hierarchies in dimensions cannot be rep-

resented, though, which seems too restrictive in most

ICEIS 2009 - International Conference on Enterprise Information Systems

114

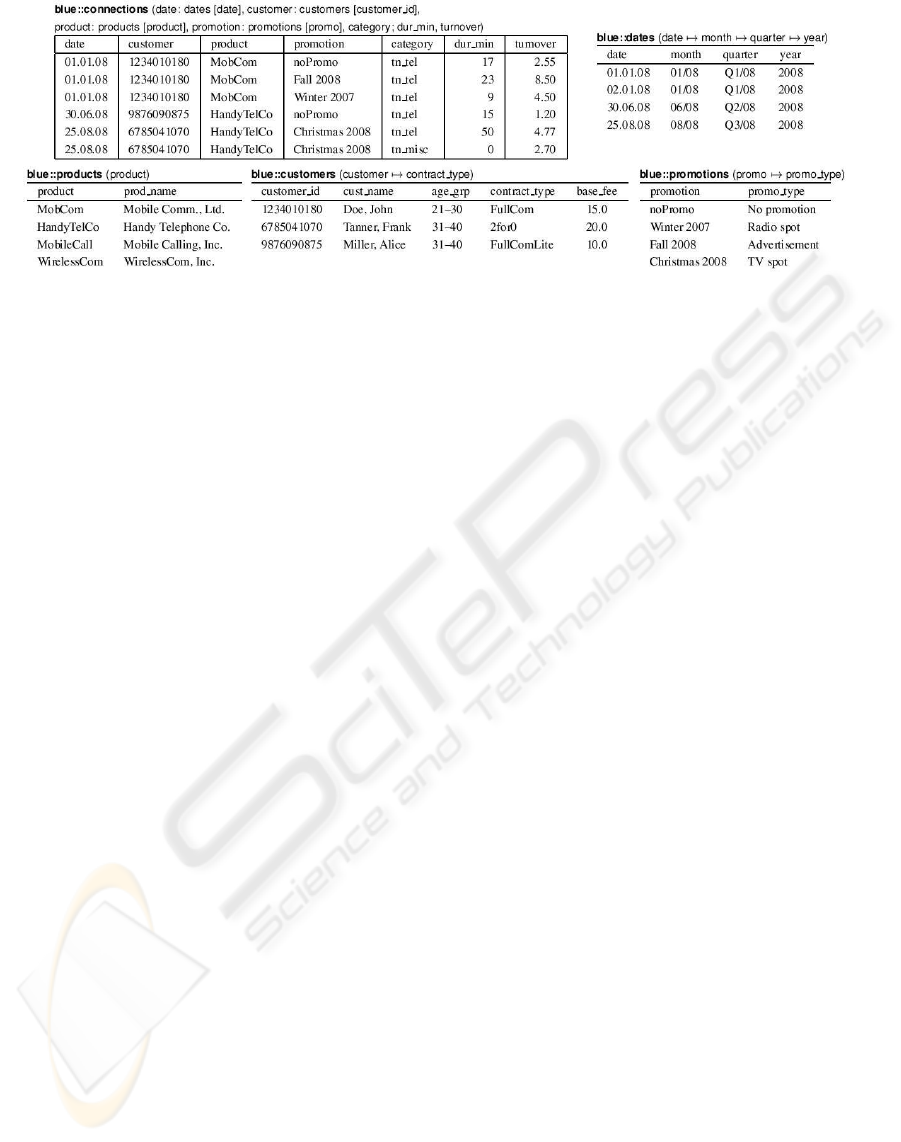

Figure 2: Fact and dimension tables of company “Blue”.

practical scenarios. Other prominent examples of

multi-database languages are Schema-SQL (Laksh-

manan et al., 2001) and MSQL (Grant et al., 1993).

Only few approaches have addressed extensions

of standard SQL for OLAP applications in distributed

Data Warehouses. For example, SQL

formally de-

ﬁnes an OLAP data model and introduces a set of

transformation operators. The SQL

language sup-

ports irregular hierarchies in dimensions of stand-

alone Data Warehouses – e.g., multiple aggregation

paths. Although the approach allows the user to in-

clude additional XML data extendingthe query scope,

SQL

does not support matches between multiple

Data Mart schemas (Pedersen et al., 2002).

In contrast, the SQL-MDi language allows OLAP

queries across several autonomous Data Marts.

SQL-MDi introduces sets of conversion operators

that resolve heterogeneities among multi-dimensional

schemas and data, including aggregation hierarchies

(Berger and Schreﬂ, 2006). At query time, the FDW

uses the conversion operators to translate distributed

data to the global schema, and it computes the query

result from the virtual global cube. The semantics

of SQL-MDi has been formally deﬁned with the so-

called Dimension Algebra and Fact Algebra, that are

based upon closed set operations like the Relational

Algebra (Berger and Schreﬂ, 2008).

2.2 Integration of Data Warehouses

Data Warehouse integration is complex because

their schemas conform to the multi-dimensional data

model. This means that so-called “data cubes” store

facts in measure attributes that are categorized by the

attributes of several dimensions. The dimensions,

in turn, may be organized in hierarchies of aggrega-

tion levels. Thus, matchings of multi-dimensional

schemas have to consider (1) the attributes in facts

and dimensions, (2) the dependencies between facts

and dimensions, and (3) the aggregation hierarchies.

Dimension integration – a sub-problem of multi-

dimensional data integration – has been addressed by

some recent projects. For example, “DaWaII” is a

visual tool that allows the user to specify mappings

between dimensions and check their compatibility

(Cabibbo and Torlone, 2005; Torlone and Panella,

2005). In order to automatically discover semantic

matches among dimension schemas, the approach of

(Banek et al., 2007) combines structural schema com-

parison with linguistic heuristics.

In contrast, fact integration has not received much

attention yet. Although integration techniques devel-

oped for databases – e.g., (Zhao and Ram, 2007) –

probably also apply for Data Warehousing, the au-

tomatic discovery of matches between facts of au-

tonomous Data Marts remain an open research prob-

lem. Thus, the facts of multi-dimensional schemas

still have to be matched manually.

In order to reduce complexity, the integration of

multi-dimensional data should concentrate on Data

Marts instead of complete DWs. Some previous ap-

proaches have proposed loosely coupled Data Mart

federations without a global schema. For example,

(Mangisengi et al., 2003) deﬁne an XML-based query

language which allows the ad-hoc integration of Data

Marts. The XML layer of their approach exchanges

meta-data between autonomousschemas and supports

some simple transformation of the data. In contrast,

(Abell´o et al., 2002) deﬁne relationships based on

structural similarity between Data Marts that enable

drill-across queries. Clearly, the disadvantage of such

systems is that the user is responsible for repairing all

conﬂicts within the query.

Federations of Data Marts with a mediated global

schema – called Federated Data Warehouses – are the

ideal solution from the user’s point of view. Such

an architecture hides schema and data heterogene-

ity while the participating Data Marts remain au-

tonomous. The FDW manages the mappings between

the global and local schemas, which allows the refor-

FedDW: A TOOL FOR QUERYING FEDERATIONS OF DATA WAREHOUSES - Architecture, Use Case and

Implementation

115

mulation of user queries and translation of the query

results (Berger and Schreﬂ, 2008). The federated ap-

proach isolates the global schema from changes in the

Data Marts. Should the autonomous schemas evolve,

the global schema remains valid – only the outdated

mappings must be changed accordingly.

Algorithms for query processing in Distributed

DWs have brought interesting ﬁndings that are also

relevant for Federated DWs. In particular, two ap-

proaches named Skalla (Akinde et al., 2003) and

DWS-AQA (Bernardino et al., 2002) have indepen-

dently introduced the idea of globally replicating con-

solidated dimensions. The experiments conducted in

both these approaches indicate that replicated dimen-

sions improve the overall response time of queries

against the global schema. Query answering in such

settings is reduced to the retrieval of facts because all

dimension data is globally available.

3 FedDW ARCHITECTURE

“FedDW” is the prototype of a query tool for Feder-

ated Data Warehouse systems, as depicted in Fig. 3.

In this architecture, the query tool acts as mediator:

FedDW receives user queries that are formulated over

the global schema and rewrites each query to a set of

queries against the local Data Marts. Finally, the tool

translates the distributed data into the virtual global

cube from which it computes the query result.

FDW systems conforming to the architecture de-

picted above are tightly coupled data integration sys-

tems with the global schema deﬁned over several au-

tonomous Data Marts. In this reference architecture,

the users access the global schema with OLAP query

tools. The intermediate federation layer stores the se-

mantic matches between the import schemas of the

Data Marts and the global schema, using a canoni-

cal data model. So-called wrappers manage the com-

munication between the federation layer and the Data

Marts since they send the reformulated queries and

ship back the answers (Berger and Schreﬂ, 2008).

FedDW encapsulates the core functionality of the

Federated Data Warehouse system. It manages data

translation between the autonomous Data Marts and

the global schema, according to the semantic matches

formulated in the SQL-MDi language. Internally, the

FedDW tool expresses the semantic matches as se-

quences of Dimension Algebra and Fact Algebra op-

erators (Berger and Schreﬂ, 2008). User queries are

answered over the virtual global cube which FedDW

computes from the autonomous Data Marts, as speci-

ﬁed by the matching operators. Accordingly, the tool

consists of two components: the SQL-MDi parser and

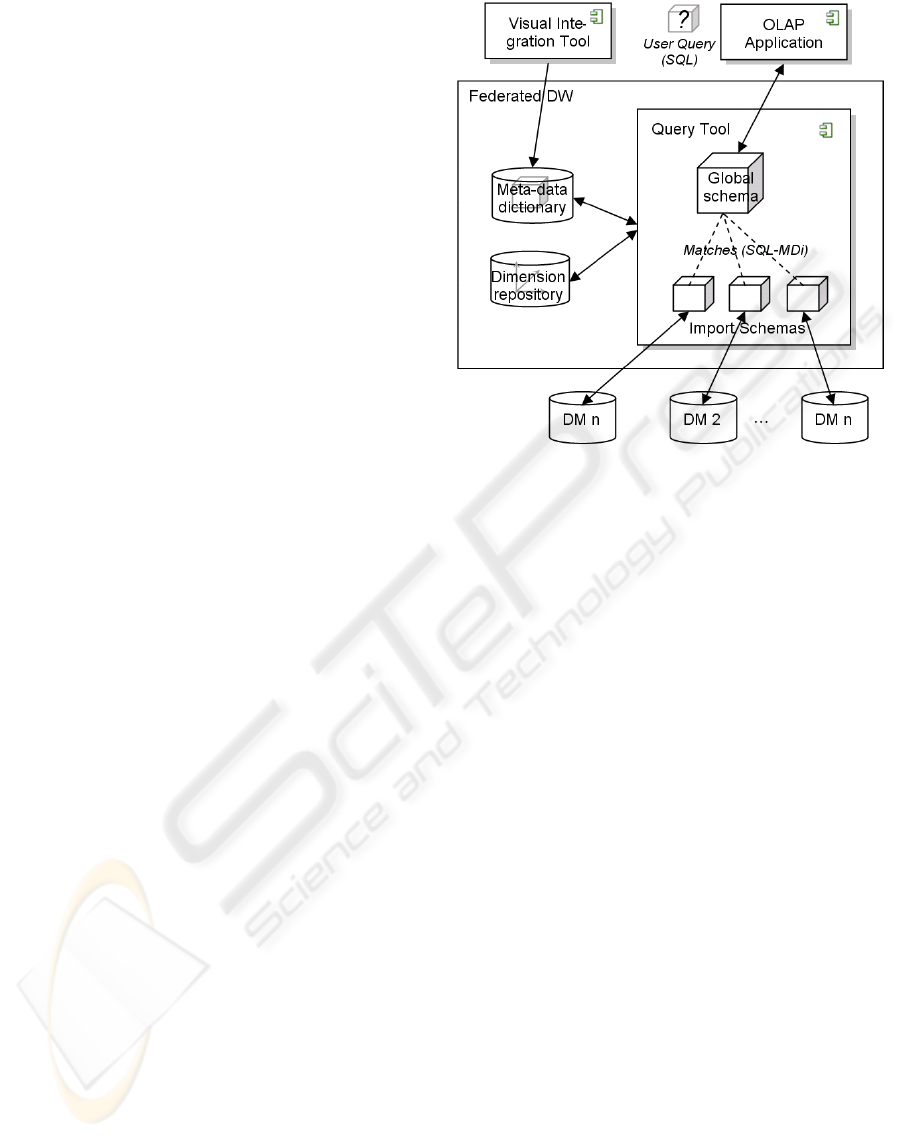

Figure 3: Federated Data Warehouse Architecture.

SQL-MDi processor (Rossgatterer, 2008).

Two auxiliary components, the Meta-data Dictio-

nary and the Dimension Repository, complement the

functionality of the FDW. The former improves the

usability of the system because it not only keeps track

of the import schemas for each autonomous Data

Mart, but it also saves the semantic matches persis-

tently. The latter increases performance of user query

answering by providing local copies of the dimen-

sions in the Data Marts, as proven by the experiments

of (Bernardino et al., 2002; Akinde et al., 2003).

The Visual Integration Tool (VIT), which assists in

populating the Meta-data Dictionary, is an important

supplementary utility in the FDW architecture (cf.

Figure 3). The VIT allows the user to deﬁne semantic

matches between Data Marts and the global schema

using UML-based diagrams, and store the matches

persistently as SQL-MDi statements. At query time,

the FedDW tool automatically retrieves the SQL-MDi

code of the matches from the Meta-data Dictionary.

The FedDW user may concentrate on OLAP query-

ing without having to bother about conﬂict resolution.

Thus, the usability of FedDW improves considerably.

Currently, the FedDW Query Tool prototype of-

fers the following functionality:

• FedDW’s user interface accepts an SQL-MDi

statement and an OLAP query – formulated

in SQL – as input. The SQL-MDi statement

resolves conﬂicts among the autonomous Data

Marts by specifying a global schema and match-

ing it against the Data Mart schemas. In turn, the

SQL OLAP query formulates the user’s business

ICEIS 2009 - International Conference on Enterprise Information Systems

116

question over the virtual global cube, that adheres

to the global schema (Figure 4 gives an example).

• On executionof the query,the prototypecomputes

the virtual global cube as instance of the global

schema. It then translates all local data as spec-

iﬁed by the semantic matches in the SQL-MDi

statement, and executes the SQL query. The user

interface displays the current progress of query

processing (see Figure 4).

• Finally, the query result pops up in an additional

window that allows to drill into the details – facts

and dimensions – of the virtual global cube (see

Figure 5). In OLAP terminology, such operations

are denoted as drill through.

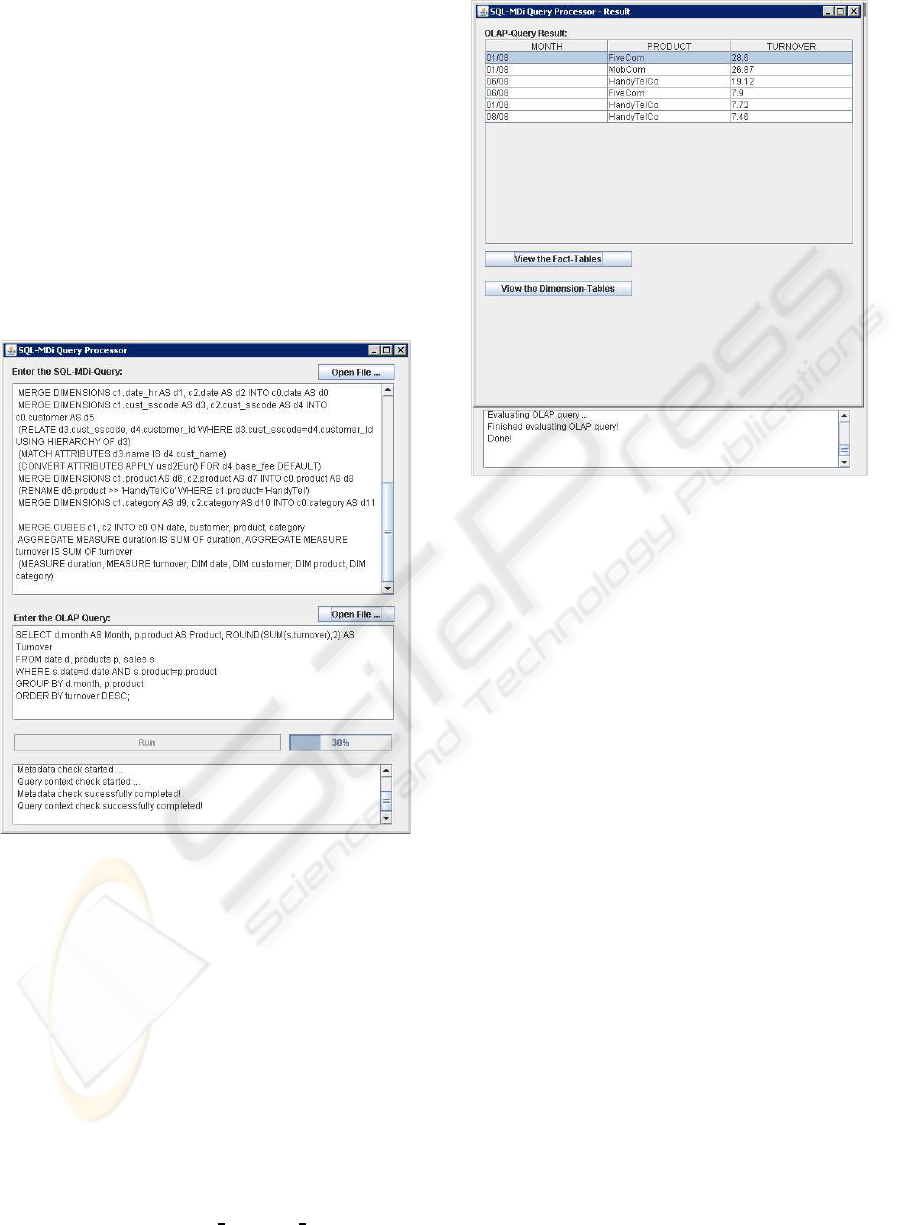

Figure 4: FedDW prototype: Graphical User Interface.

In the next Section we will explain the conﬂict res-

olution features of FedDW in detail.

4 USE CASE TOUR OF FedDW

Let us now assume that the management of mobile

network provider Red decides to integrate its sales

Data Mart with Blue’s under a federation. The fact

and dimension tables of Red and Blue are shown in

Figs. 1 and 2, respectively. In particular, the two Data

Mart schemas are brieﬂy characterized as follows:

• Provider “Red” stores the data of turnover within

the measures duration, tn tel and tn misc, catego-

rized by the dimensions date, customer and prod-

Figure 5: FedDW prototype: View Results.

ucts (see Figure 1). The aggregation levels of the

dimensions are given in brackets. As monetary

unit for the measures Red’s schema uses Euros.

• “Blue” stores its turnover data within the mea-

sures duration and turnover, structured by the di-

mensions date, customer, product, promotion and

category (see Figure 2). Again, the aggregation

levels of these dimensions are given in brackets.

Blue’s schema uses US-Dollars as monetary unit.

FedDW supports numerous strategies for resolv-

ing heterogeneities among the facts and dimensions

of autonomous Data Marts. Tables 1 and 2 list the

conﬂicts identiﬁed in (Berger and Schreﬂ, 2006) and

describe the corresponding resolution techniques em-

ployed in FedDW. The two tables also map the reso-

lution techniques to the relevant SQL-MDi operators.

Using FedDW, the Data Marts of Red and Blue

may be integrated with the SQL-MDi code listed in

Figure 6. This statement matches the local facts and

dimensions with the global schema, which is very

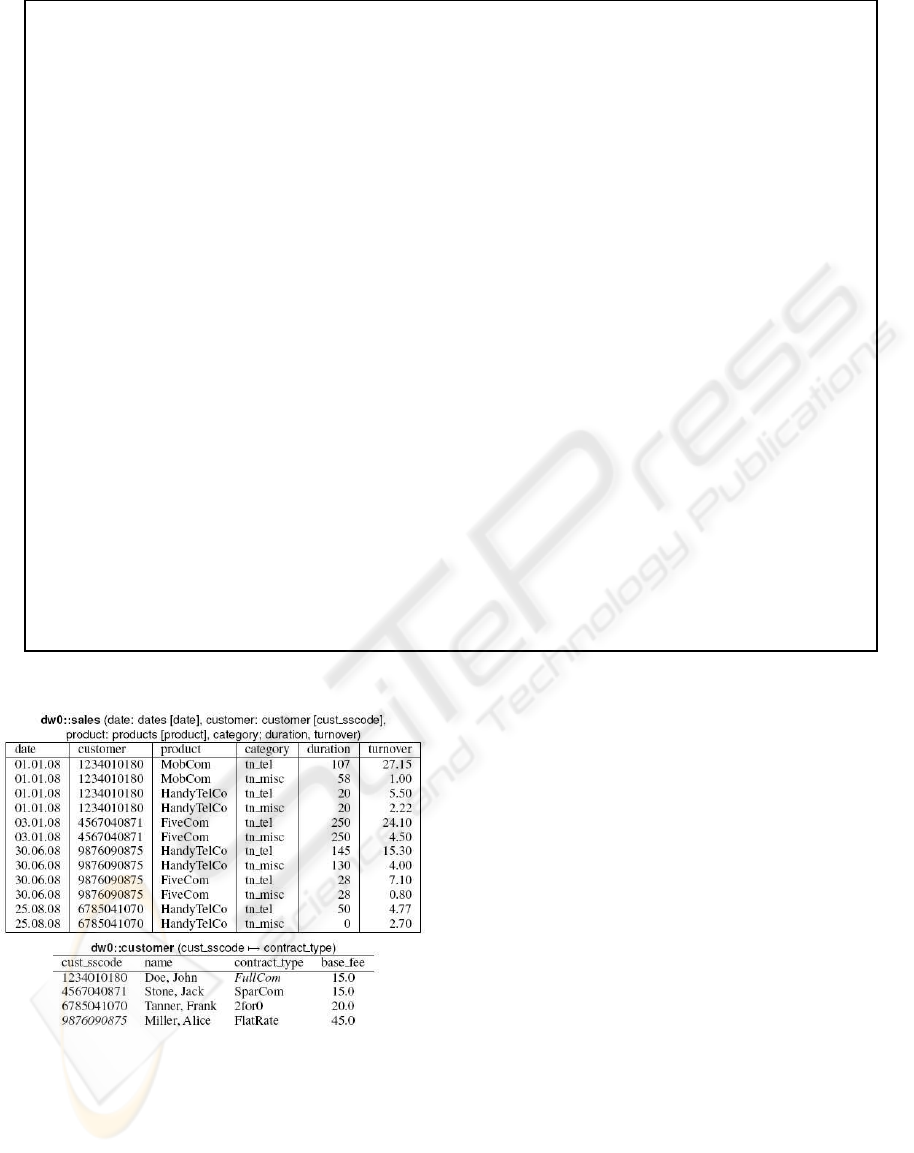

similar to Red’s schema. Figure 7 depicts the fact

table of the virtual global cube, as speciﬁed by the

sample SQL-MDi statement. For brevity, the ﬁgure

omits the global dimension tables (except customer).

The SQL-MDi language uses three main clauses

for deﬁning the global schema and semantic matches:

(1) DEFINE [GLOBAL] CUBE, (2) MERGE DIMENSIONS,

and (3) MERGE CUBES. The CUBE clauses specify the

attribute structure of both the virtual global cube and

the import schemas of the autonomous Data Marts.

FedDW: A TOOL FOR QUERYING FEDERATIONS OF DATA WAREHOUSES - Architecture, Use Case and

Implementation

117

Table 1: Conﬂict resolution strategies of FedDW for facts, and corresponding language support.

Conﬂict addressed Resolution technique Relevant SQL-MDi clause of FedDW

– Import fact table (“cube”) CUBE operator

Example: see lines 1, 5, and 13 in Figure 6

Dimensionality conﬂicts Import dimension attributes DIM keyword

(Number of DIM references determine cube dimensionality) Example: see lines 2, 7, 9, and 11 in Figure 6

Overlapping / disjoint measures Import measure attributes MEASURE keyword

Example: see lines 2, 6, and 7 in Figure 6

Naming conﬂicts (measures

and dimension attributes)

Rename attributes

Operator “–>”; Examples (cf. Figure 6):

line 6 (measure attribute)

line 9 (dimension attribute)

Schema-instance conﬂicts Merge measures PIVOT MEASURES ... INTO clause of CUBE

(Converts fact context into members of a new dimension) Example: see line 3 in Figure 6

Schema-instance conﬂicts Split measures PIVOT MEASURE ... BASED ON clause of CUBE

(Generates “contextualized facts” from dimension members) (Not used in sample query.)

Heterogeneous base levels Roll-up dimension attributes ROLLUP clause of CUBE

(Corrects domain conﬂicts among dimension attributes) Example: see line 4 in Figure 6

Domain conﬂicts (measures) Convert measure domains CONVERT MEASURES APPLY ... clause of CUBE

Example: see line 12 in Figure 6

Overlapping cube cells

(fact table extensions)

Join fact tables (“cubes”) MERGE CUBES ... [set-operation]

Example: see line 23 in Figure 6

Overlapping cube cells Aggregate measure values

AGGREGATE MEASURE clause of MERGE

CUBES operator

Example: see line 24 in Figure 6

For each dimension of the global schema the MERGE

DIMENSIONS clause deﬁnes its members and hierar-

chy from the imported dimensions. Analogously, the

MERGE CUBES clause determines how to compute the

cells of the global cube from the imported facts.

Within each of its main clauses SQL-MDi de-

ﬁnes a number of operators to repair heterogeneous

schemas and instances of facts and dimensions (cf.

Tables 1 and 2). While the CUBE clause allows to

repair heterogeneities among the Data Mart import

schemas, the MERGE clauses mainly provide oper-

ators for the deﬁnition of tuple matchings and transla-

tions in dimensions and facts. Semantic matches be-

tween elements of autonomous Data Marts are gener-

ally expressed by equal naming. Thus, renaming op-

erations often occur in SQL-MDi, as explained later.

In what follows, we demonstrate how “Red” ap-

plies SQL-MDi to resolve the heterogeneities among

the Red and Blue sales Data Marts, using the sample

statement of Figure 6. For a systematic overview of

the available options please refer to Tables 1 and 2.

In detail, the sample SQL-MDi statement applies the

following conﬂict resolution techniques:

[Lines 1–12]: In the ﬁrst part of the query the user

speciﬁes the Data Marts’ import schemas. Notice that

the DEFINE keyword is needed only once. The two

CUBE clauses (lines 1 and 5) import the example Data

Marts, referencing their measure and dimension at-

tributes with the adequate keywords (MEASURE, DIM).

It is mandatory to specify an alias for each cube (AS

keyword) to facilitate access to its properties later on.

[Lines 1–4]: The CUBE clause imports Red’s Data

Mart and performs two transformations. First, line 3

repairs the schema-instance conﬂict among the two

fact tables by merging the existing measures tn tel and

tn misc into a single turnover measure. This operation

generates the context dimension “category”. Second,

line 4 rolls-up the dimension attribute date hr to level

date, so to match Blue’s date granularity.

[Lines 5–12]: The other CUBE clause imports

Blue’s Data Mart and speciﬁes four transformations.

First, the MAP LEVELS clause in line 8 restricts the

levels of the date dimension. Only those levels ref-

erenced in square brackets are kept in the import

schema. Notice that the DIM keyword automatically

imports all levels if MAP LEVELS is omitted (as for

the dimensions of Red’s Data Mart). Second, line 9

renames the dur min measure attribute. Third, lines 6

and 10 rename dimension attribute customer and level

customer id, respectively. Fourth, line 12 calls the

stored procedure usd2Eur() to convert the domain of

Blue’s turnover measure from US-$ to Euro.

[Lines 2 and 9–11]: Dimensionality of the import

schema is determined by the number of explicit ref-

erences to dimensions of the underlying Data Mart,

using the DIM keyword. Recall that schema Blue de-

ﬁnes the additional promotions dimension, which is

impossible to match with any of Red’s dimensions.

Thus, dimension promotions is excluded from the im-

port schema of Blue’s Data Mart (see line 11, cf.

with line 2) by omitting the DIM promotions import

speciﬁcation. This way, the dimensionality conﬂict

ICEIS 2009 - International Conference on Enterprise Information Systems

118

Table 2: Conﬂict resolution strategies of FedDW for dimensions, and corresponding language support.

Conﬂict addressed Resolution technique Relevant SQL-MDi clause of FedDW

Heterogeneous hierarchies Match corresponding levels MAP LEVELS clause of DIM keyword

(Import levels of dimensions referenced by cube import) Example: see lines 8, and 10 in Figure 6

Naming conﬂicts (level attributes

and non-dimensional attributes)

Rename attributes

Operator “–>” (level attributes)

Example: see line 10 in Figure 6

MATCH ATTRIBUTES clause of MERGE DIMEN-

SIONS operator (non-dimensional attributes)

Example: see line 18 in Figure 6

Overlapping members

(dimension extensions)

Merge dimension members MERGE DIMENSIONS ... [set-operation]

Example: see lines 15, 16, 20, and 22 in Fig. 6

Heterogeneous roll-up functions

(i.e. hierarchies between members)

Overwrite roll-up hierarchies

RELATE ... USING HIERARCHY OF ... clause of

MERGE DIMENSIONS operator

Example: see line 17 in Figure 6

Domain conﬂicts (level attributes

and non-dimensional attributes)

Convert attribute domains

CONVERT ATTRIBUTES APPLY ... clause of

MERGE DIMENSIONS operator

Example: see line 19 in Figure 6

Conﬂicting values of non-

dimensional attributes

Correct attribute values RENAME clause of MERGE DIMENSIONS

Example: see line 21 in Figure 6

among the two Data Marts is repaired; considering

the category dimension generated in line 3, both im-

port schemas contain four-dimensional cubes.

[Line 13]: The global schema is not deﬁned im-

mediately. Instead, the GLOBAL CUBE clause is a for-

ward declaration, simply reserving its name and alias

for later use (cf. line 23).

[Lines 15–22]: Next, the MERGE DIMENSIONS

clauses specify how to populate the global dimen-

sions with tuples (“members”). In our example,

the customer dimensions need several directives for

conﬂict resolution: (a) the member hierarchy of

Red’s customers should override Blue’s hierarchy

(line 17); (b) the non-dimensional attributes name and

cust name are matched (line 18); and (c) the domain

of base fee is converted from US-$ to Euro (line 19).

Moreover, line 21 changes value ‘HandyTel’ in Red’s

product dimension to the correct ‘HandyTelCo’.

[Lines 23–25]: Finally, the global fact table is

determined by the MERGE CUBES clause (line 23),

which completes the forward declaration given in

line 13. In order to compute the correct values for all

measures, line 24 speciﬁes the adequate aggregation

function to apply for overlapping cube cells.

To examine the global cube deﬁned by the SQL-

MDi statement, the user enters an SQL OLAP query

as well. In our example, the user has been interested

in “How much turnover has our company generated

over the last year, grouped by month and product?”,

as depicted in Figure 4. Upon successful execution of

the sample SQL-MDi statement, FedDW returns the

virtual global cube. Then it evaluates the SQL OLAP

query and displays its result, as shown in Figure 5.

5 FedDW IMPLEMENTATION

Having demonstrated the capabilities of the FedDW

tool in our sample use case, the following section will

brieﬂy summarize its implementation. It was guided

by the following aims: (1) Minimize the design ef-

fort through the reuse of well-known software design

patterns. (2) Use standards whenever available for

FedDW’s internal data model in order to maximize

the interoperability of FedDW. (3) Support multiple

platforms (i.e. databases and operating systems).

5.1 FedDW Query Tool Components

The SQL-MDi parser component of FedDW checks

the syntactic and semantic correctness of the SQL-

MDi matching expressions, i.e. whether all clauses

conform to the EBNF grammar speciﬁcation of

the SQL-MDi language and whether all referenced

schema elements exist in the autonomous Data Marts.

The parser communicates with the Meta-data Dictio-

nary (cf. subsection 5.2) to verify the query syntax

and semantics. If the parser detects errors it returns a

description and gives hints on possible reasons.

From the input SQL-MDi statement the parser

component generates a data structure called the op-

erator tree. It contains the sequence of Fact and Di-

mension Algebra speciﬁed by the SQL-MDi match-

ing expression. The leaf nodes of the operator tree

contain the unary algebraic transformations of facts

and dimensions, whereas the internal nodes – called

“structure nodes” – represent the binary operators,

specifying how to merge the intermediate results to

the virtual global cube. Upon completion of parsing,

FedDW: A TOOL FOR QUERYING FEDERATIONS OF DATA WAREHOUSES - Architecture, Use Case and

Implementation

119

1 DEFINE CUBE

red::connections AS c1

(MEASURE c1.duration , MEASURE c1.tn_tel , MEASURE c1.tn_misc , DIM c1.date_hr

, DIM c1.cust_sscode , DIM c1.product ,

PIVOT MEASURES c1.tn_tel , c1.tn_misc INTO c1.turnover USING c1.category)

(ROLLUP c1.date_hr TO LEVEL c1.date[date])

5 CUBE

blue::connections AS c2

(MEASURE c2.dur_min -> duration ,

MEASURE c2.turnover , DIM c2.date

(MAP LEVELS c2.date( [date], [month], [year] )),

DIM c2.customer -> cust_sscode

(MAP LEVELS c2.customer ( [customer_id -> cust_sscode ] , [contract_type ] )

DIM c2.product , DIM c2.category)

(CONVERT MEASURES APPLY usd2Eur() FOR c2.turnover DEFAULT) )

13 GLOBAL CUBE

dw0::sales AS c0

15 MERGE DIMENSIONS

c1.date_hr AS d1, c2.date AS d2 INTO c0.date AS d0

16 MERGE DIMENSIONS

c1.cust_sscode AS d3, c2.cust_sscode AS d4 INTO c0.customer

AS d5

(RELATE d3.cust_sscode , d4.customer_id WHERE d3.cust_sscode=d4.customer_id

USING HIERARCHY OF d3)

(MATCH ATTRIBUTES d3.name IS d4.cust_name)

(CONVERT ATTRIBUTES APPLY usd2Eur() FOR d4.base_fee DEFAULT)

20 MERGE DIMENSIONS

c1.product AS d6, c2.product AS d7 INTO c0.product AS d8

(RENAME d6.product >> ’HandyTelCo’ WHERE c1.product=’HandyTel ’)

22 MERGE DIMENSIONS

c1.category AS d9, c2.category AS d10 INTO c0.category AS

d11

23 MERGE CUBES

c1, c2 INTO c0 ON date , customer , product , category

AGGREGATE MEASURE duration IS SUM OF duration , AGGREGATE MEASURE turnover

IS SUM OF turnover

(MEASURE duration , MEASURE turnover , DIM date , DIM customer , DIM product ,

DIM category)

Figure 6: Example SQL-MDi statement, integrating Red’s and Blue’s Data Marts.

Figure 7: Fact table “sales” of virtual global cube “dw0”.

the ordering of operators in the tree is optimized alge-

braically such that the size of intermediate results is

reduced as early as possible (Brunneder, 2008).

FedDW’s query processor component receives the

operator tree from the SQL-MDi parser and computes

the query result over the virtual global cube. All unary

transformations in the leaf nodes are traversed “from

left to right”. Then these intermediate results are com-

bined step by step, according to the structure node op-

erators. The ordering of nodes given in the operator

tree remains unchanged (Rossgatterer, 2008).

The critical phase of the query processing algo-

rithm is the generation of an optimal query plan. This

means that the processor reformulates the original

user query into a sequence of queries over the au-

tonomous Data Marts. If the operator tree refers to

dimensions that exist in the Dimension Repository

(cf. Section 3), the processor eliminates the accord-

ing sub-queries from the query plan and instead reads

the intermediate results from the repository. Thus, the

amount of data shipped between the autonomous DW

systems is reduced, as shown by (Bernardino et al.,

2002; Akinde et al., 2003).

The implementation of a language parser is known

to be rather mechanical and thus easy to automatize.

Several software tools – called compiler generators –

have been developed that enable the automatized gen-

eration of parsers. FedDW’s parser component has

been generated with the JavaCC framework, based

upon the formal description – the grammar – of the

underlying SQL-MDi language, augmented with so-

called production rules (Brunneder, 2008).

ICEIS 2009 - International Conference on Enterprise Information Systems

120

In order to optimize the runtime performance and

extensibility of the parser and processor components,

we applied several well-known software design pat-

terns. As far as the parser is concerned, the genera-

tion of the operator tree from the SQL-MDi statement

conforms to the Visitor design pattern. It consists of

(1) a hierarchy of classes representing the nodes of

some data structure to be traversed, and (2) the vis-

itor class. Each node class provides an

Accept()

method with the visitor class as input parameter.

Moreover, the visitor class contains a corresponding

visitElement()

method for each

Accept()

method

of the node classes (Gamma et al., 1995). The JavaCC

frameworkautomatically applies the Visitor pattern in

the source code it generates (Brunneder, 2008).

The operator tree itself is implemented as Abstract

Syntax Tree (AST) data structure. An AST represents

the syntax of some languagestring within the nodes of

a tree, whereby each node denotes a construct of the

language (Reilles, 2007). By combining the Visitor

pattern with the AST structure we cleanly separate the

implementation of the parser from the deﬁnition of

the underlying query language. Thus, neither syntax

changes nor the introduction of new operators affect

the existing implementation. Consequently, the effort

necessary to support language extensions is kept min-

imal (Brunneder, 2008).

Finally, the processor component employs the It-

erator model for the implementation of the Fact and

Dimension Algebra transformation operators. Ac-

cording to the Iterator model, every operator class

processes a single tuple instead of a data block per

call. Moreover, every operator class works in isola-

tion; this means that it must not communicate with

other operator classes nor the overall query plan to

compute its result (Graefe and McKenna, 1993). The

Iterator pattern offers two advantages. First, it allows

to parallelize the traversal of the operators in the tree

nodes. Second, the set of operators available in the

underlying query language and algebra can easily be

extended (Rossgatterer, 2008).

In order to maximize FedDW’s compatibility with

common databases, its internal data model complies

to CWM, the Common Warehouse Metamodel (Med-

ina and Trujillo, 2002). Our FedDW prototype sup-

ports the Oracle and Microsoft SQL Server 2005

database systems. Both the parser and processor com-

ponents are implemented in Java. Therefore, FedDW

runs on multiple operating systems.

5.2 Auxiliary System Components

The Meta-data Dictionary of the FDW architecture

represents the system’s schema catalogue. It stores

current snapshots of (1) the global schema, (2) each of

the local schemas in the autonomous Data Marts, and

(3) the semantic matches speciﬁed in the SQL-MDi

language. The Meta-data Dictionary offers two ad-

vantages to the “FedDW” query tool. First, the SQL-

MDi processor component may retrieve the semantic

matches from the dictionary, such that the details of

schema matching and data translation remain trans-

parent to the users. Otherwise the users would be re-

sponsible for matching the schemas manually for each

query. Second, it enables the SQL-MDi parser com-

ponent to check the validity of the schema elements

(e.g., dimension names, measure attribute names) ref-

erenced by the statement.

As depicted in Figure 3, the Dimension Repository

complements the FDW architecture. The repository

holds copies of the data stored in the dimensions of

the autonomous Data Marts, translated into the global

schema. This approach reduces the complexity of

query processing in the FDW system because fewer

sub-queries are needed. In particular, all sub-queries

that retrieve and translate the dimension data from the

autonomous Data Marts can be eliminated from the

query plan. The conceptual idea behind the Dimen-

sion Repository is motivated by the Skalla (Akinde

et al., 2003) and DWS-AQA approaches (Bernardino

et al., 2002), as mentioned in subsection 2.2.

6 CONCLUSIONS

In this paper we demonstrated the practical realiza-

tion of federated Data Warehouse concepts, introduc-

ing the “FedDW” Query Tool. We explained the fea-

tures of its prototype and demonstrated its use with

a realistic scenario. The FedDW prototype together

with an example scenario and instructions is available

for download on our website http://www.dke.jku.at.

Soon we will release the prototype of the Visual

Integration Tool as well. As mentioned, the VIT ad-

ministrates the Meta-data Dictionary of the Federated

Data Warehouse approach. It allows the users to per-

sist the semantic matches among autonomous Data

Marts and the global schema as SQL-MDi statements.

In conjunction, the FedDW Query Tool and Visual In-

tegration Tool offer comprehensive functionality for

the integration of autonomous Data Marts.

Our ﬁrst experiments with FedDW showed rea-

sonable performance and good usability. The viability

of the FedDW approach depends on its performance

with large data sets. This is subject of our future work.

FedDW: A TOOL FOR QUERYING FEDERATIONS OF DATA WAREHOUSES - Architecture, Use Case and

Implementation

121

ACKNOWLEDGEMENTS

We thank Wolfgang Brunneder and Thomas Rossgat-

terer for implementing the parser respectively the pro-

cessor components of FedDW.

REFERENCES

Abell´o, A., Samos, J., and Saltor, F. (2002). On Rela-

tionships Offering New Drill-across Possibilities. In

Theodoratos, D., editor, DOLAP, pp. 7–13. ACM.

Akinde, M. O., B¨ohlen, M. H., Johnson, T., Lakshmanan,

L. V. S., and Srivastava, D. (2003). Efﬁcient OLAP

Query Processing in Distributed Data Warehouses.

Inf. Syst., 28(1-2):111–135.

Banek, M., Vrdoljak, B., Tjoa, A. M., and Skocir, Z. (2007).

Automating the Schema Matching Process for Hetero-

geneous Data Warehouses. In Song, I. Y., Eder, J., and

Nguyen, T. M., editors, DaWaK, volume 4654 of Lec-

ture Notes in Computer Science, pp. 45–54. Springer.

Berger, S. and Schreﬂ, M. (2006). Analysing Multi-Dimen-

sional Data across Autonomous Data Warehouses. In

Tjoa, A. M. and Tho, N., editors, DaWaK, pp. 120–

133. Springer.

Berger, S. and Schreﬂ, M. (2008). From Federated

Databases to a Federated Data Warehouse System.

HICSS, 0:394.

Bernardino, J., Furtado, P., and Madeira, H. (2002). DWS-

AQA: A Cost Effective Approach for Very Large Data

Warehouses. In Nascimento, M. A.,

Ozsu, M. T., and

Za¨ıane, O. R., editors, IDEAS, pp. 233–242.

Brunneder, W. (2008). Development of an SQL-MDi Query

Parser (in German). Master’s thesis, Univ. of Linz.

Cabibbo, L. and Torlone, R. (2005). Integrating Heteroge-

neous Multidimensional Databases. In Frew, J., editor,

SSDBM, pp. 205–214.

Doan, A. and Halevy, A. Y. (2005). Semantic Integration

Research in the Database Community: A Brief Sur-

vey. AI Magazine, 26(1):83–94.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J.

(1995). Design patterns: Elements of Reusable

Object-oriented Software. Addison-Wesley Longman

Publishing Co., Inc., Boston, MA, USA.

Gingras, F. and Lakshmanan, L. V. S. (1998). nD-SQL: A

Multi-dimensional Language for Interoperability and

OLAP. In Gupta, A., Shmueli, O., and Widom, J.,

editors, VLDB, pp. 134–145. Morgan Kaufmann.

Graefe, G. and McKenna, W. J. (1993). The Volcano Op-

timizer Generator: Extensibility and Efﬁcient Search.

In Proceedings of the Ninth International Conference

on Data Engineering, April 19-23, 1993, Vienna, Aus-

tria, pp. 209–218. IEEE Computer Society.

Grant, J., Litwin, W., Roussopoulos, N., and Sellis, T. K.

(1993). Query Languages for Relational Multi-

databases. VLDB J., 2(2):153–171.

Halevy, A. Y., Rajaraman, A., and Ordille, J. J. (2006).

Data Integration: The Teenage Years. In Dayal, U.,

Whang, K.-Y., Lomet, D. B., Alonso, G., Lohman,

G. M., Kersten, M. L., Cha, S. K., and Kim, Y.-K.,

editors, VLDB, pp. 9–16. ACM.

Inmon, W. (2005). Building the Data Warehouse. John

Wiley & Sons, New York, 4

edition.

Kimball, R. (2002). The Data Warehouse Toolkit: Practi-

cal Techniques for Building Dimensional Dataware-

houses. John Wiley & Sons, 2

edition.

Lakshmanan, L. V. S., Sadri, F., and Subramanian, S. N.

(2001). SchemaSQL: An Extension to SQL for Multi-

database Interoperability. ACM Trans. Database Syst.,

26(4):476–519.

Mangisengi, O., Eßmayr, W., Huber, J., and Weippl, E.

(2003). XML-based OLAP Query Processing in a

Federated Data Warehouses. In ICEIS (1), pp. 71–78.

Medina, E. and Trujillo, J. (2002). A Standard for Rep-

resenting Multidimensional Properties: The Common

Warehouse Metamodel (CWM). In Manolopoulos,

Y. and N´avrat, P., editors, ADBIS, volume 2435 of

Lecture Notes in Computer Science, pp. 232–247.

Springer.

Pedersen, D., Riis, K., and Pedersen, T. B. (2002). A Power-

ful and SQL-compatible Data Model and Query Lan-

guage for OLAP. In Zhou, X., editor, Australasian

Database Conference, volume 5 of CRPIT. Australian

Computer Society.

Reilles, A. (2007). Canonical Abstract Syntax Trees.

Electronic Notes in Theoretical Computer Science,

176(4):165 – 179. Proceedings of the 6th Interna-

tional Workshop on Rewriting Logic and its Applica-

tions (WRLA 2006).

Rossgatterer, T. (2008). Query Processing in a Federated

Data Warehouse System (in German). Master’s thesis,

University of Linz.

Torlone, R. and Panella, I. (2005). Design and Develop-

ment of a Tool for Integrating Heterogeneous Data

Warehouses. In Tjoa, A. M. and Trujillo, J., editors,

DaWaK, volume 3589 of Lecture Notes in Computer

Science, pp. 105–114. Springer.

Zhao, H. and Ram, S. (2007). Combining Schema and

Instance Information for Integrating Heterogeneous

Data Sources. Data Knowl. Eng., 61(2):281–303.

ICEIS 2009 - International Conference on Enterprise Information Systems

122
