PROCESS INSTITUTIONALIZATION USING SOFTWARE

PROCESS LINES

Tomás Martínez-Ruiz, Félix García and Mario Piattini

Alarcos Research Grou, Department of Information Technologies and Systems

Escuela Superior de Informática, Universidad de Castilla-La Mancha

Paseo de la Universidad, 4, 13071 Ciudad Real, Spain

Keywords: Software process institutionalization, Process lines, Variability, Flexibility, Tailoring, Standardization,

Variants, Variation points.

Abstract: Software Process Institutionalization is an important step which must be carried out by organizations if they

are to improve their processes, and must take place in a coherent manner in accordance with the

organization’s policies. However, process institutionalization implies adapting processes from a set of the

organization’s standard processes, and these standard processes must be continually maintained and updated

through the standardization of best practices, since adaptation in itself cannot create capable processes. In

this paper we propose using the philosophy of software process lines to design a cycle and specify a set of

techniques and practices to institutionalize software processes. The cycle, techniques and practices include

both process tailoring and process standardization to offer organizations an infrastructure with which to

generate processes that are better fitted to their necessities. The use of our cycle will enable capable

processes to be tailored from software process lines, and the analysis of these processes will permit the

improvement of the organization’s set of standard processes and of the software process line.

1 INTRODUCTION

Software product quality does not depend on its own

quality, but on the quality of the processes used to

create the products and the capability of the

processes (Fuggetta, 2000). In order to guarantee

this, process models include several best practices

obtained from industries. But, since many different

enterprises exist, and each of them has its own

characteristics and, as Humphrey states, “just as

there are no two identical projects in the world,

there are no two identical processes”(Humphrey,

1989), processes must be tailored previously if they

are to be implemented (Yoon et al., 2001).

Software process lines are an approach through

which to manage the variations that appear during

process tailoring (Rombach, 2005). Variability must

be based on a conceptual process with several

variation points and a metaprocess (Bayer et al.,

2005), similar to that of product lines (Bayer et al.,

2006). According to (Lu and Sadiq, 2007) variability

allows the propagation of best practices. SPEM

(Software Process Engineering Metamodel (OMG,

2007)), which is a standard metamodel to represent

processes, may offer support to process lines, by

means of its extension with variants, variation

points and other elements which provide variability

in processes (Martínez-Ruiz et al., 2008).

Furthermore, when processes are tailored they

are more and more fitted to the characteristics and

needs of the enterprise, and therefore become

institutionalized processes of that organization

(Calvo-Manzano et al., 2007). These

institutionalized processes are ingrained in the way

in which the work is performed and there is

commitment and consistency to performing the

process (Chrissis et al., 2006). The philosophy of

institutionalization to create tailor processes is

considered in several improvement standards such as

ISO 15504 (ISO, 2004), and CMMI (SEI, 2002). As

a matter of fact, the third CMMI capability level is

described as “a managed process adapted from a set

of standard processes using some organization

adaptation guidelines, and which provides work

products, measures and other improvement

information” (Chrissis et al., 2006), which is an

institutionalized process.

Since software process lines permit process

tailoring, they facilitate support to institutionalize

359

Martínez-Ruiz T., García F. and Piattini M. (2009).

PROCESS INSTITUTIONALIZATION USING SOFTWARE PROCESS LINES.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

359-362

DOI: 10.5220/0001985803590362

 SciTePress

processes. According to the previously identified

issues, in this paper we describe how processes can

be institutionalized using software process lines, by

means of a cycle with which to manage an

organization’s institutionalization process in an

iterative manner and several techniques and

practices to support the cycle. Section 2 describes

the aforementioned cycle and Section 3 presents an

example of this proposal. Finally, in Section 4 our

conclusions and future work are presented.

2 CYCLE OF SOFTWARE

PROCESS

INSTITUTIONALIZATION

The proposed cycle contains the basic activities

through which to perform process

institutionalization. shows the steps included in the

institutionalization cycle.

The cycle starts with a standard process, which

will be institutionalized within the organization. The

cycle must be in a continuous state of execution and

each of the executions must be considered as

iterations. After each execution we consequently

obtain a standardized process and new variants with

which to personalize such process. The cycle is

divided into four steps. The first two permit the

process tailoring, and the other two are focused on

process standardization.



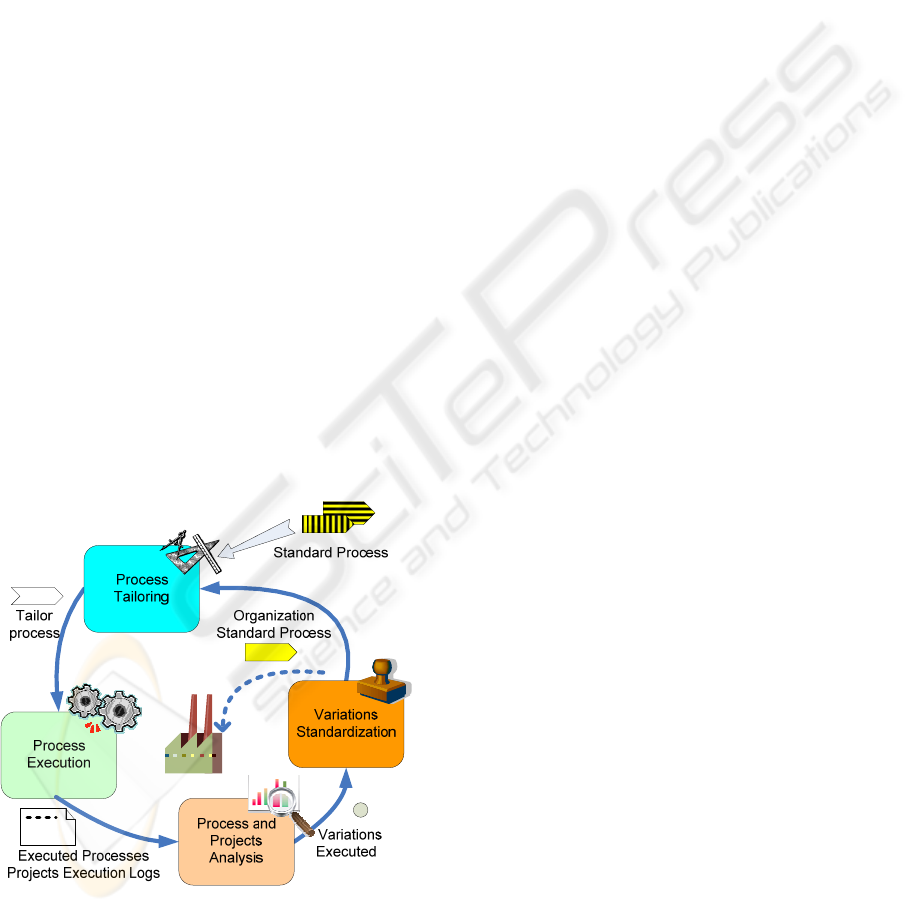

Figure 1: Steps of the Institutionalization Cycle.

• Process Tailoring. This step sets off one or

more of the organization’s standardized process

lines. Otherwise, standard process lines or process

lines from another organization can be used. In this

step, the variants are inserted into the core process

in order to configure the process according to the

needs of the project in which the process will be

executed.

• Process Execution. The tailored process created

in the previous step is implemented to develop the

project within the organization. Although the

process has been tailored, several deviations may

occur during the execution of the project, and the

process must be readjusted. These adjustments must

be registered.

• Process and Projects Analysis. The results of

the previous steps are analyzed and some process

parts are better adjusted than others. This

information provides the changes needed in the core

process and the variants which are necessary to

generate processes which best fit the necessities of

the projects.

• Process Standardization. The new core process

and variants defined in the previous step are now

standardized, that is they are integrated into the

assets of the organization and can be used to tailor

new processes (by starting another iteration).

After each iteration, the processes are more and

more fitted to the needs of the organization, which is

to say they become better and better standardized. In

the n-rd iteration of the cycle, the processes are fully

standardized to the organization and can be tailored

and executed in the project with no variations.

As we can see, during the tailoring part of the

cycle, tailoring processes are created by inserting

variation points into the core process of the line and

their occupation using variants. This corresponds

with the top-down approach defined by (Rombach,

2005), while the standardization part describes how

to obtain commonalities between processes

according to the bottom-up approach.

In order to assist organizations in the use of the

cycle, we propose the definition of some techniques

and practices based on process lines to support the

iterations included in the cycle (to see Figure 2). As

can be observed in Figure 2, process tailoring is

based on an extension of SPEM to model software

process lines (Martínez-Ruiz et al., 2008), which

allows the dynamic variation of processes during

their execution. By storing and retrieving

information in repositories, process mining can be

carried out to discover new variations and those

which are best. Their use helps us to configure

processes according to the characteristics of the

organization and project.

ICEIS 2009 - International Conference on Enterprise Information Systems

360



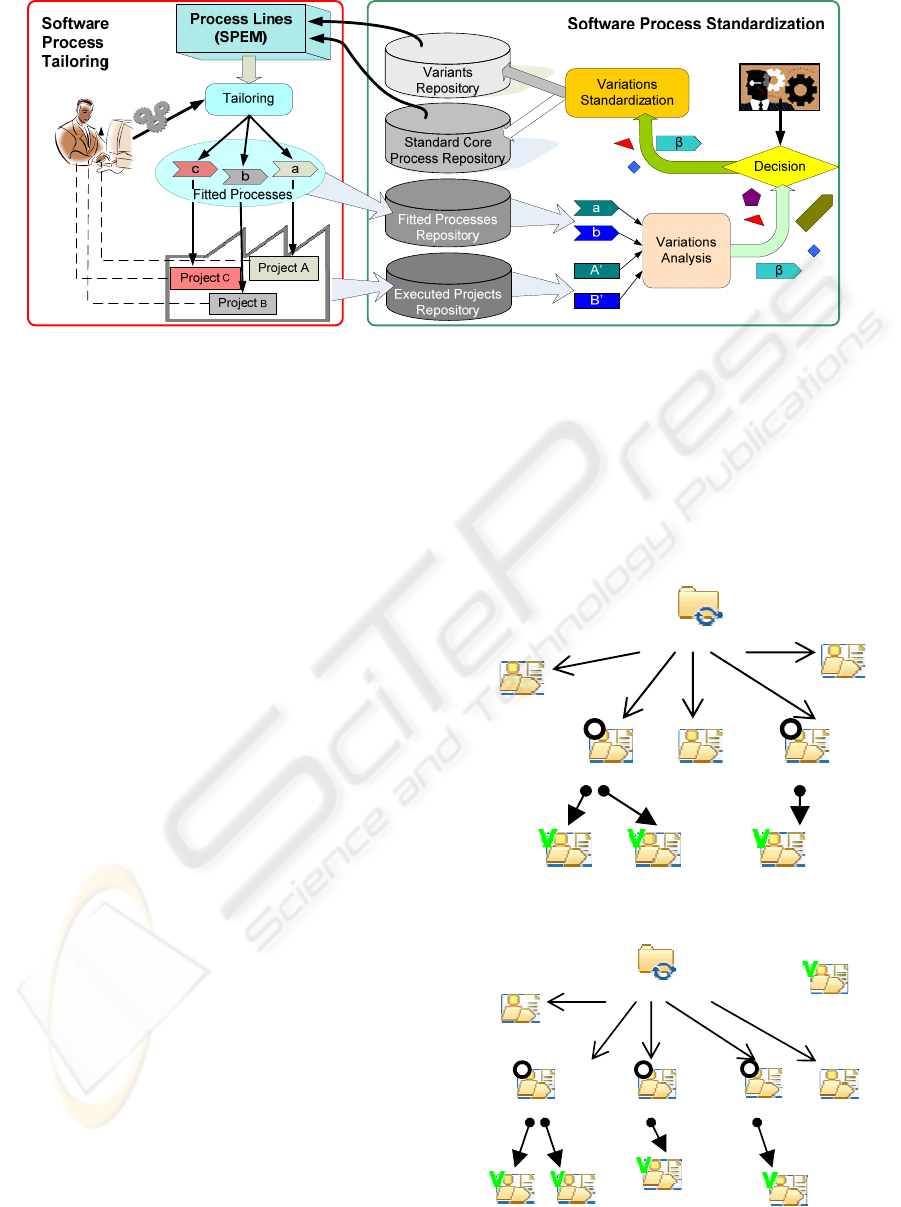

Figure 2: Techniques and Practices for Software Process Institutionalization.

3 APPLICATION GUIDELINES

In order to provide an application example of the

proposal presented, we shall illustrate the execution

of an iteration of the cycle, by describing how the

proposed techniques and practices can be applied.

This research is currently being applied to the

Development process of the COMPETISOFT

process model (Oktaba et al., 2008). This process

contains several activities but, depending on the

project we are developing, these activities must

either be considered separately or can be merged.

To start the cycle, the process line of our

development process can be developed by using

SPEM with suitable extensions to support process

lines, as is described in (Martínez-Ruiz et al., 2008).

As is shown in , several variation points can be

configured to create different tailored processes.

While processes are being executed, the variants

can be reconfigured into the variation points in order

to fit the process to the real work.

Both the variations made during tailoring and

during execution will be compared to determine how

to update the process line in order to support the

needs of the variability processes. This information

will allow these processes to be standardized within

the organization by taking into account the way in

which they were executed and by making them more

and more similar to the organization’s real

processes. In the last step of the cycle, new variants

and their application in the process are discovered

and institutionalized within the organization as

simply another component of the process line.

The original Software Development process only

considers variability at two points. However, before

we execute our cycle the necessity for new variants

may be discovered. For example, the inclusion of

variability in the construction activity as a result of

the programming language and the programming

environment used may be necessary. The new

process line models this variability by defining new

activity variants, and new activity variation points in

the Software Development process, as

Figure 4

shows.

VarPoint 2

Requirements

Software Development

VarPoint 1

Ending

Anal

sis

Construction

Design Integration and Testing

Figure 3: Process line example.

VarPoint 2

Requirements

Software Development

VarPoint 1

Ending

Anal

sis

Construction

Desi

n Inte

ration and Testin

Java

Construction

Figure 4: New Process Line with new variability.

PROCESS INSTITUTIONALIZATION USING SOFTWARE PROCESS LINES

361

4 CONCLUSIONS AND FUTURE

WORK

Institutionalization is vital to allow an increase in

organizations’ maturity levels and to therefore

guarantee the quality of software products. Software

process lines are a successful mechanism through

which to adapt processes. The combination of

process lines is an effective means to carry out

institutionalization due to their capability of creating

personalized processes. As a result of their

modularity, they offer a support with which to carry

out process mining on the variations, which implies

the improvement of both the process line itself and

the generated processes. In order to support and to

facilitate the implementation of the cycle, we have

design several techniques and practices based on

software process lines. These offer users the

capability to tailor and manage processes, learn

about their execution and reuse the information in

other processes to facilitate subsequent tailoring.

As future work we wish to design an

institutionalization environment which includes the

cycle and the techniques and practices described in

this paper. The environment will be based on SPEM,

with the adequate mechanisms to model process

lines. Once techniques and practices have been

created, a tool which includes them all and which

will permit organizations to use the cycle to

institutionalize their processes will be developed.

ACKNOWLEDGEMENTS

This work is partially supported by the research into

Software Process Lines sponsored by Sistemas

Técnicos de Loterías del Estado S.A. within the

framework of the agreement of the Innovación del

Entorno Metodológico de Desarrollo y

Mantenimiento de Software, the Program FPU of the

Spanish MICINN, and by the ESFINGE (financed

by the MICINN, TIN2006-15175-C05-05) and

INGENIO (financed by the Junta de Comunidades

de Castilla-La Mancha, PAC08-0154-9262) projects.

REFERENCES

Bayer, J., Buhl, W., Giese, C., Lehner, T., Ocampo, A.,

Puhlmann, F., Richter, E., Schnieders, A. and

Weiland, J. (2005). Process Family Engineering:

Modeling variant-rich processes. PESOA Project,

Postdam, Alemania.

Bayer, J., Kose, M. and Ocampo, A. (2006). Improving

the Development of e-Business Systems by

Introducing Process-Based Software Product Lines. In

7th PROFES 2006, LNCS 4034 Springer-Verlag,

Amsterdam, pp. 348-361.

Calvo-Manzano, J. A., Cuevas, G. and San Feliú, T.

(2007). Integración del Modelo de Madurez de la

Capacidad-CMMI. In Fábricas de Software:

Experiencias, Tecnologías y Organización (Eds,

Piattini, M. and Garzas, J.) Ra-Ma, Madrid, pp. 235-

254.

Chrissis, M. B., Konrad, M. and Shrum, S. (2006). CMMI:

guidelines for process integration and product

improvement, Pearson, Boston.

Fuggetta, A. (2000). Software process: a roadmap. In

ICSE- Future of SE, Limerick, Ireland, pp. 25-34.

Humphrey, W. (1989). Managing the Software Process,

Addison-Wesley.

ISO (2004). ISO/IEC 15504-4. Information technology

Part 4: Guidance on use for process improvement and

process capability determination. International

Organization for Standardization, Geneva.

Lu, R. and Sadiq, S. (2007). A Reference Architecture for

Managing Business Process Variants, In 9

ICEIS

2007.

Martínez-Ruiz, T., García, F. and Piattini, M. (2008).

Towards a SPEM v2.0 Extension to Define Process

Lines Variability Mechanisms. In Software

Engineering Research, Management & Applications,

(Ed, Lee, R.) Springer Verlag. SCI 150, Praga, Czech

Republic, pp. 115-130.

Oktaba, H., Piattini, M., Pino, F., Garcia, F., Alquicira, C.,

Ruiz, F. and Martínez, T. (2008). COMPETISOFT: A

Improvement Strategy for Small Latin-American

Software Organizations. In Software Process

Improvement for Small and Medium Enterprises:

Techniques and Case Studies (Eds, Oktaba, H. and

Piattini, M.) Idea Group Inc. pp. 212-223.

OMG (2007). Software Process Engineering Metamodel

Specification. Object Management Group.

Rombach, D. (2005). Integrated Software Process and

Product Lines. In SPW 2005, LNCS 3840(Eds, Li, M.,

Boehm, B. and Osterweil, L.) Springer-Verlag,

Teddington, UK, pp. 83-90.

SEI (2002). CMMI for Systems Engineering/Software

Engineering, Version 1.1. Software Engineering

Institute, Pittsburgh.

Yoon, I.-C., Min, S.-Y. and Bae, D.-H. (2001). Tailoring

and Verifying Software Process. In 8

APSEC.01, pp.

202-209.

ICEIS 2009 - International Conference on Enterprise Information Systems

362
