APPLYING INFORMATION RETRIEVAL FOR MARKET BASKET

RECOMMENDER SYSTEMS

Tapio Pitkaranta

Helsinki University of Technology

Department of Computer Science and Engineering

Finland

Keywords:

Information retrieval, Similarity search, Coded data sets, Nearest neighbor, Kernel functions.

Abstract:

Coded data sets form the basis for many well known applications from healthcare prospective payment system

to recommender systems in online shopping. Previous studies on coded data sets have introduced methods for

the analysis of rather small data sets. This study proposes applying information retrieval methods for enabling

high performance analysis of data masses that scale beyond traditional approaches. An essential component

in today’s data warehouses to which coded data sets are collected is a database management system (DBMS).

This study presents experimental results how information retrieval indexes scale and outperform common

database schemas with a leading commercial DBMS engine in analysis of coded data sets. The results show

that ﬂexible analysis of hundreds of millions of coded data sets is possible with a regular desktop hardware.

1 INTRODUCTION

This study

focuses on coded data sets

that are

used as compact representations of real world pro-

cesses. Coded data sets have well known domains

such as minimum data sets in healthcare that have

been used as representations of patient care processes

for over one hundred years (WHO, 2004). Today

minimum data sets constitute the basis for the health-

care payment systems throughout the world. Other

well known domains for coded data sets include mar-

ket basket analysis, that have been used to build dif-

ferent sorts of recommendation systems for online

shopping.

Until now, traditional retail business has not been

able to utilize the information it constantly collects

to directly support its primary business. In the on-

line world, however, it is possible even to modify the

outline of an online store on-the-ﬂy based on what

we know from a particular customer. Yes, Customers

who bought this book, also bought, Users who liked

this movie, also liked... etc. Such modularity on the

This work was partially supported by the Academy of

Finland and the Emil Aaltonen’s Foundation

For this study the classiﬁcations are signiﬁcant. In a

way classiﬁed data sets would emphasize their role more

accurately. However, we use the term coded because classi-

ﬁed is often used to refer to something conﬁdential or secret,

and that is not the case here.

store outline is not easy to achieve in many traditional

business sectors. For instance, modifying the outline

of a supermarket on-the-ﬂy as a single customer col-

lects items into his/her market basket does not seem

possible. But why are we lacking even simple recom-

mendation systems in traditional business sectors?

In this paper we consider methods for customer

recommendation systems in traditional business sec-

tors. In this context large masses of imprecise data

are available. We argue that using those data masses

for direct recommendations would be the modern way

of feeding back relevant aggregations from data col-

lected by business processes in order to boost the busi-

ness processes in real-time fashion. This already hap-

pens in the online world.

The rest of this paper is organized as follows. Sec-

tion 2 presents the technical problem, previous studies

and background for this study. Section 3 presents an

information retrieval model for efﬁcient analysis of

coded data sets. Section 4 presents an experimental

evaluation of the proposed model. Section 5 presents

the conclusions and discussion.

2 BACKGROUND

In coded data sets each value belongs to a coding

scheme, coding system, concept hierarchy or classiﬁ-

138

Pitkaranta T. (2009).

APPLYING INFORMATION RETRIEVAL FOR MARKET BASKET RECOMMENDER SYSTEMS.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

138-143

DOI: 10.5220/0001991101380143

 SciTePress

cations. These coding systems are essentially discrete

ﬁnite sets of possible values. Each value in the cod-

ing scheme has some kind of corresponding activity

or item in the real world. One coded data set can rep-

resent a particular primary process such as one pur-

chase by a customer or one delivery from a vendor. In

a typical case the coded values belong to a mono di-

mensional multi-hierarchical product catalog. How-

ever, there are various other types of coding schemes

varying from multi dimensional keyword based cate-

gorizations to complete ontologies.

2.1 Data Space

We should have a look at the data space character-

istics because of the impreciseness of the data. The

number of all possible coded data sets is the number

of code combinations. The number of combinations

C can be calculated with Equation 1. In Equation 1, r

is the number of different coding schemes in the data

space, the SCHEME denotes the number of codes in a

single coding scheme and CODES denotes the maxi-

mum number of coded values that belong to this cod-

ing scheme in one data set:

C =

∏

i=1



SCHEME

CODES



(1)

Using Equation 1 with an example number of

100 coded values and corresponding coding scheme

with 10000 codes we get: C =

∏

i=1



SCHEME

CODES





10000

100



= 6.5 · 10

241

combinations. As we can see

from Equation 1, even with reasonably small number

of codes and possibilities, the coded data sets consti-

tute a somewhat high dimensional data space. The

data space is also sparse since there are a relatively

small number of real business processes compared to

the theoretical number of different data set combina-

tions.

2.2 Number of Data Sets

The type and amount of coded data sets to be ana-

lyzed, depends on the type of the primary business

process that the data represents. Data can be collected

from various time intervals from short periods to even

dozens of years. Therefore, the amount of data can

vary from a couple of coded data sets to practically

inﬁnite. It should be also noted, that the granular-

ity of the coding scheme used for describing organi-

zations primary business processes has an impact on

how much information is stored and how precisely the

coded data represents the actual primary business pro-

cesses.

As an example case we could use retail business

where we have a large supermarket chain with a na-

tionwide coverage. If we have 100 million citizens

who on average visit a supermarket once a week, we

get 5 billion yearly visits. Each visit to a supermar-

ket can be represented with one coded data set. If we

assume 20% market share for this large scale super-

market chain, we can expect one billion coded data

sets to be stored into their information systems on a

yearly basis. If we assume that the data is stored for

ten years, we get total history of 10 billion coded data

sets.

2.3 Related Work

The analysis of coded data sets has been approached

from different angles from data mining, association

mining, knowledge discovery, collaborative ﬁltering,

inductive databases, neural networks, etc. Collab-

orative ﬁltering systems attempt to offer personal-

ized recommendations of items based on information

about similarities among user’s tastes. One of the

most well known collaborative ﬁltering systems are

Tapestry, the Ringo system and Video Recommender.

For a comprehensive overview on such systems read-

ers are referred to (Herlocker et al., 2004).

Within retail business, the market baskets have

been widely studied using association rules (Agrawal

and Srikant, 1994). An example is the PROFSET

model, that is proposed for analyzing the business

value of a single product based on the cross-selling

effects it has with other products (Brijs et al., 2000).

Previous studies on efﬁcient similarity searches for

market baskets have proposed exact methods such

as signature-bases representation for coded data sets.

Example is named S

B, however the scheme was

tested in the experiments with only a fairly small

databases with 100k transactions (Nanopoulos and

Manolopoulos, 2002). Furthermore, considering the

impreciseness and inaccuracy of the data, applying

exact methods is somewhat questionable although it

enables a compact representation of the data sets.

There are also several studies on read intensive

databases such as column oriented database structures

(Stonebraker et al., 2005; Harizopoulos et al., 2006)

and integration of information retrieval and database

systems (Roelleke et al., 2008; Grabs et al., 2001).

2.4 Analysis of Coded Data Sets

Most of the commercial database management sys-

tems (DBMS) and data warehouses store data in with

the relational databases model that was introduced

almost 40 years ago. For coded data sets, possi-

APPLYING INFORMATION RETRIEVAL FOR MARKET BASKET RECOMMENDER SYSTEMS

139

ble relational structures are the normalized and de-

normalized database schemas. In the de-normalized

schema, one single row in a database table represents

one (coded) data set. In the normalized schema the di-

mensions are represented with separate tables that are

linked to the fact table. Using these schemas, we are

able to implement a recommendation system using

traditional SQL. However, in both database schemas

we encounter some challenges. Using the normalized

schema, we have to obtain data from three different

tables in the query. With the de-normalized schema

the table consumes signiﬁcant amount of space due to

data anomalies. Second, in traditional SQL we cannot

directly calculate distribution of product codes since

they reside in different columns. Number of indexes

we need and the number of AND / OR conditions that

appear in the queries are other problems that occur

because of having all codes in different columns.

Other problems with using traditional SQL is to

beneﬁt from the underlying multi-hierarchical coding

scheme. How to integrate implement on the ﬂy aggre-

gation and ranking mechanism with SQL? Probably

the recommendation system should be able to create

associations not based on particular cigarette and al-

cohol labels but rather certain aggregations or higher

level product groups. This will also make the SQL

queries complex.

3 KERNEL METHODS AND

INFORMATION RETRIEVAL

Kernel methods are classes of algorithms that are used

for pattern analysis. The general task of pattern anal-

ysis is to ﬁnd and study general types of relations in

general types of data. The types of relations can in-

clude clusters, principal components and correlations.

The types of data can be text documents, images, se-

quences, etc.

Kernel methods approach this problem by project-

ing the data into a high dimensional feature space, in

which each coordinate corresponds to one feature of

the data items. In this space, a variety of methods

can be used to ﬁnd relationships in the data. The so

called kernel trick enables kernel methods to operate

in the feature space without ever calculating the coor-

dinates of the data in that space, but rather computing

the distance with different similarity functions in the

feature space. This operation is often computation-

ally cheaper and non-separable data set can become

separable after the projection.

Kernel-based algorithms such as term vector anal-

ysis are used in high dimensional data spaces for cal-

culating distances of two data sets. Frequently used

techniques for locating nearest neighbors are distance

measurements such as the Cosine Angle Distance

(CAD) and Euclidean distance (EUD) (Zobel and

Moffat, 2006). These distance measurements have

been reported to perform similarly in high dimen-

sional data spaces for nearest neighbor queries (Gang

et al., 2004).

Because of the ﬂexibility requirements for the

analysis of the imprecise coded data sets and high di-

mensional domain data space, this study proposes us-

ing the vector space model analyzing existing coded

data set databases. The proposed model is referred

as information retrieval model as the applied kernel

techniques are commonly used in IR (Zobel and Mof-

fat, 2006).

The coded data sets are interlinked by the cod-

ing scheme. The similarity between the query vec-

tor Q = (q

,...,q

) and document representing the

coded data set D

= (d

,...,d

) using correspond-

ing query weights q

for each term, is described by

Equation 2:

s(q,d

) =

∑

j=1

i, j

)

∑

j=1

∑

j=1

i, j

(2)

A common way for deﬁning the document

weights is described in Equation 3 and query weights

in Equation 4 (Zobel and Moffat, 2006; Wilkinson

and Hingston, 1991; Haykin, 1999). In these equa-

tions the log(N/ f

) is the so-called inverse document

frequency where N is the number of documents in the

database and f

is the number of documents that con-

tain term t

. Furthermore, the t f

i j

is the within docu-

ment frequency indicating the number of occurrences

of term t

in document i.

i j

= t f

i j

· log(

) (3)



log

, if term t

appears in the query;

0 , otherwise.

(4)

This technique is ﬂexible for weighting different

parts of the query vector which is appropriate in the

domain: some codes are more important than the oth-

ers. This also provides us ﬂexible ranking if we want

to get not only exact matches, but rather data sets that

are somewhat close. We can also apply the under-

lying coding schemes to empower the query. While

searching for exact matches with the exact codes, we

can also use codes that are nearby based on the coding

scheme structure.

ICEIS 2009 - International Conference on Enterprise Information Systems

140

4 EXPERIMENTAL EVALUATION

This section presents experimental evaluation of the

analysis of coded data sets using the proposed infor-

mation retrieval model. An essential component in

vast majority of commercial data warehousing and

B2B applications is a DBMS engine. Therefore

the proposed model is benchmarked against a lead-

ing commercial DBMS engine with two relational

database schemas suitable for coded data sets.

The use case is a recommendation system for a

large scale retail business with possibly hundreds of

millions of coded data sets. Therefore the three im-

plemented models are referred in this experiment as

recommenders.

Synthetic coded data sets were used to evaluate

the performance and accuracy of the recommenders

over a large range of data characteristics. The con-

tent of the coded data sets corresponding to the cod-

ing scheme were created using a method that was pre-

sented in (Agrawal and Srikant, 1994). Table 1 lists

the materials that were used in this experiment with

the corresponding initialization parameters. As can

be seen from Table 1, the number of coded data sets

varied from 10 thousand to 100 million and the size

of the material from 3.1 MB to 30.2 GB. Each coded

data set contained varying number of codes and the

total number of codes in the materials was over one

billion.

Table 1: Materials used in the experiments.

Name |T | |I| |D| Size (MB)

T10I10D10K 10 10 10000 3.1

T10I10D100K 10 10 100000 31.4

T10I10D1000K 10 10 1000000 322

T10I10D10000K 10 10 10000000 3 217

T10I10D10000K 10 10 100000000 30 192

The coding scheme was created with a hierarchi-

cal and mono-dimensional structure that contains four

hierarchy levels each with maximum number of 10

child nodes on each hierarchy level. Together the cod-

ing scheme contained 10 thousand codes.

4.1 Implementation

The materials listed in Table 1 were inserted into

a leading commercial DBMS under two differ-

ent database schemas and to the implementation

of the proposed information retrieval model. The

database schemas used in this experiment were the

de-normalized and normalized schema.

The benchmarks were implemented using Java

programming language using a range of Open

Source components. The recommender systems

were implemented using object oriented program-

ming. All common components were re-used, and

stub-recommender that uses the common components

was created for eliminating performance issues that

are not related to the actual recommender core com-

ponents. Web-based User interface was built for

viewing data sets interactively. The user interface

was implemented using Java Enterprise Edition and a

Java Enterprise Application Server. The database was

accessed using Java Database Connectivity (JDBC)

API.

The hardware used for the performance tests was

a regular desktop pc with 2.0 GHZ dual core Intel

processor and with 2 GB of physical RAM memory

and a 160 GB hard drive. The experiments were ex-

ecuted on Windows Vista platform running Java(TM)

SE Runtime Environment version 1.6.0.06.

4.2 Benchmarking

Important criteria for a recommendation system are

the accuracy of the recommendation and performance

with large number of data sets, various search patterns

and simultaneous users.

In the recommendation experiment, typical pat-

terns were used to evaluate the accuracy of the rec-

ommendation. As the materials used in this study

are synthetic frequent patterns and characteristics are

known. In the recommendation accuracy experiment

was conducted by removing one code from a com-

monly occurring pattern and letting the recommender

ﬁll the missing value for that particular code. The

original code was used as a golden standard against

which the recommended code was compared.

In the performance benchmarking both frequently

and infrequently occurring patterns were used. In all

experiments 50 different patterns were used. These 50

different patterns were searched 100 times and each

experiment was executed 10 independent times. The

results represent average values from these all execu-

tions.

The parameters for the recommenders were kNN,

topN and the |D|. The kNN refers to k nearest neigh-

bours that deﬁnes the number of neighbours from

which the recommendation will be decided from. The

topN refers to the number of recommendations that

the recommender should provide for the users in a de-

scending order. The |D| refers to the generated data

set that are listed in Table 1.

4.3 Results

The performance of different recommenders with fre-

quent and infrequently occurring patterns are de-

APPLYING INFORMATION RETRIEVAL FOR MARKET BASKET RECOMMENDER SYSTEMS

141

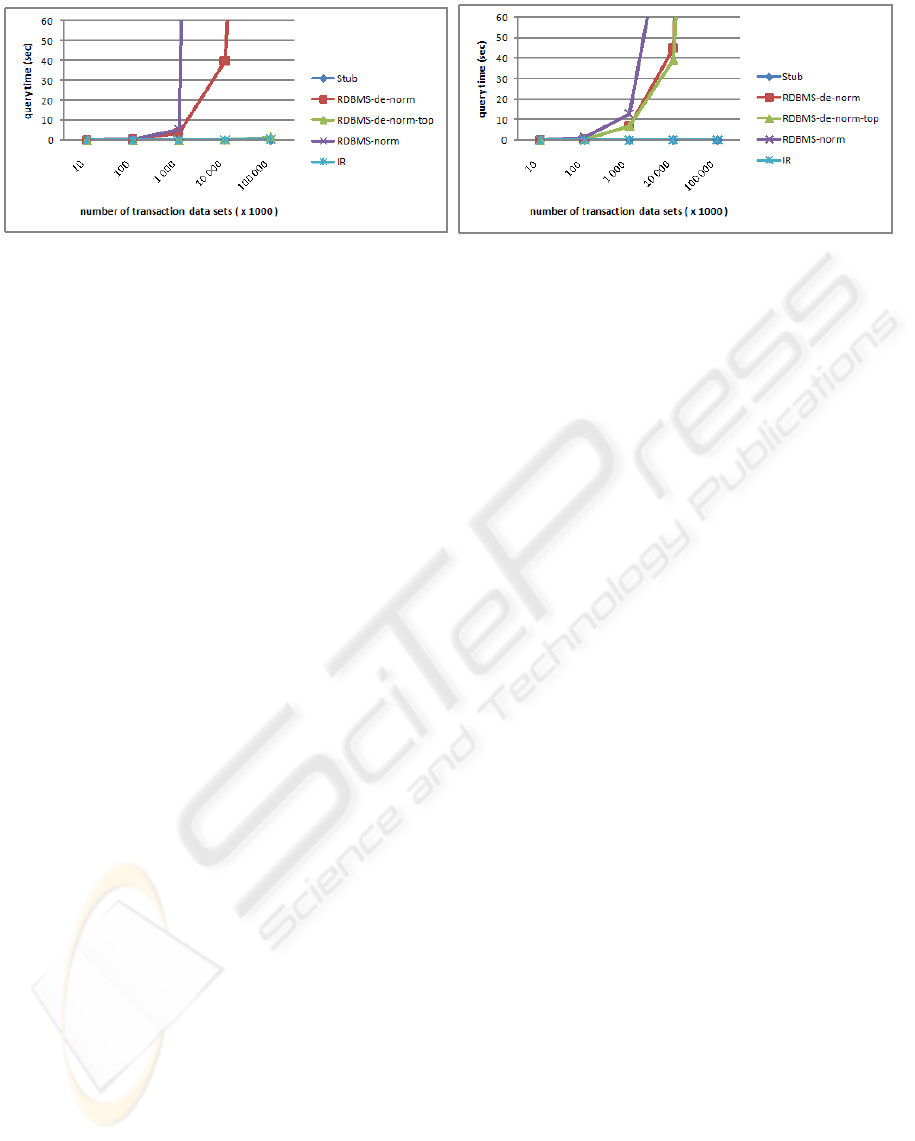

Figure 1: Query speed using frequent and infrequent patterns (kN=5, topN=5)

picted in Figure 1. Five different recommenders

were implemented: 1) Stub recommender for elimi-

nating non recommendation core related performance

issues 2) RDBMS-de-norm used the de-normalized

database schema 3) RDBMS-de-norm-top used the

de-normalized database schema returning only topN

results 4) RDBMS-norm used the normalized database

schema and 5) IR that used the proposed information

retrieval model.

The variable in Figure 1 is the number of data sets

|D| in the materials that are listed in Table 1. The

variables kNN and topN were ﬁxed: kNN = 5 and

topN = 5. Performance with frequently occurring

patterns is depicted in the left hand side of Figure 1

and infrequent patterns on the right. As can be seen

Figure 1, with frequent patterns the de-normalized re-

lational data schema using top kNN queries performs

reasonably well although it is clearly outperformed by

the information retrieval recommender. With frequent

occurring patterns and a fairly small kNN, the de-

normalized relational schema does not need to scan

through the whole database in order to retrieve the re-

quested kNN neighbors. This is because no ranking

mechanism is implemented to this recommender. As

can be seen from Figure 1, the normalized relational

schema has performance issues with smaller data sets

as de-normalized schema due to the time consuming

processing of three separate database table.

From the right hand side of Figure 1 it can noted

that recommending with infrequent data sets cause

performance problems for all recommender except

the information retrieval recommender. For infre-

quent data sets RDBMS engine needs to scan through

large portion of the database before being able to re-

trieve the requested kNN.

The recommendation accuracy for different rec-

ommendation core components are depicted in Fig-

ure 2 using topN as a variable on the left and kNN in

the middle and right. In this experiment, the recom-

mendation was based on the frequency distribution of

codes occurring in the kNN. From the left hand side

of Figure 2 we can see that recommendation accuracy

of the relational models increases as kNN is incre-

mented. This is because the recommender component

does not have a ranking mechanism that would return

nothing but exactly matching results. Therefore, in-

creasing kNN does not reﬂect the accuracy after all

matching neighbors have been located.

The information retrieval model, however, is able

to return accurate results with a fairly small kNN as

the ranking mechanism and similarity search provides

the kNN with a greater accuracy than pure boolean

algebra. The information retrieval recommender suf-

fers from increasing the kNN over certain point. That

is because the ranking mechanism is able to return

also data sets that are nearby although they are not

exact matches. This is both a pro and a con. As de-

picted in the right of Figure 2, the accuracy of the re-

lational recommendation models suffer from a rapid

decline as infrequent or partially invalid noisy pat-

terns are used: there are no exactly matching kNN

for those patterns. This could be the case if the data

warehouse is not up-to-date for instance with all new

product codes and customer purchases. Using pure

relational algebra appears to provide poor results.

5 CONCLUSIONS AND

DISCUSSION

This study proposed using information retrieval based

model for efﬁcient analysis of coded data sets. The

model uses the vector space model to represents

coded data sets, such as patient care in healthcare or

customer purchases in retail business. Different sim-

ilarity functions enable ﬂexible and scalable analysis

of large code data set masses.

Requirement for the analysis model was high scal-

ability to hundreds of millions of data sets as the use-

case was large scale retail business recommender sys-

tem. This study showed that building such a recom-

mender system is possible using regular desktop hard-

ICEIS 2009 - International Conference on Enterprise Information Systems

142

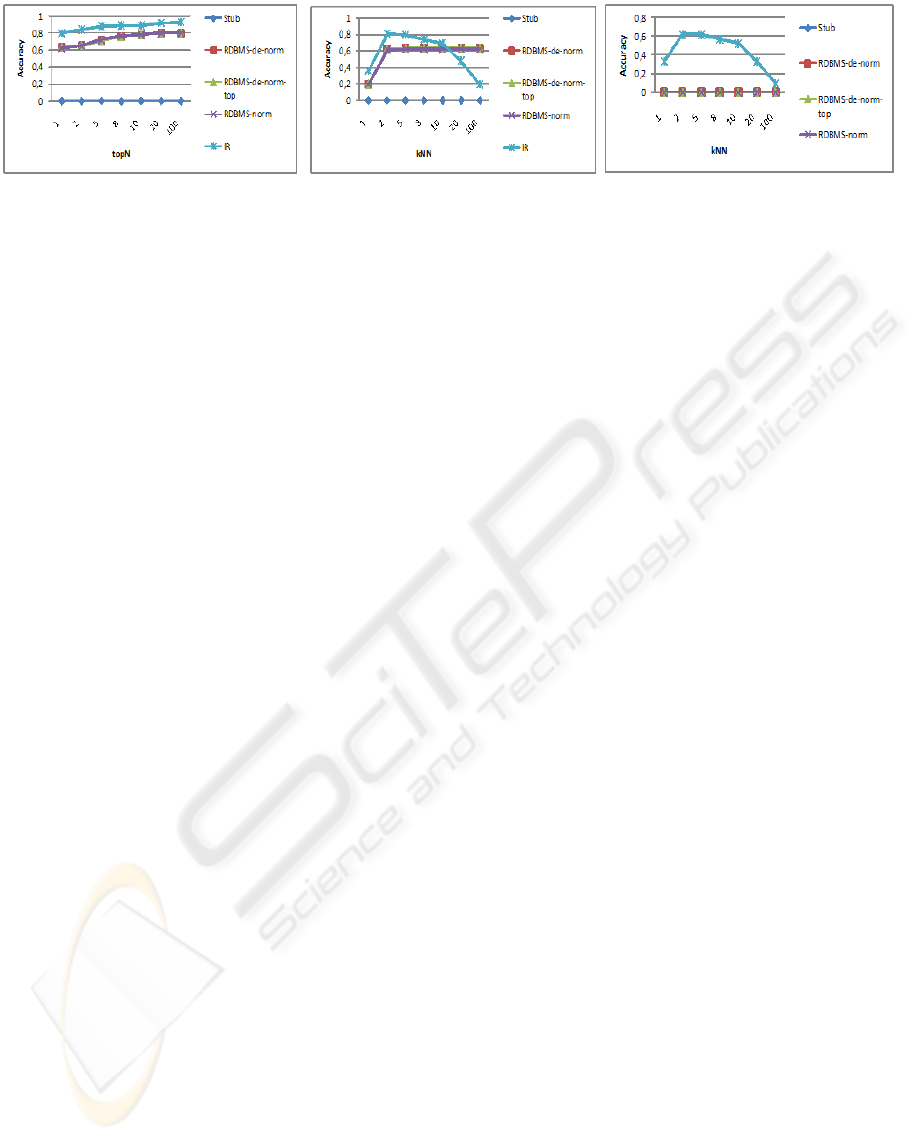

Figure 2: Recommendation accuracy using varying topN (left) and kNN (middle) with frequent patterns. Recommendation

accuracy using infrequent noisy patterns with varying kNN on the right.

ware. This study presented experimental comparison

between the proposed information retrieval model and

a leading commercial DBMS system with two rela-

tional database schemas. Based on these experiments,

the information retrieval model outperforms the rela-

tional schemas in both performance and ﬂexibility.

The experimental results show that the pat-

tern analysis performance using relational database

schemas and a regular desktop computer begins to

have problems with several million coded data sets.

The results also show that the information retrieval

model is able to produce rapid results to ﬂexible

queries with 100 million coded data sets with regu-

lar desktop hardware.

Overall the results show that the information re-

trieval recommender provides more accurate recom-

mendation with a small amount of kNN. The model

is able to produce recommendations also with noisy

and partially invalid patterns which is often the case

in the real world as the quality of the data is far from

perfect.

The proposed model utilizes kernel methods and

vector distance functions for efﬁcient nearest neigh-

bor queries. Different types of distance functions en-

able ﬂexibility for different use cases. In the future we

are applying the model to healthcare data sets. This

includes empowering the similarity functions with do-

main speciﬁc knowledge from the healthcare coding

schemes.

REFERENCES

Agrawal, R. and Srikant, R. (1994). Fast algorithms for

mining association rules in large databases. In VLDB

’94: Proceedings of the 20th International Conference

on Very Large Data Bases, pages 487–499, San Fran-

cisco, CA, USA. Morgan Kaufmann Publishers Inc.

Brijs, T., Goethals, B., Swinnen, G., Vanhoof, K., and Wets,

G. (2000). A data mining framework for optimal prod-

uct selection in retail supermarket data: the gener-

alized profset model. In KDD ’00: Proceedings of

the sixth ACM SIGKDD international conference on

Knowledge discovery and data mining, pages 300–

304, New York, NY, USA. ACM.

Gang, Q., Sural, S., Gu, Y., and Pramanik, S. (2004). Sim-

ilarity between euclidean and cosine angle distance

for nearest neighbor queries. In Proceedings of the

2004 ACM symposium on Applied computing, pages

1232–1237. Michigan State University, ACM. ISBN:

1-58113-812-1.

Grabs, T., B

ohm, K., and Schek, H.-J. (2001). Powerdb-

ir: information retrieval on top of a database cluster.

In CIKM ’01: Proceedings of the tenth international

conference on Information and knowledge manage-

ment, pages 411–418, New York, NY, USA. ACM.

Harizopoulos, S., Liang, V., Abadi, D. J., and Madden,

S. (2006). Performance tradeoffs in read-optimized

databases. In VLDB ’06: Proceedings of the 32nd

international conference on Very large data bases,

pages 487–498. VLDB Endowment.

Haykin, S. (1999). Neural Networks - A Comprehensive

Foundation. Prentice Hall. ISBN: 0-13-273350-1.

Herlocker, J. L., Konstan, J. A., Terveen, L. G., and Riedl,

J. T. (2004). Evaluating collaborative ﬁltering recom-

mender systems. ACM Trans. Inf. Syst., 22(1):5–53.

Nanopoulos, A. and Manolopoulos, Y. (2002). Efﬁcient

similarity search for market basket data. The VLDB

Journal, 11(2):138–152.

Roelleke, T., Wu, H., Wang, J., and Azzam, H. (2008).

Modelling retrieval models in a probabilistic relational

algebra with a new operator: the relational Bayes.

VLDB Journal: Very Large Data Bases, 17(1):5–37.

Stonebraker, M., Abadi, D. J., Batkin, A., Chen, X., Cher-

niack, M., Ferreira, M., Lau, E., Lin, A., Madden,

S., O’Neil, E., O’Neil, P., Rasin, A., Tran, N., and

Zdonik, S. (2005). C-store: a column-oriented dbms.

In VLDB ’05: Proceedings of the 31st international

conference on Very large data bases, pages 553–564.

VLDB Endowment.

WHO (2004). International Statistical Classiﬁcation of

Diseases and Related Health Problems, Instruction

manual, volume 2. World Health Organization. ISBN:

92 4 154649 8.

Wilkinson, R. and Hingston, P. (1991). Using the cosine

measure in a neural network for document retrieval.

ACM, pages 202–210.

Zobel, J. and Moffat, A. (2006). Inverted ﬁles for text search

engines. ACM Comput. Surv., 38(2):6.

APPLYING INFORMATION RETRIEVAL FOR MARKET BASKET RECOMMENDER SYSTEMS

143
