SYMBOLIC EXECUTION FOR DYNAMIC, EVOLUTIONARY

TEST DATA GENERATION

Anastasis A. Sofokleous, Andreas S. Andreou and Antonis Kourras

Department of Computer Science, University of Cyprus

75 Kallipoleos Str., P.O. Box 20537, CY1678, Nicosia, Cyprus

Keywords: Search-based test data generation, Symbolic program transformation, Genetic algorithms, Control flow

graphs.

Abstract: This paper combines the advantages of symbolic execution with search based testing to produce

automatically test data for JAVA programs. A framework is proposed comprising two systems which

collaborate to generate test data. The first system is a program analyser capable of performing dynamic and

static program analysis. The program analyser creates the control flow graph of the source code under

testing and uses a symbolic transformation to simplify the graph and generate paths as independent control

flow graphs. The second system is a test data generator that aims to create a set of test cases for covering

each path. The implementation details of the framework, as well as the relevant experiments carried out on a

number of JAVA programs are presented. The experimental results demonstrate the efficiency and efficacy

of the framework and show that it can outperform the performance of related approaches.

1 INTRODUCTION

Many researchers have used control flow graphs to

examine features of software and combine program

analysis with other techniques such as the testing,

slicing and optimisation. Recent research focuses on

test data generators, systems that can generate test

cases in relation to a testing coverage criterion. Most

of the test data generators are either random (P.

Godefroid, Klarlund, & Sen, 2005), if they generate

test cases randomly, or dynamic, if they adapt their

behaviour based on the generated data (Bertolino,

2007). Several authors use optimisation algorithms

to guide the search process as the problem of

generating test data is formulated as an optimisation

problem (Pargas, Harrold, & Peck, 1999).

The problem, however, is that in some cases

even optimisation algorithms may not be able to

generate an adequate set of test cases with respect to

the selected coverage criterion. This may be the

result of the program complexity; for example

executing a path may be more complicated if the

path contains quite a few multiple conditions and

hence the optimisation algorithm cannot achieve the

desired value in each condition.

This paper addresses the complexity challenge of

programs and aims to develop an efficient algorithm

that can simplify this complexity and work together

with a test data generator to produce the target set of

test cases. We present the design and

implementation details of a framework that utilises

symbolic execution with evolutionary algorithms to

generate test cases for JAVA programs. The

symbolic execution, which is embedded in the

program analyser of the framework, transforms the

original program to a set of simple paths, the

individual testing of which is equivalent to the

testing of the original program. The paper also

presents a set of experiments that demonstrate the

successful performance of the framework in terms of

coverage adequacy. The framework is compared

with a similar method found in the relevant literature

and the results show that the framework can achieve

better coverage with respect to the criterion selected.

The rest of the paper is organized as follows:

Section 2 presents some related work on this subject,

while section 3 describes the proposed testing

framework. Section 4 evaluates the efficacy of our

testing approach and provides experimental results

on a number of sample programs, as well as some

commonly known programs that are used as

benchmarks for comparison purposes. Finally,

Section 5 concludes the paper and suggests future

research steps.

144

Sofokleous A., Andreou A. and Kourras A. (2009).

SYMBOLIC EXECUTION FOR DYNAMIC, EVOLUTIONARY TEST DATA GENERATION.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

144-150

DOI: 10.5220/0001992701440150

 SciTePress

2 RELATED WORK

This paper proposes a hybrid software test data

generation algorithm that utilizes symbolic

execution to optimize (lower) the complexity of the

programs under testing, and computational

intelligent algorithms to generate test cases. Most

test data generation approaches use the source code

to analyze the program and guide the test process

(Bertolino, 2007; McMinn, 2004; A. Sofokleous &

Andreou, 2008).

Test data search can be utilized either on the

complete program or according to a single path (A.

Sofokleous & Andreou, 2007; Zhang, Xu, & Wang,

2004). Generated data are usually evaluated

according to testing criteria varying on the

implementation complexity and the testing quality

offered (Frankl & Weyuker, 1988); examples of the

branch coverage criterion and the branch/condition

coverage criterion are shown in (Soffa, Mathur, &

Gupta, 2000), (A. A. Sofokleous & Andreou, 2008),

respectively. Genetic Algorithms (GA) have been

used with remarkable success in dynamic test data

generation as they can efficiently search the huge

input space and determine test cases for complicate

programs (P. Godefroid, 2007). Part of GA’s success

in this particular problem is the design of the fitness

function; poor design of this function may misguide

the search process and lead to over processing or

even to the fitness landscape. The fitness landscape,

which is one of the recent problems engaging

researchers in this area, is a state of the GA where its

fitness function gives the same value for almost all

solutions; as a result, the search process cannot be

guided to the right direction. Suppose the fitness

function is designed to capture the distance from a

search target, the fitness landscape may be caused in

cases where more than one path can lead to a search

target (i.e. path problem) or when one or more

conditions take values from a small set of values (i.e.

flag problem) (Baresel & Sthamer, 2003). To

address the path problem, researchers in (McMinn,

Harman, Binkley & Tonella, 2006) suggest

generating test data for each path leading to its

target, whereas to deal with the flag problem

(Bottaci, 2002) a common way is to transform the

program to multiple sub-programs that could

maintain the same properties as the original version

(Baresel, Binkley, Harman & Korel, 2004); in this

case, generating test cases for each individual sub-

program is the same as generating test cases for the

original program. This paper uses both path

isolation and symbolic program transformation to

address efficiently both types of origins of the

fitness landscape respectively. The advantage of our

approach is that it addresses both the path and the

flag problems using a novel, flexible method that

combines symbolic execution with genetic

algorithms.

Symbolic testing was first reported by King et al.

back in 1976 (King, 1976). The need for symbolic

execution comes as a consequence of the increase of

software complexity. Symbolic testing is an abstract

definition which has two implementation methods.

The first is Symbolic Execution and the second is

Symbolic Evaluation. An example of the former,

along with extended finite state machines, is used in

(Zhang et al., 2004) to capture the program’s

behaviour, extract feasible paths and generate test

data for the program under testing. With the use of a

control flow graph and symbolic execution, our

approach extracts the paths of the program under

testing and transforms each path to a set of

equations. Each set of equations describes a set of

conditions, the satisfaction of which implies the

execution of the path. The combination of symbolic

execution and control flow analysis has been also

reported in (Kebbal, 2006), with some limitations,

however, in the analysis of the graph which

represents many statements in each block. The main

problem with approaches following only symbolic

testing is located in the loops; according to

(Tillmann & Schulte, 2006), symbolic testing fails to

reveal the needed test cases for executing a loop for

a particular number of times. In our case, the

equations describe the conditions that when satisfied

can force such an execution for a specific loop, i.e.

how to iterate k times the particular loop.

3 SYMBOLIC

TRANSFORMATION AND

EVOLUTIONARY TEST DATA

GENERATION

This paper extends the Dynamic Test Data

Generation Framework (DTDGF) described in (A.

A. Sofokleous & Andreou, 2008). The DTDGF

consists of two main systems, the Analysis and

Testing systems. The former analyses programs,

creates program representations such as control and

data flow graphs, and simulates and reports the

execution of a test case on the control flow graph.

The Analysis System (AS) may be used by other

systems performing testing, debugging, optimization

and slicing. Currently, AS is integrated with a test

data generator, a system that utilizes genetic

SYMBOLIC EXECUTION FOR DYNAMIC, EVOLUTIONARY TEST DATA GENERATION

145

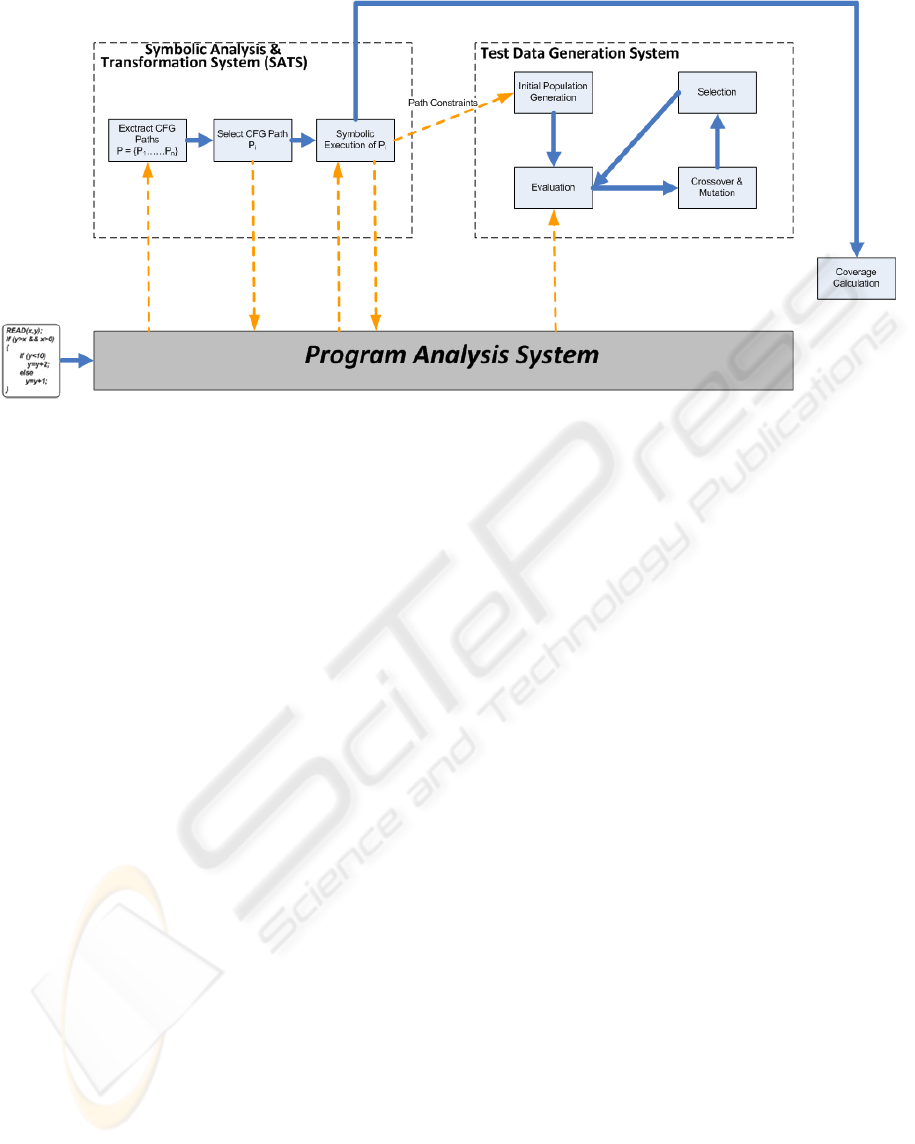

Figure 1: The Symbolic Analysis & Transformation System between the Program Analysis System and the Test Data

Generation System.

algorithms to produce test cases in relation to control

or data flow criteria.

The system presented in this paper uses the

control flow graphs produced by AS to transform

paths to sets of symbolic equations. A new module,

called Symbolic Analysis & Transformation System

(SATS), works between the AS and a revised

version of the Test Data Generation System (Figure

1).

Symbolic Analysis & Transformation System

(SATS) aims to reduce the complexity of finding

test cases to a simple problem of solving a set of

equations. Specifically, SATS transforms each path

to a set of equations with respect to the input

variables; to cover a path, the set of equations must

be solved by assigning values to the input variables.

This set essentially describes the conditions that lead

to the execution of a particular path. SATS works as

follows:

Path Localization. Initially SATS utilizes

DTDGF’s control flow graph, on which a depth first

search algorithm extracts all possible paths of the

program under testing. Suppose that the control flow

graph of a program under testing is G, then the set of

extracted paths is expressed as

{

}

, , ....,

pp p=

, where n is the total

number of paths and path

, where 1 ≤ i ≤ n, is

also a sub-graph of the original graph G; note that a

path must consist of at least one edge and two

vertices. SATS saves each path as a sequence of

numbers, e.g.

{

}

3, 4, 5, 6

p =

, where each number

represents a particular node from the nodes of the

original control flow graph G. Then the user can

decide on which paths the generator should run; the

user can choose for testing either all paths or a

specific path. The next two steps, Path Selection and

Symbolization, are executed consecutively, once for

each selected path.

Path Selection. SATS creates a new control flow

graph for path

. The new control flow graph is a

sub-graph of the original graph. Both graphs are

stored by the system, while the graph in use is the

one representing the selected path; this graph will be

analysed in the next step .

Path Symbolization. Symbolic Execution of path

step

involves transforming all local variables to

their symbolic counterpart. A symbolic value is

essentially the equivalence of a variable expressed as

a function of only the input parameters of the

program. This transformation is executed with an

up-down algorithm that starts from the first node of

the selected control flow graph and symbolically

replaces each node’s expressions using equivalent

expressions that include the input variables. The

objective is to reduce the nodes to a set of nodes that

include only constraints expressed in relation to the

input variables. When all the transformations have

been made, the algorithm focuses on remaining

nodes, which are path constraints. These constraints

are converted to their TRUE equivalents; an example

is shown in Table 1, where A and B are conditions,

ICEIS 2009 - International Conference on Enterprise Information Systems

146

e.g. A



X>10 and B

Y20‐X, where

variables X

and Y are the input parameters.

Table 1: Predicate transformation.

Original Path Constraint

Path Constraint

Converted to its TRUE Equivalent

A && B



!(A&&B)



!A || !B

|| B



!(A||B)



!A && !B

Test Data Generation. The test data generator

utilises a genetic algorithm for each selected path.

Note, that if during the execution of a path p

, a test

case is found for another path from the selected list

of paths, say p

, then the test data generator removes

path p

from the list and continues with the rest of

the unexecuted paths.

The encoding of a chromosome in the GA

represents a solution as a series of k genes, with k

being the number of input parameters embedded in

the set of path constraints. The objective is to

determine the values of the parameters that can solve

the equations. For a given path

∈

, the fitness

function is expressed as

∑

pcpfPC

pCf

)(

),(

(1)

where C is the chromosome to be evaluated and PC

is the set of equations of path

, i.e. the path

constraints as provided by the symbolic execution;

represents the i

constraint (or equation)

and

PCpc

∈

. The expression

)(

pcpf

evaluates

each constraint according to the value (i.e. test case)

of the chromosome as follows:

⎪

⎭

⎪

⎬

⎫

⎪

⎩

⎪

⎨

⎧

)(),(

)(||)()),()(

)&(&)()),(),(min(

)(

ApcIFFAds

BApcIFFBpfApf

BApcIFFApfApf

pcpf

(2)

If path constraint pc

consists of two predicates

connected with the logical operand “AND” (&&)

then the value of pf(pc

) is the minimum between

pf(A) and pf(B), as pc

can be evaluated to TRUE if

and only if each part is evaluated to true. If path

constraint pc

consists of two predicates connected

with the logical operand “OR” (||) then the value of

pf(pc

) is the summation of pf(A) and pf(B), as pc

can be evaluated to TRUE if and only if at least one

of the parts is evaluated to TRUE. If path constraint

consists of only one predicate, i.e. pc

= A, then

pf(pc

) is the value of distance ds(A). For ds(A), if

the evaluation of A is FALSE, then we transform

constraint A to the form of C≥0, or C>0, or C≠0, or

C=0, e.g., if A=x>y then A≡x-y>0. Therefore, ds(A)

may be expressed as:

⎪

⎭

⎪

⎬

⎫

⎪

⎩

⎪

⎨

⎧

≠≡>≡+

=≡≥≡=

00,)(

00),(

)(

CAorCAIFFeCabs

CAorCAIFFCabs

TRUEisAIFF

Ads

(3)

SATS starts with the Initial Population

Generation, where it generates chromosomes

according to the structure of the selected path. Then

a repetitive cycle of Evaluation, Reproduction

(Crossover & Mutation) and Selection follows.

Repetition of computation cycles is terminated either

when the maximum number of generations has been

reached or a test case that executes completely the

path has been found. If the GA fails to find a

suitable test case then the path is marked as

infeasible (possible dead path). SATS continues to

the next path, if there is one, otherwise it terminates

the testing process and calculates the coverage.

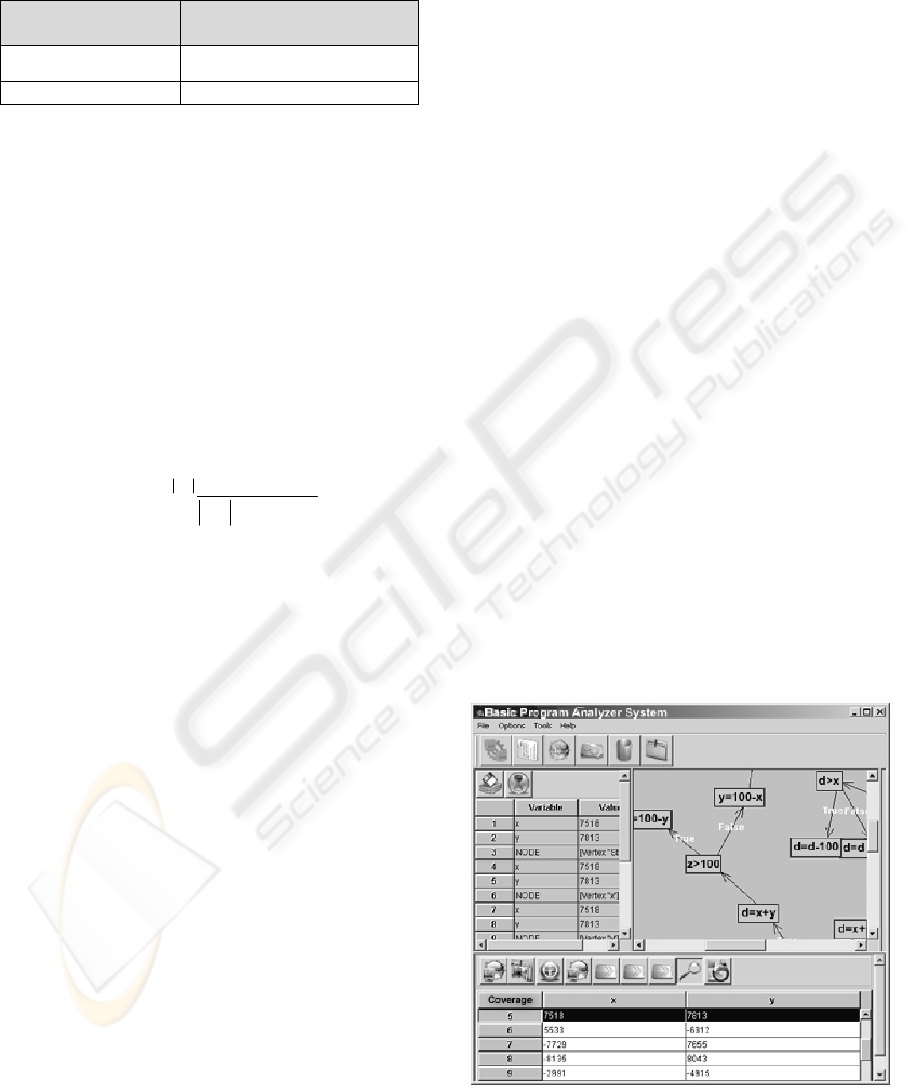

Figure 2 presents the prototype software

application, which was developed to support the

whole process. At the right part of this figure the

main screen of the application that creates the

control flow graph of the program under testing is

depicted; the lower part of Figure 2 presents the test

cases that were generated. Users can interact with

the application and select one or more test cases to

inspect both graphically (i.e. on the control flow

graph) and numerically (in percentage terms) the

coverage achieved.

Figure 2: The prototype software application.

SYMBOLIC EXECUTION FOR DYNAMIC, EVOLUTIONARY TEST DATA GENERATION

147

Table 2: Experiments on a pool of randomly generated programs with varying LOC and complexity.

AA LOC

# If

statements

Complexity

Our Algorithm

edge

coverage

condition

coverage

edge/condition

coverage

1 5

1 multiple

2 single

Low 100% 100% 100%

2 12

1 multiple

2 single

Low 100% 100% 100%

3 14

2 multiple

4 single

Medium 100% 100% 100%

4 11

2 multiple

6 single

Medium 100% 84.61% 92.3%

5 16

3 multiple

12 single

High 100% 87.5% 93.75%

6 16

3 multiple

12 single

High 100% 87.5% 93.75%

7 16

3 multiple

15 single

Very High 100% 73.33% 86.66%

4 EXPERIMENTAL RESULTS

This section presents a list of experiments carried

out with the proposed testing framework on a pool

of standards and randomly generated JAVA

programs. The JAVA programs used in experiments

presented in this work can be retrieved from

http://www.cs.ucy.ac.cy/~asofok/testing/9.html.

A series of initial trial experiments led us to the

following settings: The GA’s population size was set

to 200 chromosomes, the probabilities of crossover,

mutation and switch-mutation’s step equal to 0.45,

0.10 and 0.50, respectively, and the maximum

number of generations to 1000. The Roulette Wheel

was defined as the selection operator and also the

feature of elitism was activated, that is, the

algorithm always passes the best chromosome

unchangeable to the next generation. The testing

framework run on a CENTRINO duo 1.83 GHz with

1.50 GB Ram and JDK 1.5 operating with the

Windows XP OS.

As previously mentioned, through the proposed

framework the user is able to select one or more

paths to produce test data for. The framework runs

consecutively a genetic algorithm for each selected

path; if a test case that executes the path is found

then the framework stores this test case and

continues to the next path, if there is one. Testing

adequacy was assessed using the edge, condition and

combined edge/condition coverage criteria. Edge

coverage is calculated as the number of edges

executed over the total edges of the control flow

graph of the program under testing. To find the

executed edges, the framework iterates each test

case found to execute a path and adds its executed

edges. Likewise, condition coverage is calculated as

the average number of conditions evaluated to TRUE

and conditions executed to FALSE over the total

number of conditions of the control flow graph of

the program under testing. Note that a condition

must be executed in order to evaluate to one of the

two values (i.e. short circuiting, a state where the

first condition of a multiple condition can determine

the whole result and therefore the remaining

conditions are not evaluated by the virtual machine).

Finally, the edge/condition coverage is calculated as

the average value of the edge coverage and the

condition coverage.

Table 2 shows the first set of experiments that

involves seven randomly generated programs

varying in terms of complexity expressed in relation

to LOC (lines of code), number of conditions, and

type and usage (complexity) of conditions (e.g.

simple and multiple). The results show that the

framework can achieve full edge coverage for every

program listed in the table, while the lower condition

coverage is 73.33% for the 7

program which is the

largest in terms of LOC and the most complicated;

complexity is expressed as a function of LOC and

conditions.

The second set of experiments compares the

performance of the framework against a symbolic

testing approach called JCUTE (Sen, Marinov, &

Agha, 2005). This set of experiments selected the

first three randomly generated programs of Table 2

and applied both approaches. The results of Table 3

show that both frameworks have equivalent

performance for the first two programs; as

complexity rises, though, our framework clearly

outperforms the JCUTE approach as seen in the case

ICEIS 2009 - International Conference on Enterprise Information Systems

148

Table 3: Comparison of our algorithm against JCUTE (Sen et al., 2005). Experiments on three randomly generated

programs with varying complexity.

AA LOC

# If

statements

Complexity

JCUTE[REF] Our Algorithm

edge

coverage

condition

coverage

edge/condition

coverage

edge

coverage

condition

coverage

edge/conditi

on coverage

1 5

1 multiple

2 single

Low 100% 100% 100% 100% 100% 100%

2 12

1 multiple

2 single

Low 100% 100% 100% 100% 100% 100%

3 14

2 multiple

4 single

Medium

81.25%

75% 78.125% 100% 100% 100%

Table 4: Comparison of our algorithm against JCUTE (Sen et al., 2005). Experiments on the TriangleClassification and the

FindMaximum standard programs (benchmarks).

Benchmark LOC

#If

statements

Complexity

JCUTE

(Sen et al., 2005) Our Algorithm

edge

coverage

condition

coverage

edge/condition

coverage

edge

coverage

condition

coverage

edge/condition

coverage

Triangle

Classification

29 9 High

15.78% 14.7% 15.24%

95.73% 88.23% 91.48%

FindMaximum 12 2 Low

85.71% 75% 80.35%

100% 100% 100%

of the third program. In this case, our framework

again, achieves full coverage in terms of the edge,

condition and combined edge/condition criteria,

whereas the other approach fails to reach this level

of coverage in any of the aforementioned criteria.

Table 4 shows the third set of experiments,

which compares the two approaches over two well

known standard programs, the

TriangleClassification and the FindMaximum

programs. The results show the efficiency of our

framework which manages to outperform

dramatically the performance of the other approach.

For example, in the case of the

TriangleClassification, our framework achieves

91.48% edge/condition coverage, whereas the

edge/condition coverage of the other approach is

only 15.25%. In the case of the FindMaximum

program, our framework manages to achieve full

coverage in each of the three coverage criteria.

5 CONCLUSIONS

This paper presented a framework that combines the

advantages of symbolic execution and evolutionary

algorithms for solving the complicated problem of

generating automatically an adequate set of test

cases for a given program written in JAVA. The

framework comprises a program analyser, a

symbolic executer and a test data generator. The

program analyser uses the source code of the

program under testing for extracting information,

such as variables name and scope, and creating

program models, such as control flow graphs. The

symbolic executer is responsible for simplifying and

transforming a path to a set of path constraints. The

test data generator solves the path constraints using

genetic algorithms. The user tunes the genetic

algorithm by specifying several preferences, such as

input parameter boundaries, population size, number

of evolutions etc.

Coverage adequacy was assessed using three

known criteria, namely condition, edge and

combined condition/edge coverage. The proposed

testing framework was evaluated using both

standard and randomly generated JAVA programs.

The results obtained using different sets of

experiments demonstrated that the proposed

framework performs efficiently on different types of

programs in terms of size and complexity. Further

results, which compared the performance of our

framework against a similar approach revealed the

superiority and efficiency of the proposed approach.

Future work will carry out more experiments and

will perform more comparisons of our framework.

The experiments will use more standard programs

richer in LOC and number of conditions. Future

work will also consider improving the performance

of the symbolic algorithm so as to be able to

simplify further the path constraints and allow the

test data generator to achieve full coverage even for

programs with higher complexity that those listed in

Table 2. Currently, we are developing an object

oriented model that will be able to capture the

SYMBOLIC EXECUTION FOR DYNAMIC, EVOLUTIONARY TEST DATA GENERATION

149

features of both object-oriented and graphically

depict them on control flow graphs with processing

via UML diagrammatical notations. Our future

research steps will attempt to incorporate this model

into the existing framework and extend the symbolic

executer so as to be able to work with the features of

the new model.

REFERENCES

Baresel, A., Binkley, D., Harman, M., & Korel, B. (2004).

Evolutionary testing in the presence of loop-assigned

flags: A testability transformation approach.

Proceedings of the 2004 ACM SIGSOFT International

Symposium on Software Testing and Analysis, Boston,

Massachusetts, USA. 108-118.

Baresel, A., & Sthamer, H. (2003). Evolutionary testing of

flag conditions. Lecture Notes in Computer Science

2724: Proceedings of the Genetic and Evolutionary

Computation Conference (GECCO 2003), Chicago,

IL, USA. , 2724 2442-2454.

Bertolino, A. (2007). Software testing research:

Achievements, challenges, dreams. Proceedings of the

29th International Conference on Software

Engineering (ICSE 2007): Future of Software

Engineering (FOSE '07), Minneapolis, MN, USA. , 0

85-103.

Bottaci, L. (2002). Instrumenting programs with flag

variables for test data search by genetic algorithms.

Proceedings of the Genetic and Evolutionary

Computation Conference, New York, USA. 1337-

1342.

Frankl, P. G., & Weyuker, E. J. (1988). An applicable

family of data flow testing criteria. IEEE Transactions

on Software Engineering, 14(10), 1483-1498.

Godefroid, P. (2007). Compositional dynamic test

generation. Proceedings of the 34th ACM Symposium

on Principles of Programming Languages (ACM

SIGPLAN-SIGACT), Nice, France. 47-54.

Godefroid, P., Klarlund, N., & Sen, K. (2005). DART:

Directed automated random testing. Proceedings of

the 2005 ACM SIGPLAN Conference on

Programming Language Design and Implementation

(PLDI '05), Chicago, IL, USA. 213-223.

Kebbal, D. (2006). Automatic flow analysis using

symbolic execution and path enumeration.

Proceedings of the 2006 International Conference

Workshops on Parallel Processing, Columbus, Ohio,

USA. 397-404.

King, J. C. (1976). Symbolic execution and program

testing. Communications of the ACM, 19(7), 385-394.

McMinn, P. (2004). Search-based software test data

generation: A survey. Software Testing, Verification

and Reliability, 14(2), 105-156.

McMinn, P., Harman, M., Binkley, D., & Tonella, P.

(2006). The species per path approach to SearchBased

test data generation. Proceedings of the 2006

International Symposium on Software Testing and

Analysis (ISSTA 2006), London, UK. 13-24.

Pargas, R. P., Harrold, M. J., & Peck, R. R. (1999). Test-

data generation using genetic algorithms. Journal of

Software Testing, Verification and Reliability, 9(4),

263-282.

Sen, K., Marinov, D., & Agha, G. (2005). CUTE: A

concolic unit testing engine for C. Proceedings of the

Joint 10th European Software Engineering

Conference and 13th ACM SIGSOFT Symposium on

the Foundations of Software Engineering, Lisbon,

Portugal. 263-272.

Soffa, M. L., Mathur, A. P., & Gupta, N. (2000).

Generating test data for branch coverage. Proceedings

of the 15th IEEE International Conference on

Automated Software Engineering (ASE'00), Grenoble,

France. 219.

Sofokleous, A., & Andreou, A. (2007). Batch-optimistic

test-cases generation using genetic algorithms.

Proceedings of the 19th IEEE International

Conference on Tools with Artificial Intelligence

(ICTAI), Patra, Greece. 157-164.

Sofokleous, A., & Andreou, A. (2008). Dynamic search-

based test data generation focused on data flow paths.

Proceedings of the 10th International Conference on

Enterprise Information Systems (ICEIS 2006),

Barcelona, Spain. 27-35.

Sofokleous, A. A., & Andreou, A. S. (2008). Automatic,

evolutionary test data generation for dynamic software

testing. The Journal of Systems & Software, 81(11),

1883-1898.

Tillmann, N., & Schulte, W. (2006). Unit tests reloaded:

Parameterized unit testing with symbolic execution.

IEEE Software, 23(4), 38-47.

Zhang, J., Xu, C., & Wang, X. (2004). Path-oriented test

data generation using symbolic execution and

constraint solving techniques. Proceedings of the

Second International Conference on Software

Engineering and Formal Methods, Beijing, China. , 28

242-250.

ICEIS 2009 - International Conference on Enterprise Information Systems

150
