DEFINING A WORKFLOW PROCESS FOR TEXTUAL AND

GEOGRAPHIC INDEXING OF DOCUMENTS

∗

Nieves R. Brisaboa, Ana Cerdeira-Pena, Miguel R. Luaces and Diego Seco

Database Lab., University of A Coru

na, Campus de Elvi

na, S/N 15071, A Coru

na, Spain

Keywords:

GIR, Workﬂow, Index structure, Ontology.

Abstract:

Many public organizations are working on the construction of spatial data infrastructures (SDI) that will enable

them to share their geographic information. However, not only geographic data are managed in these SDIs,

and, in general, in Geographic Information Systems (GIS), but also many textual documents must be stored

and retrieved (such as urban planning permissions and administrative ﬁles). Textual index structures must be

integrated with GIS in order to provide an efﬁcient access to these documents. Furthermore, many of these

documents include geographic references within their texts. Therefore, queries with geographic scopes should

be correctly answered by the index structure and the special characteristics of these geographic references, due

to their spatial nature, should be taken into account. We present in this paper a workﬂow process that allows

a gradual and collaborative creation of a document repository. These documents can be efﬁciently retrieved

using queries regarding their texts and regarding the geographic references included within them. Moreover,

the index structure and the supported query types are brieﬂy described.

1 INTRODUCTION

The research ﬁeld of Geographic Information Sys-

tems (Worboys, 2004) has received much attention

during the last years. Recent improvements in hard-

ware have made the implementation of this type of

systems affordable for many organizations. Fur-

thermore, a cooperative effort including the deﬁni-

tion of standards and speciﬁcations for interoperable

systems, has been undertaken by two international

organizations: ISO (ISO/IEC, 2002) and the Open

Geospatial Consortium (Open GIS Consortium, Inc.,

2003). This effort is making possible that many public

organizations are working on the construction of spa-

tial data infrastructures (SDI) (Global Spatial Data In-

frastructure Association, 2008) that will enable them

to share their geographic information. However,

these geographic infrastructures manage not only ge-

ographical information but also textual information

(such as urban planning permissions and administra-

tive ﬁles). Therefore, textual index structures must be

integrated in these infrastructures to provide an efﬁ-

cient access to these documents.

∗

This work has been partially supported by “Ministerio

de Educaci

on y Ciencia” (PGE y FEDER) ref. TIN2006-

16071-C03-03, and by “Xunta de Galicia” ref. 2006/4 and

ref. 08SIN008E.

The research ﬁeld of Information Retrieval (Baeza-

Yates and Ribeiro-Neto, 1999) has been active for

the last decades. The growing importance of Inter-

net and the World Wide Web have made it one of the

most important research ﬁelds nowadays. Many dif-

ferent index structures, compression techniques, and

retrieval algorithms have been proposed in the last

few years. More importantly, these proposals have

been widely used in the implementation of document

databases, digital libraries, and web search engines.

Altough many of the documents stored in these digital

libraries and documents databases include geographic

references, these ones are rarely used in information

retrieval systems.

During the last decades, these two research ﬁelds

have advanced independently. Pure textual techniques

focus only on the language aspects of the documents

and pure spatial techniques focus only on the geo-

graphic aspects of the documents. None of them is

suitable for a combined approach to information re-

trieval because each one completely neglects the other

type of information. As a result, there is a lack of

system architectures, index structures, and query lan-

guages that combine both types of information. Some

recent proposals (Lieberman et al., 2007; Chen et al.,

2006; Martins et al., 2005) deﬁne new index struc-

tures that take into account both the textual and the ge-

R. Brisaboa N., Cerdeira-Pena A., R. Luaces M. and Seco D. (2009).

DEFINING A WORKFLOW PROCESS FOR TEXTUAL AND GEOGRAPHIC INDEXING OF DOCUMENTS.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Human-Computer Interaction, pages 78-83

DOI: 10.5220/0001993500780083

 SciTePress

ographic aspects of a document. These proposals are

the origin of a new research ﬁeld called Geographic

Information Retrieval (GIR).

In (Luaces et al., 2008), we present an architec-

ture of a GIR system and an index structure that im-

prove the query capabilities of other proposals. How-

ever, this architecture is not ﬂexible enough to be used

in organizations where the number of documents is

constantly increasing. In public organizations (e.g.

city councils), where new planning permissions or ad-

ministrative ﬁles are generated every day, a workﬂow

process must be implemented to deﬁne all the tasks

for indexing a document in the repository. Moreover,

there are some tasks that must be performed before

the document indexing (e.g. metadata storage, scan-

ning, OCR, etc.). These tasks were not taken into

account in the presented architecture that assumes a

static document collection.

Therefore, this paper proposes a set of strategies

for the workﬂow management of the repository cre-

ation process and a general system architecture sup-

porting them. The proposed strategies improve the

performance of the system, ensuring that all the nec-

essary tasks are correctly performed, and facilitating

the work of the people devoted to this activity. In ad-

dition, textual, spatial, and hybrid queries (e.g. plan-

ning permissions of civil buildings in A Coru

na) can

be solved by means of the index structure integrated

in the system.

The rest of the paper is organized as follows.

Some related work is presented in the next section.

Section 3 presents the general architecture for the

workﬂow management in the digitalization process.

Then, in the Section 4 we brieﬂy describe the index

structure and the supported query types. Finally, Sec-

tion 5 presents our conclusions and future lines of

work.

2 RELATED WORK

Inverted indexes are considered the classical text

indexing technique (Baeza-Yates and Ribeiro-Neto,

1999). An inverted index associates to each word in

the text a list of pointers to the positions where the

word appears in the documents. The main drawback

of these indexes is that geographic references are

mostly ignored because place names are considered

words just like the other ones. If the user poses a

query such as hotels in Spain, the place name Spain

is considered a word, and only those documents that

contain exactly that word are retrieved.

Regarding indexing geographic information,

many different spatial index structures have been pro-

posed throughout the years. A good survey of these

structures can be found in (Gaede and Gnther, 1998).

A drawback of spatial index structures is that they do

not take into consideration the geographic ontology

of the real world. Internal nodes in the structure are

meaningless in the real world and it is not possible to

associate location-speciﬁc information to these nodes

because there is no relation at all between the nodes

in the spatial index structure and real world locations.

Some work has been done to combine both

types of indexes. The papers about the SPIRIT

(Spatially-Aware Information Retrieval on the Inter-

net) project (Jones et al., 2004; Vaid et al., 2005) are

a very good starting point. Regarding our work in this

research area, in (Luaces et al., 2008) we present an

architecture of a GIR system and an index structure

that combines an inverted index, a spatial index, and

an ontology-based structure. Pure textual queries,

pure spatial queries, and hybrid queries can be solved

by this index structure that is described in Section 4.

Finally, regarding our work in document man-

agement systems and workﬂow processes, in (Places

et al., 2007) we present a set of strategies to face the

management of the workﬂow of the digital library

building process and a general system architecture

supporting them. The paper also presents a tool

developed following that architecture. This tool

provides an integrated environment where all tasks

involved in the repository building can be performed.

As we noted before, in this work we extend the

architecture to include new tasks that make the index

able to solve queries taking into account the spatial

nature of the geographic references included in the

text of the documents.

3 SYSTEM ARCHITECTURE

According to (Hollingsworth, 1995), a workﬂow is

concerned with the automation of procedures where

documents, information, or tasks are passed between

participants following a deﬁned set of rules to achieve

or contribute to an overall business goal; the comput-

erized facilitation or automation of a business pro-

cess, in whole or part. Workﬂow management sys-

tems can be classiﬁed in several types depending on

the nature and characteristics of the process (van der

Aalst and van Hee, 2002; Fischer, 2003). Collabo-

rative workﬂow systems automate business processes

where a group of people participate to achieve a com-

mon goal. This type of business processes involves a

chain of activities where the documents, which hold

the information, are processed and transformed until

that goal is achieved. We based the architecture of

DEFINING A WORKFLOW PROCESS FOR TEXTUAL AND GEOGRAPHIC INDEXING OF DOCUMENTS

the system in this model because the problematic of

building a document repository ﬁts perfectly in it.

In general, we can differentiate three user proﬁles

involved in the repository building:

• Administrator. Administrators are responsible for

the process as a whole. They are in charge of as-

signing tasks to different workers and controlling

the state of each digitalized document.

• Advanced Users. Advanced users are in charge

of carrying out critical activities such as metadata

storage or reviewing the geographic references

extracted from the texts obtained by the OCR pro-

cess.

• Standard Users. Standard users are the workers

who carry out tasks such as scanning or OCR cor-

rection. This role is played by users with some

knowledge in the document ﬁeld but without any

responsibility on the management of the system.

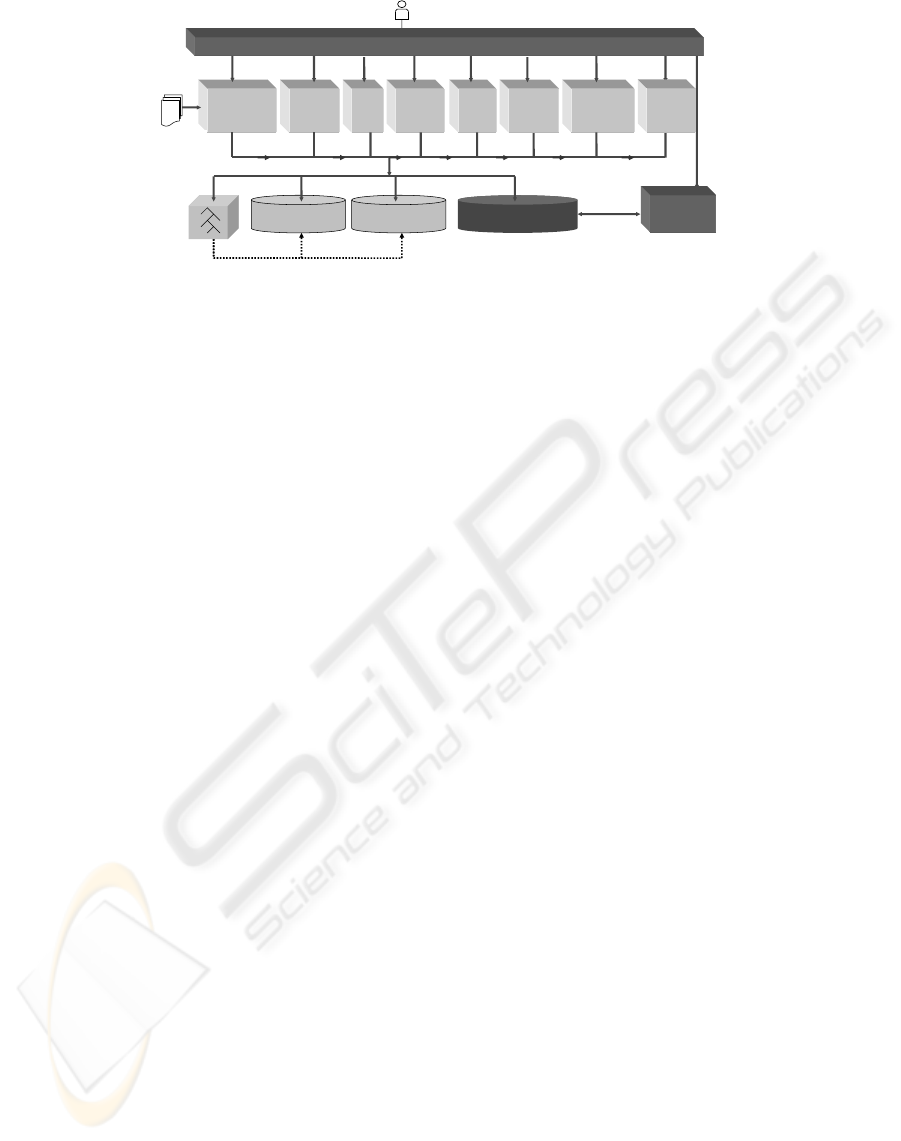

Figure 1 shows the overall system architecture. When

we deﬁned it, we followed the recommendations of

the Workﬂow Reference Model (van der Aalst and

van Hee, 2002), a commonly accepted framework

for the design and development of workﬂow manage-

ment systems intended to accommodate the variety

of implementation techniques and operational envi-

ronments that characterize this technology. Thus, al-

though we used this architecture for the implementa-

tion of a speciﬁc system, it can be used in other envi-

ronments and situations.

As we can see in Figure 1, the identiﬁcation and

authorizing module is in charge of the authentication

of the workers who want to use the system. Each user

has a system role depending on the tasks he/she is go-

ing to work on. In terms of this system role, the au-

thorizing module only provides the user with access

to the needed features. Furthermore, the system ar-

chitecture is composed of a module for each activity

carried out during the repository creation.

• Metadata Storage. This subsystem is in charge of

the introduction and storage of the metadata for

each document (title, author, year, source, etc.).

This task is performed by the advanced users of

the system, therefore only they have access to this

module.

• Scanning. This system provides access to the

scanning hardware and software, and it is the

responsible for managing the speciﬁcation of

the scanning parameters for each document (for

example, options like scanning two pages at

the same time, landscape orientation, resolution,

number of colours, etc.).

• OCR. It provides access to the OCR software that

allows the users to obtain the text of the docu-

ments and automatically stores it.

• Correction. This module provides the reviewer

with both the image and the extracted text to carry

out the correction to make the necessary modiﬁ-

cations.

• Markup. It provides the tools used for marking the

text with metadata such as the title, author, page,

etc.

• Abstraction. Given that the system must be

generic, it must support indexing several kinds of

documents. These documents will be different not

only because they may be stored using different

ﬁle formats (e.g. plain text, XML, etc.), but also

because their contents schema may be different

(e.g. the author could be an optional attribute in

the different schemas). To solve this problem, we

have deﬁned an abstraction that represents a doc-

ument as a set of ﬁelds, each one obtained from

the text marked in the previous task.

• Geo-references. It provides the tools used to de-

tect the geographic references included into the

text of the documents and translate them to a

model of the real world (e.g. latitude/longitude

coordinates, type of geographic references, etc.).

Several proposals have appeared recently to auto-

mate this task. However, human performance is

not achieved by these proposals. Therefore, both

man-made and automated geo-references are pos-

sible in the system.

• Indexing and Web Publishing. Once the document

is accepted, this module is in charge of indexing

its content using geographic information retrieval

techniques.

• Workﬂow Administration Module. This subsystem

is in charge of managing the workﬂow between

all these activities involved in the digitalization. It

also provides reporting tools for monitoring pur-

poses.

The system architecture assumes the use of different

repositories and databases. The document database

and the text repository store the documents and texts

extracted from them. An index is built over the doc-

ument database and text repository to support the

search for information. This index, which is described

in the next section, combines a textual index, a spatial

index, and an ontology-based structure. Finally, the

workﬂow database stores the information about the

digitalization chain, with the list of tasks, the state of

each document, etc.

ICEIS 2009 - International Conference on Enterprise Information Systems

Index

Documents

Database

Workflow

Database

Markup

Correction

OCR

Scanning

Abstraction

Geo-references

Text

Repository

Metadata

storage

System users

(standard: S; advanced: A; and administrator user: Adm)

Indexing

and Web

publishing

[

]

[

]

[

]

[

A, S

]

[

]

[

]

[

]

[

]

Identification and authorizing module

Documents

Workflow

Administration

module

Figure 1: System architecture.

4 INDEX STRUCTURE AND

SUPPORTED QUERY TYPES

In this section we brieﬂy describe the index structure

presented in (Luaces et al., 2008) and the query types

that can be solved with it. Figure 2 shows the index

structure. The base of this structure is a spatial ontol-

ogy. This ontology models both the vocabulary and

the spatial structure of places for purposes of infor-

mation retrieval. The structure of the ontology is ﬁxed

and therefore our index structure must be constructed

ad-hoc for the concrete domain where it will be used.

The main component of the index structure is a

tree composed by nodes that represent place names.

These nodes are connected by means of inclusion re-

lationships (for instance, Galicia is included in Spain).

In each node we store: (i) the keyword (a place name),

(ii) the geographic references associated to the place

name, (iii) the bounding box of the geometry repre-

senting this place, (iv) a list with the document iden-

tiﬁers of the documents that include geographic refer-

ences to this place, and (v) a list of children nodes that

are geographically within this node. Furthermore, an

R-Tree is used in each node to improve the perfor-

mance of the spatial queries.

Two auxiliary structures are used in the index.

First, a place name hash table stores for each place

name its position in the index structure. This provides

direct access to a single node by means of a keyword

that is returned by a gazetteer service if the word pro-

cessed is a place name. The second auxiliary structure

is a traditional inverted index with all the words in the

documents that is used to solve textual queries.

Keeping separate indexes for text and geograph-

ical scopes has many advantages. First, all textual

queries can be efﬁciently processed by the inverted

index, and all spatial queries can be efﬁciently pro-

cessed by the index structure. Queries combining

textual and spatial aspects are supported, as well.

Moreover, updates in each index are handled indepen-

dently, which makes the addition and removal of data

easier. Finally, speciﬁc optimizations can be applied

to each individual indexing structure. On the contrary,

the main drawbacks of this structure are: (i) the tree

that supports the structure is possibly unbalanced pe-

nalizing the efﬁciency of the system, and (ii) ontolo-

gies have a ﬁxed structure and thus our structure is

static and it must be constructed ad-hoc.

Finally, the most important characteristic of an in-

dex structure is the type of queries that can be solved

with it. Our index structure support three types of

queries: pure textual queries, pure spatial queries, and

queries with a textual and a spatial component. In this

last type, the spatial component can be given both as

a location name and as a geographical area.

Pure textual queries such as “retrieve all docu-

ments where the words hotel and sea appear” can be

solved by our system because a textual index is part

of the index structure. Similarly, pure spatial queries

such “retrieve all documents that refer to the follow-

ing geographic area” can also be solved because the

index structure is built like a spatial index. Each node

in the tree is associated with the bounding box of the

geographic objects in its subtree. Hence, the same al-

gorithm that is used with spatial indexes can be used

with our structure.

Furthermore, the index structure that we propose

can be used to solve queries that involve a textual and

a spatial component. In this case, the textual index

is used to retrieve the list of documents that contain

the words, and the spatial index structure is used to

compute the list of documents that reference the geo-

graphic area. The result to the query is computed as

the intersection of both lists. In the case of queries

such as “sunny places in Spain” (see Figure 2), our

system uses a gazetteer service to discover that Spain

is a geographic reference and then it uses the place

name hash table to retrieve the index node that repre-

DEFINING A WORKFLOW PROCESS FOR TEXTUAL AND GEOGRAPHIC INDEXING OF DOCUMENTS

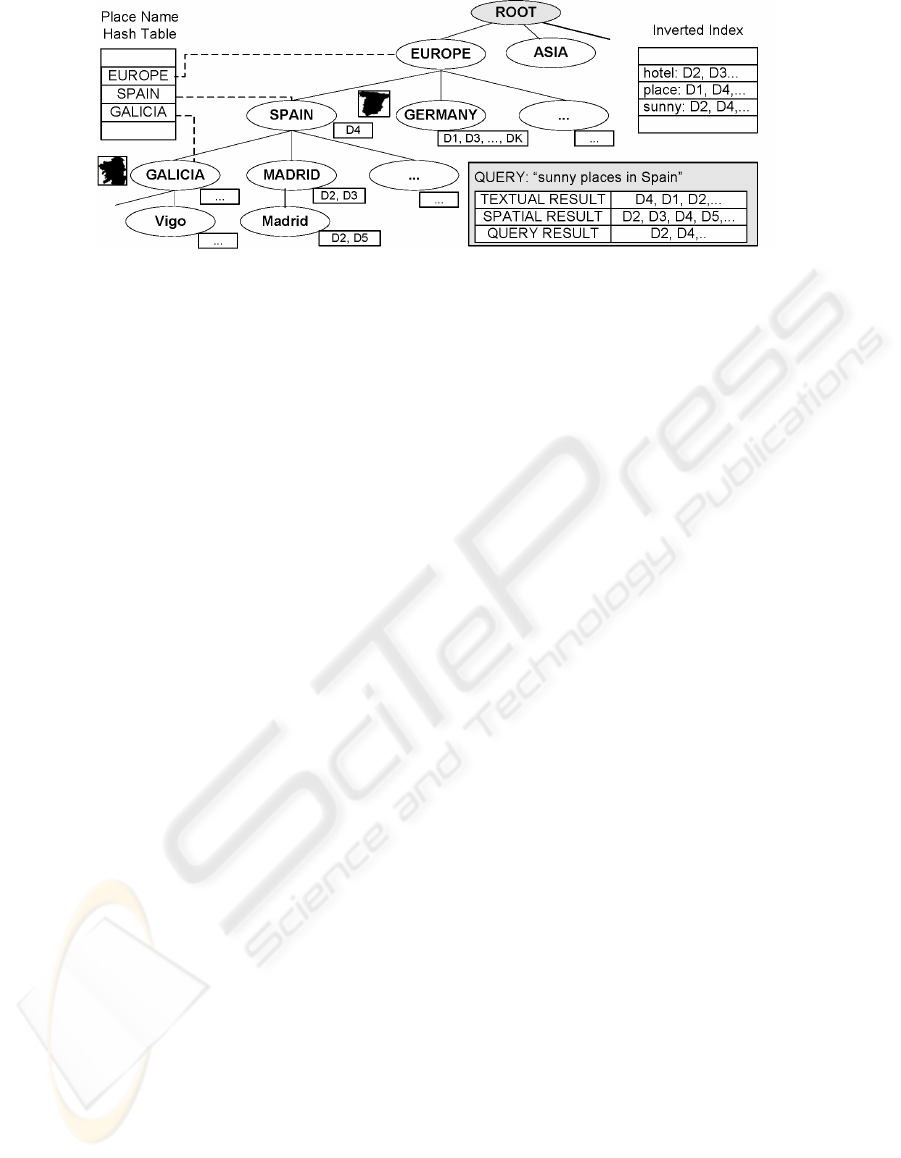

Figure 2: Index structure.

sents Spain. Thus, we save some time by avoiding a

tree traversal.

Another improvement over text and spatial in-

dexes is that our index structure can easily perform

query expansion on geographic references because

the index structure is built from an ontology of the

geographic space. Consider the following query “re-

trieve all documents that refer to Spain”. The query

evaluation service will discover that Spain is a geo-

graphic reference and the place name index will be

used to quickly locate the internal node that represents

the geographic object Spain. Then all the documents

associated to this node are part of the result to the

query. Moreover, all the children of this node are ge-

ographic objects that are contained within Spain (for

instance, the city of Madrid). Therefore, all the doc-

uments referenced by the subtree are also part of the

result of the query. The consequence is that the index

structure has been used to expand the query because

the result contains not only those documents that in-

clude the term Spain, but also all the documents that

contain the name of a geographic object included in

Spain (e.g., all the cities and regions of Spain).

5 CONCLUSIONS AND FUTURE

WORK

The creation of a document repository is not a simple

process. It requires the coordination of people and

tools to carry out every activity that is part of the pro-

cess. This process is even more complicated when the

geographic references included in the text of the doc-

uments must be obtained and translated to a model

of the real world. For all this process to be correctly

and efﬁciently made, it is necessary the use of sup-

port tools that facilitate the work of each participant

and ensure the quality of the obtained results.

The proposed workﬂow strategies and system ar-

chitecture support the control and coordination of

people and tasks involved in the digitalization pro-

cess. The use of this architecture automates the com-

pletion of activities that are prone to error and opti-

mizes the performance of the process and the quality

of the obtained results. This architecture was deﬁned

following the recommendations of the Workﬂow Ref-

erence Model. This system was built as a web appli-

cation that provides an integrated environment for the

execution of all the tasks.

Furthermore, the index structure integrated in the

document management system combines a textual in-

dex, a spatial index and an ontology-based structure.

Finally, new types of queries can be solved with this

index structure.

We are currently ﬁnishing a prototype of the sys-

tem. After that, we plan on using it in a real scenario

and evaluate its performance. Future improvements

of the workﬂow process and the index structure are

possible. First, we plan to include other types of spa-

tial relationships in the index structure in addition to

inclusion (e.g. adjacency). These relationships can be

easily represented in the ontology-based structure an

the index structure can be extended to support them.

Another line of future work involves exploring the use

of Toponym Resolution techniques to improve the task

in charge of obtaining geo-references. Finally, it is

necessary to deﬁne algorithms to rank the documents

retrieved by the system. For this task, we must deﬁne

a measure of spatial relevance and combine it with the

relevance computed using the inverted index.

REFERENCES

Baeza-Yates, R. and Ribeiro-Neto, B. (1999). Modern In-

formation Retrieval. Addison Wesley.

Chen, Y.-Y., Suel, T., and Markowetz, A. (2006). Efﬁcient

query processing in geographic web search engines.

In SIGMOD Conference, pages 277–288.

Fischer, L. (2003). Workﬂow handbook 2003. Future Strate-

gies Inc., USA.

Gaede, V. and Gnther, O. (1998). Multidimensional access

methods. ACM Comput. Surv., 30(2):170–231.

ICEIS 2009 - International Conference on Enterprise Information Systems

Global Spatial Data Infrastructure Association (2008). On-

line documentation. Retrieved March 2008 from

http://www.gsdi.org/.

Hollingsworth, D. (1995). Workﬂow management coali-

tion - the workﬂow reference model. Technical report,

Workﬂow Management Coalition.

ISO/IEC (2002). Geographic Information – Reference

Model. International Standard 19101, ISO/IEC.

Jones, C. B., Abdelmoty, A. I., Fu, G., and Vaid, S. (2004).

The SPIRIT Spatial Search Engine: Architecture, On-

tologies and Spatial Indexing. In Proceedings of the

3rd Int. Conf. on Geogr. Inform. Science, volume 3234

of LNCS, pages 125 – 139.

Lieberman, M. D., Samet, H., Sankaranarayanan, J., and

Sperling, J. (2007). STEWARD: Architecture of

a Spatio-Textual Search Engine. In Proceedings

of the 15th ACM Int. Symp. on Advances in GIS

(ACMGIS07), pages 186 – 193. ACM Press.

Luaces, M. R., Param, J. R., Pedreira, O., and Seco, D.

(2008). An ontology-based index to retrieve docu-

ments with geographic information. In Ludaescher,

B. and Mamoulis, N., editors, Proc. of the 20th

International Conference on Statistical & Scientiﬁc

Database Management (SSDBM’08) - LNCS, volume

5069, pages 384–400, Hong Kong, China.

Martins, B., Silva, M. J., and Andrade, L. (2005). Indexing

and ranking in Geo-IR systems. In GIR ’05: Proceed-

ings of the 2005 workshop on Geogr. Inform. retrieval,

pages 31–34, New York,USA. ACM Press.

Open GIS Consortium, Inc. (2003). OpenGIS Reference

Model. OpenGIS Project Document 03-040, Open

GIS Consortium, Inc.

Places, A. S., Brisaboa, N. R., Param, J. R., Pedreira, O.,

and Seco, D. (2007). Managing the workﬂow of mas-

sive feeding of digital libraries. Research in Computer

Science, 32:352–362.

Vaid, S., Jones, C. B., Joho, H., and Sanderson, M. (2005).

Spatio-Textual Indexing for Geographical Search on

the Web. In Proceedings of the 9th Int. Symp. on Spa-

tial and Temporal Databases (SSTD), volume 3633 of

LNCS, pages 218 – 235.

van der Aalst, W. and van Hee, K. (2002). Workﬂow man-

agement: Models, methods, and systems.

Worboys, M. F. (2004). GIS: A Computing Perspective.

CRC. ISBN: 0415283752.

DEFINING A WORKFLOW PROCESS FOR TEXTUAL AND GEOGRAPHIC INDEXING OF DOCUMENTS
