LAYERED PROCESS MODELS

Analysis and Implementation (using MDA Principles)

Samia Oussena

Thames Valley University, London, U.K.

Balbir S. Barn

Middlesex University, London, U.K.

Keywords: Model-Driven Architecture, Service-Oriented architecture SOA, Business Process modelling notation

BPMN.

Abstract: One of the key challenges of Service-oriented architecture (SOA) is to build applications, services and

processes that truly meet business requirements. Model-Driven Architecture (MDA) promotes the creation

of models and code through model transformation. We argue in this paper that the same principle can be

used to drive the development of SOA applications, using a Business Process Modelling (BPM) approach,

supported by Business Process Modelling Notation (BPMN). We present an approach that allows the SOA

application to be aligned with the business requirements, by offering guidelines for a systematic

transformation of a business process model from requirements analysis into a working implementation.

1 INTRODUCTION

The challenges of developing distributed enterprise

systems such as large development teams, complex

technology and changing business requirements

have the potential of being addressed by the

convergence of three key areas of technical

developments: Service oriented architecture; Model

driven architecture and Business process

management. Soley and Watson (2008) raise the

same point at a key note address at the 19th

conference on Australian Conference on Software

Engineering where they articulated the role of MDA

as a bridge between SOA and BPM.

Service oriented architecture (SOA) has gained

much attention as a unifying technical architecture

and has been concretely realised with web service

technologies (Erl, 2005). SOA promotes the

building, deploying and integrating of services

independently of any specific application and the

computing platform on which they run. Such

services generally observe characteristics such as

being individually useful or can composed to

provide higher level services thus promoting re-

usability. Services also communicate with each other

or clients via the exchange of messages and may be

part of a workflow application within the

organization. As well as a technological imperative,

SOA demands a wider organizational re-think to

understand what impact such an architectural

approach requires on solutions and their design,

what it means to assemble them from composable

services and how applications are deployed and

managed.

Modelling in general is viewed as a capstone of

many software engineering approaches where it is

used to as an approach to user requirements

definition and as a basis for developing information

systems to meet those requirements (Moody 2005).

Models provide a vehicle for explaining and sharing

understanding of complex problems and provide

capabilities for different views of the underlying

problem at different levels of abstraction. Model

driven architecture takes this premise further by

providing an overarching conceptual structure for

using and applying transformations to models in a

structured and controlled manner in all stages of the

software engineering development process. The

Object Management Group (OMG) provides a set of

standards to express models and model-model

transformation and has been leading industry

168

Oussena S. and S. Barn B. (2009).

LAYERED PROCESS MODELS - Analysis and Implementation (using MDA Principles).

In Proceedings of the 11th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

168-175

DOI: 10.5220/0001995601680175

 SciTePress

initiatives in the promotion of technologies, methods

and standards under the banner of model driven

architecture (MDA). There are three key guiding

principles for MDA which are relevant to this paper:

Models expressed in a well defined language

(notation and semantics) are critical for

understanding system requirements and solutions.

Systems can be organised and built around a

coordinated set of models and transformations

between models. Models and their modelling

languages can be formally described using

metamodels to enable model interchange, integration

and automation by tools.

Separately but connected to the developments in

SOA and MDA, business process modelling is

experiencing a resurgence of activity. A new wave

of business process modelling initiatives (Smith and

Fingar, 2003) involves the return to business process

modelling where organizations will rapidly adapt a

business process to address a new need, measure the

performance of the new business process and then

make further changes to the business process to

optimize the performance of the process – Business

Process Management (BPM). In order to make this

happen, important technologies needed to be in

place. These technologies enable processes to be

designed, implemented executed and evaluated

(from a performance perspective) and then changed

in real time on business management servers. A key

aspect is thus the notion of a model (discussed

above), that is, the process definition (and thereby its

documentation) and its execution specification.

BPM technical infrastructure includes: standards for

notations for business process modelling, standards

for translation of models into executable languages

and the building of systems from multiple process

definitions (Delphi 2003).

The last two years have seen the OMG – authors

of the Unified Modelling Language (UML) –

publish the Business Process Modelling Notation

BPMN standard (BPMN, 2006) which includes

mappings to the execution language Business

Process Execution Language for Web Services.

BPEL4WS. At the same time, there has been the

emergence of a new form of toolset – BPM tools

that are model based and allow a process to be taken

from analysis through to execution in a single

environment. Therefore, BPMN with a supporting

toolset provides a bridge between business-oriented

process modelling notation and an IT-oriented

execution language. It allows the modelling to

encompass both system and human activities. It

provides the notation for the modelling of the

business flow and web service interaction.

2 RELATED WORK

A comprehensive literature review is outside the

scope of this paper instead our primary focus on the

work that links the three areas of SOA, MDA and

BPM in some way.

Zhang and Jiang have taken an MDA approach

to workflow based applications (Zhang and Jiang,

2008). Like the approach described in this paper

they distinguish between models for analysis

requirements and those models for implementation.

Their target implementation models are based on the

use of BPEL while their analysis models utilise a

specially developed UML 2.0 profile for business

modelling. They provide transformation mappings

from their business models to BPEL. A key

difference between our two approaches is that while

we share a conceptual framework based on MDA

principles we place greater importance on the role of

a standard such as BPMN and transformations

pertaining to that standard. Murzek at al (2006)

present a categorisation of different model

transformation scenarios which include model

integration, model translation and model

synchronization. In contrast to the algorithmic

approach adopted in this paper, workflow patterns at

the domain level are used to support the

transformation types. Brown et al describe a

software development approach to application

design using service oriented architecture principles

coupled with MDA tool support (Brown et al 2006).

They emphasise the importance of utilising such

technologies in the context of business architecture

(process driven) as response to more recent criticism

that MDA has failed to deliver. Huang and Fan

propose an approach to enterprise integration where

MDA is the philosophy of system development and

SOA is the infrastructure of system implementation

(Huang and Fan, 2007). This approach shares some

similarity with the approach described here but a

missing component is the role of BPM as a bridging

mechanism between SOA and MDA. Thomas and

Leyking present a rationalisation of the importance

of business process management and how process

models can be used to design and implement service

oriented architectures (Thomas and Leyking 2008).

Their approach provides a discussion of event

process chains, BPMN and BPEL. Their approach

however is not contextualised in a MDA framework.

Other relevant work is Zdun et al’s discussion on

modelling process driven service oriented

architectures (Zadun et al, 2007). As part of their

problem statement they comment:

“Process-driven SOA models are hard to understand and be

LAYERED PROCESS MODELS - Analysis and Implementation (using MDA Principles)

169

kept consistent because many different kinds of models are

relevant for a SOA and only loosely interconnected.

Model-driven development of process-driven SOAs is not yet

well supported because there are no precise modelling

approaches and model-driven development tools that are focusing

on the domain of process-driven SOA in general.” (page 4: Zdun

et al 2007)

This echoes the challenges identified and

partially addressed in this paper. The BPMN area

raises issues specific to that domain. Research has

largely focused on the notation and its efficacy. In

particular the expressiveness of BPMN was subject

to an examination by Recker et al (2006).The

notation set was reviewed from perspectives of

construct deficits (lack of notation support for

modelling requirement, construct excesses (notations

which may not be needed) and construct overloads

(notation for which there are multiple meanings).

While the research indicated that not all theoretical

problems were seen as critical, some issues

identified by the research were a lack of business

rules, a lack of a structuring capability, and

ambiguity around the definitions of Lane and Pool

constructs.

In summary, the convergence of SOA, MDA and

BPM presents an opportunity for organizations to

develop an IT strategy that will allow them to

respond to changing business requirements in a

structured and coherent manner. However, the

literature would indicate that there a number of key

challenges that must be addressed.

2.1 Motivation, Research Question and

Contribution of this Paper

Historically, business process models have been

developed by less IT-oriented, more business-

focussed people, and have been technically

separated from the processes representations

required by the implementation and the execution of

these processes. There has therefore been the need to

manually translate the original business process

model to the execution model. Such translations are

subject to errors due to a lack of continuity in the

development process and the lack of a framework

for managing model transformation in an organised

and systematic fashion. The lack of an end-to-end

approach also makes it difficult to understand the

evolution of the original process model and

traceability of model transformations.

The question that we are trying to address in this

paper is thus: Is it possible to articulate a

transformation of the business process model that

follows an MDA approach? Deconstructing

further: can we provide a systematic transformation

of an analysis process model to an implementation

process model?

This paper discusses an approach to providing

transformations from the initial analysis process

(business-oriented model) to the execution process

(implementation-oriented model). We present a

method that provides the transition between the tasks

of the business processes definition and the

operational systems that implement the capability, in

turn aligning the development of web services with

the business needs. The remainder of this paper is

structured as follows: The next section (3)

introduces key concepts underpinning the paper.

Section 4 presents the research approach and the

details of the case study supporting the development

work. Section 5 describes the model transformation

algorithm that supports the transformation of an

analysis process model to an implementation process

model. The algorithm is illustrated by examples of

transformations from the process models

development for case study. Section 6 concludes the

paper and outlines further intended work.

3 BACKGROUND CONCEPTS

Here we briefly introduce the main modelling

concepts to enable sufficient understanding the

remainder of this paper. BPMN is a standard for

modelling business process flows and web service

interaction. It comprises one diagram a

corresponding notation set. The diagram and its

modelling language include four core modelling

elements: activities, events, gateways and

connectors:

• An activity is an action that is performed within

a business process. Activities can be either an

atomic or non-atomic part of a process model.

These are depicted in a BPMN diagram as either

sub-processes or tasks. Activities may be

performed once only, or can have internally

defined loops. A task is an atomic activity that

is included within a process, whereas a sub-

process enables hierarchical process

development. At the implementation level, it is

used more in the context of having different

scope – access rights – to the process variables.

Sub-processes represent compound activities

within the process.

• An Event is something that “happens” during

the course of a business process. These Events

affect the flow of the Process and usually have a

trigger or a result. They can start, interrupt, or

ICEIS 2009 - International Conference on Enterprise Information Systems

170

end the flow. There are multiple types of events

for starting, interrupting and end events.

• The flow of control between each activity is

depicted by sequence flow. Business decisions

and branching of flows are modelled using

gateways. Gateways are the modelling elements

that are used to control how sequence flows

interact as they converge and diverge within a

process.

• Connectors are of three kinds:

• A Sequence Flow is used to show the order

that activities will be performed in a

Process

• A Message Flow is used to show the flow

of messages between two entities that are

prepared to send and receive them

• An Association is used to associate data,

information and artefacts with flow objects

This notation is simple enough to be used by

business analysts in dialogue with users and rich

enough to support programming level semantics.

The challenge is to provide a mechanism for a

controlled transformation from one use to another.

3.1 Model Views

Before looking at the transformation, let’s look at

each of the views. The objective of the business

view (analysis process model) is to understand the

“as is” or “to be” process at a high level. Thus we

are concerned with: the ordering of tasks (flow), the

roles responsible for the tasks and the objects

affected by the tasks. At this stage, we are concerned

with producing models that are manageable and

readable by primarily business analysts. How a

process may be translated into an executable model

is not of concern. Such a model is tagged in MDA as

a Computation Independent Model (CIM) and a

Platform Independent Model. (PIM)

The implementation business process model extends

the business analysis model with additional focus on

the detail of the use of services and user interactions

for the process. The model may represent a process

that is composed of a set of external services (web

services, user tasks, or other processes) and specify

the exact order of activities and input and output

messages and their data formats. Issues of

parallelism, call-backs are also addressed. The main

interests at this level are: Describing the logic of

business processes through composition of services;

the services could be: web service, user task or other

processes; Invoking web service operations; Waiting

for the client (the service) to invoke the process

through sending messages (receiving a request);

Manipulating data variables; Combining basic

activities by using structures such as (sequence,

branches and loops); Structuring processes into

several scopes or sub processes; Handling message-

related and time related event and creating

compensation activities in case of failure.

4 APPROACH TAKEN

The work described in this paper refers to and

follows from earlier work on process modelling,

service oriented architecture and associated

methodologies. Thus the research approach follows

a conjunction of a number of research methods.

Firstly the approach draws upon principles of action

research, in that we are attempting to integrate

theory and practice by a process of experimentation,

reflection and iteration (Lau, 1997). The second

research method adopted is that of case study

research as there are several examples in IS research

providing evidence that case study based

methodologies are well suited for exploring business

processes in an organizational setting (Huang et al,

2005). We also felt it was important to provide

experimental data that was derived from the

implementation of the case study business process

using a BPMN toolset. We chose to implement our

case study process using the Intalio Designer

Community Edition (Intalio, 2008). This version

provides full expressive model based capability to

produce BPMN diagrams which can be executed

provided enough model based information is

entered. The toolset includes a server for executing

workflows of a specified process. A full description

of the toolset is outside the scope of this paper.

The work described in this paper is derived from

the Cova project [http://cova.tvu.ac.uk/] which aims

at evaluating the use of BPMN in a Higher

Education (HE) context. This project built on

research from a previous project: COVARM

[http://covarm.tvu.ac.uk/].

The objective of COVARM was to develop a

reference model for course validation in HE (Barn et

al, 2006) – that is the design of a new course where

the primary output of the process is a course

specification – a description of a new course.

The COVARM project took a business process

based approach to analysing the problem space and

developed four case studies of the course validation

processes in different institutions. These processes

were synthesized into a single canonical reference

LAYERED PROCESS MODELS - Analysis and Implementation (using MDA Principles)

171

process which was then used in subsequent

development. This process required both computer

and human interaction. COVARM went on to

develop two technical scenarios for the canonical

process:

1. The preparation of a proposal for a new

programme and;

2. The organising of a validation event.

The scenarios were implemented as WSDL

services and choreographed using the Business

Process Execution Language (BPEL). In the COVA

project, we modelled and implemented these two

scenarios in BPMN using a BPM toolset. We used

existing services developed for COVARM, and

developed new services when required.

Process design in higher education has relevance

to the wider community. The course design process

is a core business process and as such it has parallels

to product design processes in industry. Further

because of the complexity and longevity of the

process multiple functional areas (roles) are

involved in activities within the process. Issues of

transactional completeness, appropriate management

of delays are thus similar to that found in industry.

5 RESULTS AND EVALUATION

This section describes the transformation algorithm

that maps the analysis process model into a platform

specific implementation model. Two examples are

used to illustrate aspects of the algorithm.

5.1 The Transformation Approach

The transformation algorithm is applied to the

analysis process model. Currently the algorithm is

implemented manually. As shown in Fig 1. Each

task (BPMN activity) is treated to the “Map_task”

algorithm.

Taking the tasks identified in the business view,

we apply an iterative process to each task. In

overview, the map task function uses the

input/output data (based on the modelled data flows)

to determine the data type schemas. An attempt to

stereotype (classified) each task is carried on. If a

task can be stereotyped it can then be mapped into

an implementation model task element. Otherwise, it

is decomposed into sub tasks or sub processes,

depending on the data.

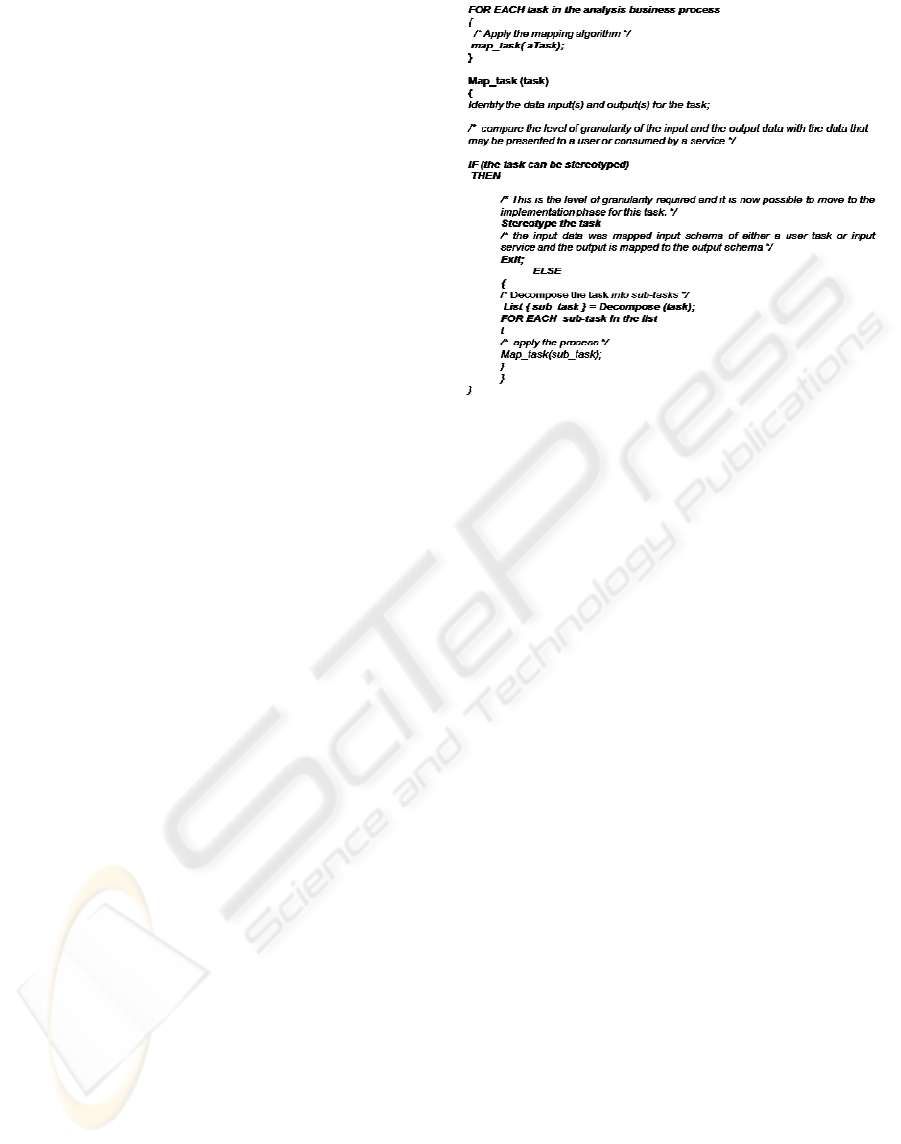

Figure 1: Transformation Algorithm.

5.1.1 Identifying Task Data

The identification of the data input(s) and output(s)

for a task can be determined by its relation to other

tasks within the process. Data flow should already

be modelled at an abstract level within the business

view. Further analysis of the input(s) and output(s)

for the task will inform data type schemas, and the

next stage of the process: stereotyping the task. In

this activity the analyst will define each input and

output either in terms of primitive or complex types.

The complex type is then compared to a service

message schema or checked if it is at the level that

can be presented to a user. If this is not the case, it

will then require further decomposition.

5.1.2 Stereotyping Tasks

In UML, a stereotype is used to refine the meaning

of a model element or used to describe a model

element that can differ in meaning or usage from

another element (UML, 2007). Similarly, we use

stereotype to categorise a task in a business process

model of being of a certain type. We stereotype

tasks in a business process as being either:

• User Tasks (tasks requiring human interaction,

most usually implemented with forms in a

workflow application)

• Service Tasks (tasks that require the invocation

of a method on an external service, such as a

web service)

• Data Manipulation Tasks (tasks where data is

manipulated internally within the process)

ICEIS 2009 - International Conference on Enterprise Information Systems

172

Data Manipulation tasks can be treated in the same

way as Service Tasks, the difference being that calls

to methods internal to the process are used instead of

calls to external service methods.

If a task can take the defined input(s) and return

the defined output(s) while employing only one

instance of one of these stereotypes, the task is at the

correct level of granularity for implementation.

It may be the case that a task requires a number

of instances of one stereotyped task, or a mixture of

stereotypes, in which case the task must be

decomposed.

5.1.3 Decomposing Tasks

A task can be decomposed into stereotyped tasks by

inspection of data flow requirements. It should be

the case that a sub-task (task-within-the-task) is

required when data is manipulated, altered or

introduced, and when a stereotype is identified.

Once these sub-tasks have been identified, the

recursive process starts again with each sub-task.

Decomposing a task can results in either:

sequence/parallel set of sub tasks; sub tasks included

in a sub process or sub tasks included in a loop sub

process.

It is desirable that tasks are decomposed into a

set of parallel tasks unless there are constraints such

as the input from one subtask need to be used by

another subtask; in which case the decomposition

results in a sequence of subtasks. Sub processes are

used when data is required to be isolated or a

subtask requires compensation. In case the data is an

array of values, the decomposition will be a loop sub

process.

5.2 Examples of Implementing a

Layered Process Model

In this section we describe two examples of refining

the business view of a process model into an

implementation view.

The first example is a fragment describing the

scheduling of an event once the course

documentation and panel members for the validation

event have been selected. These additional

constraints make this more complex than a usual

event scheduling process.

Once a course specification document has been

prepared, a request for setting up a validation event

is issued. Upon receiving the request, the academic

office, will check the completeness of the

documentation and decide on whether to proceed

with the organisation of the validation event. The

fragment of the analysis model and its corresponding

implementation model are shown in Fig 2.

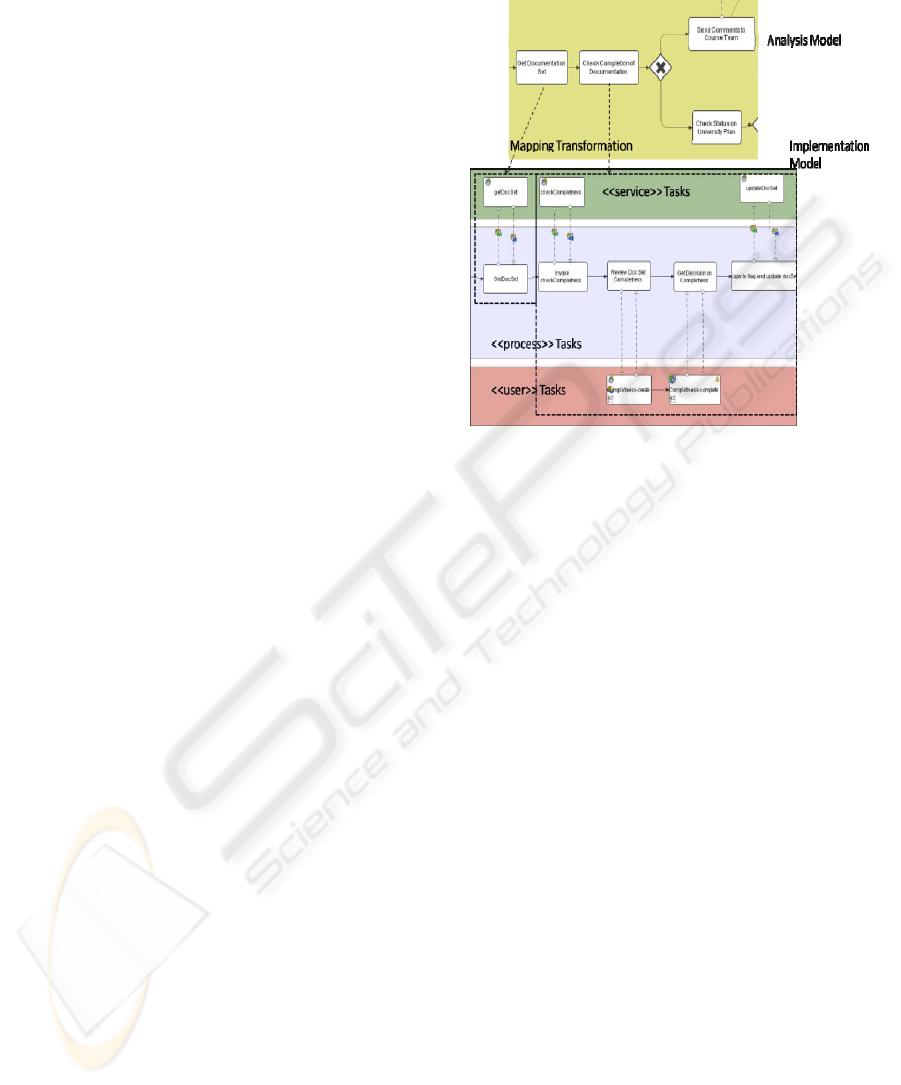

Figure 2: Example 1.

This example illustrates the decomposition of

tasks in a sequence of subtasks. The

‘GetDocumentSet’ task takes a request of retrieving

a document set and returns the actual document set.

This can directly be mapped into a web service. The

“decide on completeness of documentation” task

takes a document set as an input and the output is

Boolean. Here to arrive to the decision we need to

present the document set to the user with the

intention of making a decision on the completeness

of the document. It is therefore mapped into getting

an automatic review of the completeness (service), a

viewing of the document and a completeness report

and capturing the user decision on completeness. It

was also mapped into a task of saving any changes

made to the document set, which lead to the

invocation of a web service for storing the updated

document.

The second example illustrates two other types

of decomposition. We first look at the

decomposition into parallel subtasks and then into

loop sub processes. Here, the academic office tries

to coordinate a panel for the review of the course

specifications.

LAYERED PROCESS MODELS - Analysis and Implementation (using MDA Principles)

173

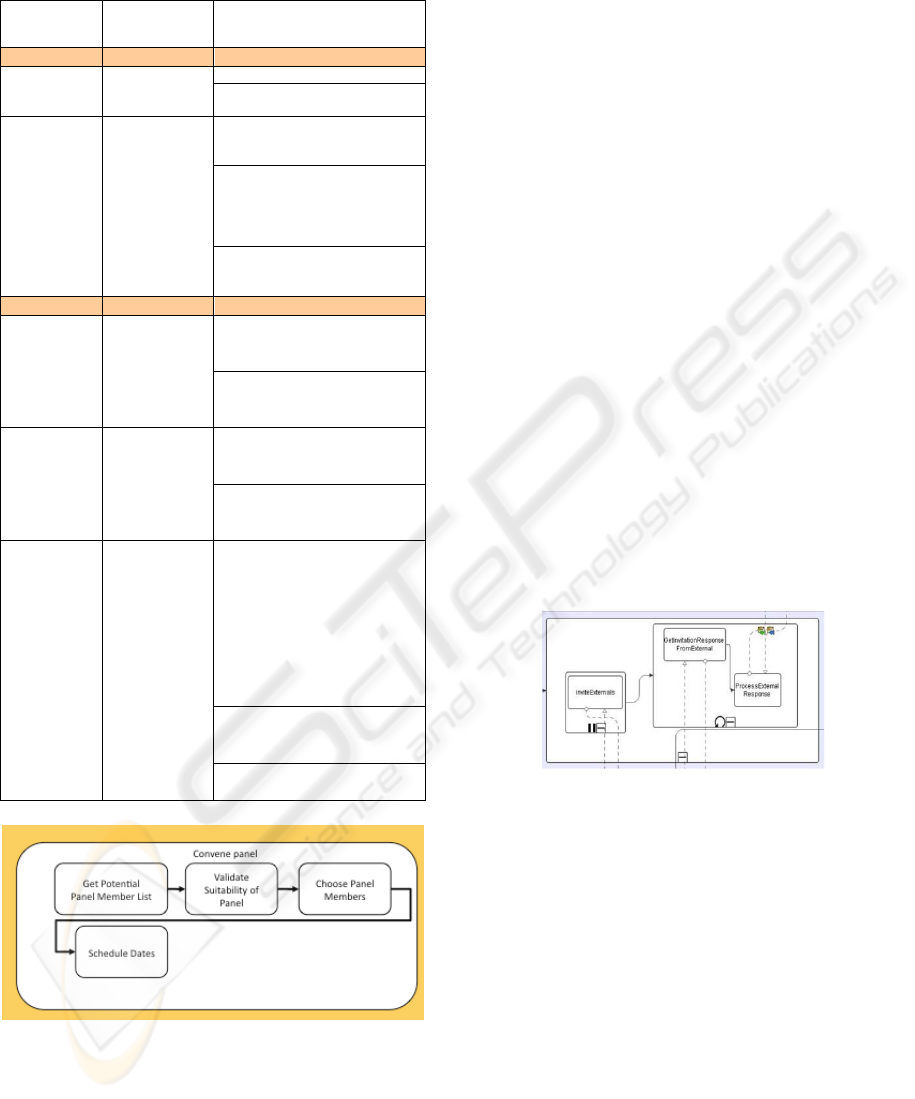

Table 1: Examples of transformation.

Analysis

Model

Transform

ation

Implementation

Model

Example 1

Get

Documentatio

n Set

Direct mapping <<Service Tasks>> GetDocSet

<<Process Tasks>> GetDocSet

Decide on the

Completeness

of the

Documentatio

Mapping into

tasks sequence

<<Service Tasks>>

CheckCompletness

UpdateDocSet

<<Process Tasks>>

InvokeCheckCompletness

ReviewDocSetCompletness

GetDecisionOnCompleteness

CopyFlag&UpdateDocSet

<<User Tasks>>

Completeness-Create

Completeness-Complete

Example 2

Get

Potential

Panel

Member

List

Mapping into

parallel tasks

<<Service Tasks>>

CreateEvent GetExternal

GetInternal

<<Process Tasks>>

CreateEvent GetExternal

GetInternal

Validate

Suitability

of Panel

Mapping into

sequence

tasks

<<Process Tasks>>

SelectPanelMember

RetrieveSelection

<<User Tasks>>

ViewPotentialMembers

SelectPotentialMembers

Choose

Panel

Members

Decomposed

into

Sequence of

tasks & 2

parallel

subprocesses.

Each

subprocess

decomposed

into parallel

loop task and

a subprocess

(illustrated in

Figure 4)

<<Process Tasks>>

GetpossibleDates

SuprocessInviteExternal

(loop task: inviteExternal &

subprocessProcessResp:

(GetInvitationResponse,

ProcessResponse))

SubprocessInviteInternal

(same as the external)

<<User Tasks>>

PanelInvite-create

PanelInvite-complete

<<Service Tasks>>

ProcessMemberResponse

Figure 3: Example 2.

A panel is usually composed of external subject

specialists, internal (institutional) staff and a

chairperson. The academic office reviews a list of

potential panel members, chooses an appropriate

number for each role (chair, external, internal), and

arranges a date for the meeting.

A portion of the analysis model is shown in fig

3. An examination of the data for the “Get Potential

Panel Member List” task revealed that the

identification of two types of panel members

(external and internal) was required. This lead to the

task being mapped into two tasks: “getExternals”

and “getInternals”. Both tasks could be stereotyped

into web service tasks. We noticed that the order of

completion of the tasks are not important –getting

internal panel members and getting external panel

members were not dependent on each other. A new

task was also created requesting the event web

service to create a new event that will hold the data

related to the event.

The “Choose Panel Members” task needs to be

mapped into two sub-processes: an “invite external”

sub process and an “invite internal” sub process. As

illustrated in Fig 4, within each sub process, panel

members are to be notified of their invitation to the

event. Each individual member is required to

receive the invitation at the same time; hence, the

task that invites each panel member needs to be in a

parallel loop. This process was completed by

putting a timer on the response sub process to allow

for eventualities such as a non-responding panel

member.

Figure 4: Sub Process Invite External.

6 CONCLUSIONS

In this paper we outlined the case for the application

of MDA principles in business process analysis and

implementation. We have provided examples that

illustrated an algorithm for model transformation

from analysis to implementation. These examples

have been based on the use of Intalio Designer. We

recognise that other toolsets may be used to

implement such transformations, but we feel that our

approach is toolset-independent. The transformation

stages, while straightforward, are sufficient to

achieve the consistent level of granularity required

to successfully bridge the gap between process

analysis and process implementation.

ICEIS 2009 - International Conference on Enterprise Information Systems

174

The transformation from a high-level analysis to

a lower-level implementation model can involve

some degree of complexity, even for seemingly

straightforward processes. Key to achieving a

successful transformation is the decomposition of

these high-level tasks into tasks at an appropriate

level of granularity for the implementation of the

process. The transformation approach proposed has

the potential to be a useful technique for

methodologies that need to be developed for BPM.

The algorithm presented is implementation neutral

and with further experimentation may be sufficiently

generalisable and transferable between toolsets such

that we feel a conversion from manual

transformations to automated wizard-type

transformations is a real and achievable possibility

using this approach.

REFERENCES

Barn, B.S., Dexter, H., Oussena, S., Petch, J. 2006, An

Approach to Creating Reference Models for SOA

from Multiple Processes. In IADIS Conference on

Applied Computing.

BPMN. 2006, Business Process Modeling Notation

(BPMN) Specification [Online] BPMN. Available at:

http://www.bpmn.org/Documents/OMG%20Final%20

Adopted%20BPMN%201-0%20Spec%2006-02-

01.pdf [Accessed Nov 2008].

Brown A, Delbaere M, Eeles P, Johnston S, Weaver R.

Realizing service-oriented solutions with the IBM

Rational Software Development Platform. IBM

Systems Journal [serial online]. September

2005;44(4):727-752.

Delphi Group. 2003, BPM 2003 – Market Milestone

Report. White Paper.’

Erl, T. 2005, Service Oriented Architecture – Concepts,

Technology and Design, Prentice-Hall, USA

Huang J.C., Newell S., Poulson B., Galliers R.D. 2005,

Deriving Value from a Commodity Process: a Case

Study of the Strategic Planning and Management of a

Call Center. In Proceedings of the Thirteenth

European Conference on Information Systems

Regensburg, Germany, May 26-28, 2005.

Huang, S. and Fan, Y. 2007. Model Driven and Service

Oriented Enterprise Integration---The Method,

Framework and Platform. In Proceedings of the Sixth

international Conference on Advanced Language

Processing and Web information Technology (ALPIT

2007) - Volume 00 (August 01 - 01, 2007). ALPIT.

IEEE Computer Society, Washington, DC, 504-509.

Intalio. n.d, Product List, [Online] Intalio. Available at:

http://www.intalio.com/products, [Accessed Nov

2008].

Lau, F. 1997. A review on the use of action research in

information systems studies. In Proceedings of the

IFIP Tc8 WG 8.2 international Conference on

information Systems and Qualitative Research

(Philadelphia, Pennsylvania, United States). A. S. Lee,

J. Liebenau, and J. I. DeGross, Eds. Chapman & Hall

Ltd., London, UK, 31-68.

Moody, D. L. (2005) Theoretical and practical issues in

evaluating the quality of conceptual models: current

state and future directions. Data & Knowledge

Engineering 55, 243-276.

Murzek, M., Kramler, G., and Michlmayr, E. 2006.

Structural Patterns for the Transformation of Business

Process Models. In Proceedings of the 10th IEEE on

international Enterprise Distributed Object Computing

Conference Workshops (October 16 - 20, 2006).

EDOCW. IEEE Computer Society, Washington, DC,

18.

Recker, J., Indulska, M., Rosemann, M., Green, P.: (2006)

How Good is BPMN Really? Insights from Theory

and Practice. In: Ljungberg, J., Andersson, M. (eds.):

Proceedings of the 14

European Conference on

Information Systems. Association for Information

Systems, Goeteborg, Sweden (2006) 1582-1593

Smith H., Finger P., Business Process Management

(BPM) the third wave, Meghan-kiffer press

Soley, R. and Watson, A. 2008. Service Oriented

Architecture: Making the Leap, Leveraging Model

Driven Architecture and Achieving Software Agility

with BPM, SOA and MDA®. In Proceedings of the

19th Australian Conference on Software Engineering

(Aswec 2008) - Volume 00 (March 26 - 28, 2008).

ASWEC. IEEE Computer Society, Washington, DC,

32-34.

Thomas, O., Leyking, K., and Dreifus, F. 2008. Using

Process Models for the Design of Service-Oriented

Architectures: Methodology and E-Commerce Case

Study. In Proceedings of the Proceedings of the 41st

Annual Hawaii international Conference on System

Sciences (January 07 - 10, 2008). HICSS. IEEE

Computer Society, Washington, DC, 109.

UML, 2007, Unified Modeling language,

http://www.omg.org/docs/formal/07-11-04.pdf

Zdun, U., Hentrich, C., and Dustdar, S. 2007. Modeling

process-driven and service-oriented architectures using

patterns and pattern primitives. ACM Trans. Web 1, 3

(Sep. 2007), 14.

Zhang, L. and Jiang, W. 2008. Transforming Business

Requirements into BPEL: A MDA-Based Approach to

Web Application Development. In Proceedings of the

IEEE international Workshop on Semantic Computing

and Systems - Volume 00 (July 14 - 15, 2008). WSCS.

IEEE Computer Society, Washington, DC, 61-66.

LAYERED PROCESS MODELS - Analysis and Implementation (using MDA Principles)

175
