PERFORMING THE RETRIEVE STEP IN A CASE-BASED

REASONING SYSTEM FOR DECISION MAKING IN INTRUSION

SCENARIOS

Jesus Conesa and Angela Ribeiro

Instituto de Automatica Industrial, CSIC, Arganda del Rey, Madrid, Spain

Keywords:

Case-based reasoning, Similarity function, decision tree, Cross-validation.

Abstract:

The present paper describes implementation of a case-based reasoning system involved in a crisis management

project for infrastructural building security. The goal is to achieve an expert system, capable of making deci-

sions in real-time to quickly neutralize one or more intruders that threaten strategic installations. This article

presents development of usual CBR stages, such as case representation, retrieval phase and validation process,

mainly focusing on the retrieving phase, approaching it through two strategies: similarity functions and deci-

sion tree structures. The designing case, such as the discretization values that are adopted, will also discussed.

Finally, results on the retrieving phase performance are shown and analyzed according to well-known cross-

validations, such as k-validations or leave-one-out. This work is supported by project CENIT-HESPERIA.

1 INTRODUCTION

Due to the sensitive international situation caused by

the still recent terrorist attacks, there is a common

need to protect the safety of great spaces like gov-

ernment buildings. To support these kind of prob-

lems a CBR system has been designed which repre-

sents the decision making core of the security sys-

tem under development, hence it will make decisions

concerning several scenarios in real-time. The intru-

sion evaluation process and recovery of a solution that

minimizes the consequences of the attack are both in-

cluded within management of infrastructure safety. It

is in this context that the proposed CBR will perform.

Reaction time is an important parameter for these sit-

uations and, therefore, it would be very interesting to

determine a solving action that can help the expert

take the best decision process so speed intervention

can be increased. This is the main reason for includ-

ing a decision support system, in this case a CBR.

In that concerning to the chosen CBR approach, the

same allows identifying and analysing similar previ-

ous intrusion scenes (cases) and applying the associ-

ated solution to similar new cases or, even, construct

a new solution from the previous one that is already

stored. Finding the case that is most similar (from

amongst all those contained in the cases database) to

a new and unknown intrusion scene (case) is not an

easy task, which is included in the CBR cycle (Lopez

de Mantaras, 2006). For the retrieval phase, two ap-

proaches are developed in the present work: the ﬁrst

applies a similarity function and the second constructs

a decision tree that groups information according to

common characteristics, preparing it for a classiﬁca-

tion process. A knowledge base containing a set of

cases with their associated solutions or actions for

each one of them is referenced alongside this article.

In the case of a new situation, the solution or action

of the most similar case that is stored is copied in the

reuse CBR phase, so it is in the retrieval phase where

the adaptation process is focused.

2 CBR IMPLEMENTATION

2.1 Case Representation

The ﬁrst implementation step is to deﬁne the case

structure. Case representation can be viewed as the

task of enabling the computer to recognize, store, and

process past contextualized experiences (Shiu, 2004).

These are those scene parameters that are, in general,

inspected by an expert to decide from amongst the

several actions that are possible. This subject repre-

sents a very important point because the chosen struc-

ture for a case will strongly determine the entire sys-

tem design.

343

Conesa J. and Ribeiro A. (2009).

PERFORMING THE RETRIEVE STEP IN A CASE-BASED REASONING SYSTEM FOR DECISION MAKING IN INTRUSION SCENARIOS.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Artiﬁcial Intelligence and Decision Support Systems, pages

343-346

DOI: 10.5220/0001996403430346

 SciTePress

The initial requirements are the map of the build-

ing under surveillance, intruder locations, guards, exit

and sensitive zone (in all probability the intruder tar-

get). Spatial representation of a possible scenario ap-

pears in ﬁgure 1. The red lines represent the bounds

of constraint, such as obstacles, walls, closed doors.

Since it is a map with obstacles, the well-known prob-

lem of ﬁnding an optimal path is certainly not triv-

ial one. Our approach to resolve the path planning is

based on a representation of the space known as De-

launay triangulation. For more details, see (Anglada,

1997).

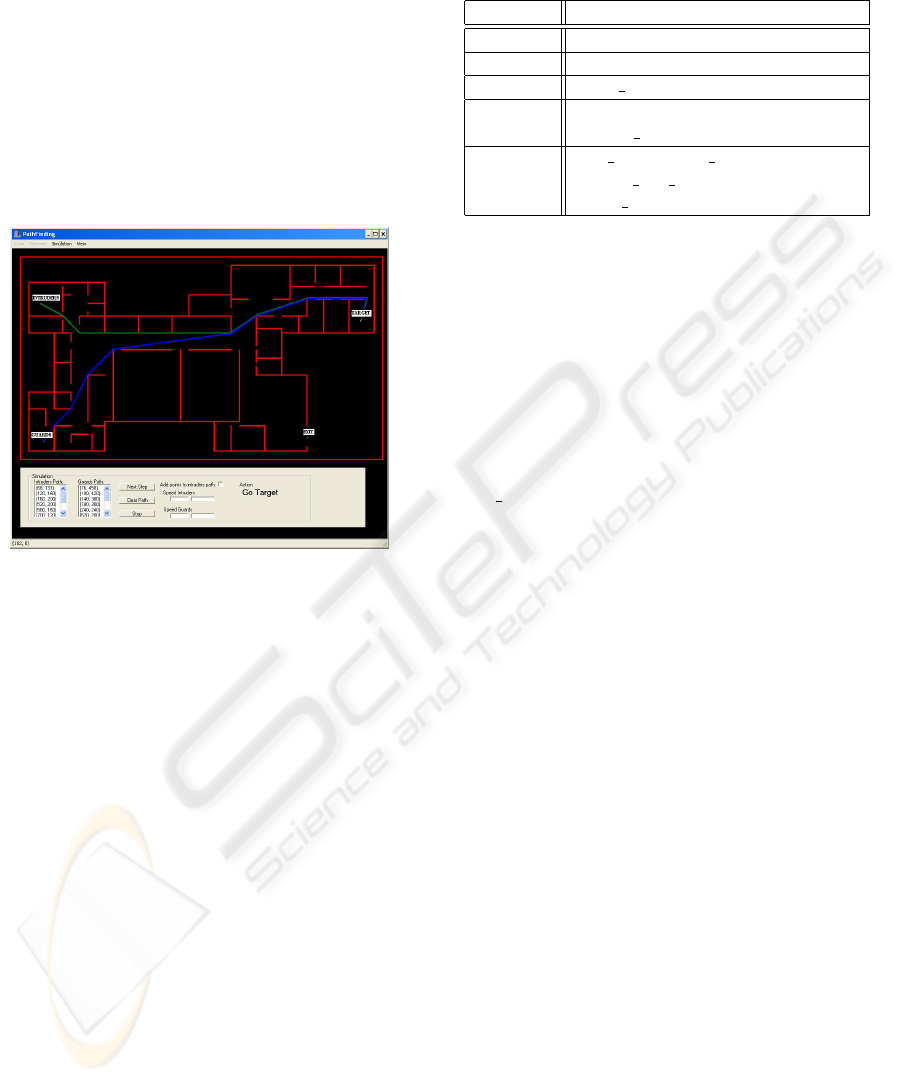

Figure 1: Shortest paths between intruders and target and

between guards and target.

The ﬁgure 1 have been taken from the simulator

implemented to test the developed CBR system. The

optimal (shortest) paths between intruders and target

and between guards and target are drawn in red and

blue respectively. Information about the alarm sys-

tem is also available. This device can be in three

different states: On (ringing), Off and Not Available.

The direction of the intruders is supposedly detected

at each time by a wireless sensor network integrated

in the scenario and the intruder behaviour could be

predicted, that is, if intruders are going to a certain

target or if they are going to the exit. The number

of intruders and guards are also considered. Like-

wise distances corresponding to the different places

are also available. Based on this information, a natu-

ral abstraction for an intrusion scene could as follows:

< ratio, state, door, alarm, dIT,

dIE, dGI, dGT, dGE,opSol >

where ratio is guard number/intruder number; state is

intruder direction/purpose; alarm is alarm state; dIT

is distance (intruders,target); dIE is distance (intrud-

ers,exit); dGI is distance (guards,intruders); dGT is

distance(guards,target); dGE is distance (guards,exit);

opSol is Solution or action to apply.

Table 1: Values for variables in the characteristic vector of

a scene.

Property Value

ratio LESS k EQUAL k MORE

state TARGET k EXIT

alarm NOT AVAILABLE k OFF k ON

distances CLOSE k MEDIUM k FAR

k NOT REACHABLE

opSol GO EXIT k GO TARGET k

TURN ON ALARM k CAPTURE

k GO INTRUDERS

2.2 Value Discretization

Property values corresponding to the components /

variables of the characteristic vector that has been pre-

viously deﬁned are listed in table 1.

Distances are calculated over the triangulation: a

spatial representation of the map (Anglada, 1997). Its

discrete value is set according to the size of the own

map. Given two places on the space, if there is no

path that connects them, then the value assigned is

NOT REACHABLE. If a path exists and if it is shorter

than 1/3 of the diagonal map, then the CLOSE value

is assigned. For more than 1/3 and less than 2/3 the

value is MEDIUM, while in other cases, FAR is set.

Taking into account that outlined so far, the scene

in ﬁgure 1 would be represented by the following

characteristic vector:

< EQUAL, TARGET, ON, MEDIUM,CLOSE,

MEDIUM, MEDIU M, MEDIUM,U NDEFINED >

Please note that solution-property (opSol) is set to

UNDEFINED because this is the default value until

the case can be evaluated by the expert or by the CBR

system in the retrieval phase.

2.3 Similarity Function

Establishing an appropriate similarity function is an

attempt at handling the deeper or hidden relation-

ships between the relevant objects associated with

the cases. There are two major retrieval approaches

(Liao, 1998). The ﬁrst is based on the computation of

distance between cases, where the most similar case is

determined by evaluation of a similarity measure. The

second approach is related to indexing structures and

our approach is described in the following section. At

any rate, the global similarity function should check

all the variable values and combine them through lo-

cal similarity results to obtain a global similarity mea-

surement. In other words, given cases A and B, the

ICEIS 2009 - International Conference on Enterprise Information Systems

344

function could be expressed as:

SIM(A, B) =

∑

i=1

1 − |ord(a

) − ord(b

card(O)

(1)

In which p is the number of compared attributes

In which card(O) is the cardinality of the set of pos-

sible category values for a and b and card(O) is the

cardinality of the set of possible category values. In

this ﬁrst approach, the weight coefﬁcient is the same

for all the properties (1/p). It is important to highlight

that the similarity function coefﬁcients or weight are

not adjusted to the knowledge base, thus the global

function does not measure properly, that is, accord-

ing to its true weight and each local characteristic.

Each property bears the same importance to discern

the cases. To resolve this matter, another strategy is

applied to the similarity, such as inductive reasoning

with decision trees discussed in the next section.

2.4 Decision Tree

A decision tree is used to classify the cases in order to

their common features. Each node of the tree stores

one of the properties of the characteristic vector and

each arc covers one of the possible alternative val-

ues for the property(Buckinx04). One of the most

well-known algorithms is ID3, and that is the pro-

posed approach. For the selection of the best attribute,

the entropy and gain concepts deﬁned in (Mitchell,

1997) will be used. It is interesting to verify that the

solution-attribute is not a concept capable of holding

two values (positive and negative), and even more, its

cardinality is 5 (please see table 1). It should be high-

lighted that if there is no case associated to the ﬁnal

node, the solution that is returned is the most usual

one on the parent node. Since the ﬁnal node does

not reference any case, the need for another method

to retrieve a proper solution arises, and since it keeps

common characteristics in that regarding nodes at the

same level, it is natural to select the most common

solution of them.

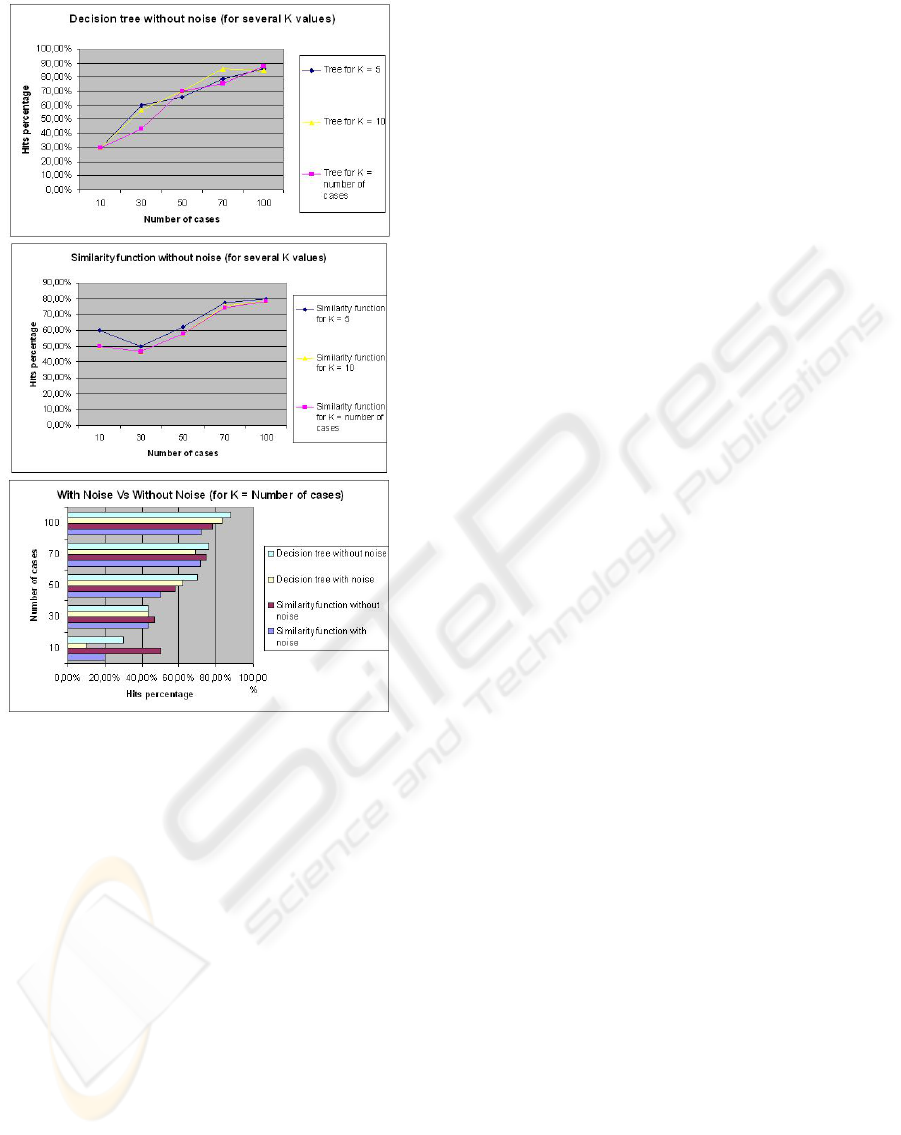

3 RESULTS

Results for the two retrieval process approaches are

detailed and compared in this section. The mea-

surement that determines performance of the retrieval

phase is the number of properly recovered cases per

the total number of cases that are stored in the cases

database. Different cross validations that modify the

number of partitions from the examples space have

been applied to check these results. In each contrast

operation, one of the example sets is selected to test

the system and those remaining are used as training

sets for the CBR.

Parameter K speciﬁes the number of partitions

over the examples space. It should be highlighted that

in K = N (N is the total number of examples), cross

validation is known as leave-one-out validation. For

K = 10 the validation seems to be especially accurate

(Kohavi, 1995).

In rows ”F” and ”F*” (Function) corresponding to

table 2, the number of well retrieved cases with a sim-

ilarity function (and its percentage) is displayed for a

knowledge case base without and with noise respec-

tively.

In row ”T” and ”T*” (Tree) the cases that are

well recovered by the decision tree are displayed for

knowledge case base without and with noise respec-

tively.

Table 2: Data without noise F and T rows and with noise F*

and T* rows . NC=Number of Cases.

NC 10(%) 30(%) 50(%) 70(%) 100(%)

K = 5

F* 4(40) 14(46) 27(54) 52(74) 74(74)

F 6(60) 15(50) 31(62) 54(77) 80(80)

T* 2(20) 18(60) 31(62) 50(71) 82(82)

T 3(30) 18(60) 33(66) 55(79) 86(86)

K = 10

F* 2(20) 13(43) 25(50) 51(73) 72(72)

F 5(50) 14(47) 29(58) 53(76) 78(78)

T* 1(10) 16(53) 32(64) 55(79) 80(80)

T 3(30) 17(57) 35(70) 60(86) 85(85)

K = Number of cases

F* 2(20) 13(43) 25(50) 50(71) 72(72)

F 5(50) 14(47) 29(58) 52(74) 78(78)

T* 1(10) 13(43) 31(62) 48(69) 83(83)

T 3(30) 13(43) 35(70) 53(76) 88(88)

In the ﬁgure 2a, it is shown the better decision tree

performance for high numbers of examples. Since

50 cases, there is enough stored knowledge to clas-

sify properly a new case with the decision tree. For

smaller examples sets, the accurate with the similar-

ity function is close to the performance of the decision

tree, even improves it for some cases.

In that pertaining to the results outlined in ﬁgure

2b, the ﬁrst considerations may assume a stable num-

ber of proper recoveries, however, the results high-

light a slight increase according to the number of

cases, exactly the same as in the decision tree. The

reason for this is that all the variables have an impor-

tant role and no particular variable dominates the rest.

Likewise, there is no redundancy among them. Also,

there is more diversity and retrieving cases without

similarity to the queried one is more difﬁcult.

PERFORMING THE RETRIEVE STEP IN A CASE-BASED REASONING SYSTEM FOR DECISION MAKING IN

INTRUSION SCENARIOS

345

Figure 2: (a) Results without noise for the decision tree (b)

Results without noise for the similarity function (c) Results

without noise and with noise for K = number of cases.

Also, in ﬁgure 2c what is highlighted is that noise

negatively affects the system. For said data the sys-

tem was performed with 3 improperly classiﬁed cases

for each knowledge base that was used. All the re-

sults that were obtained were worse, in particular for

small-sized knowledge bases (number of cases = 10),

with the reason being that the ratio for incorrectly

classiﬁed examples is larger. Even so an appreciable

hit (accurate decreases 3%) can be discerned in big

knowledge bases (numbero f cases = 100).

4 CONCLUSIONS

The intrusion evaluation process and recovery of a

solution that minimizes the attack consequences are

included within management of the safety infrastruc-

ture. A CBR is proposed as the decision making core

of the security system in this context. The performed

system offers the following advantages: a) The sys-

tem is able to learn complex rules with a rather small

number of training examples; b) It can achieve good

performance with a well-selected training set; c) The

decision tree achieves more complex rules than sim-

ilarity functions; d) The gain information measure-

ment reduces the decision tree depth and this allows

improved translation from the decision tree structure

to a rules-based structure. In order words, the learnt

knowledge can be expressed as a set of rules. Finally

the decision tree has nodes without any references to

cases. Hence, it is possible that no similar past expe-

rience to the one queried can be found and, therefore,

any solution that matches. This situation is resolved in

the current approach by returning the most common

solution that is present on the nodes at the same level

(a context that is more similar to the queried case).

However, this is a solution based on statistics, which

could be slightly wrong in some cases. Future ver-

sions should deal with these kinds of nodes.

REFERENCES

Lopez de Mantaras, R., McSherry, D., Bridge, D., Leake,

D., Smyth, B., Craw, S., Faltings, B., Maher, M.,

Cox, M., Forbus, K., Keane, M., Watson, I., 2006. Re-

trieval, Reuse, Revision, and Retention in CBR. The

Knowledge Engineering Review, vol. 20, no. 3, pp.

215-240

Shiu, S., Pal, S. K. , 2004. Foundations of Soft Case-Based

Reasoning. John Wiley & Sons.

Liao, T. W., Zhang, Z., Mount, C. R., 1998. Similarity mea-

sures for retrieval in case-based reasoning systems.

Applied Artiﬁcial Intelligence, vol. 12, pp. 267-288.

Mitchell, T., 1997. Machine Learning. McGraw-Hill.

Anglada, M. V., 1997. An Improved Incremental Algorithm

for Constructing Restricted Delaunay Triangulations.

Computer & Graphics, 21(2):215-223.

Buckinx, W., Moons, E., Poel, D. V. D., & Wets, G., 2004.

Customer-adapted coupon targeting using feature se-

lection. Expert Systems with Applications, 26, 509-

518.

Kohavi, R., 1995. A study of cross-validation and bootstrap

for accuracy estimation and model selection. Proceed-

ings of the Fourteenth International Joint Conference

on Artiﬁcial Intelligence 2(12): 1137-1143. (Morgan

Kaufmann, San Mateo).

ICEIS 2009 - International Conference on Enterprise Information Systems

346
