A VISION FOR AGILE MODEL-DRIVEN ENTERPRISE

INFORMATION SYSTEMS

N. R. T. P. van Beest, N. B. Szirbik and J. C. Wortmann

Department of Business & ICT, Faculty of Economics and Business, University of Groningen

Landleven 5, P.O. Box 800, 9700 AV Groningen, The Netherlands

Keywords: Enterprise information system, Model-driven development, Flexibility, Agility, Workflow, ERP.

Abstract: Current model-driven techniques claim to be able to generate Enterprise Information Systems (EISs) based

on enterprise models. However, these techniques still lack – after the initial deployment – the long-time

desired flexibility, which allows that a change in the model can be immediately and easily reflected in the

EIS. Interdependencies between models are insufficiently managed, requiring a large amount of human

intervention to achieve and maintain consistency between models and the EIS. In this position paper a

vision is presented, which describes how model-driven change of EISs should be structured in a coherent

framework that allows for monitoring of interdependencies during model-driven change. Therefore,

proposing fully automated consistency and pattern checks, the presented agile model-driven framework will

reduce the amount of required human interventions during change. As a result, the cost and time span of

model-driven EIS change can be reduced, thereby improving organizational agility.

1 INTRODUCTION

This is a position paper, which presents a vision of

how model-driven change of Enterprise Information

Systems (EISs) – after the initial deployment –

should be structured in a coherent framework. EISs

are interactive systems that offer support for certain

parts of the workload of employees and comprise a

vast array of functionality. Depending on the

industry context, two of the most typical categories

of EISs are realized via the deployment of Enterprise

Resource Planning (ERP) systems and Workflow

Management (WfM) systems (Van der Aalst et al.,

2002; Cardoso et al., 2004; Olson, 2004).

However, when both an ERP and a WfM system

are used in the same organization to support

processes that have overlapping areas or are related

via data exchanges and task triggers, the flexibility

of the WfM system could be lost and changes can

become extremely costly in terms of budget and

manpower (Reijers, 2006).

In an attempt to increase flexibility, while

reducing development, implementation and integra-

tion efforts, model-driven development (MDD)

emerged as a possible solution using the Model-

Driven Architecture (MDA) (Kleppe et al., 2003;

OMG, 2003). Nowadays, MDD approaches exist,

which enable a partial automatic generation of EISs

based on models of the organization (OMG, 2003;

Atkinson et al., 2003). Although these techniques

are currently used in the first deployment phase of

an EIS, the flexibility with respect to later changes

still remains a desired feature.

In this paper, an agile MDD framework will be

proposed, which increases model-driven EIS

flexibility and, therefore, organizational agility. The

proposed framework comprises a formal validation

of interdependencies, in order to reduce the amount

of human intervention. Furthermore, it is envisioned

that the framework will enable the automatic preser-

vation of consistency of the EIS during change.

Throughout this paper, EIS refers to that

software component, which is specific for an

organization. It does not contain the hardware, the

network or the standard applications. The remainder

of this paper is structured as follows. Section 2

discusses the background concerning ERP and WfM

integration. Next, section 3 presents the contribution

of current MDD techniques to increase the flexibility

related to EIS development. Section 4 explains the

framework that envisages how to achieve flexibility

after deployment. Finally, section 5 concludes the

paper.

188

van Beest N., Szirbik N. and Wortmann J. (2009).

A VISION FOR AGILE MODEL-DRIVEN ENTERPRISE INFORMATION SYSTEMS.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

188-193

DOI: 10.5220/0002001201880193

 SciTePress

2 BACKGROUND

There are many real-life situations where an EIS is

formally based on both database schemas and

executable process models that are interrelated. This

situation is typical for organizations that use an ERP

system and – on top of that – one or more WfM

systems that work together with some parts of the

ERP system (Szirbik et al., 2004). The operational

link between these working systems can be

implemented easily in a lightweight manner via a

loose connection, by just having the same human

user for both systems. A more costly alternative is to

couple the systems in a heavyweight manner, by

building a full-featured integration (via formal

interfaces and semi-automated procedures). In this

situation the process execution has to be integrated

in the ERP system and the data from the ERP

database has to be used and changed directly by the

WfM systems. However, these integration attempts

have been always marked by one or more of the

following problems: the difference between explicit

/ implicit models of data and process used in both

systems, the redundancy of representation,

concurrent transactions and loss of flexibility

(Reijers, 2006).

The ERP system is deployed from its

characteristic data perspective (Olson, 2004) and the

WfM system is deployed from its characteristic

process perspective (Van der Aalst et al., 2002). The

ERP system always has an explicit data

representation (its database schema) but only an

implicit process perspective that is merely employed

as a useful attachment for managers (Ami et al.,

2007). Moreover, one of the well-known drawbacks

of ERP is process rigidity after deployment (Botta-

Genoulaz et al., 2005).

The WfM system, on the other hand, has an

explicit process model, but there is no strict

requirement for a data model. Nonetheless, the use

of some data is inevitable for any workflow

implementation. Furthermore, a database can exist

externally of the enactment engine, and provides a

formal interface with this database (Ceri et al.,

1997). Taken in isolation, a WfM system commonly

enacts a number of process models, each controlling

a multitude of running cases. These process models

can be changed rather easily (Stohr et al, 2001) if

attention is given to the versioning of the cases that

are executed during the change. Sometimes, manual

intervention is required (Van der Aalst, 2001).

Several problems can arise after integration. For

example, conditional execution of activities (XOR

splits in the process) depends on certain data. Based

on that data, the condition is evaluated for each case

and a decision is made whether the activities are

executed or not for that particular case. Neverthe-

less, if this data is changed by a concurrent process,

the activities that are executed after the XOR-split

may be based on an incorrect condition and there is

no trigger to notify the erroneous execution of these

activities.

However, the main problem of ERP and WfM

integration is the well-known problem of frozen

process representations. After the integration, the

result is often a redundantly specified system. That

is, some database areas will be specified in both the

ERP and the WfM system. In addition, some process

enactment logic is replicated in the ERP system as

well. This is necessarily so, because the ERP system

always contains some process logic that overlaps

with the explicit process definition of the workflow.

Similarly, the WfM system should be ‘aware’ of the

entities that are used in the WfM system and which

already exist in the database structure of the ERP

system.

This redundancy between process and data

specifications frequently results in problems,

especially if there is no clear awareness and there are

no procedures in place to tackle it (Rayhupathi et al.,

2008). Necessary changes in the process model of

the WfM will induce costly changes of the business

logic in the ERP system. In some cases, a process

change includes a change of the data structure used

by the process. If this data is also represented in the

ERP database, this leads to changes to the database

structure and, implicitly, to adaptation of the

business logic.

As a result, any WfM system that is linked to a

legacy system – in this case the ERP system – makes

the change in the process model of the WfM system

almost impossible, especially if the degree of

integration is high (Reijers, 2006).

The problems that arose during ERP and WfM

integration did not disappear with the new trends in

MDA-based EIS and MDD-change. The point is,

that the integration, specification redundancy, and

especially consistency of data and process models is

affected when change of data models or process

models (or both) is effectuated in order to support

change in an organization and its business processes.

A VISION FOR AGILE MODEL-DRIVEN ENTERPRISE INFORMATION SYSTEMS

189

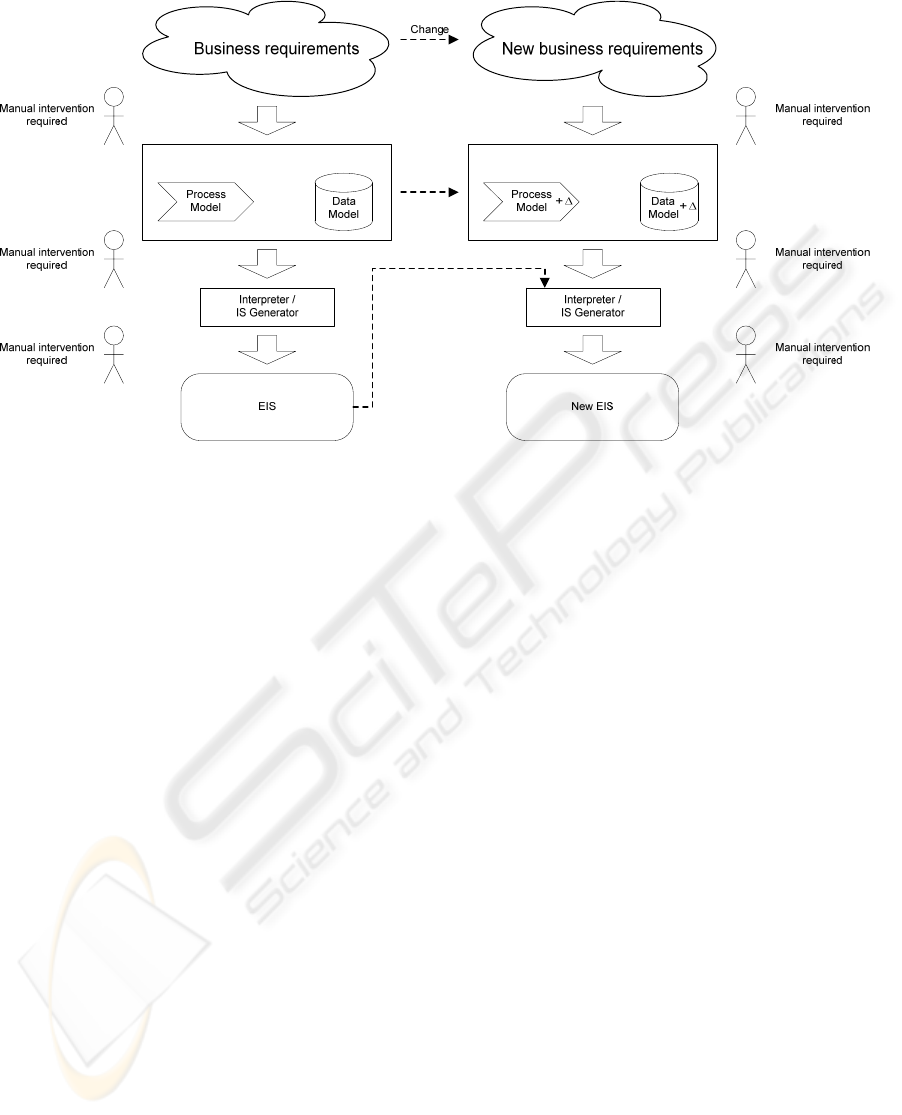

Figure 1: Schematic representation of a flexible model-driven EIS. Initial generation (right side) and subsequent change

(left side).

3 BESPOKE FLEXIBILITY

MDD emerged as a possible solution to increase

flexibility by using MDA. Nowadays, MDD

approaches exist, which enable a partial automatic

generation of EISs.

In this paper, flexibility of an EIS is referred to

in two different ways. Firstly, it can be seen as the

MDD-based capability of a system to be specified

according to the exact requirements of the business

process and structure. That is, the software should be

bespoke and provide a one-on-one match with

reality and the business requirements. Secondly,

flexibility can be defined as the capability of an

existing EIS to be adjusted to changing business

requirements as fast and inexpensive as possible.

If during initial design time the process descrip-

tion is seamlessly integrated with the required data,

redundancy issues can be resolved initially, as no

longer two distinct systems have to be integrated.

Using MDD, a complete system specification can be

provided based on the requirements (see the left-

hand side of Figure 1) (OMG, 2003). With respect to

modeling abstraction, MDA concerns three different

layers of abstraction, including Computation Inde-

pendent Model (CIM), Platform Independent Model

(PIM) and Platform Specific Model (PSM).

However, the view of this paper abstracts from these

layers and refers only to an enterprise model specifi-

cation, which consists of both a process and data

specification (this holds for every layer in MDA).

A change in the business requirements after the

initial deployment of the system requires a change in

the process model of the system or the data model of

the system (as indicated by the delta notation in the

right hand part of Figure 1). In a perfect situation,

the new business requirements should be fully

represented by both the process and data model,

which are continuously consistent with each other.

However, incomplete integration of processes and

data may result in some operational problems. For

example, the process may require data, which does

no longer exist. Similarly, the process may use data,

which is no longer accurate. Finally, the process

may execute incorrect activities due to a (correct)

change of data elsewhere in the process.

In most MDD approaches, process and data

models are kept separately on purpose, in order to

change one without affecting the other. As a result,

interdependencies are not explicitly described or

identified in current MDD languages (France et al.,

2006; Meijler et al., 2006). However, as a result of

the natural interdependencies between processes and

data, a change in the process model may affect the

data model. In addition, this enforced change of the

data model may also affect other parts in the

process, which are not accounted for. Essentially,

whenever an artifact changes (that is, a process or a

ICEIS 2009 - International Conference on Enterprise Information Systems

190

data object), this may affect some or all of its

interrelated artifacts. As a result, the cascade of

change spirals out of control. This problem is

referred to as the rampant roundtrip problem

(Hailpern et al., 2006; Rayhupathi et al., 2008).

Consequently, a change in a model-driven developed

EIS is still time-consuming and costly. For that

reason, the interdependencies need to be described

explicitly (by using novel syntactic constructs) in

order to prevent data-process inconsistencies in the

models and, therefore, lack of coherence in the

generated EIS.

Nonetheless, past research has primarily focused

on model-driven change in the context of change

that is required due to shifts in the metamodel

(Hearnden et al., 2006; Garcés et al., 2008) (e.g., a

shift from UML 1.5 to UML 2.0). However, change,

which is pushed by new business requirements,

remains largely ignored. In the remainder of this

paper, change will refer to the latter category.

The “ultimate” (not necessarily attainable) goal

of MDD can be identified as creating the ability to

change the EIS by redrawing a part of a model and

executing the model interpreter/generator only once

without any human intervention. This goal implies

that “perfect” (consistency ensures that none of the

mentioned problems occur) integration of both the

data and process model is essential.

As shown in Figure 1, the current MDD

techniques require the manual intervention at three

stages in the process. First, a considerable amount of

human intervention is required to translate the

business requirements – which may be a fuzzy

description of the business process, organizational

structure and resources, and the way employees of

an organization perform their work – into the models

to be used for either initial system development,

either for later change. Second, human intervention

is required to create consistency between the models

and make them appropriate to generate an EIS.

Third, human intervention is required during and

after system generation and validation, as some parts

have to be reworked later due to consistency and

interdependency issues. The interdependencies

between data and process models may trigger a

cascading effect of model changes and exception

handling during the interpreting runs, all of which

need to be identified eventually and solved

manually. Nevertheless, all the parts in Figure 1 that

are fully automated will increase the level of

flexibility. Therefore, a perceptible gain in terms of

flexibility can be achieved just by decreasing the

amount of required human intervention, without

necessarily aiming for complete automation.

4 THE AGILE MDD VISION

The new envisaged framework considers both a

formal process model and a formal data model,

which are integrated by a formal mapping.

Furthermore, the framework contains a number of

additional steps compared to the existing framework,

as shown in Figure 1. An overview of the envisaged

framework is represented graphically in Figure 2.

This framework contains a different procedure of

model-driven transformation of business require-

ments to an EIS. In this case, the dependencies

between data and processes should be identified in

an early stage during requirements analysis.

Next, these business requirements should be

translated into both a data model and a process

model. The design of the models is performed using

an MDD modeling toolset, which allows the system

architect to create both a data model and a process

model. The MDD modeling toolset should contain

syntax-driven constraints that enforce the explicit

definition of the relation between data objects and

activities as defined in the process model. That is,

each data object defined in the data model should in

some way be related (or mapped) to one or more

activities in the process model.

The next step – which was already included in

the currently existing framework – should concern

the individual syntax check of the process model and

the data model. For instance, process models are

checked on deadlocks, livelocks etc.

Subsequently, interdependencies between the

process and data model should be checked on

consistency. All interdependencies will be

automatically identified during the design of the

models. This way, consistency between activities

and data structures can be ensured. Furthermore,

after a (manual) change to the process model, the

MDD editor should be able to track and pinpoint all

dependencies, showing possible alternatives and

solutions in case of inconsistencies. However, the

final decision is to be left to the system architect.

After a change of the data model, the affected

processes will be automatically detected and a

suitable change is proposed.

The process definition of the agile approach

should make use of the concept of workflow patterns

(Russell et al., 2006). After the automated checks on

the models, those workflow patterns, which poten-

tially result in erroneous execution of the business

process, must be identified. That is, every occurring

instance of data-dependent workflow patterns (like

A VISION FOR AGILE MODEL-DRIVEN ENTERPRISE INFORMATION SYSTEMS

191

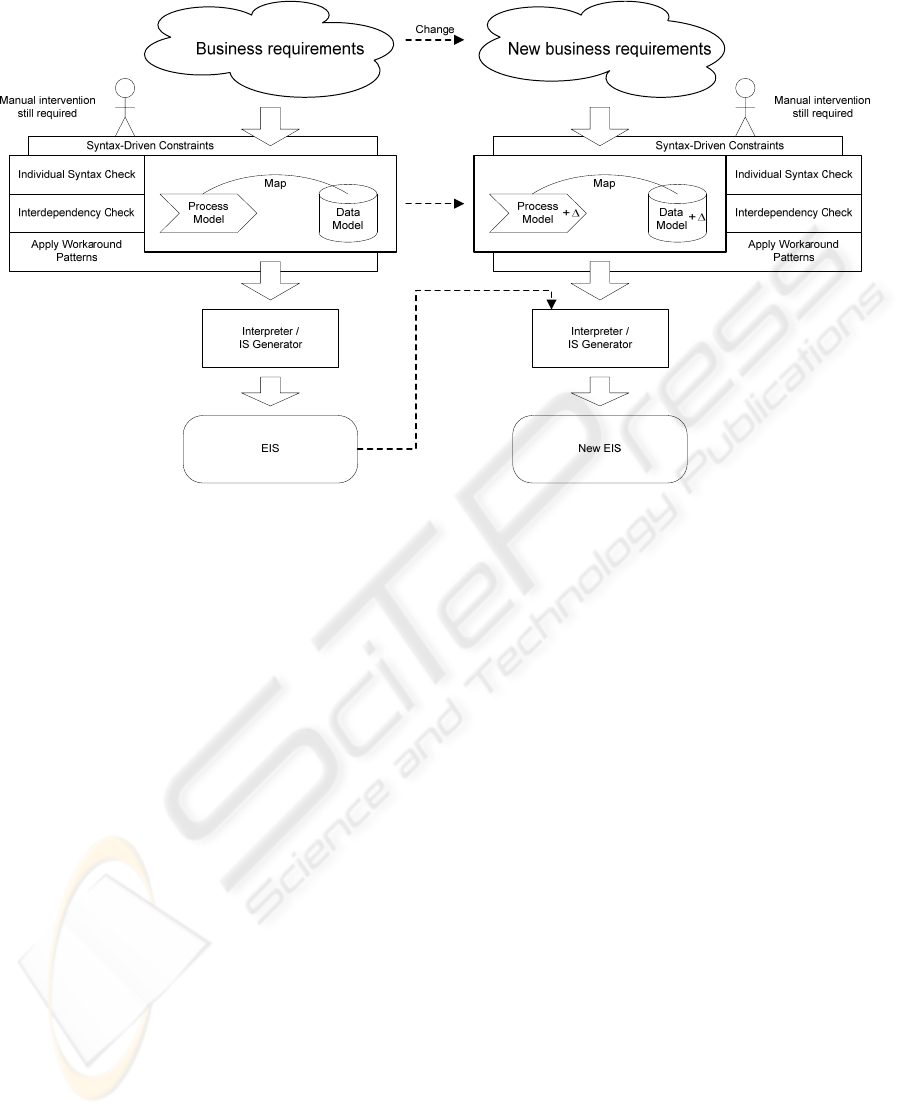

Figure 2: Schematic overview of the “agile MDD vision”.

workflow constructs, which need external data to

proceed) are to be detected in the context of data

interconnected processes (parallel processes, which

use the same data at a particular point in time).

Prior to the conversion the models into an

executable EIS by the interpreter, the data-dependent

workflow patterns are to be replaced using formally

defined workaround patterns. Workaround patterns

specify an implementation solution, which is to be

used by the interpreter with respect to a certain

troublesome workflow pattern. In this way, the

system architect will no longer be required to keep

track of all potentially contradictory specifications,

as these are automatically identified and solved.

Finally, the models will be prepared to be executed

by the interpreter.

The left-hand side of Figure 2 represents the

MDD procedure in case of initial deployment. The

right-hand side presents the MDD procedure with

respect to change of the EIS as a result of a change

in business requirements. However, Figure 2 shows

that the model-driven change procedure is identical

to the procedure for initial deployment. The

automated checks concerning syntax and inter-

dependencies represented on the left-hand side are

replicated on the right-hand side. Therefore, the only

major issue that affects flexibility, which was not

discussed, is migration.

Two approaches can be considered with respect

to migration. The first approach is based on a

phasing out scheme of running cases that rely on old

process definitions. However, the main disadvantage

of this approach is that if changes occur frequently,

many versions of the process have to be kept.

Moreover, if process instances phase out too slowly,

an explosion of versions may occur.

The second migration approach (big bang) is a

complete migration of all process instances after

deployment of new models. Every running case is,

therefore, migrated to the new process definition.

The main disadvantage of this approach is that some

manual intervention may still be required, despite

automatic process and data migration. Moreover, big

bang deployments are costly in terms of manual

intervention.

As it appears, this poses a trade-off. In the

situation of process models that comprise a large

amount of short-lived cases, it is better to use the

phase-out method. On the other hand, if a few cases

with a long throughput time are running at a certain

moment in time, then a big bang migration is

preferred with some possible manual intervention.

Although migration of running cases is a serious

issue to take into consideration, it is not the focus of

this discussion. The vision presented in this paper

focuses on the modeling part of MDD and not on

migration.

ICEIS 2009 - International Conference on Enterprise Information Systems

192

5 CONCLUSIONS

Although many MDD techniques claim to be able to

generate EISs based on enterprise models, these

techniques still lack the long-time desired flexibility,

which allows that a change in the model can be

immediately and easily reflected in the EIS. In this

paper a position is presented about how the

flexibility of an MDD EIS can be achieved via a so-

called agile framework. In addition to existing MDD

approaches, this agile framework proposes three

additional validation checks based on a fully

integrated data and process description. The

envisaged framework leads to a need for a practical

mapping formalism between process and data.

The application of the framework will benefit

those organizations that tend to change their

business processes quite often. As a result of the

automated consistency and pattern checks, it is

expected that flexibility increases, by reducing the

amount of required human interventions during

change. Therefore, deployed EISs will not act as a

constraint on organizational agility.

Foreseen further work can be described as

follows. The observation of the process of EIS

change engineering requires the identification of

troublesome workflow patterns (albeit syntactically

and semantically correct, due to data coupling the

execution of these patterns may result in consistency

errors) and the development of workaround patterns.

All these are directed towards the issue of data

interconnected processes and data dependent

workflow patterns. By collecting and systematizing

these patterns, it is aimed to build a theoretical and

practical knowledge base that can stand as a

foundation for future MDD technologies that

provide the needed flexibility for EISs.

REFERENCES

Van der Aalst., W.M.P., 2001. Exterminating the Dynamic

Change Bug: A Concrete Approach to Support

Workflow Change. Information Systems Frontiers, 3,

3, pp. 297-317.

Van der Aalst, W.M.P., Van Hee, K.M., 2002. Workflow

Management: Models, Methods and Systems. MIT

Press, Cambridge, Mass.

Ami, T., Sommer, R., 2007. Comparison and evaluation of

business process modelling and management tools.

Int. J. of Services and Standards, 3, 2, pp. 249-261.

Atkinson, C., Kühne, T, 2003. Aspect-Oriented

Development with Stratified Frameworks. IEEE

Software, 20, 1, pp. 81-89.

Botta-Genoulaz, V., Millet, P.A., Grabot, B., 2005. A

survey on the recent research literature on ERP

systems. Computers in Industry, 56, 6, pp. 510-22.

Cardoso, J., Bostrom, R.P., Seth, A., 2004. Workflow

Management Systems and ERP Systems: Differences,

Commonalities, and Applications. Information

Technology and Management, 5, pp. 319–338.

Ceri, S., Grefen, P., Sanchez, G., 1997. WIDE - a

distributed architecture for workflow management. In

RIDE ’97, 7th Int. Workshop on Research Issues in

Data Engineering, High Performance Database

Management for Large-Scale Applications, pp. 76.

France, R.B., Ghosh, S., Dinh-Trong, T., Solberg, A.,

2006. Model-Driven Development Using UML 2.0:

Promises and Pitfalls. Computer, 39, 2, pp. 59-66.

Garcés, K., Jouault, F., Cointe, P., Bézivin, J., 2008.

Adaptation of Models to Evolving Metamodels.

Technical Report, Institut National De Recherche En

Informatique Et En Automatique, ISSN 0249-0803.

Hailpern, B., Tarr, P., 2006. Model-driven development:

The good, the bad, and the ugly. IBM Systems J., 45,

3, pp. 451-461.

Hearnden, D., Lawley, M., Kerry, R. 2006. Incremental

Model Transformation for the Evolution of Model-

Driven Systems. In MoDELS 2006 Proc. of the 9th

International Conference, 4199/2006, pp. 321-335.

Kleppe, G., Warmer, J., Bast, W., 2003. MDA Explained:

The Model Driven Architecture: Practice and

Promise. Addison-Wesley,

Meijler, T.D., Postmus, D., Wortmann, J.C., 2006.

Towards Model-driven Evolvability of Enterprise

Information Systems. In 10th IEEE Int. Enterprise

Distributed Object Computing Conference

(EDOC'06), pp.413-416.

Olson, D.L., 2004. Managerial issues of enterprise

resource planning systems. New York: McGraw-Hill.

OMG, 2003. MDA Guide Version 1.0.1. www.omg.org.

Rayhupathi W., Umar A., 2008. Exploring a model-driven

architecture (MDA) approach to health care

information systems development. Int. J. of Medical

Informatics, 77, 5, pp. 305-314.

Reijers, H.A., 2006. Workflow Flexibility: The Forlorn

Promise. In WETICE'06, 15th IEEE Int. Workshops

on Enabling Technologies: Infrastructure for

Collaborative Enterprises, pp. 271-272.

Russell, N., ter Hofstede, A.H.M., van der Aalst, W.M.P.,

Mulyar., N., 2006. Workflow Control-Flow Patterns:

A Revised View. BPM Center Report BPM-06-22,

BPMcenter.org.

Stohr, E. A., Zao, J. L., 2001. Workflow Automation:

Overview and Research Issues. Information Systems

Frontiers, 3, 3, pp. 281-296.

Szirbik, N.B., Wortmann, J.C., 2004. Bridging The Gap

Between ERP And WfM In Planning Using Agents. In

Proc. of the Int. IMS Forum, Cernobbio Italy, pp. 317-

324.

A VISION FOR AGILE MODEL-DRIVEN ENTERPRISE INFORMATION SYSTEMS

193
