A SIMULATION-BASED METHODOLOGY TO ASSIST

DECISION-MAKERS IN REAL VEHICLE ROUTING PROBLEMS

Angel A. Juan, Daniel Riera, David Masip, Josep Jorba

Dep. of Computer Sciences, Open University of Catalonia, Rambla Poble Nou 156, Barcelona, Spain

Javier Faulin

Dept. of Statistics and OR, Public University of Navarra, Campus Arrosadia, Pamplona, Spain

Keywords: Vehicle routing problem, Hybrid algorithms, Heuristics, Simulation, Decision support systems.

Abstract: The aim of this work is to present a simulation-based algorithm that not only provides a competitive

solution for instances of the Capacitated Vehicle Routing Problem (CVRP), but is also able to efficiently

generate a full database of alternative good solutions with different characteristics. These characteristics are

related to solution’s properties such as routes’ attractiveness, load balancing, non-tangible costs, fuzzy

preferences, etc. This double-goal approach can be specially interesting for the decision-maker, since he/she

can make use of this algorithm to construct a database of solutions and then send queries to it in order to

obtain those feasible solutions that better fit his/her utility function without incurring in a severe increase in

costs. In order to provide high-quality solutions, our algorithm combines a CVRP classical heuristic, the

Clarke and Wright Savings method, with Monte Carlo simulation using state-of-the-art random number

generators. The resulting algorithm is tested against some well known benchmarks and the results obtained

so far are promising enough to encourage future developments and improvements on the algorithm and its

applications in real-life scenarios.

1 INTRODUCTION

The Capacitated Vehicle Routing Problem (CVRP)

is a NP-hard problem in which a set of customers’

demands have to be served by a fleet of

homogeneous vehicles departing from a depot,

which initially holds all available resources. Of

course, there are some tangible costs associated with

the distribution of these resources from the depot to

the customers. In particular, it is usual to explicitly

consider in the model costs due to moving a vehicle

from one node –customer or depot– to another. The

classical goal here consists on determining the

optimal set of routes that minimizes those tangible

costs under the following set of constraints: (a) all

routes begin and end at the depot; (b) each vehicle

has a maximum load capacity, which is considered

to be the same for all vehicles; (c) each customer has

a well-known demand that must be satisfied; (d)

each customer is supplied by a single vehicle, and

(e) a vehicle can not stop twice at the same

customer.

Even when this problem has been studied for

decades, it is still attracting a great amount of

attention from top researchers worldwide due to its

potential applications, both to real-life scenarios and

also to the development of new algorithms,

optimization methods and meta-heuristics for

solving combinatorial problems (Laporte et al.,

2000; Toth & Vigo, 2002; Golden et al., 2008). As a

matter of fact, different approaches to the CVRP

have been explored during the last decades. These

approaches range from the use of pure optimization

methods, such as linear programming, for solving

small- to medium-size problems with relatively

simple constraints, to the use of heuristics and meta-

heuristics that provide near-optimal solutions for

medium and large-size problems with more complex

constraints (Laporte, 2007). Most of the methods

cited before focus on minimizing an aprioristic cost

function –which usually models tangible costs–

subject to a set of well-defined and simple

constraints. However, real-life problems can be

really complex, with intangible costs, fuzzy

212

A. Juan A., Riera D., Masip D., Jorba J. and Faulin J. (2009).

A SIMULATION-BASED METHODOLOGY TO ASSIST DECISION-MAKERS IN REAL VEHICLE ROUTING PROBLEMS.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Artiﬁcial Intelligence and Decision Support Systems, pages

212-217

DOI: 10.5220/0002005602120217

 SciTePress

constraints and desirable solution properties that are

difficult to be modeled (Poot et al., 2002; Kant et al.,

2008). In other words, it is not always

straightforward to construct an initial model which

takes into account all possible costs (environmental

costs, work risks, etc.), constraints and desirable

solution properties (time or geographical

restrictions, balanced work load among routes,

solution attractiveness, etc.). For that reason, there is

a need for new methods able to provide a large set of

alternative near-optimal solutions with different

properties, so that decision-makers can choose

among different alternative solutions according to

their specific needs and preferences, i.e., according

to their utility function, which is usually unknown

for the researcher. All in all, as some CVRP

specialists have pointed out already, there is a need

for more simple and flexible methods to solve the

problem, methods that can be used to handle the

numerous side constraints that arise in practice

(Laporte, 2007).

2 OUR APPROACH

In an effort to give response to the abovementioned

demands, this paper aims to present a simple yet

powerful hybrid algorithm that combines the parallel

version of the classical Clarke & Wright savings

(CWS) heuristic (Clarke & Wright, 1964) with

Monte Carlo simulation (MCS) and state-of-the-art

random number generators to produce a set of

alternative solutions for a given CVRP instance.

Each solution in this set outperforms the CWS

heuristic, but it also has its own characteristics and

therefore constitutes an alternative possibility for the

decision-maker where several side constraints can be

considered. Moreover, the best solution provided by

the algorithm is competitive, in terms of aprioristic

costs, with the best solution found so far by using

existing state-of-the-art algorithms, which tend to be

more complex and difficult to implement than the

method presented in this paper and, in most cases,

require parameter fine-tuning or set-up processes.

Buxey (1979) was probably the first author to

combine MCS with the CWS algorithm to develop a

procedure for the CVRP. This method was revisited

by Faulin & Juan (2008), who introduced an entropy

function to guide the random selection of nodes.

MCS has also been used by other authors to solve

the CVRP (Fernández de Córdoba et al., 2000). In

our opinion, recent advances in the development of

high-quality pseudo-random number generators

(L’Ecuyer, 2002) have opened new perspectives as

regards the use of Monte Carlo simulation in

combinatorial problems. To test how state-of-the-art

random number generators can be used to improve

existing heuristics and even push them to new

efficiency levels, we decided to combine a MCS

methodology with one of the best-known classical

heuristics for the CVRP, namely the Clarke &

Wright Savings method. In particular, we selected

the parallel version of this heuristic, since according

to Toth & Vigo (2002), it usually offers better

results than the corresponding sequential version.

Therefore, our goal here is to develop a

methodology that: (a) provides near-optimal

solutions to CVRP instances with respect the

objective function, and (b) provides the decision-

maker with a large set of alternative good solutions

for a given CVRP instance, each of them with

different characteristics. Once generated, this list of

alternative good solutions can be classified and

stored in a solutions database so that the decision-

maker can perform retrieval queries according to

different criteria or preferences regarding the

desirable properties of an ideal real-life solution.

In order to develop such a methodology, we

introduce some specific random behavior within the

CWS heuristic and then start an iterative process

with it. This random behavior helps us to start an

efficient search process inside the space of feasible

solutions. Each of these feasible solutions will

consist of a set of roundtrip routes from the depot

that, altogether, satisfy all demands of the nodes by

visiting and serving all them exactly once. At each

step of the solution-construction process, the CWS

algorithm always chooses the edge with the highest

savings value. Our approach, instead, assigns a

probability of selecting each edge in the savings list.

According to our design, this probability should be

coherent with the savings value associated with each

edge, i.e., edges with higher savings will be more

likely to be selected from the list than those with

lower savings. Finally, this selection process should

be done without introducing too many parameters in

the methodology –otherwise, it would be necessary

to perform fine-tuning processes, which tend to be

non-trivial and time-consuming. To reach all those

goals, we employ the geometric statistical

distribution with parameter α (0 < α < 1) during the

CWS solution-construction process: each time a new

edge hast to be selected from the list of available

edges, a geometric distribution is randomly selected.

This distribution is then used to assign exponentially

diminishing probabilities to each eligible edge

according to its position inside the savings list,

which has been previously sorted by its

A SIMULATION-BASED METHODOLOGY TO ASSIST DECISION-MAKERS IN REAL VEHICLE ROUTING

PROBLEMS

213

corresponding savings value. That way, edges with

higher savings values are always more likely to be

selected from the list, but the probabilities assigned

are variable and they depend upon the concrete

distribution selected at each step. By iterating this

procedure, an oriented random search process is

started. Notice that this general approach has

similarities with the Greedy Randomized Adaptive

Search Procedure (GRASP) (Feo & Resende 1995).

GRASP is a typically two-phase approach where in

the first phase a constructive heuristic is

randomized. The second phase includes a local

search process. Nevertheless, it is important to

notice that our algorithm does not require any

adaptive effort –the savings list is calculated just

once, at the beginning of the process. Moreover, our

approach is strongly based on the combination of a

classical heuristic with statistical distributions and

Monte Carlo simulation, which is not the usual case

in GRASP algorithms.

Next, we describe with more detail the main

steps of our approach (Fig. 1):

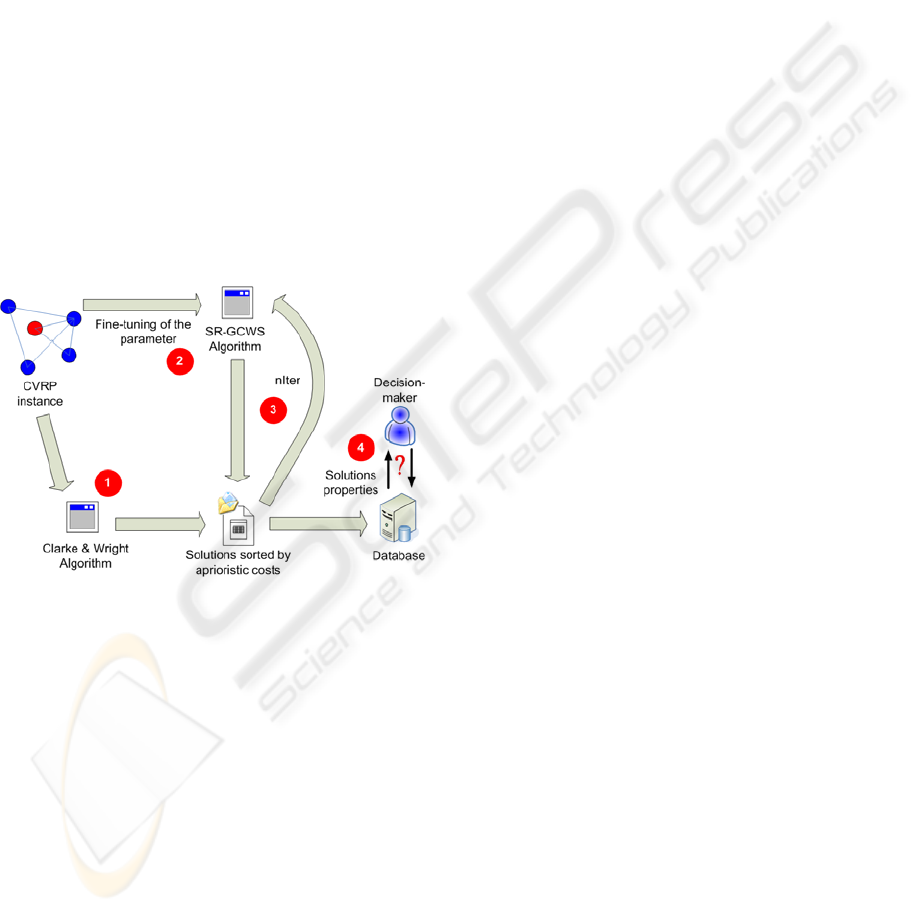

Figure 1: Scheme of our approach for the CVRP.

1. Given a CVRP instance, construct the

corresponding data model and use the

classical CWS algorithm to solve it.

2. Choose a value for the parameter α for adding

random behavior to the algorithm; according

to our experience, any parameter value

between 0.10 and 0.15 will give promising

results in most tested instances, so that no

fine-tuning process is really needed.

3. Start an iterative process to generate solutions

using the SR-GCWS algorithm with the user-

defined values for parameters α and the

number of iterations to run (nIter).

4. For each one of the iterations, save the

resulting solution in a database only if it

outperforms the one provided by the CWS

algorithm, i.e., we will consider that a solution

is a good one only if it outperforms the CWS

solution from an aprioristic costs perspective.

Roughly speaking, if the size of the savings list

in the current step is large enough, the parameter α

can be interpreted as the probability of selecting the

edge with the highest savings value at the current

step of the solution-construction process. Choosing a

relatively low α-value (e.g. α = 0.05) implies

considering a large number of edges from the

savings list as potentially eligible, e.g.: assuming a

list size of 100, if we choose α = 0.05 then the list of

potentially eligible edges will cover about 44 edges

from the sorted savings list. On the contrary,

choosing a relatively high α-value (e.g. α = 0.35)

implies reducing the list of potential eligible edges

to just a few of them, e.g.: assuming a list size of

100, if we choose α = 0.35 then the list of potentially

eligible edges will be basically reduced to

approximately 5 edges.

Once a value for α is chosen, the first edge must

be selected. This same value of α can be used for all

future steps. In that case, the selection of the α-value

might require some minor fine-tuning process.

However, based on the tests we have performed so

far, we prefer to consider this α-value as a random

variable whose behavior is determined by a well-

known continuous distribution, e.g.: a uniform

distribution in the interval (0.05, 0.20). This way, we

do not only avoid a fine-tuning process, but we also

have the possibility to combine different values of

this parameter at different edge-selection steps of the

same solution-construction process. In other words,

we are interested in the possibility of combining

different strategies regarding the number of edges to

be considered as eligible at different steps through

the solution-construction process.

3 ALGORITHM DESCRIPTION

In this section, we will discuss the main parts of the

SR-GCWS algorithm. Fig. 2 shows the main

procedure, which drives the solving methodology.

First, inputs are entered in the program and both

nodes and constraints are identified. Then, an

efficiency list is constructed. This list contains the

potential edges to be selected sorted by their

associated savings. At this point, the CWS solution

is obtained by applying the Clarke & Wright

Savings heuristic. The costs associated with this

solution will be used as an upper bound limit for the

costs of what we will consider a good solution.

ICEIS 2009 - International Conference on Enterprise Information Systems

214

Therefore, from this moment on we will save in a

database all new solutions that improve those costs.

It is at this step when we start the iterative process to

generate hundred/thousands of solutions by using

our algorithm. Details of this constructive process

can be found at pseudo-codes included in Figs. 3 and

4. The former figure shows how the construction

process starts with the CWS initial solution and then

adds a randomized edge selection before proceeding

with the merging of existing routes if possible. The

later figure shows some details of the random

selection process.

procedure SR-GCWS()

1 vrp = getInstanceInputs();

2 nodes = getNodes(vrp);

3 constraints = getConstraints(vrp);

4 effList = buildEfficiencyList(nodes);

5 cwsSol = buildCWSSolution(vrp,

effList);

6 while stopping criterion not satisfiedÆ

7 sol = buildRandomizedSolution(nodes,

constraints, effList);

8 sol = improveSolUsingHashTable(sol); //

learn from experience

9 updateSolution(sol,

bestSolutionFound[]);

10 elihw

11 return bestSolutionFound[];

end

Figure 2: Generic SR-GCWS procedure.

procedure buildRandomizedSolution(nodes,

constraints, list)

1 sol = buildTrivialCWSSol(nodes);

2 list = sort(list); // sort edge list

3 while list contains edges Æ

4 e = selectEdgeAtRandom(list);

5 deleteFromList(e);

6 if CWS route-merging meets all

constraints Æ

7 sol = insertEdgeInSol(e); //merging

8 fi

9 elihw

10 return sol;

end

Figure 3: Constructive process to generate new solutions.

Finally, at each iteration, we try to improve the

solution being constructed by saving in a hash table

the best routes found so far for any specific set of

nodes. The hash table always keeps the best found-

so-far way of sorting a set of customers in a route. In

some sense, this could be considered as a learning

mechanism that makes the algorithm more efficient

as more new solutions are generated. A hash table is

used instead of an array just for computational

efficiency reasons.

procedure selectEdgeAtRandom(list)

1 beta = generateRandomNumber(a, b); //

e.g.: a = 0.05 and b = 0.20

2 randomValue = generateRandomNumber(0,

1);

3 n = 0;

4 cumulativeProbability = 0.0;

5 for each edge in list Æ

6 edgeProbability = beta * (1 – beta)^n;

// geometr. distribution

7 cumulativeProbability +=

edgeProbability;

8 if randomValue < cumulativeProbability

9 return edge;

10 else

11 n++;

12 fi

13 rof

14 k = generateIntegerRandomNumber(0,

list size); // from 0 to list size – 1

15 return getEdgeAtPosition(k);

Figure 4: Randomized selection of edges from savings list.

4 EXPERIMENTAL RESULTS

The methodology described in this paper has been

implemented as a Java application. At the core of

this application, some state-of-the-art pseudo-

random number generators are employed. In

particular, we have used some classes from the SSJ

library (L’Ecuyer, 2002), among them, the subclass

GenF2W32, which implements a generator with a

period value equal to 2

800

-1. Using a pseudo-random

number generator with such an extremely long

period is especially useful when performing an in-

depth random search of the solutions space. In our

opinion, the use of such a long-period RNG has

other important advantages: the algorithm can be

easily parallelized by splitting the RNG sequence in

different streams and using each stream in different

threads or CPUs. This can be an interesting field to

explore in future works, given the current trend in

multi-core processors and parallel computing.

In order to verify the goodness of our approach

and its efficiency as compared with other existing

methodologies, a total of 14 classical CVRP

benchmark instances were selected from the

reference web site http://www.branchandcut.org,

which contains detailed information regarding a

large number of benchmark instances. The selection

process was based on the following criteria: (a) all 6

A SIMULATION-BASED METHODOLOGY TO ASSIST DECISION-MAKERS IN REAL VEHICLE ROUTING

PROBLEMS

215

Table 1: Comparison of methodologies for six randomly selected CVRP instances.

Instance

umber

of nodes

CWS

solution

Bes

-known

solution*

Our best

solution

Gap

A-n45-k7 45 1,199.98 1,147.28 1,146.91 -0.03%

A-n60-k9 60 1,421.88 1,355.80 1,355.80 0.00%

A-n80-k10 80 1,860.94 1,766.50 1,766.50 0.00%

B-n50-k7 50 748.80 744.78 744.23 -0.07%

B-n52-k7 52 764.90 750.08 749.97 -0.01%

B-n57-k9 57 1,653.42 1,603.63 1,602.29 -0.08%

B-n78-k10 78 1,264.56 1,229.27 1,228.16 -0.09%

E-n51-k5 51 584.64 524.94 524.61 -0.06%

E-n76-k10 76 900.26 837.36 839.13 0.21%

E-n76-k14 76 1,073.43 1,026.71 1,026.14 -0.06%

F-n135-k7 135 1,219.32 1,170.65 1,170.33 -0.03%

M-n121-k7 121 1,068.14 1,045.16 1,045.60 0.04%

P-n70-k10 70 896.86 830.02 831.81 0.22%

P-n101-k4 101 765.38 692.28 691.29 -0.14%

vera

ap -0.01%

(*) Best-known solution according to the information available at http://www.branchandcut.org/

sets of instances (A, B, E, F, M and P) were used,

(b) only instances offering complete information

(e.g. specific routes in best known solution) were

considered, (c) instances with less than 45 nodes

were avoided, since they can be easily optimized by

using exact methods. The selected benchmark files

are shown on Table 1. These instances differ in the

number of nodes (ranging from 45 to 135) and also

in the location of the depot with respect to the

customers (in some cases the depot occupies a

central position in the scatterplot of customers while

in others the depot is located at one corner). Some

instances characterized by having clusters of

customers have also been considered.

A standard personal computer, Intel® Core™2

Duo CPU at 2.4 GHz and 2 GB RAM, was used to

perform all tests. Results of these tests are

summarized in Table 1, which contains the

following information for each instance: (a) number

of nodes, (b) costs associated with the solution given

by the parallel version of the CWS heuristic, (c)

costs associated to the best-known-so-far solution,

C , according to the information available at the

referred web site, (d) costs associated with the best-

known-so-far solution provided by our algorithm,

′

, and finally (e) gap between both solutions

calculated as the quotient

CCC /)( −

′

and expressed

as a percentage value. Notice that, as defined, a

positive gap will imply that our solution costs are

higher than the ones associated with the best-known-

so-far solution, while a negative gap will imply just

the opposite, i.e., better solutions found by our

approach.

From Table 1 it can be deduced that, for each of

the 14 randomly selected instances, our

methodology has been able to provide a virtually

equivalent solution to the one considered as the best-

known-so-far. In fact, in 9 out of the 14 tested

instances, our methodology has been able to slightly

improve the best-known solution, offering negative

gaps. When considering all instances together, the

average gap is still negative (its value is equal to -

0.01%). Generally speaking, according to these

results, it seems licit to say that the hybrid

methodology presented here is able to generate

excellent CVRP solutions.

As described before, our approach makes use of

an iterative process to generate a set of random

feasible solutions. According to the experimental

tests carried out, each iteration is completed in just a

few milliseconds by using a standard computer. By

construction, odds are than the generated solution

outperforms the one given by the CWS heuristic.

This means that our approach provides, almost

immediately (even for the instance with 200 nodes),

what we call “a class C solution”, i.e., a feasible

solution which outperforms the CWS heuristic in

aprioristic costs. Moreover, as verified by testing,

hundreds or even thousands of alternative class C

solutions can be obtained after some minutes of

computation, each of them having different

attributes regarding non-aprioristic costs, workload

balance, visual attractiveness, etc. By doing so, a list

of alternative solutions can be constructed, thus

allowing the decision-maker to filter this solutions

list according to different criteria. This offers the

decision-maker the possibility to choose, among

ICEIS 2009 - International Conference on Enterprise Information Systems

216

different solutions with similar aprioristic costs, the

one which best fulfils his or her preferences

according to his or her utility function.

Furthermore, and again according to

experimental results, our algorithm is able to provide

a “class B” solution, i.e., a feasible solution inside

the 2% gap from the best-known solution, in just

some hundred or some thousand iterations, which in

small- and medium-size instances takes only a few

seconds to run. Of course, as it has been already

discussed in the previous section, with more

computing time our algorithm is capable to provide

“class A” solutions, i.e., feasible solutions that are

virtually equivalent, or even better in some cases, to

the best-known-so-far solution for every tested

instance. Another important point to consider here is

the simplicity of the presented methodology. In

effect, our algorithm needs little instantiation and

does not require any fine-tuning or set-up processes.

This is quite interesting in our opinion, since

according to (Kant et al., 2008) some of the most

efficient heuristics and meta-heuristics are not used

in practice because of the difficulties they present

when dealing with real-life problems and

restrictions. On the contrary, simple hybrid

approaches like the one introduced here tend to be

more flexible and, therefore, they seem more

appropriate to deal with real restrictions and

dynamic work conditions. Notice also that our

approach seems to work well in all tested instances

without requiring any special fine-tuning or set-up

process.

Finally, it is convenient to highlight that the

introduced methodology can be used beyond the

CVRP scenario: with little effort, similar hybrid

algorithms based on the combination of Monte Carlo

simulation with already existing heuristics can be

developed for other routing problems and, in

general, for other combinatorial optimization

problems. In our opinion, this opens a new range of

potential applications that could be explored in

future works.

5 CONCLUSIONS

In this paper a simple yet efficient hybrid

methodology for solving the Capacitated Vehicle

Routing Problem has been presented. This

methodology, which does not require any particular

fine-tuning or configuration process, combines the

classical Clarke & Wright heuristic with Monte

Carlo simulation using a geometric distribution and

a state-of-the-art pseudo-random number generator.

Results show that our methodology is able to

provide top-quality solutions which can compete

with the ones provided by much more complex

meta-heuristics, which usually are difficult to

implement in practice. Moreover, being a

constructive approach, it can generate hundreds of

alternative good solutions in a reasonable time-

period, thus offering the decision-maker the

possibility to apply different non-aprioristic criteria

when selecting the solution that best fits his or her

utility function.

REFERENCES

Buxey, G.M. 1979. The Vehicle Scheduling Problem and

Monte Carlo Simulation. Journal of Operational

Research Society, 30, 563-573

Clarke, G. and J. Wright. 1964. Scheduling of Vehicles

from a central Depot to a Number of Delivering

Points. Operations Research, 12, 568-581

Faulin, J. and A. Juan. 2008. The ALGACEA-1 Method

for the Capacitated Vehicle Routing Problem.

International Transactions in Operational Research,

15, 1-23

Feo, T. A, Resende, M.G. C. 1995. Greedy randomized

adaptive search procedures. Journal of Global

Optimization, 6, 109-133

Fernández de Córdoba, P., García Raffi, L.M., Mayado, A.

and J.M. Sanchis. 2000. A Real De-livery Problem

Dealt with Monte Carlo Techniques. TOP, 8, 57-71

Golden, B., Raghavan, S. and E. Edward Wasil (eds.).

2008. The Vehicle Routing Problem: Lat-est Advances

and New Challenges. Springer

Kant, G., Jacks, M. and C. Aantjes. 2008. Coca-Cola

Enterprises Optimizes Vehicle Routes for Efficient

Product Delivery. Interfaces, 38: 40-50

Laporte, G. 2007. What you should know about the

Vehicle Routing Problem. Naval Research Logistics,

54: 811-819

Laporte, G., Gendreau, M., Potvin, J.Y. and F. Semet.

2000. Classical and Modern Heuristics for the Vehicle

Routing Problem. International Transactions in

Operational Research, 7, 285-300

Law, A. 2007. Simulation Modeling & Analysis.

McGraw-Hill

L’Ecuyer, P. 2002. SSJ: A Framework for Stochastic

Simulation in Java. In Proceedings of the 2002 Winter

Simulation Conference, pp. 234 – 242

Poot, A., Kant, G. and A Wagelmans. 2002. A savings

based method for real-life vehicle routing problems.

Journal of the Operational Research Society, 53, 57-68

Toth, P. and D. Vigo. 2002. The Vehicle Routing

Problem. SIAM Monographs on Discrete Mathematics

and Applications. SIAM

A SIMULATION-BASED METHODOLOGY TO ASSIST DECISION-MAKERS IN REAL VEHICLE ROUTING

PROBLEMS

217
