PERSONALIZED MEDICAL WORKFLOW
THROUGH SEMANTIC BUSINESS PROCESS MANAGEMENT
Jiangbo Dang, Amir Hedayati, Ken Hampel and Candemir Toklu
Siemens Corporate Research, Princeton, NJ 08540, U.S.A.
Keywords:
Medical workflows, Business process management, Semantic web services, Ontology, Knowledge base.
Abstract:
Business Process Management (BPM) systems are becoming the runtime governance of emerging Service
Oriented Architecture (SOA) applications. They provide tools and methodologies to design and compose
Web services that can be executed as business processes and monitored by BPM consoles. Ontology, as a
formal declarative knowledge representation model, provides semantics upon which machine understandable
knowledge can be obtained, and as a result, it makes machine intelligence possible. By combining ontology
and BPM, Semantic Business Process Management (SBPM) provides a novel approach to align business
processes from both business perspective and IT perspective. Current healthcare systems can adopt SBPM
to make themselves adaptive, intelligent, and then serve patients better. Our ontology makes our vision of
personalized healthcare possible by capturing all necessary knowledge for a complex personalized healthcare
scenario including patient care, insurance policies, drug prescriptions, and compliances. This paper presents
a hospital workflow management system that allows users, from physicians to administrative assistants, to
create context-aware medical workflows, and execute them on-the-fly using an ontological knowledge base.
1 INTRODUCTION
Workflows are becoming ubiquitous in enterprise ap-
plications from industry to healthcare. They en-
compass both system processes and human work-
flows. Herein, we use the process and workflow terms
interchangeably. Semantic Web services (Berners-
Lee, 1998) are intended to be applied dynamically
by the services themselves through automatic and
autonomous selection, composition, and execution.
BPM systems provide real-world methodologies to
govern semantic service selection, composition, ex-
ecution, and monitoring. In this paper, an ontology
is developed to describe a healthcare network includ-
ing hospital resources and processes, and to serve as
a knowledge base for our Web-based workflow man-
agement system. This ontology provides the semantic
layer to BPM applications and helps business rules,
enterprise policies, and running environment context
be described at the semantic level. Therefore, ser-
vices can be described, advertised from a business
perspective, and these functionalities can be discov-
ered, and composed by business specialists, instead of
IT professionals. Moreover, ontology helps business
rules, enterprise policies, and context to be described
in a machine understandable way to support adaptive
workflow composition and execution.
Most existing workflow systems don’t support se-
mantic process design or composition. They are not
context-aware and do not support run-time process
composition and execution. In contrast, this paper ad-
vances the state of the art by (1) developing an onto-
logical to unify healthcare processes, resources, orga-
nizations, and compliances; (2) applying semantic to
the lifecycle of medical workflows: from modeling to
monitoring, (3 )providing a prior knowledge base for
task scheduling and resource allocation at semantic
level, and (4) bridging the gap between IT and health-
care business. Our system allows users to: (1) create
and deploy personalized medical workflow in the run
time; (2) control and monitor the process flow that
a patient will pass through; and (3) maintain histori-
cal process data for further diagnosis. Note that our
intended users are healthcare professionals such as
physicians, nurses, and administrative assistants who
have no or little IT background. Our workflow sys-
tem, together with the ontological knowledge base,
will help these users to create, manage, and monitor
workflows without intervention from IT people.
122
Dang J., Hedayati A., Hampel K. and Toklu C. (2009).
PERSONALIZED MEDICAL WORKFLOW THROUGH SEMANTIC BUSINESS PROCESS MANAGEMENT.
In Proceedings of the 11th International Conference on Enterprise Information Systems - Software Agents and Internet Computing, pages 122-127
DOI: 10.5220/0002006401220127
Copyright
c
 SciTePress

2 BACKGROUND
2.1 Semantic Web Services and BPM
Web Ontology Language for Services (OWL-
S) (Coalition, 2004) is an initiative to facilitate auto-
matic discovery, invocation, composition, and mon-
itoring of Web services through their semantic de-
scription. It augments BPEL (Business Process Ex-
ecution Language) processes with preconditions and
results to encode the side effects. A process can
be represented as a set of composed Web services.
BPM systems provide process modeling tools, execu-
tion engine, and key performance indicators (KPIs) to
monitor and measure end-to-end processes (in BPEL)
against operational targets. BPM address business
needs and design flexible processes that are based on
services, which can be implemented later with SOA
infrastructure. New and changed processes modeled
in the BPM may be implemented in the SOA infras-
tructure more rapidly because the SOA decouples the
described service from the specific implementation of
particular service. (Laukkanen and Helin, 2003) and
(Mandell and McIlraith, 2003) present methodologies
for semantic Web service composition.
2.2 Ontology and Knowledge Base
An ontology is a schema composed of concepts and
relationships among these concepts. A knowledge
base may use ontology to specify its structure (entity
types and relationships) and its classification scheme.
Ontology, with its instances, constitutes a knowledge
base that includes: (1) a set of concepts, properties,
and relationships among them, (2) high-level rules in
the form of constraints, (3) low-level rules defined in
semantic rule markup language (Horrocks, 2004), (4)
semantic service descriptions and. It builds the meta-
data needed by a program to understand its environ-
ment and status, reason about them, and then automat-
ically compose services to create new tasks, which in
turn can be scheduled with optimized resource while
complying with business policies and compliances.
Siemens MED group (Dickmann, 2006) has used
a methodological approach to define hierarchical
medical processes. (Emanuele and Koetter, 2006)
surveyed BPM and workflow technologies applied
in current healthcare systems. (ST Liaw and Lewis,
2006) proposed a modeling methodology to define
prescribing process using BPEL. Healthcare systems
can adopt BPEL processes, semantic Web services,
and ontology when dealing with workflows applied in
a hospital. By doing this, these systems can deliver
personalized medical workflows to patients, monitor
workflow status and optimize the flow in real-time,
and further coordinate these workflows to improve
the service they deliver. This paper aims to present
a system that delivers these features. In the rest of
the paper, Section 3 introduces a motivating medical
workflow scenario. Section 4 discusses the ontolog-
ical knowledge base. Section 5 describes the system
architecture with an emphasis on dynamic process or-
chestration. Section 6 presents methodology for pro-
cess monitoring, and Section 7 concludes.
3 SYSTEM OVERVIEW
3.1 A Hospital Scenario
Here we introduce a simplified healthcare workflow
with five participant roles: RegistrationOfficer , Dis-
chargeOfficer
, Nurse , Physician , and SupportStuff .
For each role, there might be more than one partic-
ipant (instance). For example, one physician reviews
patient’s medical record, while another physician pre-
pares for the operation. The ADMIT phase starts when
a patient comes into a hospital and register in a wait-
ing list. An administrative assistant can check the rel-
evant data including insurance information, medical
history, patient address, emergency contact, etc. Then
the patient will go through the DETECT phase when a
healthcare professional like physician might do some
tests, such as blood test or X-ray test. The TREAT
phase follows and treat the patient’s disease for in-
stance by applying a surgery and/or a plaster. The
last phase is DISCHARGE when the patient leaves the
hospital and all relevant data including executed pro-
cesses is gathered for record and future diagnosis.
Due to uncertainty, it is difficult to handle all
events and emergencies in a hospital. From a pa-
tient’s view, patient may have to have the treatment
plan updated from time to time. This uncertainty and
dynamics exist because of: (1) newly come findings
from test, unexpected outcome from treatment, (2)
lack of resource, and (3) emergency. From a hospi-
tal’s view, a hospital may want to dynamically route
tasks among physicians and resources to provide bet-
ter care, timely response with minimized cost.
3.2 System Interfaces
Our workflow system provides role-based online ac-
cess to patients and hospital staffs. As shown in Fig 1,
a user can log into the system with the corresponding
roles. On his/her welcome page, there is a worklist
that shows all the pending tasks for the user as well as
the in-progress tasks. Using the worklist, the user can
PERSONALIZED MEDICAL WORKFLOW THROUGH SEMANTIC BUSINESS PROCESS MANAGEMENT
123

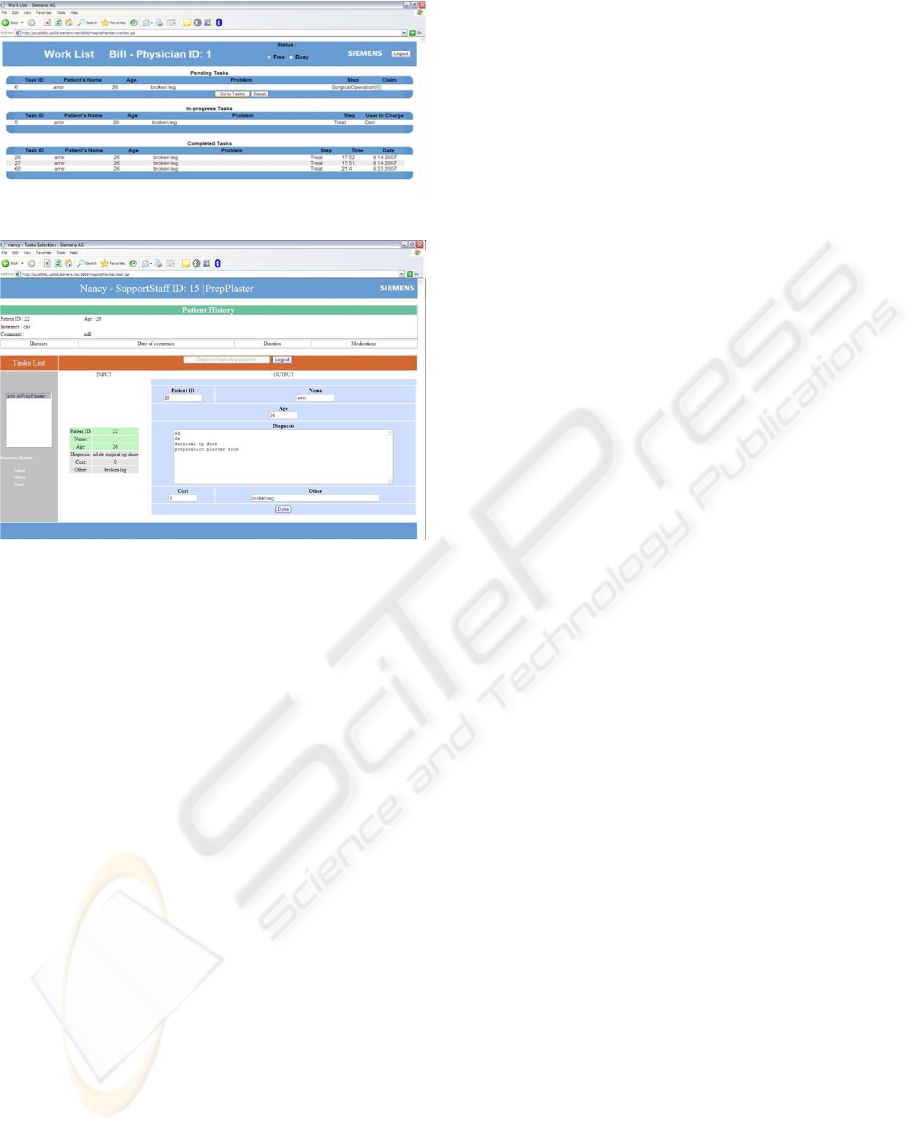

Figure 1: User Interface - Worklist.
Figure 2: User Interface - Taskpane.
claim a task, review the patients which are still in the
workflow. More flexibly the user can set his/her work-
ing status to allow or avoid newly coming tasks. All
the status will be monitored for resource optimization
and performance evaluation purpose.
Fig 2 shows a physician’s task panel. A physician
can check patient’s medical record, add new observa-
tion, diagnosis information, and operation suggestion.
As defined in our ontology, a physician have the right
to deploy new processes. By clicking on the button
”Deploy or Execute Processes”, a physician can cre-
ate a new process by choosing and arranging neces-
sary atomic tasks from a task pool, which is validated
by the ontological knowledge base, then deploy this
process by clicking on ”Apply Processes”. All nec-
essary files are created and the process is deployed
on the server. After clicking on ”OK”, this process is
executed and its status will be updated in real-time.
4 ONTOLOGICAL KNOWLEDGE
BPEL is widely accepted in industry but it does not
provide semantic. The newly published WS-BPEL
2.0 specification does not talk about semantic annota-
tions neither. As our effort toward Semantic BPM, we
enhance current BPM with semantics by adopting the
following methodologies: (1) extending the process
groundings from WSDL to WSDL-S, (2) defining an
OWL-based process model for process orchestration,
and (3) mapping between OWL-S services and BPEL
processes. In this paper, we combine (2) and (3), and
develop an ontological knowledge base to facilitate
process orchestration and execution. This ontological
knowledge base also captures business intelligence
behind the healthcare process hierarchy. By adopt-
ing the ontological knowledge base, we separate busi-
ness rules represented in knowledge base from pro-
cess logic defined in a process.

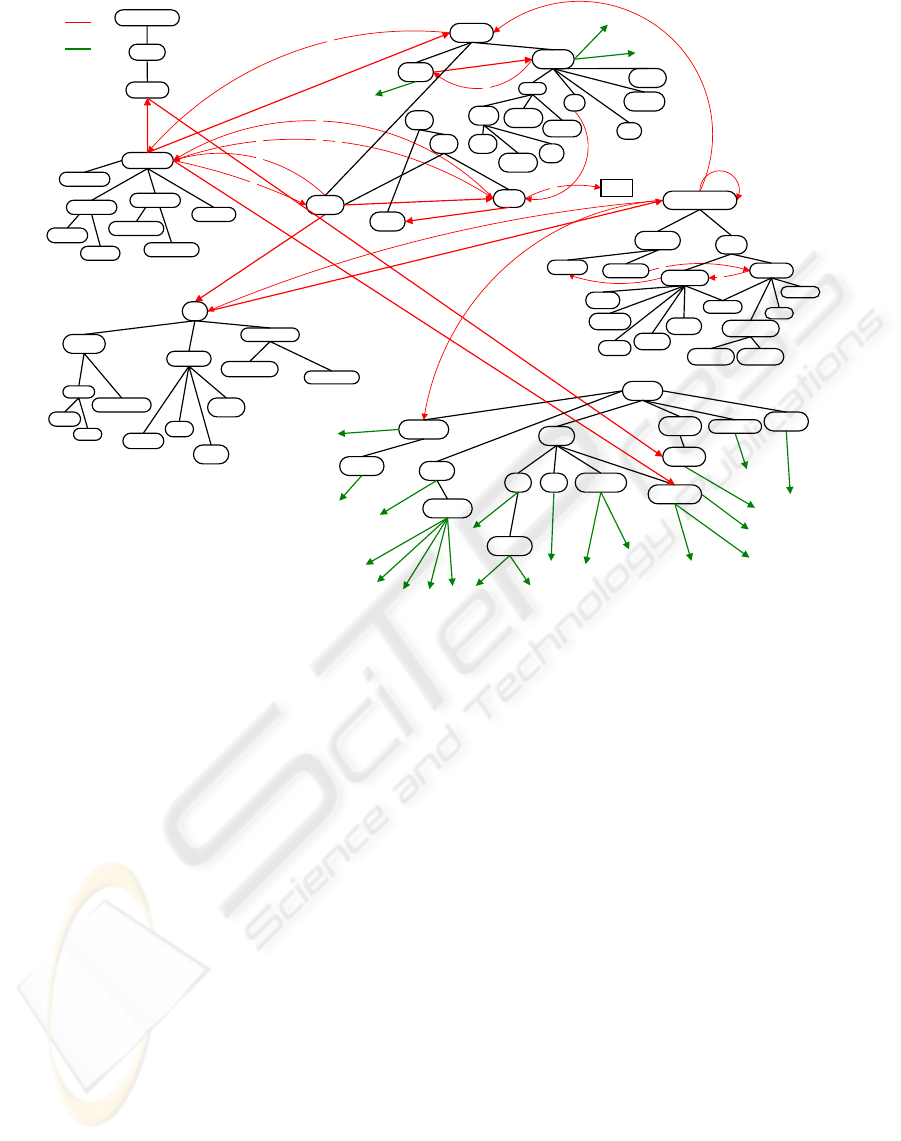

Figure 3 shows the schema of our healthcare on-
tology. This knowledge base covers the domains that
a healthcare enterprise encompasses - in particular a
hospital - from the medical or administrative tasks, to
hospital assets, medical insurances, patient records,
drugs and regulations. Our ontology include different
views: roles, resources, organization, KPIs, and pro-
cesses. Processes are defined in terms of their actors,
inputs, outputs, preconditions, and results (AIOPRs).
KPIs are also defined in the AIOPRs for monitor-
ing purpose. All concepts in processes are defined in
other views. Process view unifies all other views by:
(1) consuming assets and people from resource view,
(2) specifying actors with roles defined in role view,
and (3) providing process activity information and
business data to calculate KPIs from the KPI view.
Business rules include business policies and logics.
Properties, constraints, and relations are defined to
describe high-levelbusiness policies. Meantime, low-
level business rules including business logic are de-
scribed explicitly with SWRL clauses. Therefore, it
allows this ontological knowledge base to capture all
necessary knowledge for a more complex scenario in-
volving patient care, insurance policies, and drug pre-
scriptions, and compliances.
5 ADAPTIVE WORKFLOW
SYSTEM FOR HOSPITALS
5.1 System Architecture
As shown in Figure 4, We built our workflow sys-
tem on Oracle Application Server and Oracle Busi-
ness Activity Monitoring (BAM) server. In the Ap-
plication Server side, we implemented and deployed
Web services for process composition and execution.
In the BAM server side, we defined BAM data ob-
jects and designed dashboards, and then monitored
running processes. For the system front end, we de-
veloped role-based Web interface for end users, and
use Prot´eg´e (Stanford, ) as the ontology viewer and
ICEIS 2009 - International Conference on Enterprise Information Systems
124

hasAllergy
precedes
precedes
precedes
hasPatients
assignedToDpt
assignedToPatient
WheelChair
assignedToRoom
consumes
precedes
belongsTo
employs
employedBy
hasKPI
performedBy
h
a
s
R
o
l
e
ObjectProperty
DataProperty
p
e
r
f
o
r
m
s
Organization
Emergency
Cardiology
Radiology
Pediatrics
h
a
s
R
es
o
ur
c
e
c
o
n
t
a
i
n
s
Person
Employee
Patient
Resource
Room
Asset
Device
Bed
Stretcher
n
u
m
b
e
r
integer
s
e
r
i
a
l
N
u
m
integer
p
a
t
i
e
n
t
S
a
t
i
s
f
a
c
t
i
o
n
integer
KPI
Clinical
Financial
QualityofCare
People
p
a
t
i
e
n
t
L
O
S
integer
AssetUtilization
r
o
o
m
O
c
c
u
p
a
t
i
o
n
integer
ProcessKPI
d
u
r
a
t
i
o
n
integer
TurnoverRate
Care
DptVisitDay
p
a
t
i
e
n
t
s
T
r
a
n
s
f
e
r
e
d
D
a
y
integer
XrayTestAvg
h
a
s
V
a
l
u
e
integer
Role
Healthcare
Personal
SupportStaff
AdminstrativeStaff
RegistrationOfficer
DischargeOfficer
Surgeon
GeneralPractitioner
Hospital
Facility
HealthCare Network
p
at
i
e
n
t
s
D
i
s
c
ha
r
g
e
d
D
a
y
integer
n
u
m
b
e
r
F
r
e
e
B
e
d
s
integer
d
i
a
g
n
o
s
t
i
c
T
u
r
n
a
r
o
u
n
d
integer
m
o
v
a
b
l
e
boolean
CardiacSurgery
Plastic
Heart
Imaging
Device
Monitoring
Device
Laboratory
Device
MRI
Xray
Ultrasound
h
a
s
V
i
s
i
t
s
PlasticSurgery
t
a
k
e
s
I
n
C
h
a
r
g
e
d
a
t
e
date
a
v
g
C
o
s
t
P
e
r
P
a
t
i
e
nt
integer
c
o
s
t
P
e
r
P
a
t
i
e
n
t
PatientCost
p a r t O
f
Agent
Insurance
Company
Process
Admit
Detect
Treat
Discharge
BloodTest
XrayTest
EKGTest
MRATest
MRITest
SurgicalOperation
PrepPlaster
Plaster
PlasticSurgeryHeartSurgery
h
a
s
I
n
s
u
r
a
n
c
e
Medical
Surgery
Nurse
Physical
Therapist
Orthopedic
Therapist
p
a
t
i
e
n
t
integer
m
edi
c
al
S
t
af
f
integer
Medical
Process
Administrative
Process
Pharmacy
e
m
p
l
o
y
e
e
I
n
j
u
r
i
e
s
integer
l
e
n
g
t
h
O
f
Dr
u
g
integer
Administrating
Method
c
u
t
a
n
e
o
u
s
integer
o
r
a
l
integer
i
n
h
al
a
t
i
o
n
integer
r
e
c
t
a
l
integer
t
o
p
i
c
a
l
integer
HouseKeeping
Allergy ‘s
Ontology
Pharmacists
Medication
Drug
Figure 3: A simplified Hospital Ontology.
editor. For the system back end, we adopt Oracle
database and MySQL database to store the ontolog-
ical knowledge base and workflow data separately.
Task Assigner assigns tasks to the corresponding
roles. When a patient registers, our system will au-
tomatically generate a patientID for this patient. Per-
sonal informationlike patientID, name and age are
passed to the Task Assigner Web service. These in-
formation allows the Task Assigner service to gener-
ate a task and select a role for this task. The task is
then inserted into taskpool in the database, waiting to
be accomplished by the user who has the proper role.
After that Task Assigner checks the status of the task.
When it is accomplished, the task is marked as fin-
ished. The taskpool keeps track of all executed pro-
cesses or pending processes.
Knowledge Retrieve Engine extends Jena API (api,
2007) to extract ontological knowledge. Jena API can
be utilized to store and retrieve RDF, RDF Schema
and OWL data. By combining a Jena query engine
SPARQL and an OWL-S API (api, 2004) for Jena, we
developed this knowledge retrieve engine to extract
properties, classes, and instances of classes from the
OWL specifications in our knowledge base. Mean-
while, we retrieve inputs, outputs, preconditions, and
results from the OWL-S description, and provide the
retrieved knowledge to the process composition ser-
vice for service selection and composition.
Process Composition Service is called once a user
has composed his own process and wants to deploy
and execute it on the BPEL server. This service
gathers information concerning TransactionID, Pro-
cessInstanceID, ParentID, patient’s name, and struc-
ture information regrading the newly composed pro-
cess. After then this service deploys the new pro-
cess onto the application server after creating all files
needed by the BPEL server to properly deploy the
process. Finally the service executes the newly de-
ployed process on the BPEL server by calling it. At
this step, A unique ID is generated and inserted into
the process. The ID is returned to this service to mon-
itor the status of sub-processes of the composed pro-
cess. After execution, this ID is used to construct a
tree of linked processes, which allows tracking the
process history for future use.
5.2 Dynamic Process Orchestration
The dynamic process orchestration is one of the core
features. Our system makes personalized medical
workflow possible by letting healthcare specialists
create and execute new medical processes for special
PERSONALIZED MEDICAL WORKFLOW THROUGH SEMANTIC BUSINESS PROCESS MANAGEMENT
125

OracleXE DB
O r a c l e A p p l i c a t i o n S e r v e r
MySQL DB
Oracle BPEL
Process Manager
Calls for Process
Assignment
and Accomplishment
Initiate Processes
-Assigns it to a Role
-Deploys it to Task Pool Database
-Waits for Accomplishment
-Send results back to Oracle PM
Monitor processes
-Log in/out System
-Learn assigned Tasks
-Save Output of Tasks
Create and Deploy
new processes
TaskAssigner
Web Service
Oracle BPEL
Console
Protege
Hospital Member
Interface
Users
PatientRegister
Interface
Patients
ProcessComposition
Web Service
Check domain’s
constraints and
relations from the
ontology
Creates a Process
Instance
Jena Ontology tables
Compose new
processes
KnowledgeRetrieve
Engine Servlet
Jena API
Users,Tasks,Patients tables
Check/Upadte Patients data
Maintain/Update
Ontology
Ontology
Uploader
Interface
Upload Ontology
in the DB
Maintain BPEL
Processes
- worklist
- task
O r a c l e B A M S e r v e r
Hospital
Dashboards
Update Dashboards data

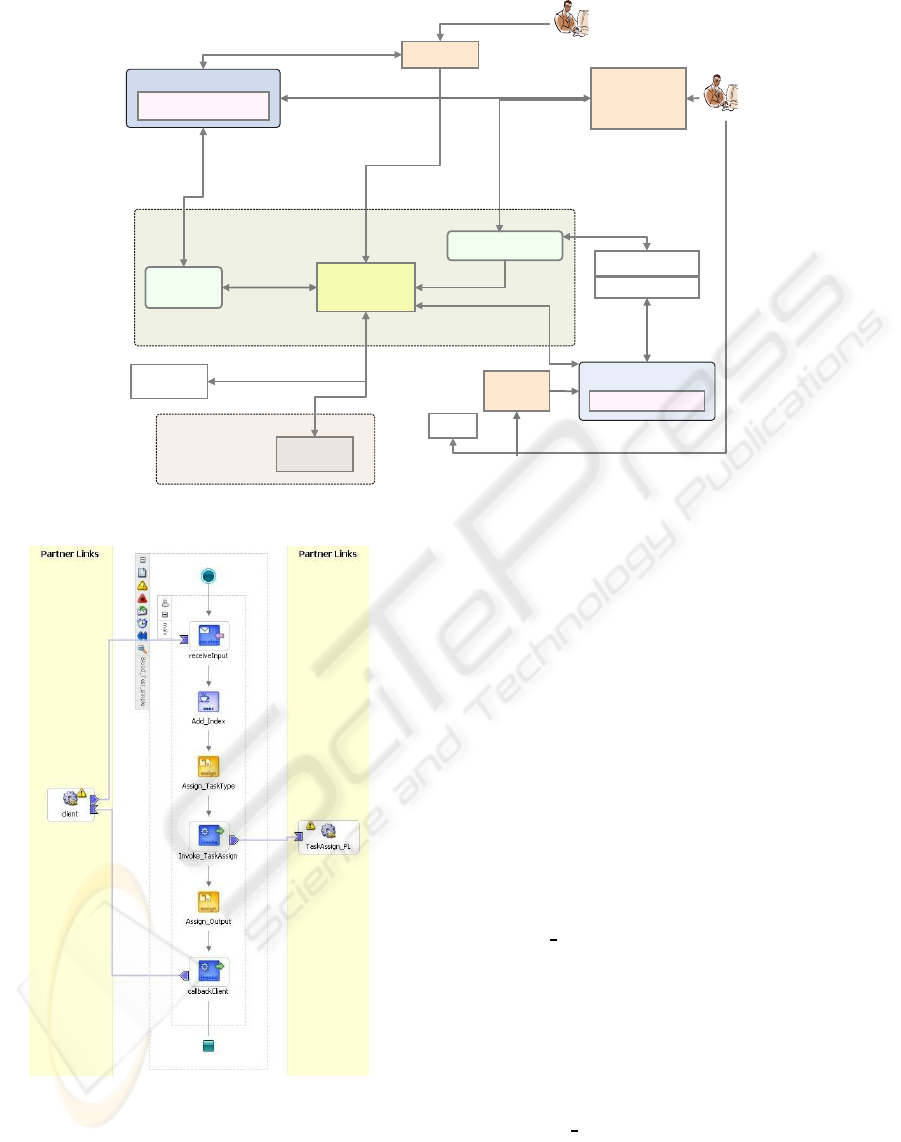

Figure 4: System Architecture.
Page 1/1
Figure 5: BloodTest Process.
patients without IT infrastructure or BPEL knowl-
edge. This feature can be seen as the first accomplish-
ment to bridge healthcare needs and IT technologies
in a hospital. Meanwhile, our system maintains a pro-
cess repository on the BPEL server. This repository
allows users to save newly composed processes and
reuse them in the future.
To support dynamically composed processes, we
design one main BPEL process - MainPatient process
encompassing the flow of all processes. The MainPa-
tient process is triggered each time a patient registers
with the system. In the MainPatient process, there
are four sub-processes in sequential: Admit, Detect,
Treat and Discharge . The whole process and all the
calls to sub-processes are asynchronous to allow hu-
man interventions. Moreover, we develop a pattern
for all atomic processes to make them compos-able
using our methodology. Figure 5 shows an example
of atomic processes. As you can see, the BloodTest
process has the following components:
• A receive element receives events as a start point.
• An Add Index element generates a unique ID for
the current instance of the executed process. We
use this ID to retrieve process information and
extend it to retrieve the status of the executed
processes. Moreover, we developed a context-
aware process monitoring component, which uti-
lizes this element to attach the newly deployed
process to its context.
• An Assign TaskType element updates the coming
event by inserting the task name and sending it to
the Task Assigner Web service.
• An invoke element invokes the Task Assigner Web
service that will assign the task to a role, and will
call back when the task is done by a user.
ICEIS 2009 - International Conference on Enterprise Information Systems
126

• An Assign Output element further updates vari-
ables sent back by the TaskAssigner Web service.
This element implements process-specific logics
• Finally, a callback to the requester if it is a newly
composed process.
By adopting the above pattern, we define the template
for all atomic processes and make the runtime process
composition and execution possible.

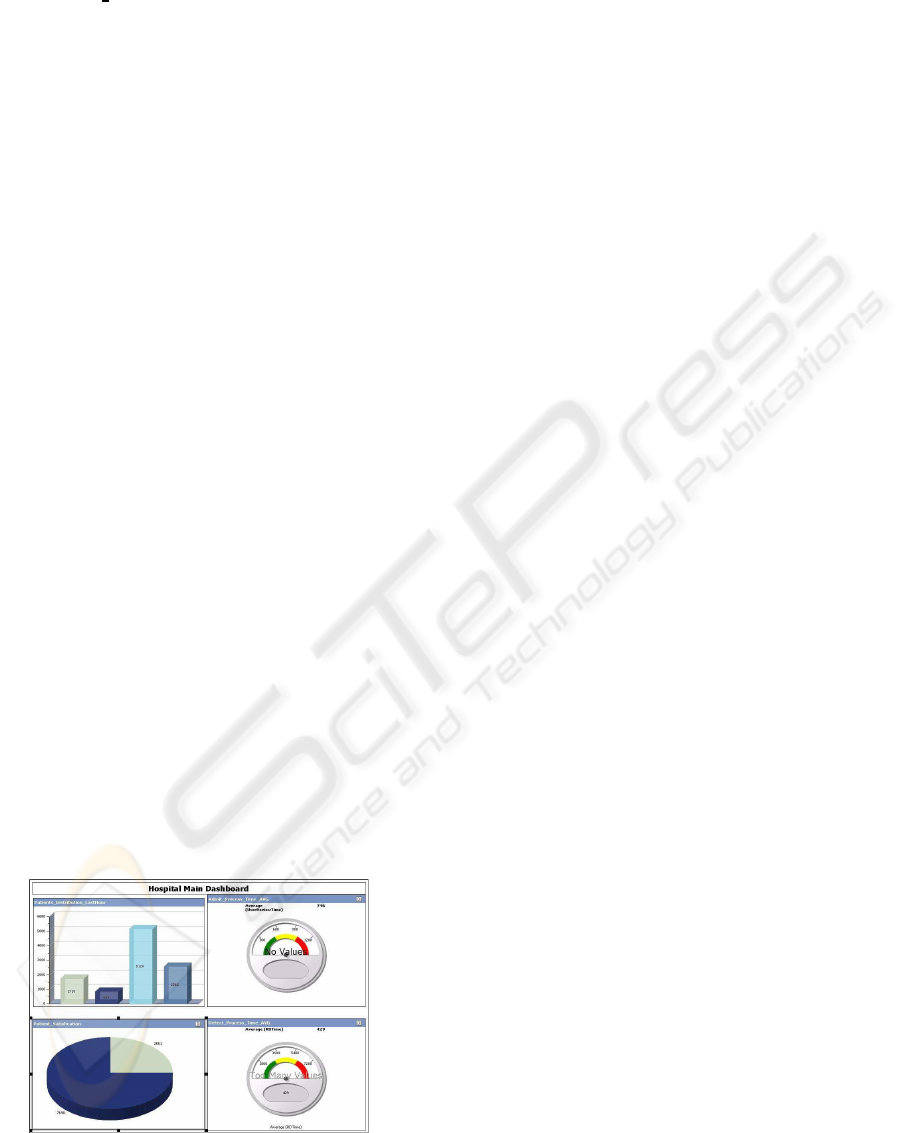

6 BUSINESS ACTIVITY
MONITORING
Business Activity Monitoring refers to the aggrega-
tion, analysis, and presentation of real time informa-
tion about business activities inside organizations. It
provides a real-time summary of business processes
to business managers and upper management. A
set of dashboards can be created to monitor running
workflows and system performance, which can be uti-
lized to further improve the performance.
6.1 Design BAM Objects
First, business analysts define KPIs that need to be
monitored from a workflow. Based on the KPIs, BAM
data objects are created as a set of variables, each of
which is composed of multiple fields to store its prop-
erty values. For instance, a field of process starting
time and another filed of process ending time can be
added and used to calculate the duration of a process.
On the BAM server, these data objects will be filled
with real-time data extracted from running processes.
Dashboards are designed to display these data for dif-
ferent user groups. Figure 6 shows a hospital main
dashboard with multiple views: Hourly Patients dis-
tribution, Average process times, etc.
Figure 6: BAM Dashboards.
6.2 Map BAM Objects to Processes
BAM views depend on information from running pro-
cesses. Therefore, the linkages between process data
and BAM data need to be created. In our system,
BAM Data objects are linked to process data via sen-
sors and sensor actions. A sensor is configured in
a process to gather data to the BAM server when a
BPEL process is triggered. The activity sensors are
created to gather process activity information. For in-
stance, one can configure a BAM sensor to send the
data of the time when a process is triggered and the
time when a process is finished. Then on the BAM
server side, a new field in the data object can be cre-
ated to calculate the duration of the process by sub-
tracting the starting time from the ending time.
7 FUTURE WORK
There are several directions for future work. First,
we are going to fully explore semantic Web service to
elaborate automated process orchestration and execu-
tion. Second, we will automate and optimize runtime
resource allocation among processes. Third, we will
adopt a semantic rule engine to enhance the knowl-
edge retrieve and reasoning procedure.
REFERENCES
(2004). API. http://www.daml.ri.cmu.edu/owlsapi/.
(2007). Jena A Semantic Web Framework for Java.
http://jena.sourceforge.net/.
Berners-Lee, T. (1998). Semantic Web Road Map.
Coalition, T. O. S. (2004). OWL-S: Semantic Markup for
Web Services.
Dickmann, C. (2006). Workflow support in healthcare IT
systems. Siemens MED.
Emanuele, J. and Koetter, L. (2006). Workflow opportuni-
ties and challenges in healthcare. Siemens MED.
Horrocks, I. (2004). SWRL: A Semantic Web
Rule Language combining OWL and RuleML.
http://www.w3.org/Submission/SWRL/.
Laukkanen, M. and Helin, H. (2003). Composing work-
flows of semantic web services. In Proceedings of
Web-Services and Agent-based Engineering.
Mandell, D. J. and McIlraith, S. A. (2003). Adapting
bpel4ws for the semantic web: The bottom-up ap-
proach to web service interoperation. In International
Semantic Web Conference, pages 227–241.
ST Liaw, E. Deveny, I. M. and Lewis, B. (2006). Clin-
ical, Information and business process modeling to
promote development of safe and flexible software.
Health Information Journal.
Stanford. Prot´eg´e. http://protege.stanford.edu/.
PERSONALIZED MEDICAL WORKFLOW THROUGH SEMANTIC BUSINESS PROCESS MANAGEMENT
127
