INFORMATION SYSTEMS SECURITY BASED ON BUSINESS

PROCESS MODELING

Joseph Barjis

Delft University of Technology, Jaffalaan 5, 2628 BX Delft, The Netherlands

Keywords: Secure business process modeling, Secure information system design, Information system security,

Organizational semiotics, DEMO methodology.

Abstract: In this paper, we propose a conceptual model and develop a method for secure business process modeling

towards information systems (IS) security. The emphasis of the proposed method is on social

characteristics of systems, which is furnished through association of each social actor to their authorities,

responsibilities and obligations. In turn, such an approach leads to secure information systems. The resulting

modeling approach is a multi-method for developing secure business process models (secure BPM), where

the DEMO transaction concept are used for business process modeling, and the Norm Analysis Method

(organizational semiotics) for incorporating security safeguards into the model.

1 INTRODUCTION

Traditionally, security measures have been

considered a technical issue to be dealt with when

the system architecture, hardware performance,

databases and software design are tackled

(Backhouse & Dhillon, 1996), and mainly addressed

in the implementation (coding, programming) phase

of the life cycle. But the fact is that security is more

of organizational issues and should be developed as

early in the IT application life cycle as in the

business modeling phase (Backes et al., 2003; Mana

et al., 2003; Herrman & Herrman, 2006). The

motivation for this is obvious. Information systems

are developed to enable certain business processes

within an enterprise context. Thus, security

measures should be applied while IS design is in its

early stages in the life cycle such as the process

modeling phase, where business analysts and

security experts have to identify security safeguards

and implement them in the business process models.

Business processes are the starting point for any

system development process (e.g., IS projects, IT

applications, software design). Practitioners of

software development project refer to a business

process as a software system blueprint (Nagaratnam

et al., 2005). As such, business processes are a

natural phase in the application development life

cycle, where security safeguards should conceive.

2 RELATED WORK

Information security and secure business process

modeling attracted many researchers. There have

been some research works done in this regard, where

authors address the need for sliding security aspects

down the system design ladder to business process

modeling phase (Mana et al., 2003; Backes et al.,

2003; Herrmann & Herrmann, 2006; Rodríguez et

al., 2007). This paper further advances the study of

security driven business process modeling by

introducing an innovative method and approach, and

proposes a conceptual model for secure BPM.

Incorporation of security safeguards in business

process modeling greatly increases the likelihood of

an adequate and secure system development.

Research and practical findings at IBM, reported in

(Nagaratnam et al., 2005), argue that business

process modeling is an ideal time in the life cycle of

software system development to begin capturing the

business security requirements that address any

security concerns that relate to the business.

The existing approaches to secure business

process modeling are predominantly based on the

extension of existing modeling notations and

methodologies with security tags and properties.

One of the earliest works tackling security issues of

information system using existing methodologies is

(Backhouse & Dhillon, 1996). In this work the

authors propose a concept for using the notions of

213

Barjis J. (2009).

INFORMATION SYSTEMS SECURITY BASED ON BUSINESS PROCESS MODELING.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

213-218

DOI: 10.5220/0002006502130218

 SciTePress

authorities and responsibility in order to ensure that

activities are carried out by the authorized actors.

The approach and method used in (Firesmith,

2003) is based on the extension of UML. In

particular, the author proposes a method to derive

security use cases in order to model a problem

domain for secure application development.

Actually, due to its popularity as a requirements

elicitation method, the security use case approach

has been researched and developed by many

researchers.

Another popular and widely used modeling

language and method extended with security

properties is BPMN (business process modeling

notation). In (Rodríguez et al., 2007), the authors

integrate security requirements through business

process modeling. In particular, they propose a

BPMN extension to business process diagrams.

One of the dominant reasons that the role of

business process modeling in IS security is

undermined is because often the methods restrict

themselves to merely the conceptual and semantic

levels and, therefore, present little pragmatic value

for information system designers and developers. By

using the existing methods, it is difficult to

automatically analyze the models and, therefore, it is

not possible to test and simulate the embedded

security measures. To elevate the importance and

pragmatic value of security-driven business process

modeling, it is required that the models possess

certain qualities. First of all, the resultant model

should be amenable to test and simulation in order to

capture how and when security safeguards will be

triggered and enacted. Secondly, the models should

capture social roles, authorities and responsibilities

pertaining to each action. Thirdly, it is imperative

that the models capture interactions between

different entities (human actors, business units,

applications) to identify the level of security

sensitivity (e.g., access and modification of sensitive

data or inter-organizational transactions may be of

special security scrutiny). These qualities are the

research motivations and drivers for this paper. In

this paper, it is attempted to show that the proposed

method and approach for developing secure business

processes yield the mentioned qualities to a certain

extent and advances the existing experience from

both a theoretical and an application perspective.

The contribution of this paper is the proposal of a

conceptual model for developing secure business

processes, an approach to implement the conceptual

model, and a secure business process modeling

method. The advantage of the proposed method is its

underlying formal semantics, which allows models

to be automatically analyzed and simulated. In the

proposed approach, emphasis is made on the social

characteristics of the system by associating each

social actor to their authorities, responsibilities and

obligations. In this paper we use the DEMO

methodology transaction concept (Dietz, 2006) for

business process modeling, and the Norm Analysis

Method (Stamper, 1994) for incorporating security

safeguards into the model.

3 CONCEPTUAL MODEL

The proposed conceptual model for secure BPM,

illustrated in Figure 1, has two main components

that need to be developed and combined to create a

secure business process model. The first component

consists of the ‘business transactions’ that needs to

be identified based on a ‘business processes

description’. The second component is ‘security

safeguards’ that are mainly defined based on

security determiners (see below for definition) and

represents a set of security safeguards that are

defined in conjunction with each business

transaction. These two components are developed in

a collaborative manner (see Figure 2) and in

correlation with each other. Together, the two

components create a secure BPM, as depicted in

Figure 1 and enclosed into the dashed-line rectangle.

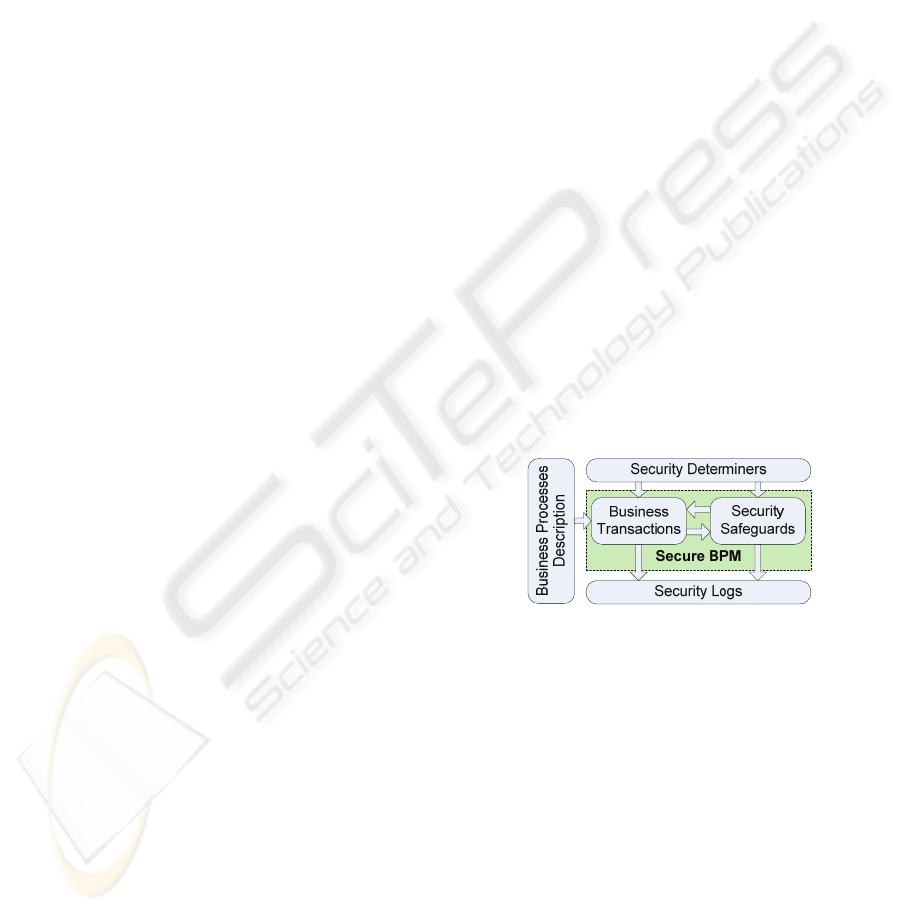

Figure 1: Conceptual model of security embedded BPM.

Security determiners – these are rules,

procedures, laws, and other measures that an

organization wants to be implemented with regard to

certain activities, processes, and roles.

For example: The ‘security determiners’ define if

a transaction execution involves any action on

sensitive personal records (read, delete, modify), or

whether a transaction is executed in the boundary of

two organizations requiring more security

(transmitting credit card information, health care

records), and so on. For each such transaction,

security rules, security precautions, and security

alerts are formulated at the concept level.

Once security safeguards are defined, business

transactions are coupled with their corresponding

ICEIS 2009 - International Conference on Enterprise Information Systems

214

security safeguards and every time a transaction is

initiated it will trigger the security rules to be

satisfied. Actually, security safeguards need not be

implemented for each business transaction. In fact,

analysts and designers are required to consider a

trade-off between the level of security robustness

and business processes performance.

There are two other components in the proposed

conceptual model. The ‘security logs’ component

contains records of all business transactions that

carry security-sensitivity and trigger security

safeguards. This component will allow monitoring

and managing access and execution of sensitive

transactions as well. The ‘business processes

description’ can be found in the existing

documentation or be prepared by the analysts where

the underlying business processes are described. An

example of such description will be presented later

when the FHCC case is discussed.

The approach we propose to implement the above

conceptual model is based on the collaboration of

different expertise that allows developing a secure

BPM in correlation with the components specified in

Figure 1. The proposition is that for secure BPM,

close collaboration of the three types of expertise

should be considered crucial. This approach is

illustrated through a secure BPM collaboration

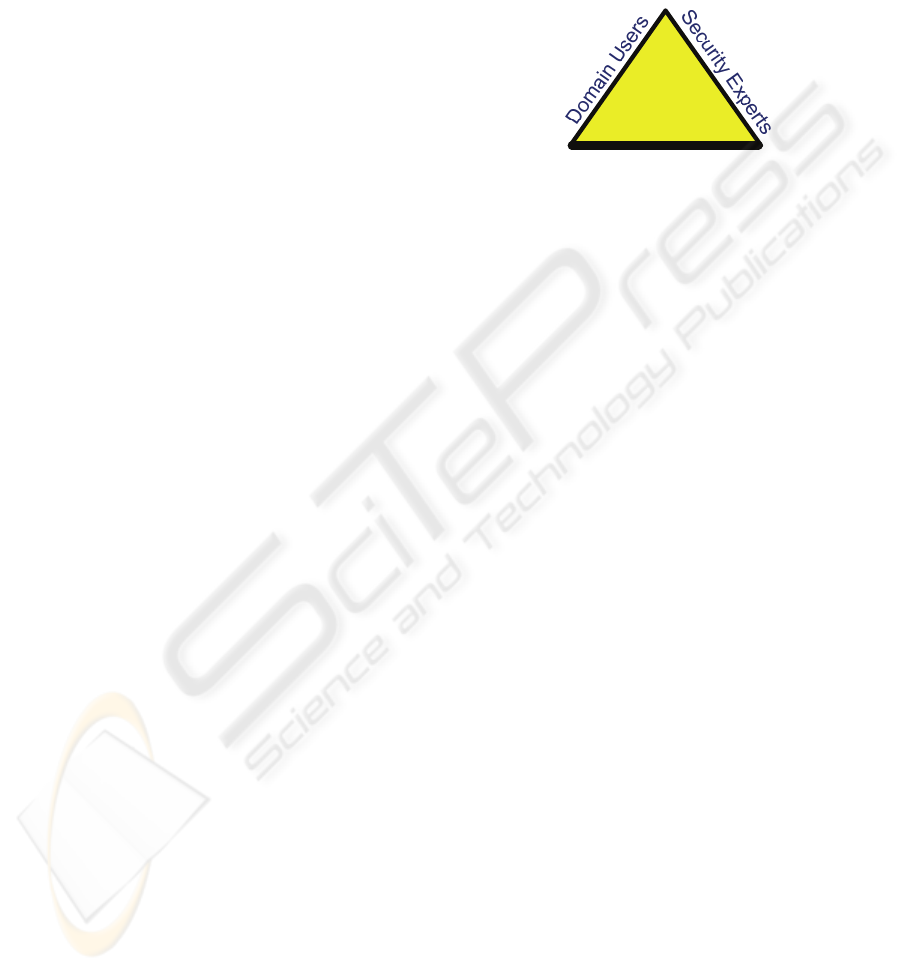

triangle in Figure 2. As depicted, in the collaboration

triangle for secure BPM, the ‘business analyst’ role

is emphasized as prominent and central. Essentially,

for a successful secure BPM, it is important that

although the business modeling phase is led by

business analysts, it is carried out in collaboration

with security experts and domain users. Each of

these groups plays an essential role in developing

secure models: the ‘business analyst’ leads the

work; the ‘domain users’ provide domain knowledge

to the analysts and security experts; ‘security

experts’ support the business analysts identifying

and incorporating security safeguards into the

models. The outcome of these collaborative efforts

is identification of the security safeguards at a high

abstraction level. It is rather flagging security areas

for more detailed and robust analysis and

implementation as the analysis and design activities

unfold.

For example: In developing secure BPM for a

hospital, the business analyst (maybe also in

collaboration with a security expert) determines

which policies apply to a given activity in the

context of the business process. The business analyst

might model the requirement to control authorized

access to a business activity such as medical records

and to ensure that the medical information flow is

protected from unauthorized access and ensures

confidentiality. The medical security requirements

can be defined within the secure BPM. These

models rather provide a reference that may be used

by the hospital compliance officers, such as security

auditors, to verify and monitor adherence to the

hospital security and confidentiality policies.

Secure

BPM

Business Analyst

Figure 2: A secure BPM collaboration triangle.

Although the proposed conceptual model and

approach is fairly specific and detailed security

aspects are covered, this approach is still abstract

enough not to limit the developers and security

experts' freedom of implementation.

To summarize this section, it should be stated

that in our approach, business processes are

described in terms of business transactions, where

each transaction entails interaction of actors (human

actors), business units, and artifacts (IT

applications). Depending on the sensitivity of the

carried activities, transactions are complemented

with security safeguards. Since interaction of

components (actors, artifacts, agents) is the center-

point of our approach, the DEMO business

transaction concept (Dietz 2006) is used as a

theoretical basis for identifying business activities.

Next to the DEMO methodology, Petri nets are

adopted for constructing the model diagrams. In fact,

due to its formal semantics, models based on Petri

net notations are formal and lend themselves to

automatic analysis. Security safeguards are defined

using the Norm Analysis Method of Organizational

Semiotics (Stamper, 1994). The Norm Analysis

Method is adapted to define rules, norms,

authorities, responsibilities, and exceptions for the

execution of each transaction. Both the DEMO

Methodology and the Norm Analysis Method are

discussed in the following sections.

4 BUSINESS TRANSACTION

According to the DEMO Methodology (Dietz,

2006), a business transaction is a generic pattern of

action and interaction. An action is a productive act

INFORMATION SYSTEMS SECURITY BASED ON BUSINESS PROCESS MODELING

215

and represents an activity that brings about a new

result. An interaction is a communicative act

involving two actor roles to coordinate and negotiate

an action.

As depicted in Figure 3, the process in which a

transaction is completely carried out consists of

three phases:

- Order phase (O), during which an actor makes

a ‘request’ for a service or goods towards another

actor. According to DEMO, this phase represents a

number of communicative acts or interactions. This

phase ends with a commitment (‘promise’) made by

the second actor, who will deliver the requested

service or good.

- Execution phase (E), during which the second

actor fulfills its commitment, i.e., ‘produce’ the

service or goods. According to DEMO, this phase

represents a productive act.

- Result phase (R), during which the second actor

does ‘present’ the first actor with the service or

goods prepared. According to DEMO, this phase

also represents a number of communicative acts or

interactions. This phase ends with the ‘accept’ of the

service or goods by the first actor.

In Figure 3, by arrows and circles, it is also

illustrated that all ‘request’, ‘promise’, ‘present’,

‘accept’ acts can be logged in the model.

As it becomes obvious from the three phases,

each business transaction is carried out by two actor

roles. The actor role that initiates a transaction is

called the ‘initiator’ (e.g., customer) and the actor

role that executes the transaction is referred to as the

‘executor’ (e.g., supplier) of the transaction.

Executor

Execution

phase

Initiator

Result phase

Order phase

Request

Produce

Present

Promise

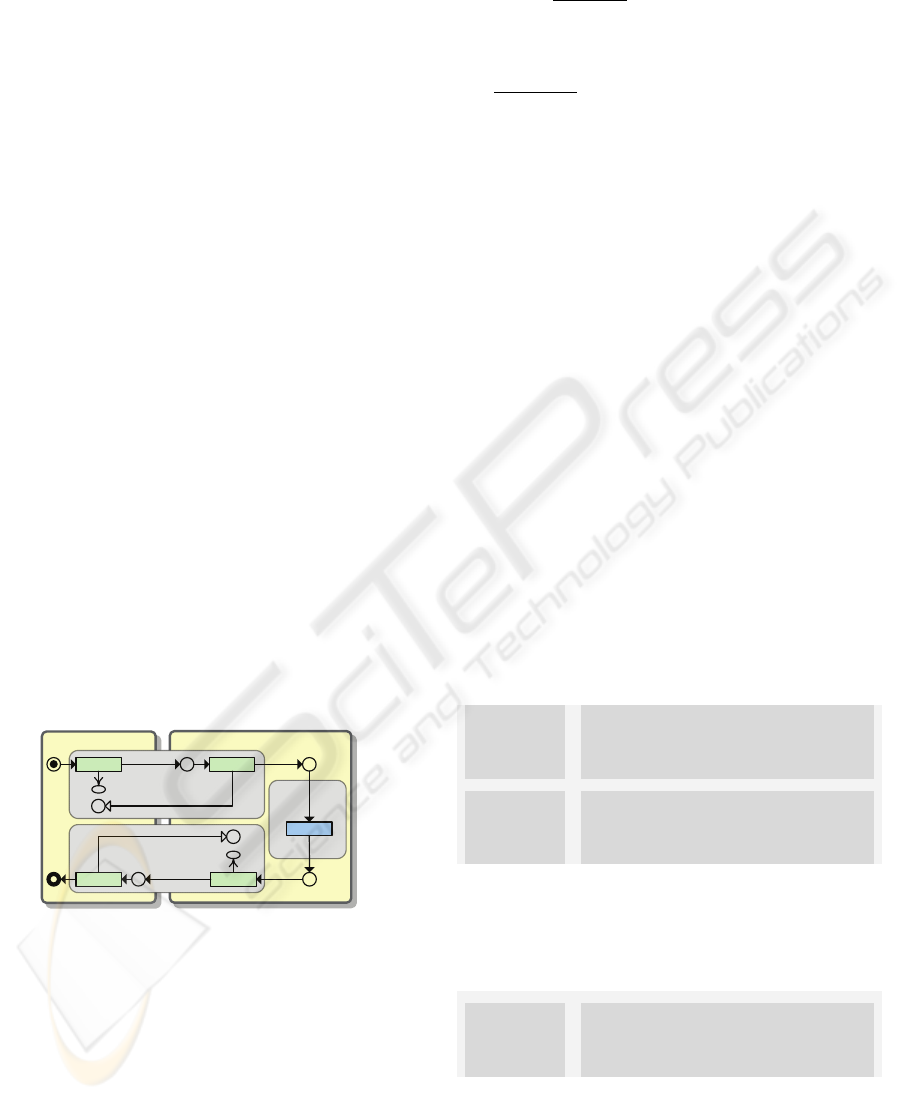

Figure 3: Business transaction pattern.

4.1 Illustrative Example

It should be noted that the case study discussed here

is a simplified description of the processes in which

some details are omitted and skipped. This

description is based on a family health care center

(FHCC), taken from (Barjis & Hall, 2007).

In order to be examined by a doctor, a patient

needs to make an appointment beforehand. On the

appointment day, a nurse first conducts preliminary

general checkup (blood pressure, EKG, basic lab

work) and ‘records’

chief complaints, and reason

for the visit. After completing this preliminary exam,

the nurse escorts the patient to an available

examination room. The doctor examines the patient

and ‘updates’

the patients chart if any prescription

is issued, diagnosis is made, referral is given, or if

any other notes are taken. After completing the

examination, the patient goes to the side-desk to

check out, to make the (co-)payment relevant to the

service delivered. In rare cases, patients may need

further examination by external healthcare

providers (sub-specialist) or advanced diagnostic

equipment such as a CAT scan, available elsewhere.

In this case, the FHCC schedules an appointment

with the external healthcare provider based on the

availability of the network provider. Some

procedures such as a CAT scan may require the

insurance company’s pre-approval.

4.2 FHCC Business Transactions

Making an appointment is the first activity in the

series of processes taking place in the “patient

examination.” By making an appointment, a new

fact is created, being that a new appointment is made

and recorded into the system. In this activity, the

patient is the initiator and the receptionist is the

executor. This activity comprises the first business

transaction (T1) in the process of “patient

examination.” Thus, this and the other main

activities are described as follows:

T1:

Initiator:

Executor:

Fact:

making an appointment

patient

FHCC (receptionist)

a new appointment is made

T2:

Initiator:

Executor:

Fact:

requesting health care

patient

FHCC (physician)

patient is given health care

Transaction 2 requires that the patient records

will be accessed and modified by a physician.

Therefore this transaction requires explicit access

authorization to secure the patient's electronic

records.

T3:

Initiator:

Executor:

Fact:

conducting general physical test

FHCC (physician)

FHCC (nurse)

general physical test is conducted

Similarly, Transaction 3 requires that the patient

records will be accessed and new records will be

added by a nurse. Therefore this transaction requires

explicit access authorization to secure the patients

electronic records.

ICEIS 2009 - International Conference on Enterprise Information Systems

216

T4:

Initiator:

Executor:

Fact:

arranging an external appointment t

FHCC

Specialist (external provider)

an external appointment is made

T5:

Initiator:

Executor:

Fact:

requesting a pre-approval

Specialist

Insurance

a pre-approval is granted

T6:

Initiator:

Executor:

Fact:

paying the bill

FHCC

patient

the service is paid

These business transactions constitute a network

of actions and interactions through which the FHCC

business processes emerge. Due to limited space, we

skip the FHCC patient examination process. Instead,

we would like to discuss a few points that relate this

model to the research questions and objectives we

identified in the beginning of the paper.

The resulting model using the transaction schema

presented earlier can be automatically analyzed and

simulated. However, the model would not include

any security safeguards. Therefore, the DEMO

transaction concept, as we discussed in the

conceptual model, needs to be complemented by

security safeguards, for which purpose we use the

NAM of the organizational semiotics. To do so, we

first introduce the NAM in the next section and then

revisit the DEMO transaction diagram for security

improvement.

5 NORM ANALYSIS METHOD

Organizational Semiotics is a framework and a set

of methods based on the understanding of

organizations as systems of social norms. It

emphasizes the central role of the people, their

responsibility and the organization in the analysis

and design of information systems (IS) (Stamper,

1994). Organizational semiotics consists of a set of

methods including the Norm Analysis Method

discussed in this section.

In the previous section, we illustrated how

business transactions can be identified and the

relevant actors defined. The Norm Analysis Method

is used as a suitable complement to deal with

behavioral norms specification. According to the

organizational semiotics framework, there are five

types of norm that influence certain aspects of

human behavior. They are ‘perceptual norms’,

‘cognitive norms’, ‘evaluative norms’, ‘behavioral

norms’ and ‘denotative norms’ (Stamper, 1994).

In business, most rules and regulations fall into

the category of behavioral norms. These norms

prescribe what people must, may, and must not do,

which are equivalent to three deontic operators “is

obliged,” “is permitted,” and “is prohibited.”

Therefore, particular attention is given to the

behavioral norms since they are expressed as

business rules, and have direct impacts on business

operations. Behavioral norms govern human

behavior within regular patterns. The following

format is considered suitable for specifying of

behavioral norms – a generic structure for all norms:

whenever

then

<state>

<actor>

In this structure, the condition describes the

situation where the norm is to be applied, and

sometimes further specified with a state-clause (this

clause is optional). The actor-clause specifies the

actor responsible for the action. The actor can be a

staff member, a customer, or a computer system if

the right of decision-making was delegated to it. As

for the next clause, it is a deontic state and is usually

expressed by one of the three operators - permitted,

forbidden and obliged. For the next clause, it defines

the consequence of the norm. The consequence

possibly leads to an action or to the generation of

information for others to act.

Now using the above format along with

identified business transactions, we develop a secure

model of business processes. We will use capital “S”

for each security safeguard, where the number

following it indicates the number of the

corresponding transaction (e.g., S2 is definition of

security safeguards associated with Transaction 2).

Here, using the norms, we will discuss security

safeguards for only two business transactions: one

for the physician role that requires ‘update’

of the

patient medical records; one for the nurse role that

requires ‘record’

of new data for each visit by the

patient. Actually, in the same manner we can define

security safeguards for all roles and transactions, but

we will limit ourselves to only two transactions, in

part due to space limitations.

S2:

whenever

then

<the physician is the patient family

doctor>

INFORMATION SYSTEMS SECURITY BASED ON BUSINESS PROCESS MODELING

217

S3a:

whenever

then

S3b:

whenever

then

All the safeguards can be diagrammatically

incorporated into the complete model of the FHCC

patient examination process. However, let us revisit

the business transaction diagram (Figure 3) and

show incorporation of security safeguards in more

generic terms and how and where these security

safeguards will be executed in a business

transaction.

Executor

E-phase

Initiator

Result phase

Order phase

Request

Produce

Present

Promise

Security

Rules

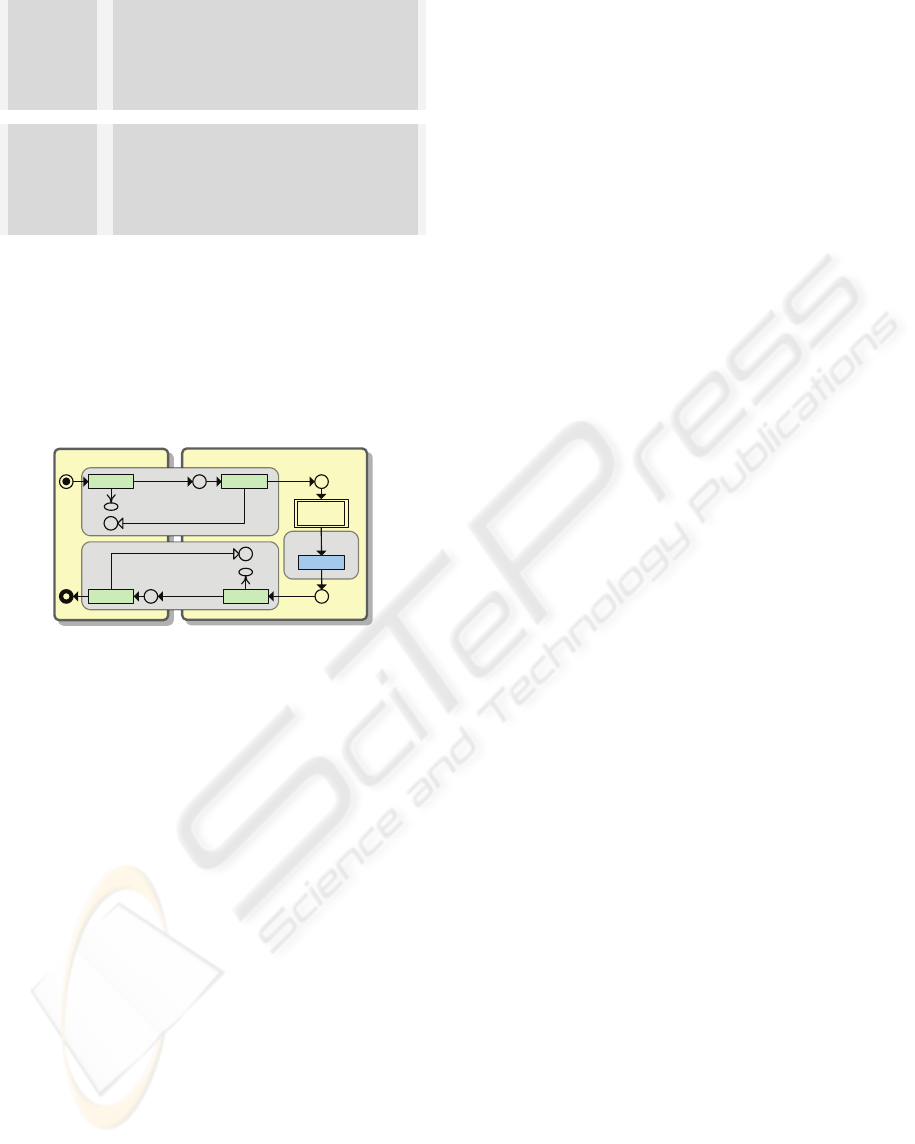

Figure 4: Business transaction with embedded security.

Figure 4 represents a generic form of business

transaction with an added feature modeled as

‘secure’. The secure box is basically implementation

of the security safeguards (i.e., the aforementioned

rules) defined for each transaction. As seen from the

diagram, it will be triggered before an actor is

allowed to perform or execute any action. In the

FHCC case, such a box will be implementation of

S2 before Transaction 2 is executed or

implementation of S3a and S3b before Transaction 3

is executed.

6 CONCLUSIONS

In this paper we have discussed security driven

business process modeling method that allows

constructing models based on the DEMO transaction

concept using formal graphical notations of Petri

nets. The security safeguards embedded in the model

are developed using the Norm Analysis Method of

organizational semiotics. Although due to space

constraints, the complete business process model of

FHCC and simulation are skipped in this paper, the

resultant models can be simulated in order to

observe how the security safeguards are called and

executed to ensure authorized access before security

sensitive actions are executed. For example, if a

nurse wants to modify existing medical records, this

action will trigger a security measure that the nurse

should be able to comply with. This security

measure can be another level of access. An

advantage of the proposed method is that the models

can be simulated and dynamically tested in regard to

security safeguards. As each secure transaction is

executed, the corresponding security safeguard is

deployed generating security logs for future analysis.

REFERENCES

Backes, M., Pfitzmann, B., & Waidner, M. (2003).

Security in Business Process Engineering. In

Proceedings of 2003 International Conference on

Business Process Management. Lecture Notes in

Computer Science vol. 2678, Springer.

Backhouse, J., & Dhillon, G. (1996). Structures of

responsibility and security of information systems.

European Journal of Information Systems, 5, 2–9.

Barjis, J., & Hall, M. (2007). A Healthcare Center

Simulation Using Arena. In the proceedings of

MSVVEIS’07”, June 12-13, Funchal, Madeira –

Portugal.

Dietz, J.L.G. (2006). Enterprise Ontology –Theory and

Methodology. Springer.

Firesmith, D. (2003). Security Use Case. Journal of Object

Technology, Vol. 2 (3), pp. 53-64.

Herrmann, P., & Herrmann, G. (2006). Security

requirement analysis of business processes. Electronic

Commerce Research, Vol. 6 (3-4), pp. 305-335.

Mana, A., Montenegro, J.A., Rudolph, C., & Vivas, J.L.

(2003). A business process-driven approach to security

engineering. Proceedings of the 14th International

Workshop on Database and Expert Systems

Applications, pp. 477-481, Prague.

Nagaratnam, N., Nadalin, A., Hondo, M., McIntosh, M., &

Austel, P. (2005). Business-driven application

security: From modeling to managing secure

applications. IBM Systems Journal, Vol. 44, No 4.

Rodríguez, A., Fernández-Medina, E., Piattini, M. (2007).

A BPMN Extension for the Modeling of Security

Requirements in Business Processes. IEICE -

Transactions on Information and Systems, Volume

E90-D, Issue 4, Pages: 745-752.

Stamper, R. K. (1994). Social Norms in Requirement

Analysis – an outline of MEASUR. In Jirotka, M., &

Gorguen, J. (Eds.) Requirements Engineering: Social

and Technical Issues.

ICEIS 2009 - International Conference on Enterprise Information Systems

218
