APPLYING AN EVENT-BASED APPROACH FOR DETECTING

REQUIREMENTS INTERACTION

Edgar Sarmiento, Marcos R. S. Borges and Maria Luiza M. Campos

Graduate Program in Informatics, Federal University of Rio de Janeiro, Brazil

Keywords: Requirements Engineering, Requirements Interaction Detection, Interaction Type.

Abstract: At the software development cycle, it is in the requirements analysis phase that most of the problems that

can compromise the delivery time and the development and maintenance costs must be identified and

resolved. In general, the requirements obtained in this phase have different relationships with each other.

Some of these relationships, commonly called negative interactions, make difficult or impossible the

progress of some activities of the development process. The detection of interactions between requirements

is an important activity that may prevent some of these problems and avoid their propagation throughout the

remainder activities. Most of the existent research in this area only focuses on the requirements phase,

mainly in the identification of conflict and/or inconsistency interactions. This paper presents a semi-formal

event-based approach to model and identify the interactions between requirements, investigating the

interactions that influence the other phases of the software development process.

1 INTRODUCTION

Research in requirements engineering has

demonstrated that the requirements of a system are

not usually independent from each other. In fact,

there are different types of interactions between

them (Dahlstedt and Persson, 2003; Robinson et al.,

2003; Shehata, 2005). This happens because the

different elements that compose a system are not

isolated entities: the relationships and interactions

among these entities make possible the functioning

of the system.

Commonly the set of requirements of a complex

system have interactions. Among these interactions

exists a set of negative interactions (i.e. conflicts or

inconsistencies), which must be identified and

resolved in the initial phases of the development

cycle. The interactions identification is an important

activity that allow: to resolve eventual conflicts, to

better plan the requirements implementation, to

manage the impact of a change on other

requirements, and to plan the tests considering the

interactions. Several researches show these benefits,

however, most of them only focus on the

requirements phase (Dahlstedt and Persson, 2003;

Robinson et al., 2003).

The Requirement Interaction Problem was

introduced and well researched in the

telecommunications domain, with the name of

Feature Interaction Problem (Calder and Magill,

2000). The problem of features interaction is

generally understood as a situation where the

integration of several features in a system could

interfere or affect one another. However some

problems were identified on these methodologies.

Most of them focused on the telecommunications

domain, their use is not known in the software

domain and most of them use formal specification

languages, if used correctly they are accurate,

although difficult and expensive of using.

Requirements Interaction Management was

introduced by Robinson et al. (2003), defined as the

set of activities directed towards the discovery,

management, and disposition of critical relationships

among a set of requirements. Requirements

Interaction is similar to Features Interaction,

however, Features Interaction only considers

functional requirements.

Several methods for the identification of

interactions on the requirements analysis phase have

been proposed. Lamsweerde et al. (1998) and

Robinson et al. (2003) gave an extensive review on

the different interaction types. They focused on how

to identify and eliminate negative interactions. As

most of these approaches, they are based on formal

specification languages. Mylopoulos et al. (1999)

225

Sarmiento E., R. S. Borges M. and Luiza M. Campos M. (2009).

APPLYING AN EVENT-BASED APPROACH FOR DETECTING REQUIREMENTS INTERACTION.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

225-230

DOI: 10.5220/0002007902250230

 SciTePress

presented an approach to discover interactions

between functional and non-functional requirements

based on dependencies graphs built in a hierarchical

way. And among the researches that focus on the

design phase, we can mention those presented by

Yuqin et al. (2006) and Zhang et al. (2006). These

approaches are based on features. A feature is

defined as a set of cohesive requirements. These

approaches consider mainly dependence interactions

(positive interactions). For their correct functioning

it is necessary to identify conflicting or inconsistent

interactions in previous phases.

Among those works more related to ours we can

mention IRIS (Shehata, 2005) and BPA (El-Ansary,

2002). IRIS is a semi-formal approach to detect

requirements interactions. This approach uses tables

and graphs together with scenarios of interaction. A

system is considered a compound of static and

dynamic requirements and their resources, each one

of these elements consisting of attributes.

BPA (Behavioural Pattern Analysis) is an

approach in which events are considered as primary

entities of the models of the world. This approach

proposes the representation of requirements based

on the actions and events of the system, and the

relationships between them.

This paper proposes an approach for specifying

and identifying the different interactions between

requirements, using a semi-formal method based on

events. It is based on events, because the flow of

events describes the behavior of the system through

a set of interactions between objects. Our approach

considers the most interaction types described in the

literature and supports the identification of

interactions with less effort and complexity.

This paper is structured as follows. Section 2

presents the interaction definitions, the attributes

used for specification and subsequent requirements

interaction identification. Section 3 presents the

interaction types considered in our approach and the

detection rules for each type. Section 4 presents the

proposed approach. Section 5 presents an example

of application of the approach. Finally, in Section 6

we present our conclusions so far and the directions

for future work.

2 REQUIREMENT

INTERACTION

There is an interaction when two or more

requirements have some effect on each other. These

interactions can be caused by different viewpoints of

stakeholders, change or re-use of requirements,

component-based development, among others. Some

definitions of interactions can be found in (Dahlstedt

and Persson, 2003; Robinson et al., 2003).

2.1 Basic Attributes of Requirements

The dynamic models in the Object Oriented

Approach represent the behaviour of the system, i.e.,

the interactions among the different objects of the

system and their environment. These interactions are

caused mostly by the presence of events produced

by another object or some external entity. These

events stimulate and control the functioning of the

system.

The identification of events during the

requirements analysis phase allows to reveal the

different interactions that exist among the set of

requirements, and subsequently, to know the set of

interactions among the different objects. The events

are important because the implementation of a

requirement produces a result (event) and the events

cause the implementation of a requirement.

In our approach a requirement is described and

represented as a set of attributes that consists of:

events, action, states and resources. (Table 1)

Some of the concepts presented in this section

were extracted from (BPMN, 2006) and (El-Ansary,

2002; Shehata, 2005).

Table 1: Attributes of Requirements.

Attribute Description

IDR The identifier of the requirement.

Description The description of the requirement

Event The incidents or facts that happened

inside or outside an object.

Action The activities carried out during the

execution of the requirement, such as

calculations, generation of events, etc.

Object The objects involved in the execution of

the requirement.

Resource The instruments or tools used by the

requirement to complete its execution.

2.2 The Role of Events in

Requirements Interaction

To investigate the possible roles of the events in the

set of interactions among requirements, it is

necessary to understand the definition and the

description of each event. Based on this observation,

we identify the need for specifying an event using

attributes. For this, each requirement has a set of

associated events, and it is necessary to specify each

one of them (Table 2).

ICEIS 2009 - International Conference on Enterprise Information Systems

226

Table 2: Attributes of Events.

Attribute Description

IDE The identifier of the event.

Description The description of the event.

IDR The identifier of the requirement.

Type Message, Time, Rule, Link, Multiple and

Cancel (BPMN, 2006).

Category Input: it stimulates some action.

Output: it’s generated by some action.

Action The Action that produces or is stimulated by

the event.

Object The event causes changes of state of objects:

Pre-state and Next-state.

Resource The resources stimulated by the event.

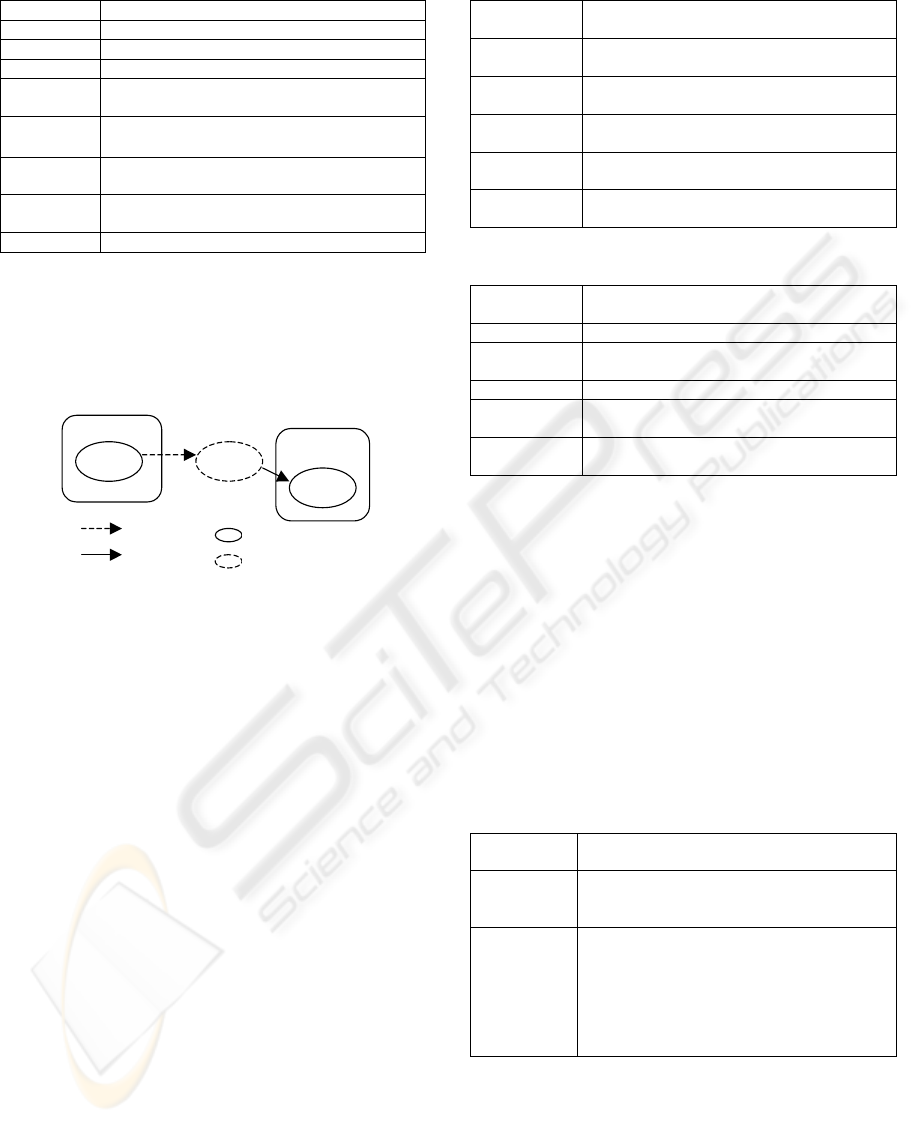

Figure 1 illustrates the role of the events and

actions in the interactions among requirements.

Requirement R1 executes action R1A1; R1A1

produces (output) the event R1E1. In another side

Requirement R2 executes action R2A1; R2A1 is

stimulated by R1E1 (input).

R1A1 R1E1

R2A1

: Output

: In

: Action

: Event

Figure 1: The Role of the Events.

3 INTERACTION TAXONOMY

Among these interactions it is possible to identify

two types of general interactions, positive and

negative ones. Positive interaction types are

relationships of intrinsic dependence (Requirement

R1 requires R2), while negative interaction types

mainly include conflicting interactions.

Numerous classifications were generated to

represent requirements interactions types (Dahlstedt

and Persson, 2003; Shehata, 2005; Yuqin et al.,

2006; Zhang et al., 2006; Pohl, 1996). Lamsweerde

et al. (1998) present an extensive review

aboutinconsistency interactions. The classification

presented in this work was generated considering the

types founded in the literature. We considered the

basic types that have a significant effect in the

remainder of the software development process,

especially in the software design phase. A more

detailed description of the different interaction types

is showed in Table 3 and Table 4.

Consider the requirements Rx and Ry. Rx is

different of Ry and RC is a resource.

Table 3: Negative Interactions.

Negative

Interaction

Description

Conflict Set Rx and Ry, there is a condition B (event)

that can cause a conflict.

Cancel When the execution of Rx overrides and

cancels the execution of Ry.

Negative

Impact

When the execution of Rx overrides, but it

does not cancel the execution of Ry.

Resource

Conflict

Rx and Ry simultaneously access to the same

resource RC.

Resource

Blocking

When the execution of Rx takes completely

and blocks RC.

Table 4: Positive Interactions.

Positive

Interaction

Description

Require Rx requires Ry for functioning.

Inform Rx sends a piece of information to Ry to

indicate that certain condition was reached.

Configure Rx configures RC that is accessed by Ry.

Flow Rx processes data that is passed to Ry

through a flow (Flow).

Collateral Rx and Ry are simultaneously activated to

complete the execution of Rz.

3.1 Interaction Detection Rules

For each one of the interaction types shown in Table

3 and 4, a set of rules for interaction detection was

defined and created. These rules involve each of the

attributes defined in Tables 1 and 2.

All the rules identified were built based on the

template:

WHEN <Event>

IF <Pre-condition>; it matches the objects,

events, actions and resources of two requirements.

THEN <Interaction Type>

Table 5: Require Interaction.

Interaction

Type

Require

Description When the Event produced in Rx stimulates

the Action executed in Ry.

Requirements: Rx and Ry; Rx != Ry.

Rule WHEN Event

IF {(Rx.Event_X = Event AND Ry.Event_Y =

Event)

AND ( Ry.Event_Y.Category = Output )

AND ( Rx.Event_X.Category = Input )

AND ( Ry.Event_Y.type != Cancel ) }

THEN Rx Require Ry

In Tables 5 and 6, we present some of the rules

identified for some of the interaction types. The

other rules are listed in (Sarmiento, 2008).

APPLYING AN EVENT-BASED APPROACH FOR DETECTING REQUIREMENTS INTERACTION

227

Table 6: Cancel Interaction.

Interaction

Type

Cancel

Description

When the Event that stimulates Rx cancels

the Action executed in Ry.

Rx and Ry have the same Action and

Object.

Requirements: Rx and Ry; Rx != Ry.

Rule

WHEN Event

IF{(Rx.Event_X = Event AND Ry.Event_Y !=

Event)

AND ( Rx.Event_X.Type = Cancel )

AND ( Rx.Event_X.Category = Input )

AND ( Rx.Event_X.Action = Ry.Event_Y.Action

)

AND ( Rx.Event_X.Object = Ry.Event_Y.Object

)

AND ( Rx.Event_X.Object.Pre-State =

Ry.Event_Y.Object.Pre-State )

}

THEN Rx Cancel Ry

4 DISCOVERING

INTERACTIONS

The proposed process is divided into stages. The

division in stages allows an efficient mechanism for

reviewing the results of each of the stages and to

negotiate the progress of the most important stage of

the process (Interactions Detection).

The proposed approach consists of six main steps

organized in a specific order to facilitate the

interactions detection. In each step, different tables

and graphs are produced with the purpose of

facilitating and increasing the precision of the

process. In the main step (step 4), an analyst

identifies the different interaction types based on

interactions detection rules defined in Section 3.1.

The six steps are briefly described below:

Step 1. Listing the Requirements: Initially the

requirements are listed and described textually using

natural language. The requirements are ordered

according to their complexity, and the complex

requirements are decomposed into simpler others.

Step 2. Extracting Requirements Attributes: A

requirements analyst begins the process of

identification of attributes for each one of the

requirements (events, action, objects, agents and

resources). Table 1 describes the list of attributes.

Step 3. Associating Requirements and Events:

After the requirements were decomposed in their

attributes, it begins the process of association of

each one of the requirements to its related events.

Then, the attributes of the events must be identified

(Table 2).

To facilitate and avoid unnecessary comparisons in

the detection step, the identification of the common

events is done. This is necessary because the

requirements interact mostly through events, besides

having common actions, resources and objects.

Step 4. Detecting Interactions: The set of

interaction detection rules described in Section 3.1 is

applied on these requirements.

Step 5. Validating Interactions: The interactions

identified on step 4 must be validated. A negotiation

with the users, in which the conflict or

inconsistencies interactions must be resolved, is also

part of this step.

Step 6. Specifying Requirements: The

requirements are documented with additional

information (requirements and their interactions).

This documentation will be very important in the

next stages of the software development process.

5 CASE STUDY

We have been evaluating the effectiveness of our

method in several domains (Sarmiento, 2008). To

illustrate the method we show a case study using the

Lift Control System. In this case study, a set of 14

requirements (Table 7) describes the basic operation

of a simple lift. A detailed and complete description

of this case study can be found in (Shehata, 2005).

The Lift is composed of:

 A Call Button in each floor.

 An Open-Door Button inside the Lift.

 Buttons for each floor inside the lift.

All the results produced and a more detailed

description of each one of the method steps is

presented in (Sarmiento, 2008).

Step 1. Listing the Requirements: The

requirements list is reproduced in Table 7.

Step 2. Requirements Attributes: After the

requirements are listed, their attributes are identified

(Table 8).

Step 3. Associating Requirements and Events:

Initially, the process of Identifying Common Events

is done because the requirements interact principally

through events (See Table 9).

Then, the requirements are associated with their

events, besides specifying each one of these events

(Category, Type, etc.). Tables 10 and 11 show the

attributes of events E5 and E13 listed in Table 9.

Step 4. Detecting Interactions: The method then

proceeds to the identification of the interactions.

Tables 12 and 13 show a subset of the identified

interactions, applying the interaction detection rules

described in Section 3.1.

ICEIS 2009 - International Conference on Enterprise Information Systems

228

Step 5. Validating Interactions: Table 14 shows a

summary of the interactions identified applying the

method.

Step 6. Specifying Requirements: The different

tables produced in each one of the method steps

compose the requirement specification document.

Table 7: The Lift Control System Requirements.

IDR Description

R1 The lift is called by pressing a call button, either at a floor or inside the lift.

R2 Pressing a call button is possible at any time.

R3 When the lift passes by floor K, and there is a call for this floor, then the

lift will stop at floor K.

R4 When the lift has stopped, it will open the doors.

R5 When the lift doors have been opened, they will close automatically after d

time-units.

R6 The lift only changes its direction when there are no more calls in current

direction.

R7 When there are no more calls, the lift stays at the floor last served.

R8 As long as there are unserved calls, the lift will serve these calls.

R9 When the lift is halted at floor K with the doors opened, a call from floor

K is not taken into account.

R10 When the lift is halted at floor K with door closed and receives a call from

floor K, it reopens its doors.

R11 Whenever the lift moves, the doors must be closed.

R12 The closing of a door may be prevented by pressing the open-door button.

R13 When something blocks the door, the lift interrupts the process of closing

the door and reopens the doors.

R14 When the lift is overloaded, the door will not close.

Table 8: Identifying Requirements Attributes.

ID Event

ction

bject

esource

R1 Pressing the call button.

The lift is called from

the floor K.

all the lift.

he lift.

he Call Butto

(in/out).

R2 Pressing the call button.

he Call Butto

(in/out).

R3 The lift passing through

the floor K.

The lift is called from

the floor K.

The lift is stopped.

Stop the lift in the

loor K.

he lift.

he floor.

R4 The lift is stopped.

The doors are opened.

pen the doors.

he lift.

he doors.

R5 The doors are opened.

The doors are closed.

lose the Doors

utomatically after d

ime units.

he lift.

he doors.

he tim

ounter.

R6 There are no more calls

in the current direction.

hange the lift

irection is possible.

he lift.

call to lift

R7 There are no more calls.

The lift is stopped.

he lift stays at floor

ast served.

he lift.

call to lift

R8 There are calls.

he lift serves the

alls.

he lift.

call to lift

R9 The lift is called from

the floor K.

The lift is stopped.

The doors are opened.

all the lift.

he lift.

he doors.

he floor.

R10 The lift is called from

the floor K.

The lift is stopped.

The doors are closed.

The doors are opened.

pen the doors.

he lift.

he doors.

he floor.

R11 The lift is moving.

lose the doors.

he lift.

he doors.

R12 Pressing the open-door

button.

The doors are opened.

lose the Doors

utomatically after d

ime units.

he lift.

he doors.

he open-doo

utton.

R13 Something blocks the

doors.

The doors are opened.

lose the Doors

utomatically after d

ime units.

he lift.

he doors.

he bloc

sensor.

R14 The lift is overloaded.

The doors are opened.

lose the Doors

utomatically after d

ime units.

he lift.

he doors.

verload

sensor.

Table 9: Identifying Events.

IDE Description Related Requirements

E1 Pressing the call button. R1,R2

E2 The lift is called from the floor K. R1, R3, R9, R10

E3 The lift passing through the floor K. R3

E4 The lift is stopped. R3, R4, R7, R9, R10

E5 The doors are opened. R4, R5, R9, R10,

R12, R13, R14

E6 The doors are closed. R5, R10

E7 There are no more calls in the current direction. R6

E8 There are no more calls. R7

E9 There are calls. R8

E10 The lift is moving. R11

E11 Pressing the open-door button. R12

E12 Something blocks the doors. R13

E13 The lift is overloaded. R14

Table 10: Identifying Attributes for Event E5.

Attribute Description

IDE E5

IDR R5

Type Link

Category Input

Action Close the Doors automatically after d time units.

Object Pre-state: The Doors are opened.

Next-state: The Doors are closed.

Table 11: Identifying Attributes for Event E13.

Attribute Description

IDE E13

IDR R14

Type Cancel

Category Input

Action Close the Doors automatically after d time units.

Object Pre-state: The Doors are opened.

Next-state: The Doors are opened.

Table 12: Requirements Interaction: R3 -> R1.

Interaction Type Require. See Table 5 (require).

Requirements R3 -> R1

Explanation To stop the lift at floor K, it must be called pressing

the button.

The event produced in the requirement R1 (E2)

stimulates the execution of the action of R3.

Table 13: Requirements Interaction: R13 -> R5.

Interaction Type Cancel. See Table 6 (cancel).

Requirements R13 -> R5

Explanation Closing the doors is canceled when something

blocks the door.

The event of the requirement R13 (E12) cancels the

execution of the action of R5.

Table 14: The Identified Interactions.

Requirement Interacting Requirement Interaction Type

R8 R9 cancel

R9 R1 cancel

R12 R5 cancel

R13 R5 cancel

R14 R5 cancel

R12 R8 Negative Impact

R3 R1 require

R4 R3 require

APPLYING AN EVENT-BASED APPROACH FOR DETECTING REQUIREMENTS INTERACTION

229

6 CONCLUSIONS AND RESULTS

In this paper, we have presented our approach to

specify, detect, and automatically discover the

interactions among software requirements. The

approach is based on events and actions and uses a

semi-formal method. The method requires neither

the user intervention nor any external knowledge for

the identification of interactions. The method is able

to identify most interaction types described in the

literature (negative and positive interactions).

The proposed approach detected all interactions

reported by Heisel and Souquières (2001) and

Shehata (2005), besides extra interactions not

detected by other approaches (mostly positive

interactions). These are the interaction types that

allow the behaviour modelling of the system, mainly

those that enable interaction between objects. Table

15 summarises this comparison.

Table 15: Comparing Results.

Approach Positive

Interactions

Negative

Interactions

Proposed Approach 13 8

(Heisel and Souquières, 2001) - 6

(Shehata, 2005) - 7

The method reduces the human participation,

because the process of interactions detection

(applying interaction detection rules) can be

automated and implemented through a

computational support tool.

To facilitate and avoid unnecessary comparisons

during the interactions detection, the process of

identification of the common events and actions

associated to the requirements was conceived.

The knowledge of interactions allows resolving

eventual conflicts and planning the requirements

implementation (priorities) considering

dependencies interactions.

The method proposed in this paper works well if

a requirements analyst can properly identify

requirements attributes as shown in Table 7.

However, this work is less complex than to specify

the requirements using a formal specification

language.

We plan to expand the method to cover

additional interactions types, which were not

considered in this paper. Moreover, we intend to

work on the improvement of the method by

identifying and complementing the rules for

interactions detection. This will enable us to make

the algorithms more efficient and precise.

We are also working on a software prototype to

support the user to validate, improve or reject the

interactions identified by our method.

ACKNOWLEDGEMENTS

This work was partially funded by CNPq grants

311454/2006-2 and 305900/2005-6.

REFERENCES

Dahlstedt, Å.G., Persson, A., 2003. Requirements

Interdependencies - Moulding the State of Research

into a Reseach Agenda. In Proceeding of the Ninth

International Workshop on Requirements

Engineering: Foundation for Software Quality,

Austria, 2003.

Robinson, W. N., Pawlowski, S. D., Volkov, V., 2003

Requirements interaction management. In ACM

Computing Surveys 35 (2), 2003, pages 132-190.

Shehata, M., 2005. Detecting Requirements Interactions

using Semi-Formal Methods. PhD. Thesis (Doctor of

Philosophy), Department of Electrical and Computer

Engineering, Calgary University, Canada, 2005.

Yuqin, L., Chuanyao, Y., Chongxiang, Z., Wenyun, Z.,

2006. An Approach to Managing Feature

Dependencies for Product Releasing in Software

Product Lines, In Proc. of the International

Conference on Software Reuse, LNCS 4039, 2006,

pages 127-141.

Zhang, W., Mei, H., Zhao, H., 2006. Feature-driven

Requirement Dependency Analysis and High-level

Software Design, Requirements Engineering Journal,

volume 11, number 3, 2006, pages 205-220.

El-Ansary, A., 2002. Behavioral Pattern Analysis: towards

a new representation of systems requirements based on

actions and events. In The ACM Symposium on

Applied Computing, Madrid, Spain. 2002.

BPMN, 2006. Business Process Modeling Notation,

OMG.

Calder, M., Magill, E., 2000. Feature Interactions in

Telecommunications and Software Systems VI,

Amsterdam: IOS press, 2000.

Lamsweerde, A. V, Darimont, R., Letier, E., 1998.

Managing Conflicts in Goal-Driven Requirements

Engineering. In IEEE Trans. on Software Engineering,

volume 24, number 11, 1998, pages 908-926.

Pohl, K., 1996. Process-Centered Requirements

Engineering, John Wiley & Sons Inc.

Mylopoulos, J., Chung, L., Yu, E. 1999. From object-

oriented to goal-oriented requirements analysis.

Commun. ACM, 42, pages 31–37.

Heisel M., Souquières, J., 2001. A heuristic algorithm to

detect feature interactions in requirements. In

Language Constructs for Describing Features, M.

Ryan, Ed.: Springer-Verlag London Ltd, 2001.

Sarmiento, E.C., 2008. Detecting interactions between

requirements in software development. M.Sc.

Dissertation in preparation, Graduate Program in

Informatics, Federal University of Rio de Janeiro,

Brazil (In Portuguese).

ICEIS 2009 - International Conference on Enterprise Information Systems

230
