A USER-DRIVEN AND A SEMANTIC-BASED ONTOLOGY

MAPPING EVOLUTION APPROACH

Hélio Martins and Nuno Silva

GECAD - Knowledge Engineering and Decision Support Research Group

School of Engineering – Polytechnic of Porto, Porto, Portugal

Keywords: Ontology, Ontology Evolution, Ontology Mapping, Ontology Mapping Evolution.

Abstract: Systems or software agents do not always agree on the information being shared, justifying the use of

distinct ontologies for the same domain. For achieving interoperability, declarative mappings are used as a

basis for exchanging information between systems. However, in dynamic environments like the Web and

the Semantic Web, ontologies constantly evolve, potentially leading to invalid ontology mappings. This

paper presents two approaches for managing ontology mapping evolution: a user-centric approach in which

the user defines the mapping evolution strategies to be applied automatically by the system, and a semantic-

based approach, in which the ontology’s evolution logs are exploited to capture the semantics of changes

and then adapted to (and applied on at) the ontology mapping evolution process.

1 INTRODUCTION

Ontologies are a key concept in knowledge-based

systems in general and in the Semantic Web in

particular (Berners-Lee et al., 2001). However,

actors do not always agree on the information being

shared, justifying the use of distinct ontologies, even

if corresponding to the same domain of application.

Information integration arises therefore as a core

process in these application areas. To

solve/minimize the interoperability problem,

ontology mapping proved to be an efficient solution

(Silva, 2004). Ontology mapping is the process

whereby semantic relations are defined between two

ontologies at conceptual level, which in turn are

applied at data level, transforming source ontology

instances into target ontology instances (Silva,

2004). The result of the ontology mapping

specification process (at conceptual level) is an

ontology mapping document containing the semantic

relations. However, in dynamic environments,

ontologies evolve, causing the ontology mapping

document to become invalid. In heterogeneous

environments where interoperability among systems

depends essentially upon the ontology mappings,

semantic relations must be adapted to reflect the

ontologies evolution (Figure 1). The two original

ontologies (O1 and O2) are mapped through the M

mapping document (more than two ontologies may

exist in the integration scenario, but for the sake of

simplicity, only two are considered here).

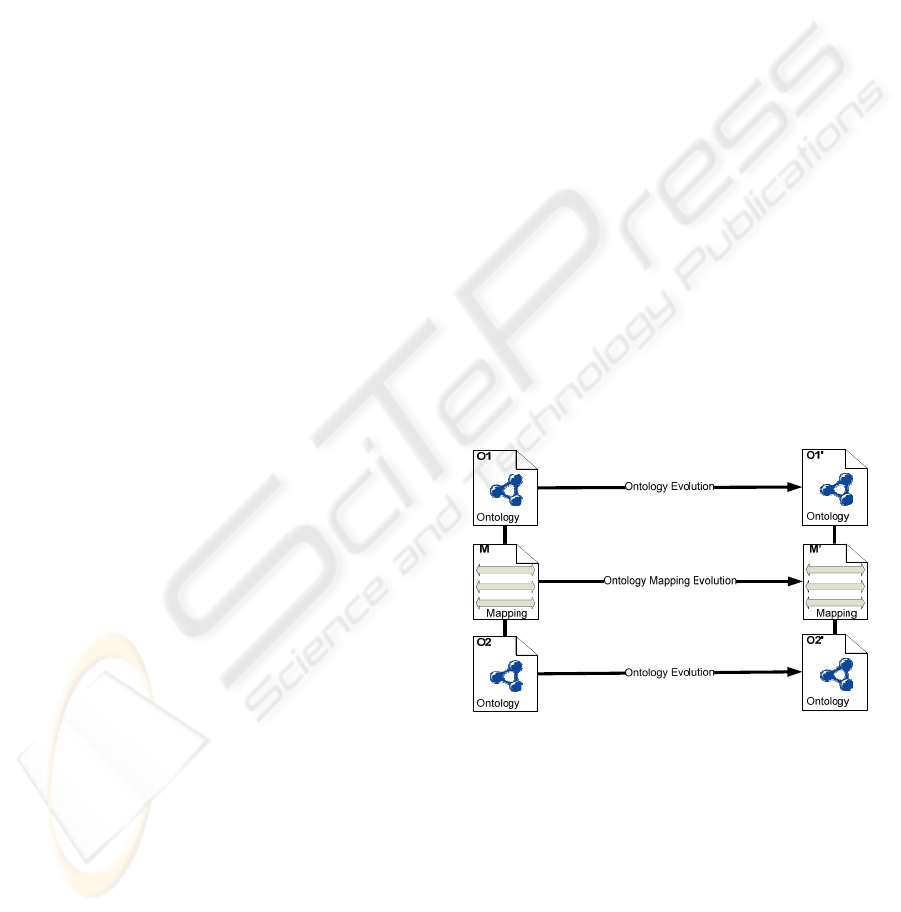

Figure 1: Problem definition scenario.

However, O1 and/or O2 may evolve, giving rise

to O1’ and O2’ respectively. This process is named

ontology evolution, and may cause inconsistencies

in the ontology mapping document. To solve those

inconsistencies, two solutions were identified: (i)

generation of a completely new ontology mapping

document, i.e. a new set of semantic relations

between entities of versions of source/target

ontologies and (ii) adapt the original ontology

mapping document to the ontologies’ evolution, i.e.

correcting invalid semantic relation and generating

214

Martins H. and Silva N. (2009).

A USER-DRIVEN AND A SEMANTIC-BASED ONTOLOGY MAPPING EVOLUTION APPROACH.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

214-221

DOI: 10.5220/0002011002140221

 SciTePress

new required semantic relations according to

ontology changes, giving rise to a new ontology

mapping document (M’). Considering all the

difficulties and problems faced by the ontology

mapping process (Euzenat, et al., 2007), it is worth

considering the second approach.

The goal of this work is therefore to research and

develop a solution for supporting the evolution and

adaptation of the ontology mapping document

according to the mapped ontologies’ evolution.

In the reminder of the paper, we present the

context of this work in Section 0. In Section 0 we

present the foundations of our ontology mapping

evolution process. In Section 0 a user-driven

approach is presented, followed by the description of

the semantic-based approach in Section 0. In Section

0 we describe the evaluation experiences. In Section

0, the related work and provide our concluding

remarks in Section 0.

2 CONTEXT

2.1 Ontology Evolution

Ontology evolution can be defined as the timely

adaptation of ontologies to changes which arises and

the consistent management of these changes

(Stojanovic, 2004). According to this definition, two

key concepts were indentified: (i) ontology changes

and (ii) consistency management.

Different levels of change abstraction are often

used (Stojanovic, 2004), (Klein, 2004), (Plessers,

2005), which might be summarized into:

 Basic changes, that change one entity in the

ontology model only (e.g. Removing a Concept from

the ontology);

 Composite changes, that change more than one

entity in the ontology (e.g. Copy a Concept).

These changes are part of an evolution ontology

that conceptualizes all kind of changes that can be

performed on the ontology, the relation between

them and meta-information (e.g. date, owner of

change request). During the ontology evolution

process, the changes are stored in an instance of the

evolution ontology, serving as ontology evolution

log, e.g.:

<RemoveEntity

rdf:ID="i-151"

referencesConcept="http://s1.pt#C2">

</RemoveEntity>

Consistency defines the degree of uniformity,

standardization, and freedom from contradiction

among the parts of a system or component (IEEE,

1990). In (Stojanovic, 2004) the author states that

ontology consistency can be considered as an

agreement among ontology entities with the respect

to the semantics of the underlying ontology

language. This assumes special relevance because

the execution of a single ontology change (e.g.

removing a concept) may cause inconsistencies in

other parts of the ontology (e.g. subClassOf relation

between concepts). To solve these inconsistencies,

many approaches use the concept of derived or

deduced changes. Because deduced changes may

result in additional deduced changes, this becomes

an iterative process. As consequence, it is relevant to

distinguish between the changes requested by the

ontology engineer (representing their intentions) and

the deduced changes (to solve inconsistencies).

Notice that beyond the agreement of the semantics

of the ontology language, ontology consistency is

related with the ontology’s purpose. Yet, this

dimension is not addressed in this paper.

Complementarily, the concept of ontology

evolution strategy proposed in (Stojanovic, 2004)

assumes special relevance in the context of this

work. The evolution strategy concept is used to give

the user (i.e. the ontology engineer) the possibility to

achieve a consistent ontology according to the

semantics of the ontology language and a set of best-

practices. This concept is based on:

 One resolution point, i.e. a dilemma that might

occur during the resolution of changes;

 Elementary ontology evolution strategies, i.e.

the potential ways for resolving one resolution point.

A pair between one resolution point and one

elementary strategy is named ontology evolution

strategy. Table 1 presents the resolution points and

respective elementary evolution strategies that are

useful for this work. For example, if a concept

becomes orphan (i.e. no subClassOf relation remains

for the concept), one may choose to: (i) delete the

concept, reconnect the concept to the parent of the

removed concept, or reconnect it to the root concept.

Table 1: Ontology evolution strategies.

Evolution Strategy

Resolution Point Elementary strategy

Orphaned concept

Delete

Reconnect to parent

Reconnect to root

Property propagation

Don’t Propagate

Propagate direct only

Propagate all

A USER-DRIVEN AND A SEMANTIC-BASED ONTOLOGY MAPPING EVOLUTION APPROACH

215

Equivalent reasoning is made for the other

resolution point. Evolution strategies will be

discussed in section 0.

2.2 Ontology Mapping

Ontology mapping proved to be an efficient solution

(Rahm, et al., 2001), (Euzenat, et al., 2007) for

helping solve the interoperability problem. The

IEEE dictionary (IEEE, 1990) defines

interoperability as “the ability of two or more

systems or components to exchange information and

to use the information that has been exchanged”.

The ontology mapping process is not a trivial

process, requiring a deep understanding of both

ontology conceptualizations and their semantic

similarities. The output of the ontology mapping

process is an ontology mapping document

containing semantic relations between source

ontology entities and target ontology entities. In our

context, an ontology mapping document is an

instantiation of the SBO (Semantic Bridge

Ontology) (Silva, 2004). The SBO is the ontology

that describes the semantic relations holding

between ontologies entities, providing not only a

conceptualization mechanism but also a

representation and exchange mechanism of semantic

relationships between ontologies. It specifies,

classifies and describes the types of ontology

mapping relations, inter relates them and provides

other modelling constructs necessary to express

ontology mapping documents.

The SBO is fundamentally composed of the

following entities:

 Concept Bridge is the semantic relation that

maps ontologies’ concepts. At transformation time,

it will create target concept instances. For example:

CB(O1:Person, O2:Individual), will create an

instance of O2:Individual for each existing

O1:Person;

 Property Bridge, maps source properties to

target properties. At execution time, properties are

created in the scope of the target instance. For

example, PB({O1:firstName,

O1:lastName},{O2:name},concat) will concatenate

the value of O1:firstName and O1:lastName into the

value of O2:name. The service (e.g. Concat,

CopyAttribute) defines the arguments of the

Property Bridge;

 hasBridge relation associates a PropertyBridge

to a ConceptBridge. This relation provides the scope

to the Property Bridge. Otherwise, the Property

Bridge would not realize to which concept the

property value is to be attached;

 subBridgeOf relation between ConceptBridges

is the mapping equivalent to the ontological

“subClassOf” relation.

The ontology mapping process is responsible for

the instantiation of the SBO, generating a mapping

document. Figure 2 illustrates an example of a

mapping document.



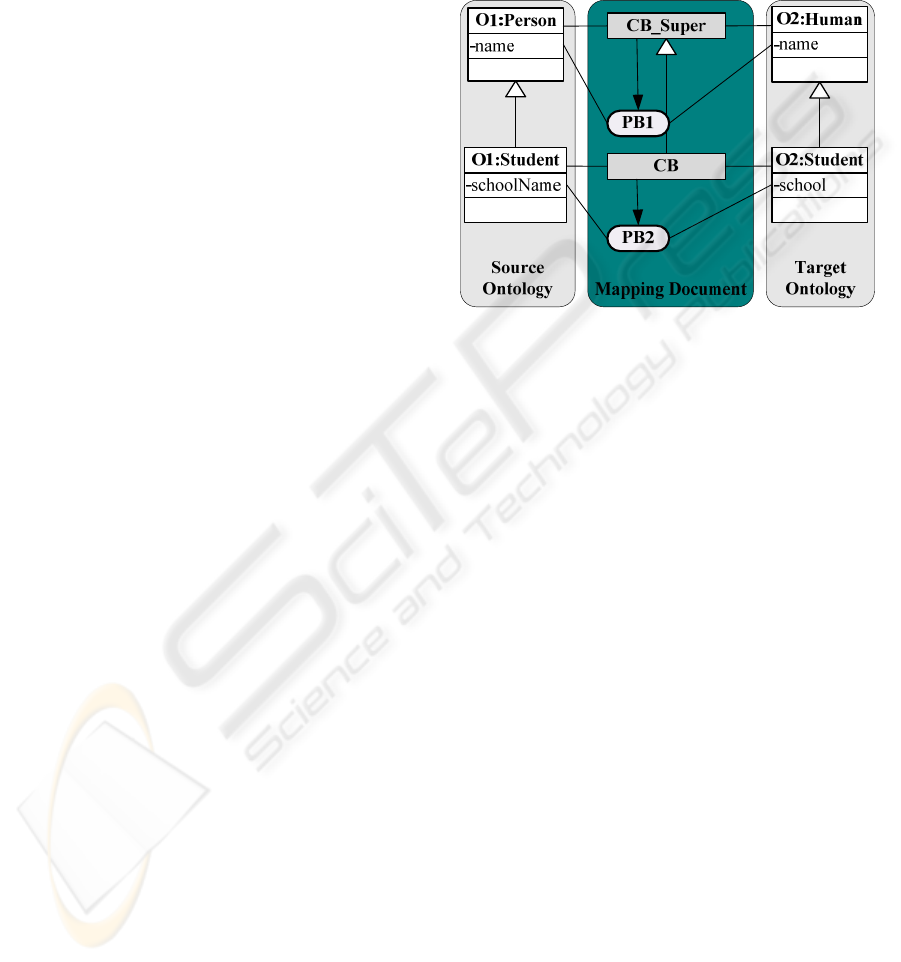

Figure 2: Example of ontology mapping document.

Once instantiated, the semantic bridges can be

exploited at data level (instance level) for

information transformation/exchange.

3 MAPPING EVOLUTION

Ontology mapping evolution is the process whereby

entities of ontology mapping document are adapted

with the eventual changes in the source and/or target

ontologies, trying to preserve as much of the

semantics of the original mapping relations as

possible.

3.1 Two-phases Iterative Process

Changes to ontologies affect the ontology mapping

in two ways: whether it is an addition or a removal.

In the case of removal, existing semantic

relationships are affected and must evolve. Instead,

if adding new ontology entities, new semantic

relations might be necessary.

Accordingly, the proposed ontology mapping

evolution process comprises of two iterative phases:

 Correcting Invalid Entities, consists of

identifying and correcting the invalid mapping

entities according to the ontologies evolution,

preserving as much as possible the semantics of the

original mapping;

ICEIS 2009 - International Conference on Enterprise Information Systems

216

 Matching New Ontology Entities, consists of

discovering and evaluating the similarity between

entities and the specification of (correct) mapping

relationships.

Matching new entities is closely related to the

matching process (Euzenat, et al., 2007) and less (or

nothing) with the mapping evolution process, thus

will not be addressed further in this paper. Instead,

the following sections concern the process of

Correcting Invalid Entities.

3.2 The Semantics of SBO

In order to correct an invalid SBO entity, one has to

identify it first. The entity is invalid when the SBO

semantics are not obeyed. Depending on the SBO

entity, different semantic restrictions apply.

An invalid Concept Bridge is one that has at

least one invalid argument (Table 2).

Table 2: Concept Bridge’s invalid conditions.

Invalid Argument Causes

Source Concept

It is not a concept, or

The concept value does not exist, or

It is not a source ontology’s concept

Target Concept

It is not a concept, or

The concept value does not exist, or

It is not a target ontology’s concept

Conditions An invalid ontology entity is used

Extensional spec. An invalid condition.

An invalid Property Bridge is one that has at

least one invalid argument according to the applied

service (Table 3).

Table 3: Property Bridge’s invalid conditions.

Invalid Argument Reason

Source Argument

It is not a source ontology entity, or

It doesn’t respect the service’s

interface

Target Concept idem

Conditions An invalid ontology entity is used

Extensional spec. An invalid condition.

By analyzing the SBO mapping document and

respective ontologies it is possible to identify the

invalid mapping entities.

3.3 Ontology Mapping Changes

The list of changes of ontology mapping largely

depends on the ontology mapping language.

Similar to other evolution approaches such as

object-oriented schema evolution proposed in

(Banerjee, et al., 1987) and ontology evolution

approaches (Klein, 2004) and (Stojanovic, 2004),

and according to the semantics of the SBO, a set of

ontology mapping changes were defined. In order to

improve the process, two abstraction levels of

ontology mapping changes were defined.

Elementary Ontology Mapping Changes.

Represent single changes in one SBO entity only.

Both additive and subtractive changes are

considered (Table 4). These changes form the

backbone of the mapping evolution system, in the

sense that they represent the modification at the

lowest level of complexity.

Table 4: Extract of elementary ontology mapping changes.

#id

Elementary Ontology Mapping Changes

1 AddConceptBridgeSourceConceptValue

2 RemoveConceptBridgeSourceConceptValue

3 AddConceptBridgeTargetConceptValue

4 RemoveConceptBridgeTargetConceptValue

5 RemoveHasBridge

6 AddHasBridge

Composite Ontology Mapping Changes.

Represent changes as the combination of two or

more elementary ontology mapping changes,

organized as one logical unit that should be executed

as a whole. Composite changes (Table 5) allow a

higher level of abstraction, representing a semantic

context of the mapping evolution process, because

they group together a set of meaningful and

complementary (elementary) changes, representing a

semantic change.

Table 5: Extract of composite ontology mapping changes.

Composite Ontology Mapping Changes

#id Elem.

Change

ChangeConceptBridgeSourceConceptValue 1,2

ChangeConceptBridgeTargetConceptValue 3,4

ChangePropertyBridgeHasBridge 5,6

3.4 Sorting the Invalid Entities List

Once the list of invalid entities in the mapping is

populated, it is necessary to sort it. The order in

which entities are processed is very important. In

fact, considering that entities are invalid because of

others, and because correcting one may correct

others, choosing the one that minimizes changes is

very important.

Figure

3 depicts the order in which the entities

are processed.

Because a Property Bridge is always defined in

the context of a Concept Bridge, Concept Bridges

must always be corrected first, so respective Proper-

A USER-DRIVEN AND A SEMANTIC-BASED ONTOLOGY MAPPING EVOLUTION APPROACH

217



Figure 3: Order of invalid entities to process.

ty Bridges are adapted accordingly. For example,

changing a Concept Bridge source concept argument

implies updating their Property Bridges’ arguments.

Additionally, for each Concept Bridge there is

also an established order of correction: first those

with invalid source and target concept values, then

those who have only one invalid concept value, and

later, those with invalid conditions.

Once all Concept Bridges are addressed and

respective Property Bridges’ arguments are updated,

invalid Property Bridges are addressed next.

By following this order, the process avoids

unnecessary computation and minimizes ontology

mapping changes, maximizing consistency and

maintaining the original semantics.

It is now possible to start correcting the invalid

entities. The next section describes a semi-automatic

user-driven approach, in which the user decides,

from a list prepared by the system, the corrective

action to execute. The Section 0 describes a

completely automatic approach based on the

semantics of the ontology evolution information.

4 USER-DRIVEN APPROACH

The correction process is potentially ambiguous

because several corrective mapping changes are

allowed for the same invalid entity (Table 6).

Table 6: Invalid mapping situations and corrective

mapping changes.

Invalid Mapping

Situation

Corrective mapping changes

Source AND Target

Concept

Remove Concept Bridge;

Source XOR Target

Concept

Remove Concept Bridge;

Change Concept Bridge Concept Value (to

super concept);

Source AND Target

Argument

Remove Property Bridge;

Source XOR Target

Argument

Remove Property Bridge;

Change Property Bridge Argument Value;

Extensional

Specification

Remove Concept/Property Bridge;

Remove Invalid Condition;

Generic Condition

Remove Concept/Property Bridge;

Remove Invalid Condition.

However, as previously mentioned, the execution

of a single ontology mapping change (e.g. remove a

Concept Bridge) may cause inconsistencies in others

mapping entities (e.g. subBridgeOf and hasBridge

relations). Thus, aside from the original change,

some other changes might need to be performed to

solve such problems.

In fact, two of the corrective mapping changes

identified in Table 6, potentially lead to ambiguous

situations (notice that the first invalid mapping

situation in Table 6 is not ambiguous):

 Removing a Concept Bridge, triggers the

removal of the hasBridge relationships,

generating orphaned Property Bridges

(ambiguous situation). Additionally, triggering

the removal of subBridgeOf relationships lead

to orphaned Concept Bridges;

 Changing Concept Bridge Concept Value may

cause inconsistencies in the Property Bridge’s

argument values, because the bridged

properties may not have the new concept

value in their domain. As a consequence, one

has to decide how to manage the Property

Bridges (ambiguous situation).

These ambiguities promote the concept of

mapping evolution strategy, similar to that used in

the scope of ontology evolution process. A mapping

evolution strategy is a pair between (i) one mapping

resolution point (ambiguous situation or a dilemma

that occurs during the ontology mapping process

and) and (ii) one elementary mapping evolution

strategy (a set of possible ways to solve a resolution

point).

Table 7 summarizes the resolution points and

respective corrective strategies.

Table 7: List of ontology mapping resolution points and

respective corrective strategies.

Resolution Point Elementary Mapping Strategy

Orphaned Property

Bridge

Don’t Propagate any Property Bridge

(Remove Property Bridges);

Propagate direct Property Bridges to

sub Concept Bridges;

Propagate (All) Property Bridges to

sub Concept Bridges.

Orphaned Concept

Bridge

Delete orphaned Concept Bridge;

Reconnect orphaned Concept Bridge

to parent;

Keep orphaned Concept Bridge.

For each mapping resolution point, one or many

elementary mapping strategies are possible.

The concept of Mapping Evolution Strategy

serves as parameterization of the system. In other

words, users choose how to solve each ambiguous

situation either on a local basis (i.e. the user decides

ICEIS 2009 - International Conference on Enterprise Information Systems

218

every time a resolution point occurs) or global (i.e.

the user decides to apply always a specific strategy

for every specific type of resolution point).

5 SEMANTIC-BASED

APPROACH

Consider the ontology evolution scenario depicted in

Figure 4, in which a “RemoveConcept" change has

been applied to the target concept T:C. While it is

obvious that the CB Concept Bridge has to evolve,

the changes to apply depend on the user decision,

and might not be the best solution.

Figure 4: Close-up of ontology evolution and mapping.

Because the ontology evolution strategies

capture the user’s intentions during that process, we

claim that they provide useful information for the

ontology mapping evolution process.

The goal is then to automatically identify the best

ontology mapping evolution strategy, based on the

ontology evolution information provided. This

should be understood not as a group of atomic

changes (e.g. RemoveConcept), but as well-

structured semantic information that fully captures

the ontology engineer intentions. To exploit such

information the concept of ontology evolution

strategy described in section 0 will be used.

Unfortunately, the chosen evolution strategy is not

explicitly registered in the log file, but only the

elementary changes, inter-related through the

“consequent” relation. For example, consider Figure

5 as a wider perspective of the scenario presented in

Figure 4, in which are represented not only the

original “RemoveConcept” change, but also the

deduced changes:

1 RemoveConcept(T:C)

2 RemoveSubClassOf(T:C,T:CSuper)

3 RemoveSubClassOf(T:CSub,T:C)

4 AddSubClassOf(T:CSub,Root)

5 RemoveDomain(T:C,P)

6 AddDomain(T:CSub,P)

7 AddDomain(T:CSub,PSuper)

The set of deduced changes provides evidence of

the application of a specific ontology evolution

strategy. From these, it is possible to generalise the

Figure 5: Example of ontology evolution and mapping.

necessary and sufficient conditions for the

identification of a specific ontology evolution

strategy.

Two resolution points may occur as a

consequence of the “RemoveConcept” change:

Orphaned Concept and Property Bridge Propagation.

The orphaned concept resolution point is addressed

by three elementary strategies: Reconnect to Root,

Reconnect to Parent and Delete Concept (Table 1).

The necessary and sufficient conditions (i.e. the

deduced changes) for the identification of the

“Reconnect Orphaned Concepts to Root” strategy

are defined in the next SWRL-like rule:

1 RemoveConcept(?TC)^

2 RemoveSubClassOf(?TC,?TCSuper)^

3 RemoveSubClassOf(?TCSub,?TC)^

4 AddSubClassOf(?TCSub,ROOT) ->

5 ReconnectOrphanedConceptToRoot(?TC).

The RemoveConcept change potentially gives

rise to “Orphaned Property” resolution points too,

which in turn are resolved by three elementary

resolution strategies. In the case when the

“Propagate All Properties” strategy is applied (as in

the case depicted in Figure 5), the

conditions/deduced changes are specified as:

1 ReconnectOrphanedConceptToRoot(?TC)^

2 Domain(?TC,?P)^

3 RemoveDomain(?TC,?P)^

4 AddDomain(?TCSub,?P)^

5 AddDomain(?TCSub,?PSuper) ->

6 PropagateAllProperties(?P).

For every invalid semantic bridge, the ontology

mapping evolution process tries to identify the

ontology evolution strategy adopted. When at least

one strategy is identified, the process applies a set of

ontology mapping changes that solve the invalid

mapping context.

A USER-DRIVEN AND A SEMANTIC-BASED ONTOLOGY MAPPING EVOLUTION APPROACH

219

The set of changes to apply was previously

identified as the best resolution process for the

ontology context considering the user intentions

applied at the ontology evolution. For every pair

<invalid mapping entity, ontology evolution

strategy> a set of ontology mapping changes are

defined. For example, the pair <invalid concept

bridge, ReconnectOrphanedConceptToRoot>, is

addressed by the following rule:

1 InvalidConceptBridge(?CB) ^

2 TargetConceptValue(?CB,?TC) ^

3 not(Concept(?TC)) ^

4 ReconnectOrphanedConceptToRoot(?TC)^

5 SourceConceptValue(?CB,?SC) ^

6 SubBridgeOf(?CB,?CBSuper) ^

7 SubBridgeOf(?CBSub,?CB) ^

8 TargetConceptValue(?CBSuper,?TCSuper)->

9 not(TargetConceptValue(?CB,?TC) ^

10 TargetConceptValue(?CB,?TCSuper) ^

11 not(SubBridgeOf(?CBSub,?CB)).

The predicate in line 1 identifies the invalid

concept bridge (?CB). Line 2 through 4 determines

that the target concept (?TC) value is missing and

that it has been removed and the “reconnect

orphaned concept to root” strategy has been applied

to its sub concepts. Line 5 through 8 instantiate

several variables (e.g. ?CBSuper is instantiated with

all super bridges of the invalid concept bridge). The

right hand side of the rule defines the mapping

evolution changes. Line 10 and 11 changes the

invalid concept bridge’s target concept value from

?TC to ?TCSuper. Line 11 removes the subBridgeOf

relationship between ?CBSub and ?CB.

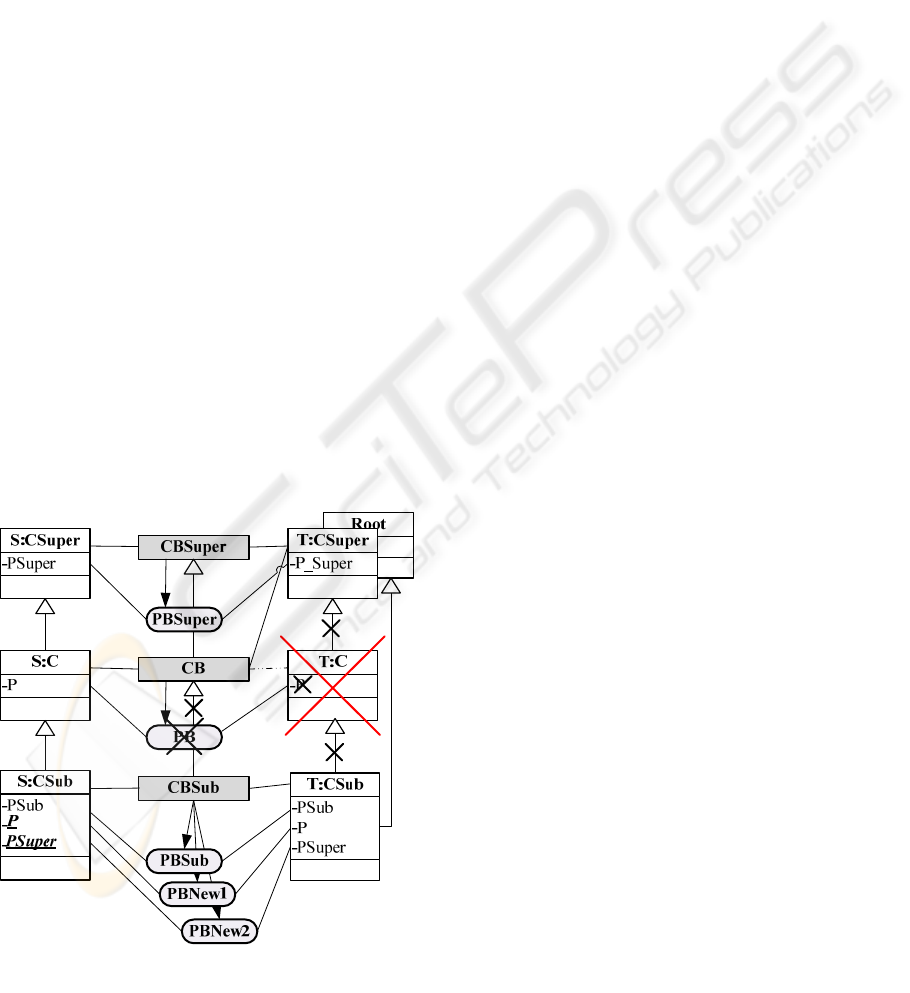

Figure 6: Mapping scenario example evolved.

Similar expressions are defined for invalid

source concept and the remaining evolution

strategies.

Consider the mapping scenario depicted in

Figure 5. As a consequence of removing concept

T:C, both the “Reconnect Orphaned Concept To

Root” and the “Propagate All Properties” strategies

were applied. In response to these evolution

changes, the corresponding rules were executed,

giving rise to the mapping scenario depicted in

Figure 6.

6 EVALUATION

In respect to the user-based approach, no evaluation

has been made because when dealing with user-

defined strategies, the results are biased and should

not be evaluated by experience or test cases since the

results are subjective (Stojanovic, 2004).

In respect to the second approach, we claim that

because the mapping evolution changes captured in

the rules, mimic the changes adopted during the

ontology evolution process, they are (at least

indirectly) dependent on the user-defined strategies.

However, because there is a gap between the

ontology evolution intensions and those at the

ontology mapping evolution, we conducted some

tests based on two ontologies and four mappings. In

fact, despite there being no ontology evolution logs

currently available in the community, the research

team internally carried out the evolution of two

ontologies in the knowledge domain of R&D: (O1,

O1’), (O2, O2’) with 15-25 concepts (e.g.

researcher, publication) with 5-10 properties each.

The ontology evolution process adopted global

strategies. Two ontology engineers with upper

intermediate proficiency level in ontology mapping,

manually-mapped each ontology pair M1(O1,O2),

M2(O1-O2’), M3(O1’-O2), M4(O1’-O2’) for

reference, resulting in eight mapping documents.

The ontology mapping evolution process adopted

global strategies. We then applied the automatic

semantic-based ontology mapping evolution

approach to both M2 and to one of the M4

mappings. The obtained results were very similar to

the manually-specified mappings, but based on

differences, some minor refinements in the mapping

evolution rules were made. These refinements were

then included in the current version of the system.

Later, we applied the same approach to the

remainder mappings (i.e. both M3 and the other

M4). The results were again very similar but not

equal because users refined one of the mappings

ICEIS 2009 - International Conference on Enterprise Information Systems

220

with a local strategy. However, if that change was

not done, the results would be equal.

7 RELATED WORK

Handling ontology mapping documents is a relative

new research field, but similar problem has been

tackled in other contexts such as object oriented

(Banerjee, et al., 1987) or incremental view

maintenance (Ceri, et al., 1991). These approaches

present a taxonomy of changes, its semantics and a

set of deterministic rules. ToMAS (Velegrakis, et al.,

2003) is a tool for automatically detecting and

adapting invalid or inconsistent mappings due to

changes in either schemas or theirs constraints, even

if the changes did not make any of the mappings

syntactically incorrect. ToMAS also exploits

knowledge about user choices that is embodied in

the existing mappings. Further, while the changes

are not restricted to atomic type schema element, the

approach is schema centric and does not exploit the

semantics of the changes requested by the users.

Our approach adopts ideas from these

approaches but it goes a step further by exploiting

the evolution log, automating the process.

8 CONCLUSIONS

In this paper, the ontology mapping evolution

problem has been characterized in terms of goals,

inputs, constraints and outputs, and an abstract

ontology mapping evolution process has been

defined, comprised of two-iterative phases

respecting the removed and new entities in the

ontology, respectively.

Based on the semantics of SBO, a set of invalid

conditions and respective corrective changes were

identified. Yet, because different potential solutions

exist for the same invalid situation, a decision has to

be made. A user-driven approach has been

developed based on the structure and semantics of

the SBO. This approach guaranties that the mapping

document is corrected, but the user has to decide

which actions to take for every ambiguous situation.

Besides the list of possible corrective changes, no

further support is provided to the user.

Instead, the proposed semantic-based approach

automatically suggests the best corrective strategy,

based on the log information provided by the

ontology evolution process. The evaluation

performed showed that this is a valid and useful

approach, but further extensive evaluation has to be

carried out. However, this evaluation is not easy due

to the lack of logs.

A limitation of the semantic-based approach

concerns with the blind application of rules, based

on the necessary and sufficient conditions. In fact, it

is possible that an ontology evolution strategy has

been applied, even if only for some. Deciding

whether the strategy has been applied or not, is an

open issue. Additionally, because ontology mapping

largely depends on the ontology mapping language,

generalizing the proposed approaches to other

ontology mapping (or alignment) languages is a big

challenge for future work.

ACKNOWLEDGEMENTS

The work described in this document is partially

funded by the MCTES-FCT funded EDGAR project

(POSI/EIA/61307/2004) and the Coalesce project

(PTDC/EIA/74417/2006).

REFERENCES

Banerjee, Jay, et al. 1987; Semantics and implementation

of schema evolution in object-oriented databases.

SIGMOD Rec. Ca,US: 1987, Vol. 16, pp. 311-322.

Berners-Lee, Tim, Hendler, James e Lassila, Ora. 2001;

The Semantic Web. Scientific American. 2001, Vol.

284, pp. 34-43.

Ceri, Stefano e Widom, Jennifer. 1991; Deriving

production rules for incremental view maintenance. In

VLDB. 1991, pp. 577-589.

Euzenat, Jérôme and Shvaiko, Pavel. 2007. Ontology

Matching. Berlin: Springer, 2007.

IEEE. 1990; Standard Computer Dictionary: A

Compilation of IEEE Standard Computer Glossaries.

N.Y, U.S.: 1990.

Klein, Michel. 2004; Change Management for Distributed

Ontologies. 2004. PhD Thesis.

Plessers, P., De Troyer, O. 2005; Ontology Change

Detection using a Version. The Semantic Web –

ISWC. s.l. : Springer, 2005.

Rahm, Erhard and Bernstein, Philip A. 2001; A survey of

approaches to automatic schema matching. In VLDB.

s.l. : Springer, 2001.

Silva, Nuno. 2004. Multi-Dimensional Service-Oriented

Ontology Mapping. 2004. PhD Thesis.

Stojanovic, Ljiljana. 2004. Evolution, Methods and Tools

for Ontology. 2004. PhD Thesis.

Velegrakis, Yannis, Miller, Renée J. and Popa, Lucian.

2003. Mapping Adaptation under Evolving Schemas.

VLDB. Berlin: 2003.

A USER-DRIVEN AND A SEMANTIC-BASED ONTOLOGY MAPPING EVOLUTION APPROACH

221
