INTEGRATING VR IN AN ENGINEERING COLLABORATIVE

PROBLEM SOLVING ENVIRONMENT

Ismael H. F. dos Santos

Petrobras Research Center, Ilha do Fundão, Rio de Janeiro, Brazil

Alberto Raposo, Marcelo Gattass

Department of Informatics, PUC-Rio, Rio de Janeiro, Brazil

Keywords: Collaborative problem solving environments, Scientific workflow management system, Virtual

environments.

Abstract: We present an environment for executing engineering simulations and visualizing results in a Virtual

Environment. The work is motivated by the necessity of finding effective solutions for collaboration of team

workers during the execution of complex Petroleum Engineering projects. By means of a Scientific

Workflow Management System users are able to orchestrate the execution of different simulations as

workflow tasks that can be arranged in many ways according to project requirements. Within a workflow, as

its last step, the most interesting cases can be selected for visualization in a distributed collaborative session.

1 INTRODUCTION

The present work is motivated by the necessity of

finding effective solutions for collaboration of team

workers during the execution of large and complex

Petroleum Engineering (PE) projects. Those projects

usually require the execution of a large number of

engineering simulations, encapsulated as

engineering services, combined in different orders

and rearranged in different subsets according to each

project requirement. By means of a Scientific

Workflow Management System users are able to

orchestrate the execution of engineering simulations

as workflow tasks that can be arranged in many

different ways. Within a workflow, as its last step,

the most interesting cases can also be selected for

visualization in an immersive distributed

collaborative session.

A Problem Solving Environment (PSE) is a

specialized software system that provides all the

computational facilities needed to solve a target

class of problems. These features include advanced

solution methods, automatic and semiautomatic

selection of solution methods, and ways to easily

incorporate novel solution methods. Moreover, PSEs

use the language of the target class of problems, so

users can run them without specialized knowledge of

the underlying computer hardware and software

technology (Houstis et al., 1997).

In this work, the presented solution, called

Collaborative Engineering Environment (CEE) is

intended to create a useful collaborative PSE

through the composition of different tools for

distributed group work:

1. Virtual Reality Visualization tool (VRV) –

EnViron, a custom VRV adapted for collaborative

visualization of PE simulations in an immersive or

desktop Virtual Environment;

2. Scientific Workflow Management System

(ScWfMS) – an open-source BPEL-workflow

implementation used as a process-oriented tool to

control the execution of PE projects;

3. Videoconference System (VCS) –

CSVTool, a custom VCS developed for supporting

human communication, providing integrated audio

and video channels, subject to defined control

policies;

In the following sections we present some

aspects of the developed CEE. In section 2 we

present the main characteristics of PE projects

discussing some problems addressed by CEE.

Related works that inspired the development of the

CEE are presented in section 3. In section 4, we

describe the CEE architecture. A case study is

presented in section 5 and conclusions in section 6

finish the paper.

124

dos Santos I., Raposo A. and Gattass M. (2009).

INTEGRATING VR IN AN ENGINEERING COLLABORATIVE PROBLEM SOLVING ENVIRONMENT.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Human-Computer Interaction, pages 124-129

DOI: 10.5220/0002012501240129

 SciTePress

2 PETROLEUM ENGINEERING

PROJECTS

Usually PE projects involve not only geographically

distributed teams but also teams of specialists in

different areas using different software tools, both

commercial and homemade. The interoperability of

those tools is still an issue in the industry and is a

mandatory requisite for any viable collaborative

solution.

Due to their huge complexity, PE projects are

divided into smaller interrelated subprojects where

each one deals with an abstract representation of the

others. Because decisions are interdependent the

necessity for collaboration is a key issue in this area.

Each team activity or new decision can affect other

activities. For example, during the design of a

floating production unit (FPSO - floating production

storage and offloading) changing the position of

large and heavy equipment in the process plant can

compromise the stability of the production unit. In

some cases there is also an intrinsic coupling among

the solutions of the different subprojects, which

requires a lot of interactions and discussions among

the teams involved. This is the case of the mooring

system and of the production risers’ subsystems. On

one hand if the mooring system allows great

fluctuations of the production unit, it can simply

damage the production risers; on the other hand the

presence of the risers itself helps to weaken the

movements of the production unit which contributes

positively to the equilibrium of the system. In order

to achieve collaboration and interoperability

between those subprojects a software-based interface

is required.

Another challenge present in PE projects is

related to the visualization of large engineering

simulations. During the conceptual design phase of

an industrial plant, several simulations should be

applied to assess the robustness and feasibility of the

project. Some of these simulations may require huge

computational efforts to be processed, even for

powerful computer clusters. Visualization should be

as precise as possible in order to provide the user a

full understanding of the results of the simulation.

In principle, PSEs can solve simple or complex

problems, support both rapid prototyping and

detailed analysis, and can be used both in

introductory education and at the frontiers of science

and engineering. For PE projects a PSE should focus

on the development and integration of scientific

tools and technologies coupled with collaborative

environments to support the modeling and

simulation of complex scientific and engineering

problems constituting a useful CPSE (Collaborative

Problem Solving Environment). These capabilities

enable engineers to easily setup computations in an

integrated environment that supports the storage,

retrieval, and analysis of the rapidly growing

volumes of data produced by computational studies.

In conclusion, according to the above challenges

presented for PE projects, the proposed CEE is

conceived as a useful CPSE for better controlling

and executing specialized engineering projects

through the use of its collaboration and visualization

capabilities.

3 RELATED WORK

Problem Solving Environments have been built for a

number of scientific domains. For example, (Parker

et al., 1998) describe SCIRun, a PSE that allows

users to interactively compose, execute, and control

a large-scale computer simulation by visually

“steering" a dataflow network model. SCIRun

supports parallel computing and output

visualization, but originally has no mechanisms for

experiment managing and archiving, optimization,

real-time collaboration, or modifying the simulation

models themselves.

Vistrails (Callahan et al., 2006) is a visualization

management system that provides a Scientific

Workflow infrastructure which can be combined

with existing visualization systems and libraries. A

key feature that sets Vistrails apart from previous

Visualization Systems as well as Scientific

Workflow Systems is the support for data

exploration. It separates the notion of dataflow

specification from its instances. A dataflow instance

consists of a sequence of operations used to generate

a specific visualization. Vistrails approach inspired

our CEE strategy but some of the differences of the

CEE are the use of a BPEL (Business Process

Execution Language) ScWfMS and the focus on

immersive and realistic visualization.

In the Geology field, (Kreylos et al., 2006)

presented an approach for turning immersive

visualization software into a scientific tool. They

created immersive visualization software, with

measurement and analysis tools that allow scientists

to use their real-word skills and methods inside a

VE. They emphasized that VR visualization alone is

not sufficient to enable an effective work

environment. This observation has also motivated us

to create some additional tools for our VR

visualization subsystem of the CEE.

The effective integration of “smart” graphical

INTEGRATING VR IN AN ENGINEERING COLLABORATIVE PROBLEM SOLVING ENVIRONMENT

125

user interfaces, with some advisory support,

Scientific Visualization, VR techniques, Engineering

Analysis and Modeling Tools aid in the automation

of modeling analysis and data management for large

and complex PE projects. To enhance engineers

ability to share information and resources with

colleagues at remote locations, collaborative and

real-time technologies integrated into a CPSE

provide a unified approach to the scientific and

engineering discovery and analysis process.

A combination of a CPSE and VR visualization,

which is not addressed by the aforementioned

visualization systems, constitutes a strategic enabler

for a successful data exploration and knowledge

dissemination among workers in engineering

enterprises. VR visualization technologies enhance

the content knowledge within the engineering

disciplines. In conjunction with collaboration both

provide valuable insights for better Decision Support

with risk mitigation. (Dodd, 2004) has mentioned

that the next big management push is the

empowerment of interdisciplinary teams with

collaboration tools that include remote and

immersive visualization on the desktop. Sharing the

same opinion as Dodd we emphasize that the

combination of collaborative tools and VR

visualization constitutes a powerful component to

our CEE architecture.

4 CEE MODEL

The developed CEE, as a specialized CPSE, allows

users to collaboratively solve their problems through

the use of predefined workflows or assembling new

ones. Each workflow comprises a sequence of

simulations that usually ends with a collaborative

visualization session supported by the VR

Visualization tool. Based on a thoroughly analysis of

the domain of PE projects used as our prototype

scenario, we defined a set of collaborative and

visualization features for dealing with the difficulties

described above. In what follows we present the

major CEE functionalities towards this direction.

4.1 Collaborative Work

The support for collaborative work is provided by

the use of a Scientific Workflow Management

System (ScWfMS), Videoconference System and a

collaborative support for creating annotations about

the engineering artifacts used in the projects.

An annotation, in our context, is any textual

information that users want to add to their projects to

enrich the content or just for documentation; it can

have a private or public (shared) scope. Annotations

can be associated to any engineering artifact

manipulated in a PE during a collaborative

visualization session that usually happens at the end

of execution of any sequence of engineering

simulations, as the last step of typical engineering

workflow. It could, for example, be a kind of

instructional information denoting a sequence of

operations that should be undertaken during a

maintenance intervention in a production unit, or

some information used to highlight interesting or

anomalous events observed on the results of the

simulations.

4.2 CEE Videoconference System

Audio and video communications are fundamental

components of collaborative systems (Isaacs and

Tang, 1994). Audio is an essential channel for

supporting synchronous work, and video is

important to provide a sense of co-presence

facilitating negotiation tasks.

Videoconferencing Systems contain no

knowledge of the work processes, and therefore are

not “organizationally aware”. These systems are best

suited for unstructured group activities once that

audiovisual connectivity and shared documents

enable flexible group processes. The drawback is

that coordination tasks are left to the conference

participants.

We have developed a multiplatform

videoconferencing tool, CSVTool (Pozzer et al.,

2003). The use of a custom tool allows a tight

integration of this service into the CEE, with no

duplication of session-management functionalities,

and the direct control of audio and video streams

according to the coordination policies defined.

4.3 CEE Visualization Tool

EnViron (ENvironment for VIRtual Objects

Navigation) (Raposo et al., 2006) is a tool developed

to facilitate the use of CAD models in VR

applications. It is a system composed of a 3D

environment for real time model visualization, and

exportation plugins, which import model data from

other applications, allowing EnViron to visualize

and interact with different kinds of 3D data.

The applicability of VR techniques for 3D

geometric CAD models has been restricted to design

review, virtual prototyping and marketing purposes,

mainly in the automotive and aircraft industries.

More recently, 3D CAD models are starting to show

ICEIS 2009 - International Conference on Enterprise Information Systems

126

their potential in VR applications for diverse

purposes, such as ergonomic studies, safety training

for Health, Safety Environments (HSE), and

visualization of physical simulations, project

documentation and real-time operational data.

EnViron is integrated into CEE offering

resources for real-time 3D visualization and

interaction in CAD models with enough realism and

performance to be used for collaborative virtual

prototyping, design review, change management

systems, training, and visualization of engineering

simulations among other activities.

4.4 CEE Scientific Workflow

In recent years, several industries have improved

their operations through Workflow Management

Systems (WfMS) – improvement of data

management and better coordination of activities

through specific Business and Scientific and

Engineering Process. However, there are remarkable

differences between Business (BWfMS) and

Scientific Workflows (ScWfMS). (Weske et al.,

1998) identified that in a scientific environment

scientists will typically specify their workflows

themselves, while in a business environment; a

system administrator is commonly responsible for

this task. Another characteristic of ScWfMS pointed

in their work is the need to trace workflow

executions. An engineer may need to reuse a

workflow in order to reproduce results. The

operations a user performs on a given data must be

recorded in order to provide engineers with the

benefits of successful and unsuccessful workflows.

Scientific workflows often begin as research

workflows and end up as production workflows.

Early in the lifecycle, they require considerable

human intervention and collaboration; later they

begin to be executed increasingly automatically.

Thus in the production mode, there is typically less

room for collaboration at the scientific level and the

computations are more long-lived. During the

research phase, scientific workflows need to be

enacted and animated (fake enactment) far more

intensively than business workflows. In this phase,

which is more extensive than the corresponding

phase for business workflows, the emphasis is on

execution with a view to design, and thus naturally

includes iterative execution. The corresponding

activity can be viewed as a “Business Process

Engineering” (BPE). For this reason, the approaches

for constructing, managing, and coordinating

process models are useful also in scientific settings.

In this way, Scientific Workflows are to PSEs what

Business Workflows are to Enterprise Integration.

4.5 CEE Implementation

Service-Oriented Architecture (SOA) is a style of

architecting software systems by packaging

functionalities as services that can be invoked by

any service requester (Ort, 2005). An SOA typically

implies a loose coupling between modules.

Wrapping a well-defined service invocation

interface around a functional module hides details of

the module implementation from other service

requesters. This enables software reuse and also

means that changes to a module’s implementation

are localized and do not affect other modules as long

as the service interface is unchanged.

The adoption of an SOA for CEE produced a

reduction of technology development costs by

leveraging functions already built into legacy

systems. SOA architectures are becoming a popular

and useful means of leveraging internet technologies

to improve business processes in the oil & gas

industry nowadays.

An Enterprise Service Bus (ESB) is a pattern of

middleware that unifies and connects services,

applications and resources within an enterprise. ESB

is a platform built on the principles of SOA and

other open standards to help applications integrate

seamlessly. Put another way, it is the framework

within which the capabilities of a business'

application are made available for reuse by other

applications throughout the organization and

beyond. The ESB is not a new software product, it's

just a new way of looking at how to integrate

applications, coordinate distributed resources and

manipulate information. Unlike previous approaches

for connecting distributed applications, such as RPC

or distributed objects, the ESB pattern enables the

connection of software running in parallel on

different platforms, written in different languages

and using different programming models.

Our proposed CEE has component-based

architecture in order to facilitate the reuse of

elements. The architecture of the CEE uses a BPEL

ScWfMS as its kernel while the CSVTool, Environ

and the other components are seamlessly accessed

through the ESB according to the collaborative

necessities of the teamworkers.

When the service-oriented approach is adopted

for designing the CEE, every component, regardless

of its functionality, resource requirements, language

of implementation, etc., provides a well-defined

service interface that can be used by any other

component in the environment. The service

INTEGRATING VR IN AN ENGINEERING COLLABORATIVE PROBLEM SOLVING ENVIRONMENT

127

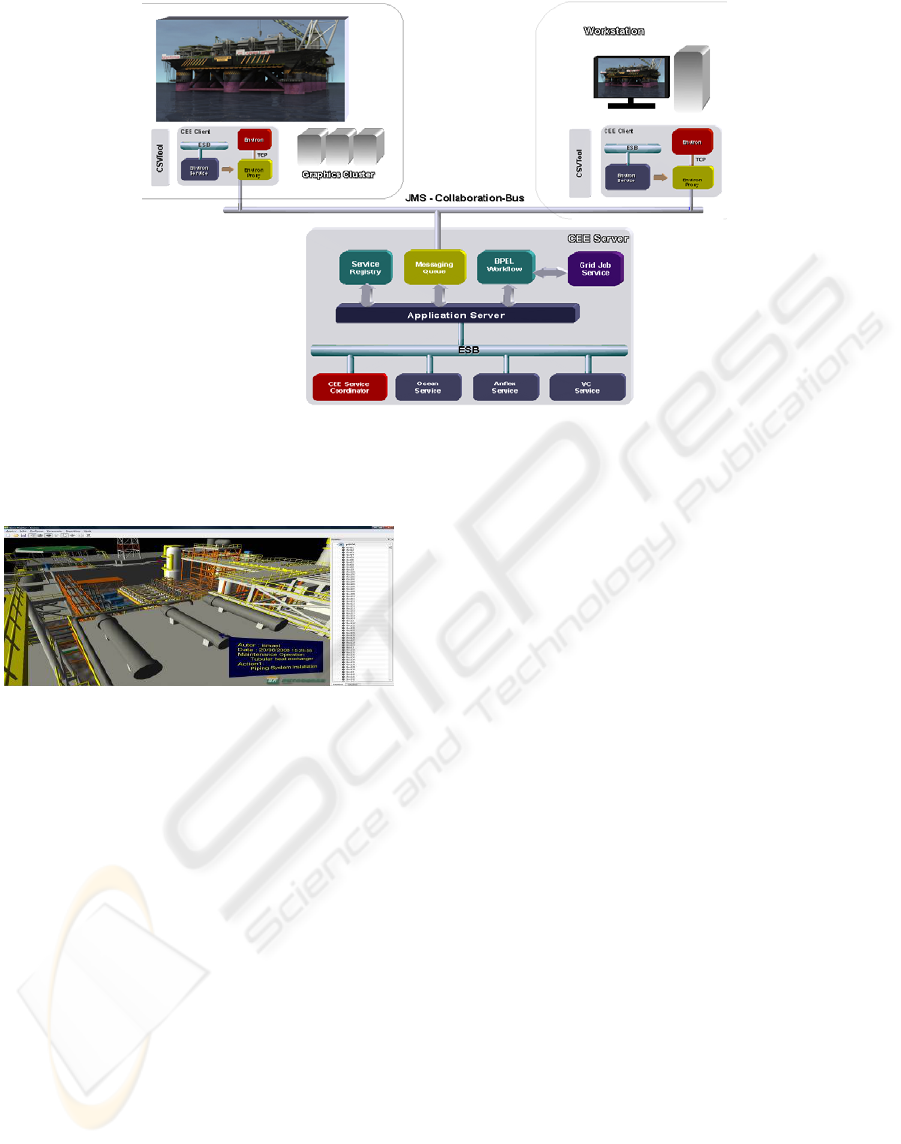

Figure 1: CEE architecture.

abstraction provides a uniform way to mask a

variety of underlying data sources (real-time

production data, historical data, model parameters,

reports, etc.) and functionalities (simulators,

optimizers, sensors, actuators, etc.). A Workflow,

actually, in our context, a Scientific Workflow, is

composed by coupling service interfaces in the

desired order. These workflows specifications are

created through a graphical front end, workflow

designer, and the actual service calls are generated

automatically and have their execution controlled by

the workflow engine.

CEE has a client server architecture, where the

CEE-server is deployed in a JEE (Java Enterprise

Edition) Application Server (AppServer) which

allows better scalability and automatic transaction

control. The CEE principal services resides in the

AppServer where a Service Registry is used to

record all available services existent in the CEE-

clients, for example the CEE-VRV tool, Environ,

should be available on a CEE-client machine for

allowing the user to participate in an Environ

Collaborative Session, controlled by the CEE

Service Coordinator (Figure 1).

The Environ Collaborative Session is

implemented with the help of a Java Messaging

Service (JMS) infrastructure available in the

AppServer, providing a communication channel

between peers participating in the Session. The

channels are implemented as JMS topics (global

channels) and queues, individual channels for each

CEE-client (Figure 2). The Environ collaboration

session is controlled by the CEE service coordinator

and by each EvironProxy started on demand on a

CEE-client machine by the Environ Service, which

is a service demo registered at the Service Registry

in CEE-server signaling the availability of Environ

in the CEE-client.

5 DESIGN REVIEW WORKFLOW

Design review is the process of checking the

correctness and consistency of an engineering

project, and making the necessary corrections to it.

CEE is very helpful in this process, for instance to

assess the safeness of different emergency escape

pathways in case of an emergency in the plant.

The Design Review workflow is a very

simplified version of the previously workflow,

where BPEL engine reads user input parameters and

invokes CEE Service Coordinator to create an

Environ Collaborative Session for users to

collaborate, manipulating engineering artifacts and

creating annotations in the model accordingly.

Object manipulation is an important resource in

design review. The ability of moving, rotating and

scaling objects is important for various purposes

such as joining different models in a scene, viewing

hidden portions of the model, planning the

placement of a new piece of equipment on a plant,

and simulating a maintenance or intervention

operation in a process plant are also valuable tools.

As an example, the maintenance plan can be

enriched with a detailed sequence of operations with

annotations carefully chosen to be presented as an

animation for the maintenance engineers during the

operation (Figure 3). Moreover, integration with a

database is useful to allow the user to create

annotations on the model emphasizing critical parts.

It is also possible to show comments attached to

ICEIS 2009 - International Conference on Enterprise Information Systems

128

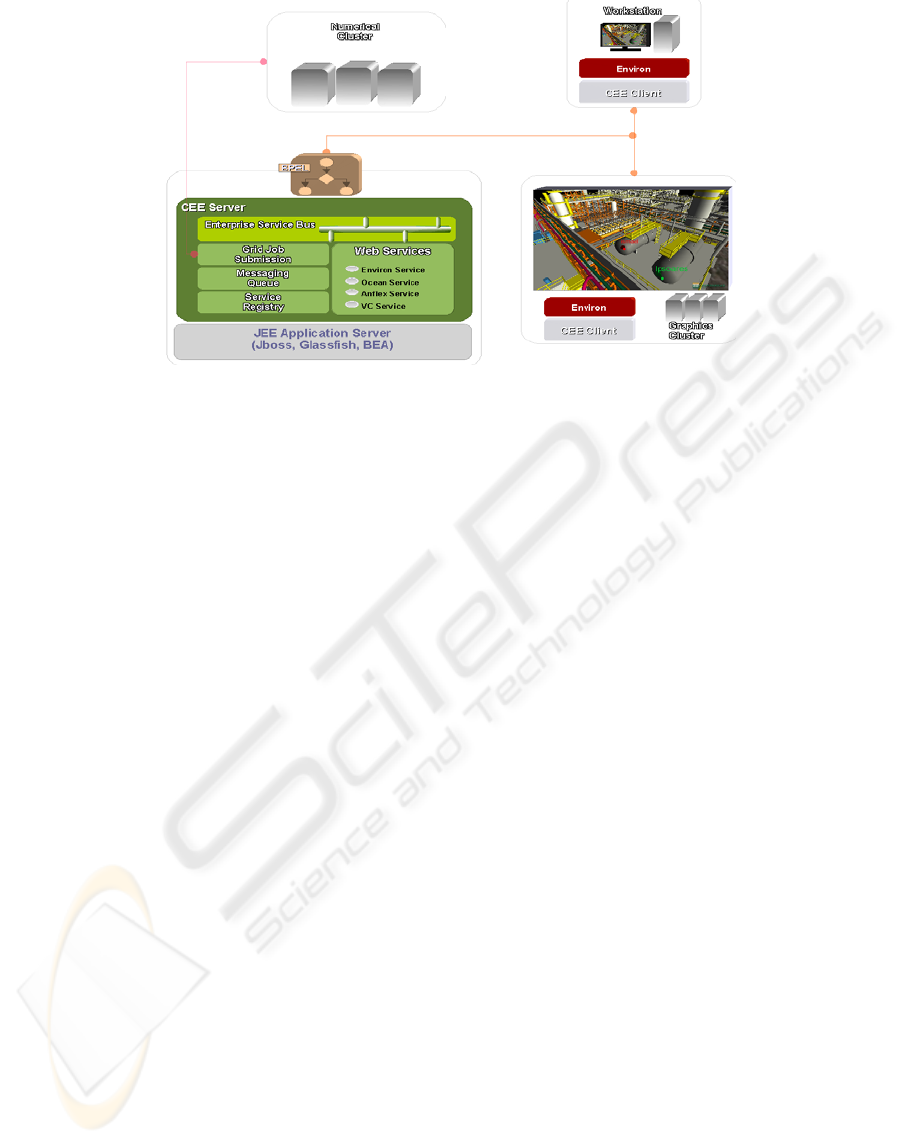

Figure 2: CEE JMS messaging architecture.

objects, which can be used, for example, as

recommendations for project management.

Figure 3: Maintenance plan with annotations.

6 CONCLUSIONS

This paper presented an SOA of the CEE that we

have developed. CEE is still in its infancy but is

proving to be an effective Collaborative Problem

Solving environment, allowing users to mitigate

their problems during the execution of large and

complex PE projects. Currently we are building

more tools to improve the effectiveness of the use of

VR technology by the team workers. Although this

work is focused on a solution for Petroleum

Engineering projects, we believe that the proposed

CEE could also be used in other areas as well.

ACKNOWLEDGEMENTS

Alberto Raposo is partially sponsored by CNPq,

project number 472967/2007-0.

REFERENCES

Callahan S. P., Freire J., et al., 2006. VisTrails:

Visualization meets Data Management, ACM

SIGMOD International Conference on Management of

Data, 745-747.

Dodd, E. J., 2004. Visualization and Collaboration for the

On Demand Upstream Petroleum Enterprise. IBM,

Toronto, CA.

Houstis, E. N. Gallopoulos, et al., 1997. Problem-Solving

Environments for Computational Science. IEEE

Comput. Science and Engineering, 4, 3, 18-21.

Isaacs, E. A., Tang, J. C., 1994. What Video Can and

Cannot Do for Collaboration: A Case Study.

Multimedia Systems, 2, 63-73.

Kreylos, O., Bernardin, T. et al., 2006. Enabling Scientific

Workflows in Virtual Reality. ACM SIGGRAPH Conf.

Virtual-Reality Continuum and its Applications in

Industry, VRCIA, 155-162.

Ort, E., 2005. SOA Architecture and Web Services:

Concepts, Technologies, and Tools. Sun Developer

Network, http://java.sun.com/developer/technical

Articles/ WebServices/soa2/

Parker, S. G., Miller, M. Hansen, C. , Johnson, C. , 1998.

An integrated problem solving environment: The

SCIRun computational steering system. 31

Hawaii

Int. Conf. System Sciences (HICSS-31), 147-156.

Raposo, A. B., Corseuil, E. T. L., et al., 2006. Towards the

Use of CAD Models in VR Applications. ACM

SIGGRAPH Conf. VR- Continuum and its Applications

in Industry, VRCIA, 67-74.

Weske, M., Vossen, G., Medeiros, C. B., Pires, F., 1998.

Workflow Management in Geoprocessing Apps. Tech.

Report No.04-98-I, Univ.Muenster, Germany.

INTEGRATING VR IN AN ENGINEERING COLLABORATIVE PROBLEM SOLVING ENVIRONMENT

129
