A SERVICE-BASED APPROACH FOR DATA INTEGRATION

BASED ON BUSINESS PROCESS MODELS

Hesley Py

1,2

, Lucia Castro

1,2

, Fernanda Araujo Baião

1,2

and Asterio Tanaka

NP2Tec – Research and Practice Group in Information Technology,

Department of Applied Informatics

Federal University of the State of Rio de Janeiro (UNIRIO), Rio de Janeiro, Brazil

Keywords: Data integration, Business process, Services, Information architecture.

Abstract: Business-IT alignment is gaining more importance in enterprises, and is already considered essential for

efficiently achieving enterprise goals. This led organizations to follow Enterprise Architecture approaches,

with the Information Architecture as one of its pillars. Information architecture aims at providing an

integrated and holistic view of the business information, and this requires applying a data integration

approach. However, despite several works on data integration research, the problem is far from being

solved. The highly heterogeneous computer environments present new challenges such as distinct DBMSs,

distinct data models, distinct schemas and distinct semantics, all in the same scenario. On the other hand,

new issues in enterprise environment, such as the emergence of BPM and SOA approaches, contribute to a

new solution for the problem. This paper presents a service-based approach for data integration, in which

the services are derived from the organization’s business process models. The proposed approach comprises

a framework of different types of services (data services, concept services), a method for data integration

service identification from process models, and a metaschema needed for the automation and customization

of the proposed approach in a specific organization. We focus on handling heterogeneities with regard to

different DBMSs and differences among data models, schemas and semantics.

1 INTRODUCTION

Historically, most organizations have searched for

technological improvements to their business

processes through either developing or acquiring

information systems that support individual

activities and, very commonly, create and/or access

different and isolated data sources. This leads to an

undesired situtation where computational support is

provided for departmental processes, instead of for

the company as a whole. Besides this, new

technologies for system development and for data

storage have contributed to making the IT

environment of large organizarions very

heterogeneous. The natural consequences to the

scenario described above are the lack of a unified

data and process view, data redundancy, and the re-

work of having to code the same functions for

several applications; IT and business do not align.

A new tendency to promote business-IT

alignment has led organizations to adopt new

management strategies towards IT Enterprise

Architecture (Armour et al., 2007, Lankhorst 2005,

van Steenbergen et al., 2007), which has the

Information Architecture as one of its components.

The information architecture of an organization aims

at providing an integrated and holistic view of the

business information, including who uses it, why

and where (Armour et al., 2007). However, for the

information architecture initiative to be effective

towards business-IT alignment, a data integration

approaches is essential.

Data integration is a widely studied topic in

database research and can be described as the

combination of data from different sources so that

users can have a unified view of such data

(Lenzerini et al., 2002), aiming mainly at an easier

access and re-use of data (Ziegler and Dittrich,

2007). In spite of the great number of works on this

subject, there still are unresolved issues. More

specifically, the adoption of business process

modeling (BPM) and service oriented architectures

(SOA) by organizations, and the highly

heterogeneous computer environments present new

challenges and opportunities for data integration

approaches.

This paper presents a service-based approach for

data integration, in which the services are derived

222

Py H., Castro L., Araujo Baião F. and Tanaka A. (2009).

A SERVICE-BASED APPROACH FOR DATA INTEGRATION BASED ON BUSINESS PROCESS MODELS.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

222-227

DOI: 10.5220/0002013002220227

 SciTePress

from the organization’s BP models. The proposed

approach comprises a framework of services (data

and concept services), a method for service

identification from process models, and a

metaschema (which is out of the scope of this work)

that is used by our tool for automatic creation,

configuration and execution of services. A case

study showing the application of our approach at the

Brazilian government census bureau (IBGE) is also

presented.

2 IS DATA INTEGRATION STILL

A PROBLEM?

According to (Ziegler and Dittrich, 2007), the two

main reasons to integrate data are to provide an easy,

single-point access to data, and to combine data

from different sources in a more complete database

in order to meet company needs. The difficulties

involved in providing a single view to such data

reside in the heterogeneity of DBMSs, of data

models, of schemas and of data semantics.

One of the approaches to data integration is

schema integration. According to Batini et al.

(1986), schema integration is the process of creating

a new unified schema from several others, resolving

the structural and semantic diversities among them.

This process is composed of four sequential steps:

(i) preintegration, when local schemas are analyzed

so that the policy for integration can be defined; (ii)

comparison of schemas, when schema

characteristics are analyzed to determine

correspondences and conflicts; (iii) conforming the

schemas, when schema conflicts are solved and a

new integrated schema is created; and (iv) merging

and restructuring, when all partial products of the

process are analyzed and, if needed, restructured in

order to provide the required data quality.

A schema conflict happens when components

that represent the same concept are different. There

are two categories of conflicts (Batini et al., 1986):

the naming conflicts and the structural ones. A

naming conflict may be a synonym (different names

that refer to the same concept) or a homonym (one

name that refers to different concepts). Structural

conflicts refer to differences in the concept

representation, including type conflicts, dependency

conflicts, key conflicts, data type and scale conflicts

(Batini et al., 1986).

Although the data integration problem taxonomy

is very known, the growing tendency towards

enterprise IT Architecture approaches brings new

issues to the problem solution. An enterprise IT

architecture is composed of a set of data and

descriptive models that define the business, the

information and the technology that support business

operations, and keep them aligned with business

goals (Lankhorst, 2005). In this context, BPM may

help in identifying data sources that need to be

integrated,in keeping IT systems aligned with

corporate strategic goals (Ferreira et al., 2009), and

guiding service identification in a SOA

implementation. SOA also contributes for

interoperable and transparent solutions. In common

scenarios where schema conflicts described above

may involve both structured (e.g. a relational SGBD)

and semi-structured data sources (XML files),

service technology is advised.

3 PROPOSED SOLUTION

This section proposes a service-based approach for

data integration, which includes: a framework

defining services types, and their relationships,

needed for automating data integration; and a

method for instantiating the service framework. Our

proposal aims mostly at resolving heterogeneity

issues between the different DBMSs used by the

organization, and at dealing with differences among

data models, schemas and semantics. We follow the

schema integration approach, in which we specify a

common interface for querying data related to

business concepts.

3.1 Service Framework

The proposed service framework represents a

generic and extensible infrastructure for automating

data integration services construction. The

framework comprises both domain-dependent and

domain-independent services. Domain-dependent

services are defined according to the specific domain

and organization, and are divided into data services

and concept services. Domain-independent services

are divided into metadata services and integration

services.

Data services provide access to data sources. The

data source schema is described in the metaschema,

encapsulating connection details and complexities.

One data service is defined for each schema of each

data source beign integrated.

Concept services provide a common and unified

interface to access all data that correspond to a

concept, acting as concept managers. Each concept

service is responsible for answering queries related

to its concept, according to the criteria described in

the metaschema. Each concept service is linked to an

A SERVICE-BASED APPROACH FOR DATA INTEGRATION BASED ON BUSINESS PROCESS MODELS

223

aggregating concept, that is, a complex concept that

includes two or more simple related concepts.

Concept services receive requests for data referring

to a certain concept, access the data services and the

integration services and return integrated data to the

requester, as shown in figure 1.

Metadata services are responsible for accessing

and recovering metadata from the metaschema.

Integration services are responsible for

encapsulating the integration operations on data.

Integration services are invoked during the merging

and restructuring step of data integration.

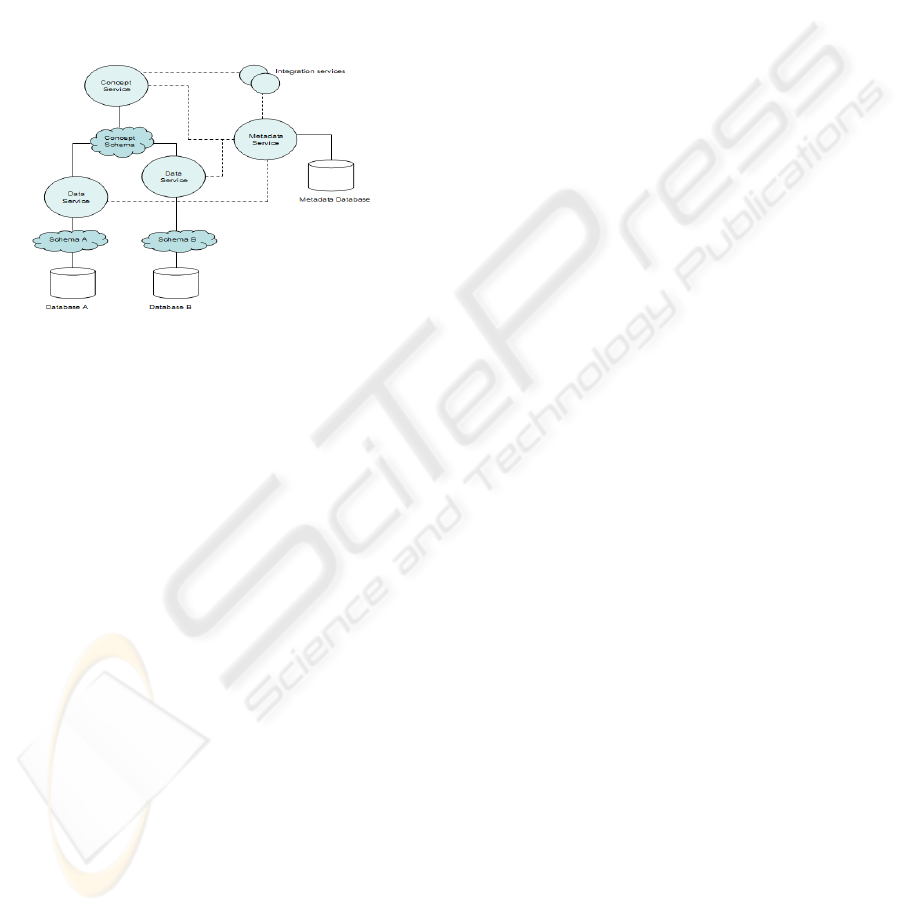

Figure 1: Service organization.

3.2 Identifying Data Integration

Services

This section describes the proposed method for

specifying a set of services for integrating data from

different sources. The method should be applied by

an information architect (that is, one that knows

about the structure and meaning of data accessed

during a business process execution, such as a data

administrator) on top of a business process model

received as input. The process model should contain

the following information: the input and output data

of each business activity, the identification and path

to each data source that holds data needed by the

process activity; the identification, connection string

and schema description of each schema of each data

source; and a glossary for the data concepts related

to the activity. A data concept is an abstract entity

with a well-defined semantics within business scope.

For instance, the concept of “UF” (Federate Unit,

refering to a state in Brazil) can be represented by

entities named “UF”, or “state”, or “unit.”

The main activities of the method are:

Process Model Analysis. the information architect

analyzes the business process model to identify

concepts and data sources, and to identify process

activities that access data sources and that should be

more deeply studied.

Detailed Process Activities Analysis. Input and

output data, as well as the glossary, are analyzed for

each activity from the previous step.

Data Source Identification. A data input or output

provides the data flow that will be necessary for the

specified activity execution, from which the

information architect is able to identify data sources.

A data source is any repository where data, both

structured and semi-structured, is stored. Data

source identification and mapping them with

activities reduces the so-called “information

islands”, that is, repositories that are known and

used only by their “owners”, in spite of being part of

the organization’s information as a whole.

Activity Schema Identification. After data source

identification, the information architect must, when

applicable, identify the schemas related to the data

which will be accessed during activity execution. In

this case, the concept of schema is that of DBMSs,

like PostgreSQL and Oracle. If the data source does

not have such schema concept, a public schema will

be created for that source in the metaschema.

Data Service Definition. After a new schema has

been identified, a data service must be defined and

linked to it. This service will be responsible for the

access to data the schema refers to.

Concept Identification. Data concepts are

identified from the detailed business process

activities; these concepts are derived from the

activity glossary. A concept may be simple

(involving a single data entity in a data model in 3

normal form); or complex (involving more than one

entity in a normalized data model, e.g. “Address”,

that involves data from “UF” and “City” entities). A

complex concept may be modeled through an ER

notation.

Our approach differs from the ones that build a

global data model (Batini et al., 1986), since a

global data model aims at completeness and

minimality, whereas concept models are neither

complete (since concepts are defined as they are

identified) nor minimal (since the same data entity

can be related to more than one concept). As in

previous example, “UF” is an entity that can be

related to either a simple concept “UF”, or a

complex concept, like “Address”. The concept

identification activity aims at resolving name

conflicts, i.e., homonymy and synonymy.

Name conflicts are not easy to treat due to the

difficulties inherent to establishing correspondence

between concepts. Mostly, to resolve such conflicts

it is necessary to rely on metadata, which are not

always available or trustworthy. Moreover, such

ICEIS 2009 - International Conference on Enterprise Information Systems

224

metadata not always follow a standard and cannot be

automatically analyzed; consequently, integration

activities will depend on users either to compare

concepts or to validate correspondences between

schemas. Resolving naming conflicts is not an

automatic task, being semi-automatic at best (Kent,

1998).

Semantically rich conceptual models are the

basis for semantic data integration. Although

conceptual models have been discussed and studied

for over thirty years, very little has been said about

the modeling process. The creation of such a model

implies that the designer has to acquire concepts of a

universe of discourse, what requires a method. Also,

conceptual models must be represented by means of

an ontological language which the constructs must

be enough to semantically describe all the existing

concepts (Lopes et al., 2009).

Data related to concept identification and schema

must be described in the metaschema. The concept

schema is the concept structure, which must be a

XML schema and describe all types, attributes and

constraints that define the concept. In other words,

the concept schema is the canonical concept model

for the organization, which is the basis for solving

structure conflicts.

Comparison of Schemas. This activity aims at

providing the baseline for structuring conflict

resolution. The definition of the relations between

schemas and concepts is the central step of this

activity. Each identified concept must be mapped to

at least one local schema; the relation between a

concept and a local schema is specified through a

query defined in a language known by the data

source to which the schema is linked (SQL for

relational databases or xPath for XML files). All

defined mappings are stored in the metadata base.

The query must access data that is mapped in the

concept canonical model. For instance, to recover

data about concept “c1”, that is in a local schema

“s1”, related to a PostgresSQL data source “ds1”,

the following query can be used:

Select * from t1

“t1” is the table in which the data about concept

“c1” is stored in schema “s1”; the “*” represents the

set of attributes that comply with the elements

described for the concept “c1” in its canonical

schema.

An example using a complex concept could be a

query for an address, which would access more than

one table in the schema, such as:

Select e.logradouro, e.numero, c.cidade,

u.uf from endereco e, cidade c, uf u

where e.codigoCidade = c.codigo and

e.codigoUf = u.codigo.

When it comes to the definition of the relation

between the concept and the local schema, it is

necessary to map the attributes defined in the

canonical schema to the values to be returned by the

query. The establishment of this relation allows for

the resolution of part of the structure conflicts

mentioned above.

The proposed approach adds a new step

(Infrastructure implementation) after the

Comparison of schemas step. In the Infrastructure

implementation step, data integration services should

be implemented.

The information described in the metaschema is

the basis for the execution of the next steps,

conforming the schemas and merging and

restructuring.

Conforming the Schemas. In this activity, type, key

and scale conflicts are resolved, and the integrated

schema is built. When the concept service receives a

new data request, it contacts the metadata service to

verify which data services must be called; it then

accesses the appropriate data services and queries

the concept data. Data services then access the

metadata services to check for information about

connections to the data sources. Finally, the data

services query the data sources, get the requested

data and return them to the concept service. Such

concept service calls the integration service

responsible for the conforming step, which unifies

the data and returns them to the concept service.

Merging and Restructuring. In this activity, the

concept service calls the integration services which

will merge the data, based on the quality criteria

defined in the metaschema, and return them to the

concept service, which returns the integrated data,

formatted according to the concept schema, to the

requester.

4 CASE STUDY

The scenario for the case study is the Brazilian

government census bureau, IBGE (Brazilian

Institute for Geography and Statistics), in which a

great volume of heterogeneous data sources are

geographically distributed, and frequently

exchanged among the foundation’s offices This

environment is ideal for the deployment and study of

the proposed solution. The study started with the

evaluation of some already modeled business

processes; the processes for data validation and

dissemination used during year 2000 Brazilian

census were selected. The choice was based on the

A SERVICE-BASED APPROACH FOR DATA INTEGRATION BASED ON BUSINESS PROCESS MODELS

225

importance of such processes in data production.

Data validation is a process that applies a set of pre-

defined constraints to collected data in order to

guarantee accuracy and insure data quality. The

activities executed are the reading of the validated

base, file preparation, loading of metadata and data

dissemination.

When applying the proposed method, data

sources, their related schemas and data concepts

were identified from the analysis of process

activities. For example, the “Load and validate files”

activity was analyzed and the following components

were identified: the DIORAPRD data source,

physically stored as an Oracle database, containing

two schemas, namely BET (Territorial Structures

Database) and CENSO. The data source was

described in the metaschema, along with the

schemas themselves.

Following the method, concepts related to each

process activity were described in the metaschema:

“domicilio” (residence) and “pessoa” (person) were

defined as aggregating concepts to which all other

concepts were linked. A data service was defined for

each identified schema, and a concept service was

defined for each aggregating concept. All service

data were stored in the metaschema.

Aftrewards, the relations between the identified

concepts and schemas were defined and stored. For

each pair schema-concept a query, written in the

language supported by the data source where the

concept resides, was stored; this query recovers

concept data that conform to the schema canonical

model. The links between concepts attributes and the

canonical schema were also defined.

After the analysis of the data validation process,

the method was applied to the data dissemination

process. Two data sources were identified:

DIORAPRD, which had already been identified

during the first step, and DIORAPRD2, that stores

the metadata referring to the data being

disseminated. The schema identified in DIORAPRD

was BOG (Geographic Operational Base); in

DIORAPRD2, the schemas identified were

METABD (Research metadata base) and SIDRA

(Automatic Recovery IBGE Database). Database

schemas and concepts were identified and described

in the metaschema. Data services were described for

each new schema; the relation with their associate

schema was described in the metaschema for all

identified concepts.

During infrastructure implementation, the

following services were implemented:

- Data services: srvDadosBet – returns the data

stored in the BET schema, and srvDadosCenso –

responsible for the data stored in CENSO schema,

both from DIORAPRD base; service srvDadosBog

– responsible for the BOG schema in the

DIORAPRD data source; service srvDadosMetabd –

responsible for the data in Metabd schema; and

service srvDadosSidra – responsible for the data in

Sidra schema, both from data source DIORAPRD2.

- Concept services: srvConceitoPessoa – responsible

for recovering data related to the aggregating

concept “pessoa”, and all data related to its simple

concepts; and service srvConceitoDomicilio –

responsible for the aggregating concept “domicilio”,

and its simple concepts.

During merging and restructuring, domain

dependent services join domain independent services

and the metaschema for the integration itself. Once

all services have been implemented and made

available, all integration structure is ready. An

interface, made of a form containing three fields and

three buttons, was created to test this structure.

In the first field there is a list containing the

values returned by data service srvDadosBet,

concerning information related to concept “UF”. All

data is presented in XML format, according to the

concept local schema. Returned values are:

<Table>

<cod_uni_terr>11 </cod_uni_terr>

<dsc_uni>Rondônia</dsc_uni>

</Table>...

The second field also presents a list containing

information related to concept “UF” but from data

service srvDadosBog. Returned values are:

<Table>

<cod_uf>11</cod_uf>

<nom_uf>RONDONIA</nom_uf>

<desc_uf>UFRO</desc_uf>

</Table>...

The third field presents a list of information also

related to concept “UF” but from concept service

srvConceitoDomicilio. The values in fields 1 and 2

keep their own structure; in field 3 data from fields 1

and 2 are integrated and structured according to the

canonical schema of concept “UF”; the data in field

3 is:

<UFs>

<UF>

<uf_codigo>11</uf_codigo>

<uf_nome>Rondônia</uf_nome>

<uf_dsc>UFRO</uf_dsc>

</UF>...

During restructuring, quality criteria are applied

to the integrated data; in this case a criteria was

defined representing the priority (from 0 to 10) of

the data from one schema over the data from another

schema. Thus, in our study, data from schema BET

ICEIS 2009 - International Conference on Enterprise Information Systems

226

was chosen over the schema BOG. However, all

data from both schemas was united in the integrated

schema. Other quality criteria can be adopted

according to the organization needs.

Service implementation and deployment make

several details (such as data source location,

connection information, and even query language)

transparent to the end user. All it takes is to access

the concept service and request the information.

5 CONCLUSIONS

We propose a service-based approach for data

integration, which includes a framework that defines

and structures types of services that are needed for

automating data integration, a method for

instantiating the set of services from business

process models according to the proposed

framework, and a metaschema to support service

definition and service execution (which was not

detailed in this paper). The mapping between

business process models, services and data concepts

is a consequence of the method application, since it

includes activities for analyzing data related to each

concept, and concepts related to each process

activity.

In this work we focus on addressing

heterogeneity issues between the different DBMSs

used by the organization, and dealing with

differences among data models, schemas and

semantics. The issues covered are schema

integration, and we propose the specification of a

common interface definition for querying data

related to business concepts, and semantic

integration, by defining data concepts upon which

data integration is performed.

The approach was applied in a real corporate

environment. This case study demonstrated the

effectiveness of our approach by specifying a set of

services, including data, concept, metadata and

integration services, which provided an integrated

interface for heterogeneous schemas integration

during the execution of the chosen business

process. The specified services were implemented,

and all data requests of the chosen business process

were executed on top of the set of implemented

services. The metaschema was essential for the

automatic execution of all data requests. The set of

concept services provided a unified information

view for business activities, through which they can

access information independently on where and how

it is stored. The concept services encapsulate the

connection information and the query language

needed to retrieve the data.

Future work aims at defining a set of semantic

information to each data concept discovered for to

improve and automate the activities of discovery and

comparison of concepts by computers.

REFERENCES

Batini, C.,Lanzerini, M.,Navathe, S. 1986. Comparative

Analysis of Methodologies for Database Schema

Integration. ACM Computing Surveys 18(4), New

York, 323-364

CIO Canada Staff, 2005. Data integration problems

worsening.

http://www.itworldcanada.com/a/CIO/155f222d-7d65-

4e6f-9679-aa82b07f7803.html accessed July 2007.

Ferreira, J. et al., 2009. Keeping the Rationale of IS

requirements using Organizational Business Models,

ICEIS 2009.

Armour, F., Kaisler, S., Bitner, J. 2007. Enterprise

Architecture Challenges and Implementations. HICSS

2007: 217.

Kent, W. 1998. Data and Reality, 1

Books Library

Lankhorst, M., 2005. Enterprise Architecture at Work:

Modelling, Communication, and Analysis, Springer

Lenzerini, M. 2002. Data Integration: A Theoretical

Perspective. PODS 2002: 243-246.

Lopes et al., 2009. Reverse engineering a domain

ontology to uncover fundamental ontological

distinctions. ICEIS 2009.

Ziegler, P., Dittrich. K. 2007. Data Integration —

Problems, Approaches, and Perspectives. In John

Krogstie et al., ed, Conceptual Modelling in

Information Systems Engineering, 39-58. Springer.

Van Steenbergen, M., Van Den Berg, M., Brinkkemper,

S. 2007. An Instrument for the Development of the

Enterprise Architecture Practice. ICEIS 2007. 14-22.

A SERVICE-BASED APPROACH FOR DATA INTEGRATION BASED ON BUSINESS PROCESS MODELS

227
