AUTOMATIC DERIVATION OF SPRING-OSGI BASED WEB

ENTERPRISE APPLICATIONS

Elder Cirilo,

Uirá Kuleza and

Carlos Lucena

Computer Science Department, Pontifical Catholic University of Rio de Janeiro - PUC-Rio, Brazil

Computer Science Department, Federal University of Rio Grande do Norte – UFRN, Brazil

Keywords: Component-based Technologies, Software Product Lines, Product Derivation.

Abstract: Component-based technologies (CBTs) are nowadays widely adopted in the development of different kinds

of applications. They provide functionalities to facilitate the management of the application components and

their different configurations. Spring and OSGi are two relevant examples of CBTs in the mainstream

scenario. In this paper, we explore the use of Spring/OSGi technologies in the context of automatic product

derivation. We illustrated through a typical web-based enterprise application: (i) how different models of a

feature-based product derivation tool can be automatically generated based on the configuration files of

Spring and OSGi, and Java annotations; and (ii) how the different abstractions provided by these CBTs can

be related to a feature model with the aim to automatically derive an Spring/OSGi based application or

product line.

1 INTRODUCTION

Component-based technologies (CBTs) are

nowadays widely adopted in the development of

different kinds of enterprise applications. They

enable the management – assembling, adapting and

connecting – of the application components and their

different configurations.

Over the last years, two important CBTs have

been adopted by the Java development community:

Spring frameworks (http://www.springframework.

org) and OSGi (http://www.osgi.org). These CBTs

provide specific mechanisms and abstractions to

specify and manage the system components. Spring

framework (http://www.springframework.org)

allows defining an application as a set of

components implemented as simple classes. It

provides ways: (i) to link the application

components by means of the dependency injection

mechanism (Johnson, 2002); and (ii) to extend their

base functionality using aspect-oriented techniques.

On the other hand, the OSGi specifies the

application components as a set of Bundles. Each

Bundle aggregates a set of classes, interfaces,

aspects and files that implement the services

provided by that component. One of the main

benefits of OSGi is to provide an environment to

dynamically install, deploy and remove Bundles.

Recently, the Spring Dynamics Modules (SDM)

(http://www.springframework.org/osgi) has been

proposed with the aim to integrate both Spring and

OSGI technologies. Spring DM enables the

development of Spring applications that can be

deployed in an OSGi execution environment,

Despite the benefits that CBTs can bring to the

development and management of components in

enterprise applications, it also contributes to improve

their complexity due to: (i) the big amount of new

code assets (configuration files, annotations) that

applications need to deal with: and (ii) the need to

specify and configure each of the application

components and their respective relationships.

Additionally, the increasing demand for producing

flexible and customizable enterprise applications or

software product lines (Clements and Northrop,

2001) in order to address different market segments

also contributes significantly to bring difficulties to

this scenario.

Modern software engineering approaches

motivate the use of model-driven techniques (Stahl

and Voelter, 2006) to help both the processes of

development and automatic instantiation of

customizable application and software product lines.

Domain-specific languages (Czarnecki et al., 2000)

and code generators (Czarnecki et al., 2000) are the

main technologies that contribute to address these

aims. While these approaches can clearly bring

228

Cirilo E., Kuleza U. and Lucena C. (2009).

AUTOMATIC DERIVATION OF SPRING-OSGI BASED WEB ENTERPRISE APPLICATIONS.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

228-233

DOI: 10.5220/0002013502280233

 SciTePress

benefits to the development of enterprise application

and software product lines, there is no systematic

method or technique that show how mainstream

CBTs can take advantage of them.

In this context, this paper presents an approach

for automatic derivation of enterprise applications or

software product lines implemented using the Spring

and OSGi technologies. We extend the GenArch, a

model-based product derivation tool previously

proposed (Cirilo et al., 2007), to incorporate

functionalities that allow automatically instantiate

Spring/OSGi enterprise based applications

developed over the SDM platform.

The remainder of this paper is organized as

follows. Section 2 presents the new mainstream

CBSE technologies Spring and OGSi, and how this

two technologies work together in the SDM. Section

3 describes an overview of GenArch, a model-based

product derivation tool developed by our research

group. Section 4 describes the extensions proposed

to the GenArch tool in order to address Spring-OSGi

model-based applications. And, finally, on the

section 5 we present our conclusions.

2 NEW MAINSTREAM CBSE

TECHNOLOGIES

In this section we summarize Spring and OSGi

component technologies, showing, their differences

and how they are integrated in the context of Spring

DM. We also point out the advantages and

disadvantages that the union of these component

technologies can bring for feature modularization

and variability management.

2.1 Spring Framework

Spring (http://www.springframework.org) is an

open-source framework created to address the

complexity of Java enterprise application

development. Spring enables the development

through use of components based on POJOs (Plain

Old Java Objects), where each POJO contains only

business logic. The Spring framework is responsible

for addressing the additional features (transaction,

security, logging, etc), thus incrementing the base

functionality provided by POJOs and needed to

build enterprise applications.

Spring makes it possible to use a simple

component model to achieve things that were

previously only possible with complex component

models like Enterprise Java Beans (Burke and

Monson, 2006). In this way, server-side application,

like web information systems, can benefit from

Spring in terms of simplicity, testability, and loose

coupling. These benefits is reached by the inversion

of control principle (Johnson, 2002) (IoC) and

aspect-oriented container provided by the Spring

framework.

Spring framework uses a XML configuration file

to specify the application components metadata and

the dependency between then. This file is called

application context in the Spring terminology, and is

the primary unit of modularity of one Spring

application. It contains one or more Bean definitions

which typically specify the class that implements the

Bean, the Bean properties and the respective Bean

dependencies to be injected. Additionally, this

configuration file also defines which aspects will be

applied to each Bean of the application.

2.2 OSGi

The OSGi specification (http://www.osgi.org)

defines a framework that facilitates modularizing

Java applications into smaller and more manageable

pieces (Bundles). It defines a standardized module

packaging, life-cycle management and service

registration. A Bundle is deployed as a “plain” JAR

file that contains, besides other resources (e.g.,

classes, aspects, pictures), a MANIFEST file which

have some specific metadata. This information must

includes a symbolic name for the Bundle and,

optionally, can have the location of a activator class

which is called when the Bundle is started or

stopped, exported package, package and Bundle

dependencies, and general information about the

Bundle. Each Bundle represents an application

module that also can exports one or more services to

the end-user or other Bundles. The exported services

are registered in a specific OSGi service registry,

that expose this services for other Bundles to

discover and to use. A newly formed OSGi

Enterprise Expert Group is a initiative to introduce

OSGi on the server side. This group is looking for

extend the OSGi specification to support the needs

of Enterprise Java vendors and developers, such as:

distributed and extended service model, enterprise

life-cycle and configuration management.

2.3 Integrating Spring and OSGi for

SPL Architecture Implementation

In the context of SPL, the use of Spring and OSGi

implementation model can bring several advances

for enterprise application and SPL’s architecture

development process. In one hand, The Spring

dependence injection and AOP container provides a

AUTOMATIC DERIVATION OF SPRING-OSGI BASED WEB ENTERPRISE APPLICATIONS

229

flexible development approach in which optional

and alternatives features can be easily addressed by

components and aspect-oriented composition. On

the other hand, the OSGi module system can be used

to separate the application features on a single and

consistency Bundle, to promote a better separation

of concerns and to make easy the evolution and

maintenance of the SPL’s architecture.

The Spring DM is an initiative in the direction of

combine Spring and OSGi component model. It

makes easy to write Spring applications that can be

deployed in an OSGi execution environment, in such

way that applications can take advantage of the

services offered by Spring and the dynamic

environment provide by OSGi platform.

By the Spring DM implementation model, a

Bundle may contain a Spring application context, in

charge to describe and configure its Beans. Some of

these Beans may optionally be made public and

exported as OSGi services and thus made available

to end-user or other Bundles. Beans within the

Bundle may also be transparently injected with

references to OSGi services.

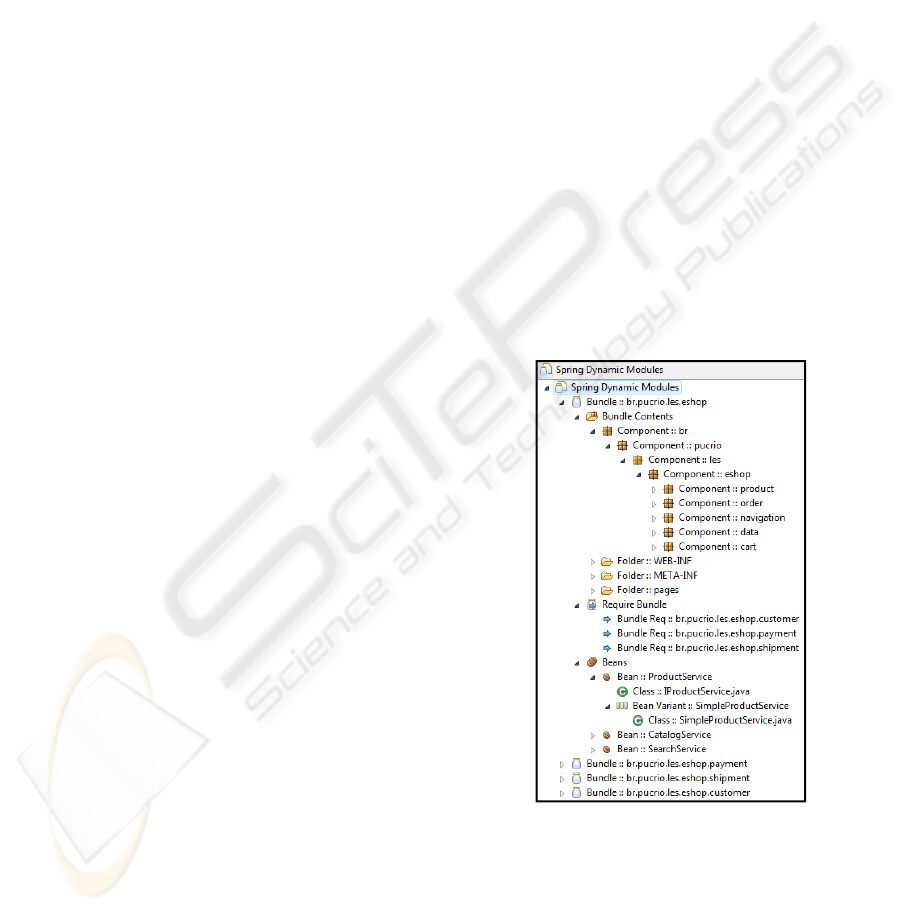

We have implemented some features of a Web

Shop application as Spring Beans and modularized

them in four OSGi Bundles: (i)

eshop – core

implementation of the Web Shop application; (ii)

eshop.payment – modularizes a set of payment

methods and resources related to the payment

process; (iii)

eshop.customer – modularizes the

customer service; (iv)

eshop.shipment –

encompasses services to calculate taxes and resolve

the shipment process. Some Beans that realize

different application features (payment services,

shipment services and customer services) were made

public in order to be used by the eshop Bundle,

whose implements the application core features.

Spring DM was used to structure our application in

order to enable us to combine OSGi Bundles to form

different versions (customization). From the

viewpoint of SPL the Web Shop application satisfies

a large amount of variabilites (18 optional and

alternative features) and complex dependencies

between them.

The SPL derivation process demands the

resolving of all feature dependencies in both

problem space and solution space in order to

guarantee the reliability of the derived product.

Looking for the derivation of the Web Shop case

study, if we desire a product with registered

checkout feature, it also must have the register

customers feature. Looking for this constraint on

solution space, the components that implement the

registered checkout feature depend, indirectly, on

the components that implement the customer

services. To derive a product from the Web Shop

application the application engineer may configure,

by hand, four Spring application context and

MANIFEST files, one of these for each Bundle,

resolving the dependencies and configuration.

Moreover, he needs to know how to separate the

SPL’s implementations elements in their respective

Bundles.

Without the aid of an automated tool, is evident

that the number of variabilites, dependencies

between features, and the amount of configuration

files and code assets become the manually process

of derive a Spring/OSGi product time consume and

non trivial. Thus, it is clear that we need

appropriated mechanism for enable automatic

product derivation of Spring/OSGi applications and

product lines.

In this context, section 4 details an extension of

the GenArch tool specific for automate product

derivation and variability management of

Spring/OSGi based applications and product lines.

Firstly, in next section, we give an overview of our

model-based product derivation approach.

3 GENARCH – A MODEL-BASED

PRODUCT DERIVATION TOOL

GenArch (Cirilo et al., 2007) is a model-based tool

that enables the mainstream software developer

community to use the concepts and foundations of

the SPL approach in the product derivation process

(Czarnecki and Eisenecker, 2000). The main idea is

to provide conveniences for developers create a set

of simple derivation models from existing

implementation assets made available during the

SPL development. In this section, we give an

overview of the derivation approach implemented by

GenArch tool.

3.1 Approach Overview

GenArch implements a model-based software

product line derivation approach founded on

generative programming (Czarnecki and Eisenecker,

2000). Based on three main steps: (i) automatic

models construction; (ii) artifacts synchronizations;

and (iii) product derivation; our approach offers a

code-oriented variability management which

supports automatic product derivation. The

variability management in GenArch is accomplished

by three models: (i) implementation model (solution

space); (ii) feature model (problem space); and (iii)

configuration model (configuration knowledge).

ICEIS 2009 - International Conference on Enterprise Information Systems

230

The implementation model defines a visual

representation of the SPL implementation elements

(classes, aspects, templates, configuration and extra

files) in order to relate them to feature models.

Feature models (Czarnecki and Eisenecker, 2000)

are used in our approach to represent the variabilities

that exist in SPL architectures. The configuration

model is responsible to define the mapping between

features and implementation elements. It represents

the configuration knowledge from the generative

programming (Czarnecki and Eisenecker, 2000),

being fundamental to link the problem space

(features) to the solution space (implementation

elements).

The approach steps were implemented in

GenArch through three modules: (i) importing

module; (ii) synchronizer module; and (ii) derivation

module. The importing module enables the creation

of initial versions of the derivation models by

parsing the code assets that implement the SPL

architecture. Initially, in the importing process, the

domain engineers are responsible to annotate the

existing code (classes, interfaces and aspects) of

SPL architectures using GenArch annotations. Two

kinds of annotations are supported by our tool

@Feature and @Variability.

During the importing process, the GenArch tool

parses all the implementation elements from specific

directories, including all the annotations created

inside the implementation elements, and it generates

initial versions of the derivation models. In this

parsing step, each

@Feature annotation

encountered demands the creation of: (i) a new

feature in the feature model; and (ii) a mapping

relationship between the feature created and the

respective implementation element annotated, in the

configuration model. The GenArch tool also

generates code templates based on the

@Variability annotation. Code templates are used

to implement variabilities which will be customized

based on information collected by models instances

during application engineering. Every code template

created by our tool is included in the product line

implementation model and a dependency

relationship with a feature is created in the

configuration model. The feature related with the

code template is specified directly in the

@Variability annotation. After the generation of

the initial versions of GenArch derivation models,

the domain engineer can refine them by including,

modifying or removing any feature, implementation

element or mapping relationship. The GenArch tool

defines a specific module, called synchronizer, to

keep the consistency between its derivation models

and the code assets that implements the SPL

architecture. The synchronizer is responsible to

observe changes in the code assets and automatically

reflects these changes to the models.

The derivation module is responsible to produce

an instance of the derivation models and customize

the requested product. In the first step of the

derivation process the application engineer must

choose and configure features by means of the

specification of a feature model configuration. The

customization and compositions of the SPL

architecture are driven by this feature model

configuration, in a next step. GenArch perform this

step by deciding which implementation elements

must to be instantiated to constitute the product and

by customizing classes, aspects or configuration

files. Each element that must be customized is

represented by a template. Each template uses

information collected by the instance of the

derivation models to customize its respective

variable parts of code. The derivation process in

GenArch is concluded with code generation based

on the processing of templates. Both selected and

generated code assets are loaded in a specific source

folder of a specified Eclipse Java project. The

complete algorithm used by GenArch tool can be

found in (Cirilo et al., 2007) .

Figure 1: EShop Spring-OSGi architecture model.

4 INTEGRATING SPRING/OSGI

IN THE GENARCH TOOL

Section 3 illustrated how SPL architectures based on

the adoption of typical code assets (classes, interfa-

AUTOMATIC DERIVATION OF SPRING-OSGI BASED WEB ENTERPRISE APPLICATIONS

231

ces, aspects and extra files) can be addressed by

GenArch tool. In this section, we describe how our

tool was extended to address the derivation of

Spring/OSGi based enterprise applications.

4.1 Extending GenArch Tool to

Support Spring/OSGi

In order to enable automatic product derivation of

Spring/OSGi applications, we extended the GenArch

tool to incorporate a Spring-OSGi-specific

architecture model (Figure 1). This model provides:

(i) a vision of the SPL architecture implementation

in the level of Spring/OSGi components; and (ii) a

concise way to document and trace Spring/OSGi

architecture level variability. Tracing features in

SPL development at different levels can help

engineers to better analyze the features covering and

the impact of changing requirements. The use of

Spring-OSGi architecture models also allows

GenArch working not only with Java and AspectJ

elements, as described in Section 3, but also with

Beans, Bundles and the respective Spring and OSGi

configuration files in the derivation process.

The Spring-OSGi architecture model (Figure 2)

expresses OSGi Bundles by means of their name,

contents and dependency Bundles. The Bundle’s

content encompasses components, classes, folders,

files and configuration files. If the Bundle depends

on other existing ones, the list of required Bundles

can also be specified. This last property is essential

for GenArch figures out which Bundles need to be

part of the application under customization. Spring

Beans are expressed by their variants, where each

variant is identified by a name and can be related

with other dependent Beans. GenArch uses the

concept of Bean Variant to distinguish between

different implementations of an interface.

Figure 1 shows the Spring-OSGi architecture

model instantiated for the EShop application. It

encompasses the four Bundles that modularize this

application. For the

eshop Bundle, for example, the

model describes: (i) the packages (components) and

folder that implement it; (ii) the required Bundles;

and (iii) the Spring Beans that are modularized by

the Bundle.

The Spring/OSGi extension also allows the

domain engineer to define different levels of

configuration. Fine-grained configurations can be

created by the default mapping relationships of

specific implementation elements (classes, aspects,

GIF files) to any product line feature (Cirilo et al.,

2007). Cross-grained mapping relationships of both

Spring Beans and OSGi Bundles to product line

features can be defined by domain engineers in a

new view into the configuration model (Figure 2).

Figure 2 shows, for example, that the

eshop.payment Bundle depends on the Payment

optional feature and that the

CreditCardService,

DebitCardService, and PayPalService

payment services Bundles depend on, respectively,

the

Credit Card, Debit Card and PayPal alternative

features.

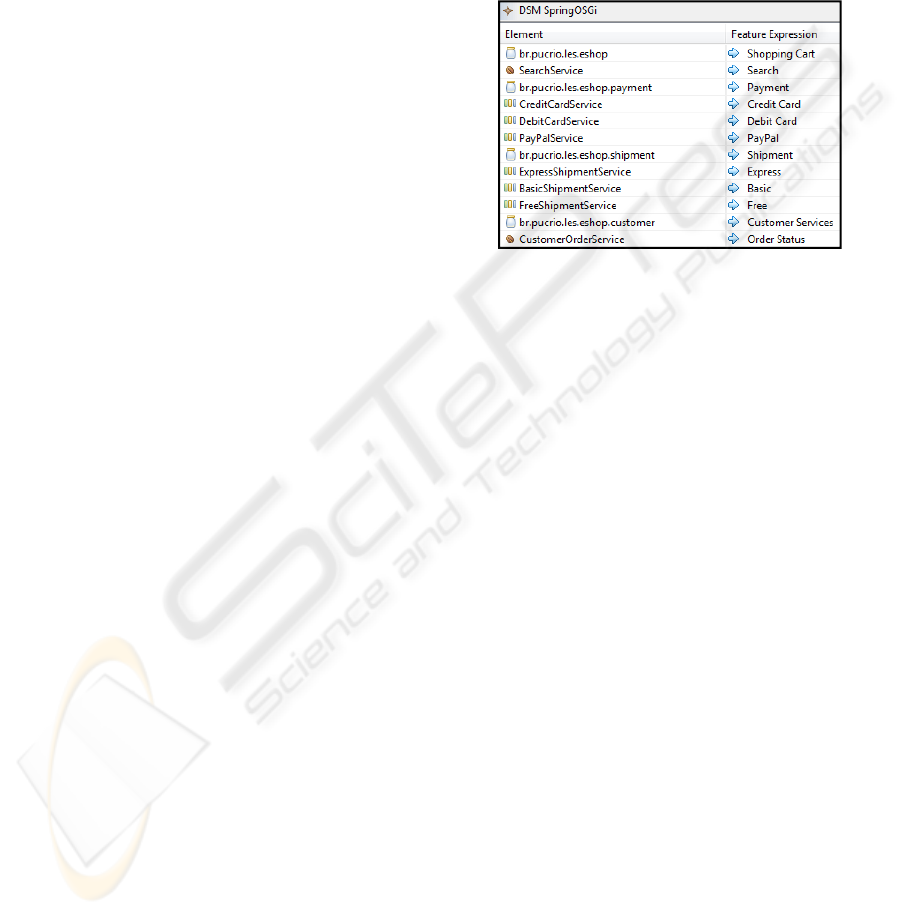

Figure 2: Spring-OSGi configuration knowledge.

This knowledge is used during the derivation

process and enables GenArch to customize

applications at different levels, such as: (i) the

definition of resources (classes, files, etc) that

compose the Bundles, specified on the traditional

view; and (ii) the definition of Bundles and Beans

that will be part of the final application. In section

4.3, we describe how GenArch use them to

automatically derivate customized products.

4.2 Automatic Parsing of Spring/OSGi

Applications

Once the main target of GenArch approach is to

provide functionalities for parsing code assets

metadata in order to automatic generate an initial

version of the derivation models. We have extended

this mechanism to also accomplish parsing of both

Spring/OSGi specific code assets (Spring application

context and OSGi Manifest configuration files) and

Spring-specific Java annotations.

We created a new Java annotation, called

@SpringBean. It is used to specify the Bean name,

a version name, and the Bundle name. Thus, based

on this metadata, Spring Bean abstractions can be

created in the Spring-OSGi architecture model by

parsing the Java classes marked with this annotation.

It follows the same approach described in Sction 3.

The use of this annotation also informs for GenArch

that the annotated class is the realization of a

specific Bean. So, based on this information,

ICEIS 2009 - International Conference on Enterprise Information Systems

232

GenArch can also infer mapping between Beans and

class elements.

Each MANIFEST file in the project demands the

creation of a Bundle element in the Spring-OSGi

architecture model. Each subelement of the Bundle

abstraction is created by parsing the

Bundle-Name,

Require-Bundle, and Export-Package

properties. The content of the

Export-Package is

used by GenArch to infer the relationship between

Bundles and implementation elements (package, in

this case). The

Require-Bundle provides the list

of dependency Bundles. And, the

Bundle-name is

used for both identify the Bundle element in the

Spring-OSGi architecture model and to name the

respective jar file during the derivation process.

After the creation of the initial version of the

derivation models, the domain engineers must verify

the adhesion of the generated models with the SPL

specification, and if necessary they can perform, by

hand, some activities such as: inclusion, moving or

exclusion of any model’s element and mapping

relationship between them.

4.3 Automatic Derivation of

Spring/OSGi Applications

Besides the tasks that are realized during the

common derivation process described in Section 3.1,

we incorporate new ones that are specific to

customize Spring/OSGi artifacts: (i) spring

configuration files; and (ii) OSGi MANIFEST files.

Each Spring configuration file (application

context) must be defined as a template in our

approach. During the product derivation process,

this template is processed to customize its respective

variabilities – XML tags that describe the Beans of

the SPL architecture. Spring applications context are

processed in two main steps: (i) decision of Beans

that will compose the final application; and (ii)

customization of the respective Bean’s tags – it

means that the code of a Bean tag, whose Bean class

depends on specific features, is only included in the

Spring configuration file of a product, if the

corresponding feature is selected.

During the derivation process, the GenArch tool

also decides based on the feature selection, which

Bundles will compose the final product. For each

Bundle to be included in the product being

generated, the GenArch tool proceeds in the

following way: (i) it creates an Eclipse plug-in

project; (ii) it loads the selected implementation

elements and template generated elements in this

Eclipse project; and finally, (iii) it customizes the

Require-Bundle and Export-Package fields in

the OSGi manifest file. Different from the previous

versions of GenArch, which demands the derivation

of only one Eclipse Java project, the OSGi extension

generates one Eclipse project per Bundle.

5 CONCLUDING REMARKS AND

FUTURE WORKS

In this paper, we presented an extension to GenArch,

a model-based tool, that addresses the product

derivation and automatic instantiation of product

lines or customizable applications implemented

using the mechanisms available in Spring and OSGi.

Automatic mechanisms are used to generate partial

version of these models based on the specific

artifacts (configuration and manifest files) and Java

annotations.

As future work, we are interested: (i) in studying

the incorporation in our approach of domain-specific

languages that models behavioral semantics -

currently, our approach is only involved with the

definition of languages that capture static semantics

of the requirements and features of the SPL

architecture; (ii) enable specific architecture models

composition. Finally, we intend to apply the tool in

more complex SPL case studies.

REFERENCES

Cirilo, Elder, Kulesza, Uirá and Lucena, Carlos. A Product

Derivation Tool Based on Model-Driven Techniques

and Annotations. Journal of Universal Computer

Science. 2007, Vol. 14, 8, pp. 1344-1367.

Czarnecki, Krzysztof and Eisenecker, Ulrich. Generative

Programming: Methods, Tools, and Applications. s.l. :

Adisson-Wesley, 2000. 0201309777.

Burke, Bill and Monson-Haefel, Richard. Enterprise

JavaBeans 3.0. s.l. : O'Reilly Media, Inc., 2006.

059600978X.

OSGi. [Online] http://www.osgi.org.

Spring Framework. [Online] http://www.spring

framework.org.

Spring Dynamic Modules. [Online] http://www.spring

framework.org/osgi.

Stahl, Thomas and Voelter, Markus. Model-Driven

Software Development: Technology, Engineering,

Management . s.l. : Wiley, 2006. 0470025700.

Johnson, Rod. Expert One-on-One J2EE Design and

Development (Programmer to Programmer). s.l. :

Wrox, 2002. 0764543857.

Clements, Paul and Northrop, Linda. Software Product

Lines: Practices and Patterns. s.l. : Addison-Wesley

Professional, 2001. 0201703327.

AUTOMATIC DERIVATION OF SPRING-OSGI BASED WEB ENTERPRISE APPLICATIONS

233
