REVERSE ENGINEERING A DOMAIN ONTOLOGY TO

UNCOVER FUNDAMENTAL ONTOLOGICAL DISTINCTIONS

An Industrial Case Study in the Domain of Oil and Gas

Production and Exploration

Mauro Lopes

, Giancarlo Guizzardi

, Fernanda Araujo Baião

and Ricardo Falbo

NP2Tec – Research and Practice Group in Information Technology,

Federal University of the State of Rio de Janeiro (UNIRIO), Rio de Janeiro, Brazil

Ontology and Conceptual Modeling Research Group (NEMO), Computer Science Department

Federal University of Espírito Santo (UFES), Vitória, Brazil

Keywords: Ontology, Ontology Languages, Conceptual modelling, Oil and Gas domain.

Abstract: Ontologies are commonly used in computer science either as a reference model to support semantic

interoperability in several scenarios, or as a computer-tractable artifact that should be efficiently represented

to be processed. This duality poses a tradeoff between expressivity and computational tractability that

should be taken care of in different phases of an ontology engineering process. In this scenario, the choice

of the ontology representation language is crucial, since different languages contain different expressivity

and ontological commitments, reflecting on the specific set of available constructs. The inadequate use of a

representation language, disregarding the goal of each ontology engineering phase, can lead to serious

problems to database design and integration, to domain and systems requirements analysis within the

software development processes, to knowledge representation and automated reasoning, and so on. This

article presents an illustration of these issues by using a fragment of an industrial case study in the domain

of Oil and Gas Exploration and Production. We make explicit the differences between two different

representations of this domain, and highlight a number of concepts and ideas (tacit domain knowledge) that

were implicit in the original model represented using a lightweight ontology language and that became

explicit by applying methodological directives underlying an ontologically well-founded modeling

language.

1 INTRODUCTION

There are two common trends in the traditional use

of the term ontology in computer science: (i) firstly,

ontologies are typically regarded as an explicit

representation of a shared conceptualization, i.e., a

concrete artifact representing a model of consensus

within a community and a universe of discourse. In

this sense of a reference model, an ontology is

primarily aimed at supporting semantic

interoperability in its various forms (e.g, model

integration, service interoperability, knowledge

harmonization, and taxonomy alignment); (ii)

secondly, the discussion regarding representation

mechanisms for the construction of domain

ontologies is, typically, centered on computational

issues, not truly ontological ones. An important

aspect to be highlighted is the incongruence between

these two approaches. In order for an ontology to be

able to adequately serve as a reference model, it

should be constructed using an approach that

explicitly takes foundational concepts into account;

this, however, is neglected for the sake of

computational complexity.

The use of foundational concepts that take truly

ontological issues seriously is becoming more and

more accepted in the ontological engineering

literature, i.e., in order to represent a complex

domain, one should rely on engineering tools (e.g.,

design patterns), modeling languages and

methodologies that are based on well-founded

ontological theories in the philosophical sense

(Fielding,2004; Burek, 2006). Especially in a

domain with complex concepts, relations and

constraints, and with potentially serious risks which

could be caused by interoperability problems, a

262

Lopes M., Guizzardi G., Araujo Baião F. and Falbo R. (2009).

REVERSE ENGINEERING A DOMAIN ONTOLOGY TO UNCOVER FUNDAMENTAL ONTOLOGICAL DISTINCTIONS - An Industrial Case Study in the

Domain of Oil and Gas Production and Exploration.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

262-267

DOI: 10.5220/0002014902620267

 SciTePress

supporting ontology engineering approach should be

able to: (a) allow the conceptual modelers and

domain expert to be explicit regarding their

ontological commitments, which in turn enables

them to expose subtle distinctions between models

to be integrated and to minimize the chances of

running into a False Agreement Problem (Guarino,

1998); (b) support the user in justifying their

modeling choices and providing a sound design

rationale for choosing how the elements in the

universe of discourse should be modeled in terms of

language elements.

This marks a contrast to almost all languages

traditionally used for knowledge representation and

conceptual information modeling, in general, and in

the semantic web, in particular (RDF, OWL, F-

Logic, UML, EER). Although these languages

provide the modeler with mechanisms for building

conceptual structures (taxonomies or partonomies),

they offer no support neither for helping the modeler

on choosing a particular structure to model elements

of the subject domain nor for justifying the choice of

a particular structure over another. Finally, once a

particular structure is represented, the ontological

commitments which are made remain, in the best

case, tacit in the modelers’ mind. In the worst case,

even the modelers and domain experts remain

oblivious to these commitments.

An example of an ontologically well-founded

modeling language is the one proposed in

(Guizzardi, 2005), which is here dubbed OntoUML.

This language has its real-world semantics defined

in terms of a number of ontological theories, such as

theory of parts, of wholes, types and instantiation,

identity, dependencies, unity, etc. However, in order

to be as explicit as possible regarding all the

underlying subtleties of these theories (e.g., modal

issues, different modes of predication, higher-order

predication), this language strives for having its

formal semantics defined in a logical system as

expressively as possible. Now, as well understood in

the field of knowledge representation, there is a clear

tradeoff between logical expressivity and

computational efficiency (Levesque & Brachman,

1987). In particular, any language which attempts at

maximizing the explicit characterization of the

aforementioned ontological issues risk sacrificing

reasoning efficiency and computational tractability.

In contrast, common knowledge representation and

deductive database languages (e.g., some instances

of Description Logics) have been designed to afford

efficient automated reasoning and decidability.

In summary, ontology engineering must face the

following situation: on one side, we need

ontologically well-founded languages supported by

expressive logical theories in order to produce sound

and clear representations of complex domains; on

the other side, we need lightweight ontology

languages supported by efficient computational

algorithms. How to reconcile these two sets of

contradicting requirements? As advocated by

(Guizzardi & Halpin, 2008), actually two classes of

languages are required to fulfill these two sets of

requirements. Moreover, as any other engineering

process, an ontology engineering process lifecycle

should comprise phases of conceptual modeling,

design, and implementation. In the first phase, a

reference ontology is produced aiming at

representing the subject domain with truthfulness,

clarity and expressivity, regardless of computational

requirements. The main goal of these reference

models is to help modelers to externalize their tacit

knowledge about the domain, to make their

ontological commitments explicit in order to support

meaning negotiation, and to afford as best as

possible the tasks of domain communication,

learning and problem solving. The same reference

ontology can then give rise to different lightweight

ontologies in different languages (e.g., F-Logic,

OWL-DL, RDF, Alloy, and KIF) so as to satisfy

different sets of non-functional requirements.

Defining the most suitable language for codifying a

reference ontology is then a choice to be made at the

design phase, by taking both the end-application

purpose and the tradeoff between expressivity and

computational tractability into account.

In this article, we illustrate the issues at stake in

the aforementioned tradeoff by briefly discussing a

fragment of an industrial case study in the domain of

Oil and Gas Exploration and Production. However,

since we were dealing with an existing OWL-DL

codified ontology, we had to reverse the direction of

model development. Instead of producing a

reference model in OntoUML which would then

give rise to an OWL-DL codification, we had to start

with an OWL-DL ontology and apply a reverse

engineer process to it in an attempt to reconstruct the

proper underlying reference model in OntoUML. By

doing this, we manage to show how much of

important domain knowledge had either been lost in

the OWL-DL codification or remained tacit in the

mind of the domain experts.

The article is organized as follows. Section 2

briefly characterizes the domain and industrial

setting in which the case study took place, namely,

the domain of oil and gas exploration and production

and in the context of a large Brazilian Petroleum

Organization. Section 3 illustrates the reengineering

REVERSE ENGINEERING A DOMAIN ONTOLOGY TO UNCOVER FUNDAMENTAL ONTOLOGICAL

DISTINCTIONS - An Industrial Case Study in the Domain of Oil and Gas Production and Exploration

263

of the original lightweight ontology and its well-

founded version represented in OntoUML. Section 4

discusses some final considerations.

2 THE CASE STUDY DOMAIN

AND SETTINGS

The oil and gas industry is a potentially rich domain

for application of ontologies, since it comprises a

large and complex set of inter-related concepts.

Ontology-based approaches for data integration and

exchange involves the use of ontologies of rich and

extensive domains combined with industry patterns

and controlled vocabularies, reflecting relevant

concepts within this domain (Chum, 2007).

According to Chum, the motivating factors for the

use of ontologies in the oil and gas industry include:

(i) the great data quantity generated each day,

coming from diverse sources, involving different

disciplines, which hardens the data integration task;

(ii) the existence of data in different formats, both

structured in databases and semi-structured in

documents, which hardens data search and access;

and (iii) the need for standardization and integration

of information along the frontiers of systems,

disciplines and organizations, to better support

decision-making processes.

The case study reported in this paper was

conducted in a large Brazilian Petroleum

Corporation, by analyzing and redesigning a pre-

existing ontology in the domain of Oil and Gas

Exploration and Production, henceforth named

E&P-Reservoir Ontology. Due to the extensiveness

and complexity of this domain, only a small part of

it was addressed in the initial version of this

ontology, namely, the “Reserve Assessment” sub

domain, and the “Mechanical pump” sub domain.

The knowledge acquisition process used to create

the original E&P-Reservoir Ontology ontology was

conducted via the representations of business

process models following the approach proposed in

(Cappelli et al., 2007) and extended in (Baião et al,

2008). The original ontology was codified in OWL-

DL comprising 178 classes, which together

contained 55 data type properties (OWL

datatypeProperties) and 96 object properties (OWL

objectProperties).

In a nutshell, a Reservoir is composed of

Production Zones and organized in Fields –

geographical regions managed by a Business Unit

and containing a number of Wells. Reservoirs are

filled with Reservoir Rock – a substance composed

of quantities of Oil, Gas and Water. Production of

Oil and Gas from a Reservoir can occur via different

lifting methods (e.g., natural lifting, casing’s

diameter, sand production, among others) involving

different Wells. One of these artificial lifting

methods is the Mechanical Pump. The simultaneous

production of oil, gas and water occurs in

conjunction with the production impurities. To

remove these impurities, facilities are adopted on the

fields (both off-shore and on-shore), including the

transfer of hydrocarbons via Ducts to refineries for

proper processing. The notion of Reserve

Assessment refers to the process of estimating, for

each Exploration Project and Reservoir, the

profitable recoverable quantity of hydrocarbons (Oil

and Gas) for that given reservoir. The Mechanical

Pump sub domain ontology, in contrast, defines a

number of concepts regarding the methods of fluid

lifting, transportation, and other activities that take

place in a reservoir during the production process.

For a more extensive definition of the concepts

in this domain, one should refer, for instance, to

(Thomas, 2001) or to The Energy Standard

Resource Center (www.energistics.org).

3 REVERSE ENGINEERING THE

E&P-RESERVOIR ONTOLOGY

In this section, we briefly discuss some of the results

of producing an OntoUML version of the original

E&P-Reservoir ontology in this domain. In

particular, we focus at illustrating a couple of

important concepts in this domain which were

absent in the original OWL model and remained

tacit in the domain experts’ minds, but which

became manifest by the application of

methodological directives underlying OntoUML.

The reverse engineering process was conducted by

systematically searching for the real-world

semantics of each concept in the original ontology.

This, in turn, was done by analyzing the meta-

properties defined for each construct of the

OntoUML language in (Guizzardi, 2005) so as to

decide the most adequate element to represent the

concept.

This section does not aim at serving as an

introduction to OntoUML. In fact, due to space

limitations we will focus here on one specific

ontological distinction, namely, the distinction

between formal and material relations and the

associated notion of relators (Guizzardi & Wagner,

2008).

ICEIS 2009 - International Conference on Enterprise Information Systems

264

3.1 Making the Real-world Semantics

of Relationships Explicit

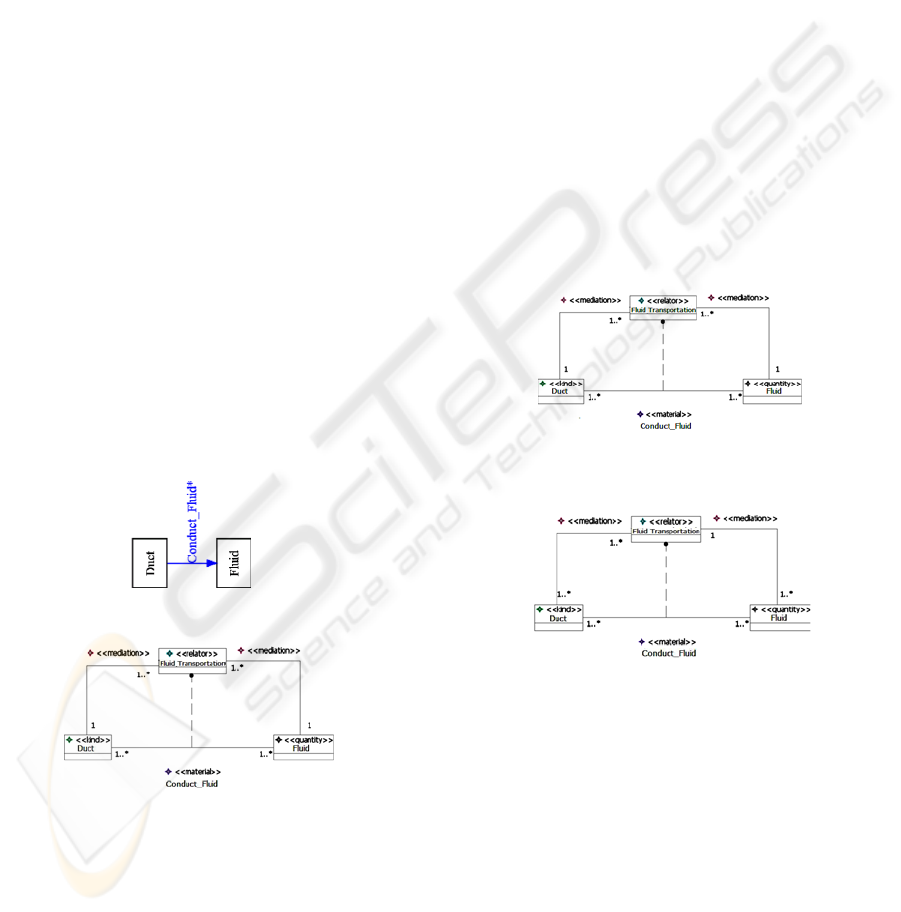

Figure 1 depicts a fragment of the original E&P-

Reservoir Ontology and figure 2 depicts the

corresponding redesigned fragment in OntoUML.

The OntoUML language, with its underlying

methodological directives, makes an explicit

distinction between the so-called material and

formal relationships. A formal relationship can be

reduced to relationships between intrinsic properties

of its relata. For example, a relationship more-dense-

than between two fluids can be reduced to the

relationship between the individual densities of the

involved fluids (more-dense-than(x,y) iff the density

of x is higher than of y’s), In contrast, material

relationships cannot be reduced to relationships

between individual properties of involved relata in

this way. In order to have a material relationship

established between two concepts C1 and C2,

another entity must exist that make this relationship

true. For example, we can say that the Person John

works for Company A (and not for company B) if an

employment contract exists between John and

Company A which makes this relationship true. This

entity, which is the truthmaker of material

relationships, is termed relator in OntoUML and the

language determines that these relators must be

explicitly represented on the models (Guizzardi &

Wagner, 2008).

Figure 1: Representation of Fluid transportation (OWL).

Figure 2: Alternative Representation of Fluid

transportation (OntoUML).

The Conduct_Fluid relationship of figure 1 is an

example of a material relationship. This relationship

only takes place (i.e., the Conduct_Fluid relationship

is only established) between a specific duct x and a

specific portion of fluid y, when there is at least a

fluid transportation event that involves the

participation of x and y.

Besides making explicit the truthmakers of these

relations, one of the major advantages of the explicit

representation of relators is to solve an inherent

ambiguity of cardinality constraints that exists in

material relationships. Take for example the

cardinality constraints of one-to-many represented

for the relationship Conduct_Fluid in figure 1

(minimum cardinality constraints are not shown).

There are several possible interpretations for this

model which are compatible with these cardinality

constraints but which are mutually incompatible

among themselves. Two of these interpretations are

depicted in figures 3 and 4.

On the model of figure 3, given a fluid

transportation event, we have only one duct and only

one portion of fluid involved; both fluid and duct

can participate in several transportation events. In

contrast, on the model of figure 4, given a fluid

transportation event, we have possibly several ducts

and portions of fluid involved; a duct can be used in

several transportation events, but only one fluid can

take part on a fluid transportation.

Figure 3: Interpreting Fluid transportation with unique

Duct and Fluid.

Figure 4: Interpreting Fluid transportation with multiples

Ducts and Fluids.

When comparing these two models in OntoUML

we can see that the original model collapses these

two interpretations (among others) in the same

representation, which have substantially different

semantics. This semantic overload can be a source of

many interoperability problems between

applications. In particular, applications that use

different models and that attach distinct semantics to

relationships such as discussed above can wrongly

assume that they agree on the same semantics (an

example of the previously mentioned False

Agreement Problem).

REVERSE ENGINEERING A DOMAIN ONTOLOGY TO UNCOVER FUNDAMENTAL ONTOLOGICAL

DISTINCTIONS - An Industrial Case Study in the Domain of Oil and Gas Production and Exploration

265

Finally, in the OntoUML models in this section,

the dotted line with a filled circle on one of its

endings represents the derivation relationship

between a relator type and the material relationship

derived from it (Guizzardi, 2005). For example, the

derivation relationship Fluid Transportation (relator

type) and Conduct_Fluid (material relationship)

represents that for all x, y we have that: <x,y> is an

instance of Conduct_Fluid iff only there is an

instance z of Fluid Transportation that mediates x

and y. As discussed in depth in (Guizzardi, 2005),

mediation is a specific type of existential

dependence relation (e.g., a particular Fluid

Transportation can only exist if that particular Duct

and that particular Fluid exist). Moreover, it also

demonstrated that the cardinality constraints of a

material relationship R derived from a relator type

can be systematically derived from the

corresponding mediaton relationships between U

and the types related by R. In summary, a relator is

an entity which is existentially dependent on a

number of other individuals, and via these

dependency relationships it connects (mediates)

these individuals. Given that a number of individuals

are mediated by a relator, a material relationship can

be defined between them. As this definition makes

clear, relators are ontologically prior to material

relationships which are mere logical/linguistic

constructions derived from them (Guizzardi, 2005).

To put it in a different way, knowing that x and y are

related via R tells you very little unless you know

what are the conditions (state of affairs) that makes

this relationship between this particular tuple true.

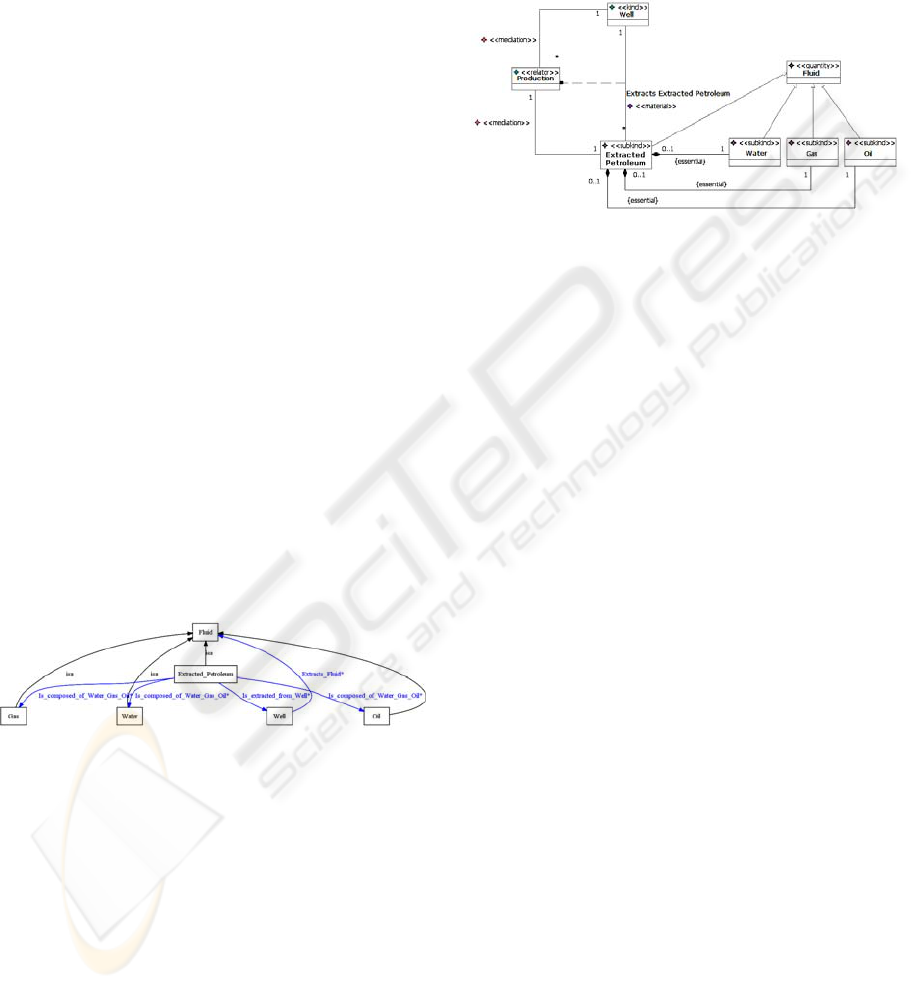

Figure 5: Representation of Fluid and related notions in

the original OWL ontology.

Another example of a material relation is the

Extracts_Fluid relationship between Fluid and Well

in the model of figure 5. Once more, following the

methodological directives of the language, the

modeling process seeks to make explicit which

would be the relator that would substantiate that

relationship. The conclusion that one would come is

that the relationship Extracts_Fluid(x,y) is true iff

there is a Production event involving the Well x

from where the Fluid y is produced. The semantic

investigation of this relationship makes explicit that

the resulting fluid of this event in fact only exists

after the occurrence of this event. In other words, the

portion of the Extracted Petroleum only exists after

it is produced from the event of production

involving a well. Therefore, a mixture of water, gas

and oil is considered Extracted Petroleum only when

it is produced by an event of this kind.

Figure 6: The Representation of Fluid and related notions

in the re-designed ontology (OntoUML).

In the model of figure 6, the original

Extract_Fluid relationship between Well and Fluid

and the Is_extracted_from_Well relationship

between Extracted Petroleum and Well on the

original ontology are replaced by the material

relationship Extracts_Extracted_Petroleum between

Well and Extracted Petroleum and by the partOf

relationships between the Extracted Petroleum

portion and its sub portions of Water, Gas and Oil.

This representation has the additional benefit of

making clear that an event of Production has the

goal of generating an Extracted Petroleum portion

that is composed of particular portions of these Fluid

types and not by directly extracting portions of these

other types of fluid. Finally, as previously discussed,

the explicit representation of the Production relator

makes the representation of the cardinality

constraints involving instances of Well and

Extracted Petroleum precise, eliminating the

ambiguity on the representation of the Extract_Fluid

relationship on the original model.

4 FINAL CONSIDERATIONS

An ontology engineering process is composed of

phases, among them conceptual modeling and

implementation. During the whole process, the

ontology being built must be made explicit by a

representation language. The diverse ontology

representation languages available on the literature

contain different expressivity and different

ontological commitments, reflecting on the specific

set of available constructs in each one of them.

Therefore, different ontology representation

ICEIS 2009 - International Conference on Enterprise Information Systems

266

languages, with different characteristics, are suitable

to be used in different phases of the ontology

engineering process so as to address the different set

of requirements which characterizes each phase.

In particular, conceptual ontology modeling

languages aim primarily at improving

understanding, learning, communication and

problem solving among people in a particular

domain. Therefore, these languages have being

designed to maximize expressivity, clarity and

truthfulness to the domain being represented. In

contrast, ontology codification languages are

focused on aspects such as computational efficiency

and tractability and can be used to produce

computationally amenable versions of an

ontologically well-founded reference conceptual

model. The inadequate use of a representation

language, disregarding the goal of each ontology

engineering phase, can lead to serious problems to

database design and integration, to domain and

systems requirements analysis within the software

development processes, to knowledge representation

and automated reasoning, and so on.

This article presents an illustration of these

issues by using a fragment of an industrial case

study in the domain of Oil and Gas Exploration and

Production. The case study consists in generating a

Conceptual Ontological Model for this domain from

an existing domain ontology.

The ontology representation language used to

produce the redesigned model was OntoUML, a

theoretically sound and highly expressive language

based on a number of Formal Ontological Theories.

The choice of this language highlights a number of

explicit concepts and ideas (tacit domain

knowledge) that were implicit in the original model

coded in OWL-DL. By making these concepts

explicit as well as defining a precise real-world

semantics for the notions represented, the newly

E&P-Reservoir ontology produced in OntoUML

prevents a number of ambiguity and interoperability

problems which would likely be carried out to

subsequent activities (e.g., database design) based on

this model.

ACKNOWLEDGEMENTS

The authors would like to thank Petrobras for the

case study.

REFERENCES

Artale, A., Keet, M., 2008. Essential and Mandatory Part-

Whole Relations in Conceptual Data Models, 21

Int

Workshop Description Logics.

Baião, F. et al., 2008. Towards a Data Integration

Approach based on Business Process Models and

Domain Ontologies. 10

Int Conf on Enterprise IS

(ICEIS2008), Barcelona, 338-342.

Burek, P. et al., 2006. A top-level ontology of functions

and its application in the Open Biomedical Ontologies.

Bioinformatics 22(14), pp. e66-e73.

Cappelli, C. et al., 2007. An Approach for Constructing

Domain Ontologies from Business Process Models (in

Portuguese), II Workshop on Ontologies and

Metamodeling in Software and Data Engineering

(WOMSDE), João Pessoa.

Chum, F., 2007. Use Case: Ontology-Driven Information

Integration and Delivery - A Survey of Semantic Web

Technology in the Oil and Gas Industry, W3C.

Available in:

http://www.w3.org/2001/sw/sweo/public/UseCases/Ch

evron/. Accessed in Dec 2007.

Fielding, J. et al., 2004. Ontological Theory for Ontology

Engineering. Int Conf. on Principles of Knowledge

Representation and Reasoning (KR 2004), Canada.

Guarino, N., 1998, Formal Ontology and Information

Systems. 1st Int Conf on Formal Ontologies in

Information Systems, 3-15, Trento.

Guizzardi, G., 2005. Ontological Foundations for

Structural Conceptual Models, Telematica Instituut

Fundamental Research Series 15, ISBN 90-75176-81-

3, Universal Press.

Guizzardi, G.; Halpin, T., 2008. Ontological Foundations

for Conceptual Modeling, Applied Ontology 2 (1-2),

pp. 91-110, ISSN 1570-5838.

Guizzardi, G.; Wagner, G., 2008. What´s in a

Relationship: An Ontological Analysis, 27

International Conference on Conceptual Modeling (ER

2008), Barcelona. Lecture Notes in Computer Science,

v.5231, p.83 - 97, 2008.

das Graças, A. 2008. Extending a Model-Based Tool

for Ontologically Well-Founded Conceptual Modeling

with Rule Visualization Support. Computer

Engineering Monograph, NEMO Research Group,

Federal University of Espirito Santo, Brazil.

Keet, M.; Artale, A., “Representing and Reasoning over a

Taxonomy of Part-Whole Relations”, in Guizzardi, G.

and Halpin, T. (Editors), Special Issue on Ontological

Foundations for Conceptual Modeling, Applied

Ontology, pp. 91-110, Volume 3, Number 1-2 / 2008,

ISSN 1570-5838.

Levesque, H.; Brachman, R. 1987., Expressiveness and

Tractability in Knowledge Representation and

Reasoning. Computational Intelligence 3 (1), pp.78-

93.

Thomas, J. E., 2001, Fundamentals of Petroleum

Engineering, Interciência (in Portuguese).

REVERSE ENGINEERING A DOMAIN ONTOLOGY TO UNCOVER FUNDAMENTAL ONTOLOGICAL

DISTINCTIONS - An Industrial Case Study in the Domain of Oil and Gas Production and Exploration

267
