A BPMN BASED SECURE WORKFLOW MODEL

Li Peng

Software School, Hunan University, Changsha, Hunan, China

Keywords: Secure Workflow, Authorization, BPMN, Secure Workflow Model.

Abstract: Secure workflow has become an important topic in both academia and industry. A secure workflow model

can be used to analyze workflow systems according to specific security policies. This model is needed to

allow controlled access of data objects, secure execution of tasks, and efficient management and

administration of security. In this paper, I propose a BPMN-based secure workflow model to manage

specific processes such as authorizations in executing tasks and accessing documents. The secure workflow

model is constructed using BPMN-elements. The model is hierarchical and describes a secure workflow

system at workflow layer, task layer and data layer. This model ensures the security properties of workflows:

integrity, authorization and availability. Moreover, the model is easily readable and understandable.

1 INTRODUCTION

Secure workflow has become an important topic in

both academia and industry. A secure workflow

model can be used to analyze workflow systems

according to specific security policies. Since

workflows are managed and executed in a secure

way, the secure workflow model is needed to allow

controlled access of data objects, secure execution of

tasks, and efficient management and administration

of security (Joshi et al. 2001, Kang et al. 2001,

Thuraisingham et al., 2001).

The main security objectives of workflows

involve integrity, authorization and availability.

Integrity prevents the unauthorized modification of

information. In a workflow, authorization means that

no data or resource is accessed by unauthorized

agents at anytime. Moreover, availability implies

that a resource should be available when it is

needed.

In order to ensure these three security properties

of workflows, the secure workflow model should be

able to monitor the assignment of task(s) and data to

the agent(s). Thus, the model should describe when

and what task to be granted to the agent(s) and to be

revoked from the agent(s), as well as when and what

data and privilege(s) to be granted to the agent(s)

and also to be revoked from the agent(s) for

executing a task.

Most of the work done in the workflow research

area is concentrated on the infrastructure of WFMSs

(Workflow Management Systems) and transaction

management in workflow execution. The formal

models for secure workflows were developed based

on Petri nets or state machine, such as the Workflow

Authorization Model (WAM) (Atluri & Huang

1996, Atluri et al. 1997) and the multi-layered state

machine (Hung & Karlapalem, 2003). They are

either too complicated or not sufficient to describe

all aspects of a secure workflow. Since the BPMN

(Business Process Modelling Notation) is a standard

for modelling business process flows and workflows

from the aspects of event, task, agent and data, in

addition, the BPMN is a graphic notation and is

easily readable and understandable for all business

users, I choose BPMN as the basic model for the

secure workflows.

In this paper, I propose a BPMN based secure

workflow model to manage specific processes such

as authorizations in executing tasks and accessing

documents. In the rest of the paper, section 2

describes the related work, section 3 presents the

secure workflow model and section 4 concludes the

paper with a summary of the contributions of this

research.

2 RELATED WORK

There has been much research on secure workflows.

The Workflow Management Coalition (WfMC)

summarizes a number of security services (WfMC,

268

Peng L. (2009).

A BPMN BASED SECURE WORKFLOW MODEL.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

268-272

DOI: 10.5220/0002015702680272

 SciTePress

2001) for a conceptual workflow model including

authentication, authorization, access control, data

integrity, security management and administration.

Further, WfMC proposes an inter-operability

protocol to support workflow services. However,

WfMC does not consider the flow of authorizations

among parties, tasks and resources during the

workflow execution.

Discretionary Access Control (DAC) (Pernul,

1992) is used to control the access privileges from

subjects to objects. DAC defines what kind of access

a subject has to an object, and a set of predicates to

represent access rules such as read, write, delete,

create and copy. DAC only applies to control of

system-oriented resources like database, file system,

etc. Moreover, DAC cannot handle when to

grant/revoke the access rights of the object to/from

the subjects in this case.

The Workflow Authorization Model (WAM)

(Atluri & Huang, 1996, Atluri et al., 1997) presents

a conceptual, logical and execution model which

concentrates on the enforcement of authorization

flow in task dependency and transaction processing

by using Petri Nets (PN). WAM defines the static

parameters of the authorization using an

Authorization Template (AT) during the build-time

of the workflow. Further, WAM extends the PN

model by proposing a multilevel secure workflow

transaction model which is based on colored and

timed PNs. The resulting PN is complex and special

algorithms are needed for its construction. Though

WAM discusses the synchronization of authorization

flow with the workflow and specification of

temporal constraints in a static approach, it is not

sufficient to support workflow security. WAM

grants all the authorizations to an agent once the task

starts execution and it revokes all the authorizations

from an agent once the task is completed, but it does

not monitor the event(s) during the execution of

task. WAM handles the security property of

Authorization and MLS handles the security

property of Integrity in the task dependencies, but

they do not handle the security property of

Availability( Hung & Karlapalem, 2003).

Hung & Karlapalem (Hung & Karlapalem, 2003)

developed a secure workflow model using a multi-

layered state machine to manage and monitor the

flow of authorizations at different layers for a secure

workflow execution. There are three layers in a

secure workflow: workflow, control and data. A

multi-layered state machine describes a system in

different layers and each layer is an abstract

mathematical state machine with a set of transition

functions. The interaction between two

mathematical state machines at different layers is

triggered by an event. Further, they described a set

of authorization functions to support the state

machine. In this model, sets of state variables,

functions and algorithms are defined. The model is

complicated.

A secure workflow model should ensure the

security properties of integrity, authorization and

availability. Moreover, it should be easily readable

and understandable. In this paper, I propose a secure

workflow model, which describes a secure workflow

from the aspects of task, agent, event and data.

3 SECURE WORKFLOW MODEL

Security is an essential and integral part of

workflows. A secure workflow model should not

only be able to manage and execute workflows

effectively, but also satisfy the security requirements.

3.1 Basic Concepts in Secure Workflow

Model

Workflow systems are software applications which

automate and streamline business processes. The

main elements of a workflow specification are: tasks,

control flow, subject, data items and data flow.

Formally, a workflow (W) is represented as a

partially ordered set of tasks (T) that is coordinated

by a set of events (E). The order of task execution is

orchestrated by matching the input and output

event(s) of each task. An event can be either a data

event or control event. Each task represents a piece

of work that needs to be done by an agent (A).

Further, a set of documents (D) need to be processed

by an agent during the task execution.

A secure workflow is a computer supported

business process that is capable to against security

threats and further satisfies the security requirements

defined by the workflow modeller (Hung &

Karlapalem, 2003).

In a secure workflow, a set of authorizations is

needed for executing tasks and accessing documents.

A secure workflow model needs to grant the agent

the authorization(s) to execute a task(s) or to revoke

the task from the assigned agent based on the

occurrence of a certain event(s). Furthermore, an

agent needs to get certain access privileges (PR)

(e.g., “read”, “write” and “read-write”) to a set of

documents (D) during the task execution. In other

words, the secure workflow model needs to grant the

document access privilege to the agent or to revoke

the document access privilege from the agent.

A BPMN BASED SECURE WORKFLOW MODEL

269

Therefore, the following entities are included in a

secure workflow: sets of tasks (T), events (E), agents

(A), documents (D) and privileges (PR), where

 T = {t

1, t2, …, tm},

 E = {e

1, e2, …, et},

 A = {a

1, a2, …, an},

 D = {d

1, d2, …, dp},

 PR = {pr

1, pr2, …, prq}.

In addition, a set of timestamps (TIME) are used

to give the current discrete time, where

 TIME = {time

1, time2, …, times}.

A secure workflow model can assign tasks (T) to

agents (A) and give agents (A) certain document

access privileges (PR). The authorization events for

task assignment and for document access privileges

are the following:

 grant(t, a, time), t∈T, a∈A, time∈

TIME.

 revoke(t, a, time), t∈T, a∈A, time∈

TIME.

 grant(d, pr, time), d∈D, pr∈PR, time

∈TIME.

 revoke(d, pr, time), d∈D, pr∈PR, time

∈TIME.

In a secure workflow, an agent can only execute

the assigned task if and only if the privilege

“execute” is granted. The secure workflow has to

revoke the privilege from an agent if the task has

completed execution or the time limit is exceeded.

Further, an agent can only access a document with a

specific privilege if and only if the document access

privilege is granted to the agent and also it is needed

to access the document with the privilege during the

task execution. The secure workflow has to revoke

the document access privilege from an agent if the

document access privilege is no longer needed.

3.2 Overview of the BPMN

The Business Process Modelling Notation (BPMN)

(BPMI.org & OMG, 2006) is a graph-oriented

language for executable business processes. The

BPMN model consists of four basic categories of

elements: Flow Objects, Connecting Objects,

Swimlanes and Artefacts. Events, Activities and

Gateways are three Flow Objects and also the main

graphical elements to define the behavior of a

business process. Sequence Flow, Message Flow

and Association are Connecting Objects which

connect the Flow Objects to each other or other

information. In the BPMN, there are two ways of

grouping the primary modeling elements through

“Swimlanes”: Pools and Lanes. Moreover, Artefacts,

such as Data Object, Group and Annotation are used

to provide additional information about the process.

An event is something that “happens” during the

course of a business process. There are three types

of events, based on when they affect the flow: Start,

Intermediate, and End. A Timer event indicates a

specific time-date being reached.

An activity is a generic term for work that

company performs. An activity can be atomic or

compound. The types of activities that are a part of a

process model are: Process, Sub-Process, and Task.

A Gateway is used to control the divergence and

convergence of sequence flow. Thus, it will

determine branching, forking, merging, and joining

of paths. A Pool represents a participant in a process.

3.3 The Hierarchical Secure Workflow

Model

The secure workflow model can be constructed by

using BPMN elements. In a workflow system, tasks,

events, agents and documents are represented by

BPMN-elements Tasks, Events, Pools and Data

Objects, respectively. The authorization events are

represented by Timer Events.

In particular, the secure workflow model is

hierarchical and constructed by using “Expand Sub-

Process”. An “Expand Sub-Process” means that the

boundary of the sub-process is expanded and the

details of the process are visible within its boundary.

In this model, an authorization process is described

at different layers: workflow layer, task layer and

data layer. The details of a process at workflow layer

are described at task layer by using an “Expand Sub-

Process”. Similarly, the details of a process at task

layer are described at data layer.

3.3.1 Workflow Layer

At workflow layer, a workflow consists of a set of

sub-processes that is interconnected by events.

These sub-processes are executed by a set of agents.

In this model, a sub-process can be an authorization

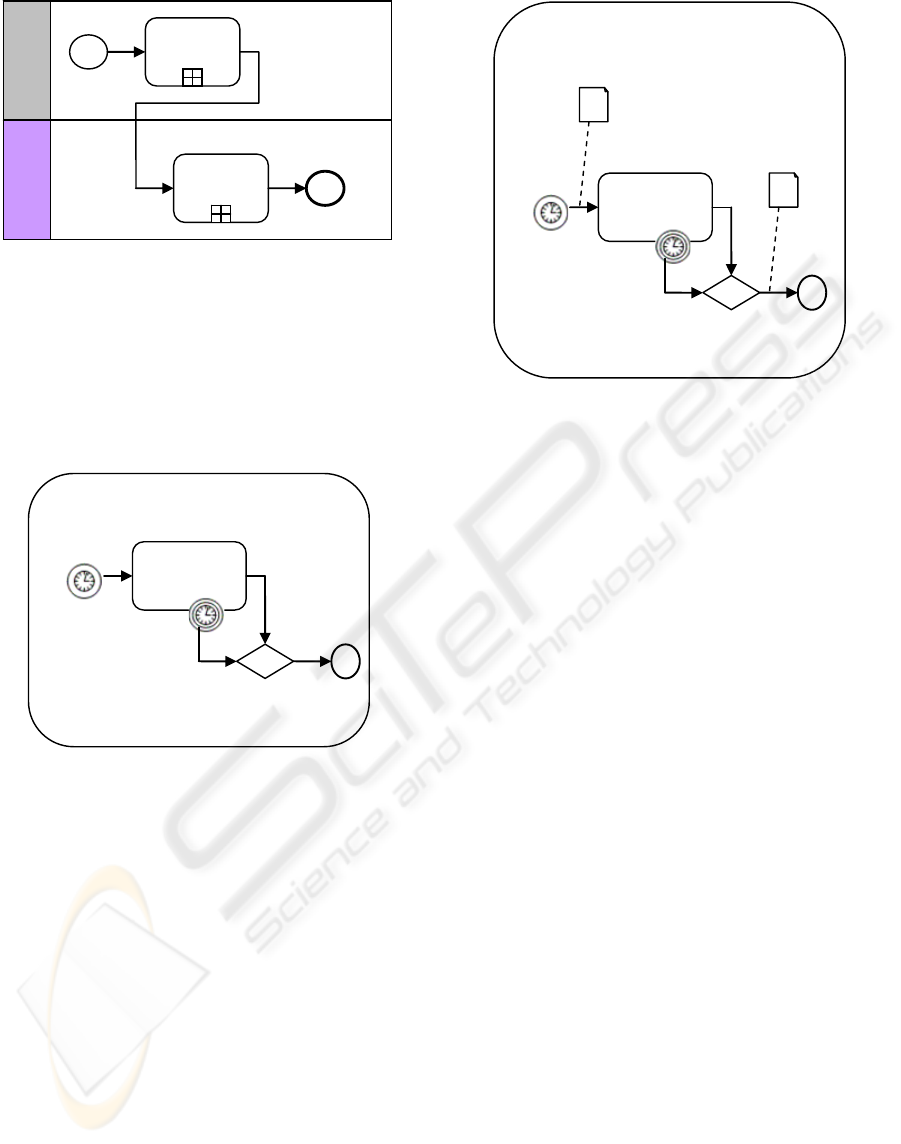

process for executing a task. Figure 1 shows a secure

workflow model at workflow layer, AP1 and AP2

are two authorization processes for executing task1

and task2, respectively, w represents workflow.

ICEIS 2009 - International Conference on Enterprise Information Systems

270

AP1

AP2

start(w)

completed(w)

ent1 A

ent2

Figure 1: Workflow layer.

3.3.2 Task Layer

At task layer, the authorization process for executing

a task is described in detail by using an Expand Sub-

Process. Timer events trigger to grant or revoke the

execution. The authorization process for executing

task1 is as an example in Figure illustrated.

AP1

execute task1

grant(t1,a1,time1)

revoke(t1,a1,time2)

completed(t1)

Figure 2: Task layer.

3.3.3 Data Layer

At data layer, the process for document processing

during executing a task is described. Timer events

trigger to grant the document access privilege to the

agent or to revoke the document access privilege

from the agent. Figure 3 depicts the process of

processing the document during executing task1.

In Figure 2 and Figure 3, authorization events are

represented by Timer events. An event “grant” is

represented by a Start Timer Event, while an event

“revoke” is represented by an Intermediate Timer

event. The relationship among the Timer Events is:

time1<time3<time4<time2,

Since the secure workflow model is a BPMN

model, separating tasks, as well as concurrency and

synchronization of executing tasks and processing

documents can be described by using gateways.

execute task1

process d1

grant(d1,pr,time3)

revoke(d1,pr,time4)

release(d1)

[

not

rocessed

]

d1[processed]

Figure 3: Data layer.

3.3.4 Evaluation

The BPMN-based secure workflow model assigns

the task to an agent if and only if the agent can

execute the task. It grants the task to the assigned

agent for execution if and only if the set of input

events is generated, the task is not started and all the

dependent tasks are completed. Similarly, it revokes

the task from the assigned agent if and only if the set

of output events is generated and all the granted

privileges for documents are revoked. Further, the

model grants the document access privilege to the

agent for execution if and only if it is authorized,

and revokes the document access privilege from the

agent if and only if the document access privilege or

task is completed. Therefore, the secure workflow

model ensures the security properties of integrity,

authorization and availability.

This hierarchical model describes an

authorization process at different layers: workflow

layer, task layer and data layer. The details of a

process are described at its lower layer. The model is

easily readable and understandable.

Moreover, the secure workflow model is

constructed by using BPMN-elements. It can be

translated into BPEL and implemented.

4 CONCLUSIONS

In this paper, I proposed a BPMN-based secure

workflow model to manage and monitor the specific

processes in a secure workflow, such as

authorizations for executing tasks and accessing

documents. This model describes a workflow system

A BPMN BASED SECURE WORKFLOW MODEL

271

from aspects of task, agent, event and data, and is

constructed by using BPMN-elements. Using

authorization events, the model ensures the security

properties of integrity, authorization and availability.

Further, the secure workflow model is

hierarchical and describes a process at different

layers: workflow layer, task layer and data layer.

The details of a process are described at its lower

layer. The model is easily readable and

understandable.

Moreover, since the secure workflow model is

constructed by using BPMN-elements, it can be

translated into BPEL and implemented.

REFERENCES

Atluri, V., Huang, W.-K, 1996. An Authorization Model

for Workflows. In Proceedings of the Forth European

Symposium on Research in Computer Security. pp.44-

64.

Atluri, V., Huang, W.-K, 1996. An Extended Petri Net

Model for Supporting Workflows in a Multilevel

Secure Environment. In Proceedings of the 10th IFIP

WG 11.3 Working conference on Database Security'.

pp. 240-258.

Atluri, V., Huang, W.-K, Bertino, E., 1997. An Execution

Model for Multilevel Secure Workflows. In

Proceedings of the 11th IFIP Working Conference on

Database Security. pp. 151-165.

Atluri, V., Huang, W.-K, 1997. Enforcing Manadatory and

Discretionary Security in Workflow Management

Systems. In Journal of Computer Security, 5. pp. 303–

339.

BPMI.org and OMG, 2006. Business Process Modeling

Notation Specification. Final Adopted Specification.

Retrieved February 20, 2006. From

http://www.bpmn.org.

Huang, W.-K, Atluri, V., 1999. SecureFlow: A Secure

Web-enabled Workflow Management System. In

Proceedings of the 4th ACM Workshop on Role-Based

Access Control. pp. 83-94.

Hung, P. C. K., 2002. Specifying Conflict of Interest in

Web Services Endpoint Language (WSEL). In The

ACM SIGecom Exchanges 3(3). pp.1-8.

Hung, P. C. K., Karlapalem, K., 2003. A secure workflow

model. In ACSW Frontiers ’03: Proceedings of the

Australasian information security workshop

conference on ACSW frontiers. pp. 33–41. Australian

Computer Society, Inc.

Joshi, J. B. D., Aref, W. G., Ghafoor, A., Spafford, E. H.,

2001. Security Models for Web-based Applications. In

Communications of the ACM 44(2). pp.38-44.

Kang, M. H., Froscher, J. N., Eppinger, B. J., Moskowitz,

I. S., 1999. A Strategy for an MLS Workflow

Management System. In Proceedings of the 18

IFIP

Working Conference on Database Security. Seatle,

WA, 1999.

Knorr, K., 2000. Dynamic Access Control through Petri

Net Workflows. In Proceedings of the 16th Annual

Computer Security Applications Conference. pp. 159–

167. New Orleans, LA, December 2000.

Knorr, K., 2001. Multilevel Security and Information

Flow in Petri Net Workflows. In Proceedings of the

9th International Conference on Telecommunication

Systems - Modeling and Analysis, Special Session on

Security Aspects of Telecommunication Systems. pp. 9-

20.

Olivier, M. S., van de Riet, R. P., Gudes, E., 1998.

Specifying application-level security in workflow

systems. In DEXA ’98: Proceedings of the 9th

International Workshop on Database and Expert

Systems Applications. pp. 346–351. Washington, DC,

USA, 1998. IEEE Computer Society.

Pernul, G., 1992. Security Constraint Processing During

Multilevel Secure Database Design. In Proceedings of

Eighth Annual IEEE Computer Security Applications

Conference. pp. 229-247.

Thuraisingham, B., Clifton, C., Gupta, A., Bertino, E.,

Ferrari, E., 2001. Directions for Web and E-commerce

Applications Security. In Proceedings of Tenth IEEE

International Workshops on Enabling Technologies:

Infrastructure for Collaborative Enterprises. pp. 200-

204.

Workflow Management Coalition (WfMC), 2001.

Workflow Security Considerations. White Paper,

Document Number WFMC-TC-1019. Document Status

- Issue 1.0.

ICEIS 2009 - International Conference on Enterprise Information Systems

272
