KEEPING THE RATIONALE OF IS REQUIREMENTS USING

ORGANIZATIONAL BUSINESS MODELS

Juliana Jansen Ferreira, Victor Manaia Chaves, Renata Mendes de Araujo

and Fernanda Araujo Baião

NP2Tec – Research and Practice Group in Information Technology

Federal University of the State of Rio de Janeiro (UNIRIO)

Av. Pasteur, 458, Urca, 22290-240, Rio de Janeiro, RJ, Brazil

Keywords: Information system requirements, Requirements elicitation, Business processes modelling, IT organizational

architecture.

Abstract: This paper proposes an approach for identifying, documenting and keeping the rationale of information

systems requirements starting from the organizational business model. The approach comprises a method

and the implementation of a supporting tool. The paper also discusses the results of preliminary case studies

with this approach.

1 INTRODUCTION

One of the great challenges of requirements

elicitation is ensuring that system requirements are

aligned with organizational business needs.

Requirements that represent just a single user

perspective, which are partially analyzed and do not

consider the environment where the system will be

used, may lead to systems which will not address its

users and organizational expectations.

Aligning system requirements with the business

needs of an organization requires understanding the

organizational context. In order to understand and

represent how organizations work, the Business

Process Modelling (BPM) area has defined a set of

concepts, models and techniques with the purpose of

drawing up organizational business models

(PROFORMA, 2000) (PROFORMA, 1998) (Sharp

and Mcdermott, 2001).

Previous work of our research group (MacKnight

et al., 2005) proposed a systematic approach for

using business models, especially business process

models, for the discovery or elicitation of system

requirements. In that work, a method was proposed

to guide the software development team, in

collaboration with the organization employees, to

understand the business model, identify business

needs and define system requirements aligned to the

business needs. Case studies, along with the

continuous use of the method in real projects in

industry pointed to the need for a tool to support the

method, thus providing automatic traceability and

documentation of the information gathered during

the method execution.

The present work discusses how the combination

of the method and the tool helps organizations to

keep the rationale on the context in which systems

requirements have been identified.

The paper is structured as follows: Section 2

presents BPM objectives and concepts and how it

has been used in IS requirements elicitation. Section

3 describes the method focusing on the information

and rationale generated in each step. Section 4

presents the tool main functionalities. Section 5

concludes the paper, suggesting the opportunities for

improving the proposed approach.

2 WHY BUSINESS PROCESS

MODELING

Business Process Modelling (BPM) aims at building

a set of combined views that allow a proper

agreement on the business (Eriksson and Penker,

2000) (PROFORMA, 2000) (PROFORMA, 1998)

(Sharp and Mcdermott, 2001) (BABOK, 2008).

Through BPM, an organization domain can be

represented through diverse perspectives (Figure 1),

and the representation of a domain makes use of

diverse models for each perspective. Business

process models reflect the way an organization is

structured in order to guarantee business rules and

292

Jansen Ferreira J., Manaia Chaves V., Mendes de Araujo R. and Araujo Baião F. (2009).

KEEPING THE RATIONALE OF IS REQUIREMENTS USING ORGANIZATIONAL BUSINESS MODELS.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

292-297

DOI: 10.5220/0002153602920297

 SciTePress

strategic goals achievement.

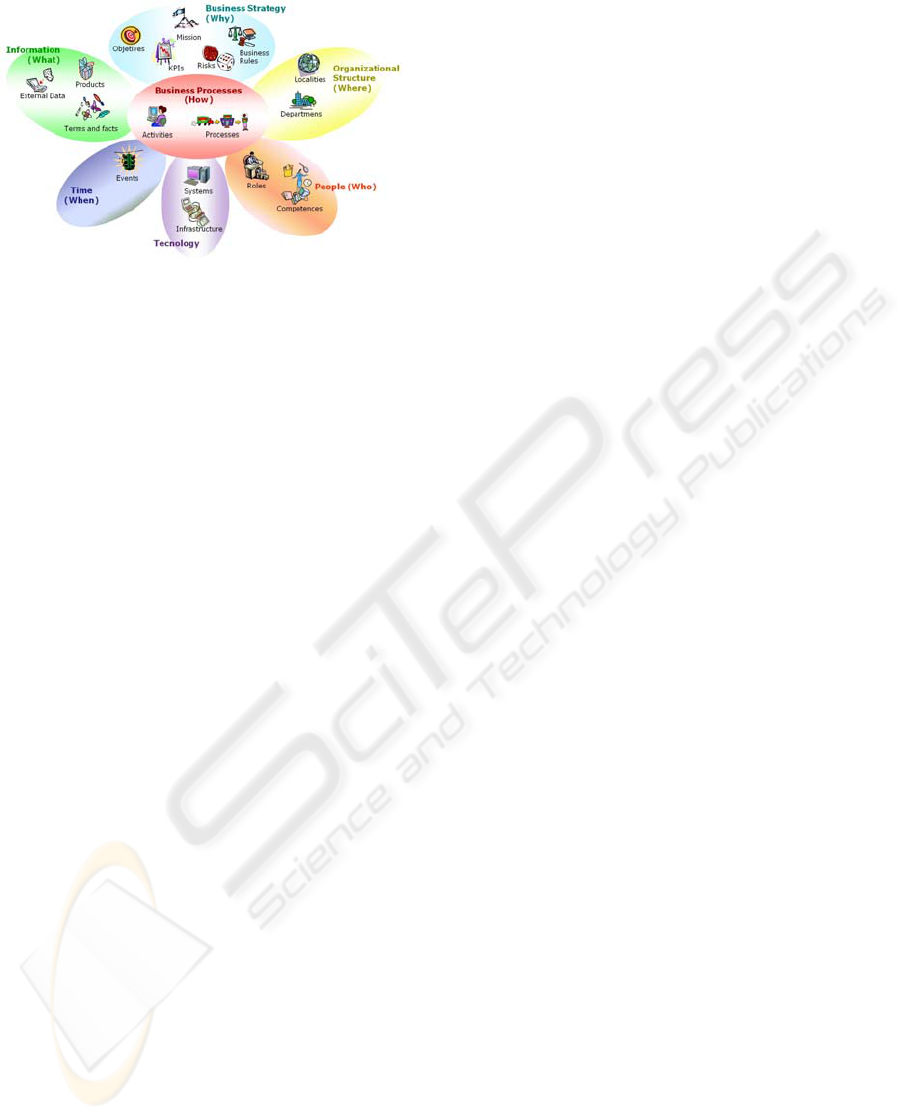

Figure 1: Business process models and perspectives.

There are many approaches for business

modelling, and each of them defines different

notations and languages for organizational business

design. Independently of the approach used to build

the business model, the following models can be

considered by the business analyst to start

requirements identification:

1) Organizational Model. stands for the

organizational units, its roles and the relationships

between them. For example, an IT department may

be considered an organizational unit, and a

programmer, a role. Besides that, an organizational

model represents which roles belong to each unit,

depicting an organizational hierarchy;

2) Goal Model. shows the business goals and the

hierarchical relationships between them. Represents

how a goal is divided into subgoals which can be

achieved by business processes;

3) Process Model. represents all business processes

and their hierarchical structure. It also represents the

activities that comprise each business process;

4) Activity Model. represents the relationships

between business processes activities and those

responsible for each of them. It also shows which

business objects (that may comprise any information

storage) are handled in each activity and which

events trigger or are triggered by the execution of

each activity.

3 IDENTIFYING IS

REQUIREMENTS FROM

BUSINESS MODELS

There are several works in the literature considering

business modelling as a useful starting point for

system requirements elicitation (Eriksson and

Penker, 2000) (PROFORMA, 2000) (Christel and

Kang, 1992) (Rolland et al, 1998) (Marshall, 2008)

(De la Vara et al., 2007) (Röhrig, 2003) (Demidörs

et al., 2003)(Pavlovski and Zou, 2008). The common

agreement among them is that the business modeling

task is part of the system development process,

which means one of the first activities for system

development should be the representation of the

business portion to be supported by the system.

What is different in our approach is that it aims at

using business models as an instrument for

requirements discussion among stakeholders. It also

registers rationale information for future use.

Some business analysis approaches, especially

the ones concerning software development, consider

the use of intentional business modelling such as

i*(Yu, 1995). For example, the Tropos Framework

proposes a software development methodology

based on i* concepts to model early requirements

(Mylopoulos, Castro and Tropos, 2000). Although

the i* concepts embraces business concepts – such

as actors, goals and activities – the use of intentional

modelling notations such as i* has not been widely

used in organizations as an alternative for business

process modelling. It also lacks for supporting tools

which could be enhanced in order to cope with

rationale traceability.

The approach presented in this paper differs by

considering graphical models as an instrument for

brainstorming system requirements, and for keeping

and generating different views/reports on

requirements elicitation information. A tool was

implemented on top of an integrated repository of

process models. This provides for system analysts an

integrated view of all information systems that

support business activities, and of other activities

that are indirectly related to the ones within the

scope of the system request.

4 THE METHOD

The method is divided in two main phases:

understanding the problem and building the

solution view. The objective of the first phase is to

discover the actual organizational needs in business

processes. Those needs should be addressed by the

system to guarantee that the right problem is being

solved. In the solution view, the identified needs are

analyzed to assess how they can be addressed.

The examples shown in this section illustrate a

scenario of a radiation laboratory (RML) in a real

organization in Brazil. RML is responsible for

providing radiation measurement services and

personnel protection for enterprises whose

KEEPING THE RATIONALE OF IS REQUIREMENTS USING ORGANIZATIONAL BUSINESS MODELS

293

employees work under exposure to different kinds of

radiations, and therefore need to be constantly

monitored. The monitoring process consists of in

vivo bioanalysis, which directly analyzes human

bodies to measure the levels of radiation. This

process is supported by a set of systems and a

request was made to develop an integrated system to

support the monitoring process.

This section highlights the information generated

by the method at each step execution, and why it is

important for requirements elicitation memory and

traceability.

4.1. Understanding the Problem

The first phase of the method comprises 3 main

steps or activities:

Step 1: Identify the Context of the Request. The

aim of this step is to establish the boundaries of the

business area involved with the existing system

development request. This means analyzing the

business model, specifically the process models

identifying which processes must be considered for

further detail, concerning the request. For each

identified process, it is also important to identify

which activities will be supported by the new

requested system/functionalities. The activity model

guides the discussions, being useful not only as

information basis but also as an instrument for

discussion and knowledge build.

Step 2: Identify Business Needs. By analyzing the

organizational model it is possible to notice which

process participants can be considered as future

system actors. These are candidates for interviews to

understand their needs and possible difficulties

encountered during process execution.

To discover the business needs it is necessary to

find the difficulties in the process and look for their

reasons. These reasons are the business needs which

must be addressed so that the problems encountered

are solved. It is important to note the relationship

among each difficulty, its related business need, and

the activity containing the difficulty (Table 1).

Through this relation, we can trace the reasons why

a business need is being considered by the system

because there was a certain difficulty in a specific

activity of the process.

Step 3: Identify Impacts of Business Needs. The

aim of this step is to have an overview of the impact

the identified business needs cause to the

organization. These impacts will help define the

priorities of business needs and also help to decide

which of them will be addressed. The consequences

of each business need are identified with the help of

the activity model. Each business need can be

assessed to discover its impacts to the activities and

to the whole process. With the help of the goal

model, the organizational goals and people affected

were identified (Table 2).

Table 1: Relationship activities, difficulties and needs.

Activities Difficulties Business needs

Input

personal

information

Write personal

information in a form

and enter the same

information in the

patient catalogue

system

System interface and

performance should

be efficient and let

the technician enter

needed information

directly into the

system

Input

measures

Write the measures in a

form and then enter

again the measures into

the measurement

catalogue system

To associate the

personal information of

a worker to his/her

measurement, in the

two different systems, it

is necessary to copy

manually the workers

ID in the patient

catalogue into the

measurement catalogue

Functionalities of each

existing system

should be supported

by the new system

Table 2: Business needs impacts on the processes.

Business

Needs

- System interface and performance should be

efficient and let the technician enter necessary

information directly into the system

- Functionalities of each existing system should be

absorbed by the new system

- Create an enterprise catalogue and relate each

worker to an enterprise

Consequences

- Delay in activities

- Redundant work

- Need for more employees

- Chances of making mistakes

Goals - Be approved by clients

- Have competitive costs

People - Technicians

- Client

Priority - High

4.2 Building the Solution View

The second phase of the method comprises 4 main

steps or activities:

Step 4: Identify System Functionality and

Restrictions. Each activity in the identified set

should be analyzed concerning how it can be

supported by the system to find out the system main

functionalities and restrictions.

Table 3 shows the

main functionalities identified from the activities.

Step 5: Identify System Boundaries. In this step,

the objective is to evaluate roles, other systems,

storages and external actors which may have to

exchange information with the system. The activity

model is analyzed to find out if there are any

ICEIS 2009 - International Conference on Enterprise Information Systems

294

activities that the new system should support, which

are actually supported by other systems. This can

also be done in a simplified manner, as a glossary.

Some BPM approaches use to build domain

glossaries which definitions could be here reused.

It is interesting to analyze the process business

needs to identify other functionalities which solve

the problems found in the process. At this moment,

non-functional requirements could also arise. Table

4 shows the result, relating each functionality and

restriction found to the business need that originated

it. This relationship is important as it documents the

reason for the existence of the requirements.

Step 6: Identify System Boundaries. In this step,

the objective is to evaluate roles, other systems,

storages and external actors which may have to

exchange information with the system. The activity

model is analyzed to find out if there are any

activities that the new system should support, which

are actually supported by other systems. This can

also be done in a simplified manner, as a glossary.

Some BPM approaches use to build domain

glossaries which definitions could be here reused.

Table 3: System main functionalities.

Activities Functionalities

Input personal information

Manage personal information

Query personal information

Input measurements Manage measurements

Analyze readings

Manage readings

Enter readings

Calculate level of radiation

Manage radiation information

Generate report Generate report

Table 4: System aspects identified from business needs.

Activities Business needs Functionalities and

restrictions

Input personal

information

Fast processing

Simple interface

Generate

report

Create an enterprise

catalogue and relate

each worker to an

enterprise

Manage information

about RML clients

Step 7: Identify the Impacts of the New System. It

is important to assess the way the new system

interferes in the organizational business so that those

impacts are known and updated in the business

model. This can be done, with the help of the

activity model, by interactions with future users

based on the main aspects defined for the system.

Step 8: Generate Software Requirements

Document. Finally, software engineers should

relevant information about the system that resulted

from previous steps.

The method was applied into three case studies

in real organizations (MacKnight et al., 2005). The

case studies showed that the method led to a

valuable system requirements list. It was also

observed that the more detailed the business model

is, the richer the requirements identification can be.

However, these case studies suggested that the effort

required to follow the method was great considering

the level of documentation necessary to cope with

each step. This issue pointed to the fact that the

systematic use of the method in any organization

should be supported by automated tools. The

customization of BPM tools to cope with the

requirements rationale documentation was one step

forward.

5 THE TOOL

The tool support for the Mac Knight method was

developed on top of the ARIS Business Architect

(IDS Scheer, 2008) platform, due to its support for

developing customized reports and adding user-

defined objects and diagrams properties, as well as

because of its popularity. The experience we had

with the tool and the possibilities for further

experimentation in real scenarios were also

motivations to use it for the method support.

The ARIS tool supports several models or

diagrams, each of them composed by a rich set of

objects with specific semantics. The development of

the necessary functionalities for supporting the

method comprised: creating new symbols in ARIS

symbols set, overloading existing objects,

overloading model types, creating new relationships

among objects and models, and creating filters,

templates and report generation scripts.

For the first method phase (understanding the

problem), extensions were created to help the

identification of the request context witihin the

process models. A new attribute – system support –

was created and associated to each process model.

The attribute indicates if the process activity is

requested to be system supported.

After filling this attribute, users may execute a

script that was developed for generating the

“Processes and goals related to client request”

report. The report lists and describes all objects with

the system support attribute checked, and the goals

related to them. This helps stakeholders in analyzing

the context of the system support request within the

process and business strategic goals.

Another report is provided, relating process with

their executors, thus helping analysts in identifing

possible participants in requirements discussion.

KEEPING THE RATIONALE OF IS REQUIREMENTS USING ORGANIZATIONAL BUSINESS MODELS

295

Four new objects - difficulty, cause, effect and

need – were created, providing ways to register the

rationale around a business requirement. New

attributes were created for some of these objetcs:

causes, for difficulties; impact and priority, for

needs. The difficulties report and needs report were

also developed.

Business needs that will not be addressed by the

system may have the system support attribute

unchecked, while other may be organized in order of

priority by setting the priority attribute. A report was

also created to list the needs that will be addressed

and their priorities.

For the second phase (building the solution

view), business needs can be associated to the

functional and non-functional requirements. A report

listing all requirements related to activities and

needs is also provided.

To identify system boundaries (points where the

system will change information with others business

resources - users, others systems, and databases), a

new diagram (System Use Diagram) was defined, as

well as new objects, such as the object user to

represent the users of the system and the attribute

permission for each user. For each database, a

conceptual data model could optionally be created.

Different reports are defined: users and related

privileges; data dictionary; and the relationship

among business needs and the new system.

Impacts of the new system can be identified by

checking each activity that will be automated

trhough the functionality Change Management,

avaiable in ARIS Business Architect. A report

generated at the end of this step lists the changes that

should be done in the process.

Finally, the tool allows the generation of the

Software Requirements Document. It merges all

previous reports, configuring a first draft of a system

vision document. The Requirements diagram

collects information about all system requirements

elicited along time for an information system (Figure

2). Needs are represented in blue, functional

requirements in yellow and non functional

requirements in red, and systems in light blue.

Through this map of requirements, it is possible to

keep the traceability between needs and

requirements (functional and non functional); and

which systems implement each requirement.

The information provided by the method is

organized into groups to separate different instances

of models, according to current (as-is) and future

(to-be) situations, concerning business needs and

system requirements.

We used the support functionalities presented in

this paper in a real project of a large Brazilian

company, where business processes were modelled

to discuss requirements for the acquisition of a new

system for people control access, for corporative

use. The main observations of this experience were:

1) the tool was a good facilitator for information

gathering and association; 2) considering that the

tool was designed to help IT experts, the developed

scripts were of easy and intuitive use. They were

helpful to consolidate the information on reports that

were used on the analysis steps of the method; 3) the

requirements diagram was a useful map of elicited

information; 4) the association of the actor of the

process activity and the system user, with his needs

and functionalities, is useful information for the

validation phase of the new system development; 5)

the software requirements document report that can

be automatically generated presents all the

information related to the elicitation, and only

requires format adjustments after its generation.

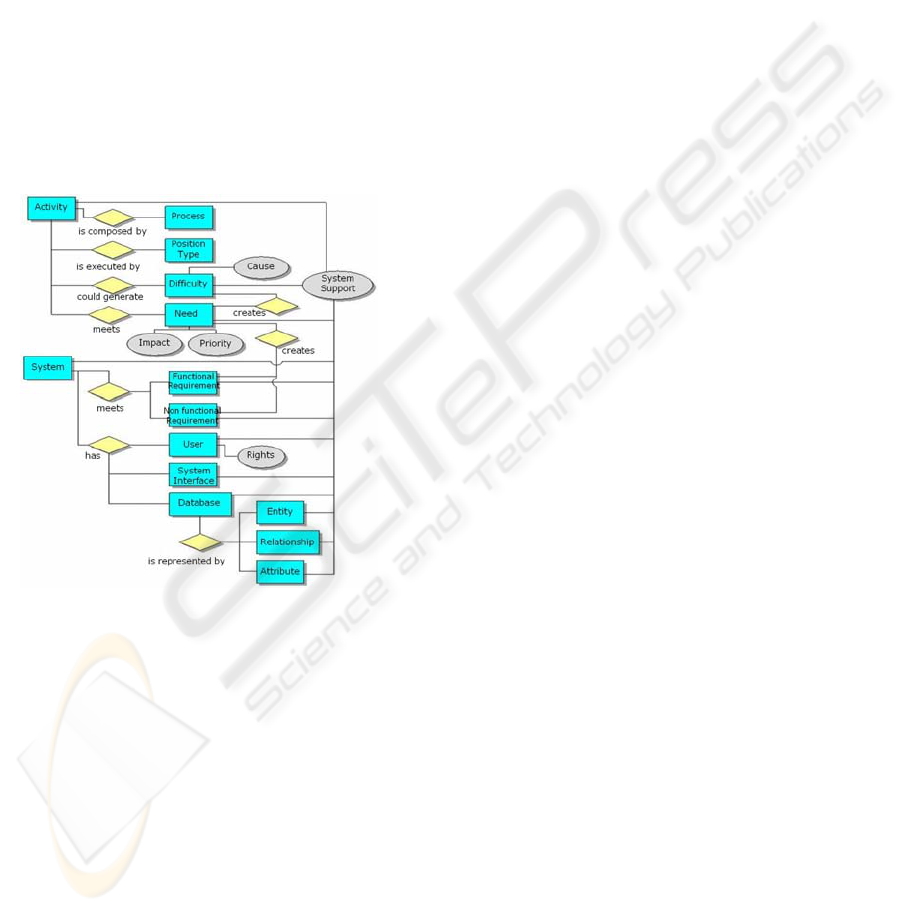

All extensions that were developed on top of

ARIS are structured according to the conceptual

model illustrated in Figure 3. This model shows how

the elements added by the tool implementation are

related to existing elements in ARIS. This model

shows how the elements added by the tool

implementation are related to existing elements in

ARIS.

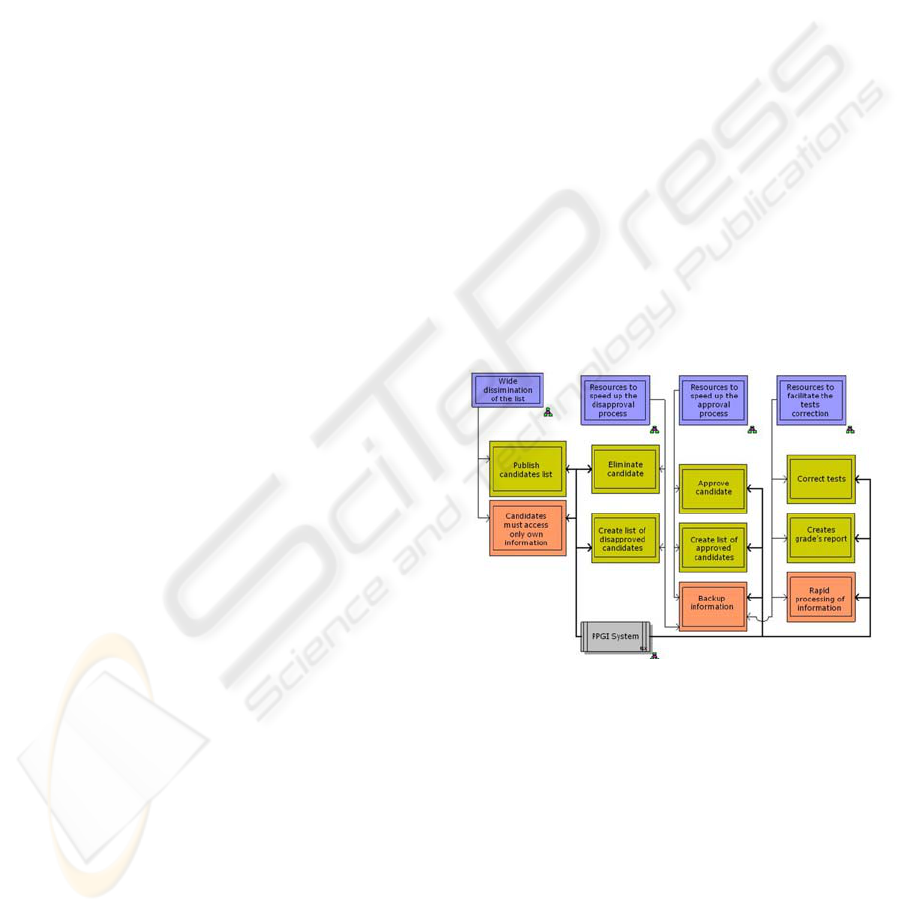

Figure 2: Requirements diagram.

6 CONCLUSIONS

Our research group - NP2Tec - conducted several

consulting experiences in BPM in Brazilian

organizations, which resulted in more than 200

modelled business processes. We observed that

100% of the business process modelling initiatives

we conducted led organizations to think on system

requirements even if it was not the initial intention.

Our proposed tool helps organizations to address

the alignment of system requirements identification

to business models, by providing automatic support

ICEIS 2009 - International Conference on Enterprise Information Systems

296

for keeping the rationale of these decisions.

Additionally, the ability to keep alignment

information from business to IT is a crucial step for

organizations willing to build corporate IT

architectures, as suggested by (Zachman, 1987)

(Nikolaidou and Alexopoulou, 2008) (Dietz, 2004).

The organizations learn how business process

management can be helpful and continuously

maintain a business process model, this model can

be used as a high level infrastructure for system

development and for maintaining the organizational

information architecture.

Future work includes evolving the proposed

solution to cope with non-functional requirements

identification (Bittencourt and Araujo, 2008)

(Röhrig, S., 2003) (Pavlovski and Zou, 2008) and to

keep information about requirements change and

management also aligned to organizational business

processes evolution.

Figure 3: Conceptual model.

REFERENCES

Babok, 2008. International Institute of Business Analysis –

Business Analysis Body of Knowledge –

http://www.theiiba.org, accessed February, 2009.

Bittencourt, R. V., Araujo, R. M., 2008. Identifying IS

quality expectations with the support of business

models. In: II Workshop on Business Process

Modeling, in conjunction with Webmedia 2008,

Vitória (in portuguese).

Christel, M. G., Kang, K. C., 1992. Issues in Requirements

Elicitation, Technical Report, Software Engineering

Institute, CMU. CMU/SEI-92-TR-12 ESC-TR-92-012.

De la Vara, J., Alcolea, D., Diaz, J., 2007.

Descomposición de árboles de metas a partir de

modelos de procesos. In: Workshop em Engenharia

de Requisitos, Toronto, 35-46. (in spanish)

Demidörs, O., Gencel, Ç., Tarhan, A., 2003. Utilizing

Business Process Models for Requirements Elicitation.

In: Proc. 29th EUROMICRO, IEEE CS Press, 409-

412.

Dietz, 2004. Basic Notions regarding Business Processes

and Supporting Information systems, CAISE

Workshops (2).

Eriksson, H.-E., Penker, M., 2000. Business Modeling

with UML: Business Patterns at Work. New York:

Wiley Publishers.

IDS Scheer, 2008. ARIS Business Architect: The Web-

Based Benchmark for Business Process Management.

http://www.ids-

scheer.com/en/Software/ARIS_Software/

ARIS_Business_Architect/3731.html. accessed in

February, 2009.

MacKnight, D., Araujo, R., Borges, M., 2005. A

Systematic Approach for Identifying System

Requirements from the Organization’s Business

Model. In: II Simpósio Brasileiro de Sistemas de

Informação, Florianópolis, Brasil.

Marshall, C., 2008. Enterprise Modeling with UML:

designing successful software through business

analysis. Addison-Wesley.

Mylopoulos, J., Castro, J. 2000. Tropos: A Framework for

Requirements-Driven Software Development. In:

S01vberg, Brinkkemper, and Lindencrona (eds.)

Information Systems Engineering: State of the Art and

Research Themes, Springer Verlag.

Nikolaidou, M. Alexopoulou, N., 2008. Enterprise

Information System Engineering: A Model-Based

Approach based on the Zachmann Framework,

HICSS.

Pavlovski, C.J., Zou, J., 2008. Non-Functional

Requirements in Business Process Modeling. In:

Proceedings 5

Ásia-Pacific Conference on

Conceptual Modeling, Wollongong, Austrália.

PROFORMA, 2000. Enterprise Application Modeling -

Vision and strategy for the ongoing development of

ProVision Workbench. Proforma Technical White

Paper by Proforma Corporation.

PROFORMA, 1998. Integrating Business Processes,

Workflows, and Object Models via Use Cases.

Technical White Paper, Proforma Corporation.

Rolland, C., Achour, C., Cauvet, C., Ralyt, J., Sutcliffe,

A., Maiden, N. A. M., Jarke, M., Haumer, P., Pohl, K.,

Dubois, P. Heymans, P., 1998. A Proposal for a

Scenario Classification Framework, Requirements

Engineering Journal, Vol 3, No. 1.

Röhrig, S., 2003. Using Process Models to Analyze IT

Security Requirements. DSc Thesis, Zurich.

Sharp, A., Mcdermott, P., 2001. Workflow Modeling:

Tools for Process Improvement and Application

Development. Norwood: Artech House.

Yu, E., 1995. Models for supporting the redesign of

Organizational Work. In: Proc. of Conf. On

Organizational Computing Systems, California, 225-

236.

Zachman, John A., 1987. A framework for information

systems architecture, IBM Systems Journal, v.26 n.3,

276-292.

KEEPING THE RATIONALE OF IS REQUIREMENTS USING ORGANIZATIONAL BUSINESS MODELS

297
