FORMAL METHODS: FOR ALL OR FOR CHOSEN?

Victor V. Kuliamin, Vitaliy A. Omelchenko

Institute for System Programming, Russian Academy of Sciences (ISPRAS), Solzhenitsyna, 25, Moscow, Russia

Olga L. Petrenko

Moscow Institute of Open Education, Moscow, Russia

Keywords:

Formal methods, Teaching formal methods, Active learning, Cooperative learning, Critical thinking pedagog-

ical framework.

Abstract:

The article presents an approach to teaching formal methods that may make them accessible for ordinary

software engineers, especially those who are not skilled in the underlying mathematics. The approach is

based on two ideas. First, we propose modiﬁcation of course contents to hide the underlying mathemati-

cal techniques under some terms and actions familiar to the engineer or student learning the corresponding

application domain. This usually requires availability of mature tools supporting formal methods under con-

sideration. Second, we modify the presentation of course material and focuse mostly on active learning and

more deep students’ involvement in the learning process. This approach was successfully used in traditional

courses and trainings in UniTESK, a test development technology based on formal speciﬁcations.

1 INTRODUCTION

We are witnessing a strange trend in software devel-

opment. Modern development techniques and tools

make possible development of extremely complex

software systems. At the same time the quality of

software is perceived mostly as poor. Even without

taking into account the critical software working in

avionics, healthcare, or infrastructure systems, where

single failure can lead to loss of human life or catas-

trophic losses for a country, the economic impact of

software faults reaches the dozens of billions dollars

per year only in USA economy (Tassey, 2002).

It seems that the application of traditional soft-

ware development ‘best practices’ could not provide

the proper way to manage the sky-rocketing soft-

ware complexity. To attain the acceptable level of

software quality more systematic and rigorous ap-

proaches should be applied in industrial software de-

velopment. The only visible candidates on this role

are formal methods (FM).

Formal methods have been extensively developed

over many years. From original toy examples (Floyd,

1967; Dijkstra, 1974) they evolve into the wide vari-

ety of methods supported by tools. They have been

successfully applied in industrial software projects.

One of the largest such projects was the development

of a controller system for the Parisian driverless metro

Meteor by MATRA based on B speciﬁcations and the-

orem proving with further code generation (Abrial,

1996). In some domains formal notations and meth-

ods based on them became traditional, e.g. SDL and

TTCN with techniques based on them in the telecom-

munication software development.

Nevertheless, formal methods are still not widely

used in the software industry. The most commonly

referred reason for this situation is that formal meth-

ods require use of difﬁcult mathematics and corre-

spondingly skilled staff. While the numbers software

projects and of software developers involved grow

each year with increasing speed, the number of peo-

ple who can adequately operate the techniques under-

lying most formal methods grows much slowly. Al-

though a lot of courses in FM are conducted in uni-

versities, the effort needed to prepare a professional

in formal methods is huge and not all the people who

can be successfully used as software engineers can be

trained in formal methods with the same success.

So, for successful introduction of formal methods

the industry requires now so many FM specialists that

217

V. Kuliamin V., A. Omelchenko V. and L. Petrenko O. (2009).

FORMAL METHODS: FOR ALL OR FOR CHOSEN?.

In Proceedings of the First International Conference on Computer Supported Education, pages 217-222

DOI: 10.5220/0002153902170222

 SciTePress

current education system cannot produce. One can

try to solve this problem by increasing labor effec-

tiveness, polishing up existing techniques and profes-

sional skills, but in this article we propose to increase

number of FM specialists using innovative education

technologies. We defend the point that the problem of

deep involvement of mathematics in teaching formal

methods can be overcome. The idea is to put most of

the burden of formal manipulation with symbols on

tools, while giving people more skills of whole pic-

ture comprehension along with abilities to ﬁnd key

issues in the problem domain.

To do this we should revise the courses used and

try to make them more comprehensible and useful

for people with no direct aptitude in mathematics by

putting focus on key issues in practically successful

formal techniques. This revision should involve both

the contents of FM courses and maybe the user inter-

face of the tools used and the course presentation and

techniques used in education process.

2 COURSE ADAPTATION

PROBLEMS

We suppose that there is no universal way to teach

any student any course. So, every course needs some

adaptation to the audience, in particular, whether it

consists of mathematically talented people or not.

This adaptation should not be based only on interests

of students, because it usually leads to decrease of ed-

ucation level.

Here we consider adaptation of FM courses for

people that have no mathematical aptitude. On the

base of our experience we suggest two ways of course

adaptation.

• Modiﬁcation of course contents. This possibil-

ity is concerned with user interface of the formal

method under consideration, so we further call it

‘turning to the user’.

• Modiﬁcation of course presentation, its organiza-

tion and teaching methods used. This possibil-

ity is concerned with involvement of students into

education process, transformation of this process

into active learning process, so we further call it

‘turning to the student’.

3 TURNING TO THE USER

The comprehension of a course depends on many fac-

tors. Since formal methods are not a fundamental sci-

ence (it is mathematics in this case), the formal meth-

ods course contents can vary in wide range depend-

ing on the students’ background and aptitude. The

contents depend on the number of hours we have and

position of the course in the curriculum. We can try

to escape the predominance of mathematical notation

and techniques by means of course contents modiﬁ-

cation.

This approach is closely related with user inter-

face of the corresponding tools. For tool users it

means that the representation of a method is simpli-

ﬁed and its mathematical background is hidden under

some simple operations, which can be performed au-

tomatically in most cases or require user to answer

some clear questions. For FM students this means

that the contents of the course can be changed to focus

on practical aspects of using a method with the help

of simple terms and tools adequately supporting the

method and the underlying mathematical techniques

can be leaved out of scope or moved to advanced part

of the course.

To see whether it is possible to decrease the level

of mathematics involvedin courses in formal methods

we have compared several of them.

1. Modeling and Analysis of Complex Systems.

The course AA244 (ASM Course, 2001) is con-

ducted for 4-th year students of Department of

Computer Science, University of Pisa, Italy. It is

developed by E. Borger and consists of theoretical

lectures covering the following topics.

(a) Current state of software engineering. Abstract

State Machines as a ground foundation for rig-

orous system engineering.

(b) Deﬁnition of ASM. ASM notation. ASM se-

mantics. Multi-agent and asynchronous ASMs.

Models of concurrency. ASM as universal al-

gorithmic models.

and reasoning on ASM models. Stepwise re-

ﬁnement method.

2. Modeling and Computation.

The course CSC264 (VDM Course, 2003) is

conducted for 2-nd year students of School of

Computing Science, University of Newcastle

upon Tyne, United Kingdom. Its authors are

J. S. Fitzgerald, M. S. Kouthy, and S. Riddle. The

course includes theoretical and practical parts and

covers the following topics.

(a) Software development and software lifecycle.

Challenges in software development.

(b) Formal models of software. Their characteris-

tics and impact on the development activities.

guages.

CSEDU 2009 - International Conference on Computer Supported Education

218

(d) Vienna Development Method. VDM con-

structs. VDM types. Recursive data types.

State based modeling.

(e) Validation. Model consistency. Animating,

testing, and proving of models. Logical frame-

works. Propositional logic. Calculus of se-

quents. Logic of partial functions. Reasoning

about VDM models.

(f) Concurrency models. Models of computation.

Finite state automata.

3. Formal Speciﬁcations of Software.

The course (FM Course, 2008) is developed by

A. Petrenko and is conducted for 4-th year stu-

dents of Computing Mathematics and Cybernet-

ics Faculty of Moscow State University, Russia.

The course consists of theoretical part and practi-

cal studies covering the following topics.

(a) Software lifecycle, its main phases and activi-

ties. Software requirements. Software quality.

(b) Formal methods in software development. For-

mal speciﬁcations and their impact on differ-

ent activities. Speciﬁcation techniques. Reﬁne-

ment and abstraction.

guage. RSL notation. RSL types. Variant

types. RSL expressions. Parallel computation.

(d) Analytical veriﬁcation of software. Hoare

logic. Floyd methods.

(e) Testing based on formal speciﬁcations. Test or-

acle. Test adequacy criteria. Partitioning of op-

eration domain. Test sequence construction on

the base of automata models.

(f) Formal speciﬁcations of programming lan-

guages. Syntax, static and dynamic semantics.

BNF. Attribute grammars. Correctness check-

ing. Code generation. Methods of dynamic se-

mantics description. Operational semantics.

4. Formal Software Speciﬁcation Using RAISE.

The course (RAISE Course, 2003) is conducted

for graduates in computer science or other

computing-related discipline in International In-

stitute for Software Technology, United Nations

University, Macau. It is developed by C. George

and A. E. Haxthausen. The course includes both

theoretical and practical parts and covers the fol-

lowing.

(a) Software lifecycle. Formal methods in gen-

eral. Characteristics of formal methods. For-

mal speciﬁcations.

(b) RAISE method. Iterative reﬁnement and veriﬁ-

cation. Speciﬁcation techniques.

expressions. Channels and concurrency. Mod-

ularity.

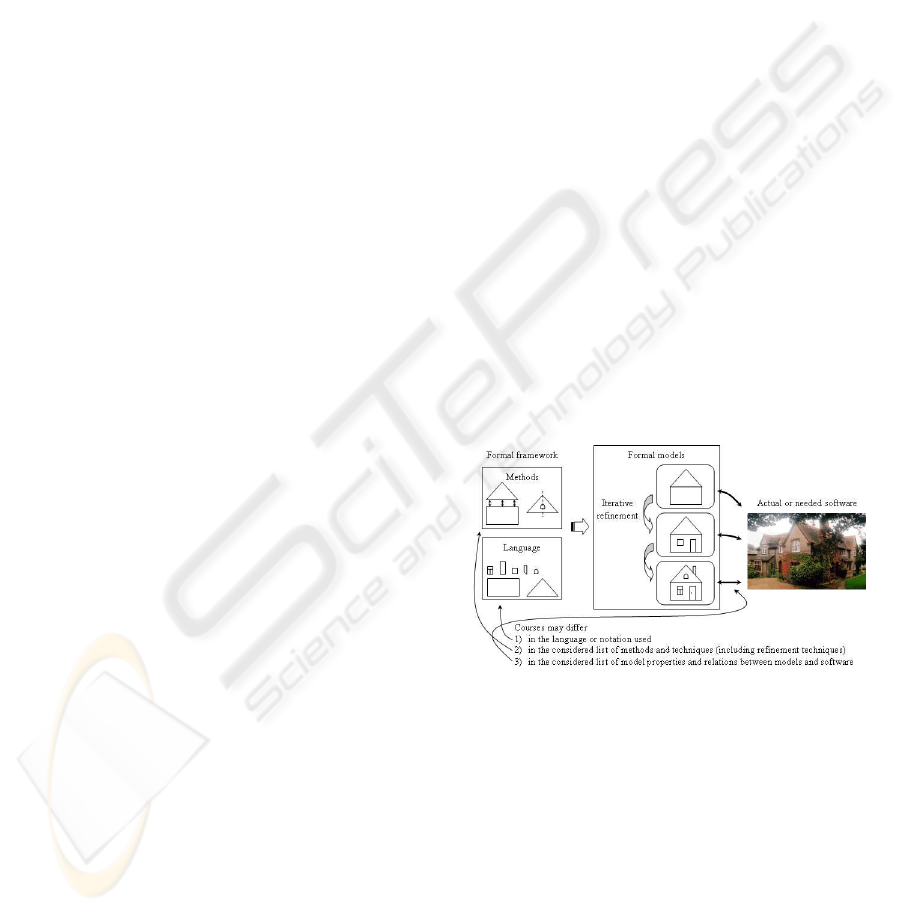

This helps to ﬁnd common part of most such

courses and gives ideas to lighten the mathematics

involved. The contents of all four these courses are

based of the following common scheme.

1. To make software development less error-prone

and the resulting software more manageable and

comprehensible we can use formal models of soft-

ware under development or analysis. They help

to explore the properties of actual software or to

construct it in such a way that it would have the

wishful properties.

2. Formal models are developed in a specialized for-

mal frameworks providing a language to describe

such models and methods of deducing or checking

models’ properties, or checking their counterparts

(whatever it means) in actual software. These are

the methods usually called formal methods.

3. The iterative reﬁnement of models is used to ob-

tain the models more and more close to the ac-

tual software or to the software we need and at

the same time retaining the properties of the pre-

viously constructed models.

This general scheme is illustrated on Fig. 1.

Figure 1: Common contents of courses in formal methods.

The formal frameworks considered in different

courses differ – in the ﬁrst one it is Abstract State Ma-

chines (ASMs) (Borger and Stark, 2003), in the sec-

ond one it is Vienna Development Method (Bjorner,

1979; Fitzgerald and Larsen, 1998), in the third and

the fourth it is RAISE Method (RAISEGroup, 1995).

But the common scheme found gives us some hints

on how to modify its contents to make it more com-

prehensible for people not skilled in mathematics. We

notice that most elaborated mathematics is involved in

formal frameworks used. Usually they are based on

formal languages with speciﬁc notation and include

methods to manipulate formal constructions that look

FORMAL METHODS: FOR ALL OR FOR CHOSEN?

219

terrible for non-mathematicians. And the use of math-

ematics in work with formal models mostly depends

on the language and methods used. So, we have two

possibilities concerning with those issues in the in-

verse order.

First, we may make mathematical background of

a formal method as stable as possible and hide it in-

side the tools supporting this method. The interface

of the tools should be as close to the ‘common life’ as

possible. Users would work with it by manipulating

the familiar concepts and their relations, which are

unambiguously mapped into formal framework and

so correspond to formal concepts with relations be-

tween them. This solution can be applied if we per-

form reﬁnements rarely and are interested in meth-

ods that allow mostly automatic operation with mod-

els and their properties. Examples of such methods

are model checking and formal testing.

Second, we may try to ‘decorate’ formal frame-

work with terms of common language in such a way

that makes its theorems and techniques more clear

to non-mathematician. Of course, such a decoration

should be performed in a very accurate way, different

for different problem domains, to eliminate problems

of misunderstanding of terms and at the same time to

provide these terms with precise meaning. This ap-

proach may simplify techniques used for proving of

software properties.

4 TURNING TO THE STUDENT

The other direction of course adaptation is to create

an effective learning environment different from the

traditional university education system based on pure

theoretical lectures and practical studies. While the

traditional education process is based mostly on stu-

dents’ attention, perception, and memorization of the

information (‘the school of memory’), some modern

education methods involve creative, dialogical think-

ing and social activity in the learning process (‘the

school of thinking’). Advanced learning techniques

use the ideas of cooperation, dialog, and partnership

between students and teacher.

This cooperation can be realized in the process

of active learning, which requires teacher to change

his attitude to the education. Good results can be

achieved if the teacher realizes that student is the fo-

cal person of the process and that the main activity

is learning, not teaching. The priorities are moved

to independent learning and practical application of

knowledge obtained in particular.

In active learning students are involved in active

cognitive work on all the phases of education pro-

cess. They independently discover the knowledge,

which in traditional approach is presented by the

teacher without active participation of the students

themselves (Smirnov, 2001). It is well known that

when active learning is used from 75% to 90% of the

information given by the teacher is acquired. Com-

pare this data with the corresponding data for tradi-

tional lecture, which helps to acquire not more than

20% of the information introduced in it (Hartley and

Davies, 1978).

Since the university education is organized as a

number of lectures and practical studies, we use the

same organizational structure. Practical studies give

more possibilities for student involvement in active

learning process and can be conducted with use of co-

operative learning techniques (Johnson et al., 1990),

projects, multi-level education. We also use the fol-

lowing techniques in presentation of the course con-

tents.

1. Work with special workbook (portfolio) for inde-

pendent tracking of subject mastering and formu-

lation of questions. This technique is used at the

lectures as a form of the students’ individual work

organization.

2. Organization of cooperative work in groups dur-

ing lectures. It is used to discuss the stated prob-

lems, to make decisions, and to ﬁnd unclear issues

by the end of the day (Rae, 2000).

3. Organization of pair work on lectures with indi-

vidual tasks for students in a pair, for example,

one student tries to explain the material to the

other or one asks questions and the other answers

them.

4. Individual system of practical studies that allows

every student to go along his own way in master-

ing practical skills.

5. Use of anticipatory exercises during lectures,

when students are asked to ﬁnd a solution of

some problem with the help of individual work or

discussions groups before the knowledge on the

given topic are introduced to them. Then a joint

discussion of the problem is organized and new

knowledge on the given topic is presented. Af-

ter that the problem discussion and its results are

analyzed.

6. Use of one of the basic models of active

learning – Evocation-Realization of Meaning-

Reﬂection (Meredith et al., 1997).

Evocation is a process of actualization of stu-

dents’ knowledge on a given topics and their mo-

tivating to investigate problems arisen. Challenge

prepares students for and sets their learning pro-

cess on the information that will be introduced

CSEDU 2009 - International Conference on Computer Supported Education

220

later. During a lecture challenge can be repre-

sented for example as the task to draw the cog-

nitive cluster of some concept or problem.

Realization of Meaning is an acquisition of new

information or ideas. This phase implies introduc-

tion of new information. The realization of any-

thing new can take place only during active learn-

ing activities. So, the special conditions should be

created to stimulate active involvement of a stu-

dent into the process of mastering new informa-

tion.

Reﬂection is an introduction of new knowledge

into one’s own knowledge system.

To stimulate active involvement of a student into

learning process we suggest not use traditional syn-

opses writing on lectures. Instead we can use the ‘log-

book’ technique for memorizing information pre-

sented on lecture. The ‘log-book’ consists of the fol-

lowing parts.

• keywords;

• questions, problems;

• diagrams, charts, drawings, models;

• associations, applications.

The lecture stops after 12 minutes since lecture started

and asks students to ﬁll the sections of the ‘log-book’.

They used about 3-4 minutes for that, then 5-6 min-

utes for discussion of the results. After that the lecture

proceeds.

The other technique that can be used is presenta-

tion of a lecture with the help of marking table. The

text of lecture is distributed among students and they

are asked to mark it with the following marks.

√

– I already know this

+ – this is new for me

- – this contradicts to my knowledge

? – here I have some questions

After marking the text each student ﬁlls the ta-

ble consisting of four columns corresponding to those

marks. Then, the discussion of the questions and con-

tradictions is organized in pairs and in groups. The

lecturer sometimes takes the initiative and explains

the necessary issues.

Such an organization of learning process helps to

each student to move along his own path, his own

learning trajectory. The important issue in the de-

velopment of student’s own knowledge system is re-

ﬂection, which is underestimated in teaching formal

methods, since reﬂection is usually related with the

humanities. But the only reﬂection helps one to com-

prehend his activity in such a way that he is deﬁnitely

aware of what and how he does. In other words, one

is aware of plan and rules of his own activity. The

purport of reﬂection as a learning activity is the re-

ﬁnement of one’s knowledge, uncovering of its foun-

dations and evolution process.

Other ways of lecture organization that helps to

construct individual learning trajectory are also pos-

sible.

5 CONCLUSIONS

The article presents an approach to teaching students

with no aptitude in mathematics formal methods of

software development. To have such an approach is

very important in the contemporary world where the

most part of critical infrastructure uses software in

some form and the software becomes extremely com-

plex and at the same time needs higher level of relia-

bility.

The approach presented consists of the following

two parts.

1. Course contents can be modiﬁed to hide the math-

ematical formalism often put ahead as a main

essence of formal methods under a set of com-

monly used terms and more usable interface of the

tools with several ‘magic buttons’.

2. The learning process can be made more effec-

tive by use of modern education techniques aimed

to involve as much capabilities and attention of

students as possible, to stimulate them to active

learning and independent knowledge acquisition.

Members of RedVerst group of ISPRAS success-

fully apply this approach in course on formal speci-

ﬁcation of software conducted in Moscow State Uni-

versity. It was also used in several training course

conducted for industrial software development teams

to transfer UniTesK test development technology base

on formal speciﬁcations (Petrenko and Omelchenko,

2003; Kuliamin et al., 2005).

REFERENCES

Abrial, J. R. (1996). The B Book. Cambridge University

Press.

ASM Course (2001). http://www.di.unipi.it/∼boerger/

LC01.html.

Bjorner, D. (1979). The Vienna Development Method: Soft-

ware Abstraction and Program Synthesis. Springer-

Verlag.

Borger, E. and Stark, R. (2003). Abstract State Machines:

a Method for High-Level System Design and Analysis.

Springer-Verlag.

FORMAL METHODS: FOR ALL OR FOR CHOSEN?

221

Dijkstra, E. W. (1974). Programming as a discipline of

mathematical nature. Am. Math. Monthly, 81(6):608–

612.

Fitzgerald, J. and Larsen, P. G. (1998). Modelling Systems:

Practical Tools and Techniques for Software Develop-

ment. Cambridge University Press.

Floyd, R. W. (1967). Assigning meanings to programs. In

Proc. Symposium on Applied Mathematics, pages 19–

32. American Mathematical Society.

FM Course (2008). http://www.ispras.ru/∼RedVerst/ Red-

Verst/Lectures and training courses/MSU course For-

mal speciﬁcation of software/RMain.html.

Hartley, J. and Davies, I. K. (1978). Note-taking: A crit-

ical review. Programmed Learning and Educational

Technology, (15):207–224.

Johnson, R. T., Johnson, D. W., and Smith, K. A. (1990).

Cooperative learning: An active learning strategy for

the college classroom. Baylor Educator, pages 11–16.

Kuliamin, V. V., Omelchenko, V. A., and Petrenko, O. L.

(2005). Learning advanced software development

methods: problems and solutions. Proc. of ISPRAS,

pages 91–108.

Meredith, K., Steele, J., and Temple, C., editors (1997).

Guidebooks for Reading and Writing for Critical

Thinking. The International Reading Association.

Petrenko, O. L. and Omelchenko, V. A. (2003). Rapid

training on speciﬁcation based testing tools. In Proc.

SEEFM’2003.

Rae, L., editor (2000). Using Activities in Training and De-

velopment. Kogan Page.

RAISE Course (2003). http://www.iist.unu.edu/home/ Un-

uiist/newrh/II/2/1/1/page.html.

RAISEGroup (1995). The RAISE Development Method.

Prentice Hall.

Smirnov, S. A., editor (2001). Pedagogics: Pedagogic The-

ories, Systems, and Technology. Publishing Center

”Academia”, 4-th edition.

Tassey, G., editor (2002). The Economic Impacts of Inad-

equate Infrastructure for Software Testing, Final Re-

port. National Institute of Standards and Technology

Acquisition and Assistance Division.

VDM Course (2003). http://coursework.cs.ncl.ac.uk/ mod-

ule/2003/CSC264.

CSEDU 2009 - International Conference on Computer Supported Education

222
