ESpace

Web-scale Integration One Step at a Time

Kajal Claypool, Jeremy Mineweaser, Dan Van Hook, Michael Scarito

Massachussetts Institute of Technology/Lincoln Laboratory, 244 Wood Street, Lexington, MA, U.S.A.

Elke Rundensteiner

Computer Science Department, Worcester Polytechnic Institute, 100 Institute Road, Worcester, MA, U.S.A.

Keywords:

Data integration social bookmarking pay-as-you-go web-integration.

Abstract:

In this paper, we take the position that a ﬂexible and agile integration infrastructure that harmoniously and

transparently oscillates between and supports different levels of integration – loose or partial integration on

one end of the spectrum and tight or full integration on the other end of the spectrum – is essential for achieving

large Web scale integration. Furthermore, domain knowledge provided by users/domain experts is essential

for improving the quality of integration between resources. We posit Web 2.0 or “social Web” technologies,

can be brought to bear to facilitate implicit user-driven, web-scale integration at different levels. In this paper,

we present ESpace, a prototype for a pay-as-you-go integration framework that supports loosely to tightly

integrated resources within the same infrastructure, where loose integration is supported in the sense of pulling

resources on the web together, based on the tag meta-information associated with them, and tight integration is

a representation of classic schema-matching based integration techniques. This is but the ﬁrst step in enabling

web-scale pay-as-you-go integration by providing ﬁne-grained analysis and integrating substructures within

resources – achieving tighter integration for select resources on the user’s behest.

1 INTRODUCTION

There is a gradual but growing paradigm shift in the

way users operate on the World Wide Web (Web).

Web users today are not satisﬁed by merely view-

ing published content on the Web but want to ac-

tively engage in the larger Web community and share

their knowledge. This paradigm shift has resulted in

an ever-growing repository of published and shared

Web-accessible data. They, the Web users, are inter-

ested in chronicling their opinions (blogging), adding

to the knowledge pool on different subject matters

(wikis), sharing what they have read (social book-

marking) and are interested in the potential to con-

nect to like-minded people within their community or

across the globe, either explicitly (social networking)

or implicitly.

The challenge is in being able to discover and ex-

tract the right “nuggets” of knowledge from the result-

ing collective pool of “community intelligence” on an

as needed basis, where the nuggets range from ﬁnd-

ing users with similar interests, ﬁnding documents

that are similar to those already read by a user, to

discovering topically linked communities within the

larger community. The challenge in ﬁnding the right

“nuggets” of knowledge is in formulating links be-

tween different data based on the available informa-

tion, that is in integrating the data on the Web scale.

While traditional data integration tech-

niques (Baker et al., 1998; Doan et al., 2001;

Halevy et al., 2003; Wiederhold, 1992; Bright et al.,

1994; Bergamaschi et al., 2001; Berlin and Motro,

2001; Haas et al., 1999; Madhavan et al., 2001; Do

and Rahm, 2002) can be brought to bear to achieve

this, they in of themselves are not agile nor ﬂexible

enough to address this large scale Web integration.

Traditional data integration techniques are grounded

in schemas, requiring design-time schema level

matches to drive run-time integration of data. While

some Web sources lend themselves to this mode of

integration, there are many others that do not even

have a well-established schema. Moreover, apriori

establishing schema level matches between many of

the resources may well be a colossal waste of time

and resources, as there may never be a user desire to

search the resources in an integrated manner.

247

Claypool K., Mineweaser J., Van Hook D., Scarito M. and Rundensteiner E. (2009).

ESpace - Web-scale Integration One Step at a Time.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

247-252

DOI: 10.5220/0002161802470252

 SciTePress

In this large Web scale integration it is, thus, es-

sential to establish an infrastructure that allows for

loose or partial integration on one end of the spec-

trum, but that is also able to transition to tight or

full integration on the other end of the spectrum har-

nessing available information, such as the schema,

while fulﬁlling user needs. While clearly richer,

ﬁner nuggets of information can be extracted from

the more tightly integrated resources, loosely inte-

grated resources have the advantage of delivering par-

tial nuggets of information at very little cost. Figure 1

highlights the model for the pay-as-you-go (Maier

et al., 2005; Doan, 2008; Sarma et al., 2008) inte-

gration wherein, resources in the system co-exist in

various integration stages, from no integration to par-

tial integration to full integration. The richness of the

nuggets, indicated by the semantic interoperability,

increases with the level of integration and is directly

proportional to the effort required in establishing the

integration links between the resources.

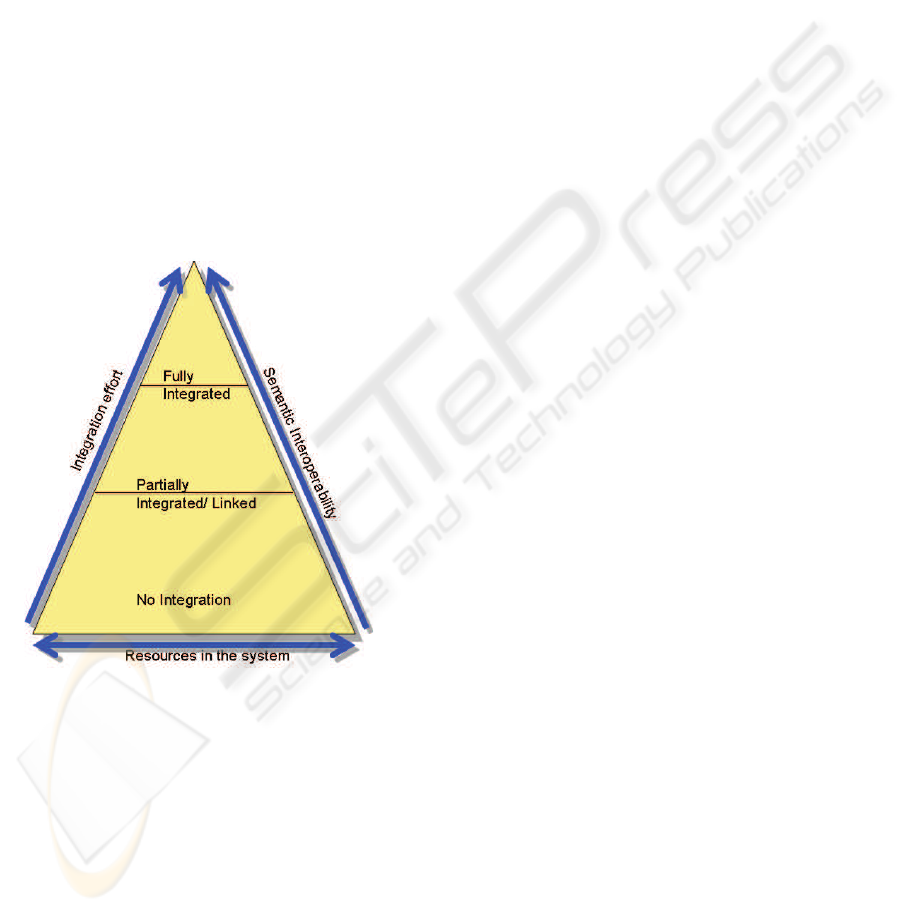

Figure 1: Supporting Different Levels of Integration.

We posit that the popularity and the collaboration

potential unleashed by today’s wildly read-write Web,

often referred to as Web 2.0 or the “social Web”, can

be utilized and brought to bear to facilitate implicit

user-driven, web-scale integration, and push towards

a ﬂexible integration infrastructure that can harmo-

niously and transparently support different levels of

integrated systems.

In this paper, we present the vision of such a ﬂex-

ible integration system: ESpace. ESpace is a scal-

able, pay-as-you-go integration system that provides

a community collaboration infrastructure, together

with a suite of algorithms that mine the tagging ac-

tivities of users to establish integration links between

resources as well as users. ESpace harnesses the col-

lective intelligence of many to help individuals as well

as whole communities by: (1) collecting and consoli-

dating resources on the web along with tags annotat-

ing the resources in a sharable and ﬂexible commu-

nity graph model; (2) designing and realizing a com-

prehensive set of services that mine this collective in-

telligence in the form of tagging activities of users to

extract rich integration relationships among users and

artifacts within the community graph model; (3) ex-

ploiting this so enriched community graph model to

provide value-added services to the community and

its individuals, ranging from recommendations of re-

sources, to the computationof evolutionary trends and

shifts of expertise, users or topics within the commu-

nity, as well as to assisting others to locate subject ex-

perts or like-minded users to gain strong conﬁdence

into the identiﬁed resource.

The rest of the paper is organized as follows. Sec-

tion 2 gives a high level overview ESpace. Section 3

details the community graph model, while Section 4

outlines some of the algorithms that are currently be-

ing implemented to harness tagging activities for in-

tegration links. Section 5 highlights some the beneﬁts

that can be realized via the ESpace loose integration

infrastructure. We conclude in Section 6.

2 OVERVIEW

Figure 2 highlights the key concepts of the ESpace

community integration architecture. ESpace is pre-

sented to its users primarily as a social bookmarking

site enhanced and enriched via a set of services that

deliver knowledge mined from the collective intelli-

gence of the community in various forms. As a so-

cial bookmarking site, ESpace provides bookmarklets

that allow users to bookmark and tag web documents,

and consequently add to the collective graph that rep-

resents the community information base. In general,

to accomodate a large variety of users, ESpace aims

to support a range of input tools, such as integrat-

ing with browser bookmarking tools, providing ingest

of bibtex ﬁles, and enabling both a simple one click

and a more full-ﬂedged bookmarklet for tagging doc-

uments. Information provided by the user, in the form

of the user, the bookmarked document, the tags that

represent the user’s take on the document, together

with annotations such as the time of creation or of

last update, is captured as a graph, and subsequently

merged with the collective community graph stored in

the Common Logical Repository.

The intellectual merit of this work lies in the

ICEIS 2009 - International Conference on Enterprise Information Systems

248

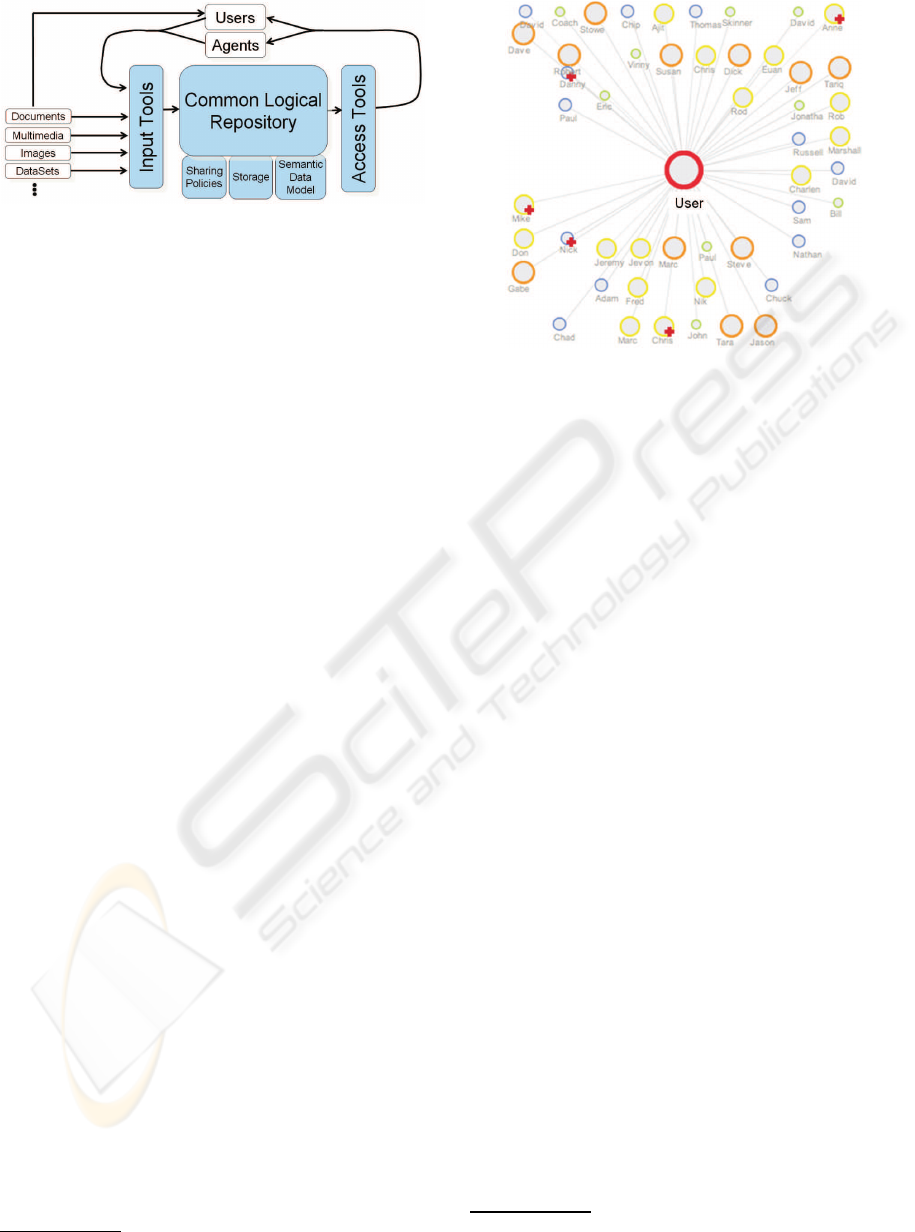

Figure 2: Architectural Overview of ESpace.

development of a set of agents that perform value-

added services such as: data cleanser to, for exam-

ple, ensure that mis-spelled tags are corrected, syn-

onymous tags are identiﬁed correctly, and same docu-

ments identiﬁed by two different URLs

are merged;

artifact linker to, for example, infer and establish re-

lationships between two users, two documents or in

some cases even two tags, based on the collective in-

formation garnered by the community as a whole and

the individual user; top-k recommender to, for exam-

ple, recommend topics, users (“friends”), documents,

and in some cases even tags of potential interest to

the community as a whole, or to provide personalized

recommendations of the same to a user of the system;

and trend analyzer to provide a birds-eye view of the

collective knowledge of the community or an individ-

ual user over time delivering, for example, the evolu-

tion of the topics of interest or the user community as

well as providing insights into the general trends in

the knowledge and behaviors of users over some time

period.

Much like users of the system, each agent adds to

the collective information by overlaying their derived

knowledge over the community graph as a whole or

a subset of the graph when appropriate, providing

continuous reﬁnement of integration links over time.

This overlay of information can be materialized, for

example, relationships denoting similarities between

users, wherein the relationships are physically added

to the community graph, or virtual, for example, top

“friends” or hot topics, wherein the information is

computed on an as needed basis.

The usefulness of information collected by the

user or derived by the agents is directly co-related to

the tools that are provided to access and present the

knowledge to the users. To accomodate a large vari-

ety of users ESpace provides several access tools such

as classic keyword and strutured metadata searches;

visualization tools such as Clustermap, Timeline, and

Clouds (see Figure 3) to provide different views, rang-

ing from “friends” of users to similar documents to

For example, a paper posted on two different web sites.

Figure 3: Clustermap Visualizing a User’s Neighborhood.

user activity over time to “friends” over time, of the

agent-augmented community graph; as well as visu-

alization of recommendations, such as list based doc-

ument recommendations, or user recommendations

that also provide an opportunity for users to provide

feedback for improved agent behaviors.

3 ESpace COMMUNITY GRAPH

MODEL

Social bookmarking sites and associated Web 2.0

technologies generally rely on relational databases

and site-speciﬁc schema deﬁnitions to store the infor-

mation shared by their users. While all social book-

marking systems store basic information on user, their

bookmarked documents, and associated tags, each

site adds its own variations: some may timestamp

each document tagged by the user, while others may

allow users to deﬁne hierarchical relationships be-

tween tags. Some recent work has looked at devel-

oping formal models for representing folksonomies,

where a folksonomy represents the relationship be-

tween the user’s documents and tags, and identiﬁes

the vocabulary set used by a user. While this is a

needed ﬁrst step, (1) it does not inherently treat users,

documents and tags as ﬁrst-class citizens; and (2) it

is not ﬂexible enough to express arbitrary, integra-

tion relationships between different artifacts

such as

those deﬁned by different agents; and (3) it is not ex-

tensible enough to capture information such as the

strength of the relationship between two artifacts, in-

dicating the degree of integration between two arti-

We refer to users, documents and tags as artifacts, when

no distinction between them is required.

ESpace - Web-scale Integration One Step at a Time

249

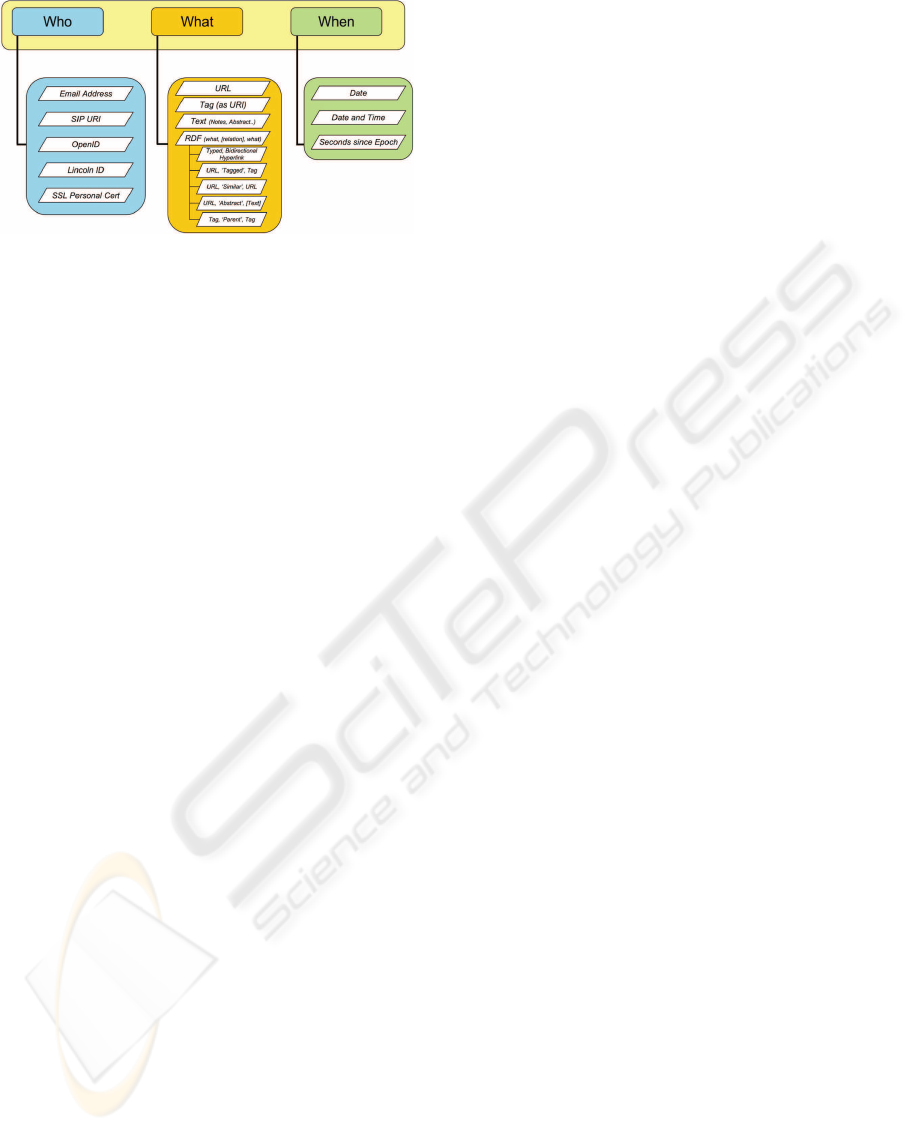

Figure 4: Community Graph Model.

facts, or distinguish between explicit relationships es-

tablished by users and implicit relationships inferred

by various agents.

To address these shortcomings, we provide an ex-

tensible and ﬂexible community graph model where

the nodes of the model represent the artifacts of our

system, and the edges in the model represent implicit

or explicit relationships between the different artifacts

irrespective of whether the artifacts are users, docu-

ments or tags. Figure 4 gives a high-level overview of

the community graph model as Resource Description

Framework (RDF) triples of the form <

who, what,

where

>. The community graph model is a nested

triple model that allows a range of relationships such

as < User

, URL

, timestamp > and < URL

sameAs

URL

>, to be expressed and enforced between the

different entities in the model.

In addition to the community graph model, we

provide a set of graph operators to facilitate func-

tions such as merging a user-graph with the larger

community-graph and extracting an artifact-centric

graph from the larger community graph, in addition

to core functions such as adding and removing arti-

facts or relationships to or from the graph.

4 ARTIFACT LINKERS:

ESTABLISHING LOOSE

INTEGRATION LINKS

The communitygraph model captures the relationship

between the user, the document that is bookmarked,

and the tags utilized by the user to annotate the doc-

ument. These explicit relationships between artifacts

represent the raw information that can in turn be ex-

ploited to infer integration/similarity relationships be-

tween the artifacts. For example, if two documents

and

are bookmarked by the same user

with

exactly the same tags {

, and

}, it can be in-

ferred that the documents provide similar knowledge

for the user and thus conceptually may fall into the

same category. Based on this knowledge, an implicit

similarity relationship, termed similarity for brevity,

between the documents

and

can be established.

This similarity relationship represents a “loose” inte-

gration relationship between the two documents. This

example can be further extended to establish similar-

ity between documents that are tagged similarly by

distinct users, or between users that share similar tag

and document choices, or even between tags that are

used equivalently. It should be noted that not all im-

plicit similarity relationships are equal. For example,

inferred similarity between documents

and

that

are tagged with the same tags by the same user would

be stronger than between documents that share only

some of the tags. Moreover, the strength of the rela-

tionship can be reﬁned further if it can be established

that the documents were authored by the same per-

son. This schema-level information transitions the re-

lationship between the two documents from a “loose”

integration to a “tight” integration relationship.

The artifact linkers infer implicit similarity rela-

tionships between two artifacts of the same type, irre-

spective of whether the artifacts represent users, doc-

uments, or tags; and determine the strength of the

implicit similarity relationship between the artifacts.

Academic and commercial research has broached this

problem of inferring similarities from several angles.

Collaborative ﬁltering deﬁnes similarity of varying

strengths between users based on how their ratings

on items correlate (Herlocker et al., 2004; Bell et al.,

2007; Konstan, 2004). Document similarity deﬁnes

similarity of varying strengths between documents

based on their content (Lee et al., 2005; Hammouda

and Kamel, 2004; Paepcke et al., 2000). Semantic

similarity deﬁnes similarity of varying strengths be-

tween words (or tags) based on the likeness of their

meaning or semantic content. Traditional schema in-

tegration techniques (Baker et al., 1998; Doan et al.,

2001; Halevy et al., 2003; Wiederhold, 1992; Bright

et al., 1994; Bergamaschi et al., 2001; Berlin and

Motro, 2001; Haas et al., 1999; Madhavan et al.,

2001; Do and Rahm, 2002) establish similarity of

varying strengths based on their schema. More re-

cently in the context of social bookmarking, folkson-

omy similarity investigates how the folksonomies of

different users can be correlated. Using these as build-

ing blocks, we now develop composite algorithms

to support establishment of integration links between

different artifacts.

To infer implicit similarity relationships between

artifacts, we develop novel algorithms that harness

the collective intelligence of the community graph or

a subset to establish similarity between users, docu-

ICEIS 2009 - International Conference on Enterprise Information Systems

250

ments and tags. In particular, we provide three classes

of algorithms, user-user, document-document, and

tag-tag, that build upon and exploit implicit similarity

relationships established by the other algorithms.

User-User. This class of algorithms determines the

strength of the implicit similarity relationships be-

tween pairs of users. These include: (1) singleton set-

intersection algorithms that determine the strength of

the similarity based on overlap in documents and tags

between the two users, along with algorithms that in-

corporate notions of signal to noise ratio in the doc-

uments and tags; and (2) composite algorithms that

provide for meaningful combinations of the different

singleton algorithms to determine an aggregated sim-

ilarity strength. Additionally, the algorithms incorpo-

rate additional constraints such as the time of tagging,

and knowledge such as already established document-

document and tag-tag similarity relationships to age

and fortify the strength of the similarity relationship,

respectively.

Document-Document. This class of algorithms de-

termines the strength of the implicit similarity re-

lationship between pairs of documents. Similar to

user-user algorithms, set-intersection based methods

that determine similarity strengths based on docu-

ment tags and document “owners”, that is the users

that bookmarked the documents, and combinations

thereof have been developed. In addition, document

similarity techniques (Lee et al., 2005; Hammouda

and Kamel, 2004; Paepcke et al., 2000), and already

established user-user and tag-tag similarities are used

to augment the strength of the similarity relationship

determined by the tag-based methods.

Tag-Tag. This class of algorithms determines the

similarity relationship between pairs of tags. Set-

intersection based methods that determine the co-

occurence of tags based on overlap in documents and

users, together with mapping of tags to common on-

tological concepts have been developed. Techniques

from information retrieval such as semantic similarity

together with the basic spell-checking and stemming

algorithms are exploited to determine tag-tag similar-

ity. Additionally, already established user-user and

document-document similarities are used to augment

the strength of tag-tag similarities.

5 BENEFITS OF LOOSE

INTEGRATION

Social tagging systems capture a rich set of infor-

mation. This information, the collective pool of

knowledge for an individual user or the commu-

nity as a whole, together with established loose in-

tegration links between artifacts can be leveraged to

provide a wider variety of recommendations, from

users to documents to tags, than have been possible

in traditional recommendation systems (Amer-Yahia

et al., 2008). The similarity relationships between

different artifacts in ESpace can be leveraged to pro-

vide rich and diverse types of recommendations cus-

tomized for individual members of the community.

For instance, users may receive recommendations on

friends, meaning other users in the community that

share their interests; or on documents that are of po-

tential interest to the individual based on the docu-

ments tagged by their friends and/or experts; or on

topics that are of potential interest based on the topical

areas favored for instance by their friends; or on tags,

that is the tags that are of potential applicability to

the document being bookmarked by the user. Last but

not the least, users can also receive recommendations

on experts, that is on other users that are singled out

not only because they share the individual’s interests,

but who have also categorized a mass of literature in

topic areas of interest. In all of these cases, interests

of users are inferred by the documents they bookmark

and the tags they use, that is the user’s tag cloud and

the integration links established between the different

artifacts as core source of knowledge.

While recommendations target individual users,

the ESpace information model as a whole can also

be leveraged to provide trend analysis – a pulse of the

community, a bird’s eye view of both the current state

of the community, as well as its evolution over time.

In particular, we top-k analysis that identiﬁes commu-

nities of interest, that is groups of users in the commu-

nity that are clustered by their shared interests; top-k

users, lead contributors to the communities of interest

as categorized by their bookmarking activity; hot top-

ics, the topical areas of interest most active within the

community; topical experts, users singled out for cat-

egorizing a mass of literature within each hot topic;

and last but not the least top tags, a measure of the

most frequently used annotations in the community.

These two areas, recommendations and trend

analysis, represent two rich areas of research that can

be enabled via the loose integration model of ESpace,

highlighting the beneﬁts and value-added functional-

ity that can be brought to its users.

6 CONCLUSIONS

ESpace represents a community collaboration infras-

tructure that harnesses the social bookmarking activ-

ESpace - Web-scale Integration One Step at a Time

251

ities of its users to establish loose integration links

between data sources as well as its users. While fo-

cusing on loose and partial integration, ESpace em-

powers its users to easily share information through

a social bookmarking-inspired approach, while at the

same time providing an enriched set of services that

deliver knowledge mined from the collective intelli-

gence of the community. The loose integration links

between different artifacts lay the foundation for pro-

viding rich recommendation services, ranging from

the global recommendations applicable for the entire

community to personalized recommendations based

on the context; as well as trend analysis strategies that

provide a birds-eye view of the collective community

knowledge as they change over time.

In this paper, we focus on loose integration in the

sense of pulling resources on the web together, based

on the tag meta-information asssociated with them.

We posit that harnessing Web 2.0 user activities is

an essential ingredient for achieving the holy grail of

web-scale integration and ESpace is but a ﬁrst step

towards achieving a ﬂexible integration infrastructure

that supports loosly and tightly integrated resources.

REFERENCES

Amer-Yahia, S., Galland, A., Stoyanovich, J., and Yu, C.

(2008). From del.icio.us to x.qui.site: recommenda-

tions in social tagging sites. In SIGMOD ’08: Pro-

ceedings of the 2008 ACM SIGMOD international

conference on Management of data, pages 1323–

1326, New York, NY, USA. ACM.

Baker, P., Brass, A., Bechhofer, S., Goble, C., Paton, N.,

and Stevens, R. (1998). TAMBIS: Transparent Access

to Multiple Bioinformatics Information Sources: An

Overview. In Proceedings of the Sixth International

Conference on Intelligent Systems for Molecular Bi-

ology, ISMB98.

Bell, R., Koren, Y., and Volinsky, C. (2007). Modeling re-

lationships at multiple scales to improve accuracy of

large recommender systems. In Berkhin, P., Caruana,

R., and Wu, X., editors, KDD, pages 95–104. ACM.

Bergamaschi, S., Castano, S., Vincini, M., and Beneven-

tano, D. (2001). Semantic integration of heteroge-

neous information sources. Data and Knowledge En-

gineering, 36(3):215–249.

Berlin, J. and Motro, A. (2001). AutoPlex: Automated Dis-

covery of Content for Virtual Databases. In CoopIS,

pages 108–122.

Bright, M., Hurson, A., and Pakzad, S. H. (1994). Auto-

mated Resolution of Semantic Heterogeneity in Mul-

tidatabases. TODS, 19(2):212–253.

Do, H. and Rahm, E. (2002). COMA - A System for Flexi-

ble Combination of Schema Matching Approaches. In

vldb.

Doan, A. (2008). Building structured web community por-

tals via extraction, integration, and mass collabora-

tion. In Ho, T. B. and Zhou, Z.-H., editors, PRICAI,

volume 5351 of Lecture Notes in Computer Science,

page 3. Springer.

Doan, A., Domingos, P., and Halevy, A. (2001). Reconcil-

ing Schemas of Disparate Data Sources: A Machine-

Learning Approach. In sigmod.

Haas, L., Miller, R., Niswonger, B., Roth, M., Schwarz,

P., and Wimmers, E. (1999). Transforming Heteroge-

neous Data with Database Middleware: Beyond Inte-

gration. IEEE Data Engineering Bulletin, 22(1):31–

36.

Halevy, A., Ives, Z., Mork, P., and Tatarinov, I. (2003). Pi-

azza: Data management infrastructure for semantic

web applications. In World Wide Web Conf., 2003.,

pages 20–24.

Hammouda, K. M. and Kamel, M. S. (2004). Docu-

ment similarity using a phrase indexing graph model.

Knowl. Inf. Syst., 6(6):710–727.

Herlocker, J. L., Konstan, J. A., Terveen, L., and Riedl,

J. T. (2004). Evaluating collaborative ﬁltering recom-

mender systems. ACM Trans. Inf. Syst., 22(1):5–53.

Konstan, J. A. (2004). Introduction to recommender sys-

tems: Algorithms and evaluation. ACM Transactions

on Information Systems, 22(1):1–4.

Lee, M., Pincombe, B., and Welsh, M. (2005). An empir-

ical evaluation of models of text document similarity.

In Proceedings of the 27th Annual Conference of the

Cognitive Science Society, pages 1254–1259.

Madhavan, J., Bernstein, P., and Rahm, E. (2001). Generic

Schema Matching with Cupid. In vldb, pages 49–58.

Maier, D., Halevy, A., and Franklin, M. (2005). From

databases to dataspaces: A new abstraction for infor-

mation management. Sigmod Record, 34(4):27–33.

Paepcke, A., Garcia-molina, H., Rodriguez-mula, G., and

Cho, J. (2000). Beyond document similarity: Under-

standing value-based search and browsing technolo-

gies. SIGMOD Record, 29:2000.

Sarma, A. D., Dong, X., and Halevy, A. Y. (2008). Boot-

strapping pay-as-you-go data integration systems. In

Wang, J. T.-L., editor, SIGMOD Conference, pages

861–874. ACM.

Wiederhold, G. (1992). Mediators in the architecture of fu-

ture information systems. IEEE Computer, 25(2):38–

49.

ICEIS 2009 - International Conference on Enterprise Information Systems

252
