A PARAMETERIZABLE HANDEL-C NEURAL NETWORK

IMPLEMENTATION FOR FPGA

Cherrad Benbouchama

, Mohamed Tadjine

E.M.P, Bordj El Bahri, 16111 Alger, Algeria

Ecole Nationale Polytechnique, El Harrach Alger, Algeria

Ahmed Bouridane

School of Electronics, Electrical Engineering and Computer Science, Queen’s University

Keywords: Neural networks, FPGA, Parameterizable implementation, Handel-C.

Abstract: This paper shows the design possibility of a parameterizable implementation of neural multi-layer network

on FPGA circuits (Field Programmable Gate Array) through the use of Handel-C language. The algorithm

used for the training is the back-propagation. The tools of implementation and synthesis are the DK 4 of

Celoxica and the ISE 6.3 of Xilinx. The targeted components are XCV2000 on Celoxica RC1000 board and

XC2V1000 on RC200. The representation of the real numbers in fixed point was used for the data

processing. The realization of the activation function is made with the approximate polynomial. A high level

environment was designed in order to specify and introduce architecture parameters.

1 INTRODUCTION

The first ANNs implementation on FPGA was

carried out by Cox and al within the framework of

the GANGLION project (Cox and Blanz, 1992). It

was applied for real time images segmentation.

Other work followed since, for the implementation

of various types’ architectures of ANNs and various

real data representations. The algorithm most used

for multi-layer ANNs training is the back-

propagation one. Eldredge had made a success, in

1994, of the first implementation of this algorithm

on the RRANN platform (Runtime Reconfiguration

Artificial Neural Network) built around the XC3090

FPGA (Eldredge and Hutchings, 1994). Ferrucci and

Martin have designed the ACME multi-FPGA

platform (Adaptive Connectionist Model Emulator)

which is composed of fourteen (14) Xilinx XC4010

FPGAs (Ferrucci 1994) (Martin, 1994). Ossoing, in

1996, had also implemented on FPGA the back-

propagation algorithm. It had implemented the

architecture [3,3,1] on four (4) Xilinix XC4013

FPGAs and one Xilinix XC4005 (Ossoinig and al,

1996). Beuchat & al., in 1998, were heavily

influenced by Eldredge work. They developed the

RENCO platform containing four (4) FPGAs

controlled by microprocessor. It was successfully

applied to hand-written characters recognition

(Beuchat and al, 1998). Pandya, in 2005, had

implemented on FPGA the back-propagation

algorithm with Handel-C language and had worked

out a partially parallel architecture and another

completely parallel, which proved, respectively,

twice and four times faster than a sequential

architecture (Pandya, 2005). However, the necessary

time for the ANNs implementation on FPGAs is of

about months (Benbouchama and al, 2007).

Moreover, the programming of these circuits

requires the mastery of specific languages, which

reduces considerably their use on a large scale. It

would be then interesting to carry out a graphical

environment which would be dedicated for users not

necessarily initiated to FPGAs programming.

In this paper, we are interested in the design of a

parameterizable tool that generates a neural multi-

layer network implementation on FPGAs through

the use of Handel-C language. This work aims at the

realization of a high-level environment making it

possible, on the one hand, to ensure the interfacing

between the user and an FPGA board, and on the

other hand, to generate automatically configurations

dedicated to the ANNs. The algorithm used for the

325

Benbouchama C., Tadjine M. and Bouridane A.

A PARAMETERIZABLE HANDEL-C NEURAL NETWORK IMPLEMENTATION FOR FPGA.

DOI: 10.5220/0002166903250328

In Proceedings of the 6th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2009), page

ISBN: 978-989-8111-99-9

 2009 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

training is the back-propagation, and the tools of

implementation and synthesis are the DK 4 of

Celoxica and the ISE 6.3 of Xilinx.

2 TECHNICAL PRINCIPLE

2.1 Handel-C Language

Handel-C is perhaps the most popular high-level

language currently available for hardware

specification (Stöcklein and Bhig, 2002). Its syntax

is based on the C language making it easily adopted

by traditional software engineers. The benefits of

rapid hardware development and simplicity of

specification often come at a price. In comparison

with traditional hardware description languages such

as VHDL (Ashenden, 2002), Handel-C and its

compiler produce hardware that consumes more

FPGA area (Hopf, 2003) and is often slower in

performance.

2.2 A Parameterizable Implementation

A parameterizable implementation is that in which a

user would have the possibility of changing the

application parameters without having to modify the

hardware configuration of the FPGA. The

implementation will be flexible.

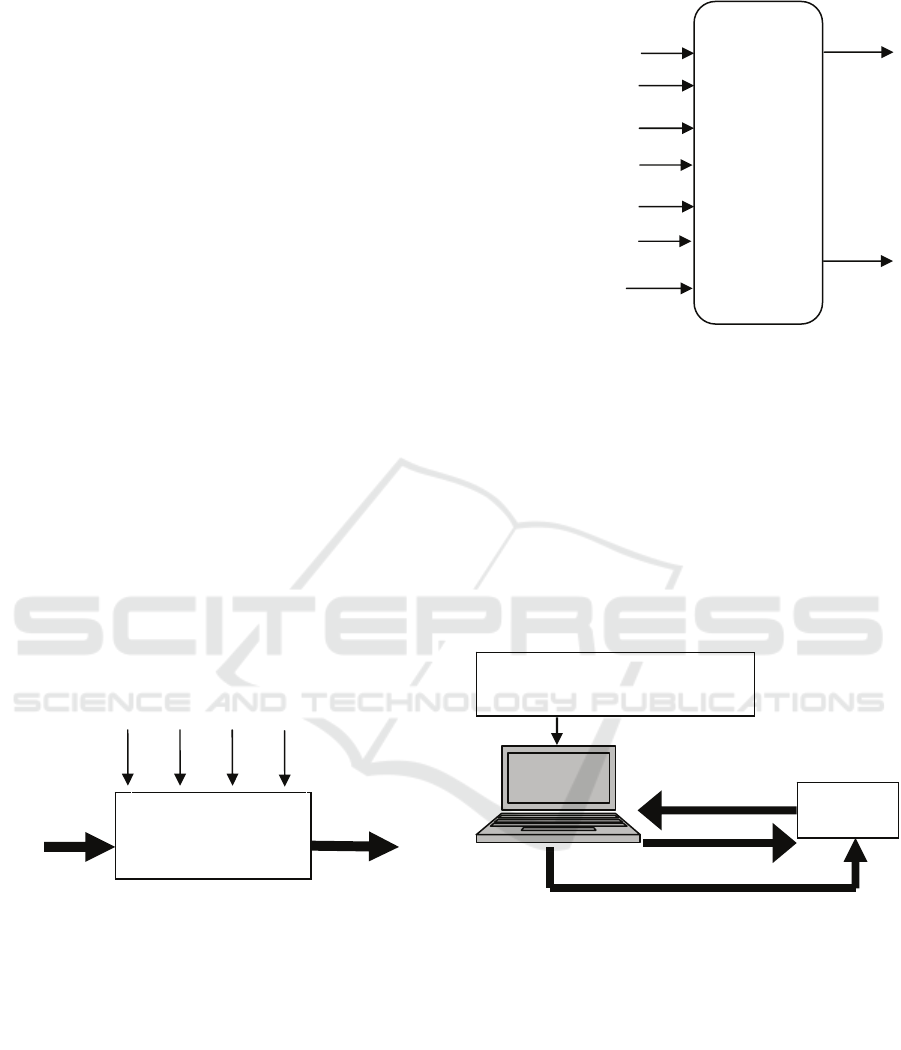

Figure 1: A parameterizable implementation.

In a parameterizable ANNs implementation (figure

2), the inputs are, in addition to the maximum of

epochs and the desired error, different data

concerning the architecture and the training

parameters.

Figure 2: Parameterizable ANNs implementation.

The development of this parameterizable ANNs

implementation is made with handel-C language

which, contrary to VHDL, makes it possible to

design completely parameterizable applications.

2.3 Automatic Generation of

Configurations

It consists in developing an automatic generator of

configurations starting from the host computer

towards the FPGA board (figure 3).

Figure 3: Principle of the software platform.

The generator of configurations ensures the

following tasks:

• The synchronization between the host

computer and the FPGA board.

• The configuration of the FPGA circuit by

the bit file.

• The data transfer between the FPGA board

and the host computer.

Parameterizable

implementation

Resul

Data

Application parameters

Maximu

ochs

Desired erro

ut la

er neurons

Out

ut la

Hidden la

neurons

Learning rate

Size of the

training base

Parameterizable

ANNs

implementation

Error

obtained

Weights

obtained

Bit file

Application parameters

FPGA

board

Generation of configurations

(Host computer)

Results

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

326

2.4 Graphical Interface

From these graphical menus, the user is invited to

design his application. Thus, he can specify the

different parameters of the application. This system

can bring many tools for the implementation design

and control. The advantage resides in the facility of

the approach: there is no language, it requires only

the use of graphical menus (control buttons, edition

zone…). The graphical environment carried out with

Microsoft visual C++ can be composed of one or

several windows.

3 IMPLEMENTATION RESULTS

To demonstrate the findings, the parameterizable

implementation was realized using the XCV2000 of

the FPGA family VirtexII.

3.1 First Case

Input layer neurons number ≤ 2

Output layer neurons number ≤ 2

Hidden layer neurons number ≤ 15

Hidden layer number ≤ 3

Table 1: First case.

Resources

Used Available Utilization

Slices 17019 19200 88 %

LUTs 31320 38400 81 %

IOBs 88 404 21 %

Block RAMs 320 160 200 %

3.2 Second Case

Input layer neurons number ≤ 2

Output layer neurons number ≤ 2

Hidden layer neurons number ≤ 10

Hidden layer number ≤ 1

Table 2: Second case.

Resources

Used Available Utilization

Slices 13101 19200 68 %

LUTs 24978 38400 65 %

IOBs 88 404 21 %

Block RAMs 180 160 112 %

3.3 Third Case

Input layer neurons number = 1

Output layer neurons number = 1

Hidden layer neurons number ≤ 10

Hidden layer number ≤ 1

Table 3: Third case.

Resources

Used Available

Utilization

Slices 12144 19200 63 %

LUTs 23223 38400 60 %

IOBs 88 404 21 %

Block RAMs 108 160 67 %

From these results, it can be stated that the size of

the parameterizable implementation to be realized

depends on the targeted FPGA.

4 EXPERIMENTAL

EVALUATION: THE POSITION

CONTROL OF A DC MOTOR

We test the high level-environment on the

implementation of a neural controller which

improves an existing linear controller in order to

position control a DC motor (Fig. 4). This approach

is called “feed-back error learning” and is based on

the use of an existing regulator to approximate as an

unknown function (Benbouchama and al, 2007).

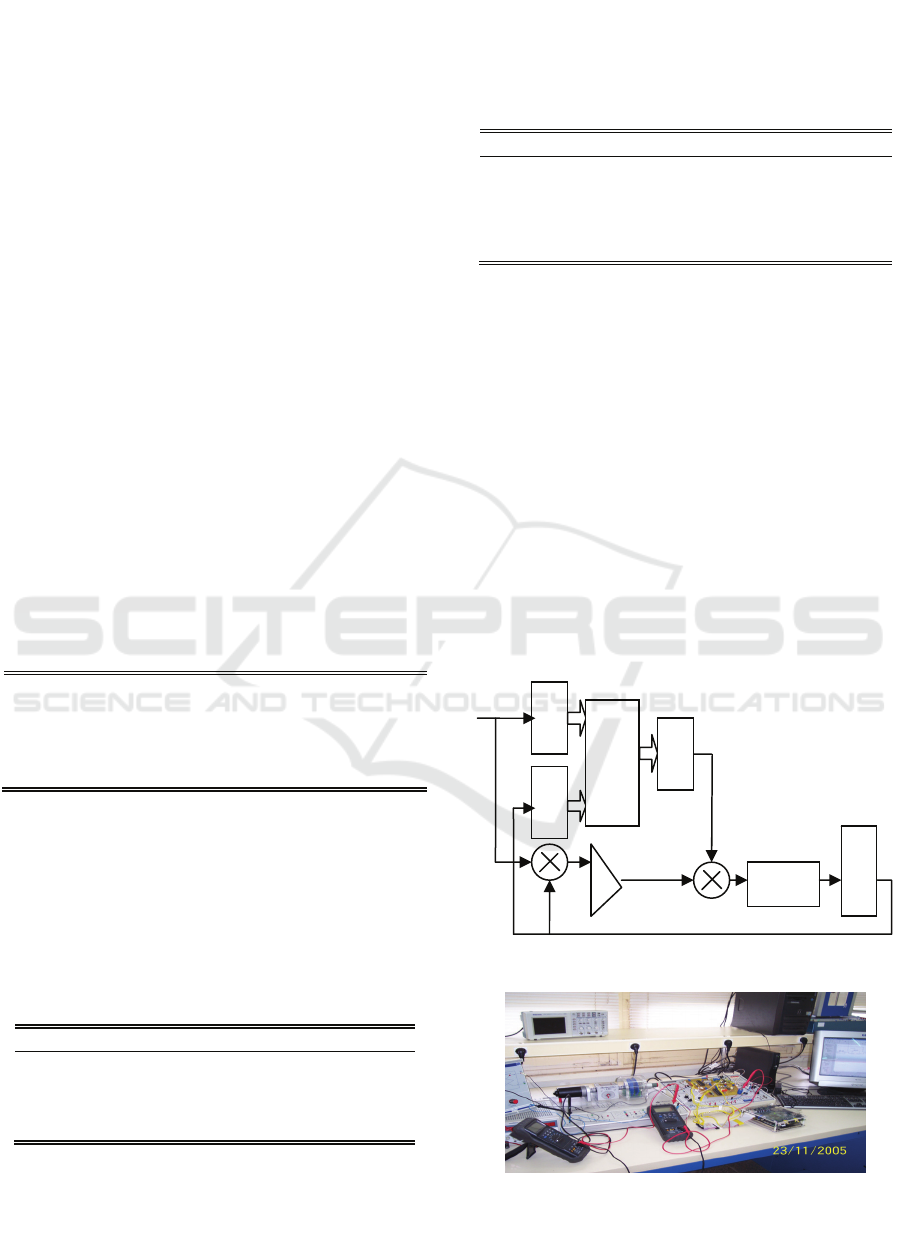

Figure 4: The position control of a DC motor.

Figure 5: Hardware view.

200

Power

Ampli

A PARAMETERIZABLE HANDEL-C NEURAL NETWORK IMPLEMENTATION FOR FPGA

327

In this experiment an on-chip learning type of the

neural controller was used.

The graphical interface used to specify the different

parameters of the neural controller is as follows:

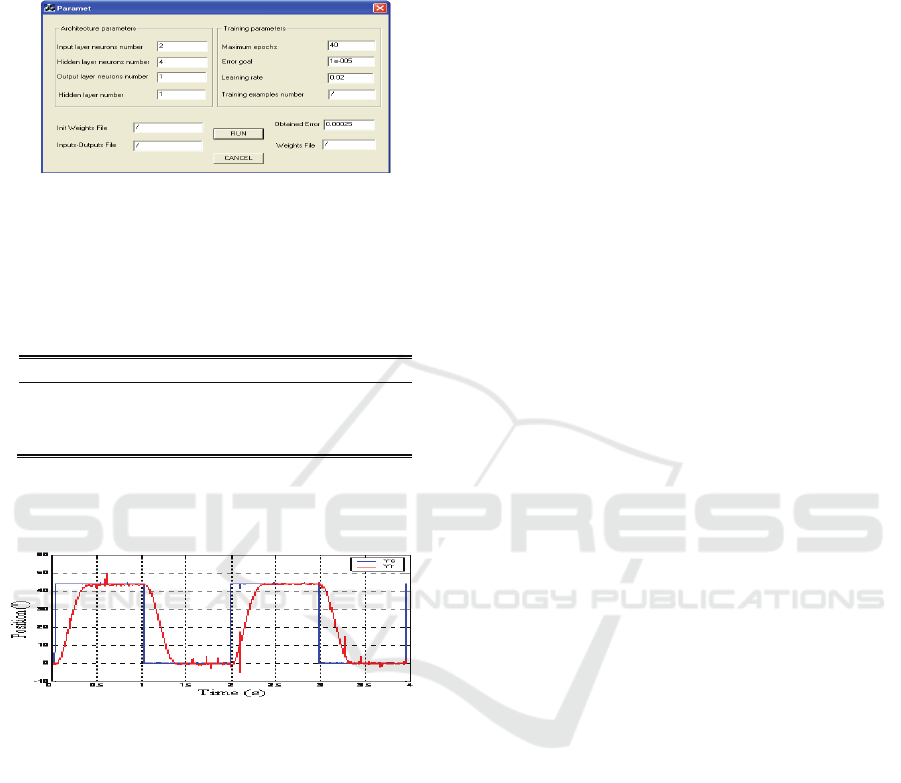

Figure 6: The graphical interface.

The implementation results of the parameterizable

ANNs implementation for this experimental

evaluation are as follows:

Table 4: Implementation results.

Resources

Used Available

Utilization

Slices 2748 5120 53 %

LUTs 4926 10240 48 %

IOBs 20 324 6 %

Once the learning phase was completed we have

tested the behaviour of the neural controller with a

square input signal: 0° - 45°.

Figure 7: The behaviour of the neural controller.

The results indicate the validity of the high-level

environment used for the ANNs implementation on

FPGAs.

5 CONCLUSIONS

This paper outlines a means that was created to

facilitate and accelerate the ANNs implementation

on FPGAs. A parameterizable tool was designed to

generate a neural multi-layer network

implementation through the use of Handel-C

language. This tool was destined to be used by the

high level environment, which is presented, at the

user, as a graphical interface with menus. The

advantage which it offers resides in the facility of

the approach: there is no language and it requires

only the use of the graphical menus.

To be able to implement significant neural networks

architectures with this high level environment, we

must use a board with an FPGA circuit which is not

limited in resources.

Finally, experimental evaluation setup has been

developed to demonstrate the validity of the high-

level environment for the ANNs implementation on

FPGAs.

REFERENCES

Cox, C.E. and E. Blanz, GangLion, “ a fast field -

programmable gate array implementation of a

connectionist classifier ”, IEEE Journal of Solid-State

Circuits, 1992. 28(3): p. 288-299.

J. G. Eldredge and B. L. Hutchings, “ RRANN: A

Hardware Implementation of the Backpropagation

Algorithm Using Reconfigurable FPGAs ”, In IEEE

World Conference on Computational Intelligence,

Orlando, FL, 1994.

A. T. Ferrucci, “ A Field-Programmable Gate Array

Implementation of Self-Adapting and Scalable

Connectionist Network ”, Mars 1994.

M. Martin, “A reconfigurable hardware accelerator for

back-propagation connectionist classifiers”, Masters

thesis, University of California, Santa Cruz, 1994.

H. Ossoinig, E. Reisinger, C. Steger, and R. Weiss,

“Design and FPGA implementation of a neural

network ”, In Proc. 7th Int. Conf. on Signal Processing

Applications and Technology, pp. 939943, Orlando,

Florida, 1996.

J. Beuchat, J. Haenni, and E.Sanchez, “ Hardware

Reconfigurable Neural Networks, In Parallel and

Distributed Processing ”, IPPS/SPDP, pp. 91 98,

Springer-Verlag, 1998.

V. Pandya, “ A Handel-C implementation of

thebackpropagation algorithm on field programmable

gate arrays ”, Master thesis. Faculty of Graduate

Studies of the University of Guelph, Canada,

December 2005.

C. Benbouchama and al, “ The FPGA Neural Networks

Implementation for a Real Time Control ”, Archives

of Control Sciences (A.C.S.), Vol. 17(LIII), n. 1, pp.

527, 2007.

T. Stöcklein and J. Bhig, “ Handel-C an effective method

for designing FPGAs (and ASICs) ”, Georg Simon-

Ohm Fachhochschule, NÜRNBERG 2002.

P. J. Ashenden, “ The Designer's Guide To VHDL ”,

second edition, San Diego: Morgan Kanfmann, 2002.

J. Hopf, “ Comparing the Bitstreams of Applications

Specified in Hardware Join Java and HandelC ”, 2

IEEE International Conference on Field

Programmable Technology, Tokyo, Japan, 2003.

Celoxica: www.Celoxica.com

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

328
