MULTI-CORE COMPUTING UNIT FOR ARTIFICIAL NEURAL

NETWORKS IN FPGA CHIP

Marek Bohrn and Lukas Fujcik

Department of Microelectronics, Brno University of Technology, Udolni 53, Brno, Czech Republic

Keywords: Artificial neural networks, Computation acceleration, FPGA, VHDL, Spartan-3.

Abstract: This article describes a design and features of a multi-core unit for performing computing operations

required for artificial neural network functioning. Its purpose is to speed up computing operations of the

neural network. The number of computing cores can be altered as needed to achieve the required

performance. VHDL language has been used to build this module. It has been optimized for the Spartan-3

family FPGA chips from Xilinx. These chips are favorable because of their low price and a high number of

on-chip multipliers and block memory units. Spartan-3 chips facilitate parallel computing operations within

neural networks to a very high level and thus help to achieve high computing power.

1 INTRODUCTION

Artificial neural networks are suitable for various

tasks, such as pattern recognition, signal processing,

classification, function approximation, prediction,

data compression, etc.

It is possible to apply analog circuits, micro-

controllers, computers, signal processors, and FPGA

chips of neural networks implementation. Analogue

neural networks are not used because of their

implementation complexity and computing

accuracy. Micro-controllers are cheap and easy to

use, however, they do not achieve the required

computing performance. Implementation of a neural

network in a computer is easy, but it is unsuitable for

use in industry or as embedded application due to

the high cost and/or enormous size.

Signal processors and FPGA chips are suitable

platforms for the implementation of neural networks.

Signal processors are easier to use, they can be

programmed in C language and they are very cheap

for this purpose. Their disadvantage is that their

computing power cannot be increased easily due to

their fixed structure.

FPGA chips, on the other hand, have the capacity

to facilitate parallel computing operations at a very

high level and their structure can be adjusted to

target application. The programming language used

for FPGA chips is usually VHDL which is suitable

for the description of parallel structures and pipe-

line circuits. Application of these techniques allows

for achieving the maximum computing power and

speed and thus competes with all remaining

alternatives of neural networks implementation.

The unit described in this article takes advantage

of all benefits of FPGA chips and has been

optimized for Spartan-3 family from Xilinx. The

solution provided herein performs parallel

computing operations and use pipe-line structure.

The number of computational cores can be adjusted

as needed. The biggest chip of Spartan-3 family

(XC3S-5000) can employ up to 100 computational

cores (Xilinx, 2006). The XC3S-200 chip was

chosen to carry out the implementation and testing

of the unit.

2 THEORETICAL ANALYSIS

2.1 Artificial Neuron

Artificial neuron – perceptron (Figure 1) is

composed of an input vector, synaptic weight vector,

summation unit, activation function and output.

Its function is as follows:

The input vector is multiplied by the weight

vector. The results are summed up and they compose

the inner potential of the neuron as depicted in

Equation 1 (Fausett, 1994).

∑

inwi

(1)

149

Bohrn M. and Fujcik L.

MULTI-CORE COMPUTING UNIT FOR ARTIFICIAL NEURAL NETWORKS IN FPGA CHIP.

DOI: 10.5220/0002172101490152

In Proceedings of the 6th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2009), page

ISBN: 978-989-8111-99-9

Activation

f(i)

out

inner potential

of neuron

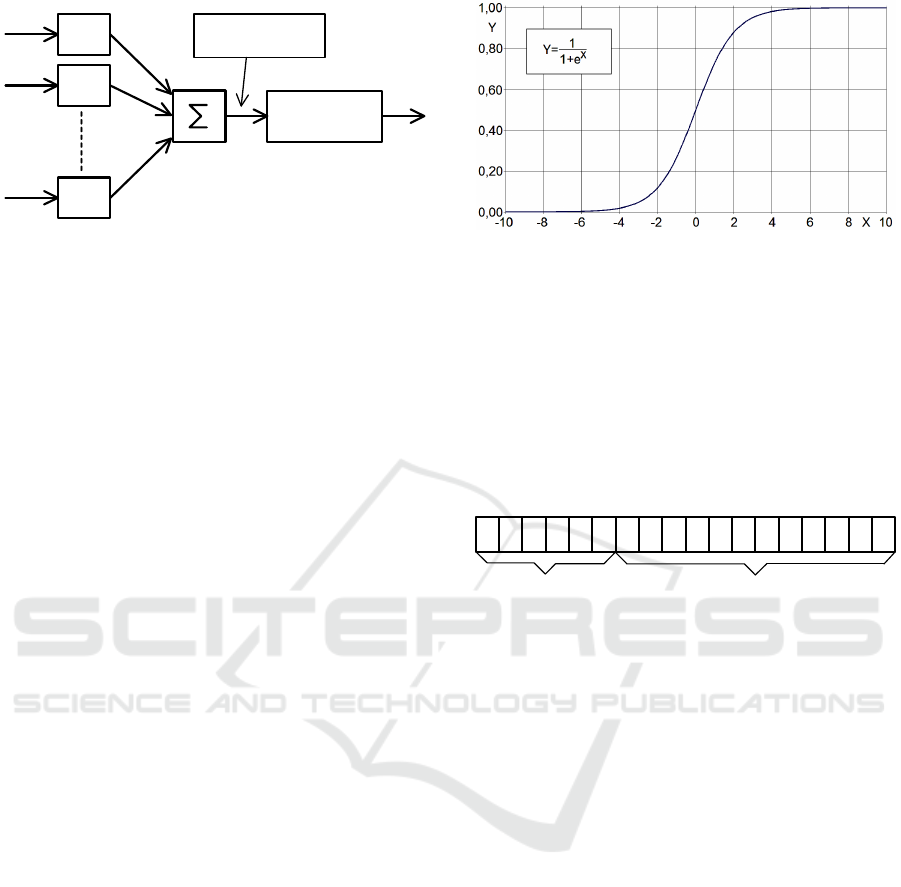

Figure 1: Structure of artificial neuron.

This value is fed into the activation function. The

activation function is usually a step function, a

sigmoid or ramp function; its task is to saturate the

output value within the set limits, usually between 0

and 1.

2.2 Computations Inside Neural

Network

Multiplication and summation are the most

important computations within the neural network.

These can be carried out using the multiply-

accumulate (MAC) function, however, the chosen

target chip Spartan-3 does not support this particular

function. Instead, the MAC operation is replaced by

sequential multiplication and summation operations.

Spartan-3 chips include hardware multipliers and the

summation operations are performed by gates.

The computation of inner potential of a neuron is

always performed by one computational block.

These blocks are in a parallel arrangement which

increases the data throughput capacity as well as the

overall computing power of the entire unit. The

Spartan-3 chips can work up to 375 MHz under ideal

conditions; however, the actual frequency of

operation is slightly lower.

For the activation function, the unipolar sigmoid

has been chosen (Figure 2) because it is the most

common function for neural computations. The

activation function is carried out using interpolation

from the lookup table. It is possible to add other

activation functions to the chip or replace the

unipolar sigmoid by another function, if needed.

2.3 Format of Data

The data format for the weight vectors and input

information transfer and the computational

operations are the same within the neural network.

The 18-bit mode is the most suitable width for buses

employed in the Spartan-3 chips because of the 18-

bit inputs of the embedded multipliers. The block

Figure 2: Sigmoid activation function.

memory units can also be adjusted to the 18-bit

mode.

The data are represented as a fixed point number

and are stored in two's complement. The 6 most

significant bits of the data word represent the integer

part and the next 12 bits represent the fraction part

as illustrated in Figure 3 (Suhap, Becerikili, Yazici,

2006).

i f f f f f f f f f f f fiiiii

MSB(17) LSB(0)

Integer part Fraction part

Figure 3: Format of number representation.

3 REALIZATION IN FPGA CHIP

3.1 Circuit Overview

Figure 4 shows a block diagram of the entire circuit

for neural network computations. The control logic

block, neuron computation blocks, and activation

function are the main parts of the circuit.

The control logic includes a map of the neural

network which is the basis of data and commands

sent out to neuron computation blocks. The selection

of weight is done by an address sent to the bus

controlling the memory blocks. Weight coefficients

are stored in these memory blocks. Each memory

block can store up to 1,024 weight coefficients. In

the XC3S-200 chip used for testing the design, up to

10,240 synapses can be implemented.

Data coefficients are transmitted on the basis of

an external requirement and a neural network

computational status. Either data stored in the

neuron data memory or data from the input port are

used. The selected neuron data memory

configuration allows for storage of 1,024 neuron

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

150

outputs which means that the unit can handle a

neural network consisting of up to 1,024 neurons.

The control logic can also send the following

commands to the computational blocks: reset, MAC,

BIAS, send result. Each neuron computation block is

connected to an individual command bus. By

separating the command buses of individual

neurons, it is possible to arrange them in a way so

that each neuron performs computational operations

simultaneously at a different layer of the neural

network. Possibly some of the neuron cores can be

disconnected by sending only the reset command.

MAC command together with BIAS command

calculates the inner potential of the given neuron.

Once the commands are received by the neuron

cores, the computational core starts to multiply the

weight coefficients by data inputs and stores the

results in the internal register. The send result

command initiates the transfer of the inner potential

value to the next register. Subsequently, the neuron

waits for an impulse to send the data to the

activation function.

Control logic

Network input

Network

response

Neuron

block

Weight

memory

Neuron

block

Neuron

block

Weight

memory

Weight

memory

Activation

function

Priority decoder

Neuron data

memory

Weight

select bus

Data and

command

bus

Activation

function

lookup and

interpolator

Neuron

output bus

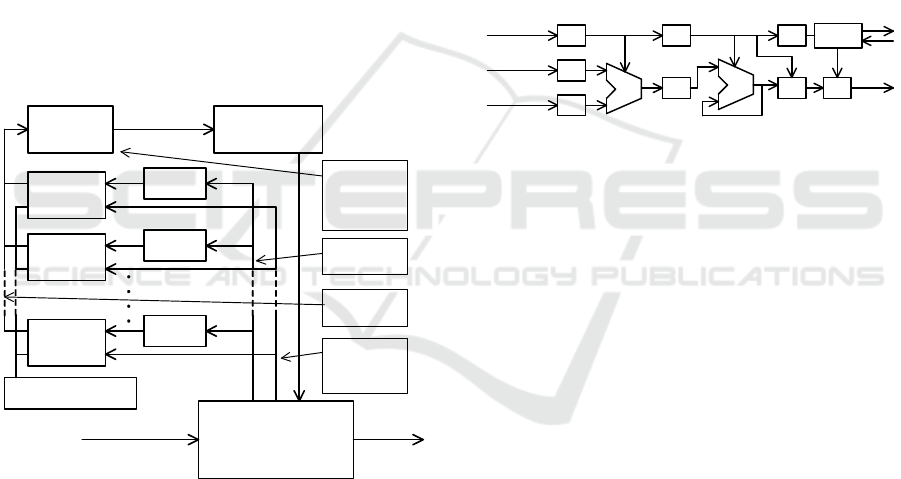

Figure 4: Block diagram of a complete unit.

The output bus of neuron computing blocks is

shared by all computing blocks because its capacity

utilization should be the low. When required to send

the data to the activation function, neurons wait for

the priority decoder’s impulse. Data are sequentially

brought from computing blocks to the activation

function and no internal FIFO buffer implementation

in necessary.

After the data pass through the activation

function, they are stored in the neuron data memory

- dual port RAM. If needed they are read and sent

from this memory via the data bus to the computing

blocks. If the stored data belong to the last neuron

layer, they are transferred to the unit output.

3.2 Neuron Computation Block

The block diagram of a neuron computing block is

illustrated in the Figure 5. The block is arranged as a

three stage pipe-line circuit to increase the speed.

The input data of this block are command, data and

weight.

In the first stage, the input data are multiplied

according to the chosen command, the second stage

is composed as a summation block. These two

together implement the MAC function and calculate

the internal neuron potential. When the send result

command is received, the internal potential is sent to

the last pipe-line stage and waits for the impulse to

be transferred to the activation function.

FFD

Command

Data

Weight

FFD

FFD FFD

Request

to send

Result

Figure 5: Block diagram of a neuron computation block.

After receiving the reset command, the internal

potential is set to zero and the block can start

computing another neuron regardless of the fact

whether the result was sent or is waiting in the last

stage, the result remains in an unchanged state.

3.3 Activation Function

Activation function is composed by an interpolated

lookup table. The activation function circuit

structure is pipe-line similar to computing block, it

includes a multiplier and an adder.

The activation function has only one input which

is divided into two parts. The upper part (bits 17 .. 9)

is transferred into two lookup memory units. The

lookup value for interval offset is stored in one of

them and gradient of interval in the other. Gradient

is multiplied by the lower part of the input (bits 8 ..

0) and is transferred to the summation part. Offset is

delayed by a one clock period and it is also

transferred to the summation block. The interpolated

value of the activation function connected to the

output is achieved in this way. The activation

function output is stored in the neuron data memory

which can be accessed by the control logic.

MULTI-CORE COMPUTING UNIT FOR ARTIFICIAL NEURAL NETWORKS IN FPGA CHIP

151

Input

(17 .. 9)

Input

(8 .. 0)

Interval

memory

Gradient

memory

FFD

Output

FFD

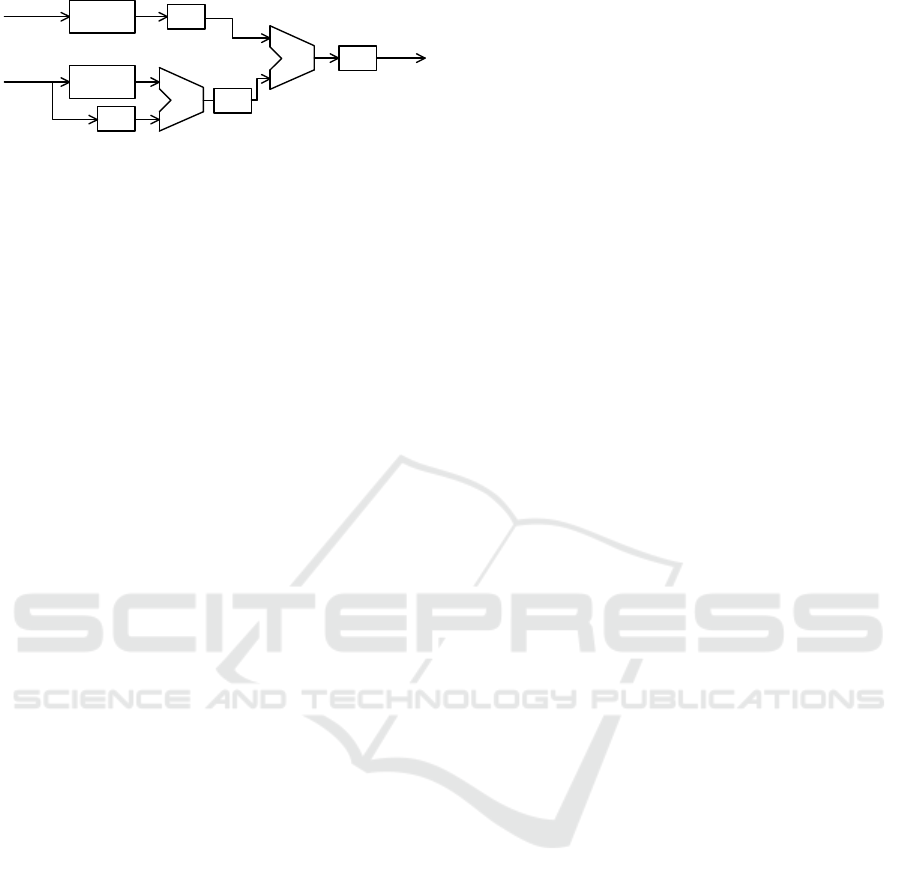

Figure 6: Block diagram of an activation function

interpolator.

Since the activation function is realized by a

lookup table, it is easy to change its shape using

different coefficients. The circuit function can be

extended by adding another block with a different

activation function. For example, the activation

function for output layer will be a step function if we

require binary result.

3.4 Testing of Complete Circuit

The circuit was described in VHDL language, the

source code is modular and optimized for the

Spartan-3 family chips from Xilinx and fully

synthesizable. Since most of the circuit is arranged

into pipe-lines, it can work with the clock frequency

up to 133MHz.

The target XC3S-200 chip includes 12 blocks of

RAM and 12 dedicated multipliers. Activation

function requires at least one block RAM and one

multiplier. Neuron data memory needs one block

RAM. For this reason it is possible to implement 10

computing blocks, needing one block of on-chip

RAM for storing weight coefficients and one

multiplier for computing.

The circuit function was tested on an application

recognizing hand-written numbers. A network with

88 neurons in the input layer, 40 neurons in the

hidden layer and 10 in the output layer was realized.

The network model and the training algorithm were

realized in a computer and weight coefficients were

transferred to weight memory blocks on FPGA chip

(Masters, 1993).

Calculation of response of the neural network

require 88 times 4 clock periods for the hidden layer,

40 clock periods for the output layer plus latency of

the activation function of 4 periods. For one

character recognition, 396 clock cycles were needed.

At the working frequency of 133 MHz the circuit

can recognize 336000 numbers per a second. In

comparison to the single core signal processor which

would need for such a calculation at least 3920 clock

cycles, this is an excellent result.

4 CONCLUSIONS

The neural network function is very demanding

regarding to the computing power. In the FPGA

chips, however, it is possible to parallelize the

calculations very efficiently. The designed circuit

speeds up the computation for neural network

approximately 10 times in comparison to signal

processor. With using the biggest chip XC3S-5000

from the Spartan-3 family, it would be possible to

implement up to 100 computing cores into the

circuit and thus increase the computing power

theoretically up to 100 times.

The entire circuit is very modular and allows for

realization of neural networks in various

configurations. From very small networks up to

networks consisting of thousands of neurons and

hundreds of thousands synapses with a very high

computing power kept.

Spartan-3 family chip was chosen for the

implementation because of its low price and good

accessibility of development kits. Its disadvantage is

that it cannot process the MAC command in one

clock cycle. This problem is solved by higher FPGA

families, such as Virtex-5 family chips are able to

process up to 580 Giga MAC per second while their

computing of MAC command is performed within

one clock cycle.

ACKNOWLEDGEMENTS

This research has been supported by the Czech

Ministry of Education in the frame of long term

Program Plan MSM 0021630503 MIKROSYN New

Trends in Microelectronic Systems and

Nanotechnology and by the Czech Science

Foundation as the project GA102/08/1116.

REFERENCES

Ohomondi, Amos, R., Rajapasake, Jagath, C., 2006.

FPGA Implementations of Neural Networks, Springer

Netherlands

Fausett, L., 1994. Fundamentals of Neural Networks,

Prentice Hall New Jersey

Masters, T., 1993. Practical Neural Network Recipes in

C++, Academic Press California

Xilinx, 2006. Spartan-3 FPGA Family: Complete Data

Sheet, Xilinx company

Suhap, S., Becerikili, Y., Yazici, S., 2006. Neural Network

Implementation in Hardware Using PFGAs, 13

International Conference, ICONIP 2006, Springer-

Verlag Germany

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

152
