Trust Framework for RFID Tracking in Supply Chain

Management

Manmeet Mahinderjit- Singh and Xue Li

School of Information Technology and Electrical Electronic

University of Queensland, Australia

Abstract. RFID tracking systems are in an open system environment, where

different organizations have different business workflows and operate on dif-

ferent standards and protocols. RFID tracking to be effective, it is imperative

for RFID tracking systems to trust each other and be collaborative. However,

RFID tracking systems operating in the open system environment are constant-

ly evolving and hence, the related trust and the collaborations need to be dy-

namic to changes. This paper presents a seven-layer RFID trust framework to

promote the resolution of merging with both social and technology traits in en-

hancing security, privacy and integrity of global RFID tracking systems. An

example of integration of our trust framework with supply-chain management

applications and trust evaluation is also presented.

1 Introduction

In the business world, trust is tremendously important [1, 2]. Trust counts in selecting

partners, software and hardware infrastructure used and even information transmitted.

Trust is distinguished as a decision making instrument when joined together with

security, privacy and integrity to improve the adoptions and reliance of the system.

Trust is not symmetric even if A trusts B, expecting B to return the equal trust to A is

not possible. Besides that trust is also intransitive as if A trusts B and B trusts C, A

may not trust C.

The significance of trust in a new emerging ubiquitous technology known as

RFID is critical. RFID, a term for Radio Frequency Identification provides non-line

sight and a better item-tracking manner compared to barcode systems. However pub-

lic acceptance in RFID implications systems is still an open question. There are a few

questions denoting the needs of trustworthiness in RFID systems that are related to

the characteristics of tags, communication channels and operational natures. In a

large-scale item-tracking environment, the co-existence of multiple network proto-

cols, different standards and data structures from different organizations, and the need

for reliable operations are essential[3]. For two different partners, one using

EPCglobal (http://www.epcglobalinc.org)

network and the other using UCLA WinR-

FID, how would the different set of integration platforms, data structures and even

communication protocols between them operate with 100% reliability and confi-

dence? Besides that, the lack of security capability on RFID tags due to its hardware

Mahinderjit Singh M. and Li X. (2009).

Trust Framework for RFID Tracking in Supply Chain Management.

In Proceedings of the 3rd International Workshop on RFID Technology - Concepts, Applications, Challenges , pages 17-26

DOI: 10.5220/0002172400170026

 SciTePress

constraints and the insecure communication channels makes system vulnerable to the

security threats. A competitor capable of tracking and tampering the sensitive infor-

mation on tags might result in counterfeiting and cloning or fraud product labels [8].

Data on tag means the information in the enterprise database. Even though, there is

little data stored on tag, it would be sufficient to be misused by distrusted parties in

launching attacks. So, how we protect and ensure that tag content is only accessible

by legitimate parties becomes a problem. In addition, the facts that tags are readable

from the distances outside the range without owners’ knowledge can cause the link

ability threat in supply chain management. In supply chain management, ownership

changes can be automatic and at a high speed. Unauthorized reading of RFID tags

might happen after tags left supply chain warehouses. This explains why we need to

exploit trustworthy to handle the ownership changes during the lifespan of RFID tags

in supply chain applications. The existing RFID trust services management designed

by Verisign (http://www.verisign.com/static/028573.pdf) for the EPCglobal supply

chain only provides trust decision based on authentication and authorization mechan-

isms (hard trust) without any concerns on security threats and the detection or the soft

trust such as past history [4]. Hence our idea here is to design a seven-layer trust

framework with the capability of prevention and detection, so to act as a reputation

system based on the supply chain partners’ experiences and beliefs. The proposed

trust framework aims to deal with security attacks such as cloning and fraud RFID

tags. This framework is the first of its kind. The contributions of this study are that

(1) it provides a complete framework for embracing trustworthiness for large scale

RFID global tracking systems; (2) it suggests a guideline to design and implement the

framework; and (3) it shows an evaluation guideline for this framework.

The significance of our proposed frameworks will be demonstrated by illustrating

RFID cloning attacks and showing how cloning attacks within supply chain can be

handled by this trust framework. RFID tag cloning represents a serious counterfeiting

problem in a supply-chain environment [5]. At hand, methods used to handle counter-

feiting attack caused by RFID tag cloning are track and trace mechanism [5], product

authenticity [6] and RFID tag authentication [6]. In this paper, we only focus on se-

curing RFID tags by employing a trust framework. The trust framework proposed in

this paper does not consider the trust of Quality of Services (Qos) that are used for

data quality and traceability. This paper is structured as follows. Section 2 discusses

the related work. Section 3 describes a seven-layer trust framework. Section 4 studies

the assimilation of the trust framework and RFID supply-chain applications in han-

dling cloning and fraud attacks. Section 5 discusses further research issues and

presents the conclusions.

2 Related Work - Trust in Sensor Networks and

Ubiquitous Computing

Trust in ubiquitous computing environments plays a vital role in ensuring system

security [1, 2]. The fusion between security concerns, the social aspects, and technol-

ogy demands represents the ability of building a trust foundation. Trust represents

both human factors as well as technological factors. Yang [1] defines the trust as a

combination of system usage experiences and social perspective. She also describes

that when partners interact cooperatively and share positive experiences, the impact

on any technology usage will increase dramatically simply because human positive

attitudes and beliefs boost the trust.

In contrast, Hossain and Prybutok [7] introduce a few vital concepts in the trust

establishment including privacy, security and regulation issues aiming at increasing

customer’s confidence. They assert that users personal tolerance in taking certain

extend of risks when dealing with security and privacy works independently [7].

Meanwhile, policies and regulations can raise user’s trust [7]. The trust can be con-

veyed by evaluating security and privacy threats and inset solutions.

Our trust framework is different from Yang’s [1] concepts in terms of the tech-

nological trust factors. Yang’s work emphasizes the importance of user decision-

making level, which asserts the essences of experiences in interaction of knowledge

and shared values among partners. Whereas, we concentrate on the system vulnerabil-

ities and on how to employ security, privacy and detection functions to deal with the

threats. Our framework focuses on both the prevention and detection that are unified

as a system function. Given that RFID technology is widely accessible and is bring-

ing socio-economic advantages, the concerns on both performance and trust is equal-

ly highly regarded. Besides, we will make use of the category factors involving be-

liefs, attitudes and cultures in organizations since each of these social aspects are

important in establishing trust.

3 RFID Trust Framework

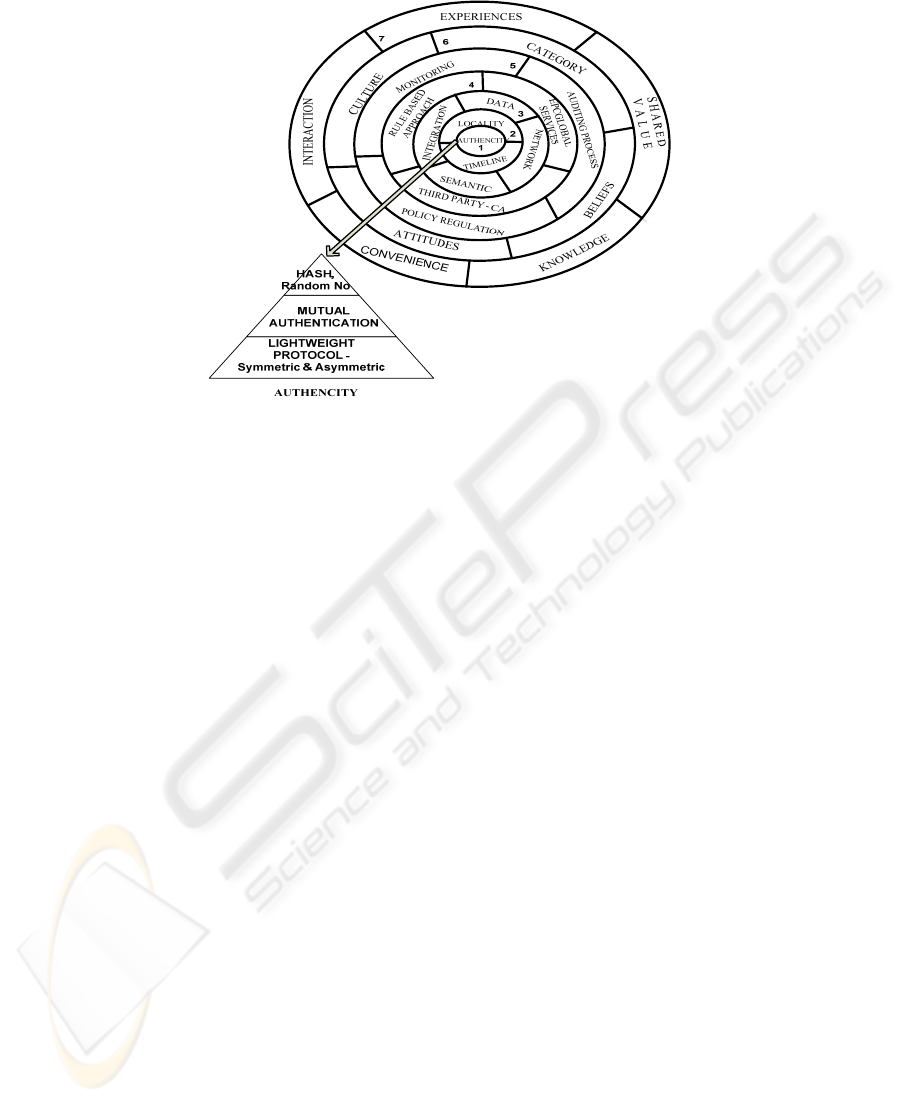

Fig.1 shows the trust attributes in our proposed framework. There are seven layers

from inside out. An outer layer function is built upon its inner layers and each layer is

equally vital. Beginning from layer 1 up to layer 7, the transitions from technology

core to social perspectives are shown. Each layer function is describe as follows.

• Layer 1 (Security-Authenticity) Any connected RFID system should be authenti-

cated using lightweight protocol both symmetric and asymmetric authentication

catering to the hardware constraint in the system itself. Besides that, each compo-

nent should be mutually authenticated and identifiers must be encrypted using

hash algorithms with keys generated randomly to maintain uniqueness. Once the

product is secured the need to maintain privacy will be minimal.

• Layer 2 (Privacy – Locality, Timeline) The context of privacy factor such as time

and locality are utilized based on different applications the framework will work

with. As for certain application which requires tracking such as supply chain

pharmaceutical drugs pedigree tracking, privacy is in concern since the tracing

and tracking process might breach the privacy. In contrast, the identification ap-

plication can embrace this layer functionality better.

Fig. 1. Seven Layers RFID Trust Framework.

• Layer 3 (Data – Network, Semantic, Integration) The framework allows the use of

open RFID architectures in which heterogeneous standards and networks from

different partners are able to work together with the mapping functions. The inter-

net communication channel can be secured by using asymmetric key encryptions

such as RSA and AES [8].

• Layer 4 (Detection – EPCglobal, Third-Party CA, Rule Based Engine) EPCglobal

services need to add on the EPC Product Authentication Services (EPC-PAS) and

EPC-Trace Analysis Service (TAS) in detecting cloning tags [6]. The need to re-

gulate middleware EPC services such as ONS, DS and EPCIS

(http://www.epcglobalinc.org) upfront could help in reducing errors in any appli-

cation implementation. Existing Certificate Authority (CA)[11] can be used here

since asymmetric techniques are commonly used in sensor networks. CA will be

placed in the EPC network core for establishing transitive relationships between

the partners and handling key management. There are several IDS expert system-

algorithms and techniques that can be used.

• Layer 5 (Monitoring – Auditing Processes, Policy Regulation) Monitoring tools

include the third party system policy regulation such as Bill of Rights [9] and ISO

standards. The tools will monitor the whole RFID operation based on the policy

enforcement and auditing processes. If any risk is encountered, the monitoring

function will eventually records and alarm business owners and react on attacks.

• Layer 6 (Category - Culture, Attitudes, Beliefs) Social aspect of one’s culture,

beliefs and attitudes will impact tremendously to the positively shared experiences

in the next level of business decisions. An example will be if a partner’s RFID ex-

periences are positive, then the impact on his beliefs and attitudes will be demon-

strated in the (next) level 7 when interactions among business partners are estab-

lished [1].

• Layer 7 (Experiences - Interaction, Shared Values, Knowledge, Conveniences)

When two partners begin to share their added value past experiences and know-

ledge especially the positive ones by the means of communication and interac-

tions, the confidence level of RFID products will increase.

The core of the whole framework is Layer 1 - the security attributes which consist

of authentication modules. Now we will compare our trust framework against the

latest Pedigree Standard ratified by EPC global

(http://www.rfidupdate.com/articles/index.php?id=1277). The standard of e-pedigree

is known as GS1 EPCglobal Electronic Pedigree Standard aims to protect consumer

from counterfeit drugs by tracking the drugs. Since this standard track the authenticity

of drugs, the Layer 1 security can be embedded within this standard. In handling drug

counterfeit, the need to authenticate, and track the history of location, time and drug

serialization is important. However, our trust framework provides more than that,

because it is able to detect the counterfeit attacks in the first place by using its Layer 4

(Detection) modules. Next sections will demonstrates how our trust framework will

function in a supply chain environment in handling the cloning attack using our trust

evaluation scale.

4 Trust Framework for RFID Tracking in Supply Chain

Management

In this section, the developments of the proposed RFID trust framework is presented

within a scenario of supply-chain management, definition of clone and our trust

framework evaluation is also given here.

A. An Example of Supply Chain Management (SCM)

Supply chain management (SCM) is one of the important applications that use RFID

for tracking products movement between suppliers, manufacturers, shipping handlers,

distributors, retailers, and customers in an open system environment. The flow of

goods is from the manufacturer to distributors and then to wholesalers. In a supply

chain utilizing RFID technology, all transactions including individual consumer pur-

chases can be automated. The global tracking requires the interactions between vari-

ous organizations, partners, and technologies. There are different workflows for dif-

ferent businesses, different data flows for different standards and protocols, and dif-

ferent item movements for different ownerships and needs of handling (e.g., at either

container or item level of movements). In RFID, supply chain process mostly uses

two ranges of electromagnetic spectrums which are 13.56 (HF) and 860-960 MHz

(UHF). The problems lie in supply chain applications are the insecure and vulnerable

communication channel of products movement, multiple network architectures, dif-

ferent standards among partners [3], and security key management issues between

tags and readers. There are a few assumptions that need to list before we can portray

our solutions.

• The transaction between supply-chain partners is performed on the Internet via

EPC network.

• A root Object Naming System (ONS) is used as an information directory of man-

ufacturers regarding their products in the EPC network.

• Each supply-chain organization will have its own local ONS and local EPCIS

(hub for product information).

• A root Discovery Service (records for EPCIS address) which functions as a

“search engine” to provide information about an EPC, including other organiza-

tions that handle it during its lifecycle within a supply chain.

• Certificate Authority (CA) works as a third party authorization and is placed in an

EPC network.

• Tags used here are EPC class 1 gen 2 type and passive.

However before we proceed to discuss how our trust framework will function in

handling RFID tag cloning within a supply chain application, it is essential to define

clone in RFID tag context. Let assume set A contain the RFID genuine tags and set B

contain cloned tags derived from set A. A genuine tag is known as TG and a cloned tag

is known as TC. I denote an intruder. A list of attacks (S) includes Skimming (S1),

Sniffing (S2), Active Attack (S3), Reverse Engineering (S4) and Cryptanalysis (S5) [6,

8].

Thus;

A = {TG1, TG2, TG3}

B = {TC1, TC2}

S = {S1, S2, S3, S4, S5}.

Hence TC1 is a clone of TG1; if and only if both tags have identical TIDs (tag

identifier) and share the same form of characteristics. Once the TIDs are the same, all

the data and structure of the tag‘s EPC code such as header, manufacturer id, object

class and serial number are identical, i.e., |TG| = |TC|. A TC exists when I performs S

either a single S or a combinations of S against TG. S will produce cloning attack.

RFID Cloning is a process of injecting imitated EPC tags in a normal genuine EPC

tags batch. Cloning attack can be detected mainly by counting the tags with the refer-

ences to their locations and history traces, observing tag’s abnormal behavior and by

utilizing a third party clone detector.

 A direct consequence of cloning in SCM is

counterfeiting, where a genuine article tagged with an RFID label may be reproduced

as a cheap counterfeit and tagged with a clone of the authentic RFID label. Hence the

lack of authentication allows an attacker

to fool a security system into perceiving that

the item is still present or fool automated checkout counters into charging for a

cheaper item. Our trust framework can be used to ensure authentication; thus prevent-

ing the cloning from occurring at the first place and also detecting the cloning in the

supply chain application.



The trust framework starts from inside out, from layer 1 up to layer 7 in handling

cloning tag attack.

Layer 1 (Security) – Tag authenticity between two different partners will be pro-

vided by asymmetric key encryption using elliptic curve cryptosystem. Three-way

mutual authentications are performed through random number synchronisations. This

step will ensure authoritative access as only legitimate readers of partners can read

the tags. Hence, two of supply chain security requirements, which are tag authenticity

and authoritative access, are complied [10]. The evaluation here is done by system

analysis. Besides that the authenticity layer is also capable of authenticating supply

chain partners and support various authentication protocol such as PKI and Kerberos

[11].

Layer 2 (Privacy) – The privacy component is to support the handling of cloning

attacks because tracking tags is an essential way towards cloning and this may com-

promise partners privacy. Thus this layer is to ensure the privacy protection while

dealing with cloning attacks.

Layer 3 (Data) – At this situation, the ability for multiple partners to work to-

gether in an open system architecture is to be detailed. For instances, in supply chain

there will be partners using different RFID integration platforms (e.g., EPCglobal or

WinRFID), with various data semantics (e.g., PML or EPC), and different communi-

cation protocols. By using corresponding mapping functions, our trust framework

will allow open architecture to work together as long as the channel is secured using

asymmetric encryption (e.g., RSA) and tags authentication is guaranteed.

Layer 4 (Detection) – The usage of CA will manage the shared security keys be-

tween partners to guarantee RFID trustworthy. If EPC network is used, then Discov-

ery service will also be used to help partners in track and tracing of products. Cloned

tag can also be detected by Intrusion detection system (IDS). The evaluation on IDS

is done based on IDS decision output and ROC curves

(http://en.wikipedia.org/wiki/Receiver_operating_characteristic).

Layer 5 (Monitoring) – Once detected by IDS, through the response processes, the

stages at which the cloning occurred is detectable. Partners will be informed on the

event and further actions such as data cleaning and legal actions against the adversary

can be initiated.

Layer 6 and 7 (Category & Experiences) – Along with the accumulation of ex-

periences and successful neutralization of attacks, more transactions amongst supply-

chain business partners will get through successfully. This will progressively estab-

lish the trust and the confidence between the business partners and between the inter-

operating systems. A reputation system consisting partners experiences information

will be evaluated. This reputation system can be constructed centrally or in a distrib-

uted manner across SCM partners. Next section we will look into our trust structure

based on cloning attack and supply chain discussed above.

B. RFID Tag Cloning Threat in Supply Chain & Trust Evaluation

We will present a modeling framework representing the problem and conduct formal

reasoning and measurement to trustworthiness in a RFID supply chain environment

that aims for a better operational decision-making. Mathematical formalisms offer

analysis, but these approaches require strong assumptions, and are only good for

specialized, idealized environments, while practical approaches have no analysis and

hard to adapt [12]. Hence, trust formalization should support formal reasoning and

should have the ability to deal with interactions between technology and human so-

cial behavior. A basic concept related to RFID trust is as listed below:

RFID Business Partner, RBP = {A, B Є RBP}

The trust definition for several partners includes:

(i) If RBP A trusts RBP B in dealing RFID services transaction, S then there is a

TRUST

A (B, S)

(ii) If RBP B trusts RBP A in dealing RFID services transaction, S then there is a

TRUST

B (B, S)

(iii) If RBP ЄA trusts himself in providing RFID services transaction, S then there

is a TRUST

A (A, S)

(iv) We use TRUST = {(A, B, S), A, B Є RBP, S Є S and Trust A = (A, S)}.

It means RBP A trust RBP B in providing Service S

(v) Relationship of Trust

(vi) Optimistic Approach Rule

Next, we give trust reasoning rules based on the concept structure above. For our

trust framework to be used for the security and privacy challenges, the need for every

attack to be studied is essential. Learning of the vulnerability of how the attacks occur

to the RFID system is to understand the ways the attacks happen. As a result, the type

of an attack threat will determine the need for whether Layer 1 – Authenticity or

Layer 2- Privacy is needed or not. For instances, the reasoning for cloning attack can

be shown by four different rules.

• RULE 1 (PREVENT)

Authenticity (Layer1) => PREVENT

⌐ Privacy (Layer 2) => PREVENT

(Authenticity (Layer 1) ^ ⌐ Privacy (Layer 2) => PREVENT)

This shows that cloning attack requires the authenticity and not the privacy ap-

proach in preventing the threat of cloning to ever occur in the RFID system. If suffi-

cient prevention measurement is taken, the first foundation against cloning can be

achieved.

• RULE 2 (DETECT)

(Detection (LAYER 4) ^ Monitoring (Layer 5) => DETECT)

The second rule needs both the detection modules such as intrusion detection and

monitoring to function hand in hand to handling the cloning attack. Any attack can be

encounter by using either one layer.

• RULE 3 (INTERGRATE)

RULE 1 ^ RULE 2 => DATA

(Authenticity (Layer 1) ^ ⌐ Privacy (Layer 2) ^

(Detection (Layer 4) ^ Monitoring (Layer 5) =>INTERGRATE)

This rule emphasize on Layer 3, the data integration layer. Both Rule 1 and Rule 3

would be embedded into the integration layer.

• RULE 4 (SOCIAL)

The social rule is for the culture and experience layers.

Culture (Layer 6) ^ Experience (Layer 7) => SOCIAL

⌐ DATA (LAYER 3) => ↓ SOCIAL => ⌐ TRUST

DATA (LAYER 3) => ↑ SOCIAL => TRUST

Where ↓ means low and ↑ means high. When the integration of prevention and de-

tection is not done, the social factor consisting Layers 6 and 7 will be low. Conse-

quently, the trust confidence will reduce. But when Layer 3 function is preserved, the

social layers will be boost and the impact will be in higher confidence rate.

In an optimistic trust approach the need the whole trust framework such that in the

example for RBP A and B for RFID service, S is as follow:

(PREVENT RBP A ^ PREVENT RBP B ^ DETECT RBP A ^ DETECT RBP B

=> INTERGRATE (A, B) => ↑ SOCIAL => TRUST (A, B, S))

The successful deployment of the trust framework is determined by the above

rule. In order to handle cloning attack effectively, a prevention system for RFID busi-

ness partners should be in place. There should also be a cloning intrusion-detection

system and monitoring system in both ends of business partners. The prevention and

detection module is integrated together through the data and network architecture

designs in the integration layer. As a result, with all these components in place, the

social impact will increase and enhance the trust towards the RFID supply chain open

system entirely.

5 Conclusions and Further Research

In this paper, a comprehensive and novel seven-layer trust framework is introduced.

The framework is presented with essential attributes in designing a secure and trust-

worthy open system for global RFID-enabled item tracking. Nevertheless, producing

a working trust framework does not come without trade-offs. The introduction of

such a trust framework will increase tag-processing overhead, key management over-

head, and reduce the speed of tag reading. The framework aims to help business own-

ers cope with the effectiveness of global item-tracking tasks that involve different

infrastructures, communication channels, and partners. With increasing business

owner’s intention to use RFID system in their organizations, the proposed trust

framework could be used as a ‘cooking book’ to treat security threats by modelling

prevention, detection, and monitoring functions in a seven-layer control mechanism.

Even though a great deal of research is currently in progress on RFID security and

privacy issues, the problem such as cloning is still not handled properly. Detecting

cloning tags is a relatively simple task by utilising timestamps, synchronisation fea-

tures, and rule-based inference engine [9]. However there isn’t a standardised intru-

sion detection system which provides a low false alarms and high precisions at the

moment [13]. Besides that prevention of cloning from happening is still an open is-

sue. As a result, we are currently developing an expert system for detecting cloned

tags in an open system environment. Our future work will look into a depth research

on an optimistic cloning prevention mechanism that can provide a range of preven-

tion services for industries to select from based on their business requirements.

References

1. Yang.G,”Trust and Radio Frequency Identification (RFID) Adoption within an Alliance”,

38th Hawaii International Conference on System Sciences – 2005.

2. Wolfe S.T, Ahamed S.I et al. “A Trust Framework for Pervasive Computing Environ-

ments”, 2006 IEEE, Computer Systems and Applications, March 8, 2006 pp. 312 – 319.

3. Derakhshan R., Orlowska M. E and Li X, “RFID Data Management: Challenges and Op-

portunities”, 2007 IEEE International Conference on RFID Gaylord Texan Resort, Grape-

vine, TX, USA

4. Lin, C., Varadharajan V., Wang Y., Mu Y.: On the design of a new trust model for mobile

agent security. In: The 1st International Conference on Trust and Privacy in Digital Busi-

ness (TrustBus04), Lecture Notes in Computer Science, Vol. 3184, pp. 60–69. Springer,

Zaragoza (2004)

5. Koh, R., et al., White Paper: Securing the Pharmaceutical Supply Chain.2003, AUTO-ID

CENTER, Massachusetts Institute of Technology.

6. Lehtonen.M, “Trust and Security in RFID-Based Product Authentication Systems” Systems

Journal, IEEE, 2007

7. Hossain.M and Prybutok V, “Consumer Acceptance of RFID Technology: An Exploratory

Study”, IEEE Transactions on Engineering Management, Vol. 55, No. 1, Feb 2008.

8. Juels. A, “RFID security and privacy: a research survey” IEEE journal on selected

areas in communications, vol. 24, no. 2, February 2006, 2006. 24(2): p. 381-394.

9. Johnston.G, “An anticounterfeiting strategy using numeric tokens. International journal of

pharmaceutical medicine”, 2007.

10. John P.T. Mo, Sheng Q.Z. Li X., Zeadally S., "RFID Infrastructure Design: A Case Study

of Two Australian National RFID Projects", IEEE Internet Computing, Vol 13 No 1.

Jan/Feb 2009, pp.14-21.

11. Sklavos N., Zhang X., “Wireless Security & Cryptography: Specifications and Implemen-

tations”, CRC-Press, A Taylor and Francis Group, ISBN: 084938771X, 2007

12. Lehtonen, M., F. Michahelles, and E. Fleisch, “Probabilistic Approach for Location-Based

Authentication”. 2007.

13. Mirowski,.L, Deckard: “A System to Detect Change of RFID Tag Ownership”. IJCSNS

International Journal of Computer Science and Network Security, VOL.7 No.7, July 2007,

2007.
