Security as a Service - A Reference Architecture for

SOA Security

Mukhtiar Memon, Michael Hafner and Ruth Breu

University of Innsbruck, Austria

Abstract. Securing service-oriented systems is challenging, because like busi-

ness services the security services are equally distributed in SOA systems. En-

forcing security exclusively at the endpoints creates a signiﬁcant security burden.

Also, every endpoint has to implement the entire security infrastructure, which

is an expensive approach. Currently, there is very little work done to separate

security from service endpoints. We propose a Security As A Service (SAAS)

approach, which shifts major security burden from service endpoints to dedi-

cated and shared security services within a security domain. Security services

are composed from components, and integrated based on the Service Component

Architecture (SCA) model. In this contribution, we apply the SAAS paradigm to

implement security for SECTISSIMO, which is a platform-independent frame-

work for security modeling and implementation [9].

1 Introduction

Security is a complex non-functionalrequirementof SOA systems, which are composed

from services deployed across different locations and diverse platforms. The main prob-

lem for SOA security is the lack of security modeling frameworks, based on consistent

and formal methods. We have addressed this problem in [9], and proposed a solution as

SECTISSIMO security modeling framework.

The second most important aspect, which is the focus of this contribution, is the

architecture for SOA security. From this point of view, the available architectures and

supporting standards are still in the nascent state. SOA system deals with many facets

of security, ranging from basic encryption and access control to security monitoring and

management across domains. A domain basically comprises a number of service end-

points (or simply endpoints), which offer atomic or composed services. The workﬂow

formed by composed services spans multiple endpoints in different domains. There-

fore, the security provided at a particular endpoint may not be sufﬁcient to secure all

the services in the composition. The reason is obvious, as there is no common point,

which all the endpoints can rely for security assessment and evaluation. An endpoint

can perform only primitive security tasks such as encryption, signature etc. While, for

complex security tasks, an endpoint has to rely upon the decisions based on the security

This work was partially supported by the SecureChange (ICT-FET-231101) EU project and

the SECTISSIMO (P-20388) FWF project.

Memon M., Hafner M. and Breu R. (2009).

Security as a Service - A Reference Architecture for SOA Security.

In Proceedings of the 7th International Workshop on Security in Information Systems, pages 79-89

DOI: 10.5220/0002174900790089

 SciTePress

protocolstraversing other domains. This necessitates a hybrid approach combining inte-

grated and decoupled security. The integrated Endpoint Security takes care of primitive

security tasks and the decoupled security, which is shared by all the endpoints within a

particular domain, handles more complex security tasks.

On the grounds of these facts we present an approach for engineering security-critical

SOAs, consisting of two phases:

1. Phase 1: Modeling of security together with functional modeling and generation of

security artifacts through semi-automated transformation.

2. Phase 2: Implementation of security as a service, using Service Component Archi-

tecture (SCA) model.

We have worked out the model-driven approach for security in the SECTET [5] and

SECTISSIMO [9] frameworks.The contribution of this paper is our proposalto deploy

security services within a domain, which are shared by all the service endpoints in that

domain. These services are capable of executing security protocols among different

security domains, thereby reducing the major security burden of service endpoints.

The remaining paper is organized as follows. Section 2 presents related approaches.

Based on an example use case, the security requirements of healthcare system are de-

scribed in Section 3. Section 4 sketches the SECTISSIMO security framework.Section

5 presents limitations of endpoint security in the perspective of SOA. Proposed Security

As A Service (SAAS) approach is discussed in Section 6, whereas, Section 7 presents

our solution as a Reference Architecture for SOA Security. The implementation of the

solution based on SCA is discussed in Section 8, followed by challenges related to

SAAS approach in Section 9. Concluding remarks and future work are given in Section

10.

2 Related Work

This paper mainly focuses on a reference architecture for security-critical SOA sys-

tems based on Security As A Service (SAAS) paradigm. In [4], Heather Hinton et. al.

have introduced the SAAS approach and proposed a Security Decision Service (SDS),

which provides service-based PDP to multiple enforcement points. A more comprehen-

sive discussion is given in [6] by R. Kanneganti and P. Chodavarapu, for implement-

ing authentication, trust and secure conversation as separate services to solve security

manageabilityand interoperabilityproblems. Identity Externalization issues for service-

oriented security (SOS) are presented by Oracle in [15]. In [7], J. Lopez uses dedicated

security services for advanced authentication and authorization requirements. G. Petter-

son [17] presents security-speciﬁc views for SOS architectures. Antivirus products use

the SAAS approach based on security services for small and medium businesses [8].

These approaches basically discuss separation of security from endpoints for indi-

vidual security services but this does not solve the key security problems of SOA, which

includes complex security requirements such as non-repudiation, security compliance

and monitoring. Also, these approaches do not clearly deﬁne how security tasks should

be split between endpoints and the shared security. We have investigated these problems

very carefully, taking into account a more comprehensive set of security services.

There are other even more important aspects which have so far not been addressed.

For example, none of the above approaches deﬁne how security services depend on

each other and how to conﬁgure security at deployment-time. Without deﬁning the de-

pendency and relationship among security services, it is not possible to design complex

security protocols among various endpoints of different domains. An other aspect that

adds value to our approach is the reusability of security components. With our approach

it is possible to implement same security components with different deployment-time

conﬁgurations. To achieve these values, we compose the components based on Ser-

vice Component Architecture (SCA) [16]. We use SCA’s Dependency Injection mecha-

nism to deﬁne dependency among the components. Similarly, we use SCA’s component

Properties for deployment-time conﬁgurations of security components (Details in Sec-

tion 8).

3 Motivating Example

We illustrate our concepts with an industrial use case of a healthcare system, which con-

sists of medical services provided by various stakeholders such as hospital, radiography,

pharmacy and insurance [2]. The security workﬂows for cross-domain authentication,

authorization, non-repudiation and monitoring etc. execute the protocols among multi-

ple domains of these stakeholders.

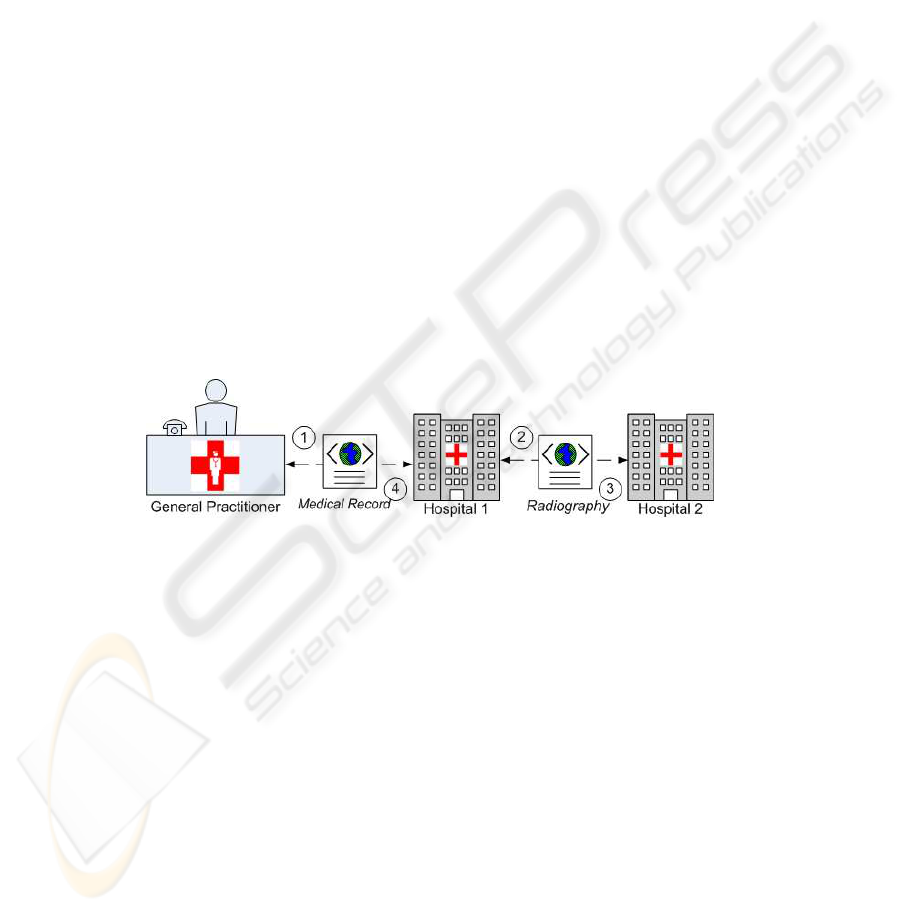

Fig.1. Distributed Healthcare Scenario.

We consider two domains, represented by Hospitals 1 and 2 respectively, as shown

in Figure 1. The users in these domains can be authenticated with the local identi-

ties assigned to them in the form of credentials such as username password and dig-

ital certiﬁcate. In this scenario, a practitioner from Hospital 1, accesses a service i.e.

viewRadiography from Hospital 2. We assume that she possesses the local identity for

Hospital 1, but this identity is not valid for Hospital 2, because every hospital maintains

the local identities of its own domain users. What is required here, is another (security)

service, which federates the practitioner’s identity between two hospitals. One of the

critical questions could be that which of the service endpoints in the hospitals should

perform the task of identity federation and why. This is just one example of a security

task between two domains, but in the real world there are a number of security tasks

such as authorization decisions, privacy enforcement, security protocol execution, log-

ging, security compliance veriﬁcation and security monitoring among many healthcare

stakeholders. If these tasks are assigned to a speciﬁc service endpoint, it will not only

create additional processing burden, but also create interoperability problems. To ad-

dress these problems, we propose to free the service endpoints from security tasks (as

much as possible) and assign them to the dedicated and shared security services.

4 SECTISSIMO Framework

The proposed SAAS approach is used to design the reference architecture for SEC-

TISSIMO framework. SECTISSIMO provides a layered approach to model security

requirements in parallel with functional modeling and generate security artifacts using

transformation. The security requirements are modeled in a platform-independent way,

using abstract security protocols and controls. In the second phase, platform-speciﬁc se-

curity artifacts (i.e. security policies) are generated from the abstract models based on

supporting security infrastructures of the target platform. The security services in the

SAAS component (Section 6.1) of the proposed reference architecture execute these

platform-speciﬁc artifacts which are generated from models. For detailed discussion

about SECTISSIMO, please refer [9].

5 Limitations of Endpoint Security

The Endpoint Security is based on the assumption that all the security infrastructure

components are integrated with the service endpoint. This includes identities stores,

policy repositories, protocol execution engines and monitoring agents. Integrating them

with the endpoint is an expensive solution, because the service endpoint administra-

tion has to deploy and conﬁgure all the required hardware, network and applications.

It also increases the responsibilities and security burden of the endpoints, which could

slow down its performance. Additionally, this creates the problems for security inter-

operability as different domains implement different standards, mechanisms and con-

ﬁgurations for security. The approach is quite effective for primitive security tasks such

as encryption, signature and time-stamping etc. But, it is not applicable for SOA secu-

rity, in which services and security controls may not be placed exclusively at the same

endpoint. These limitations markedly advance our understanding that endpoint security

leads to some architectural and interoperability problems pertaining to SOA security.

6 Security As A Service (SAAS) Approach

In this section we deﬁne our approach and present our arguments why the SAAS ap-

proach is a better choice to solve SOA security as compared with endpoint security.

The Security As A Service (SAAS) approach can be deﬁned as an architectural solu-

tion for SOA security, based on decoupled and shared security services within a domain.

If we examine the security requirements of a service endpoint, we will see that a

service endpoint is mostly concerned with the security decision (e.g. token validation,

authorization), that results from a security protocol. For instance, the decision that as-

serts if the security tokens of a Practitioner are valid or if she has certain permissions to

call a service. As a further step, the endpoint enforces that security decision. We assume

that the task of executing the security protocol and communicating the decision to the

target endpoint should be performed by separate security services.

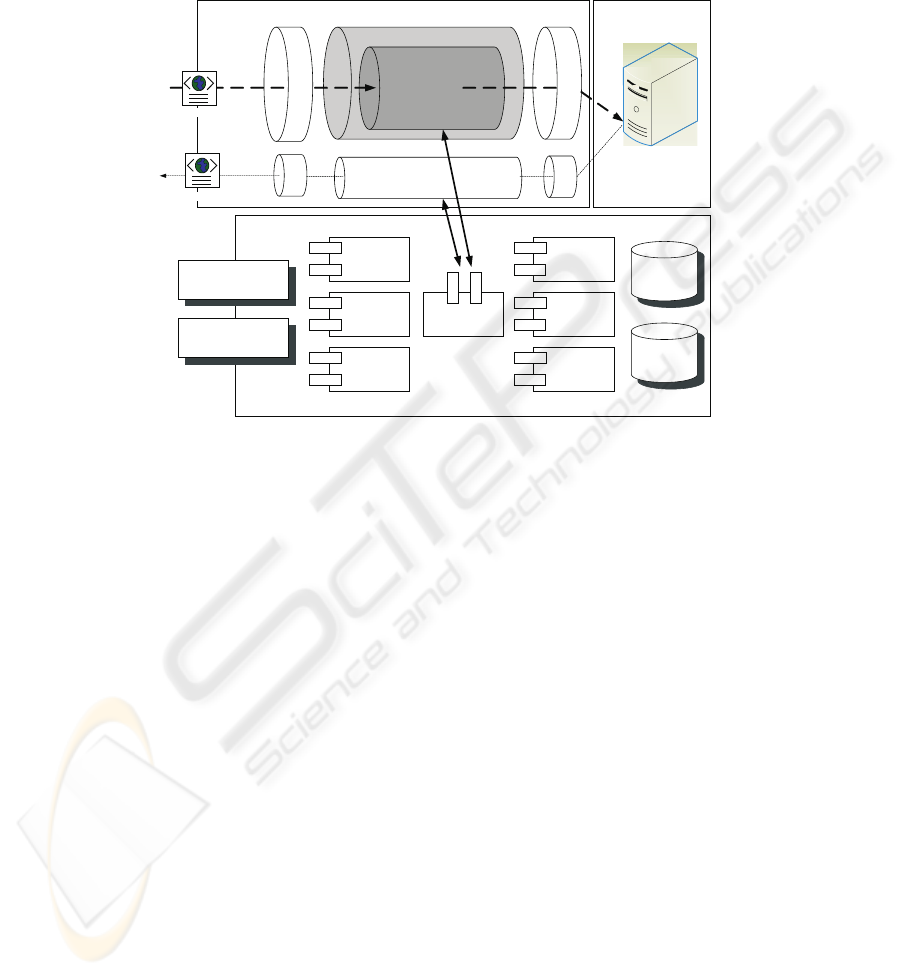

Figure 2 shows the architecture of shared security services based on the proposed

Policy

Repository

Security

Proxy

Handler

(SPH)

Global Request Handler

PKI

Repository

Authentication

Service

Non

Repudiation

Service

Monitoring

Service

Authorization

Service

Logging

Service

Compliance

Service

SAAS Component

Global Response Handler

Service Endpoint Architecture

WS Interface

Security Token Service

WS Interface

Security Protocols

(e.g., NRep, SSO)

SAAS Engine

requestRadiography

Healthcare

System

Back End

Applications

Radiography

Fig.2. The Architecture of Shared Security Services in a domain.

SAAS approach. The upper part shows the Healthcare System, which comprises of

various service endpoints. The Global Request and Response Handlers are integrated

with the service endpoint. The handlers intercept the incoming and outgoing messages

to/from a service endpoint and provide primitive security. For example, in Figure 2, the

Request Handler intercepts a Practitioner’s request to access the viewRadiography ser-

vice and the Response Handler intercepts the response created by backend application.

The service endpoint uses a combination of integrated and shared security to evaluate

the request before creating the service response. Proposed hybrid approach divides the

security tasks between service endpoint’s integrated security and the SAAS Component.

The integrated security at the endpoint performs the primitive tasks, such as encryp-

tion/decryption and signing/signature validation etc. The reason why these tasks should

be performed locally, is that an endpoint can not accept/release clear text and unsigned

messages due to the risk of man-in-the-middle attack, while communicating within and

outside the domain. This is done by Security Proxy Handler (SPH), which is an essential

part of Handlers. The SPH speciﬁcally performs the following security tasks:

1. Encryption/Decryption, Signature/Signature Validation and Key Exchange

2. Enforcement of security decisions, communicated by the SAAS Component

3. Report events regarding service requests, responses and enforcements to the log-

ging and monitoring services

Apart from primitive security the other tasks are handled by the security services in the

SAAS component. The SPH of the service endpoint forwards those tasks to the SAAS

Engine, which assigns them to the appropriate security service from the SAAS Com-

ponent. The SAAS Component uses two interfaces for communication with other do-

mains; i.e. 1) WS-Interface to Security Token Service, for communication with external

identity provider and 2)WS-Interface for Security Protocols for execution of security

protocols such as Single Sign-On and Non-repudiation with the endpoints of other do-

mains.

6.1 SAAS Component

The SAAS Component is a central component, deployed by a security domain for pro-

viding shared security to all the service endpoints in that particular domain. Along with

various security services, the SAAS component consists of the Policy Repository and

PKI Repository, which are used by different security services. The policy repository

consists of the policies, specifying different security requirements, such as Authentica-

tion, Authorization and Non-repudiation.The security services in the SAAS Component

depend on each other. We discuss below their role and relations in more detail:

1. Authentication. The authentication Service provides intra- and inter-domain au-

thentication, as the users requesting services could be from within or outside the

domain. In case of an internal request, the authentication service validates user’s

local identity and sends the signed authentication decision to the endpoint. The

Security Proxy Handler (SPH) at the endpoint validates the security service’s sig-

nature before forwarding the authentication decision to the target service. In case of

a request from an outside domain, the authentication service ﬁrst resolves the iden-

tity of the external user. For this, it contacts the external identity provider using WS

Interface to Security Token Service (STS). After the STS validates the user, the au-

thentication service creates a security context for authentication. This provides the

functionality of identity federation to the outside user, as discussed in the section 3.

2. Authorization. Authorization service veriﬁes permissions assigned to the users. The

permissions are deﬁned in the policies stored in Policy Repository. Based on the

policy, this service makes the authorization decision and sends the signed autho-

rization assertion to the endpoint. The SPH of the endpoint validates the signature

of authorization assertion and enforces the decision.

3. Non-repudiation. This service executes an out-of-band non-repudiation protocol

between requester and the endpoints and stores the protocol messages locally.

4. Logging. This service logs the service request and response messages. Messages

are communicated to logging service using notiﬁcations. Apart from logging, the

ordinary requests and responses, the logging service also stores the messages gen-

erated by security events. For example, the message notifying that a particular user

was not authenticated because the security tokens submitted by her were not signed

by the STS. These logs are based on the evaluation done by security compliance

service discussed below.

5. Security Compliance. This service veriﬁes if the message sent by a user is compli-

ant with the security policy of an endpoint. The security policy deﬁnes the security

requirements based on supported security infrastructures and mechanisms, for ex-

ample, type of tokens, encryption, signature algorithms etc. The authentication ser-

vice depends upon the decision of the compliance service. If a request is evaluated

to be security-compliant by this service then the authentication service proceeds for

token validation.

6. Security Monitoring. The Monitoring service is responsible to handle the events,

which are generated by the endpoints or security services of SAAS Component.

For instance, the compliance service reports the security event, if certain mes-

sage for a service request does not meet an endpoint’s security policy. The non-

repudiation service notiﬁes a protocol failure, when an endpoint does not follow

the Non-repudiation protocol requirements. The monitoring service of a domain’s

SAAS component notiﬁes these events to a central service, which monitors security

among various domains. The purpose of monitoring security centrally is to receive

the security events from different domains and notify the responsible and affected

endpoints of the particular domains.

From above deﬁnitions it follows that security services are not only complex in them-

selves but also depend on each other. If security is integrated at the endpoint, then it will

create very complex security workﬂows to be handled by the endpoint. Our approach

of separating security as a service reduces signiﬁcant part of security functionality from

the endpoints. Moreover, composing all security services as a SAAS component makes

it possible to integrate and conﬁgure related security components at deployment time.

7 Reference Architecture

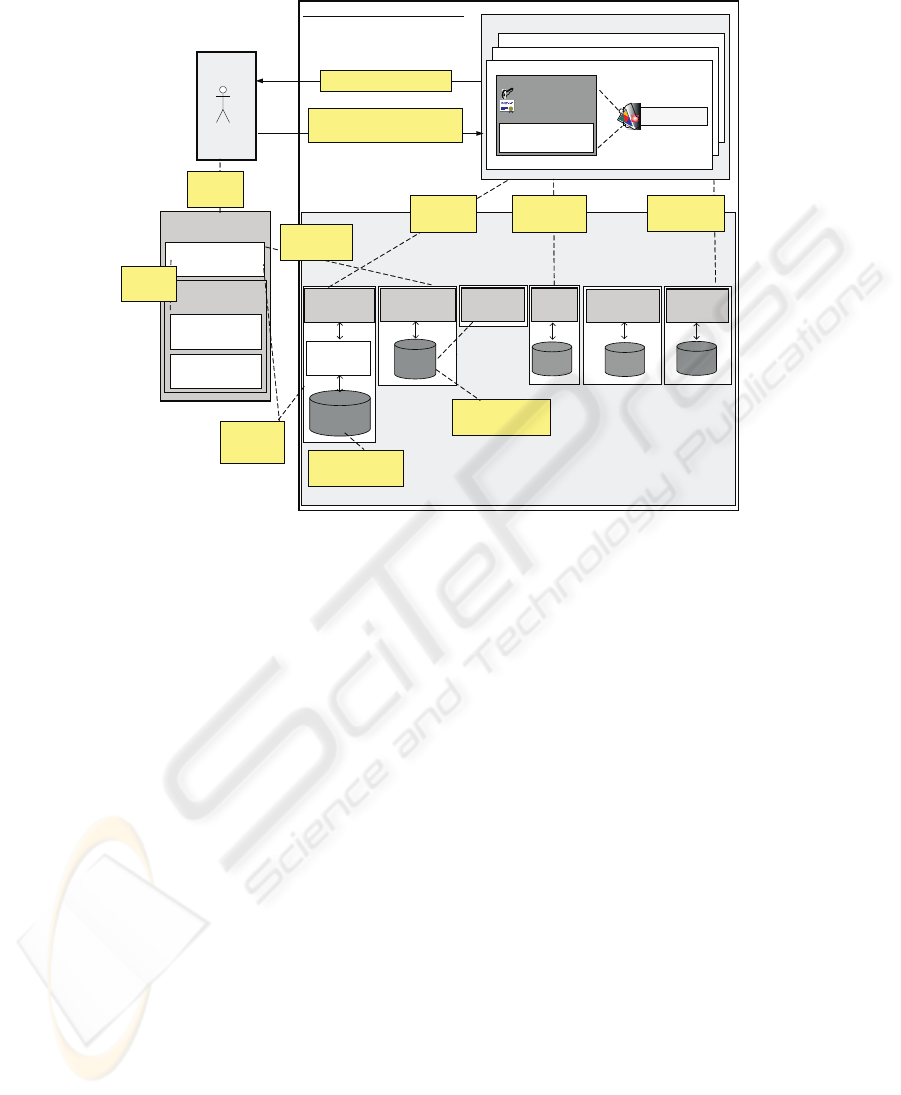

The Reference Architecture as shown in Figure 3, shows the security services and cur-

rent web service based security standards for implementing decoupled and shared secu-

rity. The architecture is divided into three main parts i.e. Service Consumer (e.g. a prac-

titioner); HealthcareSystem, which shows different service endpoints in the domain and

the SAAS Component, which consist of various security services. The Primitive Secu-

rity at the endpoint, performs basic security functionalities of encryption/decryptionand

signature/signature validation. Its Policy EnforcementPoint (PEP) enforces the security

decisions at the endpoint. The shared security services shown in the SAAS Component,

have already been discussed in Section 6. In the subsequent part of this section , we fo-

cus more on the web service based security standards for implementation of the SAAS

Component.

1. WS-SecurityPolicy. This standard is used to deﬁne the security requirements of

a service as security assertions [14]. We use this standard to write the security

policy of and endpoint, which deﬁnes supported type of bindings, tokens, encryp-

tion/signature algorithms. In the SAAS Component, this policy is used by two ser-

vices i.e. security compliance and authentication. The security compliance service

checks if the request is according to the policy. Followed by its decision, the au-

thentication service proceeds for token validation.

2. SAML. Security Assertion Markup Language (SAML) is used to exchange the se-

curity information between security domains [11]. We use SAML for two services

Healthcare System

Service Endpoint . . n

Service Endpoint 2

Service

Consumer

Hospital’ s Security Domain

Service Endpoint 1

viewRadiography

Practitioner

WS-Security Policy

(Service Request + Security Token)

Complying to Security Policy

Cross-Domain

Authentication

SAML Authority

Security Token

Service

Token Issuing

Authority

Token Validation

Authority

Authorization

Policy

Decision

Point (PDP)

Auhorization

Policeis

Security

Compliance

Security

Monitoring

Alert

Logs

Non –

Repudiation

Authorization Policy

(XACML)

Primitive Security

Signature

Encryption

Logging

Access

Logs

Protocol

Logs

Security Services at SAAS Component

Authentication Policy

WS-(SecurityPolicy)

Policy Enforcement

Point (PEP)

Security Alert

(WS-Notification)

Notifications

(WS-Notification)

Authorization

Assertion

(SAML)

Authentication

Assertion

(SAML)

Token

Issuance

(WS-Trust)

Authentication

Security

Policies

Authorization

Assertion

(SAML)

Token

Validation

(WS-Trust)

Fig.3. The Reference Architecture.

i.e. authentication and authorization services. The authentication service creates an

authentication request and response based on SAML protocols. The SAML Author-

ity gets token validation decision from identity provider i.e. Security Token Service

(STS) and sends signed authentication assertion to the endpoint. The Authorization

service uses SAML in similar manner. It sends authorization request to the Policy

Decision Point (PDP) and sends SAML authorization assertions to the endpoint’s

Policy Enforcement Point (PEP).

3. XACML. Extensible Access Control Markup Language (XACML), is a standard to

write authorization policies [13]. We use XACML to create authorization policies

of a service consumer. The Policy Decision Point (PDP) of this service, makes the

authorization decision based on the permissions assigned to the roles (e.g. practi-

tioner), deﬁned as XACML rules.

4. WS-Trust. WS-Trust provides an interface to service consumer to get security to-

kens from STS [12]. The authentication service uses WS-trust interface for user’s

token validation decision from STS.

5. WS-Notiﬁcation. WS-notiﬁcation deﬁnes a set of interfaces to send event notiﬁ-

cations [10]. We use this standard to send event notiﬁcations from the endpoint to

Logging and Security Monitoring Services. Notiﬁcations, which are sent for log-

ging carry ordinary information pertaining to the service requests and responses.

The notiﬁcations, which are sent to the Monitoring Service are the security alerts,

resulting from security non-compliance.

8 Composing Security from Components

In Section 2, we mentioned that security services are offered by security components,

which are composed based on Service Component Architecture (SCA) model. We use

this model to deploy security components as a Security Composite, which meets all

the security requirements of a domain. An SCA component has a Service, a Reference,

Wires and Properties. The Service is an interface to the functionality a component of-

fers. A Reference is an interface of the service that a component depends on. A service

is connected with a reference using a Wire. Properties are used to conﬁgure the com-

ponents for different implementations. A set of required components is composed as a

Composite, which provides an interface for service invocation. The composition is re-

cursiveand a composite could be used as a componentin another composition [3]. Com-

posites are written in XML-based Service Composition Deﬁnition Language (SCDL).

SCA uses SCAPolicyFramework to deﬁne security (and other QoS) requirements using

high-level security objectives called Intents. Intents are mapped to a PolicySet, which is

mapped to concrete security policies written in WS-Policy standard [16].

8.1 Security Implementation using SCA Model

The motivation of implementing proposed SAAS approach with SCA model is based

on its promising features, supporting SOA based composition of security components.

We beneﬁt from these features in many aspects as discussed below:

1. Component-based Security Services. We assume that the security services de-

ployed in a security domain are offered by components written in different lan-

guages. This modularity enables to use old components (reusability), add new com-

ponents (extensibility) and update existing components (maintainability).

2. Deployment-time Security Conﬁguration. Security Components form a Security

Composite, which can be conﬁgured at deployment time based on the security pol-

icy of a domain. We useSCA componentproperties, to make such deployment-time

conﬁgurations. For example, an authentication component is implemented accord-

ing to the security policy, which deﬁnes types of supported tokens (e.g. Signed

SAML Tokens, x.509 certiﬁcate, Username password), encryption and signature

methods (e.g. basic256, sha-1) and message parts (e.g. header, body) to be pro-

tected. An authentication component can be written to implement any of these to-

kens and algorithms etc. The values are passed to the components as properties.

This gives the ﬂexibility to conﬁgure the same security components for different

implementations. In Java, the property-based conﬁgurations of SCA components is

done with annotations embedded in Java classes [1].

3. Separation of Concerns. Using SCA we separate security concerns from func-

tionality, because signiﬁcant part of the security logic is not integrated with service

endpoint. As a result any changes in the security logic can be incorporated with-

out affecting the service endpoint. The service endpoint equally beneﬁts from this

separation, because it does not depend upon infrastructure,which are used for its se-

curity. Additionally, the peformance of the endpoint is also enhanced as it performs

minimum security tasks and does not have to solve interoperability problems.

4. Dependency Injection. The security services offered by components depend on

each other as discussed in Section. 7. We use Dependency Injection to deﬁne de-

pendency between security components using SCA wires between components.

9 Challenges Related to SAAS Approach

The advantagesof the SAAS approach are manifold, butit also offers some implementation-

level challenges, which need special attention. SAAS assumes decoupled and central-

ized security services for each domain. It may create a single point of failure, because

many endpoints rely on centralized SAAS Component. This problem should be tack-

led with certain service replication mechanisms. Secondly, there are only few standards

available, which can support SAAS approach, including SAML, XACML, WS-policy,

WS-Trust etc. There are no standards for security monitoring, non-repudiation and se-

curity compliance at the service and protocol levels. The Web service standards such as

WS-Notiﬁcation, WS-Eventing offer very basic interfaces, which can not be used for

complex security scenarios such as failure of mutual authentication or non-repudiation

protocol.

10 Conclusions and Future Work

In this paper, we presented an approach for security as a service implementation us-

ing Service Component Architecture (SCA) model. We observed that the concept of

endpoint security has many obvious limitations in the perspective of SOA. We also in-

vestigated that current approaches addressing service-oriented security consider very

limited aspects of SOA security. We have presented a more comprehensive set of se-

curity services and particularly discussed the aspects of dependencies among security

services and deployment-time conﬁguration of security components. In future, we con-

tinue our research in two directions i.e. 1) Security Modeling, for providing abstractions

to the security protocols and 2) Security Implementation, for designing protocol engines

to implement the security services of SAAS Component.

References

1. SCA Implementation with Java, 2007. http://tuscany.apache.org/.

2. R. Breu, M. Hafner, F. Innerhofer-Oberperﬂer, and F. Wozak. Model-Driven Security En-

gineering of Service Oriented Systems. Lecture Notes in Business Information Processing,

5(5):59–71, 2008.

3. F. Satoh et. al. Methodology and Tools for End-to-End SOA Security Conﬁgurations. In

SERVICES ’08, pages 307–314, Honolulu, HI, 2008.

4. M. Hondo H. Hinton and B. Hutchison. Security Patterns within a Service-Oriented Archi-

tecture, 2005.

5. M. Hafner. SECTET A Domain Architecture for Model Driven Security, 2006. PhD Thesis

November 2006.

6. R. Kanneganti and P. Chodavarapu. SOA Security in Action. Manning Publications Co.,

Greenwich, CT, USA, 2007.

7. J. Lopez, J. A. Montenegro, and et. al. Speciﬁcation and Design of Advanced Authentication

Authorization Services. Computer Standards and Interfaces, 27(5):467–478, 2005.

8. MacAfee. Security as a Service, 2008.

9. M. Memon, M. Hafner, and R. Breu. SECTISSIMO: A Platform-Independent Framework

for Security Services. In ModSec ’08: MODELS 2008, Toulouse, France, 2008.

10. P. Niblett and S. Graham. Events and service-oriented architecture: the OASIS web services

notiﬁcation speciﬁcations. IBM Syst. J., 44(4):869–886, 2005.

11. OASIS. Security Assertion Markup Language (SAML), 2005. http://www.oasis-open.org.

12. OASIS. WS-Trust Sepciﬁcations, 2005. http://docs.oasis-open.org/.

13. OASIS. Extensible Access Control Markup Language(XACML), 2006. http://www.oasis-

open.org.

14. OASIS. WS-SecurityPolicy, 2007. http://docs.oasis-open.org/.

15. Oracle. Service-Oriented Security: An Application-Centric Look at Identity Management,

2008. http://www.oracle.com/.

16. OSOA. Service Component Architecture, 2007. http://www.osoa.org/.

17. G. Peterson. Service Oriented Security Architecture, 2005. http://www.arctecgroup.net.
