PREVENTING WORMHOLE ATTACK IN WIRELESS AD HOC

NETWORKS USING COST-BASED SCHEMES

Marianne Amir Azer

Nile University, Cairo, Egypt

Sherif Mohammed El-Kassas

American University in Cairo,Cairo, Egypt

Mady Saiid El-Soudani

Faculty of Engineering, Cairo University, Egypt

Keywords: Ad Hoc networks, Attacks, Routing, Security, Wormhole attack.

Abstract: Ad hoc networks can be rapidly deployed and reconfigured. Hence, they are very appealing as they can be

tailored to lots of applications. Due to their features, they are vulnerable to many attacks. A particularly

severe security attack, called the wormhole attack, has been introduced in the context of ad-hoc networks.

During the attack a malicious node captures packets from one location in the network, and tunnels them to

another malicious node at a distant point, which replays them locally. In this paper we explain the wormhole

attack modes and propose two schemes for the wormhole attack prevention in ad hoc networks. The

schemes rely on the idea that usually the wormhole nodes participate in the routing in a repeated way as

they attract most of the traffic. Therefore, each node will be assigned a cost depending in its participation in

routing. The cost function is chosen to be exponential in powers of two such that to rapidly increase the cost

of already used nodes. Besides preventing the wormhole attack, these schemes provide a load balance

among nodes to avoid exhausting a node that is always cooperative in routing.

1 INTRODUCTION

A wireless ad-hoc network consists of a collection of

autonomous peer mobile nodes that self-configure to

form a network and have no pre-determined

organization of available links. The broadcast nature

of the radio channel introduces characteristics to ad

hoc wireless networks that are not present in their

wired counterparts. Ad hoc networks are vulnerable

to attacks due to many reasons, amongst them are

the absence of infrastructure, wireless links between

nodes, limited physical Protection, and the Lack of a

centralized monitoring or management, and the

resource constraints. One of the most famous and

dangerous attacks to this type of networks is the

wormhole attack. During the attack a malicious node

captures packets from one location in the network,

and tunnels them to another malicious node at a

distant point, which replays them locally. In this

paper we suggest a scheme to prevent this attack.

The remainder of this paper is organized a

follows. In section 2, we explain briefly the Ad Hoc

on Demand Distance Vector (AODV) protocol used

for routing in ad hoc networks, and explain in details

the different modes of the wormhole attack. In

section 3, a suggested scheme for the wormhole

attack prevention using two approaches is presented.

Finally, Conclusions and future work are given in

section 4.

2 BACKGROUND

In this section we give a brief overview on the

AODV routing protocol and explain the wormhole

attack in details in sections 2.1 and 2.2 respectively.

Amir Azer M., Mohammed El-Kassas S. and Saiid El-Soudani M. (2009).

PREVENTING WORMHOLE ATTACK IN WIRELESS AD HOC NETWORKS USING COST-BASED SCHEMES.

In Proceedings of the International Conference on Security and Cryptography, pages 69-74

DOI: 10.5220/0002178400690074

 SciTePress

2.1 The Ad Hoc on Demand Distance

Vector Routing Protocol

The AODV (Perkins and Royer, 2000) builds and

maintains routes between nodes only as needed by

source nodes. When a source node desires a route to

a destination for which it does not already have a

route it broadcasts a RREQ packet across the

network. Nodes receiving this packet update their

information for the source node and set up

backwards pointers to the source node in the routing

tables. In addition to the source node's IP address,

current sequence number, and broadcast ID, the

RREQ also contains the most recent sequence

number for the destination of which the source node

is aware.

A node receiving the RREQ may send a RREP if

it is either the destination or if it has a route to the

destination with corresponding sequence number

greater than or equal to that contained in the RREQ.

If this is the case, it unicasts a RREP back to the

source. Otherwise, it rebroadcasts the RREQ. Nodes

keep track of the RREQ's source IP address and

broadcast ID. If they receive a RREQ, which they

have already processed, they discard it and do not

forward it. As the RREP propagates back to the

source, nodes set up forward pointers to the

destination. Once the source node receives the

RREP, it may begin to forward data packets to the

destination. If the source later receives a RREP

containing a greater sequence number or contains

the same sequence number with a smaller hop count,

it may update its routing information for that

destination and begin using the better route. As long

as the route remains active, it will continue to be

maintained.

A route is considered active as long as there are

data packets periodically travelling from the source

to the destination along that path. Once the source

stops sending data packets, the links will time out

and eventually be deleted from the intermediate

node routing tables. If a link break occurs while the

route is active, the node upstream of the break

propagates a route error (RERR) message to the

source node to inform it of the now unreachable

destination(s). After receiving the RERR, if the

source node still desires the route, it can reinitiate

route discovery.

2.2 The Wormhole Attack

A particularly severe security attack, called the

wormhole attack, has been introduced in the context

of ad-hoc networks (Karlof and Wagner, 2003),(Hu

et al.,2003), (Hu and Evans, 2004). During the attack

(Khalil et al., 2005), a malicious node captures

packets from one location in the network, and

tunnels them to another malicious node at a distant

point, which replays them locally. This tunnel makes

the tunnelled packet arrive either sooner or with less

number of hops compared to the packets transmitted

over normal multihop routes. This creates the

illusion that the two end points of the tunnel are very

close to each other. A wormhole tunnel can actually

be useful if used for forwarding all the packets.

However, it is used by attacking nodes to subvert the

correct operation of ad-hoc and sensor network

routing protocols. The two malicious end points of

the tunnel can then launch a variety of attacks

against the data traffic flowing on the wormhole,

such as selectively dropping the data packets. The

wormhole attack can affect network routing, data

aggregation and clustering protocols, and location-

based wireless security systems. Finally, it is worth

noting that the wormhole attack can be launched

even without having access to any cryptographic

keys or compromising any legitimate node in the

network.

The wormhole attack can be launched in at least

five different methods as follows.

Packet encapsulation in which a malicious node

at one part of the network hears the RREQ packet. It

tunnels it to a second colluding party at a distant

location near the destination. The second party then

rebroadcasts the RREQ. The neighbors of the second

colluding party receive the RREQ and drop any

further legitimate requests that may arrive later on

legitimate multihop paths. This prevents nodes from

discovering legitimate paths that are more than two

hops away.

Use of an out of band channel, this channel can

be achieved, for example, by using a long-range

directional wireless link or a direct wired link. This

mode of attack is more difficult to launch than the

previous one since it needs specialized hardware

capability.

Use of high power transmission, in this mode, when

a single malicious node gets a RREQ, it broadcasts

the request at a high power level, a capability which

is not available to other nodes in the network. Any

node that hears the high-power broadcast

rebroadcasts it towards the destination even without

the participation of a colluding node. Use of packet

relay is another mode of the wormhole attack in

which a malicious node relays packets between two

distant nodes to convince them that they are

neighbors. It can be launched by even one malicious

SECRYPT 2009 - International Conference on Security and Cryptography

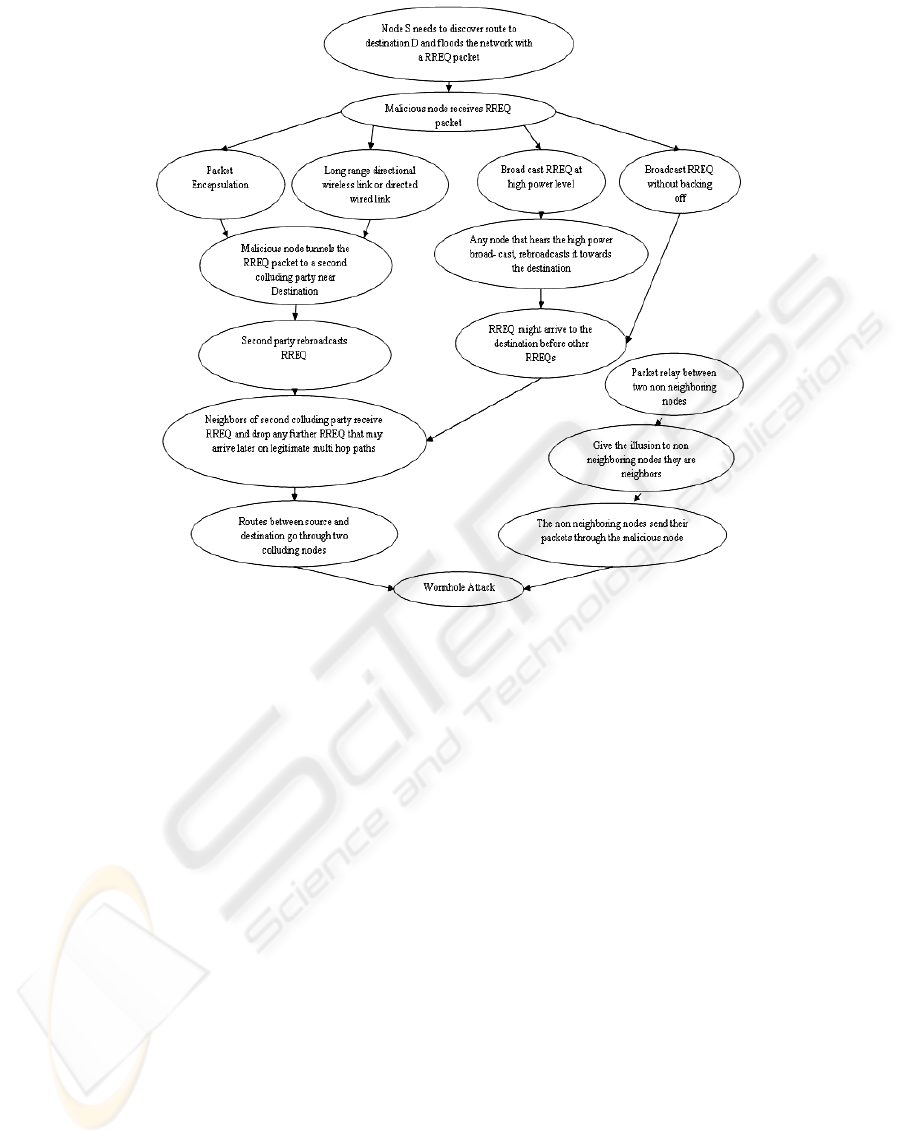

Figure 1: Attack graph of the wormhole attack.

ode. Cooperation by a greater number of malicious

nodes serves to expand the neighbor list of a victim

node to several hops.

Protocol deviation, during the RREQ forwarding,

the nodes typically back off for a random amount of

time before forwarding reduce MAC layer

collisions. A malicious node can create a wormhole

by simply not complying with the protocol and

broadcasting without backing off. The purpose is to

let the request packet it forwards arrive first at the

destination.

We have developed an attack graph that depicts the

different modes of the wormhole attack, it is

depicted in Figure 1.

3 WORMHOLE ATTACK

PREVENTION SCHEME

The basic idea that lies behind the wormhole attack

is that the wormhole malicious nodes pull the traffic

by advertizing short paths, with minimum number of

hops. It is therefore more likely possible to have

those wormhole routes participate in routing packets.

From this perspective, we suggest to modify the

AODV protocol in such a way to disable the

malicious nodes to attract the traffic all the time and

be able to process it maliciously. Hence, each node

will be assigned a cost using the cost function in the

equation below.

c(i)

new

= 2

+ c(i)

old

where

c(i) is the cost of a node i

n is the number of times a node has contributed

in routing to a certain destination, initially n = 0.

This function takes into consideration the

number of times a node has participated in routing

for a certain source and the node’s cost will be

increased accordingly.

Two approaches are suggested for dealing with the

node’s cost. The first is called cumulative cost

calculation, and the second is called adaptive step by

step cost calculation, these solutions will be

presented in sections 03.1 and 3.2 respectively.

3.1 Cumulative Prevention Method

In order to apply our approach three additional

features should be added /modified in the default

PREVENTING WORMHOLE ATTACK IN WIRELESS AD HOC NETWORKS USING COST-BASED SCHEMES

AoDv protocol. One concerns the RREQs, the other

concerns the RREPs and the added cost function. To

start with, it was mentioned earlier in the default

AODV protocol description that if a node receives a

RREQ, which it has already processed, it discards

the RREQ and does not forward it. This step should

be modified as we need to have multiple options of

routing paths for the same request originated by the

source. It follows that a node should process all

arrived RREQs forwarded to it by different previous

hops. In addition, it was also mentioned in the

default AODV protocol that as the RREP propagates

back to the source, nodes set up forward pointers to

the destination. Once the source node receives the

RREP, it may begin to forward data packets to the

destination. This means that the RREP contains only

a pointer to the past hop that forwarded it. To be

able to apply our suggested scheme, an extra field

that stores the hop list contributing in the path

should be added to the RREP packet.

Now if a source node needs a route to the

destination, it broadcasts the RREQ packets, which

will be now processed differently at intermediate

nodes, as described above. When the source node

receives the RREP packets, it retrieves the hop

names from the extra added field, calculates each

path’s cost and chooses the path with the minimum

cost. A node that has been used more than once has

its cost increased exponentially (power of two), this

is to ensure that a "tempting" path that offers

apparently small number of hops will have a high

cost because it contains a node that was used before.

By this the “attractive wormhole node” will not be

able to attract the traffic as there cost will increase

very fastly. To illustrate the idea of path selection at

the source node, let us consider the following

example:

If a source node has received multiple RREPs for

different RREQs that it has sent and a different times

starting from t

(oldest) to t

(most recent), i.e

At t

: only one RREP

was received after the

broadcasting of RREQ

and the hops’ list retrieved

from this RREP

is {n

, n

}, where n

is the node

At t

another RREQ

was broadcasted to may be

another destination, a RREP

was received and the

list retrieved from this RREP

is:{n

, n

At t

another RREQ

was broadcasted to may be

another destination, a RREP

was received and the

list retrieved from this RREP

is:{n

, n

If at t

another RREQ

was broadcasted to may

be another destination, Two RREPs, RREP

d,1

and

and RREP

d,2

were received. The lists retrieved from

these RREPs are: {n

, n

}, and {n

, n

Where the subscripts a,b,c,d denote an ID associated

with the RREQs and RREPs. The cost tables are

kept and updated at Source, according to Table 1.

From Table 1, it is clear that when there is no other

alternative for routing the proposed route is selected.

However, at time t

the path with minimum cost was

selected, avoiding as much as possible intermediate

nodes repetition. If by coincidence some paths have

equal minimum cost, the path with minimum

number of hops will be selected.

Table 1: Cost tables at source.

time List of

available

routes

Node Cost

C(i),

initially=2

Path

Cost

, n

} C(2)=1

C(5)=1

C(7)=1

, n

C(1)=1

C(2)=3

C(4)=1

C(6)=1

, n

}, C(3)=1

C(5)=3

C(8)=1

={n

, n

}

C(2)=7

C(4)=3

C(6)=3

C(7)=3

={n

, n

}

C(2)=7

C(3)=3

C(5)=7

3.2 Adaptive Step by Step Prevention

Method

Another approach using the same suggested cost

function makes a hop based decision. The following

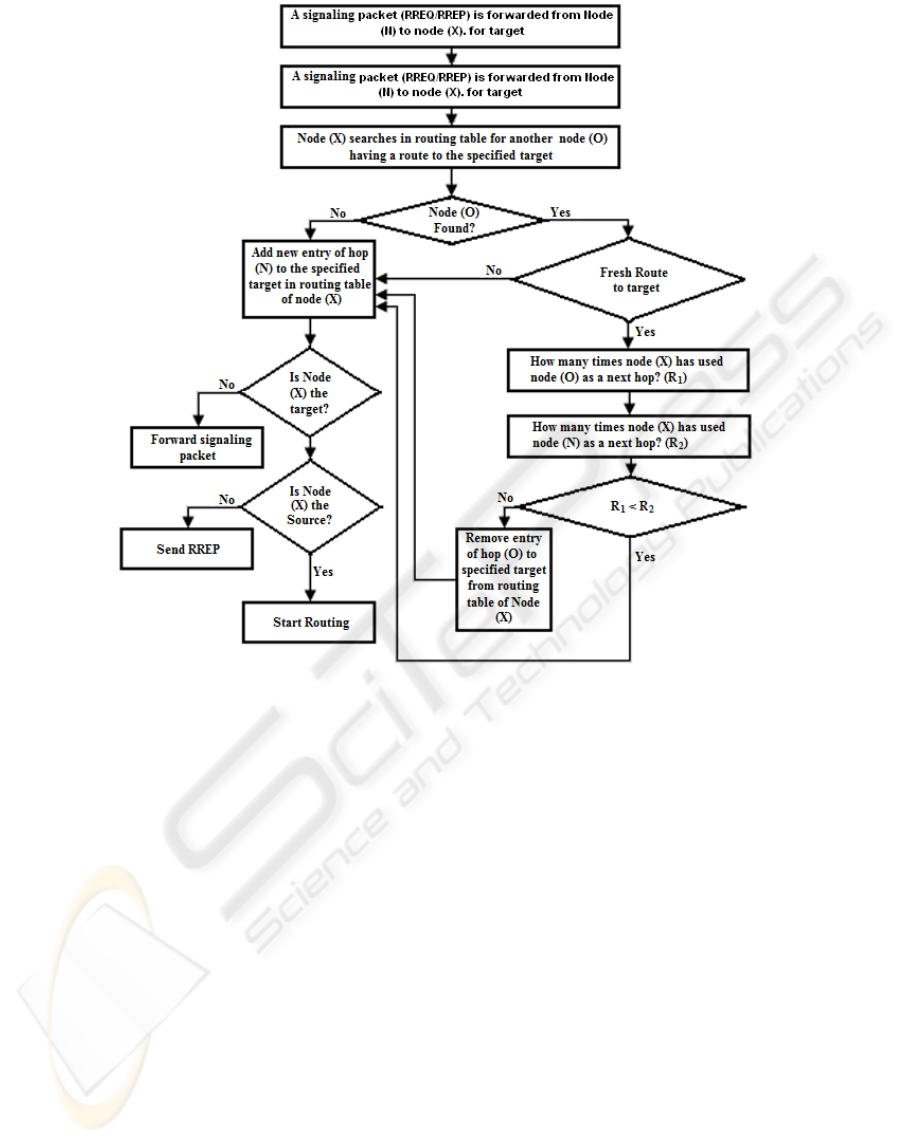

algorithm and the flow chart shown in Figure 1

describe this hop-based decision.

1- A signaling packet (RREQ/RREP) is received by

node (X) from Node (N).

2- Node (X) extracts target Source or Destination

(S/D) from signaling packet (If the signaling

packet is a RREQ then the target is the source, if

the signaling packet is a RREP, then the target is

the Destination).

3- Node (X) searches in routing table for another

node (O) having a fresh route to the target

4- If the node (O) is not found or if the route is not

fresh enough, node (N) is added to the routing

table of node (X).

SECRYPT 2009 - International Conference on Security and Cryptography

Figure 2: Flow chart of adaptive step by step wormhole attack prevention.

5- If the node (O) is found in the routing table, and

has a route to the target the following should be

verified:

i- How many times node (X) has used node (O) as a

next hop (R

ii- How many times node (X) has used node (N) as a

next hop (R

iii- Compare R1 and R2

iv- Update the routing table

4 CONCLUSIONS AND FUTURE

WORK

Throughout this paper, we introduced the wormhole

attack and the effort that has been done in the

literature either to prevent, or to detect this attack,

we have also explained briefly the AoDV protocol

used in the ad hoc networks for routing. A wormhole

prevention scheme was suggested. To prevent the

wormhole attack, we suggested the modification of

the AODV protocol in such a way to disable the

malicious nodes from attracting the traffic all the

time and be able to process it maliciously. The idea

relies basically on assigning cost to the nodes that

participate in routing packets for a certain source. A

node that has been used more than once to route

packets for a certain source has its cost increased

exponentially (power of two). Based on this idea, we

suggested two wormhole attack prevention schemes.

In the first scheme, called cumulative prevention, the

source node receives the RREP packets, it retrieves

the hop names from the extra added field, calculates

each path’s cost and chooses the path with the

minimum cost. A node that has been used more than

once has its cost increased exponentially (power of

two), this is to ensure that a tempting path that offers

apparently small number of hops will have a high

cost because it contains a node that was used before.

By this, the attractive wormhole node will not be

able to attract the traffic as there cost will increase

very fastly. The second solution is an adaptive step

by step prevention method and uses the cost function

to compare, at every node receiving a control

message, between a next hop offering a route to the

PREVENTING WORMHOLE ATTACK IN WIRELESS AD HOC NETWORKS USING COST-BASED SCHEMES

destination and nodes in its routing table also having

routes to the destination. In addition to preventing

the wormhole attack, those solutions have the

privilege of providing a load balance in the ad hoc

networks, such as to save regular nodes from

resource consumption if they repeatedly participate

in routing. We plan to verify those schemes, while

comparing its performance to other wormhole

prevention schemes proposed in the literature. In

addition, the cost function can include extra

calculations to take the number of hops offered by a

path into account such as to have the minimum path

cost and hop count together.

REFERENCES

Perkins, C., Royer, E., 2000. The Ad hoc On-Demand

Distance Vector Protocol. In C. E. Perkins, editor, Ad

hoc Networking, Addison-Wesley, pp. 173-219.

Karlof C., Wagner,D., 2003.Secure Routing in Sensor

Networks: Attacks and Countermeasures. In the 1st

IEEE International Workshop on Sensor Network

Protocols and Applications, May, 2003.

Hu, Y., Perrig, A., Johnson, D.,2003. Packet leashes: a

defense against wormhole attacks in wireless

networks. In Proceedings of the 22nd Annual Joint

Conference of the IEEE Computer and

Communications Societies (INFOCOM), pp. 1976-

1986.

Hu, L., Evans, D., 2004. Using Directional Antennas to

Prevent Wormhole Attacks, In Network and

Distributed System Security Symposium (NDSS).

Khalil,I., Bagchi, S., Shroff, N., 2005. LITEWORP: A

Lightweight Countermeasure for the Wormhole Attack

in Multihop Wireless Networks. In 2005 International

Conference on Dependable Systems and Networks

(DSN'05), pp. 612-621.

Choi, S., Kim, D., Lee, D., Jung, J., 2008. WAP:

Wormhole Attack Prevention Algorithm in Mobile Ad

Hoc Networks. In Sensor Networks, Ubiquitous and

Trustworthy Computing 2008 SUTC '08. IEEE

International Conference on, vol., no., pp.343-348.

Khurana, S., Gupta, N., 2008. FEEPVR: First End-to-End

Protocol to Secure Ad Hoc Networks with Variable

Ranges against Wormhole Attacks. In securware 2008

Second International Conference on Emerging

Security Information, Systems and Technologies,

pp.74-79.

Wang, X., 2006. Intrusion Detection Techniques in

Wireless Ad Hoc Networks. In 30th Annual

International Computer Software and Applications

Conference (COMPSAC'06), pp. 347-349, 2006.

Wang, X., Wong, J., 2007. An End-to-end Detection of

Wormhole Attack in Wireless Ad-hoc Networks. In

31st Annual International Computer Software and

Applications Conference - Vol. 1- (COMPSAC 2007),

pp. 39-48.

Zhang, Y., Liu, W., Lou, W., and Fang, Y, 2005. Securing

sensor networks with location-based keys. In WCNC

2005, IEEE Wireless Communications and

Networking Conference, no. 1, pp. 1909 – 1914.

Poovendran, R., Lazos, L., 2007. A graph theoretic

framework for preventing the wormhole attack. In

wireless ad hoc networks, Volume 13, Issue 1, ISSN:

1022-0038, pp. 27 – 59, 2007.

Song,N., Qian, L., Li, X., 2005. Wormhole Attacks

Detection in Wireless Ad Hoc Networks: A Statistical

Analysis Approach. In 19th IEEE International

Parallel and Distributed Processing Symposium

(IPDPS'05) - Workshop 17.

Buttyan, L., Dora, L., Vajda, I., 2005. Statistical wormhole

detection in sensor networks. In Hungary, July 2005.

Maheshwari, r., Gao, J., Das, S., 2007 Detecting

Wormhole Attacks in Wireless Networks Using

Connectivity Information, In INFOCOM 2007, 26th

IEEE International Conference on Computer

Communications, IEEE (2007), pp. 107-115.

Wang, W., Bhargava, B., 2004. Visulization of wormholes

in sensor networks. In Proceeding of the

ACMWorkshop onWireless Security (WiSe), pp. 51–

60, 2004.

Azer, M., El-Kassas, S., El-Soudani, M., 2006. Using

Attack Graphs in Ad Hoc Networks for Intrusion

Prediction Correlation and Detection. In SECRYPT

2006, pp. 63-68.

Win, K., 2008. Analysis of Detecting Wormhole Attack in

Wireless Networks. In Proceedings of world Academy

of Science, Engineering and Technology Volume 36

December 2008 ISSN 2070-3740.

Kong, F., Li, C., Ding, Q., Cui, G., and Cui, B., 2009.

WAPN: A Distributed Wormhole Attack Detection

Approach for Wireless Sensor Networks. In Journal of

Zhejiang University SCIENCE A, vol. 10, pp.

279~289, February 2009.

Gunhee, L., Jungtaek, S., and Dong-kyoo, K., 2008. An

Approach to Mitigate Wormhole Attack in Wireless

Ad Hoc Networks," in Proceedings of the 2008

International Conference on Information Security and

Assurance (ISA 2008), pp. 220-225.

SECRYPT 2009 - International Conference on Security and Cryptography
