A NEW ANALYSIS OF RC4

A Data Mining Approach (J48)

Mohsen HajSalehi Sichani and Ali Movaghar

School of Science and Engineering, Sharif University of Technology

International Campus, Persian Gulf, Kish Island, Iran

Keywords:

Data mining, Information theory, J48 (C4.5), RC4, WEP.

Abstract:

This paper combines the cryptanalysis of RC4 and Data mining algorithm. It analyzes RC4 by Data mining

algorithm (J48) for the ﬁrst time and discloses more vulnerabilities of RC4. The motivation for this paper is

combining Artiﬁcial Intelligence and Machine learning with cryptography to decrypt cyphertext in the shortest

possible time. This analysis shows that lots of numbers in RC4 during different permutations and substitutions

do not change their positions and are ﬁxed in their places. This means KSA and PRGA are bad shufﬂe

algorithms. In this method, the information theory and Decision trees are used which are very powerful for

solving hard problems and extracting information from data. The results of this Data mining approach could

be used to improve the existing methods of breaking WEP (or other encryption algorithms) in less time with

fewer packets.

1 INTRODUCTION

WEP is the most popular security method in wireless

ad hoc networks. Tews et al. (E. Tews and Pyshkin,

2007) showed that in spite of its weakness, WEP is

still popular among all users. The main part of WEP

is RC4 which is responsible for Encryption. RC4

was designed by Ron Rivest in 1987 and was kept

secret for 7 years until somebody sent it to a mailbox.

From 1994 afterwards, many papers have been writ-

ten based on statistics and mathematics. This paper;

however, introduces a new approach which uses the

data mining algorithms.

In recent years, data mining has been widely

used in various areas of science and engineering and

solved many serious problems in different areas of

science such as electrical power engineering, genet-

ics, medicine and bioinformatics. Data Mining is

used to extract information from data. Data mining

uses AI and Statistics in its algorithms.Information

refers to patterns underlying data, and data refers to

recorded facts. However, the captured data need to

be converted into information and knowledge to be-

come useful. Data mining is the entire process of ap-

plying computer-based methodology, including new

techniques for knowledge conversion into data. Deci-

sion trees and information theory are chosen for this

analysis based on personal experiments of authors for

solving hard problems but other data mining algo-

rithms such as MLP or Genetic Algorithms could also

be used.

This paper introduces a new analysis of RC4 by

data mining algorithms, a new method innovated for

cracking WEP. The software used for implementing

our method is free software named WEKA (Com-

puter Science Department of University of Waikato,

http://www.cs.waikato.ac.nz/ml/weka/).

We generated RC4 keys by the random function of Vi-

sual Studio 2008 software which is shown in Figure

2, based on FMS attack.

The generated data are given to WEKA for analy-

sis. The outputs of data mining software showed

many numbers are ﬁxed during RC4 permutations.

This analysis predicted more than 39% of 512000 in-

stances correctly for module 64, and more than 38%

of 512 instances (for training and test we used 10 fold-

cross validation that cause instances repeated sev-

eral times) correctly for module 256 which are great

achievements in predicting keys. This new vulnerabil-

ity can be used to crack WEP in less time with fewer

packets. The result of this analysis again proves that

KSA and PRGA are bad shufﬂe algorithms. The sim-

ilar work can be done to analyze other encryption al-

gorithms such as WEPplus, WEP512, AES, or DES

to get new vulnerabilities. This method and results

are explained in the next sections.

213

Movaghar A. and HajSalehi Sichani M. (2009).

A NEW ANALYSIS OF RC4 - A Data Mining Approach (J48).

In Proceedings of the International Conference on Security and Cryptography, pages 213-218

DOI: 10.5220/0002183602130218

 SciTePress

In section two, we describe RC4 and give a brief

account of RC4. The phases of WEP are reviewed.

Some attacks are mentioned and the FMS (Fluhrer,

Mantin and Shamir 2001) attack (S. R. Fluhrer and

Shamir, 2001) is studied.

In section three, we give an account of some impor-

tant concepts of decision trees, and mention the Infor-

mation Theory and its relation with C4.5 algorithm.

In section 4, we present the new analysis of RC4

based on FMS attack and Information Theory. We

used WEKA for implementing C4.5 (J48) algorithm

on the prepared data based on FMS attack.

2 RC4 ALGORITHM

RC4 is an algorithm which is responsible for encryp-

tion in WEP (Wu and Tseng, 2007). RC4 is com-

posed of two main parts: KSA and PRGA. KSA is

the acronym of Key Schedule Algorithm and PRGA

is the acronym of Pseudo-Random Generator Algo-

rithm.

2.1 KSA and PRGA

The 40-bit WEP key (K) concatenated with a 24-bit

initialization vector (IV) forms the RC4 key (seed).

The IV is generated automatically by a wireless adap-

tor and its length is 24 bits, and is shown here in three

parts: ﬁrst, 8 bits of IV(A), second, 8 bits of IV (B)

and third, 8 bits of IV(X) which form (A,B,X). Each

part can be from 0 to 255.

KSA

1) for i=0 to N-1

2) S[i]=i

3) End

4) j=0

5) For i=0 to N-1

6) j=(j+S[i]+K[i mod l) mod N

7) Swap(S[i],S[j])

PRGA

8) i=0

9) j=0

Output generator loop

10) i=(i+1) mod N

11) j=(j+ S[i] mod N

12) Swap(S[i], S[j])

13) Output= S[(S[i]+S[j]) mod N]

14) Cyphertext=Output XOR

Plaintext

Figure 1: KSA and PRGA (RC4).

Maximum unique IV for the packets are limited to

. Therefore, IV values are frequently reused in a

busy network. One of the main ﬂaws in RC4 is the

repetition of the IV. The KSA and PRGA have been

shown in Figure 1.

As shown in the Figure 1, there is an array with

the length of 256 which is fulﬁlled with 0 to 255. In

the ﬁrst part of RC4 which is KSA, it makes a permu-

tation with the help of the key entered by the user. In

the second part, PRGA, it tries to make a new random

array based on the output of KSA.

The main part of the algorithm is a pseudo ran-

dom generator that produces one byte of output in

each step. The encryption will be an XOR of the

pseudo random sequence with the message (Plaintext)

as usual for stream ciphers. For further information

see (Wu and Tseng, 2007) and (Erickson, 2008).

2.2 Previous Attacks on RC4

In 1994, Finny (Finney, 1994) showed the class of

states that RC4 never enters. These states are de-

temined by j=i+1 and S[j] =1. In 2001, Fluhrer et al.

(S. R. Fluhrer and Shamir, 2001) introduced the FMS

attack which uses a weakness in the key scheduling

phase. The main idea is that RC4 uses the key with

combination seed (session key)= IVkkey. Thus for

the number of packets greater than 2

, the IVs will

be repeated. If the IVs are chosen properly, then the

ﬁrst byte of the pseudo random sequence is the same

as a predeﬁned byte of the main key with probability

(≈ 1/e) (Klein, 2007), and (S. R. Fluhrer and Shamir,

2001). The idea behind FMS attack is used in data

preparation for our experiment in data mining. The

main idea of FMS attack is the following:

FMS showed that the weak IVs are in the form of

( A + 3, B - 1, X), where A is the byte of the key

to be attacked , B is 256, and X can be any value.

So, for attacking, the form of the weak IV (3, 255,

X) will be chosen by the hacker, where X is from 0

to 255. The bytes of the keystream must be attacked

regularly. The ﬁrst byte cannot be attacked until the

zeroth byte is known and the second byte cannot be

attacked until the ﬁrst byte is known, and so on. The

IVs can be attained from the packet because they are

not encrypted.

If the attacker does not know the key because of

this property which is found by FMS, he can perform

A + 3 steps of KSA. If the zeroth byte of the key is

known and A equals 1, then 1+3 equals 4 and the al-

gorithm can be continued to ﬁnd the second byte of

the key in the fourth step.

Recently, A. Klein(Klein, 2007) showed a new

method of attacking RC4 which uses the related key

with a signiﬁcantly reduced number of frames. He de-

scribed a very general attack against RC4 when some-

thing about the distribution of plaintext is known but

SECRYPT 2009 - International Conference on Security and Cryptography

214

the Plaintext itself is unknown.

Tews et al.(E. Tews and Pyshkin, 2007) showed a

special case of attacking WEP when a byte of plain-

text is unknown, but could be restricted to some pos-

sible values.

3 C4.5 OR J48

C4.5 is an algorithm which is classiﬁed in decision

tree algorithms. Decision trees and decision rules are

data mining methodologies which are used in many

applications for classiﬁcation. Decision trees are su-

pervised learning. Classiﬁcation means mapping the

input data (training and testing data) to one of the pre-

deﬁned classes. The optimal attribute is called the

target or class. Classiﬁcation is the process of as-

signing an attribute to the target, and a classiﬁer is a

model and the result of classiﬁcation that predicts one

attribute of a sample from the other attributes (Kan-

tardzic, 2003).

C4.5 is a famous algorithm introduced by

J. R. Quinlan. It is based on the Information

Theory and Entropy. Information Theory was

introduced by (Shannon, 1984) and (Shannon

and Weaver, 1949). Further information on

C4.5 is available in (J. R. Quainlan home page,

http://de.scientiﬁccommons.org/j r quinlan) and

(Witten and Frank, 2005).

If Samp is any set of samples, Numos(C

,Samp)

stands for the number of samples in the Samp that be-

longs to class C

(there are several(K) classes), |samp|

denotes the number of samples in the set Samp.

Information value and entropy can be calculated

by:

In f o(Samp) = −

∑

i=1

((Numos(C

,Samp)/|Samp|)∗

Log

(Numos(C

,Samp)/|Samp|)) (1)

and

entropy(P

,...,P

) = −P

LogP

− ... − P

LogP

(2)

The arguments p

, p

of the entropy formula are

expressed as fractions that add up to one.

The task of selecting a possible test with n out-

comes (n values for a given feature) that partitions set

ToT of training samples into subsets ToT

, ToT

,. . . ,

ToT

. The only information available for guidance is

the distribution of classes in ToT and its subsets ToT

ToT is the total number of rows in our data that

belong to the target. ToT

is the number of samples in

one attribute which are mapped to C

WEKA performs these equations for all attributes.

Each attribute is shown by AttbX. The expected infor-

mation requirement is the weighted sum of entropies

over the subsets.

In f o

AtbX

(ToT ) = −

∑

i=1

((|ToT

|/|ToT |)∗In f o(ToT

))

(3)

and then

Gain(AtbX) = In f o(ToT) − In f o

AtbX

(ToT ) (4)

Gain (AttbX) should be maximum to be selected

as the root or upper node in each step. Pruning the

tree is also important. Good examples could be found

at (Kantardzic, 2003) or (Witten and Frank, 2005).

1) for (int f = 0; f < 4000; f++)

2) {

3) a=Randnumber(32,126);

//passing time(by a loop)to keys be more random

4) b=Randnumber(32,126);

//passing time(by a loop)

5) c=Randnumber(32,126);

//passing time(by a loop)

6) d=Randnumber(32,126);

//passing time(by a loop)

7) e=Randnumber(32,126);

//passing time(by a loop)

8) seed= (3,63,1,a,b,c,d,e);//IV+User key

save (seed);

9) }

10//Start of KSA

11) For i = 0 to 63

12) S[i] = i;

13) j = 0;

14) For i = 0 to 63

15) {

16) j = (j + S[i] + K[i mod 8]) mod 64

17) Swap(S[i], S[j])

18) if (i == 0) //We did this saving

19) //for permutations 0 to 3

20) {

21) Save S[0..63]

22) }

23) }

24) //End of KSA

25) //Start of PRGA

26) i = j = 0;

27) for (int x = 0; x < 63; x++)

28) {

29) i = (i + 1) % 64;

30) j = (j + S[i]) % 64;

31) Swap(S[i], S[j]) ;

32) PrgaOutput[x] = S[(S[i] + S[j]) % 64];

33) Save(PrgaOutput[0..63]);

34) }

35)//End of PRGA

Figure 2: Pseudo-Code of our program for data generation.

A NEW ANALYSIS OF RC4 - A Data Mining Approach (J48)

215

4 NEW ANALYSIS

In this part, we combine the data mining algo-

rithm with cryptanalysis of RC4. We imple-

mented this idea via one of the data mining tools;

namely, WEKA, which could be found in (Com-

puter Science Department of University of Waikato,

http://www.cs.waikato.ac.nz/ml/weka/). For data

preparation we gathered our data based on the weak-

ness of IVs in RC4 (S. R. Fluhrer and Shamir, 2001).

To implement this, we make little changes in RC4 al-

gorithm. These changes are mentioned in the next

section.

4.1 Data Preparation

In the real world the key entered by the user is con-

verted into ASCII code. Because of this property, we

chose our keys from 32 to 126 of ASCII codes which

are more normal in the real world and could be found

at (http://www.asciitable.com).

As seen in Figure 2, we added the zeroth, ﬁrst, sec-

ond and third permutation to our data, based on the

idea of FMS. Because of the need for more realistic

results, we used the Dot Net (.Net) random function

to generate more random keys. We concatenated IVs

to the key as it happens in real transmission. These

IVs can be obtained easily from the packet because, as

we explained in previous sections, IVs do not encrypt

in the header. We also chose the keys with a 5-byte

length to be more realistic, as done in making ad hoc

networks in Windows XP. Another change we made

was to eliminate the XOR part from PRGA which is

line number 14 in Figure 1. This is done for several

reasons. First: the plaintext does not play any role

except in the XOR part. The second and the most im-

portant reason is that many attacks are made based on

the ﬁxed or known content of some part of the cypher

such as Snap Field, or known plaintext such as email

content.

For the analysis of RC4, it is convenient to replace

the original algorithm that works on bytes (Z/256Z)

with Z/64Z. We did this because of hardware limita-

tions. After all, the pseudo-code which is used for

data generation is shown in Figure 2. On a large

scale and as a complementary, we tested the idea on

limited samples in module 256. As shown in Fig-

ure 3, we tested 4000 different seeds (line number

1). These seeds (line number 8) are composed of

ﬁxed IVs (3, 63, 1) based on FMS which are concate-

nated to ASCII codes of different keys. These keys

are generated by random function of Dot Net (.NET).

As shown in Figure 2, we produced ﬁve-byte keys

through lines 3 to 7.

The word ’save’ in Figure 2 shows that the data in

front of ’save’ are saved so that they are used later in

data mining input ﬁle. As shown in Figure 2, line 8

saves the seeds, and the seed in Figure 3 is shown by

key (@attribute key). And lines 11 to 35 are com-

posed of two parts: KSA and PRGA. In KSA, we

saved the ﬁrst, second, third and 4th permutations

(line 19 to 22) named atb0, atb1, atb2, and atb3, re-

spectively. PRGA output, before XORing by plain-

text, is saved in line 33 and is shown in Figure 3 by

PRGAout (@attribute PRGAout).

The output of our program in Figure 2 is converted

into the format expected by WEKA. The input data of

WEKA is shown in Figure 3. The part under ’@data’

is our data produced by the program in Figure 2. As

an example, we just showed two out of 256000 rows.

64 (our data in module 64) multiplied by 4000

(seeds) equals 256000. This is the total number of

the rows of our data generated by program in Figure

The data were given to WEKA and we used the

supervised learning and classiﬁed the data. The Key

attribute is our target which means the software and

algorithm should predict the key value based on other

attributes. We used algorithm J48 for our classiﬁca-

tion. The WEKA classiﬁer package has its own ver-

sion of C4.5 known as J48. We used 256000 rows of

data for training and other 256000 rows (of data) for

testing in WEKA. These two training and testing ﬁles

had different data but in the same format. By adding

up these two sets, we had 512000 rows of data com-

posed of 8000 seeds.

@relation ’RC4-weka.filters.unsupervised.

attribute.Remove-R1,6-7-weka.filters.

unsupervised.attribute.

NumericToNominal-Rfirst-last’

@attribute atb0 {0,1,2,3,4,5,6,7,,61,62,63}

@attribute atb1 {0,1,2,3,4,5,6,7,,61,62,63}

@attribute atb2 {0,1,2,3,4,5,6,7,,61,62,63}

@attribute atb3 {0,1,2,3,4,5,6,7,,61,62,63}

@attribute key {1,3,32,33,34,...,123,124,125}

@attribute prgaout {0,1,2,3,4,5,6,7,. . .,60,

61,62,63}

@data

3,3,3,3,3,60

1,0,0,0,63,48

., ., ., ., .

Figure 3: Input data for WEKA.

4.2 Results of WEKA

These are the results (outputs) of WEKA:

SECRYPT 2009 - International Conference on Security and Cryptography

216

Figure 4: Accuracy of the test.

4.2.1 Explanation of Results

Figure 4 shows that the algorithm could correctly pre-

dict more than 39 out of 100 keys, which is a great

success in comparison to previous works (the exact

number is 39.255).

Figure 5: Visualized tree.

Figure 5 is the visualized tree of the output gener-

ated by WEKA. There is a lot of information in this

part of output which is also similar to the non visu-

alized tree of WEKA. This part will be discussed in

more detail in the next lines.

| atb3=62:119(79.0/35.0)

| atb3=63:120(100.0/45.0)

atb0=1:63(4000.0)

atb0=2:1(4000.0)

atb0=3:3(4000.0)

atb0=4

| prgaout=0:88(58.0/55.0)

| prgaout=1:41(72.0/69.0)

Figure 6: Non visualized tree.

Figure 6 is the most important part of the output.

This ﬁgure is just one part of the output result. The

difference is that it is not visualized. The explanation

of atb3=62:119 (79.0/35.0) will follow:

If atb3 which is the 4th permutation equals 62, then

the target which is the seed value (attribute key) will

be 119. Numbers in parentheses tell how many in-

stances in the testing set are correctly classiﬁed by this

node (79 instances in this case). The second number,

if any, (if not, it is assumed to be 0.0), represents the

number of instances incorrectly classiﬁed by the node

(35 instances in this case) (J. Hakkila and Paciesas,

2009). Figure 6 also shows that in all 4000 seeds if

the zeroth attribute which is the ﬁrst permutation of

KSA be equal to 1, then the key will be 63 in all 4000

seeds (atb0=1:63(4000.0)). The other results similar

to Figure 6 are in Figure 7. These numbers are copied

from the non visualized output of WEKA. Figure 7

atb0=1:63(4000.0)

atb0=2:1(4000.0)

atb0=3:3(4000.0)

atb0=8:3(4000.0)

atb0=58:1(4000.0)

Figure 7: Important numbers of WEKA outputs.

shows that RC4 is not as strong in generating random

outputs as it seems to be.

4.3 Analysis on Module 256 as

Complementary

So far this idea has been obtained that RC4 does not

act good in permutations. Thus, to test this idea in real

case, we changed the program in Figure 2 to generate

512 (instead of 4000) rows of data in module 256 and

then these data were given to WEKA. Instead of using

an extra ﬁle for the test, we used 10 fold cross valida-

tion for it (because of limited computer resources) and

we also shufﬂed data by WEKA ﬁlters. This gave us

the following results.

The similar result of Figure 7 as expected is seen

and shown in Figure 8. 96 results were found and we

showed some of them in Figure 8.

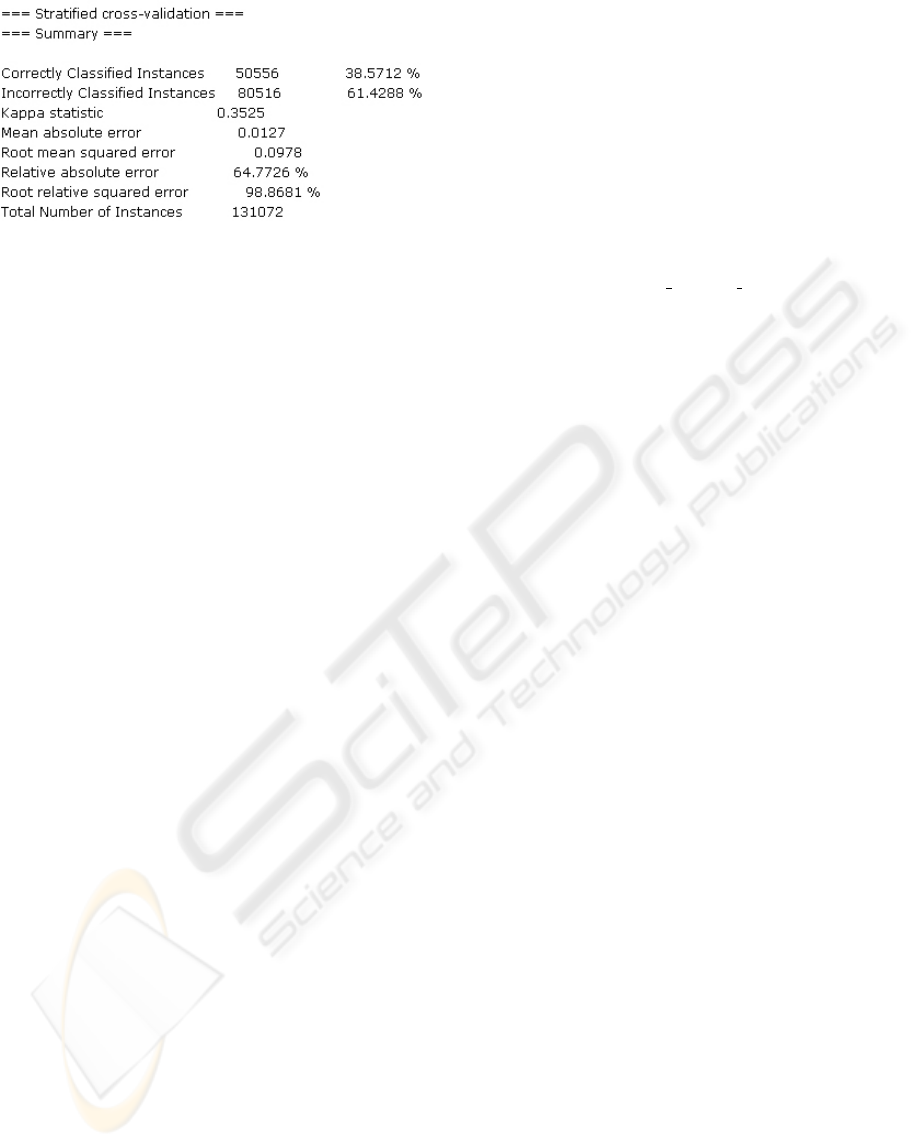

Figure 9 shows that more than 38% of instances

were correctly classiﬁed. This is a great success in

predicting the target values (key).

This result can be used in different ways for differ-

ent encryption algorithm to ﬁnd ﬂaws and make them

safer.

atb0 = 1: 255 (512.0)

atb0 = 2: 1 (512.0)

atb0 = 3: 3 (512.0)

atb0 = 4

| prgaout = 0: 104 (0.0)

| prgaout = 255: 94 (3.0/2.0)

atb0 = 8: 3 (512.0)

atb0 = 9: 255 (512.0)

atb0 = 10: 1 (512.0)

Figure 8: Numbers which did not move during permutations

and other correctly calssiﬁed instances.

A NEW ANALYSIS OF RC4 - A Data Mining Approach (J48)

217

Figure 9: Accuracy of the test.

CONCLUSIONS AND FUTURE

WORKS

Using data mining to solve problems is like using Ar-

tiﬁcial Intelligence and Statistics to get the best re-

sults. As the analysis showed, the key predicted cor-

rectly more than 38% for module 64 and more than

38% for module 256. The Decision tree (J48) also

found many states in our analysis which are ﬁxed and

do not change in RC4. These states can be developed

and used to reduce the number of captured packets

for cracking WEP in a shorter time.This analysis also

proves the previous ﬂaws of RC4 such as what was

stated in (Mironov, 2002).

This analysis could be stronger and more accurate

by considering the following:

We had very serious hardware restrictions in our anal-

ysis such as CPU Power and RAM. Because of these

restrictions, we decreased the number of instances.

This degradation probably causes some faults in the

experiment. To get better results, we suggest increas-

ing the number of instances for module 256 and gen-

erating the keys based on the most popular passwords.

The authors believe in success of this approach on the

other strong streams and other encryption algorithms

such as AES, and can disclose more vulnerability of

these algorithms. But they suggest that in order to

get better results, it is better to join AI or data min-

ing methodology for cryptanalysis with some known

attacks or known vulnerabilities.

ACKNOWLEDGEMENTS

Very great thanks to Erik Tews and Andress Klein for

their supports. A great thanks to M. A. Kharraz, M.

Baghaee, and H. Ghominejad for their editorial helps.

REFERENCES

E. Tews, R. W. and Pyshkin, A. (2007). Breaking 104 bit

wep in less than 60 seconds. Cryptology ePrint. Avail-

able at http://eprint.iacr.org/2007/120.pdf.

Erickson, J. (2008). Hacking: The Art of Exploitation. No

Starch Publication, San Francisco, CA, 2nd edition.

Finney, H. (1994). An rc4 cycle that can’t happen. sci.crypt

newsgroup.

J. Hakkila, T. Giblin, D. J. H. R. J. R. and Pa-

ciesas, W. (2009). J48 decision trees. Re-

trieved February 4, 2009 from http://grb.mnsu.edu/

grbts/doc/manual/J48 Decision Trees.html.

Kantardzic, M. (2003). Data Mining: Concepts, Models,

Methods, and Algorithms. John Wiley & Sons.

Klein, A. (2007). Attacks on the rc4 stream cipher.

Springer Netherlands: Designs, Codes and Cryptog-

raphy, 48(3).

Mironov, I. (2002). Not (so) random shufﬂe of rc4. Crypto

2002 (M. Yung, ed.), 2442 of LNCS:304–319.

S. R. Fluhrer, I. M. and Shamir, A. (2001). Weak-

nesses in the key scheduling algorithm of

rc4. Eighth Annual Workshop on Selected

Areas in Cryptography (SAC). Available at

http://www.securitytechnet.com/crypto/algorithm/

block.html.

Shannon, C. (1984). A mathematical theory of communica-

tion. Bell System Technical, 27:379–423 and 623–656.

Shannon, C. and Weaver, W. (1949). The Mathematical

Theory of Communication. IL: University of ILLinois

Press.

Witten, I. H. and Frank, E. (2005). DATA MINING : Prac-

tical machine learning tools and techniques. Mor-

gan Kaufmann series in data management systems,

UNITED STATES OF AMERICA, 2nd edition.

Wu, S. L. and Tseng, Y., editors (2007). Wireless ad hoc net-

working: personal area, local area, and the sensory

area networks. Auerbach Publications, New York.

SECRYPT 2009 - International Conference on Security and Cryptography

218
