RFID AUTHENTICATION PROTOCOLS BASED ON ELLIPTIC

CURVES

A Top-Down Evaluation Survey

Michael Hutter

Institute for Applied Information Processing and Communications (IAIK)

Graz University of Technology, Inffeldgasse 16a, 8010 Graz, Austria

Keywords:

RFID, Elliptic curve cryptography, Authentication, Information security.

Abstract:

Authentication of RFID tags is a challenging task due to the resource-constrained environment they are oper-

ating in. In this article, we present a top-down evaluation survey for RFID-tag authentication based on elliptic

curves. First, we describe a general model to characterize different state-of-the-art public-key techniques that

provide entity and message authentication. Second, we present practical results of evaluations of elliptic-

curve based identiﬁcation and signature schemes. We analyzed and compared the ECSchnorr, ECOkamoto,

and ECGPS protocol with respect to their computational complexity, storage requirement, and communica-

tion overhead. Furthermore, we examine different certiﬁcate-management solutions in RFID applications and

give size estimations from simulated scenarios. Our studies have led us to the result that elliptic-curve based

identiﬁcation schemes and signature schemes have nearly the same complexity. ECOkamoto provides more

enhanced security features while ECGPS has been designed for efﬁcient ”on-the-ﬂy” authentication using of-

ﬂine pre-computations. ECSchnorr might be preferred if primitive computation is performed online during tag

authentication.

1 INTRODUCTION

Radio Frequency Identiﬁcation (RFID) is an emerg-

ing technology that has been already applied to ex-

isting applications such as supply-chain management

and inventory control. An RFID tag is composed of a

tiny microchip that is attached to an antenna. While

these tags are stuck onto objects, they can be identi-

ﬁed and tracked by readers over an electromagnetic

ﬁeld. RFID tags facilitate the process and the man-

agement of products during their life cycle. In the last

few years, many RFID devices have also been applied

to new applications where security plays a major role.

These applications are, for example, electronic pay-

ment, medical care, and access control. RFID tags are

very useful in this context by authenticating products

and also to thwart product counterfeiting.

RFID tags operate in a constraint environment and

are typically deployed in a large scale. It is evident

that such tags require appropriate protocols that are

extremely light-weight in terms of power, area, and

costs. Large effort has been made by the crypto-

graphic community to develop protocols that are suit-

able for RFID devices. One promising approach is to

use elliptic-curve cryptography (ECC). Elliptic curves

have proven to be applicable for resource-constrained

devices like RFID tags. For the same security level,

they need much smaller key sizes as opposed to other

asymmetric techniques like RSA. However, there ex-

ist many proposals for authentication protocols that

mainly differ in the used schemes and primitives. The

question of which kind of protocol becomes more ap-

propriate for a given application keeps therefore often

not straightforward to answer.

In this article, we focus on the evaluation of differ-

ent authentication protocols that are based on elliptic

curves. First, we deﬁne and describe a general model

for state-of-the-art public-key techniques which pro-

vide authentication as a cryptographic service. Sec-

ond, we present practical results of performance mea-

surements of authentication protocols that have been

especially designed for low-resource devices. We an-

alyze both identiﬁcation and signature schemes of the

elliptic-curve variants of the Schnorr (Schnorr, 1990),

Okamoto (Okamoto, 1993), and GPS (Girault et al.,

2006) protocol. Furthermore, we analyze three dif-

ferent scenarios for efﬁcient certiﬁcate management

in RFID applications. Our investigations show that

101

Hutter M. (2009).

RFID AUTHENTICATION PROTOCOLS BASED ON ELLIPTIC CURVES - A Top-Down Evaluation Survey.

In Proceedings of the International Conference on Security and Cryptography, pages 101-110

DOI: 10.5220/0002186201010110

 SciTePress

the described identiﬁcation schemes and signature

schemes have nearly the same complexity in terms

of memory usage, computational effort, and commu-

nication. Point multiplication is the most complex

operation while additional hash computations have

a minor impact on the overall performance. The

right choice for a protocol depends on several is-

sues such as security (ECOkamoto), online computa-

tion of the scalar multiplication (ECSchnorr), or pre-

computed coupons offering ”on-the-ﬂy” authentica-

tion (ECGPS).

The remainder of this article is structured as fol-

lows. Section 2 gives related works on that topic.

In Section 3, different public-key techniques are de-

scribed providing entity and message authentication.

Section 4 presents authentication protocols that have

been designed to be suitable for low-resource de-

vices. Section 5 discusses identiﬁcation and signa-

ture schemes on RFID tags. In Section 6, we describe

our evaluation framework and discuss the used per-

formance metric. Results are given in Section 7. The

conclusion are drawn in Section 8.

2 RELATED WORK

There exist many articles that focus on elliptic-

curve cryptography and low-resource implementa-

tions on RFID devices. Large effort in that con-

text has been made by L. Batina et al. (Batina et al.,

2006). They have analyzed hardware implemena-

tions of the Schnorr and Okamoto protocol in the

case of elliptic curves over F

. Girault et al. (Girault

et al., 2007) presented hardware results of the GPS

authentication protocol based on an FPGA proto-

type implementation. Like the work of Girault,

M. McLoone et al. (McLoone and Robshaw, 2007)

assumed the use of so-called coupons, which repre-

sent (hashed) pre-computed commitments, and imple-

mented only the response calculation of the identiﬁ-

cation scheme without performing the scalar multi-

plication. Low-resource implementations of elliptic-

curve processors in general have been investigated by

J. Wolkerstorfer (Wolkerstorfer, 2005), R. Schroeppel

et al. (Schroeppel et al., 2003), G. Gaubatz et

al. (Gaubatz et al., 2005), and Kumar et al. (Kumar

and Paar, 2006).

3 PUBLIC-KEY TECHNIQUES

There exist many applications nowadays that have to

provide security services such as authentication, con-

ﬁdentiality, non-repudiation, or data integrity. Al-

Services

Protocols

Schemes

Primitives

Authentication

Signature

Schemes

Identification

Schemes

Encryption

Schemes

Key Agreement

Schemes

ECC RSA DH ElGamal NTRU ...

...

Entity

Authentication

Message

Authentication

Challenge-

Response

Witness-Challenge-

Response

Figure 1: Different public-key techniques lead to the cryp-

tographic service of authentication.

though, these services can be provided by using sym-

metric cryptography, public-key techniques have of-

ten been preferred in practice to tackle the prob-

lem of key distribution. However, cryptographic

services can not only be achieved by a speciﬁc

public-key technique. In contrast, there exist various

public-key techniques which lead to the same cryp-

tographic service. Authentication, for example, can

be achieved by various cryptographic protocols that

are based on different schemes and primitives. Both

digital-signature schemes and zero-knowledge proof-

of-knowledge schemes can be used in protocols to

follow the same security goal of entity authentica-

tion. Although many of these protocols have been

standardized in the last decade, less effort has been

made to uniformly classify these protocols according

to their underlying public-key technique. Hence, we

ﬁrst describe a general model to characterize differ-

ent state-of-the-art public-key techniques. The model

separates all techniques into four levels: services, pro-

tocols, schemes, and primitives. Figure 1 shows the

natural structure of this model as an instance of au-

thentication.

3.1 Services

Authentication has become one of the most important

services of cryptographic applications. It is the pro-

cess where someone or something is conﬁrmed to be

authentic and that a veriﬁer is assured of the identity

of a prover. The authentication service can be sepa-

rated into two main types: entity authentication and

message authentication. Entity authentication is re-

ferred to as a real-time service where both parties the

prover and the veriﬁer actively participate in a com-

munication. Thus, the identity of the prover is guar-

SECRYPT 2009 - International Conference on Security and Cryptography

102

anteed in a timeliness fashion. In contrast, message

authentication refers to the service where a veriﬁer

gets assurance of a dedicated message that was gen-

erated by the prover. The difference between entity

and message authentication is therefore as follows. In

the ﬁrst case, an entity or person is authenticated ex-

actly during an actual communication protocol. The

proof of authentication is here not transferable. In the

second case, a prover digitally signs a message which

can be veriﬁed even after the actual communication

process. This is useful when one party is not active

in the communication, which may happen in Internet

applications, for instance. However, the latter case

implicitly provides two additional cryptographic ser-

vices that are data integrity and non-repudiation of the

signed message which makes the use of digital signa-

tures more attractive in practice.

3.2 Protocols

Protocols are typically used to provide one or more

cryptographic services. They deﬁne a sequence of

steps for two or more entities that would like to

achieve these services. Such protocols differ in sev-

eral properties. First, they can be built upon different

schemes. Entity authentication protocols, for exam-

ple, can be based upon encryption schemes, signature

schemes, or identiﬁcation schemes. Protocols that

provide message authentication can be constructed by

encryption schemes or signature schemes. Second,

protocols may differ in the number of message passes

between the involved entities. The number of mes-

sage passes of a protocol actually depends on the re-

quired message passes of the underlying schemes and

also on the protocol speciﬁc passes that are needed to

achieve a certain service. Challenge-response proto-

cols usually need two message passes but there ex-

ist also other protocols that need more or even less

message passes than the sum of message passes of

the individual schemes they involve. Third, there are

protocols that provide services for all or a subset of

involved parties. In an unilateral authentication pro-

tocol, for instance, only one entity is authenticated,

whereas in a mutual authentication process both par-

ties get assured to be authentic (Menezes et al., 1997).

3.3 Schemes

Schemes are the basic building blocks of crypto-

graphic protocols. They provide a set of crypto-

graphic operations and methods that are typically

combined within a protocol in order to achieve a cer-

tain security service. One of the most commonly used

schemes are encryption schemes, signature schemes,

identiﬁcation schemes, and key-agreement schemes.

Encryption schemes provide encryption and decryp-

tion routines and make use of encryption primitives

such as ElGamal or RSA. Signature schemes provide

a signature generation and signature veriﬁcation op-

eration. These schemes use additional cryptographic

functionalities such as hash and redundancy func-

tions. They are based on signature primitives like

the (EC)DSA. Identiﬁcation schemes, in contrast, of-

fer a prove and verify operation. They typically pro-

vide additional functionalities such as random num-

bers that are needed to compute the challenges, for

instance. Key-agreement schemes offer methods to

agree on a common session key and are based on

primitives such as DH (Difﬁe and Hellman, 1976) and

MQV (Law et al., 2003). In addition to the described

operations, schemes also offer methods for key man-

agement such as the generation and veriﬁcation of

public keys.

3.4 Primitives

The lowest level of our model are cryptographic prim-

itives. Primitives are algorithms that rely on math-

ematical hard problems. The intractability of these

problems are typically exploited to provide the se-

curity of a cryptographic protocol. The problem of

factoring large integers (e.g. RSA), solving discrete

logarithms (e.g. ElGamal, DSA, DH), or solving el-

liptic curve discrete logarithms (e.g. ECDSA, ECDH)

are the most prominent mathematical problems nowa-

days. However, there are also other problems known

where protocols and schemes are based upon. Such

protocols are, for instance, the NTRU cryptosystem

which is based on the Shortest Vector Problem in a

Lattice or the Goldwasser-Micali cryptosystem that is

based on the Quadratic Residuosity Problem.

4 AUTHENTICATION

PROTOCOLS

The fundamental security goal of authentication pro-

tocols is the resistance against impersonation through

both passive and active attacks. Passive attacks ex-

tract information by passively monitoring (eavesdrop-

ping) multiple protocol executions. In active attacks,

an adversary plays the role of the veriﬁer and extracts

information by actively interacting with the prover.

In the following, we focus on authentication proto-

cols that are at least provably secure against passive

attacks. They are constructed of different types of

schemes but they use the same cryptographic primi-

tive which is based on the intractability of the ellip-

RFID AUTHENTICATION PROTOCOLS BASED ON ELLIPTIC CURVES - A Top-Down Evaluation Survey

103

tic curve discrete logarithm problem (ECDLP). First,

we describe protocols providing entity authentication.

These protocols are composed of encryption schemes,

signature schemes, or (zero-knowledge) identiﬁcation

schemes. Second, we describe message authentica-

tion protocols that are constructed using signature

schemes. All protocols involve two parties (a reader

and a tag) and provide unilateral authentication.

The following notation is used throughout the pa-

per. Common parameters to all entities are: the un-

derlying ﬁnite ﬁeld F

, the elliptic curve parameters a

and b, the curve point P with order n, and the public

key Q. Finite elliptic-curve points are upper case such

as P and Q. x is the x-coordinate of P and x is the in-

teger representation of the binary representation of x.

The private key is denoted by s, the protocol challenge

is denoted by c, and the response is denoted by y. All

used random numbers (ephemeral keys) are referred

to r and the security parameter t deﬁnes the number

of bits for the challenge. The variable e represents the

output of the one-way hash function h.

4.1 Entity Authentication based on

ECC Encryption Schemes

One way to reach entity authentication is to demon-

strate the knowledge of a private key through the de-

cryption of a ciphertext. In view of ECC, this can

be achieved by applying the ECC-based variant of

the ElGamal encryption scheme (ElGamal, 1984), for

instance. In Figure 2, the principle of an entity-

authentication protocol is shown that is based on an

encryption scheme. First, the reader generates a ran-

dom number r and encrypts r together with the identi-

ﬁer of the tag. Then it sends the result c, the identiﬁer

ID and the witness e of the random number r to the

tag. The tag decrypts the message and veriﬁes the ob-

tained values. It sends the decrypted value y to the

reader which accepts if it is equal to the previous gen-

erated random number r. Note that the random num-

ber is necessary to prevent replay attacks, the identi-

ﬁer avoids reﬂection attacks, and the witness e = h(r)

is used to preclude chosen-text attacks.

Although encryption-based entity-authentication

protocols are semantically secure and provide se-

curity against passive and active attacks, they lack

several basic needs which limit the use in practi-

cal applications. First, they rely on encryption al-

gorithms which would not be licensed for an export

to external countries. Second, they often make use

of additional functionalities such as hash functions

and timestamps. These building blocks are usually

considered to be difﬁcult to construct especially on

resource-constrained devices like RFID tags.

Tag Reader

r ∈

e = h(r)

c,ID,e

←−−−−−−

c = Encrypt(r,ID)

(y,ID) = Decrypt(c)

verify h(y) = e

verify ID y

−−−−−−→

If y = r

then accept, else reject

Figure 2: Entity authentication based on an encryption

scheme.

4.2 Entity Authentication based on

ECC Signature Schemes

Another way to obtain entity authentication is

to demonstrate the knowledge of the private key

through the signing of a challenge. Figure 3

shows an authentication protocol according to

ISO/IEC 9798-3 (International Organisation for Stan-

dardization (ISO), 1993). The protocol is structured

as follows. First, the reader generates a random chal-

lenge c

and sends it to the tag. The tag now digitally

signs the challenge and sends the signature y together

with the identiﬁer of the reader and the public-key cer-

tiﬁcate of the tag to the reader. The reader veriﬁes

both the certiﬁcate of the tag and the signature and it

accepts the tag if the veriﬁcation succeeded.

Tag Reader

r ∈

, c

∈

←−−−

∈

y = Sign(c

,ID)

,ID,y,cert

tag

−−−−−−−−−−−→

Verify cert

tag

Verify y

If veriﬁcation succeed

then accept, else reject

Figure 3: Entity authentication based on a signature

scheme.

Entity-authentication protocols that are based on

signature schemes typically rely on a one-way hash

function to prevent existential-forgery attacks, i.e. to

ﬁnd another challenge that results in the same signa-

ture.

In the following, we describe entity-authentication

protocols that are based on identiﬁcation schemes.

These schemes have been especially adapted to work

also without encryption and hash functions. They

provide an interactive proof-of-knowledge and have

become more and more important for RFID applica-

tions because of their small footprint and ability to

pre-compute values to perform ”on-the-ﬂy” authenti-

SECRYPT 2009 - International Conference on Security and Cryptography

104

cation (Girault et al., 2006).

4.3 Entity Authentication based on

ECC Identiﬁcation Schemes

We describe three entity-authentication protocols that

are based on identiﬁcation schemes. As opposed to

the previous described challenge-response protocols,

the given proofs are probabilistic rather than absolute.

A veriﬁer (reader) is convinced by a prover (tag) to

be in possession of the private key. The described

schemes consist of three communication passes that

may be executed several times (sequential version) or

only in a single round (parallel version).

The ﬁrst protocol is given in Figure 4. It is an

ECC-variant of the authentication protocol published

by C. Schnorr (Schnorr, 1990). First, the tag gener-

ates a random number r and calculates the elliptic-

curve point X as a witness. The tag sends the wit-

ness together with its certiﬁcate to the reader. Sec-

ond, the reader veriﬁes the certiﬁcate and generates a

challenge c which it sends to the tag. The tag now

calculates y and send it as a response back to the

reader which accepts or rejects the tag. The proto-

col of Schnorr is an interactive identiﬁcation scheme

that provides completeness, soundness, and honest-

veriﬁer zero-knowledge. That means that it provides

the perfectly zero-knowledge property only when the

tag interacts with a honest reader. For cheated read-

ers, which may choose the challenge to be too large

(super-polynomial), it loses the zero-knowledge prop-

erty. The protocol is thus secure against passive ad-

versaries under the elliptic-curve discrete logarithm

assumption but it is not secure against active attacks.

Tag Reader

r ∈

X ← rP X, cert

tag

−−−−−−−→

verify cert

tag

←−−−−−−

c ∈

y = r + (s × c) mod n y

−−−−−−→

If yP + cQ = X

then accept, else reject

Figure 4: ECSchnorr authentication protocol.

The second authentication protocol is due to

T. Okamoto (Okamoto, 1993) shown in Figure 5. It is

a variant of the prior described Schnorr protocol but

provides additional security against active and con-

current attacks. First, the tag generates two random

numbers r

and r

. Using these two random num-

bers, it calculates the elliptic-curve point X and sends

it together with the certiﬁcate to the reader. As a sec-

ond step, the reader picks a challenge c and sends it

to the tag. Then, the tag calculates two responses y

and y

and sends it back to the reader which veriﬁes

the authenticity of the tag. As opposed to the proto-

col of Schnorr, Okamoto is an interactive identiﬁca-

tion scheme that provides a witness-indistinguishable

proof-of-knowledge.

Tag Reader

∈

X ← r

+ r

X, cert

tag

−−−−−→

verify cert

tag

←−−−−

c ∈

= r

+ (s

× c) mod n

= r

+ (s

× c) mod n y

−−−−−→

If y

+ y

+ cQ = X

then accept, else reject

Figure 5: ECOkamoto authentication protocol.

The third authentication protocol is an ECC-

variant of an interactive identiﬁcation protocol pro-

posed by M. Girault, G. Poupard, and J. Stern in 2001.

It is part of the European project NESSIE (Preneel

et al., 2003) and has been standardized in the

ISO/IEC 9798-5 standard (International Organisation

for Standardization (ISO), 2004). The protocol is sim-

ilar to Schnorr but eliminates the modular reduction

during the response calculation by performing the op-

erations in Z. Like the Schnorr protocol, GPS is

proven to have the (statistical) zero-knowledge prop-

erty if the challenge c is chosen not too large. It

provides the honest-veriﬁer zero-knowledge property

and is thus only secure against active attacks under a

given honest-reader assumption. In order to guarantee

the statistical zero-knowledge property, we followed

the equation r = c × s × 2

in our experiments as it

has been advised by the authors (Girault et al., 2006).

Tag Reader

r ∈

X ← rP X, cert

tag

−−−−−−−→

verify cert

tag

←−−−−−−

c ∈

y = r + (s × c) y

−−−−−−→

If yP + cQ = X

then accept, else reject

Figure 6: ECGPS authentication protocol.

4.4 Message Authentication based on

ECC Signature Schemes

Any of the previous described (interactive) iden-

tiﬁcation schemes can be transformed into a

(non-interactive) signature scheme using the trans-

formation technique proposed by A. Fiat and

RFID AUTHENTICATION PROTOCOLS BASED ON ELLIPTIC CURVES - A Top-Down Evaluation Survey

105

A. Shamir (Fiat and Shamir, 1987). The non-

interactive signature schemes can be constructed

by replacing the challenge c by the outcome of a

cryptographic hash-function h. The input of the

hash function is the witness x concatenated with the

message m that has to be signed c = h(x,m). For the

security of the signature scheme it is necessary to

apply a hash function that is collision resistant, i.e.

that two messages do not lead to the same hash value.

Furthermore, the size of the hash function must be

chosen not too small to prevent existentially un-

forgeable signatures under adaptive chosen-message

attacks. Therefore, we applied a 160-bit SHA-1 hash

function to all described protocols and transformed

them into signature schemes.

5 IDENTIFICATION VS.

SIGNATURE SCHEMES

There are two major authentication services which

are entity authentication and message authentication.

The kind of service that an RFID tag has to provide

basically depends on the application. A typical sce-

nario where authentication plays an important role, is

protection against counterfeiting goods. There, RFID

tags proof the origin of objects to which they are at-

tached to. These tags are typically powered passively

and are implicitly involved in an active communica-

tion to the reader. Such tags actually have to pro-

vide at least entity authentication. There is no need

for RFID tags to provide additional cryptographic ser-

vices such as data integrity or non-repudiation. This

actually discourages the use of signature schemes in

that scenario.

However, there exist also other scenarios where

it becomes important for a tag to provide message-

authentication capabilities. Suppose the case where

the reader has to transfer the proof of the tag’s origin

or has to prove the authenticity of a tag even at some

later instant of time. Digital signatures provide these

services which can not be realized using identiﬁcation

schemes.

In the following, we focus on the evaluation

of different identiﬁcation and signature schemes.

Each scheme provides speciﬁc services and tradeoffs

among costs, security, and performance.

6 PROTOCOL EVALUATION

In order to evaluate the performance and efﬁciency

of the described authentication protocols, we have

Certificate

Version: 1

Serial Number: 4660

Signature Algorithm: ecdsaWithSHA1 (1.2.840.10045.4.1)

Issuer: CN=TestCA

Valid not before: Thu Feb 12 18:08:14 CET 2009

not after: Tue Feb 12 18:08:14 CET 2019

Subject: CN=14443A00,EMAIL=test@test.com

SubjectPublicKeyInfo:

Algorithm: ecPublicKey, NISTp192 (1.2.840.10045.2.1)

SubjectPublicKey:

03:32:00:04:62:B1:2D:60:69:0C:DC:F3:30:BA:BA:B6:

E6:97:63:B4:71:F9:94:DD:70:2D:16:A5:63:BF:5E:C0:

80:69:70:5F:FF:F6:5E:5C:A5:C0:D6:97:16:DF:CB:34:

74:37:39:02

SignatureAlgorithm: ecdsa-with-SHA1 (1.2.840.10045.4.1)

Signature:

30:35:02:18:1F:91:F5:89:8B:4F:C5:D3:47:D8:7C:F2:5D:8F:

AE:53:6F:F7:39:3E:B2:D3:18:92:02:19:00:B4:F5:9A:F7:3B:

13:80:48:B3:86:82:42:62:C8:23:57:7A:C5:A9:A6:B5:96:C2:

Figure 7: Structure of a generated standard X.509 certiﬁ-

cate.

developed a framework in Java. The framework is

able to model an RFID system involving several com-

ponents such as a tag, reader, air-interface, RFID-

communication protocol, cryptographic protocol, and

public-key management capability. Using this model,

we have been able to simulate different RFID sce-

narios that apply different settings, protocols, and

schemes. As a common cryptographic primitive,

we have used a standardized 192-bit NIST elliptic

curve (National Institute of Standards and Technol-

ogy (NIST), 2000) deﬁned over the ﬁnite ﬁeld GF(p).

The main operation of the primitive is a scalar mul-

tiplication that adds k copies of a certain elliptic-

curve point P together. For achieving this operation,

we applied the Montgomery method using standard-

projective coordinates. For the evaluation of different

interactive identiﬁcation schemes, we considered only

the one round l = 1 (parallel) version. The size of the

challenge is deﬁned by the security parameter t. It has

been chosen to be 48 bits. The probability of cheating

the veriﬁer is therefore l/2

= 1/2

For the signature schemes, we applied the SHA-

1 hash function and used the same security parame-

ter as used for the identiﬁcation schemes. Further-

more, we simulated a simple public-key infrastruc-

ture where the public-key of an RFID tag is signed

by a trusted third party. This certiﬁcate is stored in

the memory of the tag and is transmitted during the

tag authentication process.

6.1 Certiﬁcate Management

We considered three different scenarios for certiﬁ-

cate management in an RFID application. All scenar-

ios are based on the International Telecommunication

Union (ITU-T) standard X.509 for Public-Key Infras-

tructure (PKI). Only version 1 certiﬁcates have been

SECRYPT 2009 - International Conference on Security and Cryptography

106

created to restrict the size of the certiﬁcates that will

be stored in the non-volatile memory of RFID tags. In

the ﬁrst scenario, a standard X.509 certiﬁcate is gener-

ated. The structure of this certiﬁcate is shown in Fig-

ure 7. It contains attributes such as the version num-

ber, serial number of the certiﬁcate, issuer and subject

identiﬁer, validity, public-key data, and the signature

of the certiﬁcate. The certiﬁcate is encoded using the

Distinguished Encoding Rules (DER) which results in

a binary representation of the given Abstract Syntax

Notation One (ASN.1).

The second scenario takes compressed certiﬁ-

cates, which only store the x coordinate of the pub-

lic key since the y coordinate can be easily recon-

structed by solving the curve equation. This technique

is known under point compression and is claimed by

U.S. patent 6141420.

In the third scenario, we only stored the variable

part of the certiﬁcate, which are the public key, the se-

rial number of the certiﬁcate, and the signature. The

rest of the certiﬁcate can be reconstructed by a reader

which adds the remaining constant part of the certiﬁ-

cate to obtain a valid X.509 certiﬁcate. The last sce-

nario might be preferably used in RFID applications

where less memory is an urgent requirement.

7 RESULTS

In the following, we describe a protocol-performance

metric of all described authentication protocols of

Section 4. The protocols have been evaluated based

on different criterias such as their security assump-

tions, storage requirements, computational effort, and

communication overhead. First, we present results of

analyzed authentication protocols that are based on

identiﬁcation schemes. Second, we focus on results

obtained from the evaluation of authentication proto-

cols which are based on signature schemes.

7.1 Authentication Protocols based on

Identiﬁcation Schemes

The performance metric of the described authentica-

tion protocols is given in Table 7.1. All protocols

provide an interactive proof-of-knowledge and are

secure against impersonation under passive attacks.

ECOkamoto also provides provably security against

active and concurrent attacks. The protocols are not

secure against reset attacks as shown by Cannetti et

al. (Canetti et al., 2000) but can be protected as shown

by Bellare et al. (Bellare et al., 2001).

The memory requirement of the protocols has

been characterized by considering the storage of the

Table 1: Authentication Protocols based on Identiﬁcation

Schemes.

Schnorr Okamoto GPS

Zero knowledge

honest- witness- honest-

veriﬁer indist. veriﬁer

Crypt. Service

Entity auth. Yes Yes Yes

Message auth. No No No

Security against

Passive attacks Yes Yes Yes

Active attacks No Yes No

Concurrent attacks No Yes No

Reset attacks No No No

Memory [byte]

Private key 24 48 24

(Certiﬁcate 1 268 292 268)

(Certiﬁcate 2 243 267 243)

Certiﬁcate 3 76 100 76

Total 100 148 100

Computation

Size of scalar 24 48 40

#Additions 771 1,544 1,283

#Subtractions 769 1,536 1,281

#Multiplications 3,271 6,542 5,447

#Squarings 962 1,924 1,602

#Inversions 2 4 2

#Hash comp. 0 0 0

Total Operations 5,775 11,550 9,615

Estim. Cycle Count 993,432 1,986,864 1,630,872

private key and the certiﬁcate of the public key. The

private key needs 24 bytes for all protocols except for

ECOkamoto, which needs 48 bytes for one additional

private key. The size of the certiﬁcate depends on the

scenario described in the previous section. For a stan-

dard X.509 certiﬁcate, as given in Scenario 1, we ob-

tained a size of 268 bytes for ECSchnorr and ECGPS,

and 292 bytes for ECOkamoto due to the storing of an

additional public key. (see Figure 7 for the structure

and content of the certiﬁcate). For the second sce-

nario, we applied a point compression technique and

yielded a certiﬁcate size of 243 bytes and 267 bytes,

respectively. In the third scenario, only the variable

part of the certiﬁcate is stored that is the public-key

(24 bytes for the x-coordinate of one public key), the

signature (48 bytes), and the serial number (4 bytes).

Thus, we obtained a certiﬁcate size of 76 bytes and

100 bytes, respectively. By taking the third scenario

as a reference, we got a total memory usage of 100

bytes for both ECSchnorr and ECGPS and 148 bytes

for the ECOkamoto protocol.

The computational complexity of the protocols

has been evaluated as follows. First, we have de-

termined the elemental number of ﬁnite-ﬁeld opera-

tions by counting the appropriate simulation-method

invocations. ECSchnorr needs 5,775 operations,

RFID AUTHENTICATION PROTOCOLS BASED ON ELLIPTIC CURVES - A Top-Down Evaluation Survey

107

100

120

140

160

180

Communication [bytes]

ECSchnorr ECOkamoto ECGPS

Certificate Response Challenge Witness

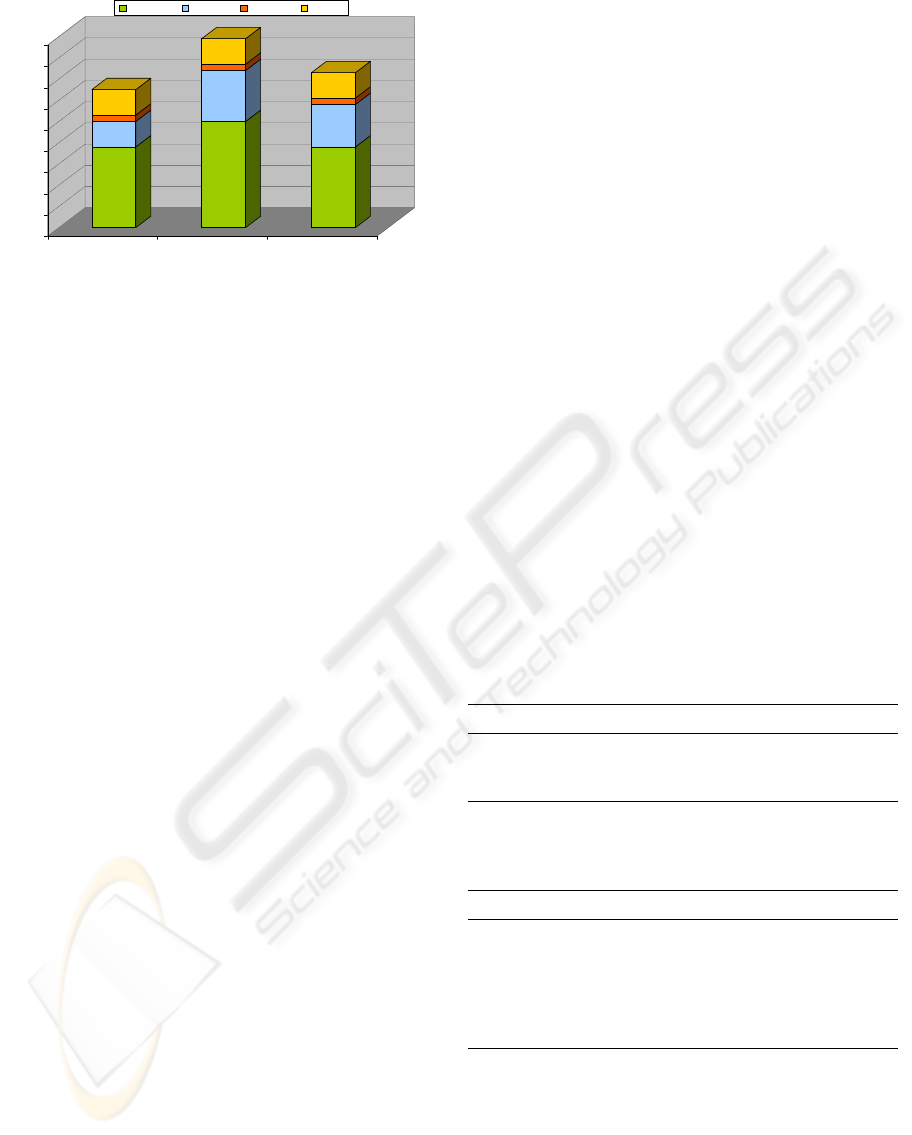

Figure 8: Communication overhead of evaluated identiﬁca-

tion schemes.

ECOkamoto needs 11,550 operations, and ECGPS

needs 9,615 operations. Second, we empirically

weighted the operations due to their computational

complexity. We estimated the cycle counts for the

ﬁnite-ﬁeld operations by assuming 45 cycle counts for

modular addition and subtraction, 220 cycle counts

for modular multiplication, 176 (=220*0.8) cycle

counts for squaring, and 17,600 (=220*80) for mod-

ular inversion. By summing up the weighted values,

we obtained a rough estimation for the overall compu-

tational efﬁciency of the analyzed protocols. The re-

sults are presented in the bottom of Table 7.1. It shows

that in our experiment ECSchnorr is the most efﬁcient

protocol resulting in a total cycle count of 993,432

followed by ECGPS with 1,630,872 and ECOkamoto

with 1,986,864.

The evaluation result of the protocol-

communication overhead is shown in Figure 8.

It shows that the ECSchnorr protocol needs the

smallest amount of communication bytes which

is 130 bytes. ECGPS needs 146 bytes because of

the increased size of the response. As opposed to

ECSchnorr, no modulo reduction of the response

value is performed in ECGPS. However, this allows

faster response calculations but needs more bytes

to be transferred over the air interface. The highest

obtained value is due to ECOkamoto which needs

an extra amount for the response and also for the

certiﬁcate. The total number of bytes for ECOkamoto

is 178 bytes.

Although a comparison of the described protocols

becomes largely fair at some level, it has to be noted

that there exist many variants and improvements for

their implementations in practice. One technique that

we have used in our evaluation is to reduce the mem-

ory usage by only storing the x-coordinate of the pub-

lic keys (point compression). Another common tech-

nique is to hash the witness to reduce the communi-

cation overhead which becomes rather interesting in

scenarios where the commitments are pre-computed

to be used as coupons. The challenge can also be

chosen with a low-hamming weight so that the ﬁnal

multiplication in the response calculation can be omit-

ted. This offers speed advantages for scenarios that al-

low ”on-the-ﬂy” authentication. However, in order to

compare different protocols, it is necessary to provide

common parameters and setting for all protocols to

become a fair evaluation in general. Thus, it is conve-

nient to deal with relative values rather than absolute

ones.

7.2 Authentication Protocols based on

Signature Schemes

Next, we analyze authentication protocols which

are based on different signature schemes. There-

fore, we transformed the ECSchnorr, ECOkamoto,

and ECGPS identiﬁcation schemes into signature

schemes using the technique proposed by Fiat-

Shamir (Fiat and Shamir, 1987). All schemes are then

used in a challenge-response protocol according to

ISO/IEC 9798-3 (International Organisation for Stan-

dardization (ISO), 1993).

The performance metric of the resulting protocols

is shown in Table 7.2. All protocols provide security

against passive and active attacks and provide security

against existential-forgery attacks.

Table 2: Authentication Protocols based on Signature

Schemes.

Schnorr Okamoto GPS

Crypt. Service

Entity auth. Yes Yes Yes

Message auth. Yes Yes Yes

Security against

Passive attacks Yes Yes Yes

Active attacks Yes Yes Yes

existent. forgery Yes Yes Yes

Memory [byte] 100 148 100

Computation [byte]

Hash-input size 30 30 30

#FF Operations 5,775 11,550 9,615

#Hash comp. 1 1 1

Total Operations 5,793 11,568 9,633

Estim. Cycle Count 997,392 1,990,824 1,634,832

The memory usage of the signature schemes is the

same as for the identiﬁcation schemes. We considered

the storing of the private key and the certiﬁcate hold-

ing the public key and the signature. Also the com-

putational costs are very similar to that of the eval-

uated identiﬁcation schemes. The number of ﬁnite-

ﬁeld operations keeps constant but an additional hash

calculation is needed to compute the signature. For

SECRYPT 2009 - International Conference on Security and Cryptography

108

all schemes, the input size of the hash functions is 30

bytes. We estimated the costs for that hash calcula-

tion by assuming 4,000 clock cycles for the computa-

tion. This corresponds to approximately 18 additional

ﬁnite-ﬁeld multiplications. The overall complexity

of the evaluated signature schemes are therefore as

follows. ECSchnorr results in 5,793 ﬁnite-ﬁeld op-

erations with a cycle count of 997,392 followed by

ECGPS with 9,633 operations and 1,634,832 cycles,

and ECOkamoto with 11,568 operations and a cycle

count of 1,990,824.

The communication of the described protocols is

composed of the challenge (message), which is sent

by the veriﬁer, and the response (signature and cer-

tiﬁcate) that is sent by the prover. The results of our

investigations are shown in Figure 9. ECSchnorr pro-

vides the smallest amount of communication bytes

which is 126 bytes. ECGPS follows with 146 bytes

and ECOkamoto needs to transmit 222 bytes in our

experiment.

8 CONCLUSIONS

In this article, we presented a top-down evaluation

survey of different public-key techniques to achieve

RFID-tag authentication. First, we described a gen-

eral model to characterize different authentication

protocols and schemes. Second, we provided prac-

tical results of evaluations for elliptic-curve based

variants of schemes that have been especially de-

signed for low-resource devices. We analyzed both

identiﬁcation schemes and signature schemes of EC-

Schnorr, ECOkamoto, and ECGPS. Our evaluation

has led us to the result that elliptic-curve based iden-

tiﬁcation schemes and signature schemes have nearly

the same complexity in terms of memory usage,

computational complexity, and communication band-

width. For both types of schemes, the most resource-

consuming operation is the elliptic-curve point mul-

tiplication. The hash computation performed by the

signature schemes does not has a large impact on

the overall performance, even though that signature

schemes provide additional cryptographic services

such as non-repudiation, data integrity, and a transfer-

able proof-of-origin. In addition to that, our experi-

ments have shown that ECSchnorr is more efﬁcient in

both computational effort and communication band-

width than ECOkamoto and ECGPS. This is the case

when the scalar multiplication is performed online

by the tag during the authentication process. If the

scalar multiplication is performed in an ofﬂine way

and the tag uses pre-computed coupons, for example,

ECGPS provides enhanced performance due to the

100

116

100

150

200

250

Communication [bytes]

ECSchnorr ECOkamoto ECGPS

Certificate Signature Message

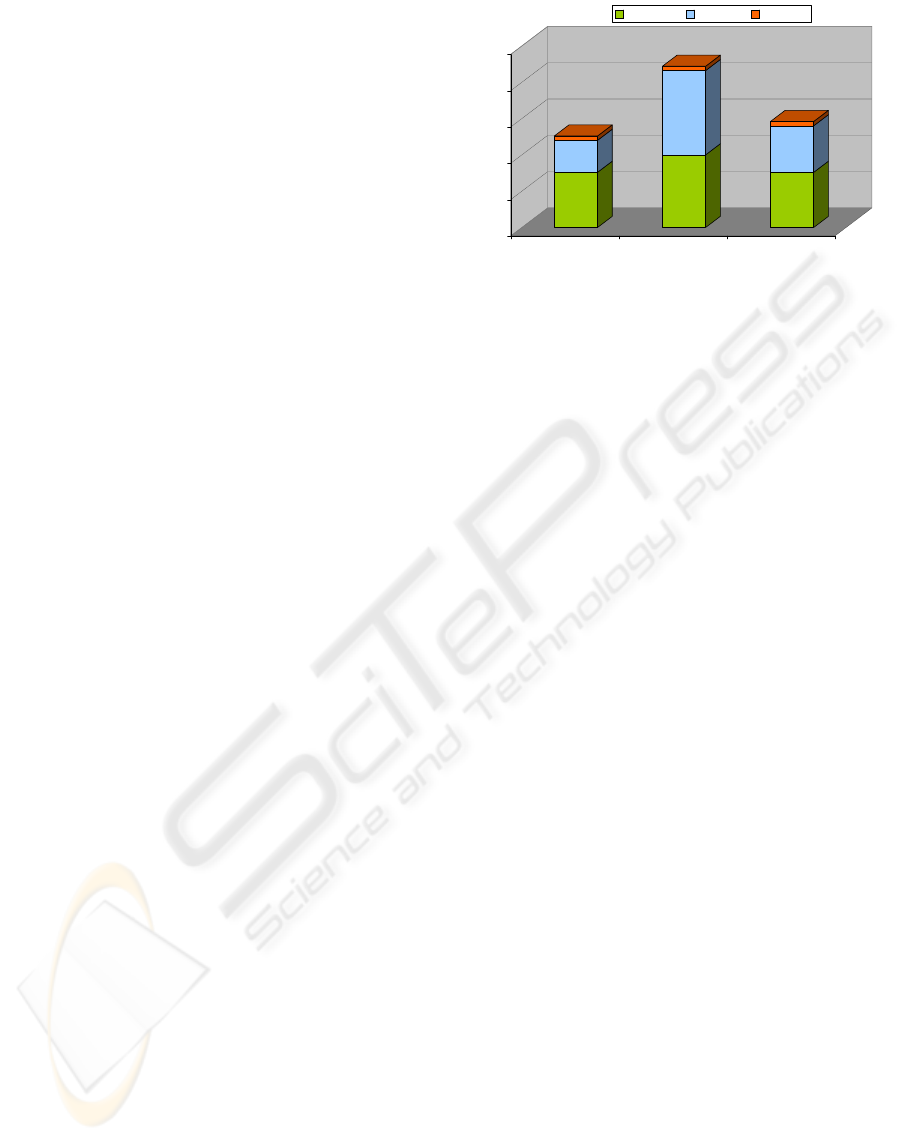

Figure 9: Communication overhead of evaluated signature

schemes.

lack of the modulo reduction during response calcula-

tion. The performance of ECOkamoto, in contrast, is

higher than ECSchnorr and ECGPS due to the need of

storing, computation, and communication transfer of

an additional public-key pair. We conclude that each

protocol provides different tradeoffs among the cryp-

tographic service, storage, computational effort, and

communication bandwidth. ECOkamoto provides ad-

ditional security features while ECGPS has been de-

signed for efﬁcient ”on-the-ﬂy” authentication. EC-

Schnorr might be preferred if the primitive computa-

tion is done online by the tag itself.

ACKNOWLEDGEMENTS

The author would like to thank Manfred Aigner, Jo-

hannes Wolkerstorfer, and Martin Feldhofer for their

valuable inputs and helpful discussions. The research

described in this paper has been supported by the Eu-

ropean Commission funded project Collaboration at

Rural under grant number 034921 (Project C@R) and

the Austrian government funded project CRYPTA es-

tablished under the Trust in IT-Systems program FIT-

IT.

REFERENCES

Batina, L., Guajardo, J., Kerins, T., Mentens, N., Tuyls, P.,

and Verbauwhede, I. (2006). Public-Key Cryptogra-

phy for RFID-Tags. In Workshop on RFID Security

2006 (RFIDSec06), July 12-14, Graz, Austria.

Bellare, M., Fischlin, M., Goldwasser, S., and Micali, S.

(2001). Identiﬁcation Protocols Secure Against Reset

Attacks. In Proceedings of the International Confer-

ence on the Theory and Application of Cryptographic

Techniques: Advances in Cryptology, pages 495–511,

London, UK. Springer-Verlag.

RFID AUTHENTICATION PROTOCOLS BASED ON ELLIPTIC CURVES - A Top-Down Evaluation Survey

109

Canetti, R., Goldreich, O., Goldwasser, S., and Micali, S.

(2000). Resettable zero-knowledge. In Proceedings of

the thirty-second annual ACM symposium on Theory

of computing, pages 235–244, New York, NY, USA.

ACM.

Difﬁe, W. and Hellman, M. (1976). New Directions in

Cryptography. IEEE Transactions on Information

Theory, 22(6):644–654.

ElGamal, T. (1984). A Public Key Cryptosystem and a Sig-

nature Scheme Based on Discrete Logarithms. In Ad-

vances in Cryptology - CRYPTO ’84, Santa Barbara,

California, USA, August 19-22, 1984, Proceedings,

volume 196 of Lecture Notes in Computer Science,

pages 10–18. Springer.

Fiat, A. and Shamir, A. (1987). How to prove your-

self: Practical solutions to identiﬁcation and signature

problems. In In Advances in Cryptology - Crypto 86,

volume 263, pages 186–194. Lecture Notes in Com-

puter Science, Springer.

Gaubatz, G., Kaps, J.-P., Ozturk, E., and Sunar, B. (2005).

State of the art in ultra-low power public key cryp-

tography for wireless sensor networks. Proceedings

of the Third IEEE International Conference on Per-

vasive Computing and Communications Workshops,

pages 146–150.

Girault, M., Juniot, L., and Robshaw, M. (2007). The feasi-

bility of On-the-Tag Public Key Cryptography. In Mu-

nilla, J., Peinado, A., and Rijmen, V., editors, Work-

shop on RFID Security 2007 (RFIDSec07), July 11-

13, Malaga, Spain, pages 77–86.

Girault, M., Poupard, G., and Stern, J. (2006). On the ﬂy

authentication and signature schemes based on groups

of unknown order. Journal of Cryptology, 19:463–

487.

International Organisation for Standardization (ISO)

(1993). Information Technology - Security Tech-

niques - Entity authentication mechanisms - Part 3:

Entity authentication using a public key algorithm.

International Organisation for Standardization (ISO)

(2004). ISO/IEC 9798 Part 5: Information technology

– Security techniques – Entity authentication –

Mechanisms using zero knowledge techniques.

Kumar, S. S. and Paar, C. (2006). Are standards compliant

Elliptic Curve Cryptosystems feasible on RFID? In

Workshop on RFID Security 2006 (RFIDSec06), July

12-14, Graz, Austria.

Law, L., Menezes, A., Qu, M., Solinas, J., and Vanstone,

S. (2003). An efﬁcient protocol for authenticated

key agreement. volume 28, pages 119–134, Norwell,

MA, USA. Designs, Codes and Cryptography, Kluwer

Academic Publishers.

McLoone, M. and Robshaw, M. J. B. (2007). Public Key

Cryptography and RFID Tags. In Abe, M., editor,

Topics in Cryptology - CT-RSA 2007, The Cryptogra-

phers’ Track at the RSA Conference 2007, San Fran-

cisco, CA, USA, February 5-9, 2007, Proceedings,

volume 4377 of Lecture Notes in Computer Science,

pages 372–384. Springer.

Menezes, A. J., van Oorschot, P. C., and Vanstone, S. A.

(1997). Handbook of Applied Cryptography. Se-

ries on Discrete Mathematics and its Applications.

CRC Press. ISBN 0-8493-8523-7, Available online

at http://www.cacr.math.uwaterloo.ca/hac/.

National Institute of Standards and Technology (NIST)

(2000). FIPS-186-2: Digital Signature Standard

(DSS). Available online at http://www.itl.nist.

gov/fipspubs/.

Okamoto, T. (1993). Provably Secure and Practical

Identiﬁcation Schemes and Corresponding Signature

Schemes. In Brickell, E. F., editor, Advances in

Cryptology - CRYPTO ’92, 12th Annual International

Cryptology Conference, Santa Barbara, California,

USA, August 16-20, 1992, Proceedings, volume 740

of Lecture Notes in Computer Science, pages 31–53.

Springer.

Preneel, B. et al. (2003). NESSIE Security Report, D20.

Available online at http://www.nessie.eu.org.

Schnorr, C.-P. (1990). Efﬁcient Identiﬁcation and Signa-

tures for Smart Cards. In Brassard, G., editor, Ad-

vances in Cryptology - CRYPTO ’89, 9th Annual In-

ternational Cryptology Conference, Santa Barbara,

California, USA, August 20-24, 1989, Proceeding,

volume 435 of Lecture Notes in Computer Science,

pages 239–252. Springer.

Schroeppel, R., Beaver, C., Gonzales, R., Miller, R., and

Draelos, T. (2003). A Low-Power Design for an El-

liptic Curve Digital Signature Chip. In Jr., B. S. K.,

C¸ etin Kaya Koc¸, and Paar, C., editors, Cryptographic

Hardware and Embedded Systems – CHES 2002, 4th

International Workshop, Redwood Shores, CA, USA,

August 13-15, 2002, Revised Papers, volume 2523 of

Lecture Notes in Computer Science, pages 366–380.

Springer.

Wolkerstorfer, J. (2005). Is Elliptic-Curve Cryptography

Suitable for Small Devices? In Workshop on RFID

and Lightweight Crypto, July 13-15, 2005, Graz, Aus-

tria, pages 78–91.

SECRYPT 2009 - International Conference on Security and Cryptography

110
