MANAGING SECURITY OF GRID ARCHITECTURE WITH A GRID

SECURITY OPERATION CENTER

Julien Bourgeois and Raheel Hasan

Computer Science Laboratory (LIFC), University of Franche-Comte (UFC)

1 Cours Leprince-Ringuet, 25201 Montbeliard, France

Keywords:

Grid security, Grid security operation center, Speciﬁcities of grid networks.

Abstract:

Due to the nature of grid computing networks, security pitfalls are plethora and adversaries are sneaking to

launch attacks. Keeping this scope in mind, we will discuss our proposed solution for securing grid computing

networks that we have called gSOC (Grid Security Operation Center). The main advantage of gSOC is that

it can give a global view of security of the entire grid infrastructure. The main difﬁculty is to deal with

the speciﬁcities of grid infrastructure, that are: multi-sites networks, multi-administrative domains, dynamic

collaboration between nodes and sites, high number of nodes to manage, no clear view of the foreign networks

and exchange of security information among different domains.

1 INTRODUCTION

The industrial and scientiﬁc communities are always

looking for more computational power to achieve this

goal researchers have studied multiple solutions for

interconnecting organizations in order to share com-

putational resources, which has given birth to grid

networks.

There exist multiple deﬁnitions of a grid network

but in the rest of this article we will only consider the

following one. We deﬁne a grid network as a net-

work of multiple administrative domains where each

administrative domain consists of multiple network

sites which put a service (storage space, computa-

tional resource, etc.) at disposal of users. An ad-

ministrative domain is an entity which follows ho-

mogeneous security policy through all its sites. Ac-

cording to the above deﬁnition a grid network may

be composed of a high number of computational de-

vices across the globe. A grid system is interfaced

with its users through a middleware. There are dif-

ferent grid middlewares such as gLite (gli), Unicore

(Uni), ARC (kno) or Unibus (Dawid Kurzyniec and

Sunderam., 2007). The largest grid service in Europe

is EGEE (enabling grid for e-sciences) (ege) which is

based on gLite software. EGEE connects many local

grids from different countries for example, Germany

DE-Grid, Netherlands BIG-Grid or Belgium BE-grid.

It process around 300,000 jobs per day from scientiﬁc

domains ranging from biomedicine to fusion science.

Grid networks are therefore composed of different ad-

ministrative domains that are often located in differ-

ent countries. They have different security policies

and they must respect possibly different laws in each

country. This heterogeneity arise issues in the secu-

rity management of grid networks which are not tak-

ing into account by existing middleware or security

management softwares. Therefore, these properties

that makes grid networks special in regard to multi-

purpose networks which have to be taken into account

by security environment, like:

1. Grid network structure with different administra-

tive domains, each of them composed of multi-

sites networks.

2. High number of nodes which collaborate with

each other dynamically.

3. View of security events of foreign networks un-

available.

To cope with these issues, we have designed

gSOC (Grid Security Operation Center) whose aim

is to give a global view of security of a grid net-

work by taking into account its speciﬁcities. Section 2

presents our proposed architecture named gSOC. Sec-

tion 3 concludes this article and announces some fu-

ture works.

403

Bourgeois J. and Hassan R. (2009).

MANAGING SECURITY OF GRID ARCHITECTURE WITH A GRID SECURITY OPERATION CENTER.

In Proceedings of the International Conference on Security and Cr yptography, pages 403-408

DOI: 10.5220/0002188304030408

 SciTePress

2 PROPOSED ARCHITECTURE:

THE gSOC ENVIRONMENT

2.1 Introduction

gSOC is a security operation center dedicated to

grid computing networks. In grid networks, there is

no mechanism for sharing security information with

multiple administrative domains which consists of

multiple sites. Therefore in grid networks handling

of cross domain attacks and their expansion is very

difﬁcult. Attacks launched by grid users with mas-

sive grid computational power and memory could be

more powerful than normal attacks. By considering

the above parameters, the need of gSOC is manda-

tory. gSoc also provides a better mechanism for trust

management within multiple administrative domains

connected to the grid.

At present gSOC design is under the development

phase, we started our work by keeping the target to

provide better trust management and sharing of secu-

rity information between multiple administrative do-

mains.

2.2 The Components of the gSOC

Environment

gSOC is composed of ﬁve components partly based

on the CIDF speciﬁcations (Staniford-Chen et al.,

1998), from bottom to top: data collectors (CBoxes),

remote data collectors (R-CBoxes), Local Analyzers

(LAs) and a Global Analyzer (GA) and Secure Virtual

Organization (SVOBox).

2.2.1 Data Collection Box

A CBox collects data from sensors located on the

same segment of a network. A sensor can be a host, a

server, a ﬁrewall, an IDS or any system that generates

logs. The advantage of our log collection approach

is that no software has to be installed on the sensors.

Moreover, our system is compatible with a wide range

of hardware and software. A CBox formats logs and

sends them to a local intrusion database (lidb). In each

site we have one or several CBoxes and one of them

acts as a Master CBox (M-CBox). The M-CBox is

responsible for the management of all the CBoxes lo-

cated on the same site. It polls regularly the other

CBoxes and when a CBox is down, the M-CBox will

collect data on the segment of the failed CBox. Each

Master CBox also has a backup which polls it regu-

larly and will become Master if it needs to be.

2.2.2 Remote Data Collector

An R-CBox is a special CBox which collects data

coming from some critical sensors and from sensors

hosting security tools in any site. Afterward, data is

forwarded to the local intrusion database of another

site and is analyzed to give in real time the approxi-

mate security level of the concerned site. This helps to

anticipate a reaction when a critical intrusion occurs

or to investigate and troubleshoot a site that could be

compromised, even if a hacker erases the logs on the

compromised sensors (including the security tools).

2.2.3 The Local Analyzer

A Local Analyzer (LA) is responsible for intrusion

detection at any site of a network. It analyzes for-

matted logs located in a local intrusion database (lidb)

and generates alerts. Afterward, it correlates the alerts

to ﬁnd more complex intrusions (intrusions composed

of several events, distributed intrusions, intrusions di-

rected to many sensors, etc.). The LA also compress

alerts by merging similar ones. All the alerts gener-

ated by an LA are sent to the global intrusion database

(gidb). The gidb can have a mirror of itself for high

availability purpose.

2.2.4 The Global Analyzer

The Global Analyzer (GA) is a chosen LA respon-

sible for the global intrusion detection in a network.

It analyzes alerts from the Global Intrusion database

(gidb), correlates and merges them if possible to gen-

erate optimized outputs. It is also able to detect more

sophisticated intrusions that are directed to several

sites. The GA regularly polls the other LAs and when

one of them is down, the GA detects the occurring in-

trusion into the concerned site. Another LA acts as

the backup of the GA and polls it regularly. When the

GA is down, the backup becomes the GA and another

backup is elected.

The gSOC architecture is designed bearing in

mind that the data ﬂow processed in the different sites

of the network is not always homogeneous. Indeed, in

some sites, a large amount of data is processed and in

this kind of situation, several CBoxes are needed for

data gathering.

Even though a single CBox has to be installed on each

segment, it is not excluded installing several CBoxes

on the same segment when the sensors located in this

part of the network are operating under high work-

loads. In quieter sites, only one CBox can be used to

collect data coming from all the sensors.

The gSOC also implements the different types of

boxes deﬁned for network intrusion detection systems

SECRYPT 2009 - International Conference on Security and Cryptography

404

in (Northcutt and Novak, 2002). However, beside the

pure technical aspects involved in such implementa-

tions, it is necessary to consider the supervision of an

IT infrastructure as a full operational project.

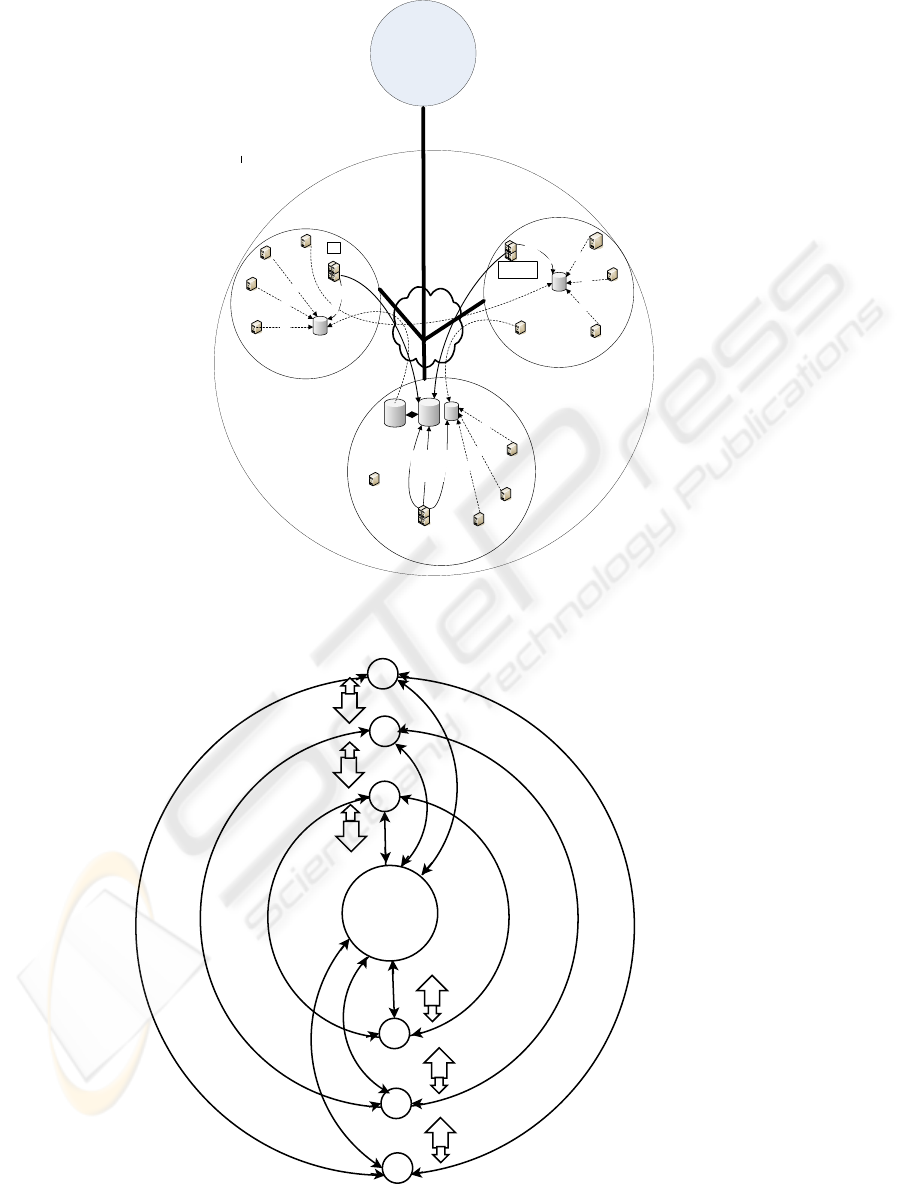

Figure 1 displays the ﬂow of security events

among multiple sites which are connected under one

administrative domain (AD). These security informa-

tion contains all the suspected threats which incurred

in an AD. The mechanism of security information

ﬂow is similar in all the other ADs.

2.2.5 Secure Virtual Organization Box

Secure Virtual Organization Box (SVOBox) job is to

collect all the correlated security alerts (SA) gener-

ated in different administrative domains (AD) which

consists of multiple sites. SVOBox assigns certain

security level (SL) value using simple metric for real-

time security level evaluation which represents three

values indicated in colors (red, orange and green).

Green indicates no threat occurring in the network,

orange indicates that threats are occurring but not

critical at this time and red indicates intrusions are

in progress which can lead to critical security prob-

lems(Ganame, 2008). In addition to this method we

have added another step which will be performed at

Global Intrusion Data Base (gidb) of every Adminis-

trative Domain (AD). According to this step the gidb

deployed in an AD will forward this security informa-

tion to SVOBox where the SVOBox will assign secu-

rity level value to each AD (see ﬁgure 2) as follows,

• If all the sites having green status in an AD that

will be placed in security level 1 which is most

secure than SL 2 and SL 3.

• If any one site in an AD having status indicating

orange that AD will be placed in security level 2

which is more secure than SL 3.

• If any one site in an AD having status indicat-

ing red that AD will be placed in security level

3 which is the least secure level.

After the security level (SL) assignment to all the

ADs which are now the part of this grid. Before start

sharing the resources every AD of this grid would like

to have a global view of the security, for global view

they must need to share the security information with

other ADs in the grid. To share the security alerts

among ADs two methods are employed.

First method is to send security alerts to the ad-

ministrative domains (ADs) of the different security

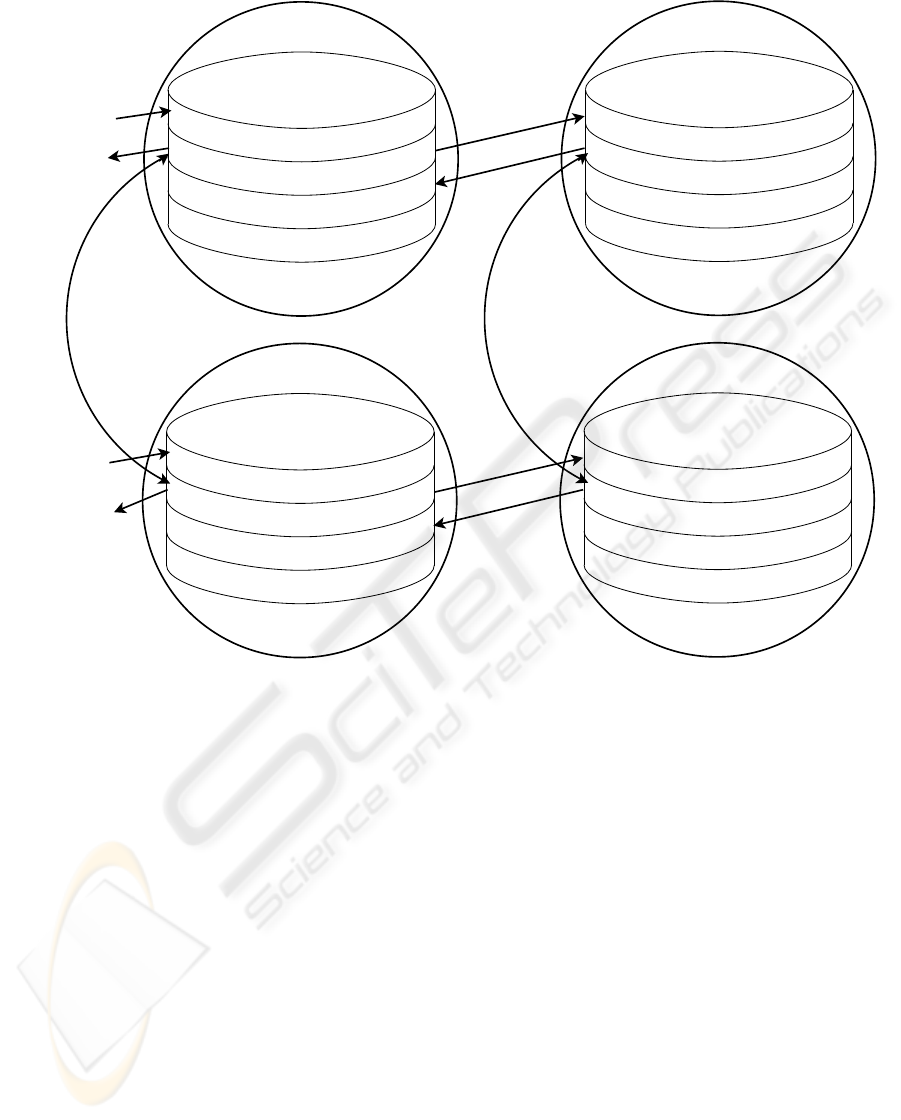

levels (1,2 and 3). In each AD there exists a gidb

which contains three different kinds of security alerts

(SA) (see ﬁgure 3). From top to bottom, the ﬁrst sec-

tion collects security alerts from the lesser secure lev-

els. The middle section is for holding security alerts

from its local sites which are residing in the same SL.

The third section collects security alerts from the most

secure levels. Finally, the last section is used to store

alerts which an AD do not want to share with others

(private alerts). For example, in ﬁgure 3, gidb of AD

3 and AD 4 which are in SL 2 can share their security

alerts with AD 1, AD 2 at SL 1, and AD 5, AD 6 at

SL 3, whereas AD 3 and AD 4 can share their security

alerts using the middle section which is reserved for

their local sites security alert information as they lies

in the same security level that is SL 2. When security

alerts are being shared among ADs the two following

ﬁelds will be appended with each security alert mes-

sage:

1. Direction of security alert ﬁeld which directs the

security alert to move in the upper or lower direc-

tion depending upon the security level value.

2. Time to Live (TTL) ﬁeld which is used to deﬁne

the authorized propagation of the security alert.

For example, if AD 1 which is in SL 1, wants to

share its security alerts only with ADs of SL 2,

it will put an upper direction with a TTL set to 1.

The TTL will be decreased when the security alert

arrives at SL2 so it will not be propagated till SL

Similarly AD 1 and AD 2 can share security alerts

with AD 3, AD 4 and between themselves also. AD

5 and AD 6 can share their security alerts with AD

3, AD 4 respectively. This sharing of security alerts

will present an updated global view of security of the

entire grid. Now each AD can decide according to

its organization policies that sharing of resources can

be done with the most or least secured AD. This is

the objective which we will going to be achieved by

using gSOC, as it gives the global view of the entire

grid without sharing of all the data (see ﬁgure 3).

The second method, is to allow a remote network

administrator to query gidb of other administrative

domains. The gidb of an AD will connect with gidb

of other AD and the remote network administrators

of both the ADs will be allowed to query each others

gidb to see the security alerts. After the inspection

of security alerts by each network administrator they

can decide for the sharing of resources. This solution

is also possible but the drawback is that it requires a

constant monitoring and constant execution of queries

on gidb which is not an efﬁcient solution in case of

major attacks like DoS/DDoS attack.

These two kinds of sharing of security information

present some advantages and drawbacks, but they can

be used alternatively depending on the type of net-

work and number of generated security alerts.

MANAGING SECURITY OF GRID ARCHITECTURE WITH A GRID SECURITY OPERATION CENTER

405

M-Cbox

Cbox

lidb

R-CBox

M-Cbox

R-Cbox

Cbox

lidb

CBox

M-Cbox

Cbox

R-CBox

LA (Global Analyzer)

(B-GA)

Site 1

Site 2

SE:Security Events

F.log: Formatted log

m/c alertes: Merged/correlated

alerts

M-Cbox: Master Cbox

R-Cbox: Remote Cbox

B-GA: Backup of Global

Analyzer

gidb

c alerts

Analyzing

F.log

m/c

alerts

m/c

alerts

Analyzing

Internet

Secure Virtual

Organization Box

(SVOBox)

Internal view of an

Administrative Domain

Site 3

lidb

Figure 1: Overview of the internal structure of an Administrative Domain (AD).

Secure Virtual

Organization Box

(SVO-Box)

AD 1

AD 2

AD 3

AD 4

AD 5

AD 6

SL 1

SL 2

SL 3 SL 3

AD=Administrative Domain

SL=Security Level

SA=Security Alerts

Figure 2: gSOC overview.

SECRYPT 2009 - International Conference on Security and Cryptography

406

Alerts of AD 6 which is in least secure SL 3

Administrative Domain 2 in Security Level 1

Administrative Domain 4 in Security Level 2

SA of all the sites

connected under AD 6

passing SA to AD4

gidb of AD 4

gidb of AD 2

For Future Use

LA of all the sites connected under AD 4

LA of all the sites connected under AD 2

Alerts from AD 2 which is in most secure SL 1

Alerts of AD 4 which is in more secure SL 2

SA of AD 4 which is in

more secure SL 2

passing its SA to AD6

Security Alert

information

Alerts of AD 5 which is in least secure SL 3

Administrative Domain 1 in Security Level 1

Administrative Domain 3 in Security Level 2

Security Alerts of

all the sites

connected under AD 5

passing AS to AD3

gidb of AD 3

gidb of AD 1

For Future Use

LA of all the sites connected under AD 3

LA of all the sites connected under AD 1

Alerts from AD 1 which is in most secure SL 1

Alerts of AD 3 which is in more secure SL 2

SA of AD 3 which is

in more secure SL 2

passing its SA to AD3

Security Alert

information

Security Alert information

LA=Local Analyzer

gidb=Global Intrusion Data Base

AD=Administrative Domain

SA=Security Alert

Figure 3: Sharing of security alerts using Global Intrusion Data Base (gidb).

2.3 Protecting the Communications

between the gSOC Components

One of the key points here is to make sure that no ille-

gitimate computer will act as an LA, a CBox or an R-

CBox in order to get privileged access to the system.

To ensure the security of our system, any LA or any

R-CBox that needs to exchange information with an-

other LA has to use a certiﬁcate issued by the network

administrator of that AD to prove its identity. More-

over, all the communications between the LAs (also

including the GA) and the communications between

the R-CBoxes and the LAs will have to pass through

an encrypted tunnel, available via the SSL protocol.

3 CONCLUSIONS

The purpose of gSOC is to give a better global view

of security without sharing all the data in order to

achieve maximum conﬁdentiality. The idea behind

gSOC is to give the better tradeoff between conﬁ-

dentiality of security data and having the best possi-

ble global view of the network which means sharing

all the data. gSOC gives correlated overview by dis-

carding similar information to pass every time, gSOC

matches sequence pattern, time pattern, system expo-

sure performance, critical analysis and in ﬁnal step

security policy matching. gSOC does data analysis

by correlation, structural analysis and intrusion path

analysis. In future experiments we have to check that

what is the conﬁdentiality level that can be achiev-

able, the TTL value which needs more study. As LA

can be elected to become the gidb in case of failure,

MANAGING SECURITY OF GRID ARCHITECTURE WITH A GRID SECURITY OPERATION CENTER

407

in each LA there should therefore have four sections

reserved for security alerts.

REFERENCES

http://glite.web.cern.ch/glite/. Lightweight Middleware for

Grid Computing.

http://www.eu-egee.org/. Enabling Grids for E-science

(EGEE).

http://www.knowarc.eu/. Grid-enabled Know-how Sharing

Technology Based on ARC Services and Open Stan-

dards (KnowARC).

UNICORE (Uniform Interface to Computing Resources).

http://www.unicore.eu/UNICORE.

Dawid Kurzyniec, Magdalena Slawinska, J. S. and Sun-

deram., V. (2007). Unibus: a contrarian approach to

grid computing. J. Supercomput., 42(1):125–144.

Ganame, A.K. Bourgeois, J. (2008). Deﬁning a simple met-

ric for real-time security level evaluation of multi-sites

networks. Parallel and Distributed Processing, 2008.

IPDPS 2008. IEEE International Symposium, 14-18:1

– 8.

Northcutt, S. and Novak, J. (2002). Network Intrusion De-

tection. ISBN: 0-73571-265-4. New Riders, third edi-

tion edition. September.

Staniford-Chen, S., Tung, B., and Schnackenberg, D.

(1998). The common intrusion detection framework

(cidf). In Information Survivability Workshop, Or-

lando.

SECRYPT 2009 - International Conference on Security and Cryptography

408
