TOWARDS DEPENDENCY MANAGEMENT IN SERVICE

COMPOSITIONS

Matthias Winkler

SAP Research CEC Dresden, SAP AG, Dresden, Germany

Alexander Schill

Chair for Computer Networks, TU Dresden, Dresden, Germany

Keywords:

Service dependency, Business service, Service composition, Service monitoring, SLA negotiation.

Abstract:

Business services are a valuable asset to be traded on internet service marketplaces. While they are offered via

the internet their execution often involves manual steps. The provisioning of services is regulated by service

level agreements (SLA). The composition of business services enables the creation of innovative business

processes which can be offered as services again. Selling these service compositions brings along challenges

for handling two important tasks, namely the monitoring of SLA violations and SLA renegotiation. Both tasks

are challenging because they affect not only a single service but multiple stakeholders of the composition. In

this paper we discuss the problem of dependencies between services in compositions based on a scenario from

the logistics domain. Dependencies between services are problematic because they lead to situations where

the SLA violation of one service affects the provisioning of other services. Similarly, the renegotiation of the

SLA of one service has effects on the SLAs of other services. We present a conceptual architecture and an

approach towards a solution for handling service dependencies.

The project was funded by means of the German Federal Ministry of Economy and Technology under the

promotional reference “01MQ07012”. The authors take the responsibility for the contents.

1 INTRODUCTION

Within the TEXO project (Pressebuero, 2008) the

foundations for making business services tradable on

service marketplaces are established. Business ser-

vices are any kind of business activity offered by a

service provider to create value for a consumer. They

are offered via the internet but may be provided in-

volving manual tasks executed by humans or ma-

chines. The provisioning and consumption of ser-

vices is regulated by service level agreements (SLA).

Monitoring SLAs during service provisioning is im-

portant to ensure efﬁcient provisioning of the service

and to build up trust between the stakeholders, i.e. the

providers of atomic services, the providers of com-

posite services, and the service consumers (Winkler

et al., 2008). In order to better distinguish the com-

posite service from its contained services, we call the

services, which are the building blocks of a composi-

tion, atomic services, knowing that they may be com-

posite services themselves.

When atomic services are composed to service

compositions dependencies regarding their execution

may exist. Problems during the execution of one

atomic service may hinder the execution of other ser-

vices. Problems are detected as service level objec-

tive (SLO) violations. SLOs are the single measur-

able elements of an SLA. In cases where services are

affected by problems, the service composition may be

adapted (e.g. exchange services, renegotiate SLA).

Also, there are situations where one stakeholder of

the composite service wants to renegotiate its SLA

and thus affects the other SLAs of the composition.

Although these dependencies have an impact on the

execution of the composition, they are currently nei-

ther directly described nor managed. Information re-

garding dependencies is indirectly available, though,

in the different SLAs negotiated between the compos-

ite service provider, the atomic service providers, and

the consumers of the composition as well as in the

underlying process of the composite service.

Based on a use-case from the logistics domain

(section 2), we will discuss the problem of service de-

pendencies in service compositions (section 3), out-

line our envisioned solution and present the results of

ﬁrst steps towards this solution (section 4). Finally,

Winkler M. and Schill A. (2009).

TOWARDS DEPENDENCY MANAGEMENT IN SERVICE COMPOSITIONS.

In Proceedings of the International Conference on e-Business, pages 79-84

DOI: 10.5220/0002188600790084

 SciTePress

we discuss related work (section 5).

2 A COMPOSITE LOGISTICS

SERVICE SCENARIO

Logistics services (e.g. transport and storage of

goods) are an example of business services. In our

scenario (see Fig. 1) the 4PL (fourth party logistics

provider) ”Global Transport” acts as organizer of a

logistics process offered as composite service ”Trans-

port DD-HH”. The process is created from three ser-

vices offered by different providers. The service is

bought by “Heal Pharma”, which needs to ship phar-

maceutical goods from Dresden to Hamburg. Ser-

vice “Truck DD“ offered by provider ”DD Logistics”

is responsible for picking up the goods at the “Heal

Pharma” factory in Dresden and delivering them to

the train station. There the goods are received by

provider ”Railway Services” and shipped to Hamburg

via service “Train Shipping DD-HH”. Finally, “HH

Logistics” delivers the goods to the customer of ”Heal

Pharma” via service“Truck HH”. During the provi-

sioning of this composite service the 4PL manages

the underlying process.

Transport DD-HH

Heal Pharma

Train Shipping

DD-HH

Truck

Heal Pharma

Customer

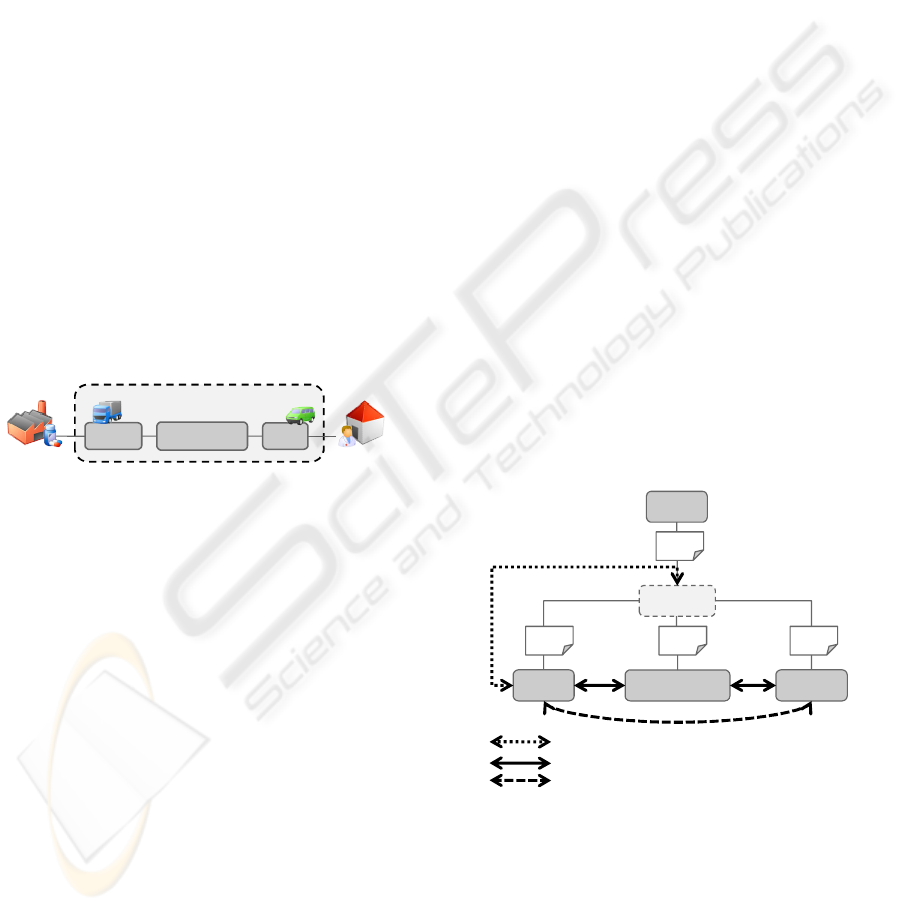

Figure 1: Simple Logistics Process.

3 SERVICE DEPENDENCIES IN

SERVICE COMPOSITIONS

When services are composed to service compositions,

they are implicitly collaborating to achieve a business

goal. We consider collaboration of services as im-

plicit because the atomic service providers may not

be aware of the full process and the different services

involved. Only the 4PL has all the information.

In our use case dependencies occur regarding the

time of transport and the amount of goods. These as-

pects are regulated by SLAs. The 4PL needs to assure

that the SLAs negotiated with the different providers

enable the smooth execution of the process. Problems

during the execution of one atomic service or the rene-

gotiation of its SLA may affect other atomic services

of the composition as well as the composition as a

whole. We will now analyse different types of depen-

dencies and illustrate them in our logistics use-case.

3.1 Types of Dependencies

We classify dependencies with respect to their oc-

currence either between atomic services or between

atomic services and the composite service. We call

dependencies, which occur between atomic services

of a service composition, horizontal dependencies,

because they affect services on the same hierarchi-

cal level of composition. In cases where horizontal

dependencies are managed properly they might not

show to the consumers of the composition. However,

this is not always possible. In such cases the effects

of the problem will be propagated through the whole

composition and thus affect it. Problems would then

be visible to the consumers of the composition. Hor-

izontal dependencies can be further classiﬁed into di-

rect and indirect dependencies. Direct dependencies

occur between two interacting atomic services. Indi-

rect dependencies occur between services which do

not directly interact with each other, but where a tran-

sitive relationship exists via an intermediate service.

Problems of an atomic service may affect the over-

all composition. We call these dependencies, which

occur across a hierarchical level of composition, verti-

cal dependencies. If vertical dependencies exist, SLO

violations of atomic services as well as their renegoti-

ation affect the SLA negotiated with the customer. In

many cases horizontal and vertical dependencies oc-

cur at the same time. Fig. 2 illustrates the presented

types of dependencies.

Vertical dependency

Horizontal dependency (direct)

Heal

Pharma

Truck

Transport

DD-HH

Train

Shipping DD-HH

Truck

SLA 1

SLA 2 SLA 3 SLA 4

Horizontal dependency (indirect)

Figure 2: SLAs and Dependencies in a Composite Service.

3.2 Dependencies in a Logistics Process

We will now illustrate the different types of dependen-

cies based on two SLO violation examples of our lo-

gistics use case: the delayed delivery of goods and the

delivery of a false quantity of goods. Late delivery:

The service ”Train Shipping DD-HH” follows a ﬁxed

ICE-B 2009 - International Conference on E-business

schedule which sets the departure time of the train

to 6pm each day. In order for the transshipping of

goods from truck to train to be completed by that time,

goods need to be delivered to ”Train Shipping DD-

HH” by 4pm. When the train has reached Hamburg

the next morning, the goods need to be picked up by

the ”Truck HH” service between 6am and 8am. Vio-

lations of such time constraints may lead to problems

for multiple stakeholders of the process. If ”Truck

DD” cannot deliver the goods on time, the 4PL needs

to inform not only ”Railway Services” as the provider

of “Train Shipping DD-HH” but also ”HH Logistics”,

the provider of “Truck HH”, since there will not be

any goods to be picked up the next day. While the

dependency between ”Truck DD” and ”Train Ship-

ping DD-HH” is quite obvious (direct horizontal de-

pendency), the dependency between ”Truck HH” and

”Truck DD” is not. This is an indirect horizontal de-

pendency which can only be derived by analysing the

underlying process of the composite service. It may

also be necessary for ”Global Transport” to renegoti-

ate the SLA with “Heal Pharma”. Here we ﬁnd a ver-

tical dependency between ”Truck DD” and ”Trans-

port DD-HH”.

False quantity of goods: ”Heal Pharma” con-

tracted ”Global Transport” to transport 10 pallets of

pharmaceutical goods. In case that an error occurs

during the loading or unloading of the goods, parts of

the cargo might get lost. Let us assume that the error

occurred during the loading of the truck at the ware-

house of ”Heal Pharma”. The problem will be rec-

ognized during the unloading procedure at the train

station and is propagated to ”Global Transport” as a

violation of the respective SLO by ”Truck DD”. Now

all contracts with the other services (”Train Shipping

DD-HH” and ”Truck HH”) need to be adapted in such

a way that the transport of goods should be carried out

for 9 pallets only. These are examples for horizontal

dependencies. There is also a vertical dependency to

the composite service due to the fact that it also cannot

be completed successfully any more. Thus, the con-

tract with ”Heal Pharma” will be violated or needs to

be renegotiated.

It might not always be necessary to adapt a pro-

cess once problems occur. The SLA might state that

deliveries need to be on time in 95 percent of all trans-

ports. Nevertheless it is important for many logistics

providers to avoid unnecessary costs. Such costs may

occur, for example, when ”Global Transport” does not

inform ”HH Logistics” about the fact that the goods

do not need to be transported any more. Providing

stakeholders with the right information or renegotiat-

ing SLA are possible ways for avoiding unnecessary

costs.

4 MANAGING SERVICE

DEPENDENCIES

In many cases service dependencies cannot be

avoided but need to be actively managed by the com-

posite service provider. In this section we present an

approach which will support this work.

Our solution approach is based on an architecture

for service modeling and description, SLA (re-)nego-

tiation, and service monitoring. It is extended by

functionality for service dependency analysis in ser-

vice compositions based on SLAs and the business

process and a central model for capturing service de-

pendencies. This dependency model is created dur-

ing dependency analysis at the time of the creation

of the service composition and evaluated at runtime

upon the occurrence of SLO violations or a request

for SLA renegotiation.

In this chapter we present our conceptual architec-

ture, explain our approach to the formal modeling of

service descriptions and SLAs, and present ﬁrst steps

towards a dependency model.

4.1 Conceptual Architecture

The proposed architecture, which is shown in Fig.

3 (in FMC notation

), consists of the service design

time tools (ISE Development Environment), a mar-

ketplace for trading services (Service Management

Platform - SMP), and a runtime environment (Trad-

able Services Runtime - TSR). It is based on joint

work together with our partners within the TEXO

project.

The ISE Development Environment (Cardoso

et al., 2008) supports the modeling and description of

services based on the Universal Service Description

Language (USDL) (Cardoso et al., 2009) and the cre-

ation of service compositions. The analysis of service

dependencies and the creation of a dependency model

takes place as part of the development process. This

will be explained in more detail later. Following the

successful development of a service, it is deployed to

a TSR and registered at the SMP.

The SMP enables service providers to register

their services and thus make them available to inter-

ested consumers (creators of compositions as well as

end users). Besides functionality such as service reg-

istration and billing for service usage, SLA negotia-

tion is supported via the SLA Manager component.

We implemented SLA negotiation based on the WS-

Agreement speciﬁcation (Andrieux et al., 2007). SLA

Fundamental Modeling Concepts website:

http://www.fmc-modeling.org/home

TOWARDS DEPENDENCY MANAGEMENT IN SERVICE COMPOSITIONS

Tradable

Service

Runtime

(TSR)

Service

Management

Platform (SMP)

ISE Development

Environment

Service

Description

Service Composition

Composition

SLA (Re-)

Negotiation

Service

Dependency

Analysis

SLA

Manager

Process

Engine

Service

Monitoring

Dependency

Effects

Evaluation

Dependency

Model Store

SLO Violation Event

SLA

Template

Monitoring Data

Web

Browser

Intermediate

Dependency

Model Store

Dependency

Model Store

Dependency

Effects

Evaluation

Dependency Model

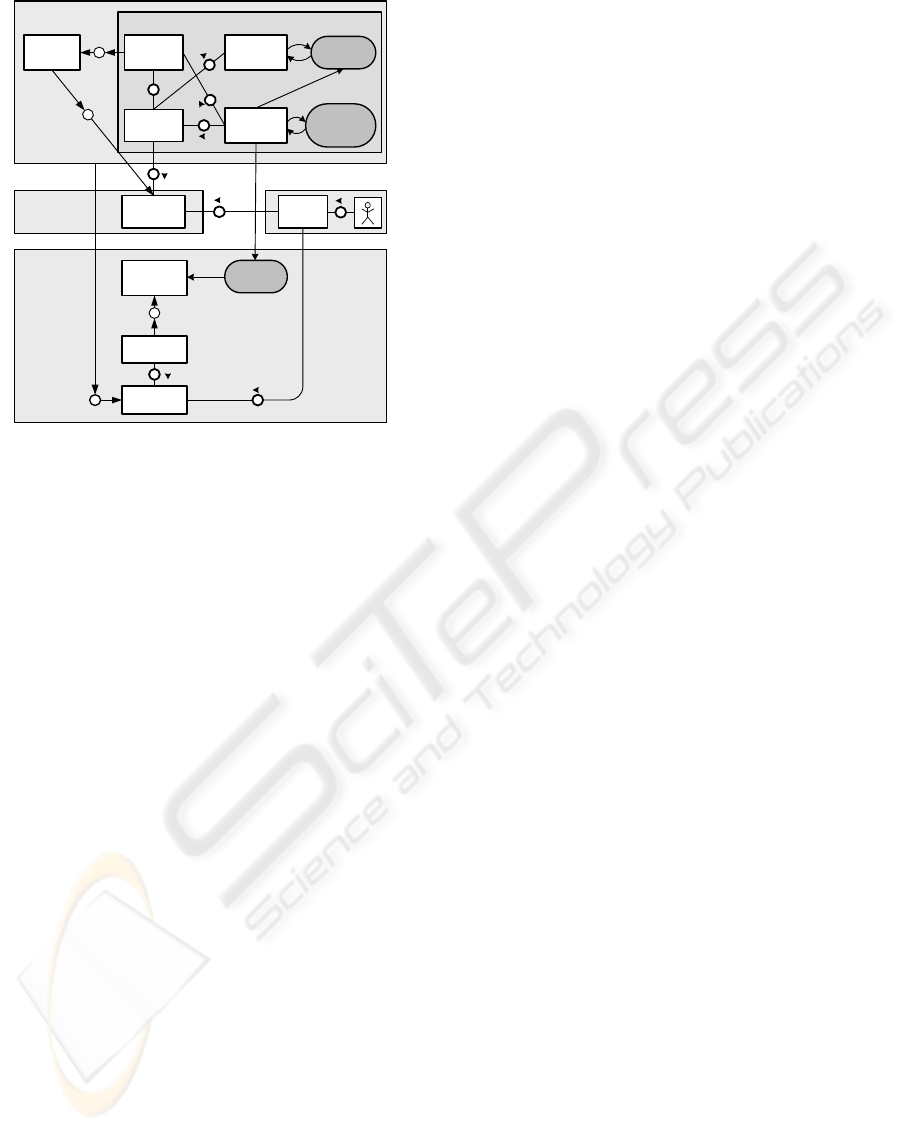

Figure 3: Conceptual Architecture.

templates are offered and can be requested from in-

terested consumers, who will then modify the tem-

plate according to their speciﬁc needs. The resulting

agreement proposal document will then be returned

to the SLA Manager and forwarded to the service

provider, who may decide to either accept or reject

the agreement. The ﬁnal SLA will then be stored by

the SLA Manager from where it will be available for

the provider as well as the consumer for monitoring

purposes.

The TSR provides support for executing and mon-

itoring services. To determine SLO violations, the

service monitoring component accesses SLA infor-

mation and compares negotiated SLO with monitor-

ing data. Upon the detection of SLO violations the

dependencies on other services are evaluated by the

Dependency Effects Evaluation component.

4.2 Modeling Services and Service Level

Agreements

USDL forms the base for the formal description of

operational, technical, and business attributes of ser-

vices. It covers attributes which are common for most

services independent of their nature (rather technical

or more business oriented), including provider infor-

mation, terms of use and pricing. At the same time

USDL does not cover attributes which are speciﬁc

to any application domain of a service. Thus, we

have extended USDL with a language called Logis-

tics4USDL to express special attributes of the logis-

tics domain such as delivery time and transport ca-

pacity, to only mention a few. The following listing

presents a simpliﬁed version of a USDL service de-

scription enriched with Logistics4USDL elements.

service {

serviceName Train Shipping DD-HH

description Goods transport via train

business {

providerName Railway Services

providerAddress Traubestr. 17, Dresden

log4usdl:logistics{

log4usdl:quote{

log4usdl:pickUpAddress Seestr. 1, Dresden

log4usdl:deliveryAddress Im Tal 3, Hamburg

log4usdl:pickupTime 2009-02-10T16:00:00Z

log4usdl:deliveryTime 2009-02-10T16:00:00Z

log4usdl:transportCapacity 10 pallets

}}

reliability 95%

termsOfUse www.rw-services.com/ToU.html

}

operational{...}

technical{...}

}

This formal service description provides the base

for formalizing contracts (SLA) (Cardoso et al.,

2009). SLA templates are created from the service

description as part of the service engineering process

and made available at the SLA Manager component

for SLA negotiation. These templates are based on

the WS-Agreement speciﬁcation and are augmented

with service information using the USDL and Logis-

tics4USDL notations.

Based on the SLA information dependencies be-

tween different services are analysed and formalized

in a dependency model. The analysis of dependen-

cies requires a formal description of SLAs in order

to be able to relate service aspects of different ser-

vices with each other. This formal base is provided by

USDL and Logistics4USDL. A simpliﬁed version of

an agreement including USDL and Logistics4USDL

terms is presented in the following listing.

agreement {

Name Train Shipping DD-HH SLA

ServiceDescriptionTerm {

ServiceName Train Shipping DD-HH

usdl:description Goods transport via train

usdl:providerName Railway Services

usdl:providerAddress Traubestr. 17, Dresden

}

ServiceProperties {

VariableSet {

Variable {

Name deliveryTime

Metric xsd:dateDuration

}

Variable {

Name transportCapacity

Metric log4usdl:pallet

}}}

GuaranteeTerm {

ICE-B 2009 - International Conference on E-business

Name BasicService_GUARANTEE

monitored true

ServiceScope Train Shipping DD-HH

ServiceLevelObjective {

SLOName deliveryTime

ServiceLevel 2009-02-10T16:00:00Z

}

ServiceLevelObjective {

SLOName transportCapacity

ServiceLevel 10

}}}

4.3 The Dependency Model

We are currently developing a model for representing

the dependencies between services in service com-

positions. In (Bodenstaff et al., 2008), (Ludwig and

Franczyk, 2008), and (Zhou et al., 2008) three ap-

proaches to expressing dependencies are presented.

While they form a good base for our work, they have

some shortcomings. While the ﬁrst two approaches

are only concerned with vertical dependencies, the

third one is not concerned with dependencies on the

base of SLAs. Please see the related work section for

more details. Thus, they need to be extended to ﬁt the

needs of business services from the logistics domain.

Runtime (TSR)

Design Time

Service

Dependency

Analysis

SLA 4

SLA 3

SLA

SLA 1

Process

Dependency

Model

Dependency

Effects

Evaluation

Renegotiation

Request

Renegotiation

Effects

SLO

Violation Event

SLO Violation

Effects

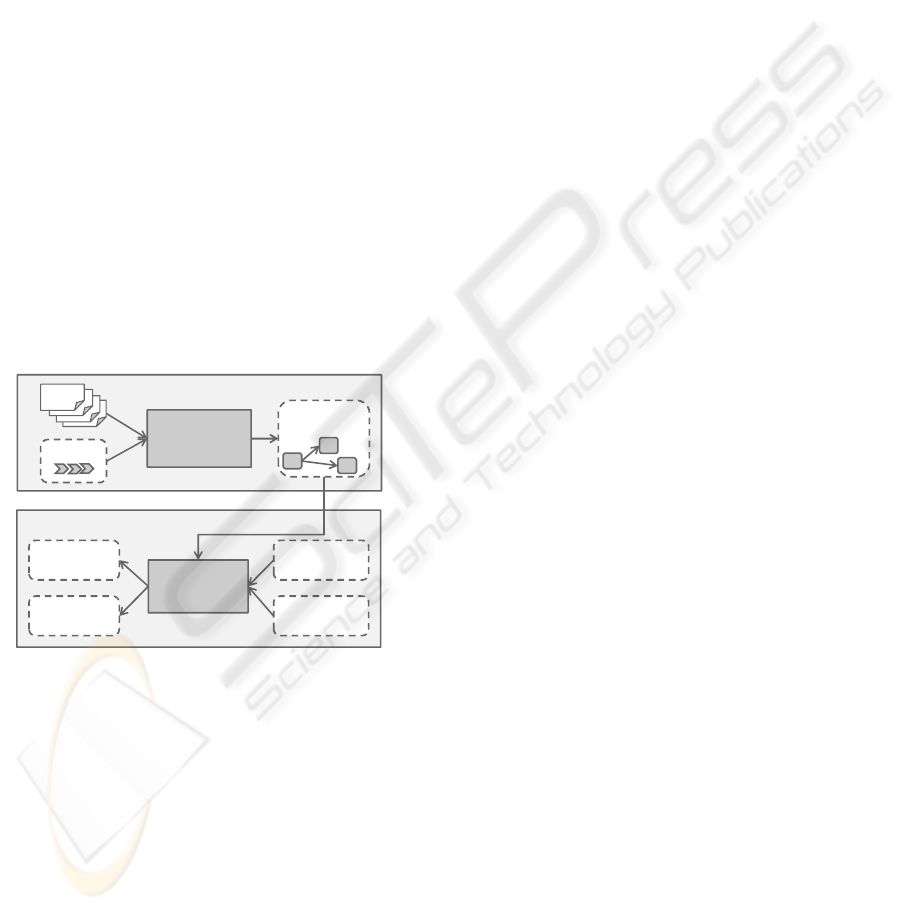

Figure 4: Dependency Analysis and Dependency Effects

Evaluation.

The dependency model will be created at design

time containing information about the SLAs which

were negotiated with the service consumer and the

different service providers, as well as the horizontal

and vertical dependencies between different SLOs of

all involved SLAs.

The creation of the dependency model will take

place in two steps. During the process of creating

the service composition, SLAs are negotiated with the

single service providers. The formal description of

SLOs based on USDL and Logistics4USDL will be

used as a base for determining the dependencies. The

created process determines the relationships among

services and thus helps analysing the dependencies.

The dependency model will be updated once an SLA

has been negotiated with a consumer of the composite

service.

We currently envision an automatic approach to

dependency analysis and model creation based on the

formal process and SLA description. This process is

shown in Fig. 4. Further work is necessary to deter-

mine whether additional manual modeling effort will

be necessary.

Dependency effects evaluation is triggered by

SLO violations detected during service monitoring

or renegotiation requests. The Service Dependency

Monitoring component uses the dependency model

for evaluating horizontal and vertical dependencies

and provides information on affected services (see

Fig. 4). Finally the handling of detected issues is

started.

5 RELATED WORK

Most approaches to SLA monitoring (Flehmig et al.,

2006; Ameller and Franch, 2008) are concerned with

the evaluation of single contracts between a service

provider and a consumer. This is not sufﬁcient in the

context of composite services since they have hori-

zontal and vertical dependencies between the differ-

ent services which need to be considered. Thus, we

build on the different approaches and extend them

with the functionality for managing service depen-

dencies.

The approach presented in (Bodenstaff et al.,

2008) monitors vertical service dependencies. A

model for formalizing SLA dependencies is de-

scribed. It covers the aspects of response time and

cost. This approach helps to determine to what extend

different services are responsible for SLO violations

of a composite service. Problems occurring between

single services are not covered. Thus, the approach

is too limited for the comprehensive management of

dependencies between services in compositions.

The COSMA approach (Ludwig and Franczyk,

2008) supports the management of SLAs in service

compositions where the SLOs negotiated for the com-

posite service depend on the respective SLOs negoti-

ated for the atomic services of the process. In a cen-

tral document called COSMAdoc the vertical depen-

dencies for different QoS parameters as well as price

information are expressed using aggregation formu-

las. Horizontal dependencies between the different

services are not handled.

In (Zhou et al., 2008) the authors discuss con-

trol and data dependencies in business processes in

TOWARDS DEPENDENCY MANAGEMENT IN SERVICE COMPOSITIONS

the light of sequencing constraints. They present an

approach for deriving a dependency model from se-

mantically annotated business activities by evaluat-

ing their pre-conditions, effects, and parameters. It is

destined to support the handling of sequencing con-

straints at runtime. No work has been done with re-

gard to analysing SLAs, representing dependencies

between different SLOs or for the determination of

SLO violation and renegotiation effects.

Related to our work is also the functionality pro-

vided by Business Activity Monitoring (SAP, 2006)

approaches. Their goal is to monitor business ac-

tivities (e.g. sales process) spanning across organi-

zational boundaries. Events from different sources

are collected and correlated in order to determine

problems such as conﬂicting quantities of line items

between an order and received goods. This pro-

vides business people with information about prob-

lems within processes only after they have occurred.

It enables them to quickly react and potentially solve

the problem. It does not enable the prediction of ef-

fects of the problem on other parts of the business pro-

cess.

6 CONCLUSIONS

In this paper we have presented the problem of hori-

zontal and vertical dependencies between services in

compositions and argued for a need to manage them.

We have illustrated these dependencies based on two

examples from the logistics domain.

We also presented our solution approach to depen-

dency management in form of a conceptual architec-

ture. It supports the development of composite ser-

vices, trading of services on a marketplace, and ser-

vice provisioning via a service runtime platform. The

management of dependencies consists of two main

steps: the analysis of dependencies and creation of

a dependency model at design time, and the depen-

dency effects evaluation at runtime based on the de-

pendency model. Components for analysing and eval-

uating service dependencies were integrated into the

conceptual architecture as important building blocks.

As ﬁrst steps towards the analysis of service de-

pendencies we presented how logistics services can

be formally described based on the Universal Service

Description Language and the Logistics4USDL ser-

vice description extension. This description provides

the base for formalizing SLAs which are then anal-

ysed for dependencies between services.

We outlined our envisioned dependency model, as

well as steps and artefacts needed to create this model

at design time and evaluate it at runtime. While large

parts of the conceptual architecture have already been

implemented as part of the TEXO project, the devel-

opment of the dependency model, as well as the de-

pendency analysis and evaluation components is on-

going work.

REFERENCES

Ameller, D. and Franch, X. (2008). Service level agreement

monitor (salmon). In ICCBSS ’08: Proceedings of the

Seventh International Conference on Composition-

Based Software Systems (ICCBSS 2008), pages 224–

227, Washington, DC, USA. IEEE Computer Society.

Andrieux, A., Czajkowski, K., Dan, A., Keahey, K., Lud-

wig, H., Nakata, T., Pruyne, J., Rofrano, J., Tuecke,

S., and Xu, M. (2007). Web services agreement speci-

ﬁcation (ws-agreement). Technical report, Open Grid

Forum.

Bodenstaff, L., Wombacher, A., Reichert, M., and Jaeger,

M. C. (2008). Monitoring dependencies for slas: The

mode4sla approach. In IEEE SCC (1). IEEE Com-

puter Society.

Cardoso, J., Voigt, K., and Winkler, M. (2008). Service

engineering for the internet of services. To appear

in Enterprise Information Systems, Lecture Notes in

Business Information Processing (LNBIP).

Cardoso, J., Winkler, M., and Voigt, K. (2009). A service

description language for the internet of services. Pro-

ceedings of ISSS 2009.

Flehmig, M., Troeger, P., and Saar, A. (2006). Design and

integration of sla monitoring and negotiation capabil-

ities. Adaptive Services Grid Deliverable D5.II-7.

Ludwig, A. and Franczyk, B. (2008). Cosma an approach

for managing slas in composite services. In Bouguet-

taya, A., Krueger, I., and Margaria, T., editors, ICSOC

2008, number 5364 in LNCS, page 626632. Springer-

Verlag Berlin Heidelberg.

Pressebuero, T. (2008). Texo - Business Webs

im Internet der Dienste. http://theseus-

programm .de/scenarios/de/texo.

SAP (2006). Business activity monitoring. White paper,

SAP AG.

Winkler, M., Cardoso, J., and Scheithauer, G. (2008). Chal-

lenges of business service monitoring in the internet of

services. In Proceedings of iiWAS2008. Linz, Austria.

Zhou, Z., Bhiri, S., and Hauswirth, M. (2008). Control

and data dependencies in business processes based

on semantic business activities. In Proceedings of ii-

WAS2008. Linz, Austria.

ICE-B 2009 - International Conference on E-business
