An Attribute-based Approach to the Analysis of Model

Characteristics

Christian Saad, Florian Lautenbacher and Bernhard Bauer

Programming Distributed Systems Lab, University of Augsburg, Germany

Abstract. Modeling languages provide a powerful technique for describing domain-

speciﬁc concepts and their relationships. Since the syntactical structure is deter-

mined by a meta-model, expressions can be deﬁned on the meta layer and evalu-

ated for arbitrary instances. Currently, meta-modeling standards lack an easy way

for deﬁning rules capable of dynamically examining the behavior of a model.

In this paper we discuss a new approach that links meta-modeling with well-

understood methods from the ﬁeld of compiler construction in order to express

semantic constraints and perform data-ﬂow calculations on model instances. We

show how our approach can be used to analyze and validate business processes

and specify further use cases like e.g. the calculation of model metrics.

1 Introduction and Motivation

Meta-models capture the concepts of an application domain in a formal way. Widely

utilized in computer science - most notably in the ﬁeld of software engineering - models

may describe (software) systems, interactions or control and data ﬂows. While mainly

serving as documentation in the past, practices like model-driven engineering (MDE,

[1]) leverage their usage, e.g. through automatic code-generation.

Static semantics, i.e. restrictions on instances that depend on the context in which

they appear and therefore cannot be expressed using solely syntactical constructs, play

an important role in the modeling process. The Object Constraint Language (OCL, [2])

is a prominent method allowing to deﬁne such restrictions. It is fully integrated with

other OMG technologies like the Model-Driven Architecture (MDA

), OMG’s ap-

proach to MDE, that intends to enhance reuse and automation in software development.

However, making heavy use of a language’s syntactic structure, like the OCL does, has

the disadvantage of being highly sensitive to changes of the modeling language. Fur-

thermore, since OCL does not allow for evaluation of cyclic data ﬂows, possibilities for

analyzing dynamic aspects, e.g. with an abstract interpretation, are severely limited.

The approach discussed in this paper overcomes these shortcomings by combining

concepts from the worlds of meta-modeling and formal languages, both of which are

methods allowing to deﬁne domain speciﬁc languages (DSL) through different layers

of abstraction. This enables to adapt two well-understood techniques from the ﬁeld of

compiler construction, attribute grammars (AG) and data-ﬂow analysis (DFA), for the

purpose of enriching (meta-)model entities with semantic attributes describing local

data ﬂows. Evaluating the attributes for an arbitrary model instance then yields infor-

mation about its dynamic characteristics.

Saad C., Lautenbacher F. and Bauer B. (2009).

An Attribute-based Approach to the Analysis of Model Characteristics.

In Proceedings of the 1st International Workshop on Future Trends of Model-Driven Development, pages 13-22

DOI: 10.5220/0002196200130022

 SciTePress

This paper is structured as follows: The relevant basics coming from the ﬁelds of

compiler construction and meta-modeling are outlined in Section 2. In Section 3 we

examine the common grounds between meta-models and context free grammars in or-

der to derive the requirements for semantic attributes on meta-models before proposing

an exemplary speciﬁcation. The usefulness of the presented approach is discussed in

the following section in the context of an implemented use case. Section 5 gives an

overview on related work, before we show how our approach can be further extended.

2 Background

2.1 Attribute Grammars

Attribute grammars - introduced by [3] - specify the static semantics of a programming

language L

P L

on top of its syntactic structure deﬁned by a context free grammar (CFG)

P L

= (N, T, S, P ), e.g. using the Extended Backus-Naur Form (EBNF). Its produc-

tions P describe how non-terminals N , starting with S ∈ N, can be replaced by other

(non-)terminals, until a string is left that consists only of terminal characters T .

An attribute grammar AG adds to a CFG a set of attributes A, each of which is

assigned to a symbol x ∈ N ∪ T and is either of the type Inh (inherited) or Syn

(synthesized). Semantic rules R assigned to productions P calculate an attribute’s value

by taking other attributes in the same production as input arguments and mapping them

to a result value by applying a function f. This can be written as X

.a = f (X

.b, ...).

The abstract syntax tree (AST) of a program prog ∈ L

P L

has non-terminals N

as nodes and terminals T as leafs. The attribute-enriched version is called decorated

AST (DAST). Attribute instances can be thought of as property ﬁelds of the nodes

and leafs while the semantic rules establish input dependencies between attributes at

adjacent nodes, thereby describing an information ﬂow along the AST’s structure. To

obtain an unambiguous result, the derived equation system must not contain cycles.

Usually, this is achieved through the use of restricted classes of AGs that allow only non-

cyclic dependencies and have a (optimal) static evaluation order that can be computed

in advance (cf. [4]).

2.2 Data-ﬂow Analysis

Compilers use data-ﬂow analysis typically for optimization and error detection pur-

poses, e.g. for eliminating unreachable code or for releasing memory assigned to vari-

ables after their last access. DFA allows for an abstract interpretation, because it is able

to approximate some aspects of the runtime behavior of a program.

Data-ﬂow equations (speciﬁc to the DFA problem to be solved) assigned to nodes

n ∈ N of a program’s control ﬂow graph G = (N, E) are able to access results calcu-

lated at adjacent nodes and use them as input arguments. DFA equations usually operate

on value sets that are initialized with a default value (typically ∅ or the value domain D)

and merged using set operations (∪ or ∩), both of which are speciﬁc to the current eval-

uation semantics. Cyclic deﬁnitions are solved by iteratively recalculating the equation

system and propagating the results after each iteration to neighboring nodes until the

resulting values stabilize in an algorithm-dependent ﬁxpoint (cf. [5]).

As an example, the equations in(n) =

x∈P redecessors(n)

out(x) and out(n) =

gen(n) ∪ (in(n) − kill(n)) applied to nodes N propagate information that is locally

generated (gen(n)) but not destroyed (kill(n)) along the ﬂow direction of the graph.

in(n) aggregates the result sets of all predecessors using the operator ∩, narrowing

down the ﬁnal ﬁxpoint set to values that reach a node on all of its incoming edges.

2.3 Meta-models

As the Meta-Object Facility (MOF, [6]) speciﬁcation states: "A meta-model is a model

used to model modeling itself". Meta-models like the MOF-based Uniﬁed Modeling

Language (UML) deﬁne an - often extensible - modeling language that incorporates the

syntax and part of the corresponding semantics for a speciﬁc application domain.

Each element in a model is an instance of its meta-model class. A meta-modeling

architecture may comprise an arbitrary number of meta layers, since each layer may

have an overlaying speciﬁcation. For practical purposes MOF is limited to four layers

M0-M3 with the meta-meta layer M3 consisting of the self-describing MOF model.

Since many DSLs require restrictions that cannot be expressed through the syntac-

tical constructs of the meta language, meta-models are often complemented with static

semantics deﬁnitions that can be described informally but also through constraint lan-

guages like the OCL.

3 Semantic Attributes for Meta-models

3.1 Attributes in the Context of Modeling

Grammars and models share some basic principles: Just as the words that make up a

CFG’s language follow the structure determined by the grammar’s productions, meta-

models characterize modeling languages in terms of how elements in the domain are

related to each other. Identifying similarities and differences between both worlds forms

the basis for devising an attribution concept for meta-models.

First, there has to be an agreement on the alignment of the abstraction layers. The

authors of [7] describe a bridge between model- and grammarware, linking the two

self-describing "meta-languages" EBNF and MOF M3 and connecting grammars and

programs to the M2 (meta) and M1 (model) layers respectively.

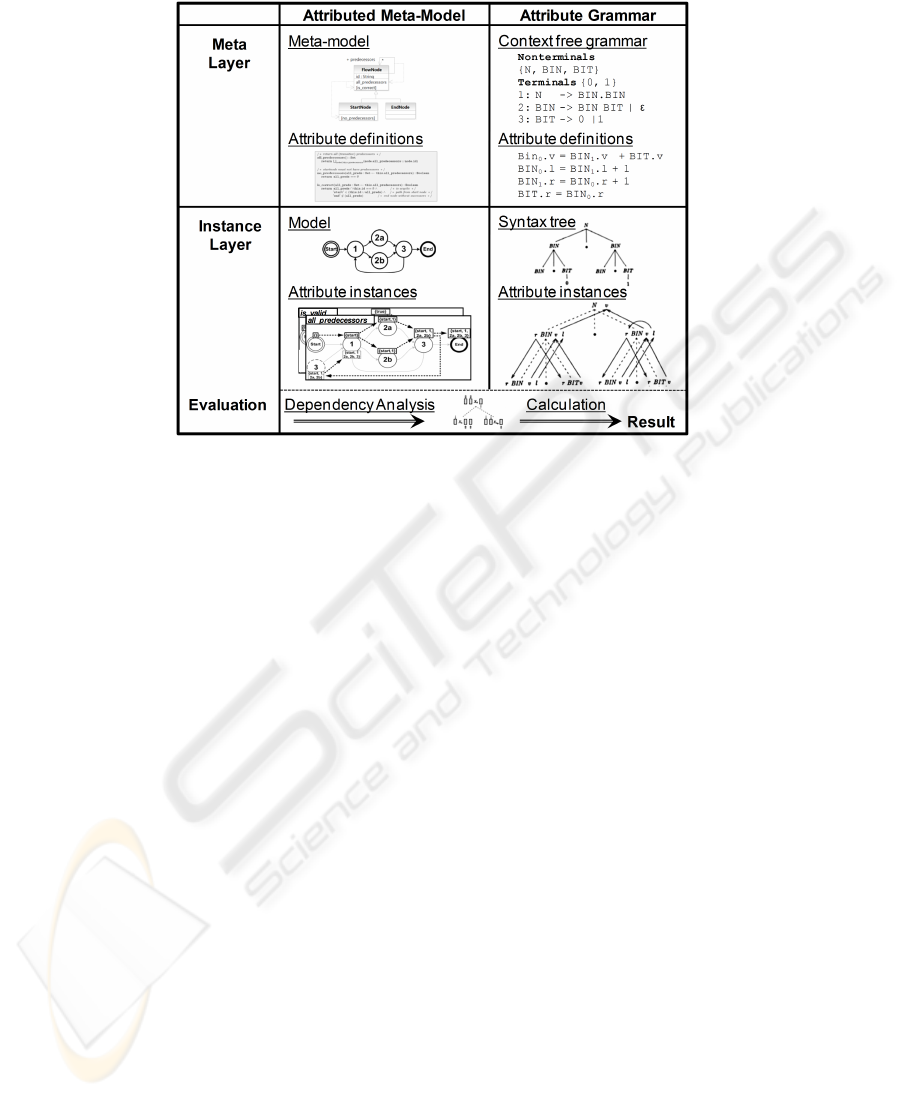

Figure 1 shows where attributes ﬁt in: The basic idea is to assign attributes to meta-

model elements the same way attributes are connected to grammatical productions and

to evaluate them for a given AST or model. Probably the most obvious requirement here

is the need for an attribution language, the term "language" already hinting at the fact

that it must be located at a meta-layer (M3 in this case), meaning we have to provide

syntax (abstract and concrete) and semantics for the deﬁnition of attributes.

While there is no ofﬁcial standard for the syntax of attribute grammars, some au-

thors like [8] propose an extended deﬁnition of CFGs that incorporates declaration and

usage directives. The same can be applied to meta-models, resulting in the enrichment

of the MOF deﬁnition with "meta-attributes". Since this is likely to cause problems

with existing tools and algorithms, e.g. model transformations, it is advisable to keep

Fig. 1. Comparing attributed meta-models and attribute grammars on a conceptual level (the at-

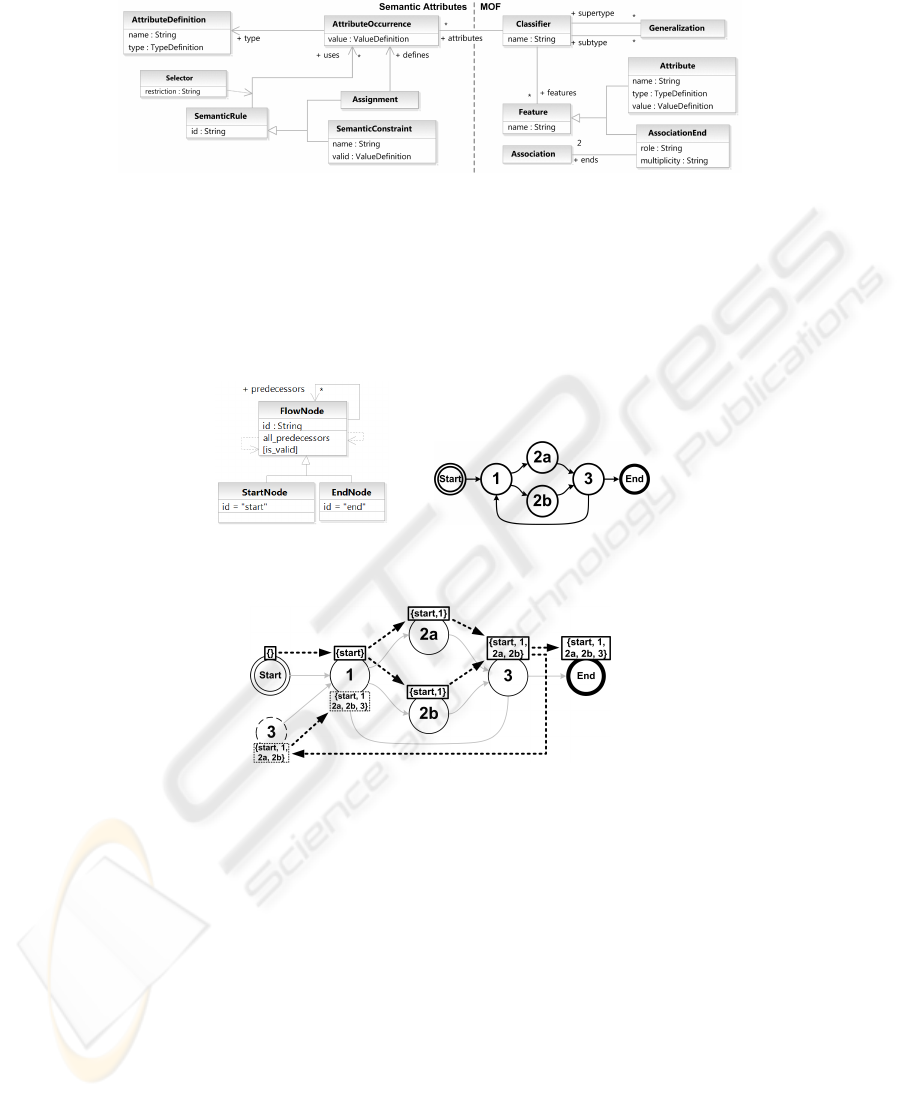

tributed (meta-)model is shown in detail in Figure 3, the AG example can be found in [8]).

attributes (and attribute deﬁnitions) outside of the (meta-)models and instead using a

framework to establish the links between model elements and their attributes.

In grammars, attributes exist as (data) type deﬁnitions assigned to symbols x ∈

N ∪ T creating an occurrence every time a symbol is used in a production. Occurrences

yield attribute instances in the AST each time the production is applied. With models,

an attribute deﬁnition, consisting e.g. of name and data type, is referred to by attribute

occurrences attached to model objects. These occurrences have to be declared manually

since there is no equivalence for (non-)terminal deﬁnitions in meta-models.

A key difference between AGs and meta-models lies in their internal structure: A

CFG correlates to a push-down automaton and its language expressions to ASTs while

models and meta-models are usually graphs consisting of nodes and edges. As a direct

impact, the distinction between synthesized and inherited attributes made in AGs is not

feasible for models, since a model graph has no distinguished up or down direction. The

information ﬂow is therefore solely formed by the input dependencies of the semantic

rules which allows for a feature not found in traditional AGs: Semantic rules can access

attributes located at arbitrary model objects using more sophisticated input selectors,

e.g. an all operator collecting attributes from all instances of a class (cf. OCL).

These selectors for required input arguments play a more important role in attribut-

ing meta-models than in AGs. Since only attributes assigned to symbols of the same

production can be used as input and both sides of a grammatical production are always

directly connected in the AST, there is no need for a complex selection mechanism.

For (meta-)models on the other hand, it is not immediately clear how a corresponding

"neighbor" relationship between attributes may look like. In fact, as mentioned above

for the all selector, attribute instances may be referenced from everywhere in the model.

Keeping in mind that associations denominate important relationships in the appli-

cation domain, a method for specifying input arguments should favor routing attributes

along these connections but also have the possibility of addressing arbitrary attributes

if necessary. As further complication, due to the multiplicity property of associations

multiple attribute instances (or none at all) may be returned. Because of its extensive set

of navigation operations, a simpliﬁed OCL - optimized for addressing neighboring ob-

jects and extended with the ability to access and ﬁlter their semantic attributes - presents

itself as a viable alternative to the implementation of a proprietary selection language.

In addition to the arguments, attribute occurrences must be connected to the seman-

tic rules that are going to process the instance values as provided by the selector during

the evaluation process. The rules can be invoked externally through the framework or

expressed using a platform independent language. Adding support for reﬂective exam-

ination of the (meta-)model and the attribution provides additional ﬂexibility.

To support generalization, we have to agree on how attributes are to be handled

in an inheritance hierarchy. Keeping in line with the common modeling notion where

subclasses inherit properties from superclasses, we’re adding semantic attributes to that

set. A more sophisticated solution may support overriding of attribute occurrences much

like functions in object-oriented programming languages can be overridden. Introduc-

ing this polymorphism affects the instantiation mechanism, since based on the concrete

realization type of a model object, different sets of semantic rules have to be invoked.

A concrete syntax acts as interface to a language and should therefore be also de-

signed carefully. Although a textual representation would be possible (and is necessary

for internal processing), visual illustration tends to be much more intuitive, especially

in the area of meta-modeling where working with graphical tools is state-of-the-art. The

concrete syntax of the language constructs should therefore ﬁt in with the representa-

tion of (UML) model objects showing attribute occurrences along with their deﬁnitions,

their connection with semantic rules and (optionally) their input dependencies.

Once the attribution has been instantiated for a given model (resulting in a deco-

rated model) the semantic rules have to be invoked with respect to the deﬁned input

dependencies. For non-circular deﬁnitions this can be done in a single run while cyclic

dependencies require multiple passes until all values have stabilized in the desired ﬁx-

point. A simple algorithm for this problem is introduced in the next section.

3.2 Deﬁning an Attribution Concept for Meta-models

In this section we provide a deﬁnition for attribute enriched meta-models which may

serve as basis for a more extensive formalization. Because of its relevance and wide -

spread use, a MOF-based layout was chosen to internally represent the enhanced meta-

model.

Figure 2 shows a simpliﬁed view on MOF M3, extended with the deﬁnition of se-

mantic attributes: A MOF Classiﬁer is linked with AttributeOccurrences whose proper-

ties are controlled by an AttributeDeﬁnition. The instance value of an AttributeOccur-

rence is calculated by a semantic rule of the type Assignment while SemanticConstraint

rules just evaluate to true or false. A reference to the implementation of a Semanti-

cRule is given in its id property. The input dependencies are part of the abstract syntax

and modeled through the uses association and a simple Selector mechanism allowing

Fig. 2. Simpliﬁed representation of the MOF extended with the deﬁnition of semantic attributes.

for further restrictions. Our selector directives enable for example to narrow down the

set of returned attribute instances to instances located at neighbor objects (i.e. objects

connected through an association), instances at supertypes or attributes at the local in-

stance. Since the additional elements are only required for computation purposes the

extensions can be applied dynamically before the evaluation (as shown in Section 4)

thereby staying completely MOF-compliant from the perspective of the source models.

(a) Meta-model of a

ﬂow-graph supporting

alternative paths

(b) A ﬂow-graph model violat-

ing the demand for sequential

ﬂows

all_predecessors

Fig. 3. Example for attribution, instantiation and evaluation of a ﬂow-graph (meta-)model.

Figure 3(a) shows a meta-model describing a simple ﬂow-graph in the chosen con-

crete syntax: Semantic attributes and constraints are displayed in an additional com-

partment using the name of their attribute deﬁnition or constraint name while input

dependencies are visualized through dashed arrows. In this example we want to al-

low sequential alternative ﬂows, i.e. there must not be any back-edges. This is ensured

with use of the semantic attribute all_predecessors that carries the transitive list of

all predecessors. If the constraint is_valid ﬁnds that the current node is already con-

tained in this set, a circular ﬂow is detected. This reveals not only the fact that the

requirements have been violated but also the exact position where the problem is lo-

cated. Using a mathematical notation, the semantic rules can be written as follows:

/ ∗ compute all (transitive) predecessors of a ﬂownode ∗ /

all_predecessors: Assignment on FlowNode

return

node∈this.predecessors

(node.all_predecessors ∪ node.id)

/ ∗ check validity of ﬂownode ∗ /

is_valid: SemanticConstraint on FlowNode

declare this.all_predecessors as all_preds : Set

return all_preds ∩ this.id == ∅ ∧ / ∗ does not contain cycle ∗ /

start

∈ (this.id ∪ all_preds) ∧ / ∗ require path from start node ∗ /

(this.id ==

start

→ all_preds == ∅) ∧ / ∗ start node without predecessors ∗ /

end

/∈ (all_preds) / ∗ end node without successors ∗ /

Here, the input dependencies corresponding to the uses and Selector declarations

(cf. Figure 2) are stated implicitly through access on attribute occurrences. Since canon-

ical MOF attributes do not change during an evaluation they can be treated as constants.

Computing the result values for attributes requires the following tasks: First the at-

tributes have to be instantiated for the given model. Based on the dependency relation-

ships which are speciﬁed in a declarative way, a valid execution order for the application

of semantic rules has to be determined before executing them in this sequence, storing

result values and passing them as input arguments to other semantic rules.

The instantiation of the input dependencies has to be carried out with respect to the

selector statements. The execution order can be established by performing a depth-ﬁrst

search on the dependencies for a given attribute instance. Omitting cyclic references

(back edges) returns a directed acyclic graph (DAG) with a single root element - referred

to as dependency chain - that can be evaluated in a single bottom-up run, allowing

to reuse computed results in other "branches" of the DAG. Cyclic deﬁnitions require

an iterative evaluation, where after a run the results are propagated along the hitherto

ignored back-edges and the evaluation is repeated until a ﬁxpoint has been reached.

Please note that a model may contain multiple dependency chains and also that a

dependency chain may be split up into several subchains which can happen if the root

attribute instance is not the absolute root of the whole chain (e.g. if the root element

has been chosen randomly). However, this has no effect on the ﬁnal result because the

backtracking of the input dependencies ensures that all strongly connected components

(SCC) are completely contained in the examined part of the chain. Therefore, the eval-

uation of each chain can be considered to be an atomic process.

In the average this algorithm can be expected to perform much better than iterating

over the whole equation system repeatedly and invoking semantic rules with known

input values (data driven approach).

Figure 3(c) shows the dependency chain of all_predecessors for the ﬂow-graph

3(b). The cyclic dependency is represented through a virtual copy of node 3 offering the

ﬁrst-pass result from node 3 as input for node 1 in the second run, where the constraint

is_valid then detects an error due to "1" already being in the list of predecessors.

4 Implementation and Application Areas

In this section we describe our prototypical evaluator in the context of a business process

oriented use case and discuss other areas where semantic attributes can be applied.

To fulﬁll the use case’s requirements, actions that are deﬁnitely executed during an

arbitrary run of a workﬂow should be detected. This corresponds to the minimal re-

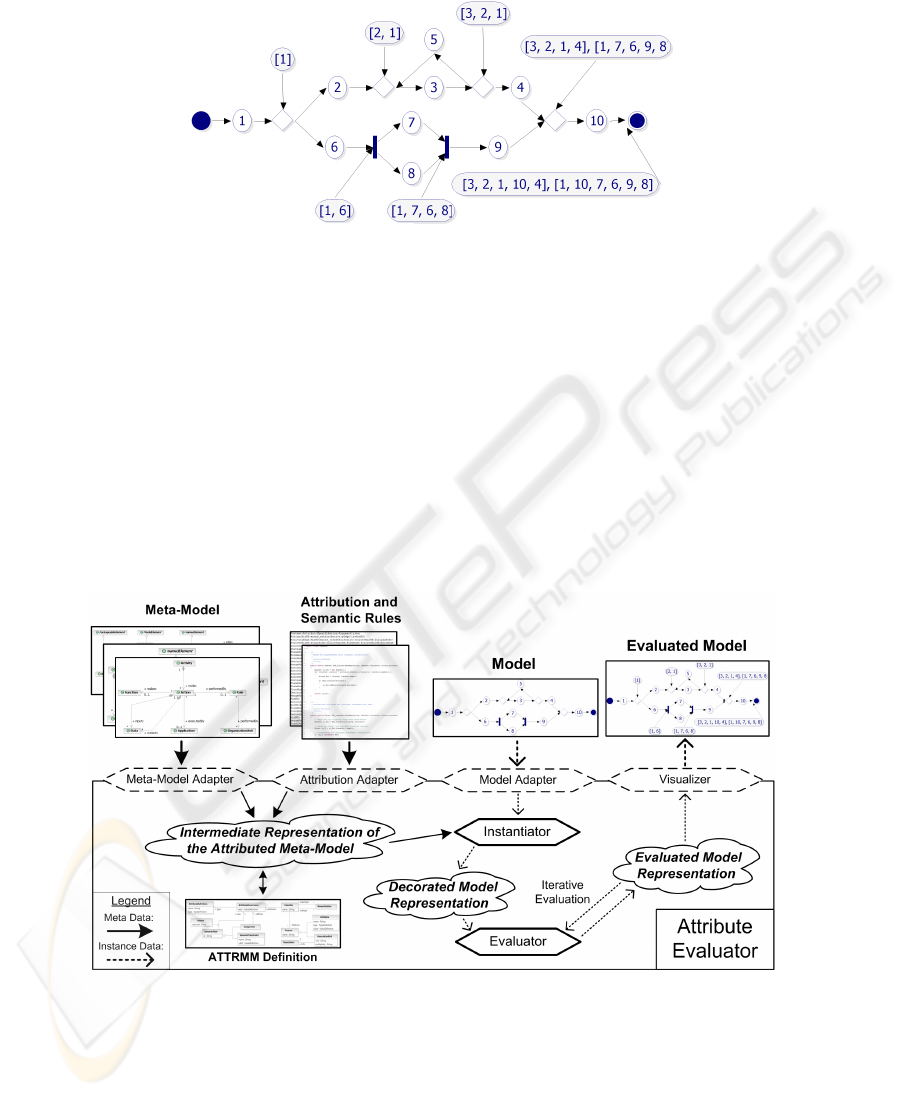

Fig. 4. The calculated sets of minimally executed actions for this workﬂow.

sources that have to be invested in a workﬂow run and reveals optional steps, helping to

improve the arrangement of the business actions. The Eclipse Java Workﬂow Tooling

(JWT, [9]) framework was chosen as workﬂow designer, since it is based on the Eclipse

Modeling Framework (EMF, [10]) - a (partial) implementation of the MOF speciﬁca-

tion - and can be easily extended, e.g. through an aspects-mechanism that allows to

alter the underlying meta-model. Finding actions on minimal paths is far from trivial,

since parallel and alternative paths - possibly even nested - may narrow down this set,

introduce alternative sets or create "shortcuts". DFA allows for a pretty straightforward

ﬁxpoint-based solution, merging action sets at parallel end nodes and creating new al-

ternatives by combining incoming results using the cartesian product. An example of

this evaluation is shown in Figure 4. The annotation at the ﬁnal node indicates that two

distinct minimal execution paths exist, both of which do not contain action 5.

Fig. 5. Architecture of the implemented EMF-based attribute evaluator prototype.

The architecture of the prototype that runs this use case is shown in Figure 5. The

external components - meta-model, model, attribution - are transformed into an internal

EMF representation based on the previously introduced abstract syntax. Currently sup-

ported attributions consist of a textual speciﬁcation and a Java implementation of the

semantic rules. An instantiator module creates the decorated model and passes it to the

evaluator that implements the presented iterative algorithm.

We are currently working on other use cases including a modiﬁed DFA able to cal-

culate all possible execution paths. Complemented with validations ensuring constraints

like the correct nesting of parallel paths, the results serve as a powerful source for sim-

ulation and error detection purposes, e.g. identifying worst-case resource requirements.

Other application areas include block identiﬁcation in graphs through SCCs, detect-

ing unneeded fragments similar to dead code elimination in compilers and calculating

model metrics [11] or the compliance with a set of modeling guidelines [12].

5 Related Work

There are already attempts to use attribute grammars in model-driven engineering: [13]

shows that attribute grammars can be used for model transformations. The authors lift

the source model to a textual form of the abstract syntax and transform it using a so-

called evaluator into another textual abstract syntax describing the target model. An-

other example presented in [14] aims to improve the measurement of process modeling

using attribute grammars to specify the measurement metrics. [7] and [15] align the

CFG deﬁnition with MOF M3 in order to automatically generate mappings between

grammars and meta-models. The problem of dynamic characteristics is also addressed

by [16], who use automatically generated instances of meta-models as basis for tests.

None of these approaches extends meta-models with attributes in order to use them

for DFA or other purposes as we propose in this paper although DFA-based approaches

have been discovered to be useful for models (cf. [17]).

Additional work not connected to MDE but nevertheless relevant in the context of

this approach can be found in the area of attribute grammar research, including circular

AGs that support DFA [18], supported for example by the JastAdd framework [19].

6 Conclusions and Future Investigations

In this paper we have presented an approach that introduces semantic attributes into

modeling as a formal method to perform a static analysis of a model’s dynamic behav-

ior. Since it relies on passing on information locally, complex navigation statements can

be avoided while analysis of (dynamic) circular information ﬂows becomes possible.

We discussed how semantic attributes can be transferred to the world of models,

outlining the challenges encountered and suggesting possible solutions. A MOF-based

declarative speciﬁcation realizing the identiﬁed problems was given along with an eval-

uation algorithm for circular dependencies that can be expected to outperform a purely

data driven method. The feasibility was demonstrated in the context of several use cases,

in particular the abstract interpretation of workﬂows which is already supported by a

prototype serving as proof-of-concept and as basis for future research work.

As this paper is intended to provide an overview of the requirements and challenges

connected to the usage of semantic attributes for the evaluation of meta-models, there

exist a variety of starting points for enhancements: It is planned to extend the prototype

with advanced support for generalization and data types and to include the JastAdd

framework for attribute evaluation. Whether a static evaluation order can be derived

from an attributed meta-model still has to be researched. A formal language deﬁnition

is required as well as a method for expressing attribute selection statements, preferably

as an extension of OCL.

The approach described in this paper constitutes a suitable foundation for all these

enhancements. To provide input for the future development, further use cases in the area

of MDE will be identiﬁed and evaluated.

References

1. Kent, S.: Model Driven Engineering. In: Proceedings of the Third International Conference

Integrated Formal Methods (IFM’2002). (2002)

2. Object Management Group: Object Constraint Language. Speciﬁcation Version 2.0 (Mai

2006)

3. Knuth, D.E.: Semantics of Context-Free Languages. Theory of Computing Systems, 2 (2)

(June 1968) 127–145

4. Aho, A.V., Sethi, R., Ullman, J.D.: Compilers, Principles, Techniques, and Tools. Addison-

Wesley (1986)

5. Allen, F.E.: Control ﬂow analysis. SIGPLAN Not., 5 (7) (1970) 1–19

6. Object Management Group: Meta-Object Facility. Speciﬁcation Version 2.0 (January 2006)

7. Wimmer, M., Kramler, G.: Bridging Grammarware and Modelware. In: MoDELS Satellite

Events. Volume 3844 of Lecture Notes in Computer Science., Springer (2005) 159–168

8. Wilhelm, R., Maurer, D.: Compiler Design. Addison-Wesley (1995) Second Printing.

9. The Eclipse Foundation: Eclipse Java Workﬂow Tooling (JWT), http://www.eclipse.org/jwt/

10. Budinsky, F., Brodsky, S.A., Merks, E.: Eclipse Modeling Framework. Pearson (2003)

11. Chidamber, S.R., Kemerer, C.F.: Towards a Metrics Suite for Object Oriented Design. SIG-

PLAN Not., 26 (11) (1991) 197–211

12. Ambler, S.W.: The Elements of UML 2.0 Style. Cambridge University Press (2005)

13. Dehayni, M., Féraud, L.: An Approach of Model Transformation Based on Attribute Gram-

mars. In: 9th International Conference on Object Oriented Information Systems (OOIS).

Volume 2817 of Lecture Notes in Computer Science. (2003) 412–423

14. Atan, R., Ghani, A.A.A., Selamat, M.H., Mahmod, R.: Software Process Modelling using

Attribute Grammar. International Journal of Computer Science and Network Security (IJC-

SNS), 7(8) (August 2007) 273–281

15. Alanen, M., Porres, I.: A Relation between Context-Free Grammars and Meta Object Facility

Metamodels. Technical report, TUCS (2004)

16. Gogolla, M., Richters, M.: Validation of UML and OCL Models by Automatic Snapshot

Generation. In: Proceedings of the 6th Int. Conf. Uniﬁed Modeling Language, Springer

(2003) 265–279

17. Garousi, V., Bri, L., Labiche, Y.: Control Flow Analysis of UML 2.0 Sequence Diagrams.

(2005)

18. Magnusson, E., Hedin, G.: Circular Reference Attributed Grammars - Their Evaluation and

Applications. ENTCS, 82 (3) (2003)

19. Nilsson-Nyman, E., Ekman, T., Hedin, G., Magnusson, E.: Declarative Intraprocedural Flow

Analysis of Java Source Code. In: Proceedings of LDTA 2008. (2008)
