Discovery Services Interconnection

ome Le Moulec

, Jacques Madelaine

and Ivan Bedini

GREYC – CNRS UMR 6072

Bd Mar

echal Juin, F-14000 Caen, France

Orange Labs., 42, rue des Coutures, F-14000 Caen, France

Abstract. This paper presents and discusses various solutions for the coopera-

tion of several components implementing Discovery Services (DS) in the EPC-

global architecture. This architecture aims to collect and store events involving

objects tagged with a Electronic Product Code (EPC) that can be accessed using

the RFID technology. Each event is stored in a repository with a standardized

interface speciﬁcation: the EPC Information Services. The DS components are

used by the application layer in order to retrieve which repositories store events

about a given code. If this is not a problem for a centralized network, it is still

an open question for a decentralized architecture. Security and access controls

concerns are also taken into account.

1 Introduction

The EPCglobal architecture aims to query events about things collected by the network.

Hardware readers acquire the so called Electronic Product Codes (EPC) from tags using

the RFID technology. Each event is stored in a repository with a standardized interface

speciﬁcation: the EPC Information Services (EPCIS).

As each organization has its EPCIS, information about the supply chain can be re-

trieved and processed by an application layer, if it knows which EPCIS are concerned

with a given EPC code. If this application is standardized for a centralized network

with the Object Naming Service (ONS) and the Discovery Service (DS), the problem is

still open for a decentralized network using several component for the Discovery Ser-

vices [7], [6], [1].

We present in the paper three solutions for the interconnection of the components

of the Discovery Services. The solutions are designed not to introduce to much change

in the other services speciﬁcations of the EPCglobal architecture. Another concern is in

the security and access control enforcement. Then we propose a ﬁrst solution based on

peer to peer technology to share information among the components of the Discovery

Services. A second solution using XML routing is presented. Lastly, a solution giving

more importance to the ONS is given. As this last solution seems more promising to take

into account security and access control, we choose to implement it in a experimental

platform we are currently deploying jointly with Orange Labs and the GREYC labo-

ratory. The paper is organized as follows. Section 1 recalls the EPCglobal architecture

and motivates the needs for several components in Discovery Services implementation.

Le Moulec J., Madelaine J. and Bedini I. (2009).

Discovery Services Interconnection.

In Proceedings of the 3rd International Workshop on RFID Technology - Concepts, Applications, Challenges , pages 59-68

DOI: 10.5220/0002197700590068

 SciTePress

The following sections present the three solutions for DS interconnexion. Finally, the

conclusion presents future works.

2 EPCGLOBAL

EPCglobal

has been created with the speciﬁc purpose to develop a universal identiﬁ-

cation system and an open architecture to provide interoperability in complex supply

chain scenarios. This universal identiﬁcation system is based on assigning a unique

Electronic Product Code (EPC) included in each product (entity) by using tags. These

tags ensure a world traceability using the RFID technology. The applications of the

EPCglobal network is not restricted to classical supply chain management, but may be

use, for instance, in luggage management in airports.

2.1 The Epcglobal Network

The EPCglobal network is structured in layers. Figure 1 shows the data available into

the various levels of this architecture. Note that all the layers are completely disjoint

and communicate only with messages exchanged over the network. These messages use

XML and their structures are normalized by the EPCglobal Organization [8], [2]. This

section describes the different layers as they are deﬁned by the EPCglobal Organization.

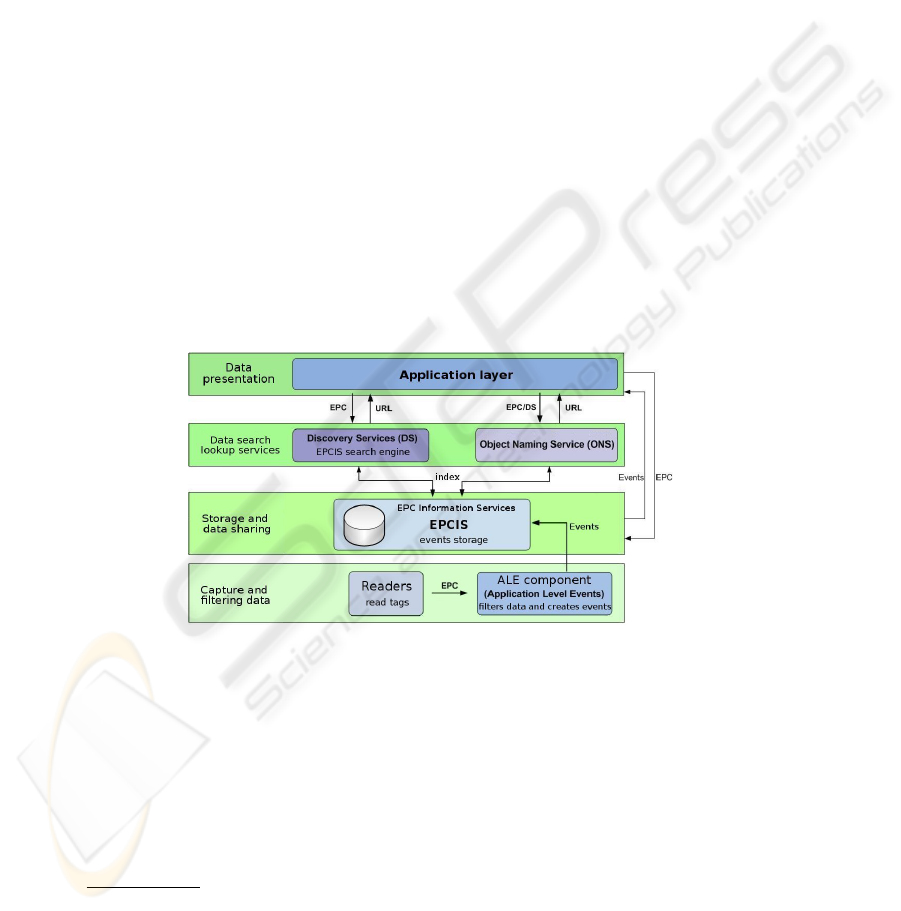

Fig. 1. EPCGlobal Network General Architecture.

The bottom layer involves hardware that can read RFID tags. It is also responsible with

the Application Level Event component (ALE) [3] to detect read failures and to create

events with the codes read from the tags. It is conﬁgured to add several informations

such as “business step”, “read point”, “message type”, “timestamp”. . . Furthermore, it

will ﬁlter the data in order to send only once an event concerning a given code. It does

not store any data and only provide events to the upper layer. The upper layer deals only

with events formatted as valid XML entities.

The next layer is for the storage and the data sharing. This is achieved by the EPC

http://www.epcglobalinc.org

Information Services component (EPCIS) [2]. It is made of the EPCIS repository, de-

signed to store received events. It has two interfaces: the EPCIS capture interface, used

to capture events sent by the lower level layer and the EPCIS query interface, set up to

retrieve the stored information.

The third layer, the lookup layer, contains the services that we want to enhance with

the proposition of this paper. In complex scenarios where the industrial process is not

just managed by a private network and involves more than one ﬁrm, informations are

spread over multiple EPCIS servers. Therefore a lookup layer is mandatory. The Ob-

ject Naming Service (ONS) [4] carries out the indexing of EPCIS manufacturers and

can deliver their IP address. ONS uses the Internet’s existing Domain Name System

(DNS)for looking up (resolving) information about an EPC. Hence, it doesn’t provide

any identiﬁcation or access control policy. Everyone can retrieve any entry. The other

component of this layer, the Discovery Services (DS), is the “search engine” for EPC

related data. They are not limited to the entities that originally assigned an EPC code,

and may return the addresses of all EPCIS containing information about the given EPC

unless it is ﬁltered by the access control policy. Note the Discovery Services standard

is still in development [8].

At the top level, we ﬁnd the application layer that uses the lookup services in order

to extract the events it is interested in, and to process and present the information.

2.2 Standards

As we mentioned, the EPCglobal network is not currently fully normalized. The stan-

dardization process allows three standard levels types for each network component: data

standards, interface standards and standards in development.

Today we cannot call EPCglobal architecture “Internet Of Things”. As is, the net-

work is ready to be used in closed networks. That means that data exchange between

ﬁrms is not currently possible or must be controlled by the ﬁrm itself giving EPCIS net-

work access to particular users. This job should be realized by the Discovery Services

component that is still at the moment in the standard development process.

To set up our own EPCglobal network, we decided to study some DS speciﬁcation

proposals in several projects, as the one presented in [7]. Finally we choose the IETF

organization Internet draft [8] as a start.

2.3 A World with Several Discovery Services

DS are presented as the “search engines” of EPCglobal. But, if web search engines can

be independent, it is not the case for DS. Indeed, while web search engines users expect

only a representative subset of pages addresses corresponding to their request, DS users

usually want all EPCIS addresses storing events about a given EPC. Another difference

is that, unlike search engines with web pages, DS servers cannot crawl EPCIS servers

due to data access control concerns. EPCIS servers have to publish their events to one

(or more) DS server they know. This section motivates why it is useful to have more

than one DS server.

We explained previously that DS servers must fulﬁll two functions: index EPCIS

servers and manage the access control policy. What happens if, for a given EPC the

corresponding information is spread over multiple EPCISs referenced by more than

one DS server? It is conceivable that several companies will want to run their DS server

in order to manage their own data as also argued by K

urshner et al. [6]. Furthermore,

it will be an opportunity to develop additional services

. It is therefore useful to allow

DS interconnection.

The four actors supply chain scenario depicted in ﬁgure 2 will help us to motivate

the problem of ﬁnding DS servers addresses. It is composed of:

– a factory that provides manufactured products;

– a logistic platform, third part actor who take products from the factory to the whole-

saler;

– a wholesaler that stores the products brought from the factory;

– a retailer that sells the products to consumers.

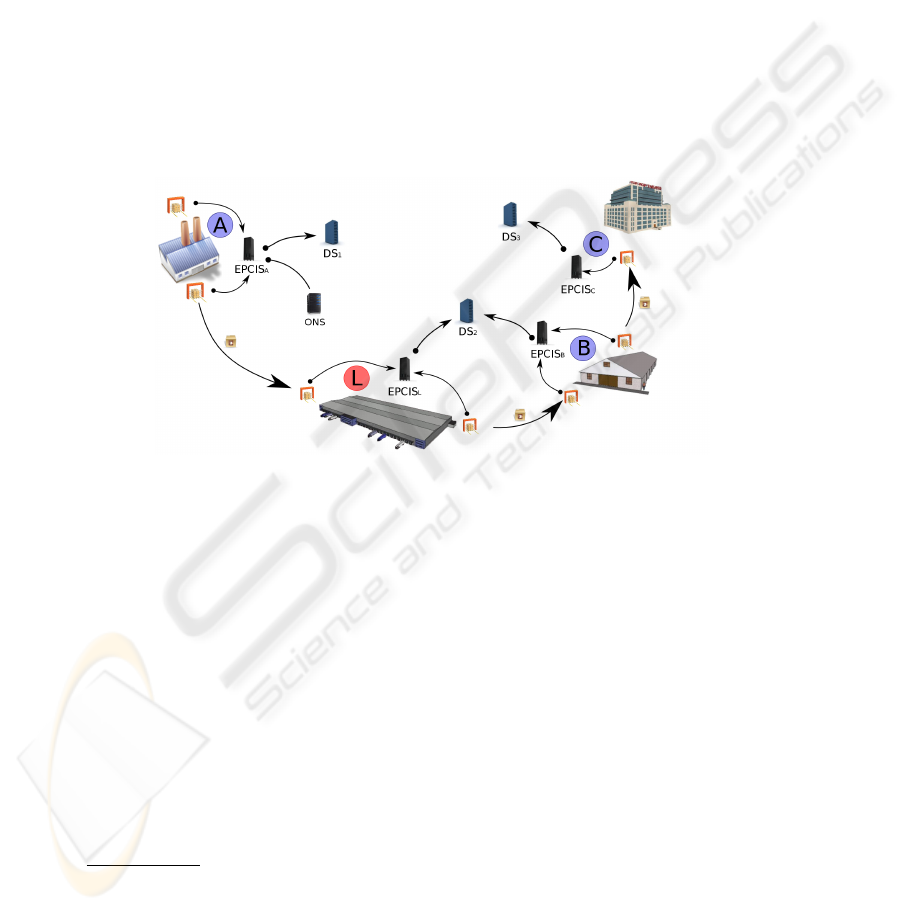

Fig. 2. The four actors supply chain scenario.

To make our scenario more realistic, we suppose that the factory imagines that its prod-

ucts are directly imported by the wholesaler whereas they are carried by our third part

actor: the logistic platform. This use case illustrates that in real conditions no actor can

exactly know who are the next ones in a business process. This test case will be useful

to show that the network will be able to ﬁnd a lost product even if this information is

kept by an unknown actor.

For a given EPC that passes through this supply chain, the corresponding events

will be spread over four EPCIS (A B C and L). Consequently, for this same EPC, the

DS server 1 will index the EPCIS A, the DS2 will index EPCIS L and EPCIS B, and the

last one, the DS server 3 will index EPCIS C. How every user will be able to retrieve all

the information? Currently, it will have to know the three DS servers addresses to query

them one by one. We pictured out several solutions in the next sections:

– share the DS-repository between all DS servers using Peer to Peer technologies;

To follow the metaphor with the Internet, this problem is similar to Internet providers inter-

connection

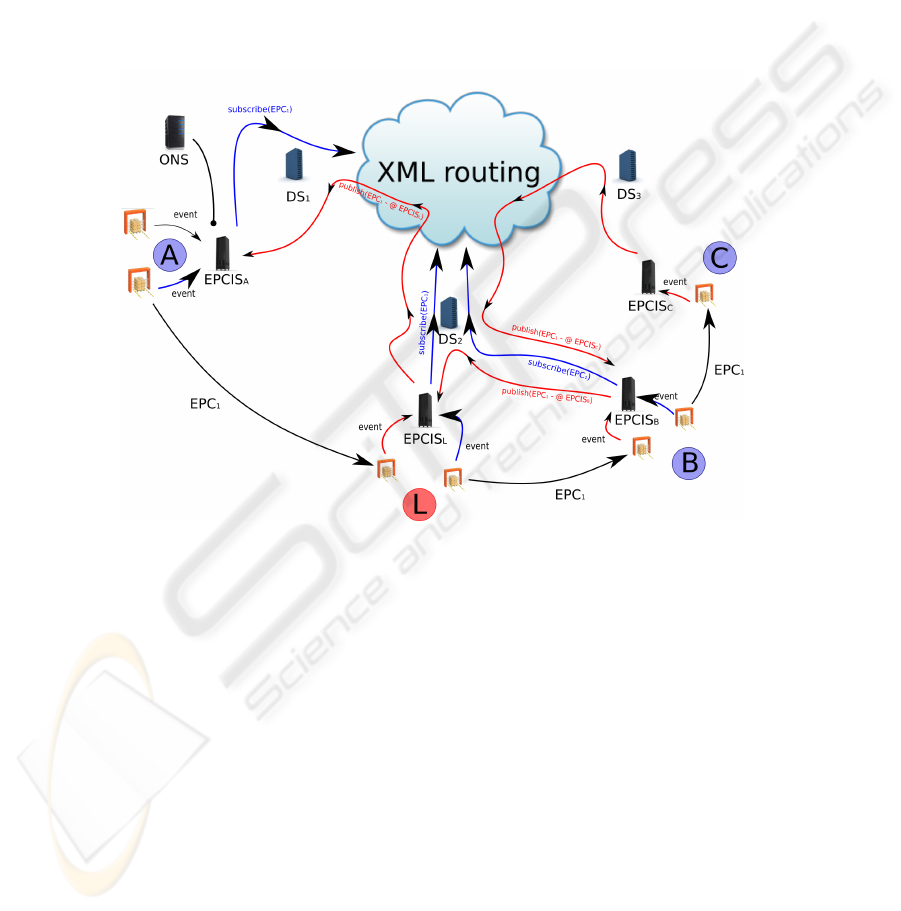

– dynamically chain EPCIS servers using publish/subscribe XML routing technolo-

gies;

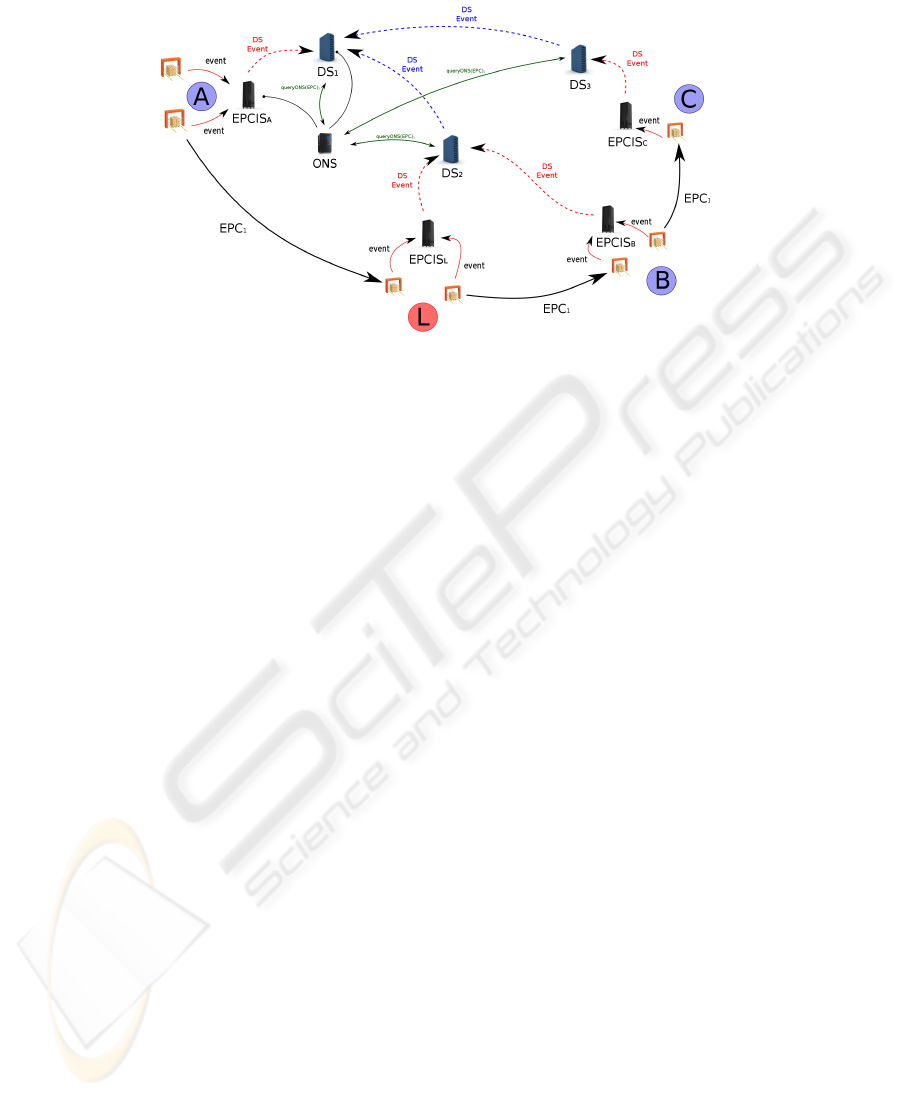

– give a particular role to a chosen DS server (the referent DS) and reinforce the ONS

server role.

In this paper we do not investigate the LDAP solution that is already discussed by

Cantero et al. [1] that seams to be a good solution for optimal response time to queries

but is poor for distributed updates.

3 The Peer to Peer Alternative: DS like a Peer

We study in this section the possibility to use peer to peer facilities to allow DS servers

communication. Indeed, each DS server can keep a subset of the global index repository

using a Distributed Hash Table (DHT). Distributed Hash Tables are a class of decen-

tralized distributed systems that provide a lookup service similar to a hash table .Pairs

are stored in the DHT, and any participating node can efﬁciently retrieve the value asso-

ciated with a given name. Responsibility for maintaining the mapping between names

and values is distributed among the nodes, in such a way that a change in the set of

participants causes a minimal amount of disruption. This allows DHTs to scale to ex-

tremely large numbers of nodes and to handle continual node arrivals, departures, and

failures.

Figure 3 shows the new architecture incorporating a Peer to Peer interconnection

network. DS servers are seen like P2P nodes according to the above DHT deﬁni-

tion. These servers need to implement all Peer to Peer protocols as discovery, data

exchange. . . It is useless to modify neither the existing EPCglobal layers architectures

nor layers communication speciﬁcations. This solution allows to add or remove DS

servers in a very simple way.

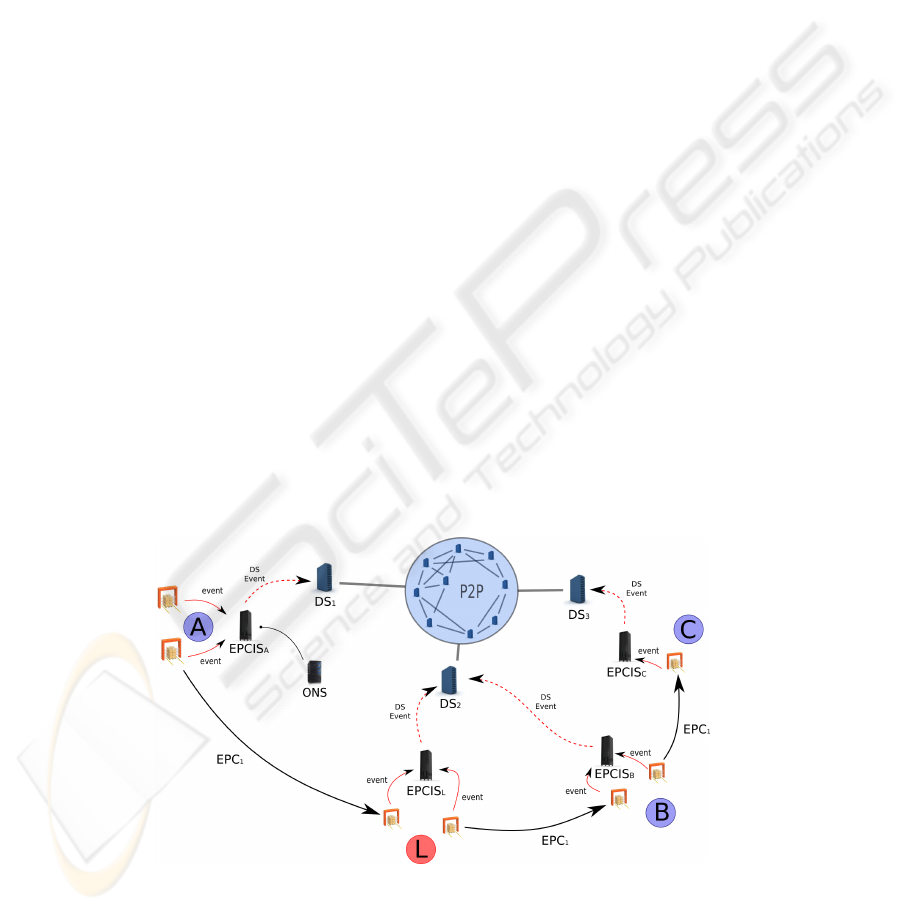

Fig. 3. Peer to Peer data sharing.

If we have a look at our example, as soon as the product leaves the factory, it is detected

by the reader. The corresponding informations (from the ALE component) are sent to

EPCIS A. This latter saves the incoming event in its EPCIS-repository and publishes

the corresponding DS event to the DS server 1 who ﬁnally saves the incoming event in

its DS-repository (its part of the DHT). Then, DS1 uses P2P protocols to inform other

peers (other DS servers) that it has just add a new event in its repository and pushed the

corresponding key (the EPC).

The same process happens when the object is detected while it enters the logistic

platform. But, at that time, the DS server 2 receives the DS event from EPCIS L and

saves it in its own repository (its part of the DHT). The corresponding key is shared

using peer to peer protocols.

The user who wants to retrieve information for that object can query any DS server.

They can all retrieve this information thanks to P2P discovery and data transfer proto-

cols.

Discussion. This solution does not affect the EPCglobal architecture. It simply allows

data exchange between DS servers. It is designed to be very fast and to use standard-

ized protocols. It provides a lot of start points because all DS servers can retrieve and

manage the entire distributed index.

However, several points must be detailed. The usage of P2P has been already inves-

tigated by Huang et al. in the distributed ePedigree architecture [5] and in the BRIDGE

project [7]. Nevertheless the former, ePedigree, provides a P2P based implementation

that does not consider security and access control aspects, focusing only on an EPCIS

closed environment. While the latter leaves security issues to the system responsibility.

Still remains the problem to manage security and access control policy. In fact the un-

derlying P2P network is based on a publicly shared DHT leading anybody be aware of

the existence of a code in a speciﬁc EPCIS. This point deals with data conﬁdentiality

that can be valuable even without knowing the associated event. How to be sure that

they will not be intercepted by any malicious actor? Furthermore, another limitation of

a P2P based solution arises when a node is down. The user who queries one DS server

won’t be able to know that the information he retrieves is not up to date. Moreover, the

discovery protocol allows users to retrieve as much information as possible but does

not insure to retrieve all of it. The ﬁnal point concerns the underlying TCP/IP network

management. To manage a real P2P network, all nodes must have public addresses or

must be mapped using NAT servers. That implies to open ﬁrewalls on many ports and

it may then be hard to manage a private network security.

4 Multi-DS for EPCIS Chaining: DS like a Router

The EPCIS chaining solution seams to be the simplest way to track products. Each

EPCIS knows the next one for a given EPC. For example, the wholesaler knows that its

object goes to the retailer.

The EPCIS chaining concept involves that the ﬁrm from where the objects are sent

always knows where they will go. In our scenario the factory happens to know that

it make business directly with the wholesaler whereas there is a third actor between

them. In this use case, the EPCIS of the factory cannot know the next one, the one from

the logistic platform. In the same way, we suppose that the object is lost between the

wholesaler and the retailer. How to ﬁnd it again? There is no way for the wholesaler

EPCIS to know the address of the next EPCIS (it “thinks” that it is the retailer one but

possibly not).

This proposal uses XML routing to connect DS servers. XML routing is a XML

data transfer protocol. It allows XML document to be routed in a speciﬁc network not

using the receiver IP address but simply the content of the document. XML routing is

based on a publish/subscribe service that allows subscribers to express their interest in

documents containing speciﬁc keys or values or satisfying some patterns.

Fig. 4. Multi-DS for EPCIS chaining.

The DS servers allow EPCISs to subscribe to the XML routing network for a given

EPC. For example, the factory creates the product epc1. When the object leaves the

ﬁrm, the EPCIS subscribes to the XML routing network using its DS server for XML

messages containing the epc1 value. When the object arrives at the logistic platform,

the EPCIS L publishes an XML message containing the epc1 and its service address

to the XML routing network using DS2. As EPCIS A is interested in the product type

of epc1, it has subscribed to that XML message type, so it receives it and saves the

correspondence between the address contained in the document and the epc1. In this

way, each EPCIS ever knows what is the next EPCIS address in the chain for any EPC

code it is interested in. We have added here XML routers capabilities to the DS servers.

Discussion. This solution presents two main weak points. The ﬁrst one is a conse-

quence that XML routing does not support any acknowledgment. When DS2 publishes

the XML document in the network it cannot know if somebody is listening and likewise

if somebody is receiving it. That may introduce lacks or errors in the EPCIS dynamic

chaining process. Let’s suppose that DS1 is out of order when the XML document is

sent, then it does not receive it. When the object arrives at the wholesaler, the corre-

sponding EPCIS (EPCIS B) publishes a new XML document using DS2. This message

is routed to EPCIS L but also to EPCIS A because DS1 is now up. As a result, EPCIS A

“thinks” that the next link is through EPCIS B, but it is absolutely not the case.

The second problem is due to the chaining itself. We suppose now that the dynamic

chaining process was successfully realized. The user who now wants to track informa-

tion about epc1 will query the ﬁrst EPCIS of the chain (EPCIS A).This one returns the

information it kept and the EPCIS L address. The user queries now the second EPCIS

but this latter one is down. There’s no way to retrieve all other information, as the chain

is broken!

This solution use a real interesting concept but remains too sensitive to server fail-

ures. It is absolutely not robust enough. Furthermore, it allows mistakes not admissible

for such a network. It also raises some other questions relative to the XML routing tech-

nology. When will one server stop to listen to this XML document type if nothing is

received? Indeed, if the product is lost and will not be read again by any reader con-

nected within EPCglobal network, how to dynamically warn the listening DS servers

that they can terminate their subscription? We supposed that each EPCIS server sub-

scribes to the network when a product has left its ﬁrm and publishes a XML document

when a product arrives. How to detect that a product leaves or arrives in a ﬁrm? Using

business step? Will all ﬁrms use the same notation for these events? There are too many

questions that makes this solution ﬁnally too complicated.

5 Multi-DS and ONS: DSS Indexing DSS

Let’s recall that the ONS system is designed to reference the EPCIS where a particular

EPC product type appeared for the ﬁrst time (in our example, from the factory). Our

third proposal consists to enhance the ONS system role: it does not only reference the

EPCIS, but also its connected DS servers.

Companies, that can assign EPCs, declare their EPCIS address in front of the object

type (EPC without serial number) in the ONS system conﬁguration. As is, they also

declare there DS server address. Then, when any DS server receives an event, it can

extract the EPC out of it and query the ONS system to retrieve the corresponding DS

address. If that address is not its own address, it sends a new DS event to this address

that we call the referent DS server. In this new context, for a given EPC, the referent DS

indexes also the other DS servers that reference EPCIS dealing with that same code.

Consequently, in order to retrieve information about a given product, the application

layer can query the ONS system to ﬁnd the referent DS address. Then, it queries the

corresponding server to retrieve indexed EPCISs and DSs. It does the same process

again whenever new DS addresses are found and retrieves all other EPCIS addresses.

The whole information is then reachable.

Each DS keeps its own access control policy. It means that each user must identify it-

self before querying anything to a DS. In our use case, a user who wants to track the

Fig. 5. Multi-DS and ONS.

product must create an account on the three DS servers. Each company must specify, in

its own DS account, that it has agreed to share information with that user. Otherwise, if,

by example, the logistic platform company does not specify (in the DS server 2) that it

has agreed to share events, no user will be able to retrieve the EPCIS L address.

If we have a look at our four actors supply chain scenario, let’s see what happens

when the product arrives in the logistic platform using this solution. The product is ﬁrst

detected by the reader when it enters the platform. The corresponding ALE component

generates an event and publishes it in the EPCIS L. The EPCIS L stores the event in its

own database (EPCIS-repository) and publishes a DS event to the DS server 2 to tell

that it has information about the corresponding EPC. DS2 then stores the DS event in

its own database and queries the ONS system for the referent DS address corresponding

to that code. The answer is the address of the DS server 1. DS2 sends a new DS event

to DS1. Finally, DS1 stores the new DS event in its own database.

We suppose that our user has already created accounts on the different DS servers

and all companies agreed to share information with him. He queries ﬁrst the ONS sys-

tem that answers with the DS server 1 address. Then, when queried, the DS1 answers

three addresses: those of EPCIS A, DS1 and DS2. He will now query in turn the two

new DS servers that respectively answer the addresses of the three EPCIS L, B and C.

Discussion. This solution reinforces the ONS system role. It is now the ﬁrst start point

to query the network. Contrary to the two ﬁrst proposals, this architecture does not

fall in case of server failures. Every component can keep a “to publish event” list and

periodically send it until the other server answers that the transaction succeeded. The

other strength of this alternative is that each DS is the master for its information and is

able to manage its own access control policy.

6 Conclusions

This paper has presented three different solutions for the interconnection of distributed

Discovery Services servers. Regarding conﬁdentiality and reliability concerns, we pre-

fer the third solution: DSs indexing DSs. Nevertheless, some points remains to study

deeply. What happens in a real use case with a huge number of events to publish? How

will the network scale with the number of records? Will the DS-repository not grow to

fast?

We plan to answer to these questions thanks to the experimental platform we cur-

rently develop. It implements a EPCglobal platform gathering several EPCISs and DSs

interconnected using the last solution. Several realistic scenarios are experimented in

order to show the feasibility of this solution. The next step will be the enforcement of

access control policies.

References

1. Jose Juan Cantero, Miguel Angel Guijarro, Guillermo Arrebola, Ernesto Garcia, Janie Banos,

Mark Harrison, and Thomas Kelepouris. Traceability applications based on discovery ser-

vices. In ETFA, pages 1332–1337. IEEE, 2008.

2. EPCGlobal. Epcis - epc information services standard.

http://www.epcglobalinc.org/standards/epcis/epcis 1 0 1-standard-20070921.pdf, 2007.

3. EPCGlobal. Application level events (ale) v1.1. http://www.epcglobalinc.org/standards/ale

/ale 1 1-standard-core-20080227.pdf and http://www.epcglobalinc.org/standards/ale/ale

1 1-standard-XMLandSOAPbindings-20080227.pdf, 2008.

4. EPCGlobal. Epcglobal object name service (ons) 1.0.1.

http://www.epcglobalinc.org/standards/ons/ons 1 0 1-standard-20080529.pdf, 2008.

5. Dijiang Huang, Mayank Verma, Archana Ramachandran, and Zhibin Zhou. A distributed

epedigree architecture. In FTDCS ’07: Proceedings of the 11th IEEE International Workshop

on Future Trends of Distributed Computing Systems, pages 220–230, Washington, DC, USA,

2007. IEEE Computer Society.

6. Chris K

urschner, Cosmin Condea, Oliver Kasten, and Fr

eric Thiesse. Discovery service

design in the epcglobal network. In Christian Floerkemeier, Marc Langheinrich, Elgar Fleisch,

Friedemann Mattern, and Sanjay E. Sarma, editors, IOT, volume 4952 of Lecture Notes in

Computer Science, pages 19–34. Springer, 2008.

7. BRIDGE project. High level design for discovery services. Technical report,

http://www.bridge-project.eu/data/File/BRIDGE%20WP02%20High%20level%20d%

esign%20Discovery%20Services.pdf, 2007.

8. M. Young. Extensible supply-chain discovery service concepts, ietf draft.

http://tools.ietf.org/html/draft-young-esds-concepts-04, 2008.
