Detecting Malicious Insider Threats using a Null Affinity

Temporal Three Dimensional Matrix Relation

Jonathan White, Brajendra Panda, Quassai Yaseen, Khanh Nguyen and Weihan Li

Department of Computer Science, University of Arkansas, U.S.A.

Abstract. A new approach for detecting malicious access to a database system

is proposed and tested in this work. The proposed method relies upon

manipulating usage information from database logs into three dimensional null-

related matrix clusters that reveals new information about which sets of data

items should never be related during defined temporal time frames across

several applications. If access is detected in these three dimensional null-related

clusters, this is an indication of illicit behavior, and further security procedures

should occur. In this paper, we describe the null affinity algorithm and illustrate

by several examples its use for problem decomposition and access control to

data items which should not be accessed together, resulting in a new and novel

way to detect malicious access that has never been proposed before.

1 Introduction

Unauthorized access to data resources is a major threat faced by all organizations.

While organizations typically have very complex firewalls and intrusion detection

systems in place in order to detect external threats, these systems do little to protect

organizations against another significant threat, the malicious insider [1]. These

insiders will often not be after the physical systems, rather they will attempt to corrupt

or capture the data these systems contain. This threat needs to be protected against,

and more work needs to be performed in the prevention and detection of these attacks.

Reality, however, shows that such mechanisms for enforcing security policies are

often ignored or not adequately used by security professionals. While the reasons for

this vary, they typically are related to how complex it is to define implementable

security policies and how difficult enforcement against “privileged users” can become

[12]. Much more emphasis needs to be placed on simple, well-defined internal access

control mechanisms.

We propose a misuse detection system that involves knowledge about the set of

data items that are used during the normal execution of an application during certain

defined time frames. This is done for some set (or all) applications that are run against

the database, resulting in a three dimensional relation. This information is then used to

cluster groups of data items that have low temporal affinity, meaning that they are

rarely, if ever, used together during standard operating conditions. This information

can be collected by investigating historical data kept in the logs by the database

management system. This raw historical usage data is then transformed using three

dimensional matrix operations that allow security engineers to better analyze potential

White J., Panda B., Yassen Q., Nguyen K. and Li W. (2009).

Detecting Malicious Insider Threats using a Null Afﬁnity Temporal Three Dimensional Matrix Relation.

In Proceedings of the 7th International Workshop on Security in Information Systems, pages 93-102

DOI: 10.5220/0002199000930102

 SciTePress

misuse from current dynamic database operations. This method has not been proposed

before, and it shows promise to reveal previously unknown usage patterns that can

indicate illicit behavior. Our proposed method also has several benefits over other

traditional methods of insider threat detection in that it requires little storage space,

can be easily adjusted to reflect new applications, is very quick in operation once the

historical data has been properly clustered, and requires only a moderate amount of

computational time to calculate.

The paper is organized as follows. Section 2 details previous work on security

issues related to databases and malicious data access detection. Section 3 presents the

proposed mechanism for building a two dimensional usage matrix for each

application from historical logs that will be used in determining valid use. Section 4

presents the algorithm we have developed for computing the null temporal affinity of

a given usage matrix; section 5 presents an evaluation of our results. Section 6

concludes the paper.

2 Background

In spite of the classical security mechanisms developed in the database area, current

DBMS are not well prepared for integral security mechanisms such as privacy and

confidentiality. An important part of security aware databases will include

mechanisms to automatically detect malicious data accesses and intrusions, and

prevent them from occurring again in the future. By implementing intrusion detection

and prevention methodologies, organizations are afforded better protection against

data misuse and corruption, resulting in substantial savings for that organization.

General methods for intrusion detection are based on either anomaly detection or

pattern recognition [2], [13]. Pattern recognition is the search for known attack

signatures in commands that are currently being executed. Anomaly detection relies

on searching for deviations from known historical profiles of good commands and

using this as an indication of threats [10]. We use the anomaly detection approach for

this work as it allows a large set of historical input data that can be easily processed

from the logs that are kept by all database management systems [14]. In the following

sections, we will show other works that relate to anomaly detection.

Recent works have addressed real-time intrusion and attack isolation in DBMS.

DEMIDS [3] is a misuse detection program designed to examine audit logs to derive

user profiles that are a snapshot of typical user behavior. If the user strays too far from

their historical profile, their actions are monitored more closely to determine if they

are acting maliciously.

The DEMIDS program introduces the notion of distance measure and frequent

item sets to capture the working scopes of users using a data mining based algorithm.

If the items that the user attempts to access are far enough away from what is

typically accessed, this is a strong indication that malicious behavior is occurring. The

user can be prevented from accessing further items once it has been determined they

are acting maliciously. This work focused on the user/data item relationship, while

our work focuses on the application/data item/temporal frame relationship.

Fonseca [2] designed a program called MDAD (Malicious Data Access Detector)

that examines the set of valid SQL queries that a user typically performed. The

program used two distinct phases, a learning phase where valid logs are examined to

derive a user profile of valid queries that are performed, and a detection phase where

new queries are compared to known historical data. The program uses a directed

graph to better protect traditional database applications from SQL injection type of

attacks as well as web based attacks. Petri-Nets and data dependency relationships

were use to model normal data update patterns and potential database misuse in [5]

and fingerprints of normal behaviors that can be used for intrusion detection in

databases is addressed in [4].

Clustering high use items has been used in [6], [7]. In those domains, high affinity

items are clustered together to better see sets that are used frequently together during

the normal execution of a transaction. The clusters also enabled potential

segmentation of large datasets across a distributed environment, enabling better

performance metrics. These works were not concerned with temporal relations or how

the low affinity items might be clustered to show items that should not be clustered

together.

3 Assigning Null Affinity Temporal Values

In a typical database environment, transactions are programmed into various database

application interfaces, so as long as the database applications remain stable, the set of

transactions that are executed will not change. For example, in an educational

database application, users can only perform and interact with data items that are

available at their user-dependent application interface (e.g., viewing grades, paying

for classes, entering grades, dropping a student from a class, etc). Other operations are

not available for that particular class of end-user. Normally, end-users can not execute

ad hoc queries against the database. It is a very realistic assumption to use

transactional profiling to detect malicious data access, resulting in a reduced risk of

false alarms with other intrusion detection mechanisms.

3.1 2D Usage Array

For each application A

that is run on the database, choose a time frame T

. The time

frame needs to be chosen with a granularity that reflects the usage of the database,

and the temporal frame can be adjusted as necessary. For each data item I

available

to an application, an attribute usage value, denoted as use(I

, A

, T

), is defined as:

use(I

, A

, T

) =

{

}

Tz frame timeduringIx item data usesAy n applicatio if 1

otherwise if 0

(1)

The matrix is stored in an M x N two dimensional data usage array at position A

i,j

where M is the number of data items (rows) and N is the number of temporal frames

(columns) and i is the particular data item and j is the particular time frame under

examination.

1234567

1000000

1111111

1010101

0000010

TT T T T T T

Fig. 1. Example 2D usage matrix.

In the above figure, an application used data item I

only during time frame T

. In

this example, we can define the time frame to be the days of week, so time frame T

would correspond to Monday during a given week and year. If it is so desired, the

temporal granularity can be changed so that the time frame under examination has a

larger or smaller amount of granularity. For example, the usage matrix could be

defined for only each hour during the Monday T

time frame from the above example.

The time frame could also have a much larger granularity; for example, the data usage

matrix could be defined as the previous twelve months of usage.

3.2 3D Usage Matrices

The 2D usage arrays are calculated for each application that is run against the

database, resulting in a three dimensional relationship. If an application is not

suspected for potential misuse, the security engineer can extricate that particular

application from the process and focus on other, more susceptible, applications. The

result is then an M x N x P relationship where M is the number of data items, N is the

number of temporally related time frames that were chosen in the first step, and P is

the number of applications that are run against the database. This 3D usage data is

used next to find and cluster elements that should not be used together across three

dimensions, time, application level, and data item level, resulting in a novel way to

detect misuse of the database.

4 Computing Null Temporal Affinity Energy Levels

Given the 3D usage matrix of a particular system, we have defined a Null Temporal

Affinity Energy (NE) methodology that processes the 3D matrix so that dense clumps

of zeros are clustered together across all thee dimensions. The NE algorithm was

devised so that a three dimensional matrix that possesses dense clumps of zeros in all

three dimensions will have a large NE (null energy) level when compared to the same

three dimensional matrix whose elements across the y and z axes have been permuted

so that its numerically small elements are more uniformly distributed throughout the

relation. The x axis (time) is not permuted because each of the time frames are related

by some fixed metric; this relationship will be used to expand or contract the three

dimensional relationship to home in on particular areas of potential misuse in an area

of future work described in section 6.

The proposed null energy level is the sum of the bond strengths in the 3D array of

each nearest neighbor in three dimensions, where the bond strength is defined as the

inverse of their product. The NE value, then, is given by:

NE(U)

= ½ *

______ _______ _______ _______ _______ _______ _______

( ( ( *[ ])))

,, 1,, 1,, , 1, , 1, ,, 1 ,, 1

111

iM kP

AAAAAAA

i jk i jk i jk i j k i j k i jk i jk

ijk

+++++

∑∑∑

+− +− +−

===

(2)

A represents the binary inverse of A

. U is a nonnegative M x N x P three

dimensional array consisting of results of the use function over time period T

; U was

derived in section 3. Since all the values of U are binary, the NE value is very

efficiently calculated, even when given large three dimensional matrices. The value of

½ is present so that each bond is only counted once in the total NE sum.

To better understand what the NE value represents, one can visually circle

adjacent zeroes going up, down, left, or right in the same two dimensional plane, and

also potentially circling zeros in the plane above and below the current element. All of

these six elements are related, and by permuting and then clustering them, items are

revealed which should not be used together for certain time frames across different

applications and different data items. This is done for each element in the three

dimensional matrix; the negative energy is the total sum where adjacent elements are

zero. For example, the NE of the matrix in only two dimensions in Fig. 1 is 19.

Because of the three dimensionality of the matrix, clustered arrays in two

dimensional planes that appear to have a small NE value may in fact be contributing

to a larger total null energy value in the resultant three dimensional matrix. This is

data that is not apparent by simply viewing the usage information from the logs. By

including time, data items, and the applications that are used, our solution can detect

malicious individuals who are using multiple applications illicitly, which is an

improvement over other methods.

As the data items and applications are not related by some predefined metric, we

can permute the three dimensional planes and the rows in each plane without losing

information. Maximizing the NE by row and/or planar permutations serves to create

strong bond energies by driving the null valued array elements together. The pattern

of misuse revealed by the clustering of non related data enables this identification,

and the intrusion detection method would not function as without the clustering of the

zero valued elements.

4.1 Sensitivity to Initial Conditions

The NE level of a given matrix is very sensitive to the degree of clumpiness of null

valued elements. For example, consider the following two dimensional matrixes that

consist of the same elements with different permutations. By permuting the rows, we

are able to achieve a higher degree of null valued elements that are adjacent. While

demonstrating this in three dimensions is more difficult visually, the concept is the

same.

4.2 Permutation Algorithm

The Null Temporal Affinity Energy algorithm maximizes the summed bond energy

over all row and planar permutations of an input array U to reveal clusters of data

items that should not be used together during certain time frames. That is, we wish to

find:

max { NE(U)

}

(3)

where NE(U)

was defined in Equation 2 and the maximization is taken over the

possible matrices that are obtained by permuting the rows and planes of the original

use value matrix. By convention, the three dimensional use matrix was defined to be

M x N x P array where M is the number of data items, N is the temporal time frame,

and P is the number of applications under examination.

The algorithm will always reduce the input use array into a three dimensional

matrix with the non-interacting zero valued elements clumped together independently

of the initial ordering of the rows, columns, and planes. This decomposition reveals

data items that should not be accessed together during certain time frames, as the

following two dimensional figures show.

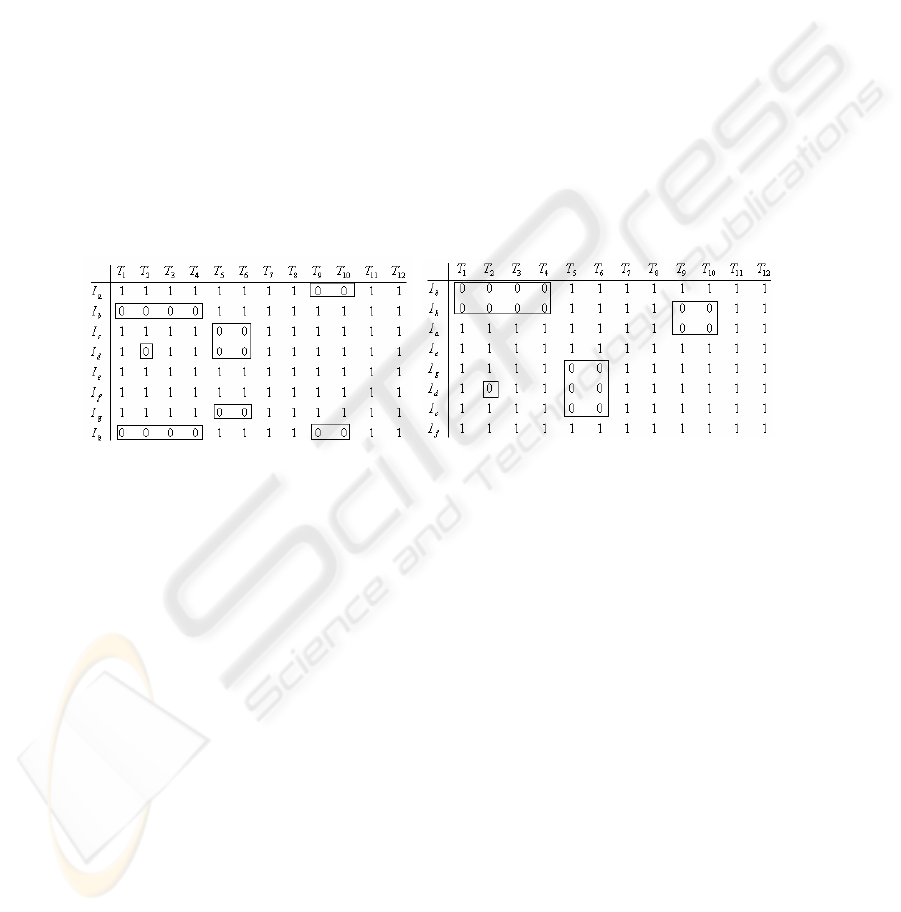

Fig. 2. Original use array with clusters

identified NE = 13.

Fig. 3. Maximized use array with clusters

identified. NE = 21.

By clustering the data items that should not be used together in certain time frames,

one can better predict what malicious users will access if they are indeed actually

acting maliciously. In figure 3, for example, if it is detected that access occurred to

data items I

and I

during time frame T

, if other accesses occurred to data items I

, or I

during time frame T

, this is a strong indication of misuse. When the third

dimension is added, one can also predict how a malicious attacker will act if they are

using multiple applications. This indication is not evident in the non-maximized array

presented in figure 4, and even less so in the DBMS logs. By performing the

permutation based clustering in three dimensions, potential patterns of misuse are

revealed very prominently, and this data can be used to detect intrusions.

5 Insider Threat Intrusion Detection

The mechanism for the detection of potential malicious use of the database by an

insider threat relies on using historical information to build a profile of an

application’s normal execution involving both the data items that the application uses

and the times in which they are accessed. This is performed for each application,

resulting in a three dimensional relation. Our proposal can be run as an autonomous

subsystem separated from the DBMS on a dedicated machine or the mechanism can

be implemented internally to the DDMS using triggers. However, in the case of the

latter, the performance of the database may be degraded as the execution of database

triggers is normally a high resource consuming task.

Once the maximized 3D use matrix is calculated, questionable actions are

compared to this known historical data to find how ‘close’ these questionable queries

are to the known good behavior. To capture the idea of ‘closeness’, we introduce the

notation of a distance measure. The goal of this distance measure is to capture how far

from normal behavior questionable requests appear. Queries that are too far from

what is considered ‘close’ require more security procedures to occur. Actions that are

within some threshold of normalcy are allowed with no further examination.

5.1 Distance Measure Function

As our mechanism involves what data items are accessed, when they are accessed,

and what applications are being used, suspicious queries could be using the correct

data item at the wrong time, the wrong data item at the correct time, or both the wrong

data item at the wrong time, as well as several incorrect application level usages. If

the correct application is using the correct data items at the correct times, no further

examination needs to occur. However, when a suspicious action is detected involving

any of the variables under measure, (denoted by S

in the following sections), this

suspicious action needs to be compared to the known historical behavior that has been

processed and permuted so as to have a maximum null energy, which was described

in section 4. This maximized matrix is denoted as A

max

below. The distance measure

function takes these ideas into account and is given as follows:

For each data access that does not conform to what was expected, the distance of

this access is calculated as follows:

Dist(A

max

[i,j,k], S

[i,j],k) = k

+ k

(4)

This function is called for each A

max

[i,j,k] that does not equal S

[i,j,k] and where

max[

i,j,k] is a zero valued element. k

, k

are weights between 0 and 1 assigned by

the security officer, t

is the time until an allowable access occurred in the past/future,

is the number of access in a three dimensional congruent cluster during the time

frame under suspicion, and a

is the number of applications used illicitly in that

cluster.

The Dist value is calculated for each nonconforming access, and these values are

summed to give a result. It is important to note that each access may lie at different

coordinates in the x, y, z plane, so S

is also potentially a three dimensional matrix.

The summed distance values must be over some specified threshold value in order for

the access to be called illicit. This threshold value must be set by the security officer.

The total distance is calculated as follows:

Total_Dist =

∑

acessessuspiciousofendk

accesssuspicousfirstk

kADist

___

max

),(

(5)

The k

, k

, and k

values exist in equation 4 so that the distance value can be

weighted towards the time, data items, or the number of potential applications used

illicitly in the cluster. Depending on the usage of the application, one of these metrics

may be more important and should be weighted higher so as to give a greater

contribution to the distance that the access is from normal.

The value t

is calculated by finding the closest valid time that the data item had

been accessed in the past or future while still using the current application. By

definition, t

= d where A

max

d,j,k] is the closet access to S

[i,j,k] where

max

[i ± d,j] is 1.

The value of n

is calculated by counting the number of potentially illicit accesses

that lie in a particular three dimensional cluster of items that should not be related.

These clusters were found by using the process described in Section 4. This gives

weight to the number of illicit data items accessed. a

is calculated by summing the

number of applications used maliciously that lied in that cluster. If the values of t

, n

or a

are high, this increases the distance measure and is a strong indication of misuse.

An insider threat is detected if, after performing the above procedure, the following

holds:

Total_Dist ≥ D

thresh

(6)

where D

thresh

is the threshold distance that is set to the maximum distance a suspicious

query can be before it is known to be malicious. The Total_Dist will grow as more

suspicious actions occur. The D

thresh

metric is system dependent, and it needs to be

assigned by the security officer using knowledge about the particular environment the

database is used in. If the calculated distance of the access usage array is above the

threshold, other security procedures should occur [2]. These might include notifying

the DBA about the illicit behavior by triggering an alarm with the relevant

information such as the time, username, database objects accessed attached to the

message, immediately disconnecting and rolling back the changes that the user made,

or execution of some damage confinement and repair mechanisms that are built into

the DBMS. These security precautions are dependent on the application and will be

different for each use [11].

6 Conclusions

This paper has proposed a new mechanism to detect malicious data access. As

database systems play a vital role in organizational information architectures,

procedures must be in place to ensure that these resources are not being used

maliciously [8], [9]. We have presented the concepts and underlying architecture and

shown how they can be applied.

Our proposal relies on using historical data stored by the database logs on what

data items were used at a particular time by various applications. This information is

then processed to reveal clumps of data items that should not be used together during

100

certain time frames, resulting in a three dimensional usage matrix. This matrix allows

a better prediction of potential misuse by allowing quicker and more precise

prediction of items that should not be used together across the time, data item, and

application dimensions. Suspicious queries are then compared to the maximized usage

array and a distance value is calculated for each non conforming action. These

distances are summed to reveal how far from what was expected this access is. If the

access is above a certain threshold, further security procedures are performed.

This work has revealed several areas of improvements and further work. We are

working on adding a spatial dimension to our model as the physical location of a user

is often an important security metric. The resulting four dimensional matrix requires a

reworking of our clustering algorithm and modifications to the distance calculations.

As mentioned previously, we plan to develop an automatic method to allow the

temporal time frame to be dynamically set so as to show several characterizations of

the system. As the usage array is already clustered, we will be able to focus in on

certain areas that we know are hotspots for potential attacks, and tailor the system to

these dimensions. The clustering is what allows us to have this view of the system.

Acknowledgements

This work has been supported in part by US AFOSR under grant FA 955-08-1-0255.

We are thankful to Dr. Robert. L. Herklotz for his support, which made this work

possible.

References

1. Gordon, L. Loeb, M., Lucyshyn, W. and Richardson, R. Computer Security Institute.

Computer crime and security survey, 2006.

2. Fonseca, J., Vieira, M., and Madeira, H. Online detection of malicious data access using

DBMS auditing. In Proceedings of the 2008 ACM Symposium on Applied Computing. SAC

'08. ACM, New York, NY, 1013-1020, 2008.

3. Chung, C. Y., Gertz, M., Levitt, K. DEMIDS: a misuse detection system for database

systems. In integrity and internal Control information Systems: Strategic Views on the

Need For Control, Norwell, MA, 159-178, 2000.

4. Lee, S. Y., Low, W. L., and Wong, P. Y. Learning Fingerprints for a Database IDS. In

Proceedings of the 7th European Symposium on Research in Comp. Security. LNCS, vol.

2502. Springer-Verlag, London, 264-280, 2002.

5. Hu,Y. and Panda, B. Identification of Malicious Transactions in Database Systems. In

ideas,pp.329. 7

Intl. Database Engineering and Applications Symposium (IDEAS'03),

2003

6. McCormick W., Schweitzer P., White, T. Problem Decomposition and Data Reorganization

by a Clustering Technique, Operations Research. 993–1009, 1972.

7. Navathe, S., Ceri, S., Wiederhold, G., and Dou, J. Vertical partitioning algorithms for

database design. ACM Trans. Database Syst. 9, pp. 680-710, 1984.

8. Ramakrishnan, R. and Gehrke, J. Database Management Systems. 3rd. McGraw-Hill. 2002

101

9. Vieira, M. and Madeira, H. Detection of Malicious Transactions in DBMS. In Proceedings

of the 11th Pacific Rim international Symposium on Dependable Computing (December 12

- 14, 2005). PRDC. IEEE Computer Society, Washington, DC, 350-357, 2005

10. Bertino, E., Kamra, A., Terzi, E., and Vakali, A. 2005. Intrusion Detection in RBAC-

administered Databases. In Proceedings of the 21st Annual Computer Security Applications

Conference. ACSAC. IEEE Computer Society, Washington, DC, 170-182, 2005

11. Schonlau, M. and Theus, M. Detecting masquerades in intrusion detection based on

unpopular commands. In Information Processing Letters, vol. 76, 33–38, 2000.

12. Dewri, R., Nayot, P., Indrajit, R., Whitley, D.: Optimal security hardening using multi-

objective optimization on attack tree models of networks. In ACM Conference on Computer

and Communications Security, 204-213, 2007.

13. Ray, I., and Poolsappasit, N. Using Attack Trees to Identify Malicious Attacks from

Authorized Insiders. In ESORICS 2005, Milan, Italy, pp. 231-246, 2005.

14. Poolsappasit, N., Ray, I. A Systematic Approach for Forensic Investigations of Computer

Attacks Using Attack Trees. In Proceedings of the 3rd IFIP WG 11.9 International

Conference on Digital Forensics, Orlando, Florida, 2007.

102
