ImageNetDiff: Finding Differences in Models

Lawrence Cabac, Kolja Markwardt and Jan Schlüter

Department of Informatics, University of Hamburg, Germany

Abstract. In this paper we propose a method and present a tool as plugin for RE-

NEW that supports the process of discovery of differences in possibly conﬂicting

versions of all kinds of supported diagrams. These diagrams can be either semi-

formal UML diagrams, Petri net models or simple JHotDraw drawings. Instead

of searching for differences on the syntactical or even on the semantical level, we

choose to ﬁnd differences on the visual level.

1 Introduction

During development of applications developers frequently encounter (and have to deal

with) differentand/or conﬂicting versions of model artifacts. Especiallyin shared projects

where modeling artifacts are shared through source code management systems (SCM)

such as the Concurrent Versions System (CVS) or Subversion conﬂicts frequently ap-

pear and have to be resolved manually by the developer. This is especially true for

Petri net-based applications, since here the models are the code base of the system and

are thus treated as usual code with all attributes, such as collective code ownership. In

the evaluation of the code (Petri nets) of other modeling artifacts the main problem is

the identiﬁcation of the syntactical differences or equalities. However, on the one hand

formally it is very hard to verify graph equality and even harder to determine the min-

imum of parts that are different. The graphical representation, on the other hand, may

contain valuable hints for the mentioned problems but may also differ without change

in the syntax. The merging of changes is usually a manual task, even if only different

parts of the nets have been modiﬁed. In contrast, when text-based source code is used,

merging of non-conﬂicting concurrent changes is possible. To our knowledge no tools

exist so far that manages the merging to some extent or even supports the developer

in this task. Even if a string representation of the net code exists, usually this code is

not handleable by common tools such as diff [3] (or windiff). This means that models

in source code management systems are treated as binary ﬁles, even if the ﬁle repre-

sentaiton of the diagram (model) is text-based, such as XML – as with SVG (Scalable

Vector Graphics).

In this paper we propose a simple but efﬁcient method that can simplify the task

of the discovery of differences under certain conditions. To this means we exploit the

graphicalrepresentation of the nets and transfer the problem to ﬁnding differences in the

visual image of the Models. We also present an implementation of the method as plugin

for RENEW [5, 6], a multi-formalism tool whose graphical engine is based on JHotDraw

(www.jhotdraw.org) and supports all kinds of modeling techniques (e.g.: Petri nets,

use case diagrams, sequence diagrams, class diagrams) and drawings (including import

Cabac L., Markwardt K. and Schlüter J. (2009).

ImageNetDiff: Finding Differences in Models.

In Proceedings of the 7th International Workshop on Modelling, Simulation, Veriﬁcation and Validation of Enterprise Information Systems, pages

156-161

DOI: 10.5220/0002202101560161

 SciTePress

and export possibilities). In Section 2 we describe the method, its implementation and

integration within RENEW. Section 3 presents seveal examples to illustrate the method,

the tool and possible appications.

2 Discovery of Net Differences

The development of models within development groups frequently leads to conﬂicting

models. Even if the system models are decomposable in many parts, still the problem

persists – as with all source code – that within one design artifact (Petri net or UML di-

agram) several changes can occur concurrently and have to be merged. In this situation

two tasks have to be performed. First, the differences have to be identiﬁed. Second, the

changes have to be included. If conﬂicts occur in text-based source code developers are

supported by powerful tools and techniques, such as diff tools, versioning systems, etc.

For models (Petri nets) these tasks usually have to be performed manually.

We believe

that tool support for the discovery of net differences can accelerate the development of

(net system) models signiﬁcantly.

Scenarios. We can distinguish at least two different scenarios in which the tool can

be utilized: the similarity check and the difference discovery. In the similarity check a

developer does not know, whether two models (Petri nets) or two versions of the model

(Petri net) own the same code (are syntactically/semantically equal but may differ vi-

sually). For text-based code there exist code beautiﬁers that manage to unify the style

of code as a preparation for the differences tools. Restricted layout possibilities which

could have the same effect as code beautiﬁers are usually too restrictive for model de-

signers. Often model elements or text inscriptions have been moved in the diagram by

another developer and this has been committed to the repository resulting in a conﬂict.

If the models (or the model versions) contain only small differences (e.g. only one ele-

ment has been moved) the ImageNetDiff image will show instantly that the models are

syntactically equal. The checking of the equality of the models is thus reduced to the

checking of the graphically differing parts.

In the difference discovery the visual areas of the model that own differences can be

easily spotted by the developer. Again, if small changes have been made in the model,

such as the removal or the addition of elements, the ImageNetDiff image will directly

and clearly show the differences. Removed object are highlighted as red elements in

the diff image and additions are highlighted blue. If this is not the case and substantial

changes have been made, at least the ImageNetDiff image points out the net areas which

are of concern to the developer and which parts have not changed.

Technique. The tool (see also [2]) makes use of the internal export function of RENEW

and the ImageMagick[4] tool kit. For the production of the differences image in the

format of Portable Network Graphics (PNG) or alternatively Encapsulated Postscript

(EPS) ﬁrst the nets are being exported to the ﬁle system as image. Then the exported

images are passed on as arguments to the imaging tool to compute the differences im-

age, which will also be stored in the ﬁle system. The resulting image will feature light

An alternative strategy is the avoidance of concurrent changes.

157

grayish drawing elements for the parts of the original images that are equal and two

different shades of red for the additional and removed graphical parts Finally, for the

convenience of the user the image is displayed by RENEW once the computation of

the differences image has ﬁnished. Sources of models that are to be compared can be

either drawings (diagrams) that are opened within the editor of RENEW or ﬁles from

the ﬁle system. Also command line commands exist to quickly access the functionality

of the plugin without loading the whole graphical editor of RENEW. On the command

line it sufﬁces to deﬁne the two comparing ﬁles as argument. Thus the tool can also

be included in scripts. As a support for Subversion the tool is able to directly compare

the current working version of a model with the locally stored code base ﬁle. This al-

lows the developer to use the renew diff <file> command in the same manner

as svn diff <file>. Especially if no (real) change has been done (i.e. involuntary

saving of the model during inspection) the equality check can help to prevent superﬂu-

ous check-ins. However, some limitations of the presented method exist that result from

the used tools.

– For a ﬂawless comparison the compared images must have the same size.

– The comparison can not be customized, yet.

– For instance, the color scheme is ﬁx.

– The results for models in which all graphical elements have been moved are not sat-

isfying, yet, because the images are compared coordinate pixel against coordinate

pixel.

– However, a simple move of all elements do not effect the result, since the images

are clipped before export.

– There is no integration with the model representation in RENEW, yet. Thus, the

discovery of changes is supported but the knowledge has to be transferred to the

model manually by the developer.

3 Examples

The presented method and tool is able to compare a broad variety of supported models

and drawings. Here we present as example the results of the tool for a Petri net model.

A Petri Net: The Mulan Knowlege Base. As an example for the presentation of the

method we present a Petri net from the developing of multi-agent systems with MU-

LAN: the knowledge base net of the MULAN standard agents. The two nets differ –

pragmatically – in the fact that they support two different property ﬁles formats: simple

properties (kb) and XML notation (kbe, kb enhanced).

The net that supports the enhanced representation is built upon the simple version,

thus they are comparable. To ﬁnd the similarities and differences of the implementa-

tion we present fragments of both nets in Figures 1 and 2. The fragments show the

initialization of the net with the initial knowledge parts of the agents interface to the

knowledge base and the interface that handles the initialization of decision components

(active knowledge). Figure 3 then shows a screenshot of the resulting difference image

(similar fragment).

The dashed squares and ellipses are added manually.

158

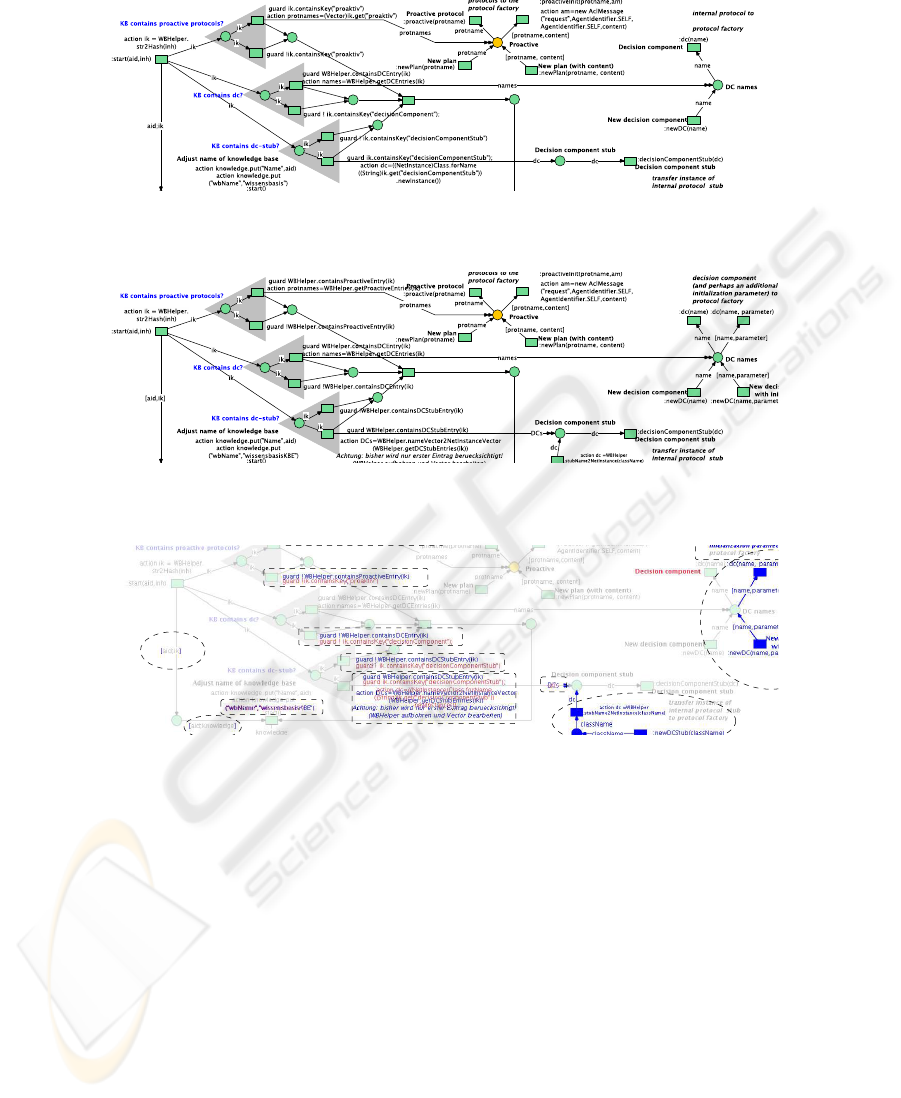

Fig.1. Knowledge base net template of a MULAN agent.

Fig.2. Enhanced knowledge base net template of a MULAN agent.

Fig.3. Screenshot showing differences of the two Petri nets.

The developer’s awareness is instantly attracted by the bright red and bright blue

net elements and inscriptions. One can see simple additions – manually marked in the

image by dashed outlined squares – and also changes to the code / inscriptions – ellipses

– that have been made. The image shows clearly that all of the old net structure has been

preserved. Only additional net elements and inscriptions have been added and some

inscriptions have been altered.

In a scenario of a shared development, if a developer is confronted by a concurrent

change of the net, which results in a conﬂicting version of the net code, the tool can

help the developer to decide whether the code has been manipulated, the syntax has

not been changed and/or if the changes have been made in the same areas of the net.

Thus, the manual act of merging the code or model can be signiﬁcantly simpliﬁed and

accelerated.

159

Comparing (Embedded) Images. The tool is even able to show differences in (em-

bedded) images. As a second example Figure 4 shows a (constructed) image (PNG,

Image 1) and a minimally altered version (Image 2). Usually the difference is not even

detectable. However the differenceimage to the right shows clearly the difference of the

two images. This possibility is not very surprising, since this is the original application

domain of the ImageMagick compare tool.

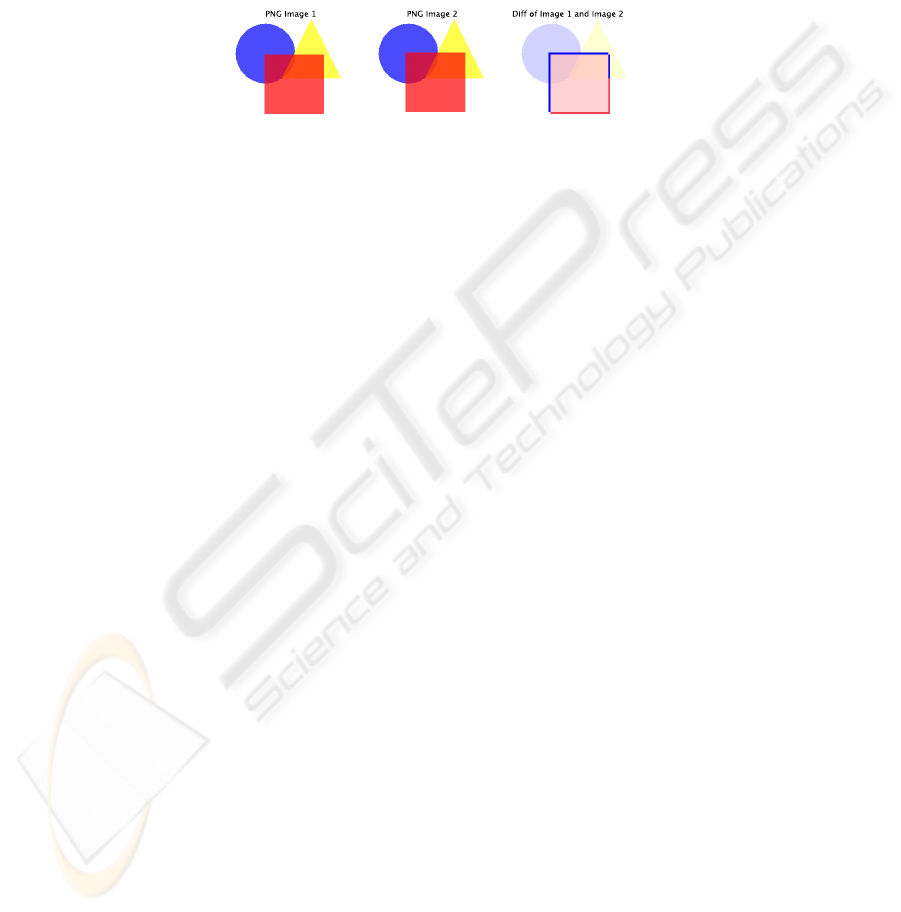

Fig.4. Differences of embedded images (PNG).

4 Conclusions, Discussion and Outlook

Although the approach is rather simple, the results are effective and surprisingly efﬁ-

cient. Developers of (Petri net) models have the means to check for differences in their

graphical code by the means of visual support. Clearly a code beautiﬁer for Petri nets

and other models would improve the results of the ImageNetDiff plugin considerably.

At least for Petri nets net components [1] could help to impose a conventionalized struc-

ture upon the nets.

The presented approach makes use of the graphical representation of the diagrams

such as UML diagrams or Petri nets, the export to an image format and the power of the

graphical framework ImageMagick. There are, however, several other possibilities to

tackle the presented problem. One could compute equality of Petri nets on the ground

of the formal representation including node and arc ids or develop a PNML (Petri net

XML representation) diff tool.

The presented method and the tool leaves room for many improvements. By choos-

ing different color schemes and maybe also opaqueness in the diff images the readabil-

ity could still be improved signiﬁcantly. However, since the used tool’s main purpose

of comparing images is not concerned with graph representations, it does not support

this feature and a reimplementation or switch to another tool could – with some effort –

produce better results. The interpretation of the graphically highlighted elements could

lead to an integration of useful information within the Petri net editor to further support

the merging of concurrent changes.

In principle, with the presented method the results from image processing have to

be re-transferred to the application domain. Alternatively, similar differences can be

computed and presented to the developer on the direct analysis of Petri net structures.

Here, additionalinformation could support the process of matching elements in Petri net

versions. For instance, id-tagged net elements (in RENEW transitions and places have

ids) could be matched. However, this would not solve the problem of constructs that

have different ids but are syntactically equal. A method based on a Petri net (or model)

160

representation is also less general than the presented method, which can be applied to

other graphs such as UML diagrams.

References

1. Lawrence Cabac, Michael Duvigneau, and Heiko Rölke. Net components revisited. In Daniel

Moldt, editor, Proceedings of the Fourth International Workshop on Modelling of Objects,

Components, and Agents. MOCA’06, number FBI-HH-B-272/06, pages 87–102, Hamburg,

Germany, June 2006. University of Hamburg.

2. Lawrence Cabac and Jan Schlüter. Imagenetdiff: A visual aid to support the discovery of dif-

ferences in petri nets. In 15. Workshop Algorithmen und Werkzeuge für Petrinetze, AWPN’08,

volume 380 of CEUR Workshop Proceedings, pages 93–98. Universität Rostock, September

2008.

3. Gnu diff utilities. online, 2008. http://www.gnu.org.

4. Imagemagick homepage. online, 2008. http://www.imagemagick.org/.

5. Olaf Kummer, Frank Wienberg, and Michael Duvigneau. Renew – the Reference Net Work-

shop. Available at: http://www.renew.de/, July 2008. Release 2.1.1.

6. Olaf Kummer, Frank Wienberg, Michael Duvigneau, Jörn Schumacher, Michael Köhler,

Daniel Moldt, Heiko Rölke, and Rüdiger Valk. An extensible editor and simulation engine for

Petri nets: Renew. In Jordi Cortadella and Wolfgang Reisig, editors, Applications and Theory

of Petri Nets 2004. 25th International Conference, ICATPN 2004, Bologna, Italy, June 2004.

Proceedings, volume 3099 of Lecture Notes in Computer Science, pages 484–493. Springer,

June 2004.

161
