Declarative Parsing and Annotation

of Electronic Dictionaries

Christian Schneiker

, Dietmar Seipel

, Werner Wegstein

and Klaus Pr¨ator

Department of Computer Science, University of W¨urzburg, Germany

Competence Center for Computational Philology

University of W¨urzburg, Am Hubland, D – 97074 W¨urzburg, Germany

Berlin–Brandenburg Academy of Sciences and the Humanities

J¨agerstr. 22–23, D – 10117 Berlin, Germany

Abstract. We present a declarative annotation toolkit based on XML and PRO-

LOG technologies, and we apply it for annotating the Campe Dictionary to obtain

an electronic version in XML (TEI).

For parsing ﬂat structures, we use a very compact grammar formalism called

extended deﬁnite clause grammars (EDCG’s), which is an extended version of

the DCG’s that are well–known from the logic programming language PROLOG.

For accessing and transforming XML structures, we use the XML query and trans-

formation language FNQUERY.

It turned out, that the declarative approach in PROLOG is much more readable,

reliable, ﬂexible, and faster than an alternative implementation which we had

made in JAVA and XSLT for the TEXTGRID community project.

1 Introduction

Dictionaries traditionally offer information on words and their meaning in highly struc-

tured and condensed form, making use of a wide variety of abbreviations and an elab-

orate typography. Retro–digitizing printed dictionaries, especially German dictionaries

from the 18th and early 19th century, therefore requires sophisticated new tools and

encoding techniques in order to convert typographical detail into a ﬁne–grain markup

of dictionary structures on one hand and to allow at the same time for variation in or-

thography, morphology and usage on the other hand, since in the decades around 1800

the German language was still on its way to standardization.

This is one of the reasons why TEXTGRID [17], the ﬁrst grid project in German

eHumanities, funded by the Federal Ministry of Education and Research, chose the

Campe Dictionary [1]: 6 volumes with altogether about 6.000 pages and about 140.000

entries, published between 1807 and 1813 as one testbed for their TEXTGRID Lab, a

Virtual Research Library. It entails a grid–enabled workbench, that will process, anal-

yse, annotate, edit and publish text data for academic research, and TEXTGRIDRep,

a grid repository for long–term storage. This paper reﬂects some of the research on

annotation in this context.

Schneiker C., Seipel D., Wegstein W. and Prätor K. (2009).

Declarative Parsing and Annotation of Electronic Dictionaries.

In Proceedings of the 6th International Workshop on Natural Language Processing and Cognitive Science , pages 122-132

DOI: 10.5220/0002203401220132

 SciTePress

Using PROLOG technology for parsing and annotating is common in natural lan-

guage processing. PROLOG has been used within the Jean Paul project at the Berlin–

Brandenburg Academy of Sciences [15], where XML transformations based on FN-

QUERY turned out to be easier to write than XSLT transformations. The task is to

ﬁnd the proper level of abstraction and write suitable macros for frequently occurring

patterns in the code; PROLOG even allows to design dedicated special–purpose lan-

guages [11]. E.g., deﬁnite clause grammars have been developed as an abstraction for

parsing; they have been used for parsing controlled natural languages [4, 5, 13]. Since

PROLOG code is declarative and very compact, the variations of natural language can

be handled nicely.

Figure 1 shows the typographical layout of the Campe Dictionary. The basic text

has been double–keyedin China. The encoding is based on the TEI P5 Guidelines [16],

using a Relax NG Schema. The encoding structure uses elements to markup the dictio-

nary entry, the form block with inﬂectional and morphological information, the sense

block handling semantic description and references, quotations, related entries, usage as

well as notes. In the future, this encoding will help us to structure the digital world ac-

cording to semantic criteria and thus provide an essential basis for constructing reliable

ontologies.

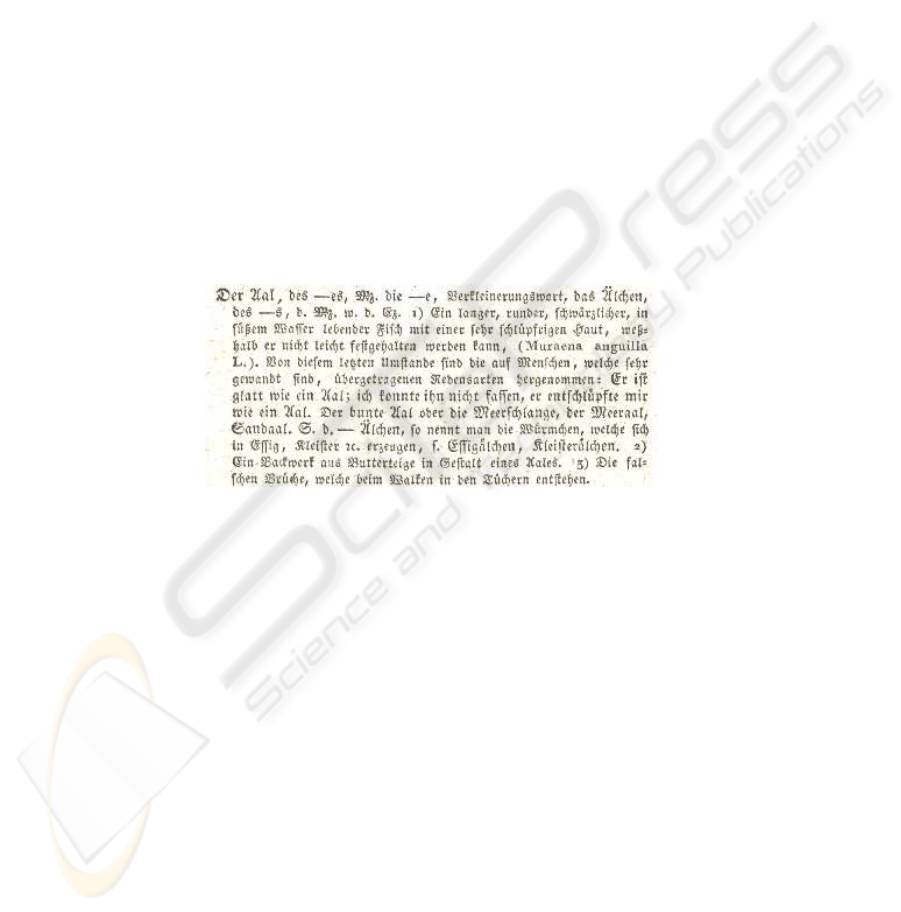

Figure1. Excerpt from the Campe Dictionary.

The rest of this paper is organized as follows: In Section 2 we will show how to

extract entries of a dictionary using our XML query and transformation language FN-

QUERY. The process for parsing and annotating elements for creating a well–formed

and valid TEI structure is illustrated for the Campe Dictionary in Section 3: we can

access and create elements with PROLOG using DCG’s and EDCG’s in an easy and ef-

ﬁcient way. Section 4 describes the use of transformation rules for the annotation and

the further processing of XML elements. Section 5 gives an overview of our declara-

tive annotation toolkit and compares the declarative techniques with a JAVA and XSLT

approach, which we had implemented earlier.

123

2 Basic XML Handling in PROLOG and FNQUERY

Currently, the Campe Dictionary, which was written in the early years of the 19th cen-

tury, is converted into a machine readable structure. Within this process, the only anno-

tations available so far, were the declaration of the different font sizes Joachim Heinrich

Campe uses for displaying the structure of his act, the numbering of the line and page

breaks in the dictionary, and paragraphs; thus, we found a very limited XML structure

in the source ﬁle which we used for the ﬁrst basic transformaions.

In this paper, we present how to annotate documents with PROLOG and the XML

query and transformation language FNQUERY [14], which is implemented in SWI–

PROLOG. To exemplify these annotations, we use the Campe Dictionary as a low–

structured base for obtaining a well–formed XML document according to TEI.

The PROLOG Data Structure for XML. The ﬁeld notation developed for FNQUERY

represents an XML element

= ”v

”. . . a

= ”v

”

.. .

</T>

as a PROLOG term

T:As:C

, called FN triple, with the tag ”

” and an association list

= [a

, . . . , a

]

of attributes a

and their corresponding values v

(with 1 ≤ i ≤ n), which are PROLOG

terms. The content

can be either text or nested sub–elements represented as FN triples.

is empty, then the FN triple can be abbreviated as a pair

T:C

In most available dictionaries, each entry is encapsulated in its own paragraph, and

thus, it could be easily detected. In the following example, an entry is annotated with

paragraph

and is followed by an element

W_2

, which shows the lemma of the entry

in a larger font; recognizing both elements is necessary, because there could exist other

paragraph

elements, which do not represent entries.

<W_2>Der Aal</W_2>, <W_1>des -- es, Mz. die -- e</W_1>, ...

</paragraph>

An XML document can be loaded into an FN triple using the predicate

dread

. For the

paragraph

element above we get FN triples with empty attribute lists:

paragraph:[ ’W_2’:[’Der Aal’], ’, ’,

’W_1’:[’des -- es, Mz. die -- e’], ’, ...’ ]

Extraction of Entries using FNQUERY. The query language FNQUERY allows for

accessing a component of an XML document by its attribute or tag name. Furthermore,

complex path or tree expressions can be formulated in a way quite similar to XPATH.

The XML element from above could now be parsed with the following predicate

campe_find_entry/2

. The path expression

Campe/descendant::paragraph

selects

a descendant element of

Campe

with the tag

paragraph

. For avoiding the recogni-

tion of a new paragraph without a following

W_2

tag, we use another path expression

Entry/nth_child::1/tag::’*’

for computing the tag of the ﬁrst child of the consid-

ered entry.

campe_find_entry(Campe, Entry) :-

Entry := Campe/descendant::paragraph,

’W_2’ := Entry/nth_child::1/tag::’*’.

124

Finally, with PROLOG’s backtracking mechanism it is possible to ﬁnd all entries in

the source ﬁle.

3 Annotation with Extended Grammar Rules

In the past, PROLOG has been frequently used for implementing natural language ap-

plications, in which parsing text is one of the main concerns. Most PROLOG systems

include a preprocessor for deﬁning grammar rules for parsing text. These deﬁnite clause

grammars hide arguments which are not relevant for the semantics of the parsing prob-

lems; thus, they are more readable and reliable than standard PROLOG rules.

In this section, we want to discuss this beneﬁt for parsing electronic dictionaries.

We give an example for parsing a lemma of an entry to generate TEI elements. In a

further step, we introduce an extended version of DCG’s (EDCG’s), which give the user

the ability to create compact grammar rules for generating generic FN terms for the

parsed tokens. A comparison to DCG’s and standard PROLOG rules will be elaborated

in addition to the possibility of integrating EDCG’s in the other formalisms.

3.1 Parsing with Deﬁnite Clause Grammars

Firstly, we will use DCG’s for parsing the headwords of a single entry and for detecting

punctuation in natural text. Using grammar rules is more reliable than using standard

PROLOG rules, since the code becomes much more compact and readable. Moreover,

we introduce the

sequence

predicate for parsing a list of XML elements.

Headwords. An entry of a dictionary normally consists of a lemma which is high-

lighted with a larger font; in our case, it is annotated with

W_2

–tags. Often, such a

lemma only consists of one word – in the case of verbs – or a noun and its determiner:

The DCG predicate

campe_headword

given below parses a headword XML element

<W_2>Der Aal</W_2>

and annotates it to derive the following

form

–element:

<form>

</form>

There also exist some cases with more than one headword or additional XML tags de-

pending on the current stage of the process, such as line breaks or abbreviations, e.g.,

the following collective reference to related entries:

<W_2>Der Blitzstoffmesser, der Blitzstoffsammler, <lb n="0569.49" />

der Blitzstoffsauger</W_2>

The additional elements have to be passed through and should not be annotated; the

different headwords have to be annotated, and a

form

–element for each lemma has to

be created.

The following DCG rule for

campe_headword

can handle the described variations;

it parses the different types of

W_2

elements to create FN triples

125

campe_headword(X) -->

( [X], { X = T:As:Es }

; [X], { atomic(X), campe_is_unicode_char(X) }

; [A, B], { atomic(A), atomic(B),

campe_is_determiner(A),

X = form:[type:lemma]:[

form:[type:determiner]:[orth:[A]],

form:[type:headword]:[orth:[B]] ] }

; [A], { atomic(A),

X = form:[type:lemma]:[

form:[type:headword]:[orth:[A] ] ] } ).

With standard DCG technology, this predicate has to be called recursively for pars-

ing a (possibly empty) sequence of headwords. This is done by the recursive predicate

campe_headwords

, which terminates when no more headwords are found:

campe_headwords([X|Xs]) --> campe_headword(X), campe_headwords(Xs).

campe_headwords([]) --> { true }.

To simplify this, we have developed the meta-predicate

sequence

; like in regular ex-

pressions, the ﬁrst argument

’*’

indicates that we look for an arbitrary number of head-

words (other possible values are, e.g.,

’+’

’?’

campe_headwords(Xs) --> sequence(’*’, campe_headword, Xs).

We can apply

campe_headwords

to produce a sequence of headwords, which are after-

wards enclosed in a

form

tag and written to the screen:

?- campe_headwords(Xs, [’Der’, ’Aal’], []), dwrite(xml, form:Xs).

Punctuation. For annotating punctuation in a lemma, which can appear between single

headwords, the DCG predicate

campe_punctuation

is used for checking each token if

it is a punctuation mark, and – if so – annotating it with a

–tag.

campe_punctuations(Xs) --> sequence(’*’, campe_punctuation, Xs).

campe_punctuation(X) -->

( [A], { is_punctuation(A), X = c:[A] } ; [X] ).

The meta-predicate

sequence

used in the DCG predicate

campe_punctuations

parses a list of elements.

3.2 Parsing with Extended Deﬁnite Clause Grammars

In the following, we show how nouns can be parsed using EDCG’s. For complex ap-

plications, standard DCG’s can have a complex structure, and understanding and de-

bugging them can be tedious. Thus, we have developed a new, more compact syntax

for writing DCG rules in PROLOG, which we call Extended DCG’s (EDCG). For the

representation of XML elements created by EDCG’s we use a generic ﬁeld notation.

126

Assume that a paragraph of a dictionary has to be parsed and annotated for labeling

the inﬂected forms of a noun. In the Campe Dictionary, lemma variations (such as plural

or genitiveforms) are found in nearly all of the regular substantives;thus, an easy to read

structure has to be developed to give the programmer the potential of writing complex

parsers in a user friendly way.

The following line shows such an extract of the Campe Dictionary.

des -- es, Mz. die -- e

These tokens have to be annotated in TEI, and different

form

tags with sub–elements

deﬁning the corresponding grammatical structure have to be created. The following

XML code, which should be produced, shows the complexity of such annotations, which

indicates that the corresponding PROLOG code will also be complex:

</form>

Extended Deﬁnite Clause Grammars. For solving a parsing problem using regular

PROLOG rules, the input tokens as well as the ﬁeld notation for the created XML have

to be processed.

Thus, we have developed a new notation for parsing language where the output is

regular XML. Instead of using the functor

-->

of DCG’s, we are using the new functor

==>

for writing EDCG’s. The output arguments can be hidden, since the output is con-

structed in a generic way: the output of an EDCG rule with the head

is a list

[T:Xs]

containing exactly one FN triple, where

is the list of FN triples produced by the body

of the rule.

The following EDCG rules parse inﬂected forms – like indicated above – into FN

triples:

form ==> grammar_determiner, form_headword.

grammar_determiner ==> ( gram, !, determiner ; determiner ).

gram ==> [’Mz.’].

determiner ==> [X], { campe_is_determiner(X) }.

form_headword ==> orth.

orth ==> [’--’, _].

Below, we call the predicate

form

for parsing a list of tokens (the second argument)

into a list

(the ﬁrst argument) of

form

elements; the last argument contains the tokens

that could not be parsed – i.e., it should be empty:

?- form(Xs, [’Mz.’, die, ’--e’], []), dwrite(xml, form:Xs).

127

The output of the predicate

form

is enclosed in a further

form

tag and written to the

screen:

<form>

<grammar_determiner>

</grammar_determiner>

<form_headword> <orth>-- e</orth> </form_headword>

</form>

From this, the exact, desired XML structure can be derived using some simple trans-

formations, which we will describe in Section 4. The code is much better understand-

able than for DCG’s, because this notation suppresses irrelevant arguments.

If we deﬁne

grammar_determiner

with the following DCG’s and mix them with

the EDCG’s for the other predicates, then we can get even closer to the desired XML

structure in one step – at the expense of a less compact code:

grammar_determiner([G, F]) -->

gram([gram:[C]]), !, determiner([determiner:[D]]),

{ G = gramGrp:[ gram:[type:number]:[abbr:[C]],

case:[value:nominative]:[],

number:[value:plural]:[] ],

F = form:[type:determiner]:[orth:[D]] }.

grammar_determiner([G, F]) -->

determiner([determiner:[D]]),

{ G = gramGrp:[

case:[value:genitive]:[],

number:[value:singular]:[] ],

F = form:[type:determiner]:[orth:[D]] }.

Instead of the generic element

grammar_determiner

produced by the EDCG rule,

the DCG rules can produce the two elements (

and

) of the desired XML structure.

Now, we can derive the complete desired XML with very simple transformations.

Finally, the different cases like genitiveor dative and the plural forms of a dictionary

entry could be parsed using similar DCG or EDCG rules.

Comparison with DCG’s and Standard PROLOG. In contrast, for our example the

corresponding standard DCG rules of PROLOG (we show only half of them) are more

complex than the EDCG rules:

form([form:Es]) -->

grammar_determiner(Xs), form_headword(Ys),

{ append(Xs, Ys, Es) }.

gram([gram:[’Mz.’]]) --> [’Mz.’].

determiner([determiner:[X]]) --> [X], { campe_is_determiner(X) }.

In many applications – like the annotation of electronic dictionaries or other pro-

grams producing XML – these DCG rules are quite complex and simplifying them is

necessary. Finally, the implementation in pure, standard PROLOG would look even more

complicated (again, we show only half of the rules):

128

form([form:Es], As, Bs) :-

grammar_determiner(Xs, As, Cs), form_headword(Ys, Cs, Bs),

append(Xs, Ys, Es).

gram([gram:[’Mz.’], As, Bs) :-

As = [’Mz.’|Bs].

determiner([determiner:[X]], As, Bs) :-

campe_is_determiner(X), As = [X|Bs].

Besides the output in the ﬁrst argument of the DCG predicates here, which is con-

structed explicitely rather than generic, there are two more arguments for passing the

list of input tokens. DCG’s only use the ﬁrst argument, and EDCG’s hide all three argu-

ments.

Sequences of Form Elements. If we add the following DCG rule for

form

at the

beginning of the DCG program and assume that commas have already been annotated

as FN triples

c:[’,’]

, then we can annotate sequences of inﬂected

form

elements:

form([X]) --> [X], { X = T:As:Es, ! }.

With the predicate

sequence

it is possible to parse a sequence

of tokens to inﬂected

form elements, even when more than one genitive or plural form occurs. Since the

output

is a list of lists of elements, we have to ﬂatten it to an ordinary list

before

we can write it to the screen:

?- Ts = [des, ’--’, es, c:[’,’], ’Mz.’, die, ’--’, e],

sequence(’*’, form, Fs, Ts, []),

flatten(Fs, Xs), dwrite(xmls, Xs).

These PROLOG rules are efﬁcient and easly readable. The derived FN triples can be

ouput in XML using the predicate

dwrite/2

4 Annotation with Transformation Rules

In this section, we transform XML elements from the Campe Dictionary with FNQUERY

in a way quite similar to XSLT, but with a more powerful backengine in PROLOG.

A rule with the head

--->(Predicate, T1, T2)

transforms an FN triple

another FN triple

. Arbitrary PROLOG calls could be integrated within the rules; thus,

FNQUERY is a Turing complete transformation language. FN transformation rules are

called by the predicate

fn_item_transform

. The transformation is recursive; it starts

in the leaves of the XML tree and ends in the root element.

For example, the following rules transform all

elements in an FN triple to an

element with an attribute

rend="roman"

and all

W_1

elements to an

element with an

attribute

rend="large"

for labeling the font size. Other elements are left unchanged,

because of rule 3:

--->(antiqua, ’A’:_:Es, hi:[rend:roman]:Es).

--->(large_font, ’W_1’:_:Es, hi:[rend:large]:Es).

--->(_, X, X).

129

Another example is the transformation of the XML elements created by the EDCG’s

of Section 3.

--->(inflected, form:_:[T1, T2], form:[type:inflected]:[G, F1, F2]) :-

D := T1/determiner/content::’*’, O := T2/orth,

( C := T1/gram/content::’*’, C = [’Mz.’] ->

G = ...

; G = ... ),

F1 = form:[type:determiner]:[orth:D],

F2 = form:[type:headword]:[oVar:[oRev:[O]]].

This rule transforms an FN triple analogously to the DCG rule for

grammar_determiner

deﬁned in Section 3; an attribute

type

is added to each of the

form

elements. The ele-

ment

grammar_determiner

is separated into two different elements (namely

gramGrp

including two additional elements

case

and

number

) and an optional

gram

element;

all of them depend on the content of the

case

element. The

orth

sub–element of the

form

element with attribute

type="headword"

is enclosed in two more elements for

obtaining the desired structure.

5 The Declarative Annotation Toolkit

The annotation techniques presented in the previous sections are part of an integrated

declarativeannotation toolkit. In this section, we sketch some further annotations which

we have implemented in the ﬁeld of electronic dictionaries.

5.1 Annotations of Electronic Dictionaries

With FNQUERY, DCG’s and EDCG’s we have developed several applications for pars-

ing natural text in electronic dictionaries such as Campe and Adelung. These techniques

give us the possibility to identify and annotate lemmas, their inﬂected forms, as well as

punctuations and hyphenations in parsed entries.

Furthermore, it is possible to match slightly modiﬁed variants of a lemma in the

text and to parse certain German relative clauses. Moreover, we have developed an

application for annotating sub–grouped senses in an entry labeled with list markers

such as

, where PROLOG’s backtracking mechanism is very useful for

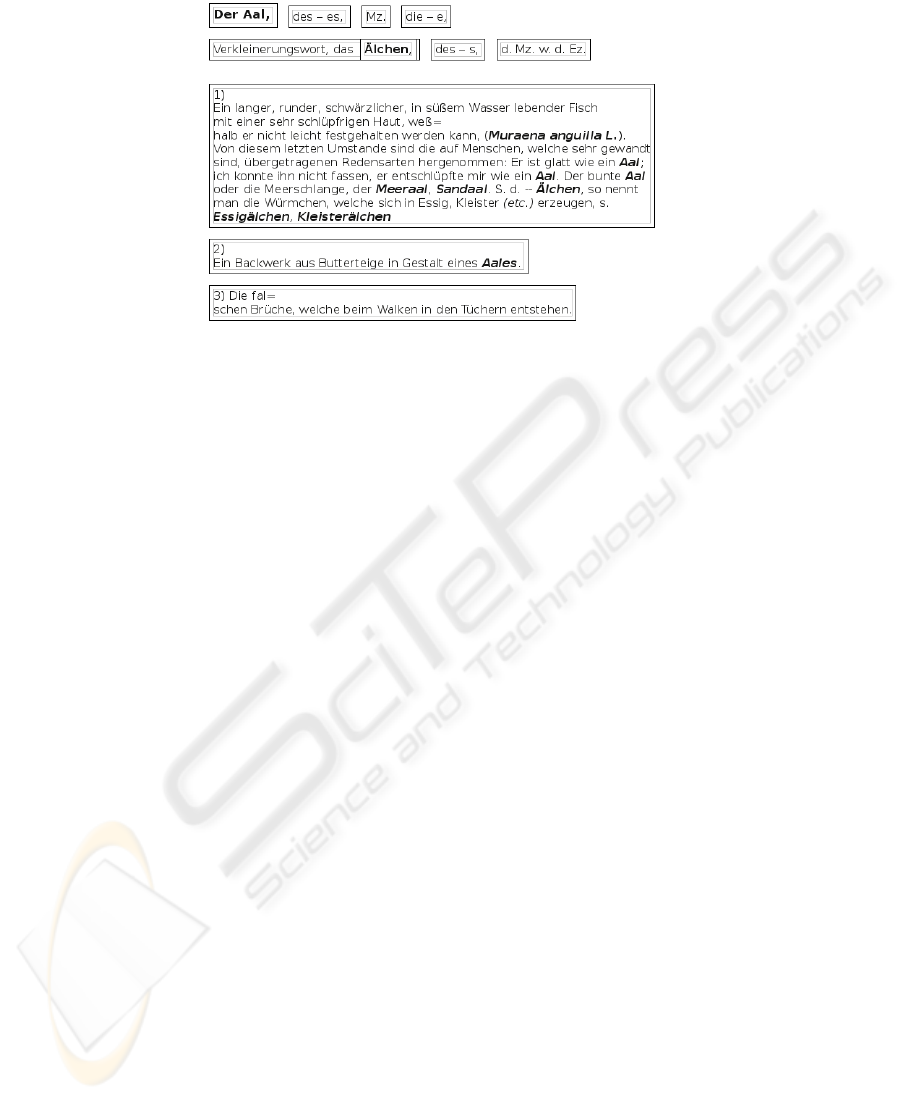

obtaining the proper structure. Figure 2 shows the rendering of an entry, which we had

annotated with PROLOG before.

5.2 Comparison to JAVA and XSLT

In an earlier step of the TEXTGRID–project, we had designed and implemented a tool

for parsing and annotating the Campe Dictionary in JAVA and XSLT. According to the

guidelines of the TEXTGRIDLAB, this implementation was necessary for the commu-

nity project.

For Volume 1 of the Campe Dictionary, which consists of 26.940 entries, the JAVA

approach needs approximately 44 minutes for parsing and annotating all entries on a

130

Figure2. Rendering of an Annotated Entry.

dual core CPU system using two threads. In our new approach in PROLOG, we can

reduce this runtime to about 4 minutes while using only one core of the system. Since

we are now using declarative technology, the code length could be reduced to only 5%

of the JAVA implementation.

6 Conclusions

In the BMBF research project on variations in language, we want to build a meta–

lemma list by analyzing a huge collection of dictionaries from different epochs of the

German language. Both here and in the TEXTGRID community project, we need a fast,

reliable, easy to read and modular toolkit for parsing, annotating and querying data sets.

With the development of FNQUERY and EDCG’s, we have the possibility to fulﬁl these

requirements; our declarative annotation toolkit is even faster than modern applications

written in JAVA and XSLT.

The usability of the introduced technologies is not limited to the annotation and

parsing of natural language; in another project we are using EDCG’s and transformation

rules for analyzing log messages – or even data buses – in order to ﬁnd root causes in

network systems.

The aspect of integrating text mining to extend our toolkit will be a subject of future

research.

References

1. Campe, Joachim Heinrich: W¨orterbuch der deutschen Sprache. 5 Volumes, Braunschweig,

1807–1811.

2. Covington, M.A.: GULP 3.1: An Extension of Prolog for Uniﬁcation–Based Grammar. Re-

search Report AI-1994-06, Artiﬁcial Intelligence Center, University of Georgia, 1994

131

3. Dereko: The German Reference Corpus Project. http://www.sfs.nphil.uni-

tuebingen.de/dereko/, 2009

4. Fuchs, N.E.; Fromherz, M.P.J.: Transformational Development of Logic Programs from Ex-

ecutable Speciﬁcations – Schema Based Visual and Textual Composition of Logic Programs.

C. Beckstein, U. Geske (eds.), Entwicklung, Test und Wartung deklarativer KI–Programme,

GMD Studien Nr. 238, Gesellschaft f¨ur Informatik und Datenverarbeitung, 1994

5. Fuchs, N.E.; Schwitter, R.: Specifying Logic Programs in Controlled Natural Language.

Proc. Workshop on Computational Logic for Natural Language Processing (CLNP) 1995

6. Gazdar, G.; Mellish, C. Natural Language Processing in Prolog. An Introduction to Compu-

tational Linguistics. Addison–Wesley, 1989

7. Hausmann, F.J.; Reichmann, O.; Wiegand, H.E.; Zgusta, L.; eds.: W¨orterb¨ucher / Dictio-

naries / Dictionnaires – Ein internationales Handbuch zur Lexikographie / An International

Encyclopedia of Lexicography / Encyclop´edie internationale de lexicographie. Berlin/New

York, 1989 (I), 1990 (II)

8. Hirakawa H.; Ono, K.; Yoshimura, Y.: Automatic Reﬁnement of a POS Tagger Using a Reli-

able Parser and Plain Text Corpora. Proc. 18th International Conference on Computational

Linguistics (COLING) 2000

9. Landau, S.: Dictionaries. The Art and Craft of Lexicography. 2nd Edition, Cambridge, 2001

10. Lloyd, J.: Practical Advantages of Declarative Programming. CSLI Lecture Notes, Number

10, 1987

11. O’Keefe, R.A.: The Craft of Prolog. MIT Press, 1990

12. Pereira, F.C.N.; Shieber, S.M: Prolog and Natural–Language Analysis. CSLI Lecture Notes,

Number 10, 1987

13. Schwitter, R.: Working for Two: a Bidirectional Grammer for a Controlled Natural Lan-

guage. Proc. 21st Australasian Joint Conference on Artiﬁcial Intelligence (AI) 2008, pp. 168-

179

14. Seipel, D.: Processing XML Documents in Prolog. Proc. 17th Workshop on Logic Program-

mierung (WLP) 2002

15. Seipel, D.; Pr¨ator, K.: XML Transformations Based on Logic Programming. Proc. 18th Work-

shop on Logic Programming (WLP) 2005, pp. 5-16

16. TEI Consortium, eds.: TEI P5: Guidelines for Electronic Text Encoding and Interchange.

http://www.tei-c.org/Guidelines/P5/

17. Textgrid: Modular platform for collaborative textual editing – a community grid for the

humanities. http://www.textgrid.de, 2009

132
