REAL TIME OBJECT DELIMITERS EXTRACTION FOR

ENVIRONMENT REPRESENTATION IN DRIVING SCENARIOS

Andrei Vatavu, Sergiu Nedevschi and Florin Oniga

Computer Science Department, Technical University of Cluj-Napoca, 26-28 G. Baritiu Street, Cluj-Napoca, Romania

Keywords: Contour Tracing, Environment Representation, Border Scanning, Environment Perception, Polyline

Extraction, Object Delimiters.

Abstract: The environment representation is essential for driving assistance. However, the performances achieved in

complex environments are still unsatisfactory regarding the accuracy, confidence and real time capabilities.

This paper presents a real-time 2.5D environment representation model, for driving scenarios, based on

object delimiters extraction from a 3D occupancy grid obtained from dense stereo. We propose two

approaches to extract the polyline delimiters: an improved contour tracing called 3A Tracing and a polyline

extraction method through the occupancy grid radial scanning. The advantages and drawbacks for each of

these methods have been discussed.

1 INTRODUCTION

In the context of in-vehicle navigation systems, the

environment perception and its convenient

representation is an important requirement (Pijpers,

2007). The process of environment representation

building has to be accurate and characterized by a

low computational cost.

Usually, the Driving Assistance Applications

detect the objects through 2D or 3D points grouping

processes. The detected objects are represented by

geometric primitives such as 2D bounding boxes

(Dellaert, 1997) or 3D cuboids (Nedevschi, 2007).

As an alternative approach, the objects may be

represented by polylines. One of the advantages of

the polyline based objects representation is the close

approximation of the object contour by the

polygonal model while having a number of vertices

as small as possible. In the same time the polyline

could inherit the type, position and height properties

of the associated object.

The polyline object representation may lead to

the creation of subsequent algorithms that are

computationally fast due to the fact that only a small

subset of points is employed.

The road feature identification through the object

delimiters detection can be used in the unstructured

environments as an alternative solution to the lane

detection algorithms.

The object delimiters extraction is studied in

some areas like mobile robots (Harati, 2007; Magin,

1994; Joshi, 2002; Laviers, 2004; Veeck, 2004), or

autonomous vehicle systems (Kolski, 2006;

Madhavan, 2002; Goncalves, 2007). The polyline

representation is very common in many algorithms,

such as localization and mapping (Joshi, 2002;

Laviers, 2004; Veeck, 2004; Madhavan, 2002),

contour tracking (Prakash, 2007) and path planning

(Madhavan, 2002).

The polyline extraction methods differ by the

nature of the information as well as by the sensors

used for data acquisition process. Current systems

use laser (Harati, 2007; Veeck, 2004; Kolski, 2006;

Madhavan, 2002), sonar (Goncalves, 2007; Laviers,

2004) or vision sensors (Goncalves, 2007).

Two main directions can be distinguished for the

delimiters extraction:

 The contour processing of already detected

objects from the scene (Gonzales, 2002);

 The radial scanning of the environment. This

method is common for the systems based on

sonar or laser sensors (Harati, 2007; Kolski,

2006).

A method for map representation as a set of line

segments or polylines is described in (Laviers,

2004). An occupancy grid is created here from sonar

information. The data is converted to a list of

vertices using the Douglas Peucker line reduction

algorithm.

Vatavu A., Nedevschi S. and Oniga F. (2009).

REAL TIME OBJECT DELIMITERS EXTRACTION FOR ENVIRONMENT REPRESENTATION IN DRIVING SCENARIOS.

In Proceedings of the 6th International Conference on Informatics in Control, Automation and Robotics - Robotics and Automation, pages 86-93

DOI: 10.5220/0002210400860093

 SciTePress

In (Veeck, 2004) a method that learns sets of

polylines from laser range information is presented.

The polylines are iteratively optimized using the

Bayesian Information Criterion.

The polyline representation was chosen in

(Madhavan, 2002) for terrain-aided localization of

autonomous vehicle. The new range data obtained

from the sensor are integrated into the polyline map

by attaching line segments to the end of the polyline

as the vehicle moves gradually along the tunnel.

In this paper we present and evaluate several

methods for real-time environment representation by

extracting object delimiters from the traffic scenes

using a Dense Stereovision System (Nedevschi,

2007). The delimiters detection is based on

processing the information provided by a 3D

classified occupancy grid obtained from the raw

dense stereo information. One of the problems in

representing the environment through the occupancy

grid is a large volume of data. Therefore we propose

a more compact 2.5D model by representing the

environment as a set of polylines with associated

height features. We present two approaches to

extract object delimiters:

 The 3A Tracing. The classical algorithm for

contour tracing is improved by developing a

new method named 3A Tracing Algorithm;

 The radial scanning of the occupancy grid.

We have developed a Border Scanning method

that is able to detect delimiters of complex

objects taking into account the nature of

information from the traffic scene (curb, object,

and road).

A polyline map is generated as the result of the

delimiters extraction process. Each polyline element

inherits the type (object, curb), position and height

properties of the associated objects from the

occupancy grid.

In the next section, we describe the proposed

Delimiters Extraction architecture. The delimiters

detection approaches are presented in section 3.

Experimental results are given in section 4, and

section 5 concludes the paper with final remarks.

2 PROPOSED ARCHITECTURE

Our delimiters detection approaches have been

conceived for an urban driving assistance system.

We extended our Dense Stereo-Based Object

Recognition System (DESBOR) by developing an

Object Delimiters Detection component. A detailed

description about the DESBOR system is presented

in (Nedevschi, 2007).

The Object Delimiters Detection system

architecture consists in the following modules (see

Figure 1):

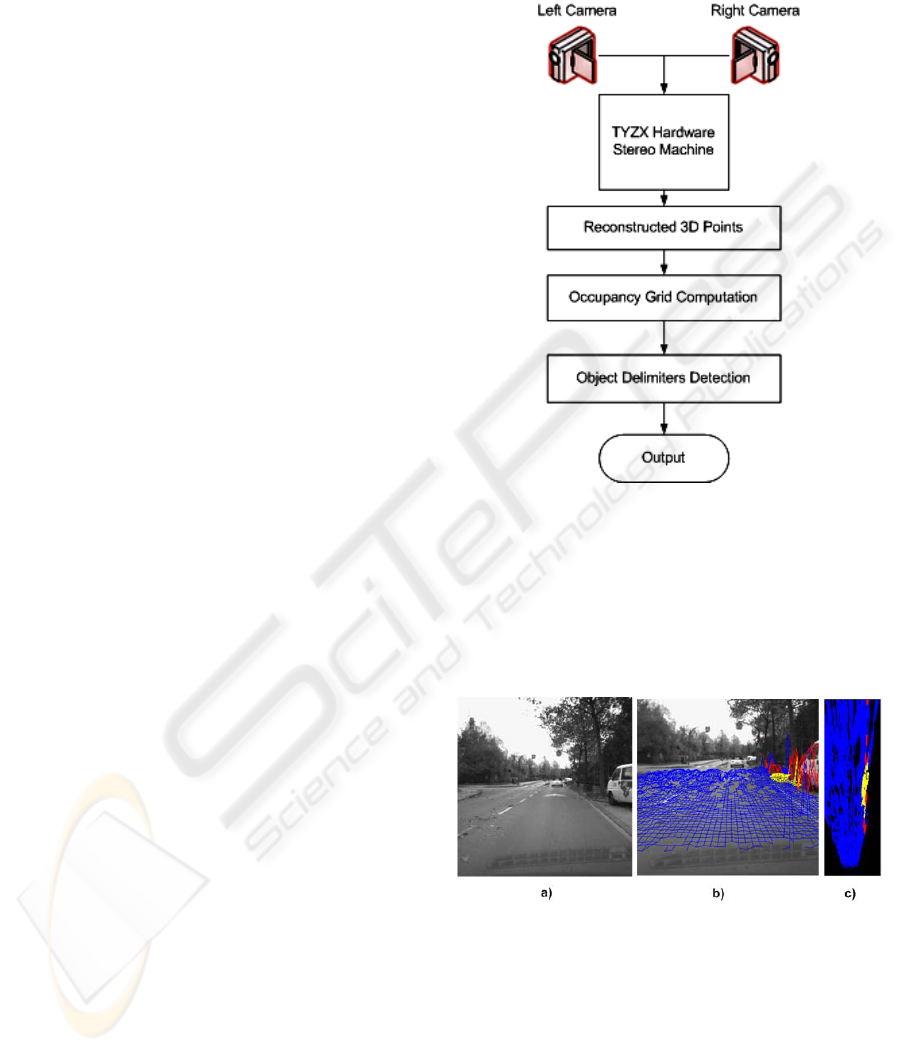

Figure 1: System Architecture.

TYZX Hardware Stereo Machine. The 3D

reconstruction is performed by the “TYZX”

hardware board (Woodill, 2004).

Reconstructed 3D Points. The reconstructed 3D

points are used for the occupancy grid generation.

Figure 2: The Occupancy Grid (c) is computed from the

Elevation Map (b) of a scene (a). The occupancy grid cells

are roughly classified (blue – road, yellow – traffic isle,

red – obstacles).

Occupancy Grid Computation. The occupancy

grid (see Figure 2.c) represents a description of the

scene, computed from the raw dense stereo

information represented as a digital elevation map

(see Figure 2.b). The occupancy grid cells are

classified into road, traffic isle and object cells. A

REAL TIME OBJECT DELIMITERS EXTRACTION FOR ENVIRONMENT REPRESENTATION IN DRIVING

SCENARIOS

detailed description about the occupancy grid

computation is presented in (Oniga, 2007).

Object Delimiters Detection. The Object

Delimiters detection uses the occupancy grid results

as the input and generates a set of unstructured

polygons approximated with the objects contour.

The delimiters can be extracted from the occupancy

grid through both 3A Tracing and Border Scanning

algorithms.

Object Delimiters Detection Output. A polyline

map is generated as the result of delimiters

extraction process. For each polyline element we

keep the following information: a list of vertices, the

delimiter type (object, curb), and the height of the

object for which we apply the polyline extraction.

Figure 3: The car coordinate system.

It must be noted that the car coordinate system

coincide with the world coordinate system having its

origin on the ground in front of the car (see Figure

3). The position and orientation of the stereo

cameras are determined by the absolute extrinsic

parameters (Marita, 2006).

3 OBJECT DELIMITERS

EXTRACTION APPROACHES

A set of steps have been identified for the delimiters

extraction:

Step 1: Object Labeling. In this step each object

from the occupancy grid is labeled with a unique

identifier.

Step 2: The Contour Extraction. We compute the

contours of the non-drivable blobs (objects, traffic

isles) from the occupancy grid. Each contour point

will represent a single cell in the grid map.

Step 3: The Polygonal Approximation. Given a

curve C we will find a polygon that closely

approximates C while having as small a number of

vertices as possible.

Next, we will present several algorithms

developed by us for delimiters extraction. All these

methods have in common the 1

and 3

step. The 2

step is different in each case. We have used two

main approaches for the contour extraction:

1) The Contour Tracing for a Given Object. Once

an object cell has been identified, contour tracing is

performed starting from this point, adding each

traversed cell to the current contour. In this paper we

present an improved version of contour tracing, the

3A Tracing Algorithm.

2) The Border Scanning. A radial scanning is

performed with a given radial step, traversing the

interest zone and accumulating the contour points at

the same time. The main difference of this approach

is that we scan only the visible parts from the ego-

car position. Two main improvements of the Border

Scanning method are discussed: the Border

Scanning using a variable step, and the Combined

Border Scanning, taking into account the occupancy

grid blob’s nature (traffic isles, obstacles).

3.1 The 3A Tracing Algorithm

The classical contour tracing algorithm collects the

contour points of an object by traversing the object

boundary.

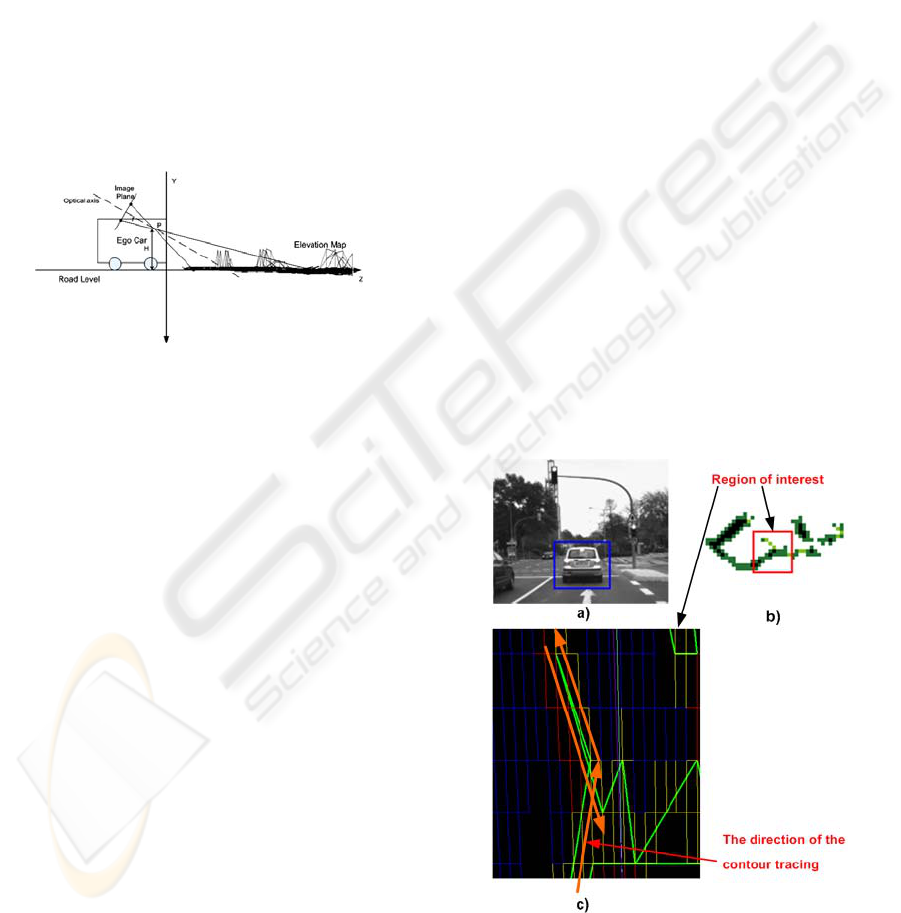

Figure 4: Contour tracing of the care points (b) from the

scene (a). There are cases when two polygonal segments

can intersect each other (c), after the polygonal

approximation of the car contour.

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

A disadvantage of the classical algorithm is that

there are cases when the same delimiter point can be

passed many times. This may lead to the incorrect

representation, after the contour approximation step

(see Figure 4).

To avoid this problem we have developed an

extended contour tracing algorithm named 3A

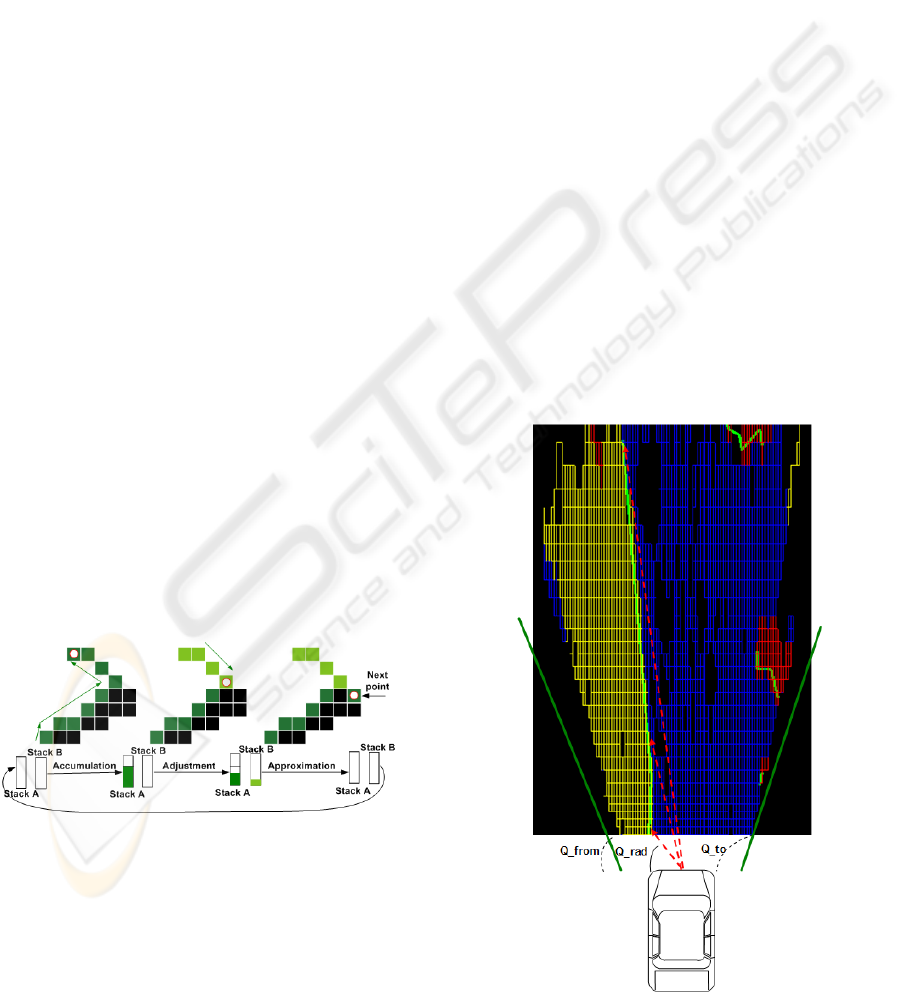

Tracing. In this method we use two stacks, Stack A

and Stack B. The name 3A Tracing comes from the

next three main phases (see Figure 5):

Phase 1: Accumulation. The tracing is made

analogue to the Contour Tracing algorithm. All

accumulated points are pushed onto the stack A. The

traversed points are marked with a flag in order to

know whether they were traversed or not at least one

time. Once we found a terminal point (from which

the tracing is made in the inverse sense) we pass to

the 2nd phase of the algorithm.

Phase 2: Adjustment. In this phase the tracing

continues in the inverse sense by extracting already

passed points (drawn with light green) from the

Stack A, and pushing them onto the Stack B. The

Adjustment is repeated until we reach a contour

point that has not passed yet. Once the new contour

point is found we pass to the 3rd phase of the

algorithm.

Phase 3: Approximation. Polygonal approximation

is applied to each of the two stacks. After the

polygonal approximation process the two stacks will

be cleared and the algorithm is repeated from the

Phase 1.

The algorithm stops when the start point is

reached once again.

Figure 5: 3A Tracing Algorithm. In the Accumulation

phase, all traversed points are pushed onto the Stack A. In

the Adjustment stage, the already passed points are

extracted form the Stack A and pushed onto the Stack B.

Polygonal approximation is applied in the last step of

algorithm.

Although the 3A Tracing algorithm eliminates

some particular cases in which two polygonal

segments may intersect, like in the Contour Tracing,

it works only on the connected components.

Therefore this method does not take into account the

cases of more complex objects, when a single

obstacle is represented as many disjoint

patches.Therefore we have elaborated an extraction

method through the radial scanning of the Elevation

Map.

3.2 The Border Scanner Algorithm

The Border Scanner algorithm performs a radial

scanning with a given radial step. The scanning axis

moves in the radial direction, having a fixed center

at the Ego Car position. The scanning process is

made into the limits of Q_from and Q_to angles,

thus only the interest area are scanned, where the

delimiters can be detected (see Figure 6). Having a

radial axis with a Qrad slope, Q_from < Qrad <

Q_to, we try to find the nearest point from the Ego

Car situated on this axis. In this way, all subsequent

points will be accumulated into a Contour List,

moving the scanning axis in the radial direction. At

each radial step we verify that a new object has been

reached. If a new label has been found then the

polygonal approximation on the Contour List points

is performed. The list will be cleared, and the

algorithm will be continued finding a new polygon.

Figure 6: Border Scanning on the Occupancy Grid Points.

REAL TIME OBJECT DELIMITERS EXTRACTION FOR ENVIRONMENT REPRESENTATION IN DRIVING

SCENARIOS

Advantages. The obtained results are more close to

the real obstacle delimiters from the scene. The

problem of the complex objects presented in the case

of Contour Tracing algorithms is eliminated.

Therefore many disjoint patches that belong to the

same object can be enveloped by a single delimiter.

Disadvantages. A little obstacle (noise present in

the occupancy grid) can occlude a great part from

the scene, if this obstacle is too near to the Ego-Car.

The scanning is influenced by the presence of such

false obstacles.

3.2.1 The Border Scanning Algorithm using

Variable Step

Having a constant radial step, the detected pixel

density will decrease with the depth distance. The

distance between two consecutive detected pixels is

greater at the far depths. The idea is that some

important information about the delimiters can be

lost at the far distances.

A good solution is to use a scanning method with

a variable step, thus the radial step should be

adapted with the distance.

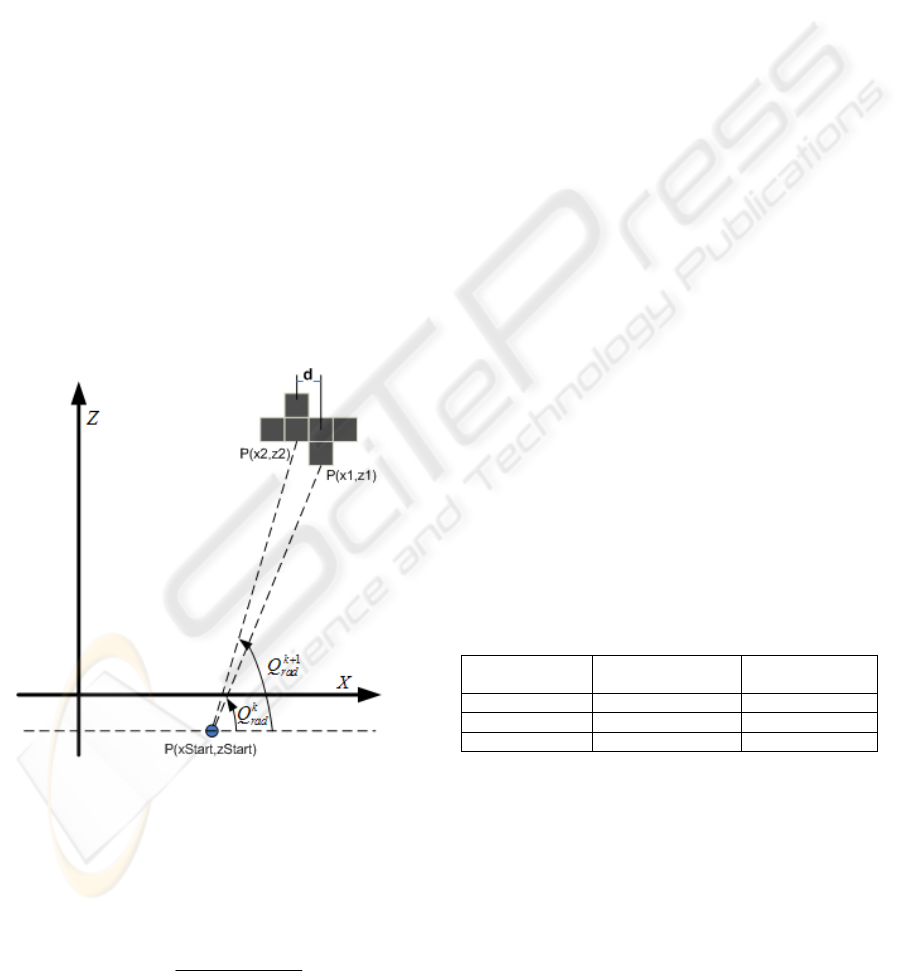

Figure 7: Radial angle estimation for the next step in the

Variable Step Border Scanning approach.

If we have a point P

, z

) of a given object and

a radial axis containing the point P

with a radial

angle Q

rad

at the k step, then we estimate the radial

angle at the k+1 step (see Figure 7):

)arctan(

dxx

Start

rad

−−

−

(1)

Where:

 x

, z

are the coordinates of the P

point;;

 x

Start

, z

Start

are the ego-car point coordinates.

 d is considered the distance between any two

adjacent points.

However, there are situations when no object

point can be reached on the current scanning axis.

Therefore we cannot estimate the radial angle for the

next step, because we don’t know the distance of the

current object point from the Ego-Car. In this case,

like in the simple Border Scanning method, we use a

fixed step, until a new object point will be found.

3.2.2 The Combined Border Scanning

We know that the occupancy grid cells are classified

into obstacles (cars, pedestrians etc.) or traffic isles

(road-parallel patches). If we take into account only

the first nearest point from the car, many relevant

objects delimiters may be omitted. For example, the

first obstacle from the car can be a curb. In this case,

we are interested not only in the curb delimiters but

also in the delimiters above the curb or behind the

curb. Therefore we extended our Border Scanning

algorithm by developing a method that takes into

consideration the obstacle’s nature making a

decision based on two types of information “What

have we found?” and “What we have to find?”. The

algorithm consists in two passes: one for the object

delimiters detection, and second for the traffic isles

delimiters detection.

In the Table 1 is presented the returned result

when we want to find a delimiter taking in account

the point type we have found.

Table 1: The Combined Border Scanning method. The

result is returned, taking into consideration the found point

type.

Delimiter’s type

we want to find

Point Type we

have found

Returned result

OBJECT OBJECT FOUND

CURB OBJECT NOT FOUND

CURB CURB FOUND

4 EXPERIMENTAL RESULTS

For the experimental results we have tested a set of

15 scenarios from the urban traffic environment

using a 2.66GHz Intel Core 2 Duo Computer with

2GB of RAM.

Figure 8 shows a comparative result between the

Contour Tracing and 3A Tracing algorithms, using

an approximation error of two points. One can notice

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

that the polygonal segment intersection in the case

of classical contour tracing algorithm (see Figure

8.b) was eliminated by applying the 3A Tracing

algorithm (see Figure 8.c).

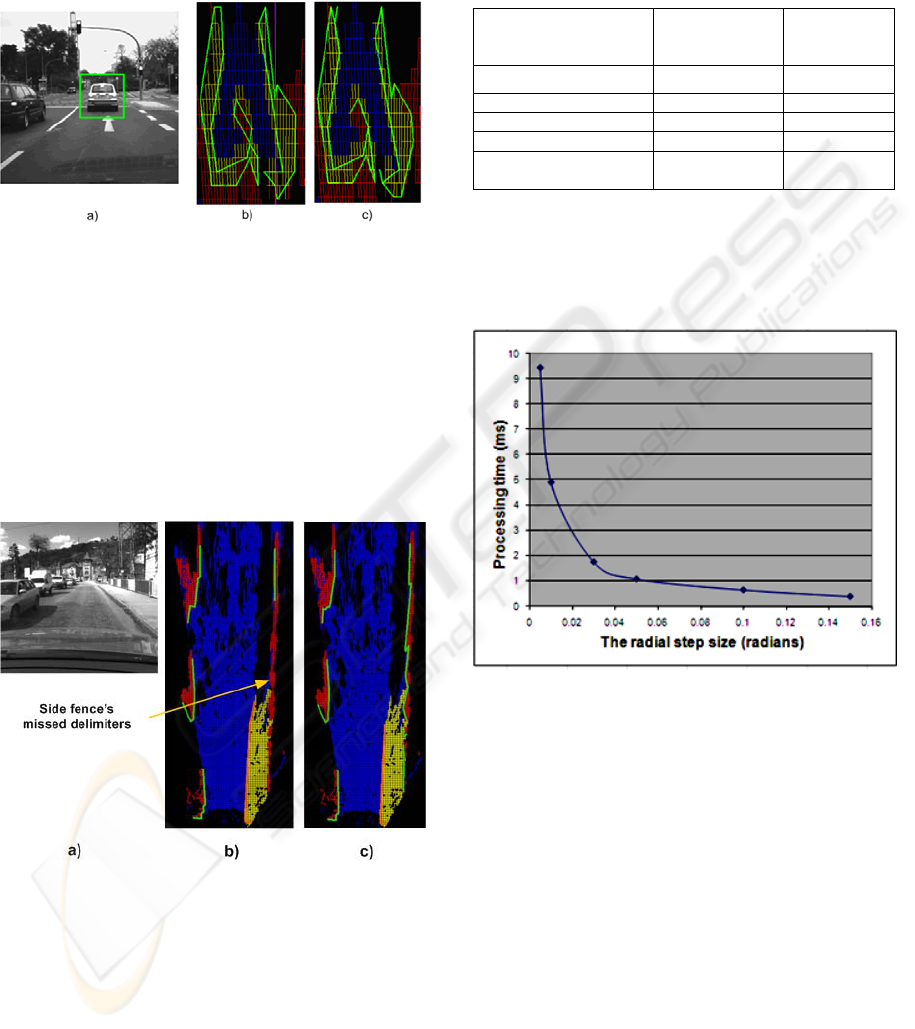

Figure 8: Delimiters detection through the Contour

Tracing algorithm (b) and 3A Tracing algorithm (c). The

detection is performed on the occupancy grid computed

from the scene (a).

The difference between the result of delimiters

detection in the case of Simple border Scanner and

Combined Border Scanner algorithms is presented in

the

Figure 9. It can be observed that in the case of

Combined Border Scanner (see Figure 9.b) the side

fence’s delimiter is detected in spite of his position

behind the curb (Figure 9.c).

Figure 9: Border scanning of a scene (a). The side fence’s

delimiters are missed in the case of the Simple Border

Scanning (b) and have been detected in the case of the

Combined Border Scanning algorithm (c).

In the Table 2 the results from the Variable Step

Border Scanner and Fixed Step Border Scanner are

computed for the same driving scene. It can be

observed that the number of detected points is

greater in the case of Variable Step Border Scanner

algorithm, thereby 11466 points, which means 28

detected points per frame in comparison with 22

detected points per frame in the case of Fixed Step

Border Scanner algorithm.

Table 2: Fixed Step Border Scanner vs. Variable Step

Border Scanner.

Fixed Step

Border Scanner

Variable Step

Border

Scanner

Number of Frames 406 406

Detected points 9058 11466

The radial step (radians) 0.01 variable

Points per Frames 22 28

Average processing

time per frame

4 ms 5 ms

The average extraction time using the 3A

Tracing algorithm is about 0.7ms per frame and

depends on the angular resolution in the case of

Border Scanner approach.

Figure 10: The processing time vs. the radial step size.

Figure 10 shows how the radial step size

variation affects the system response time using the

Combined Border Scanning approach.

Figure 11 is a diagram that shows the impact of

radial step size on delimiters detection rate using the

border scanner method. We can observe that, with a

higher radial step size we obtain an increase in

processing time while the detection rate decreases.

The solution is a tradeoff between the system

processing time and detection rate.

Figure 12 presents results for various traffic

scenes using the Combined Border Scanning

method. For the border scanning algorithm with a

radial step of 0.01 radians the average processing

time is about 5ms and the delimiters detection rate is

98.66%.

REAL TIME OBJECT DELIMITERS EXTRACTION FOR ENVIRONMENT REPRESENTATION IN DRIVING

SCENARIOS

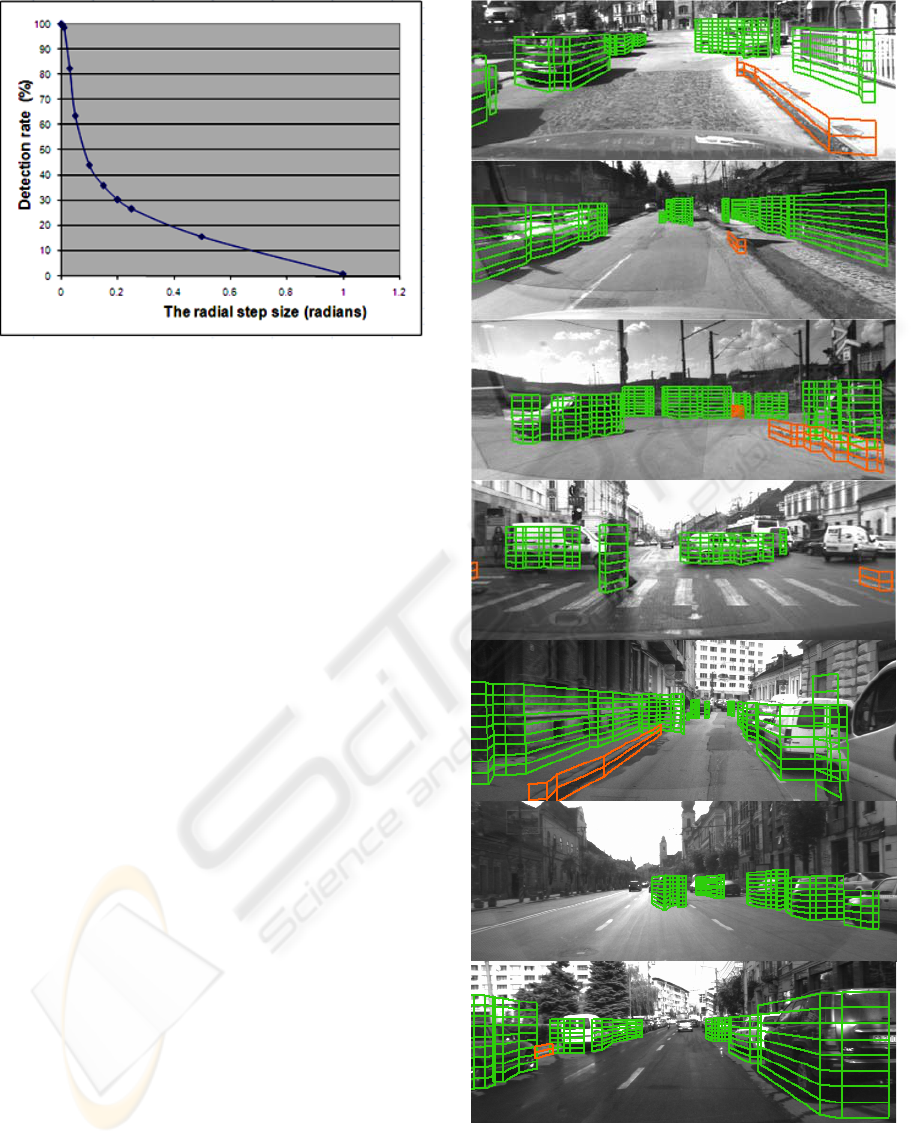

Figure 11: The detection rate vs. the radial step size.

5 CONCLUSIONS

In this paper we present and evaluate several

methods for real-time environment representation

through the object delimiter extraction and

characterization from dense stereovision images.

The delimiters detection is based on processing the

information provided by a 3D classified occupancy

grid obtained from the raw dense stereo information.

The result is a more compact 2.5D model for

representing the environment, as a set of polylines.

Each polyline element inherits the type (object,

curb), position and height properties of the

associated object from the occupancy grid.

We have developed an improved Contour

Tracing method named 3A Tracing algorithm that

eliminates the situation when two polygonal

segments can intersect each other.

Another approach presented in this paper is the

polyline extraction through the radial scanning of the

occupancy grid. Although the tracing approach is

more computationally-efficient, the results provided

by the Border Scanner algorithm are more

appropriate for detecting the real obstacle delimiters

from the scene. The algorithm is able to extract only

the visible area from the ego-vehicle since the

occluded points do not offer relevant information.

Using the Border Scanner algorithm, our system is

fast and achieves a high rate of detection: 98.66%.

Figure 12: Object delimiters detection through the

Combined Border Scanning algorithm for various traffic

scenes. The delimiters are projected onto the Left Image

and are represented as grids labeled as Traffic Isles

(orange) or Objects (light green). The grid height is the

same as the enveloped object by the current delimiter.

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

REFERENCES

Dellaert, F., Thorpe, C., 1997. Robust Car Tracking using

Kalman filtering and Bayesian templates. In

proceedings of Conference on Intelligent

Transportation Systems, vol. 3207, 1997. p. 72-83.

Goncalves, A., Godinho, A., Sequeira, J., 2007. Lowcost

sensing for autonomous car driving in highways. In

proceedings of ICINCO2007 - 4th International

Conference on Informatics in Control, Automation and

Robotics, Angers, France, 2007.

Gonzales, R. C., Woods, R. E., 2002, Digital Image

Processing, Addison Wesley, second edition.

Harati, A., Siegwart, R., 2007. A new approach to

segmentation of 2d range scans into linear regions. In

Proceedings of the 2007 IEEE/RSJ International

Conference on Intelligent Robots and Systems, San

Diego, CA, USA, October 29 - November 2, 2007.

Joshi, R. R., 2002. Novel metrics for map-matching in in-

vehicle navigation system. In IEEE Intelligent Vehicle

Symposium, Vol. 1, 2002, pp. 36-43.

Kolesnikov, A., Franti, P., 2005, Data reduction of large

vector graphics. Pattern Recognition, March, 2005, 38

(3), 381-394.

Kolski, S., Ferguson, D., Bellino, M., Siegwart, R., 2006.

Autonomous driving in structured and unstructured

environments. In proceedings of IEEE Intelligent

Vehicles Symposium, 2006.

Laviers, K. R., Peterson, G. L., 2004. Cognitive robot

mapping with polylines and an absolute space

representation. In proceedings of the IEEE

International Conference on Robotics and

Automation, Hilton New Orleans Riverside, New

Orleans, LA, USA, April 26-May 1 2004, pp. 3771-

3776.

Madhavan, R., 2002. Terrain aided localization of

autonomous vehicles. In Symposium on Automation

and Robotics in Construction, Gaithersburg,

September 01, 2002.

Magin, G., Russ, A., 1994. Supporting real-time update of

an environment representation for autonomous mobile

robots real-time systems. In EuroMicro Workshop on

Real-Time Systems, Jun 15-17 1994, pp. 34-39.

Marita, T., Oniga, F., Nedevschi, S., Graf, T., Schmidt, R.,

2006. Camera calibration method for far range

stereovision sensors used in vehicles. In Proceedings

of IEEE Intelligent Vehicles Symposium, (IV2006),

Tokyo, Japan, June 13-15 2006, pp. 356-363.

Nedevschi, S., Danescu, R., Marita, T., Oniga, F., Pocol,

C., Sobol, S., Tomiuc, C. Vancea, C., Meinecke, M.

M., Graf, T., To, T. B., Obojski, M. A., 2007. A sensor

for urban driving assistance systems based on dense

stereovision. In Proceedings of Intelligent Vehicles

2007, Istanbul, June 13-15 2007, pp. 278-286.

Oniga, F., Nedevschi, S., Meinecke, M. M., To, T. B.,

2007. Road surface and obstacle detection based on

elevation maps from dense stereo. In Proceedings of

the IEEE Intelligent Transportation Systems

Conference, Seattle, WA, 2007, pp. 859-865.

Pijpers, M., 2007. Sensors in adas, Universiteit Twente.

Prakash, S., Thomas, S., 2007. Contour tracking with

condensation/stochastic search. In Dept. of CSE, IIT

Kanpur, September 26 2007.

Veeck M., Burgard, W., 2004. Learning polyline maps

from range scan data acquired with mobile robots. In

proceedings of the IEEE/RSJ International Conference

on Intelligent Robots and Systems (IROS), 2004.

Woodill, J. I., Gordon, G., Buck, R., 2004. Tyzx deepsea

high speed stereo vision system. In Proceedings of the

IEEE Computer Society Workshop on Real Time 3-D

Sensors and Their Use, Conference on Computer

Vision and Pattern Recognition, 2004.

REAL TIME OBJECT DELIMITERS EXTRACTION FOR ENVIRONMENT REPRESENTATION IN DRIVING

SCENARIOS
