SELF-LOCALIZATION OF A TEAM OF MOBILE ROBOTS BY

MEANS OF COMMON COLORED TARGETS

Patricio Nebot and Enric Cervera

Department of Computer Science and Engineering, Jaume-I University, Campus de Riu Sec, Castell´on de la Plana, Spain

Keywords:

Mobile robots, Visual localization, Color vision, Common objects.

Abstract:

Robot localization is one of the fundamental problems in mobile robotics. Using sensory information to

localize the robot in its environment is the most fundamental problem that has to be solved in order to provide

a mobile robot with autonomous capabilities, But, if robots can detect each other, there is the opportunity to

do better. In this paper, it is explained how one robot, the leader, with a pan-tilt-zoom camera mounted on

it can localize a team of robots. Camera images are used to detect other robots and to determine the relative

position of the detected robot and its orientation with respect to the leader. Each robot carries a colored target

that helps the leader to recognize it and calculate their position and orientation. Moreover, the zoom is used to

enhance the perception and get a higher accuracy and a larger ﬁeld of view.

1 INTRODUCTION

Cooperation among a group of robots has been a topic

of very much study during the last years. To have a

cooperative system it is necessary for more than one

organism to have a relationship with another or anoth-

ers. So, to implement cooperation in a robotic system,

it is necessary to have more than one robot working in

the same environment, that is, a multirobot system.

There are several applications in which having

more than one robot working in parallel has improved

the system’s fault tolerance, and has reduced the time

required for executing the tasks. Some of these appli-

cations are autonomous cleaning, tour guiding in mu-

seums, art-galleries, or exhibitions, surveillance and

patrolling, rescue in disasters such as ﬁres, ﬂoods,

earthquakes, landmine detection and autonomous ex-

ploration and mapping.

In more of these applications it is necessary the

use of vision in order to implement or acomplish the

tasks. Human and animal vision are the most power-

ful perception systems. Vision is a sense that consists

of the ability to detect the light and interpret it, that

is “see”. Vision gets help from multiple information

sources to interpret the world. The visual system al-

lows to assimilate information from the environment

to help guide the actions.

One of the most important task in computer vision

is recognition, which consists of determining whether

or not the image data contains some speciﬁc object,

feature, or activity. One of the most characteristic task

in recognition is “pose estimation”, that estimates the

position or orientation of a speciﬁc object relative to

the camera.

In this paper, a similar task is implemented. In

this case, one robot with a camera tries to estimate the

pose of the rest of robot of the team, which don’t have

a camera available. In that way, the robot with the

camera can help the rest of robots in case of lost of

their possitions due to inaccurate odometric estima-

tion pose.

To determine the relative location of other robots,

the leader uses the visual information obtained from

the pan-tilt-zoom on-board camera. Camera images

are used to detect other robots and to determine the

relative position of the detected robot and its orien-

tation with respect to the leader. Each robot carries

a colored target that helps the leader to recognize it

and calculate their position and orientation. More-

over, the zoom is used to enhance the perception and

get a higher accuracy and a larger ﬁeld of view.

Robot localization has been recognized as one of

the fundamental problems in mobile robotics (Fox

et al., 2000). Using sensory information to localize

the robot in its environment is the most fundamental

problem that has to be solved in order to provide a

mobile robot with autonomous capabilities (Cox and

Wilfong, 1990). Most of the existing work in localiza-

tion is addressed to the localization of a single robot

by itself. However, if robots can detect each other,

274

Nebot P. and Cervera E. (2009).

SELF-LOCALIZATION OF A TEAM OF MOBILE ROBOTS BY MEANS OF COMMON COLORED TARGETS.

In Proceedings of the 6th International Conference on Informatics in Control, Automation and Robotics - Robotics and Automation, pages 274-279

DOI: 10.5220/0002212402740279

 SciTePress

there is the opportunity to do better. When a robot

determines the location of another robot relative to

its own, both robots can improve the accuracy with

which they localize each other.

Vision has been widely used to get exteroceptive

information in order to detect and localize robots. Al-

though omnidirectional cameras have been used in

the detection and localization of robots (Das et al.,

2002), directional cameras suppose a better option

due to their much lower cost (Sarcinelli-Filho et al.,

2003) and because they have complementary perfor-

mances despite the visibility constraints (Michaud

et al., 2002). Regarding the image processing, color

has been widely used to achieve robot detection

(Fredslund and Mataric, 2002; Michaud et al., 2002).

However, the robustness of color detection with re-

spect to light conditions can be a major source of fail-

ures (Cubber et al., 2003).

Also, the use of the zoom has been used in the

context active vision (Atienza and Zelinsky, 2001) or

visual servoing (Hosoda et al., 1995). For using the

zoom, it is necessary the explicit knowledge of in-

trinsic parameters from the calibration of the camera

(Clady et al., 2001).

The rest of the paper is organized as follows.

Section 2 provides a description of the experimental

setup. Section 3 explains the process to lozalize the

different robots of the team. Finally, section 4 pro-

vides some general conclusions and lines of future

work.

2 EXPERIMENTAL SETUP

• Hardware Setup

The team for this application consists of a group

of four Pioneer-2 mobile robots. These robots,

though sharing the same platform, have different

features, such as different accessories mounted

on them, constituting therefore a heterogeneous

group. In particular, only one robot is equipped

with a camera and the rest of robots do not have

any type of exteroceptive sensors. The robot with

the camera is in charge of detecting the rest of the

robots in the environment and indicates to them

which is their current position in the environment.

• Software Setup

The formation control is developed in Acromovi

(Nebot and Cervera, 2005), a framework specially

designed for the development of distributed ap-

plications for a team of heterogeneous mobile

robots. The software architecture gives us the

ease of development of cooperative tasks among

robots, using an agent-based platform. In particu-

lar, communication between robots can be easily

integrated to the control scheme.

3 LOCALIZATION OF THE

ROBOTS IN THE

ENVIRONMENT

This section describes how the robots can be local-

ized. Having the robots distributed in an environment,

the robot with the camera, from this point the leader,

uses the camera that it carries to detect and localize

the rest of the robots of the team and indicates to them

which is their current. This process is explained be-

low in more detail.

The ﬁrst step is the detection of the robots in the

environment, in order for this decision to be taken,

the leader uses its camera to detect a series of color

patterns which identify each one of the robots in an

unequivocal way. To detect the colors, the Mezzanine

program is used.

Mezzanine (Howard, 2002) is an 2D visual track-

ing package intended primarily for use as a mobile

robot metrology system. It uses a camera to track ob-

jects marked with color-coded ﬁducials and infers the

pose of these objects in world coordinates. Mezzanine

works with most color cameras and can correct for the

barrel distortion produced by wide-angle lenses.

Mezzanine is used only for the detection of the

colors of the patterns that are used to recognize the

robots. And with the information that is collected

from the mezzanine system, it is possible to localize

the robots in the environment and calculate their pose

(position and orientation) with respect to the leader.

The color pattern that the leader has to search for

is created with very common object, a beer can of half

a liter covered with colored cards in a speciﬁc layout,

because each ID is unique. In ﬁgure 1, it is possible

to see the sizes and dimensions of the target and the

color layout at the front and at the back.

As it can be seen in the ID, there are two different

parts separated by a black zone. These two parts are

formed with the same colors and the same cards, but

there is a 90

difference in orientation between the

ID cards which means that thay are read as different

cards. That is in this way to get two different readings

of the orientation of the can and thus getting more

accurate estimations.

Since each robot carries a different color target,

the leader is able to recognise each one. Also, with

this pattern it is possible to calculate the pose of the

robot in relation to the leader. It is easy to recognize

which robot the camera is seeing, it is simply neces-

SELF-LOCALIZATION OF A TEAM OF MOBILE ROBOTS BY MEANS OF COMMON COLORED TARGETS

275

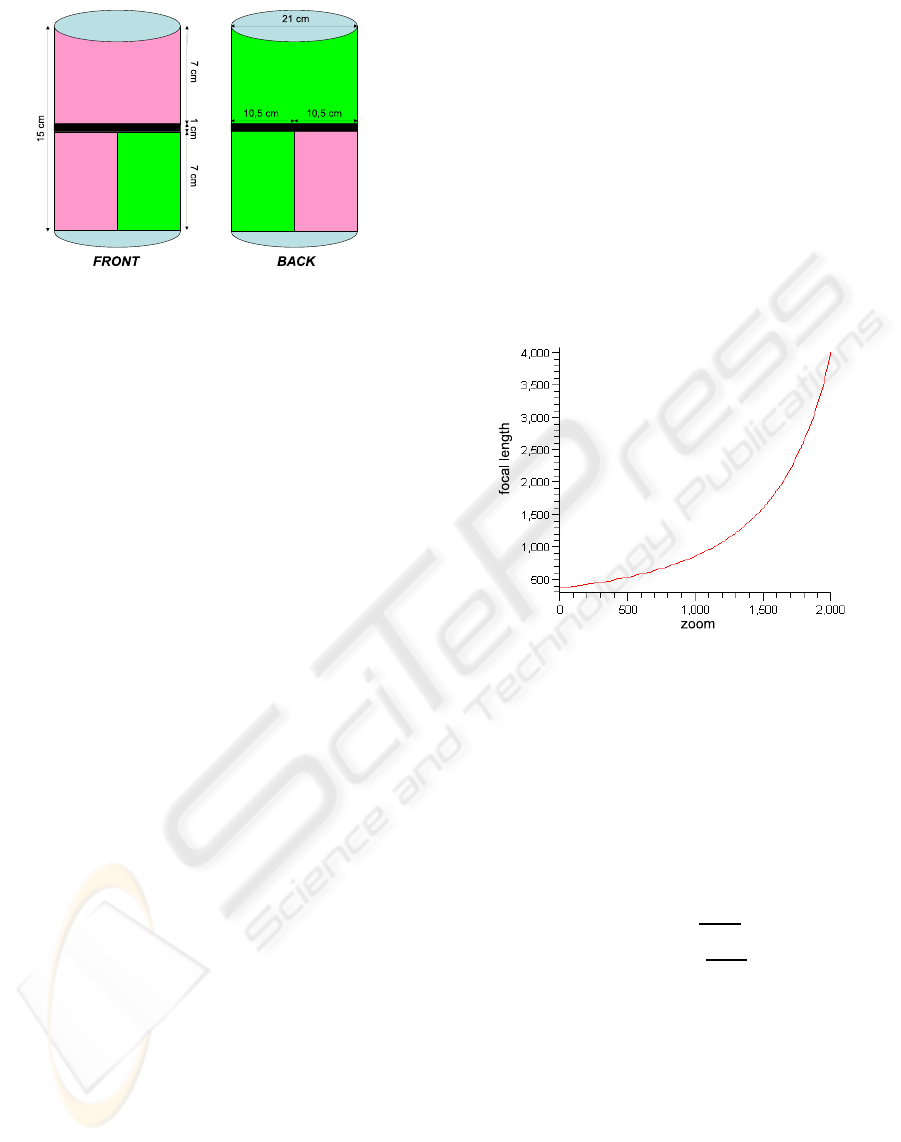

Figure 1: Dimensions and color layout of the IDs.

sary to pay attention to the layout of the colors. Mez-

zanine can detect several colors at the same time and

group the different areas of the same color in blobs.

With the information associated with these blobs it is

possible to know which ID the camera is seeing at that

moment.

The movement that the camera performs to ﬁnd

these IDs is ﬁrstly horizontal movement of 180

from

left to right. If nothing is found in this movement,

the camera increases its vertical position in 5

up to a

maximum of 30

. If when this process has ﬁnished,

still any robot has not been identiﬁed, the leader exe-

cutes a 180

turn and repeats the same process until all

the robots are found. In this way, the leader searches

all the space around it for the other robots.

Throughout the searching process, mezzanine is

monitoring all their channels where it has assigned

a predeﬁned color, and in the moment that it ﬁnds

anyone of them, the camera is stopped. From this

moment, a centering process begins. This new pro-

cess tries to center the pattern found in the middle of

the image. To this end, because the robots can be in

movement, it is important to center the target in a min-

imum number of movements, and at the same time it

is important to maximize the zoom of the camera to

make a better identiﬁcation in the following phases.

In order to center the target, when mezzanine de-

tects one blob of any color bigger than a certain size,

the robot stops the searching process previously de-

scribed. The size has to be big enough to rule out

possible errors of the program or reﬂections of the tar-

get. From this blob it is possible to know the position

of its mass center in the image system, so the space

between this and the center of the image can be cal-

culated.

To translate this distance into a movement of the

camera, it is necessary to know some intrinsic param-

eters of the camera, such as the focal length. These

parameters can be obtained with a previous calibra-

tion of the camera.

As the camera includes a zoom, the focal length

must be calculated for each of these values of the

zoom. After several tests performed in the laboratory

by an student, Vincent Robin, during a stay there, he

managed to model the behaviour of the focal length

depending on the zoom. The function that models

these behaviours can be deﬁned as:

= (0.0368323−0.0000128323∗z)

−2

∗1/2 (1)

being z the value of the zoom that is desired. This

function can be visualized in ﬁgure 2, and as it can

be seen, the focal length does not follow a linear pro-

gression with the progression of the zoom.

Figure 2: Relation among the necessary parameters to cal-

culate the distance to the ID.

Knowing the value of the focal length for the ac-

tual zoom of the camera, it is simple to calculate the

movements that the camera must perform in order to

center the blob in the image. There are two move-

ments that have to be made, in the pan (∇p), that is,

in horizontal, and in the tilt or vertical (∇t). These

values can be calculated as:

∇p = arctan



(x−x

)



∇t = −arctan



(y−y

)



(2)

where x and y correspond to the coordinates of the

mass center of the blob in the image, and x

and y

cor-

respond to the center of the image. With these values

the ﬁrst blob that the robot ﬁnds can be centered.

Once the ﬁrst blob of the target is centered, it is

possible to calculate the optimal value of the zoom in

order to reduce the detection failures of the targets of

the robots and making sure of a better approximation

in the calculation of the position of the robot. These

calculations are based on the previous work of Pierre

Renaud (Renaud et al., 2004) during a stay in this lab-

oratory.

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

276

Prior to calculating the optimal zoom, it is nec-

essary to calculate the optimal focal length, and with

this value is possible to calculate the optimal zoom. In

order to calculate the optimal focal length, it is neces-

sary to know the actual distance (Z) to the target.

Z = f

∗

∆v

(3)

With this distance, and knowing which is the de-

sired height (h

des

) of the blob that the program needs

to get the optimal conﬁguration, and knowing the

height of the blob in the image, the optical focal

length can be calculated.

= h

des

∗

(4)

Finally, as deduced by Renaud in his work, the

optimal zoom can be calculated merely by knowing

the optimal focal length.

= 77928.35∗



3.6833e

−2

−(2∗ f

)

−0.5



(5)

Once this calculation is made, the zoom is applied

to the camera, and as the rest of the blobs or colors of

the target are now visible, it is possible to identify the

robot. This process is simple and merely perceiving

the distribution of the different colors in the target, the

different robots can be identiﬁed.

Next, in order to make the calculation of the posi-

tion more precise, a new centering process is carried

out, but this time taking into account the blobs of the

other colors present in the image. The biggest blob of

the other color in the image provides the system with

enough information to center the target in the image.

The new equations to calculate the movements of the

camera to center the target are:

∇p = arctan



((x

/2)−x

)



∇t = arctan



((y

/2)−y

)



(6)

Once the ID is centered on the image and with the

maximum size possible, its position and orientation

with respect to the camera, or the leader, can be cal-

culated. To know its pose (x,y,angle), it is necessary

to perform some calculations with the image.

In order to calculate (x,y), the system needs to

know the distance and the angle of the ID with re-

spect to the leader, and from these values, calculates

the position.

To calculate the distance from the ID to the im-

age, it is necessary ﬁrstly to know some parameters.

These parameters are the real height of the ID (h), the

height in pixels of the ID in the image (∇h), and the

focal length of the camera (f

). With these values, the

distance to the ID (Z) can be calculated as:

Z = f

∆v

(7)

The height of the ID is ﬁxed, and the height in

pixels of the ID in the image can be obtained from the

blob information from mezzanine. The focal length

of the camera can be obtained as explained before,

merely by knowing which is the actual value for the

zoom of the camera.

The precision of the approximated distance de-

pends on the capacity of the system to recognize the

speciﬁc colors of the cylinders, which is inﬂuenced

by the prevailing lighting conditions. When the cylin-

der is lit from the side, their colors are preceived no

longer uniform, making only part of the width of the

cylinders visible to the leader. For an optimal approx-

imation, good uniform lighting is necessary.

The calculation of the orientation (α) at which the

robot is depending on the leader is easier, since the

camera indicates the orientation that it has (α) at that

moment. In ﬁgure 3, the relation between orienta-

tion and distance for the calculation of the ID position

(x,y) can be observed.

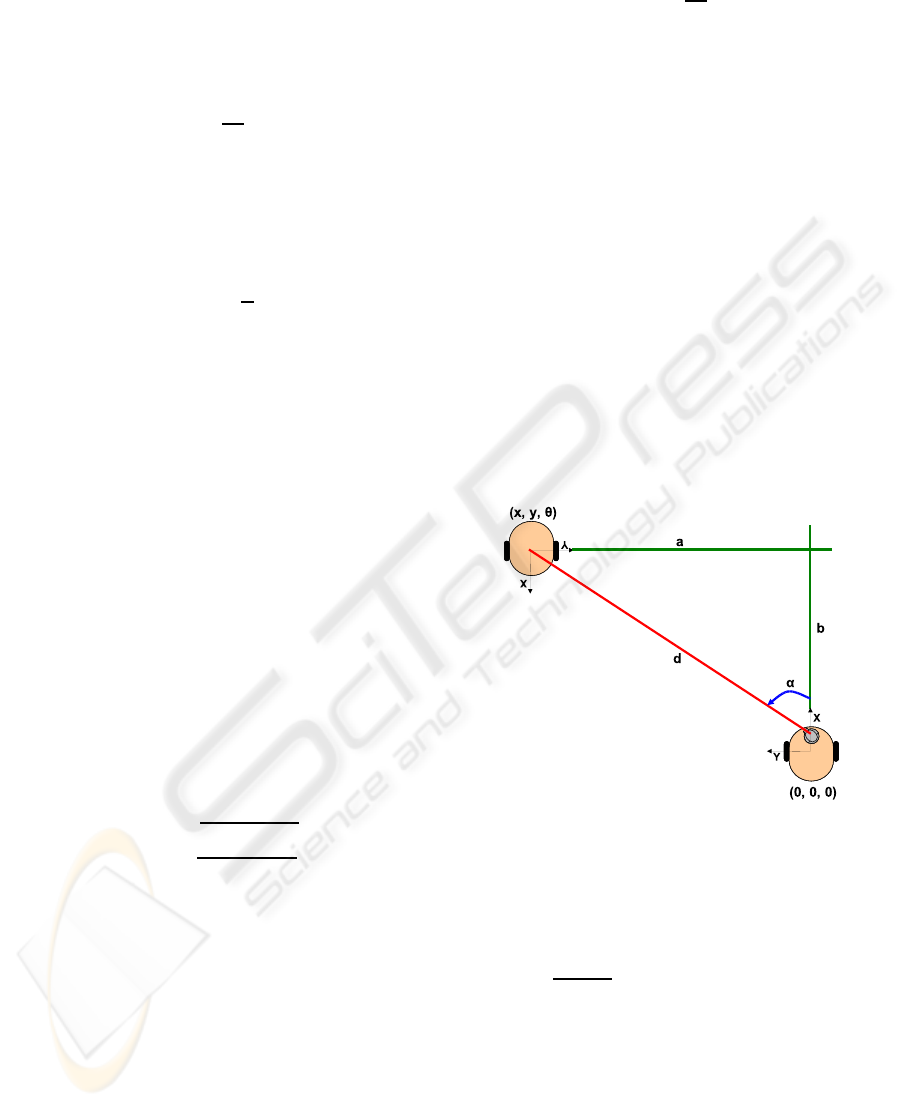

Figure 3: Relation among orientation and distance with the

calculation of the ID position.

When the distance and the orientation have been

calculated, it is possible to calculate the position (x,y)

as:

d =

√

+ b

x = b = d ·sinα

=⇒

α = arctanb/a y = a = d ·cosα

(8)

Once the position has been calculated, it only re-

mains to calculate the orientation of the robot with

respect to the leader. For this calculation, the two hor-

izontal parts or colors of the ID are used, or rather, the

relation between these two parts.

Based on the existing relation between the hori-

zontal sizes of the two colored parts, the orientation

SELF-LOCALIZATION OF A TEAM OF MOBILE ROBOTS BY MEANS OF COMMON COLORED TARGETS

277

of the robot can be calculated. It can be observed that

the upper layer and the lower layer have the same col-

ors, but the lower layer has them with a speciﬁc turn

in relation with the conﬁguration of the upper layer.

This is done to have two differentiated parts and to

calculate the orientation of the upper and lower layer

separately, and thus, making the calculation more pre-

cise. Moreover, as it will be seen below, in that way it

is possible to avoid some positions that are not accu-

rate enough in the calculation of the orientation.

In the calculation of the orientation using the tar-

get selected, it is very important to take into account

the order of the colors. Regarding this, from the 0

position of the can to 180

position, the pink color is

in the upper left position and grows until covers the

complete side of the can. If the green color is in the

upper left, the orientation will be from −180

to 0

depending on the portion of the can occupied by this

color. In the two cases, it corresponds the 90

or −90

when the two colors occupy the same portion of the

can, but depending on the color in the upper left side,

the orientation will be positive or negative.

From the relation of the left part (X) and right part

(Y), the orientation of the robot can be calculated. The

relation among the left and right parts and the entire

width of the cylinder can be seen in ﬁgure 4.

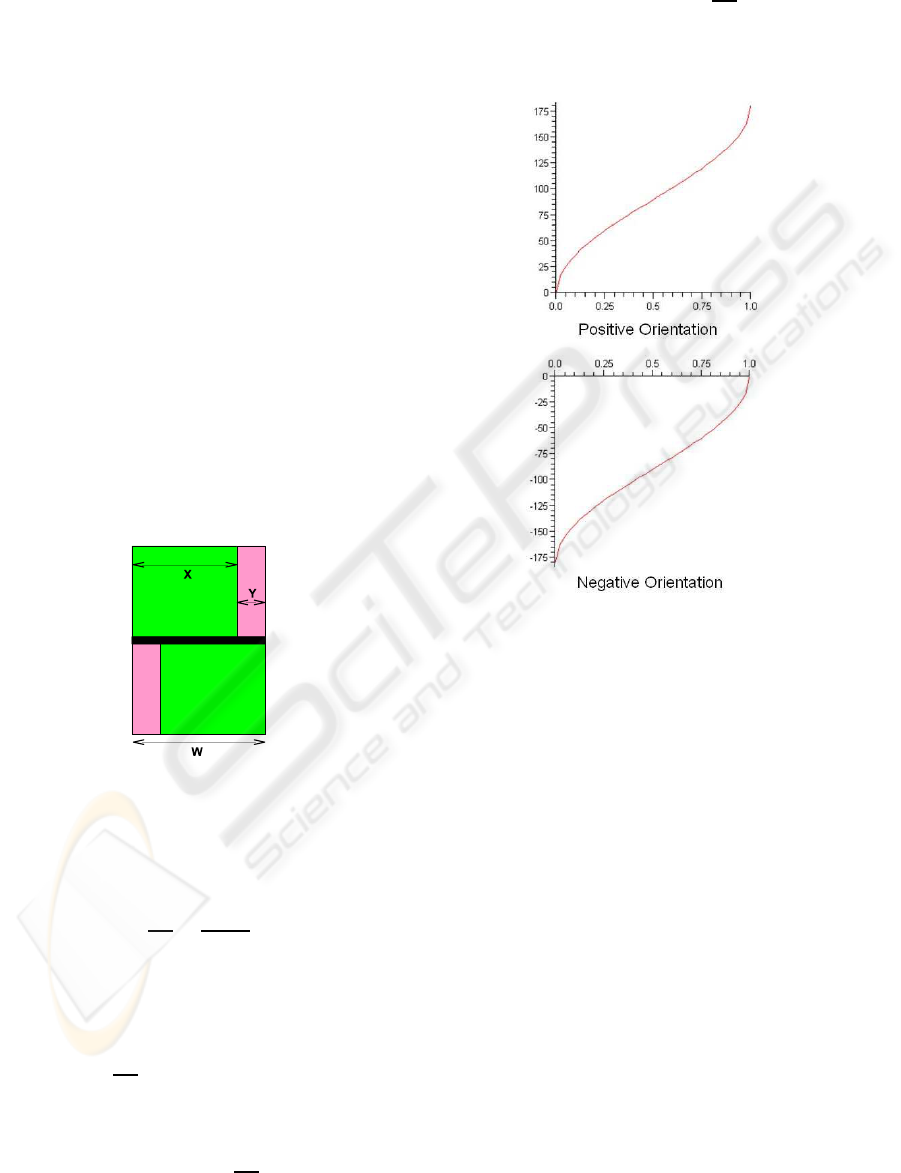

Figure 4: Relation among the parts to calculate the orienta-

tion of the robot.

From the ﬁgure, it can be deducted when the left

and right parts are equal that

X +Y

(9)

The behaviour of the cylinder when it is turning

can be modeled as sin(α−90) + 1. Joining this with

the previous equation,

= sin(α−90) + 1 (10)

from which it can be infered the value of α as,

α = 90+ arcsin(

−1) (11)

In the case of the negative orientation, the equa-

tion is similar,

α = −90+ arcsin(

−1) (12)

In ﬁgure 5, it can be seen the graphics in radians

that model these to functions.

Figure 5: Functions that model the orientation of the robot.

Moreover, it is necessary to take into account four

exceptions to the general rule. If there is only one

color in one of the parts of the ID (upper or lower),

then there is one of these special cases. Simply, dis-

tinguishing the order of the colors in the remaining

layer, it is possible to recognize the spacial case in

question.

Also, as it can be seen in the graphs in ﬁgure 5,

there are two zones in each graph in which the value

of the orientation changes too fast and it may cause

the estimation to be less accurate than desired. These

zones are at the extremes with a width of 30

. When

the calculation in one of the layers returns a value

within one of these zones, the values that are taken for

the orientation of the robot is the value that returns the

calculation in the other layer. Due to the fact that the

layers have different turns, the values that appeared in

one layer when the other is in one of these situations

are correct.

This calculation of the orientation of the robot can

be easily extended to any of the IDs. It is only nec-

essary to take into account which is the pattern of the

colors. Furthermore, this identiﬁcation system can be

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

278

extended to any number of different IDs, the only lim-

itation is the number of different colors that mezza-

nine is able to detect.

Once the robot’s orientation is calculated, all the

values necessary for determining its pose (x,y,angle)

in the environment with respect to the leader are avail-

able. This pose then is translated to the environment

system. This process is obvliuos. Then, this pose is

then sent to the corresponding robot so that it knows

its position.

4 CONCLUSIONS

A new method for the visual localization of robots has

been implemented. Using a very common and simple

target it is possible to localize one robot and deter-

mine its position and orientation with regard to the

robot with the camera and of course in the environ-

ment.

The main advantage consists on having a very

simple object, by means of the corresponding geo-

metric constrints, it is possible to stablish not only

the distance to the target robot, but also the orienta-

tion. Regarding to the orientacion, by means of a two

simultaneous readings process, it is possible to elimi-

nate the accuracy errors produced by the speciﬁc fea-

tures of the object used as target.

The localization of the robots by means of the col-

ored targets has been a hazardous work due to the sen-

sitivity of the vision system to the lighting conditions.

ACKNOWLEDGEMENTS

Support for this research is provided by the Fundaci´o

Caixa Castell´o - Bancaixa under project P1-1A2008-

12.

REFERENCES

Atienza, R. and Zelinsky, A. (2001). A practical zoom cam-

era calibration technique: an application of active vi-

sion for human-robot interaction. In Proceedings of

the Australian Conference on Robotics and Automa-

tion, pages 85–90.

Clady, X., Collange, F., Jurie, F., and Martinet, P. (2001).

Objet tracking with a pan tilt zoom camera, applica-

tion to car driving assistance. In Proceedings of the In-

ternational Conference on Advanced Robotics, pages

1653–1658.

Cox, I. and Wilfong, G. (1990). Autonomous Robot Vehi-

cles. Springer Verlag.

Cubber, G., Berrabah, S., and Sahli, H. (2003). A bayesian

approach for color consistency based visual servoing.

In Proceedings of the International Conference on Ad-

vanced Robotics, pages 983–990.

Das, K., Fierro, R., Kumar, V., Ostrowski, J. P., Spletzer,

J., and Taylor, C. (2002). A vision-based formation

control framework. IEEE Transactions on Robotics

and Automation, 18(5):813–825.

Fox, D., Burgard, W., Kruppa, H., and Thrun, S. (2000).

A probabilistic approach to collaborative multi-robot

localization. Autonomous Robots, 8(3).

Fredslund, J. and Mataric, M. (2002). A general, local al-

gorithm for robot formationss. IEEE Transactions on

Robotics and Automation (Special Issue on Advances

in Multi-Robot Systems), 18(5):837–846.

Hosoda, K., Moriyama, H., and Asada, M. (1995). Vi-

sual servoing utilizing zoom mechanism. In Pro-

ceedings of the International Conference on Advanced

Robotics, pages 178–183.

Howard, A. (2002). Mezzanine user manual; version 0.00.

Technical Report IRIS-01-416, USC Robotics Labo-

ratory, University of Sourthern California.

Michaud, F., Letourneau, D., Guilbert, M., and Valin, J.

(2002). Dynamic robot formations using directional

visual perception. In Proceedings of the IEEE/RSJ In-

ternational Conference on Intelligent Robots and Sys-

tems, pages 2740–2745.

Nebot, P. and Cervera, E. (2005). A framework for the

development of cooperative robotic applications. In

Proceedings of the 12th International Conference on

Advanced Robotics, pages 901–906.

Renaud, P., Cervera, E., and Martinet, P. (2004). Towards a

reliable vision-based mobile robot formation control.

In Proceedings of the IEEE/RSJ International Confer-

ence on Intelligent Robots and Systems, pages 3176–

3181.

Sarcinelli-Filho, M., Bastos-Filho, T., and Freitas, R.

(2003). Mobile robot navigation via reference recog-

nition based on ultrasonic sensing and monocular vi-

sion. In Proceedings of the International Conference

on Advanced Robotics, pages 204–209.

SELF-LOCALIZATION OF A TEAM OF MOBILE ROBOTS BY MEANS OF COMMON COLORED TARGETS

279
