INTEGRATING REUSABLE CONCEPTS INTO

A REFERENCE ARCHITECTURE DESIGN

OF COMPLEX EMBEDDED SYSTEMS

Liliana Dobrica

University Politehnica of Bucharest, Faculty of Automation and Computers

Spl. Independentei 313, Bucharest, Romania

Keywords: Embedded systems, Software architecture, Reference architecture, Patterns, Quality.

Abstract: The content of this paper addresses the issues regarding integrating reusable concepts for a quality-based

design of reference architecture in the context of complexity that is specific to today’s embedded control

systems. The reference architecture consists of core services and is designed based on considering taxonomy

of requirements and constraints, reusable control patterns and a quality-based measurement instrument.

1 INTRODUCTION

Nowadays an embedded system (ES) application

represents one of the most challenging development

domains. Among the requirements and constraints

that have to be satisfied we can mention a higher

diversity and complexity of systems and

components, increased quality, standardization, fault

tolerance and robustness. In the design process an

ES requires introduction of the higher level

abstractions that are blurring the boundaries between

hardware and software design. Due to the escalating

complexity level of ESs a coherent and integrated

development strategy is required. It becomes a

priority the creation of reference architecture (RA)

and a suite of abstract components with which new

developments in various application domains can be

engineered with minimal effort. RA is based on a

common architectural style that provides the

composition of independently subsystems that meet

the requirements of the various application domains.

Thus different components can be created for

various specific domains, while retaining the

capability of component reuse across these domains.

ES complexity resides in a multitude of

interdependent elements which must be organized.

To handle complexity, an architectural approach

helps to consider separation of concerns realized

through different levels of abstraction, dynamism

and aggregation levels. In the field of control, the

knowledge acquired in software engineering is not

really exploited, although it helps to manage

complexity. Patterns and quality based approach

may be used to establish a direct link between the

concepts from the field of control and the software

architecture concepts. They guide the analysis and

synthesis of software components and they can be

used to develop complex control architecture. The

architecture is comprehensible as it shows the

elements necessary for doing a functionality and the

manner in which they interact, and it is flexible

because it can be adapted to other systems of the

same type in the application domain. In the context

of control systems the problem is modelling and

documenting software architectures reusable

knowledge dedicated to control.

In this paper we propose an approach to manage

complexity of complex ES based on defining

sources of knowledge for RA. Building the RA is

based on well known and reusable concepts from

software engineering. Our contribution is in the

synthesis of the most important issues that can be

applied.

2 BACKGROUND

At this moment there is no general consensus about

the definition of embedded terms. ESs are subject to

limited memory and processing power and many

ESs are also real-time systems that have strict

performance constraints. Even for non-real time

234

Dobrica L. (2009).

INTEGRATING REUSABLE CONCEPTS INTO A REFERENCE ARCHITECTURE DESIGN OF COMPLEX EMBEDDED SYSTEMS.

In Proceedings of the 6th International Conference on Informatics in Control, Automation and Robotics - Signal Processing, Systems Modeling and

Control, pages 234-237

DOI: 10.5220/0002212802340237

 SciTePress

ESs, developers have to take into account the

timeliness, robustness, and safety of the systems.

The fact that ESs are embedded, that is they cannot

easily be taken out of their environment to be

maintained or evolved, poses reliability

requirements. Nevertheless it includes subcategories

such as embedded domain, reactive domain,

control/command domain, intensive data flow

computation domain, best-effort services domain

(Marte, 2008). Traditionally an ES represents a

computer system which is integrated into another

system, the embedding system. The requirements

for an ES must be derived from the embedding

system. There are two different areas. One is when

the embedding system is a product and the other is

when it is a production system. The fist one includes

automotive electronics, avionics, and health care

systems and the second one includes manufacturing

control, chemical process control, and logistics.

User

Em be dd ing s yst em

Em be dd ed

System

E nviro nm en t

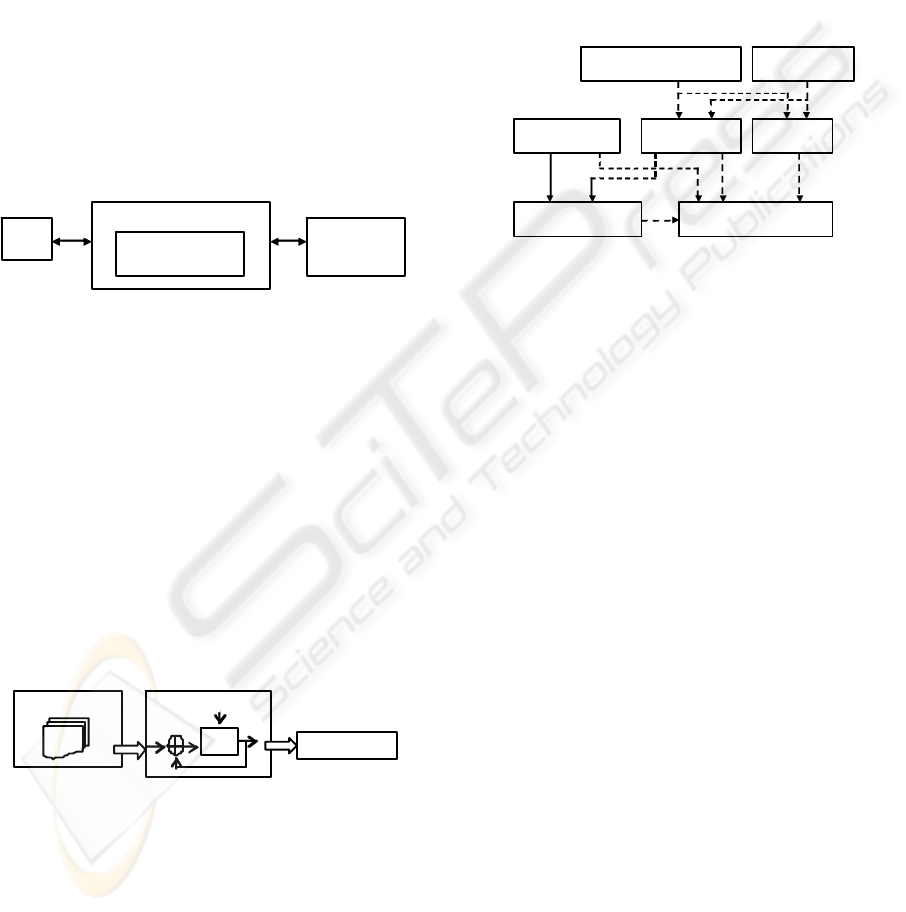

Figure 1: Traditional embedded system model.

ESs are doing control such as measuring physical

data (sensing), storing data, processing sensors

signals and data, influencing physical variables

(actuating), monitoring, supervising, enable manual

and automatic operation, etc..

In the embedded world a model driven approach

is used to express the requirements in a modeling

environment that automatically generates the

application code. The well-known example of such

an environment is the Matlab tool suite. The increase

in efficiency arises from the fact that the software

design and implementation phases are automated

and the control engineer has not care about the

implementation issues as in software engineering

processes.

Requirements Model

H(s)

Code

Figure2: Typical model-driven approach.

The problem for control engineering domain is that

these applications tend to be multi-domain. A

complete control application does not simply cover

implementation of control laws. In most cases, the

implementation of control laws, the specific domain

of Matlab, is only a small fraction of the total control

software. Most of the software normally is

concerned with various functionalities and Matlab-

like tools are inappropriate to cover these

functionalities. A new approach is required to deal

with the new requirements.

3 PROPOSED APROACH

The design of RA for complex ES is realized with

core services which are abstract architectural models

and depends on the quality attributes, styles and

patterns and others that are shown in Figure 3.

Reference Architecture

Styles and

Patterns

Core Services

Quality

Att ribute s

Service

Taxonomy

Taxonomy of Constraints

and Requirements

St d d

Standards

Figure 3: Reference architecture realization.

Quality attributes clarify their meaning and

importance for core services. The interest of the

quality attributes for the RA is how they interact and

constrain each other (i.e., trade-offs) and what the

user’s view of quality is. The styles and patterns are

the starting point for architecture development.

Architectural styles and patterns are utilized to

achieve qualities. The style is determined by a set of

component types, the topological layout of the

components, a set of semantic constraints and a set

of connectors. A style defines a class of architectures

and is an abstraction for a set of architectures that

meet it. Design patterns are on a detailed level. They

refine single components and their relationships in a

particular context.

RA creates the framework from which the

architecture of new ESs is developed. It provides

generic core services and imposes an architectural

style for constraining specific domain services in

such a way that the final product is understandable,

maintainable, extensible, and can be built cost-

effectively. Potential reusability is highest on RA

level. RA is build based on a service taxonomy. A

reusable knowledge base is integrated and adapted to

service engineering for ESs. The standards related to

each ES domain, applicable architectural styles and

patterns and existing concepts of services and

components are the driving forces of ESs

development. A service taxonomy defines the main

categories called domains. Typical features that have

been abstracted from requirements and constraints

INTEGRATING REUSABLE CONCEPTS INTO A REFERENCE ARCHITECTURE DESIGN OF COMPLEX

EMBEDDED SYSTEMS

235

characterize services. The service taxonomy guides

the developers on a certain domain and getting

assistance in identifying the required supporting

services and features of services.

4 DISCUSSIONS

A taxonomy of constraints and requirements that

delimit the design space for a RA for ES is presented

in figure 4. Composability refers to the way that

larger systems can be composed of smaller

subsystems. A system is composable with respect to

a certain property if this property is not invalidated

by integration. Integration of subsystems that are

realized in different technologies are subject

heterogeneity. Growth and scalability require if the

available resources permits the integration of more

subsystems, then the new ones must not disturb the

correct operation of the already integrated

subsystems. Integration of distributed services must

adhere to well established standards.

Emb edded Systems

Taxonomy of Requirements and Constraints

Composability Networking

an d Security

Robustness Diagnosis and

Maintenance

Integrated

Resource

Management

Evolvability Se lf

Organization

Figure 4: ESs requirements and constraints.

Networking refers to control loops to be supported at

network level. Communication service reliability

depends on the application parameters, and protocol

standards (Ethernet, USB, CAN, Bluetooth, etc).

Integrity mechanisms are required to prevent

undetected modification of hardware and software

by unauthorized persons or systems, meaning

defence against message injections, message replay

or message delay on the network. By robustness an

ES must handle the increasing failure rate. Fault

tolerant mechanisms are used to adapt to reliability

changes of subsystems during the ES’s life time.

Services should be provided for error containment,

membership, error detection and error masking. A

generic fault-tolerance layer, design for verifiability,

formal methods and specification support, software

management methods for time, space, and I/O

allocations should be considered, too. Diagnosis and

maintenance requires a system health monitoring

service and a diagnostic service to identify faulty

subsystems. The diagnostic service must not

interfere with the operation of the subsystems that

are to be diagnosed. Predictive maintenance at the

architecture level supports the identification of

components that are likely to fail in the near future.

Design for testability with respect to unit testing,

system integration testing, manufacturing testing and

assembly testing. Integrated resource management

needs dynamic reconfiguration to support changing

of the configurations of applications while they are

executed. Evolvability is based on uncertainty with

respect to application characteristics and

technological capabilities. Development of products

delivered in multiple variants should be considered.

Implementation independence, virtual machines,

legacy integration, auto-integration, and test reuse

for reusable design core are included. Verification

reuse defines verification patterns and environments

for the subsystems at different abstraction levels.

Self organizations support ubiquitous secure

connectivity, mobile ad-hoc networks, and ability to

adapt to user-specific behaviour.

Design and architectural patterns are important

concepts in the field of software architectures to

design applications by reusing generic design

schemas established from successful and effective

solutions. A great number of software applications

are based on the same principles and their

knowledge allow design efforts to be reduced

considerably. Today, the main patterns are described

in catalogues (Gamma et. al., 1994), (Buschmann et

al., 1996). These catalogues describe the styles of

organization and interaction at a higher level of

abstraction, by presenting layered architectures, for

example. A basic pattern for control is Strategy

pattern. This separates the control from function to

protect a client from various strategy services that it

requires. Composite pattern is used in situations

where it is necessary to treat components uniformly,

regardless of whether they are primitive or

composite. From behaviour perspective we can

mention Chain of Responsibility pattern. Recursive

control pattern (Selic, 1998) explains how to specify,

then create hierarchic control architectures that are

more flexible and more robust. This separates

control aspects and the service providing aspects of

a real time system allowing each to be defined and

modified separately. The applicability of this pattern

is across a wide range of levels and scopes starting

from the highest system architectural level to

individual components. This is useful in situations,

typical in event driven real time applications where a

complex software based server needs to be

controlled dynamically in a non-trivial manner,

where control policies may change over time. The

Recursive Control is structurally related to the

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

236

Composite. It simplifies the implementation of

complex systems by applying hierarchically a single

structural pattern. Also it simplifies the development

(and understanding) of both functional and control

aspects by decoupling them from each other. It

allows control or diagnosis services policies to be

changed without affecting the basic functionality.

A quality based design requires a measurement

instrument that must be defined by a taxonomy for

quality attributes, which is organized with respect to

three main elements: (1) The priority in a quality

attributes list. The presence of this element in the

taxonomy is necessary, due to the costs required by

an analysis method at the architectural level. (2)

Architecture views which are relevant for that

quality attribute; (3) Appropriate methods to be

applied for quality attribute analysis.

Quality attributes may be classified in essential,

very desirable, desirable, don’t care and forbidden.

The priorities are established based on the experts'

knowledge and the stakeholders’ objectives. Quality

function deployment (Reed, 1993) is a suitable

technique for showing the relational strengths from

objectives of stakeholders and architectural to

quality attributes. These priorities are important for

the evaluation process, which considers an analysis

method for each quality attribute. At this moment

various architecture analysis methods, such as

scenario-based architecture analysis (SAAM)

(Kazman et al. 1994), architecture tradeoff analysis

(ATAM) (Kazman et al, 1998), architecture level

prediction of software maintenance (ALPSM)

(Bengston, 2004), or reliability analysis using failure

scenario (SARAH) exist. Methods are distinguished

by the evaluation techniques, the number of quality

attributes and their interaction for tradeoff decisions,

the stakeholders’ involvement, and how detailed the

architecture design is at the moment the analysis

(Dobrica and Niemela, 2002).

The measurement instrument is applied to the

RA during analysis. The quality attribute with the

first priority in a list is first analyzed with respect to

the appropriate architecture view and the appropriate

method. Then the next quality attribute from the list

is analyzed in isolation and then considering the

interaction with the first one for finding sensitivity

points and tradeoffs on the services included in the

RA. The process is repeated for all the attributes in

the list. In order to decide on RA core services, this

procedure could also be improved and refined. In

this case special attention should be paid to the

collections of services in the architecture which are

critical for achieving a particular quality attribute, or

architectural elements to which multiple quality

attributes are sensitive. A deeper level of analysis

could influence the decision on the addition of new

services to the RA.

5 CONCLUSIONS

This paper has proposed an approach for a RA

development for complex ES application domains

based on a knowledge of reusable concepts from

software engineering at architectural level. The

approach has an immense potential to improve

embedded control systems development as well as

reduce time and costs in stages such as architecture

design and analysis. However, for this approach’s

success it is necessary to create a cooperation culture

among embedded control system developers. Future

research work is needed to develop systematic ways

of bridging these reusable concepts to a RA,

reducing in this way the cognitive complexity.

ACKNOWLEDGEMENTS

This work is supported by the Romanian research

grant CNCSIS IDEI no. 1238/2008.

REFERENCES

MARTE, 2008, Modeling and Analysis of Real Time and

Embedded, www.omg.org.

Buschmann F., R. Meunier, and H. Rohnert, 1996,

Pattern-Oriented Software Architecture: A System of

Patterns, John Wiley and Sons.

Gamma E., R. Helm, R. Johnson, and J. Vlissides, 1994,

Design Patterns: Elements of Reusable Object-

Oriented Software, Addison Wesley.

Selic B., 1998, Recursive control, in: R. Martin, et al.

(Eds.), Patterns Languages of Program Design,

Addison-Wesley, pp. 147–162.

Kazman R., L. Bass, G. Abowd, M. Webb,1994, SAAM:

A method for analyzing the properties of Software

Architectures, Procs of the ICSE, 81-90.

Kazman R., M. Klein, M. Barbacci, H. Lipson, T.

Longstaff, S. J. Carrière, 1998, The Architecture

Tradeoff Analysis Method, Procs. of the ICECCS.

Reed B.M., D.A. Jacobs, 1993, Quality Function

Deployment For Large Space Systems, National

Aeronautics and Space Administration.

Bengston PO, 2004, Architecture Level Prediction of

Software Maintenence, Procs of the ICSR5.

Dobrica L. and Niemelä E., 2002, A survey on software

architecture analysis methods, IEEE Transactions on

Software Engineering, 28(7), 638-653.

INTEGRATING REUSABLE CONCEPTS INTO A REFERENCE ARCHITECTURE DESIGN OF COMPLEX

EMBEDDED SYSTEMS

237
