A LOW COST AND FLEXIBLE APPROACH

TO CAN CONFORMANCE TESTING

Imran Sheikh and Michael Short

Embedded Systems Laboratory, Department of Engineering, University of Leicester, University Road, Leicester, U.K.

Keywords: Controller Area Network, Conformance testing, Network protocol verification.

Abstract: Since its introduction in the early 1980’s, CAN has become the de-facto communications protocol employed

in vehicle and industrial control applications. Before any new product can claim to support CAN-

connectivity, compliance with the protocol at the physical and data link layers must be tested and verified.

To help standardize the requirements for such testing, ISO has set a draft standard specifically for CAN

conformance testing. Traditionally, CAN controllers and transceivers have been implemented at the silicon

level, either in the form of dedicated IC’s or as on-chip peripherals of embedded devices. The practical

implementation of CAN conformance testers has been realised using dedicated hardware and specially

written analysis software; this is a practical approach when testing and verifying conformance prior to high-

volume IC manufacture. However, recent years have seen an increased interest in the employment of CAN-

connected devices implemented by programmable logic devices such as FPGA’s. Such ‘soft core’

implementations are often in small-volume (or even one-off) batches. In such circumstances, for cost and

availability reasons, it may not be practical for developers to use traditional CAN-conformance testing

equipment. To help alleviate this problem, this paper proposes a low-cost and easily implemented method

which will allow developers to fully test a CAN soft core implementation. The method is based around

simple off-the-shelf development boards and the simple analysis tool Chipscope, and allows developers to

verify a CAN core against the relevant ISO standards. Finally, the paper describes the use of the test bed in

the verification of an open-source CAN soft core implementation.

1 INTRODUCTION

Conformance testing is an integral part of the

development stage of any network protocol

implementation. When components (or devices) pass

such conformance tests this ensures, to an acceptable

degree of confidence, that the implementation of the

given set of protocol specifications has been

correctly interpreted by the designers; and it also has

been instantiated in a form that is free from errors.

Since its introduction in the early 1980’s, the

Controller Area Network (CAN) protocol has

become the de-facto communications protocol

employed in vehicle and industrial control

applications (Bosch, 1991). In light of the popularity

of CAN, the ISO has developed a standard

exclusively aimed at CAN conformance testing.

Before any new equipment design can claim to be

CAN conformant, evidence is required that shows

that the testing procedures outlined in ISO 16845

(ISO, 2000) have been performed and passed

without problem. The ISO document not only

specifies different types of tests that must be

performed for conformance testing, but also

specifies a Test Plan (TP) architecture based on the

ISO 9646-1 (ISO, 1994). The required TP is shown

in figure 1. As can be seen from this figure, the TP

architecture indicates that the tester should be

divided into two parts. The first component is the

Lower Tester (LT) which provides the test pattern

generation and analysis. The second is termed the

Upper Tester (UT), which is required to contain the

software to control the CAN Implementation Under

Test (IUT). The UT is normally a host processor or

programmable device of some kind, and also

provides coordination to conduct the tests between

the LT and the IUT (Carmes et al, 1996). The UT

receives stimulus (with details of the test being

performed) from the LT, and generates messages

passed on to the IUT. The IUT then processes these

messages, and both the UT and LT components

monitor its behaviour for consistency with the CAN

protocol. If the result is satisfactory, the test is

Sheikh I. and Short M. (2009).

A LOW COST AND FLEXIBLE APPROACH TO CAN CONFORMANCE TESTING.

In Proceedings of the 6th International Conference on Informatics in Control, Automation and Robotics - Intelligent Control Systems and Optimization,

pages 97-104

DOI: 10.5220/0002215300970104

 SciTePress

considered passed and testing proceeds to the next

conformance test. It should be noted that the testing

procedures that are required to be implemented

include coverage of common error conditions,

randomized tests and also bit timing tests. Most tests

are critical, and the latter category – bit timing –

contains a number of tests that can be difficult to

localize, and a suitable means is required to capture

and display multiple logic signals over an

appropriate timescale. This typically requires the use

of dedicated hardware and Logic Analyzers

(Lawrenz, 1998a).

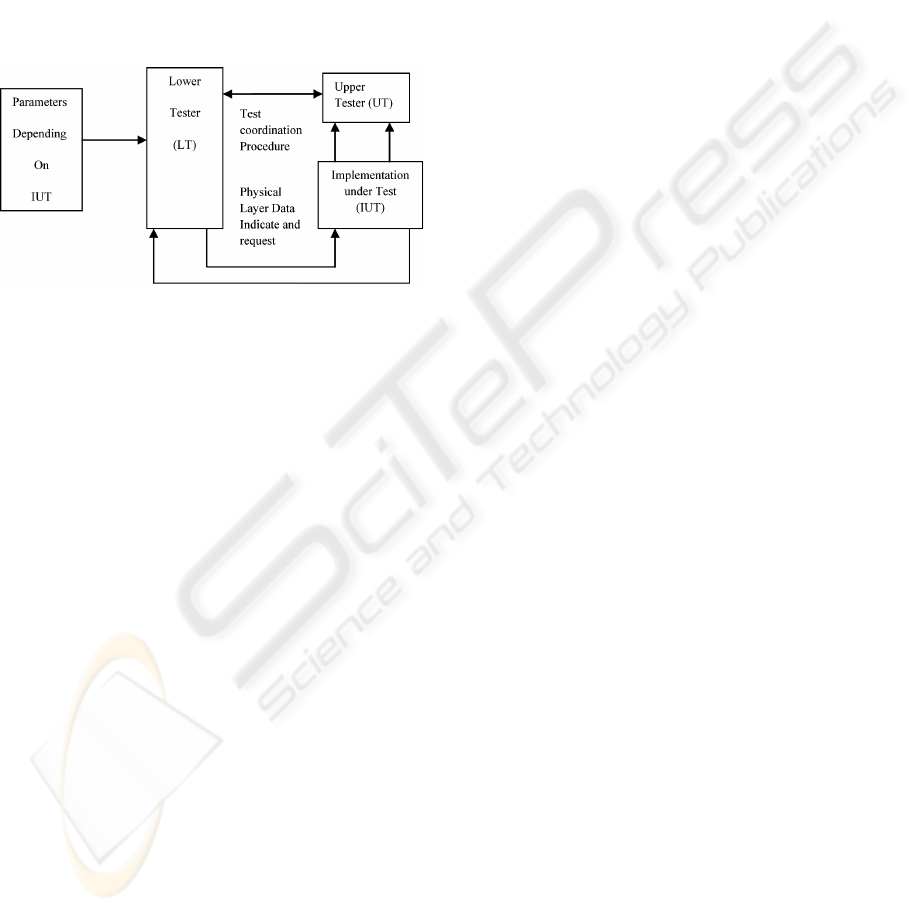

Figure 1: Conformance TP.

The motivation for the current work is as

follows. Recent years have seen an increased interest

in the employment of CAN-enabled devices

implemented by programmable hardware devices

such as FPGA’s. By their very nature, such ‘soft

core’ implementations are often needed in small-

volume (or even one-off) batches. In these

circumstances, cost and availability reasons often

dictate that it is not practical for developers to use

traditional CAN-conformance testing equipment. To

help alleviate this problem, this paper proposes a

low-cost and easily implemented method which will

allow developers to test a CAN soft core

implementation for conformance to the relevant

standard without the need for expensive or

proprietary hardware interfaces and logic analyzers.

The remainder of the paper is organized as

follows. Section 2 discusses several approaches to

CAN conformance testing that have been previously

described. Section 3 describes the proposed test bed,

and Section 4 presents two case studies that illustrate

its use. Section 5 presents a comparison of the

proposed approach to several other techniques,

whilst Section 6 presents our initial conclusions.

2 PREVIOUS WORK

One of the earliest CAN prototype controllers was

named DBCAN (Kirschbaum, 1996). This

implementation was tested using a logic analyzer

and a pattern generator circuit. As there was no

standard for conformance testing at the time the

prototype was developed, a commercial basic (as

opposed to full) CAN controller was used as

benchmark for verification. A major disadvantage of

this scheme was the use of external interface

modules to visualize the state of different DBCAN

registers, and the testing procedure was somewhat

limited in the number of signal channels that could

be simultaneously analyzed. Since this is a needed

requirement in the case of ISO standard

conformance testing – the ability to visualize the

state of large numbers of CAN registers

simultaneously is a prerequisite – such a setup is

limited in this respect.

A slightly different verification technique was

reported by (Nimsub et al, 2005). Their technique

employed custom design boards with 8051

microcontrollers and SJA1000 CAN controllers, but

this method involved the design of specialized

interface hardware and boards to assist with the

testing plan. Specialised verification architecture for

testing automotive protocols (including CAN) at

both the module and chip level was proposed by

(Zarri et al. 2006). Again, this work requires a

specially designed CAN verification component as

part of the silicon, while the selection and

implementation of actual test sequences, along with

the selection of a suitable means to monitoring bus

signals, is left open for the tester.

With respect to soft core CAN implementations,

the CAN e-Verification (CANeVC) test bench has

previously been described (CANeVC 2005). This

commercial test facility requires a CAN

specification core to be embedded in the netlist; this

core then runs specific tests to verify the behaviour

of the CAN soft core. Again, this technique involves

a time consuming development of a test bench using

an expensive commercially available verification IP

; additionally, compatibility issues often arise when

using CAN implementations other than the

proprietary implementation (DiBlasi, 2003), and

only a limited number of programmable logic

devices are supported. Finally, several experimental

implementations (such as that reported by (Ferreira

et al. 2005) to measure single parameters - such as

CAN bit errors - rather than perform complete

conformance testing have been described in the

literature. Such implementations have typically used

complex and non-trivial means, requiring

customized hardware and software. In summary

then, it can be observed that - to date – specialised

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

hardware and / or software has been required to

assist with CAN testing plans. In the following

Section, a novel testing approach that relies only

upon the use of low-cost, standard off-the-shelf

hardware and software is described.

3 PROPOSED TEST BED

An ongoing project required the development of a

conformant soft core controller for the CAN

protocol (Sheikh et al. 2008). After the Verilog

(IEEE, 2001) implementation of the CAN

specifications for such a controller had been

completed, it was required to be tested and verified

in accordance with the relevant ISO standard (ISO

16845, 2000). Real-time testing of a CAN

implementation is quite a complicated procedure,

and – in this case – for practical reasons, no

specialized hardware and software was available to

generate the required testing patterns and monitor

the behavior of the CAN soft core. For this reason, it

was decided to use only low-cost off the shelf

components.

In addition to these standard hardware parts, the

Chipscope analysis tool (Xlinx, 2000) was used to

visualize and capture the behavior of the soft core,

allowing verification of the testing results.

Chipscope is a Xilinx testing tool which is

implemented the by inserting a small core onto the

device to be monitored, allowing multiple signal

channels to be captured via a JTAG interface. Up to

16 internal signal ports can be analyzed in a single

core, and each port can have up to 256 signals.

Multiple cores can be attached in a FPGA to

increase the number of signals (Oltu et al. 2005). In

comparison to other means for capturing multiple

FPGA signals, Chipscope retains the key features

required but is a fraction of the cost. Additionally, to

support one-off conformance testing plans without

causing excessive costs, a fully-featured evaluation

version is available for a 60 day period – a full

testing plan can be performed in such a timeframe.

Hence these features of Chipscope made it an

obvious choice for our CAN conformance test bed.

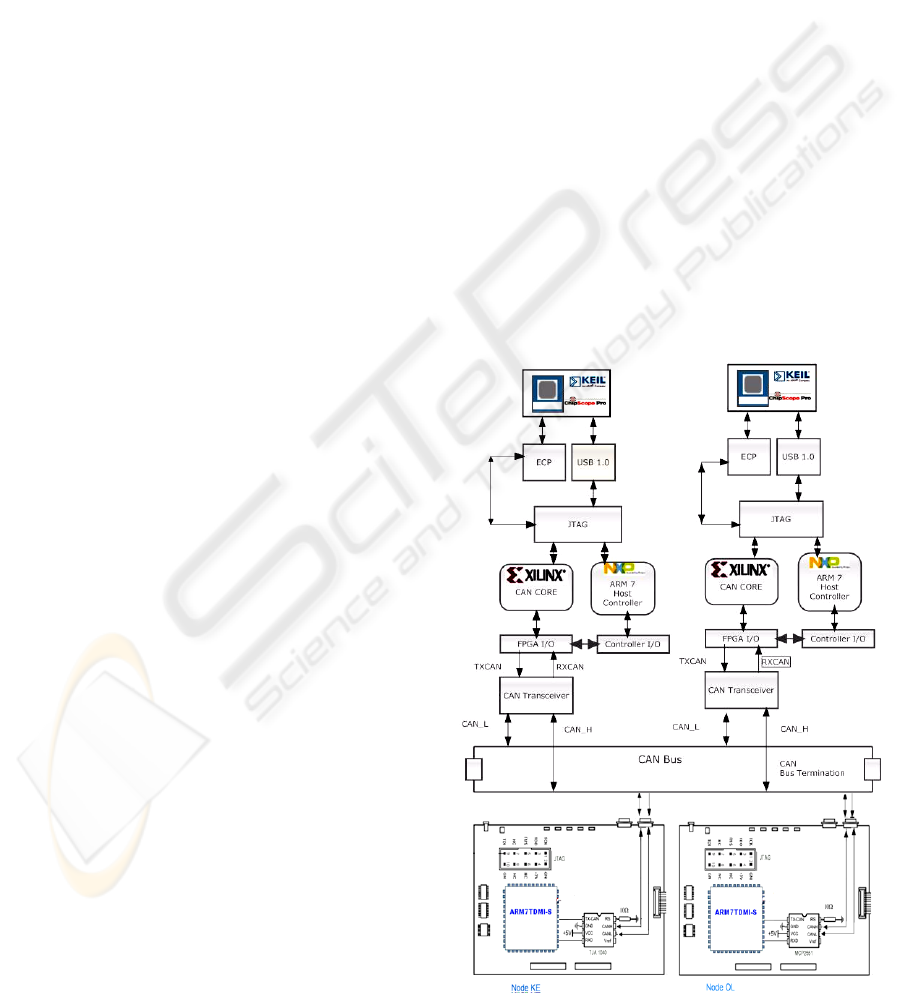

The new test facility is shown schematically in

figure 2. In the next paragraphs we give a full list of

the hardware and software components and tools

used in building the Test Bed.

3.1 Hardware

1) Two FPGA (XC3S500E programmed with

CAN soft core) + ARM7 (LPC2138 as Host

controller) boards. These boards are named as

SC1 and SC2.

2) Two ARM7 Microcontroller boards with

Integrated CAN controller and CAN transceiver

for CAN bus interfacing named as KE and OL.

3) The SC1 and SC2 are connected to the bus

using PCA82C250 CAN transceivers.

Parallel JTAG cable for downloading and

analyzing signals for FPGA.

USB JTAG cable for downloading and

debugging the ARM7 Microcontroller boards.

3.2 Software

1) Xilinx ISE for soft-core programming,

synthesis, routing and programming the FPGA.

2) Chipscope Pro (Xilinx, 2000) is used as analysis

tool (60 day evaluation version available).

3) The Keil uVision 3 IDE with free ARM tools C

compiler was chosen for programming and

debugging the Microcontroller boards.

As can be seen, the test bed has been made using

COTS hardware and also taking in care the structure

Figure 2: CAN Conformance test bed.

A LOW COST AND FLEXIBLE APPROACH TO CAN CONFORMANCE TESTING

of the Test Plan given in ISO 9646-1. The test bed

consists of two instances of the IUT; the main

purpose of using the second IUT is to generate errors

on the CAN bus and special conditions which were

either the pre-requisite for a test case or generating

special bit stream during a test for verifying the

behavior of the IUT, hence the second instance of

IUT is moreover working as the LT in reference to

the ISO9646-1 TP. The ARM boards with integrated

CAN Controllers were used either as receivers /

transmitters to verify the conformance of the IUT

with widely used CAN controllers, and were also

employed to generate bit errors on the CAN bus

using an interrupt generation mechanism. Such a

scheme is highly synchronized as the bit inversions

were done at the specific point where it was

required; the methodology employed for test pattern

generation is described in the next Section.

3.3 Test Pattern Generation

When using pattern generators test vectors are

required to be first stored, and are sent on the CAN

bus only when required – thus putting the IUT in

different states and allowing its behaviour and

responses to be analyzed. In our proposed test bed

we have used FPGA based pattern generation, which

is not only economical as no extra price was added

to the test setup but also it is added as a Verilog

module to the main CAN Core (IUT SC2 in Figure

2). This helped us to accurately produce these

special conditions; for example in test case 1 (to be

reported in the next Section) it was needed to

produce extra dominant bits on the CAN bus after an

IUT working as a transmitter send an Error Frame

(ISO 16845, 2000). This test pattern was easily

achieved by modifying the Verilog module for Error

Flag generation to produce extra dominant bits, as

illustrated by the Verilog code fragment shown

opposite.

This is a simple example of pattern generation

using HDL code. All of the required test patterns

may be generated in this way, giving full

controllability on the test case generation. In

addition, tight synchronization of events can be

achieved – a hardware signal from the core to one of

the secondary ARM boards, at a certain point during

the transmission of a CAN message, can be sent.

This signal may be used to generate an interrupt on

the ARM board – the interrupt latency is

significantly less than a CAN bit-time, even at 1

Mbits/s – and within this ISR the ARM board can,

for example, inject a bit error, The following Section

describes two case studies to further highlight the

operation of the test bed.

reg [3:0]

Error_Flag_Counter;//changed from reg

[2:0]

always @ (posedge Clock or posedge

Reset)

begin

if (rst)

Error_Flag_Counter <= 4'd0;

else if (Error_Frame_End |

Error_frame_Start)

Error_Flag_Counter <=#delay 4'd0;

//changed from 3'd7

else if (Error_Frame &

Transmit_Instance &Error_Flag_Counter <

4'd11))

Error_Flag_Counter <=#delay

Error_Flag_Counter + 1'b1;

end

always @ (Error_frame or

Error_Flag_Counter )

begin

if (Error_frame) begin

if (Error_Flag_Counter < 4'd11)

//changed from 3'd7

begin

if (Node_Error_Passive)

Tx_CAN = 1'b1;

else

Tx_CAN = 1'b0;

End

4 CASE STUDIES

The proposed test facility was employed to test the

CAN conformance of the custom created CAN soft

core, written in Verilog. As the number of total

number of test cases to consider in any single CAN

conformance test plan is numerous, it is beyond the

scope of the current paper to present comprehensive

test results; such test results are available in the form

of technical report (Sheikh & Short, 2009).

However, in this Section we will present two test

cases that help highlight the main features of the

proposed facility. Both tests were carried out

successfully, and are described in the following two

Sections.

4.1 Error Flag Longer than 7 Bits

This test is a part of the Error Frame Management

class in ISO 16845. The purpose of this test is to

verify that a CAN transmitter will only tolerate 7

dominant bits after sending its own Error flag. The

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

100

case described below is for when the Error Flag is

elongated by 4 Dominant bits. This test involves two

instances of the IUT and the ARM7 Microcontroller

boards. The test will be setup using the following

organization:

1. Both the IUT’s must be in default state ready for

transmission or reception.

2. An error bit is to be introduced on the CAN bus

during an ongoing transmission.

3. The transmitter - after sensing the error - must

send an error frame of 6 dominant bits due to its

Active Error state.

4. One of the receivers must send more than 7

dominant bits after receiving the Error flag.

5. The transmitter must not take these extra

dominant bits as an Error and shouldn’t send any

extra Error Frame, and should start to resent the

corrupted message.

The methodology employed was to modify one

of the soft core IUTs to carry out this requirement.

Any of the two IUT’s can take the role of transmitter

or receiver for any given test. In this case, the IUT

instance which will be acting as a receiver is

modified to generate an 11 bit Error Flag. The

snapshot of the events on the CAN bus was captured

with the help of Chipscope trigger mechanism

(Woodward, 2003). The observations on the

transmitter node from the Chipscope snapshot –

shown in figure 3 - are as follows:

1. On the Left of Marker ‘T’, the TX_state high

indicates an ongoing transmission. During data

transmission a Bit_Error is injected, indicated by

the bit inversion as CAN_Tx is recessive while

CAN_Rx is dominant (Bit inversion is done by

the KE node).

2. The Error Frame exists between markers ‘T’ and

‘O’ indicated by signal ‘Error_Frame’, the

Error_Flag is between Marker ‘T’ and ‘X’. The

end of Error Flag is indicated by a high

Error_Flag_Tx_over signal. The

Error_Flag_Counter three bit bus is indicating

the count of Error Flag bits sent.

3. If we note at Marker ‘X’ the CAN_Tx signal has

changed to Recessive but the CAN_Rx signal

remains Dominant for next 4 bits which is

because of the superimposition of the Error Flag

sent by the nodes on the CAN network.

4. The Error Frame is continued till Marker ‘O’ and

the end is shown by a low Error_Frame Signal

and a high Error_Frame_End Signal.

5. On the right of Marker ‘O’ we can clearly see

that after three sample points (intermission Field)

a new frame transmission has started indicated

by Tx_State, while Tx_State_ID[10:0] and

Tx_State_Data indicating different states of

transmission cycle.

The observations at the receiver node (shown in

figure 4) are as follows:

1. Marker ‘O’ indicates start of an Error_Frame, the

Tx_State low indicating the node is a receiver.

2. The Error_Flag_Counter is a 4 bit wide bus

which counts up to 11 bits i.e. it is sending 4

extra Dominant bits to the CAN bus to verify the

behaviour of transmitter node. The Dominant

bits can also be verified by the CAN_Tx and

CAN_Rx bits.

3. After the Error_Flag_Over Signal is set high the

CAN_Rx and CAN_Tx signals turns to dominant

for next seven bits indicating an Error frame

Delimiter.

4. Right of Marker 'X’ the Error_Frame signal is

low and after three Recessive bits (Intermission

Field) a new frame is started to be received

(Tx_State is low, CAN_Tx is recessive),

indicated by different Recieve_State_xxxx

signals).

4.2 Overload Frame Management

This test is a part of the Overload Frame

Management class (ISO, 2000). This test verifies

that an IUT will be able to transmit a data frame

starting with the identifier and without transmitting

SOF, when detecting a dominant bit on the third bit

of the intermission field. This test involves two

instances of the IUT and the ARM7 Microcontroller

boards. The test will be setup using the following

organization:

1. Both of the IUT’s must be in default state ready

for transmission or reception according to the

setup sent by the Host Controller.

The IUT acting as the Transmitter is set to

transmit two data frames as programmed in the

Host processor.

2. The Receiver IUT will be set to request an

Overload frame after reception of the first frame.

3. After the completion of the Overload Frame on

the third bit of the Intermission field (Normally

the Intermission field is a sequence of three

Recessive bits) is set to dominant by the Fault

injector node i.e. K.E.

4. The transmitter must not consider it as a bit error

and shouldn’t send a Dominant level SOF and

consider the dominant bit of the Intermission

field as the SOF.

A LOW COST AND FLEXIBLE APPROACH TO CAN CONFORMANCE TESTING

101

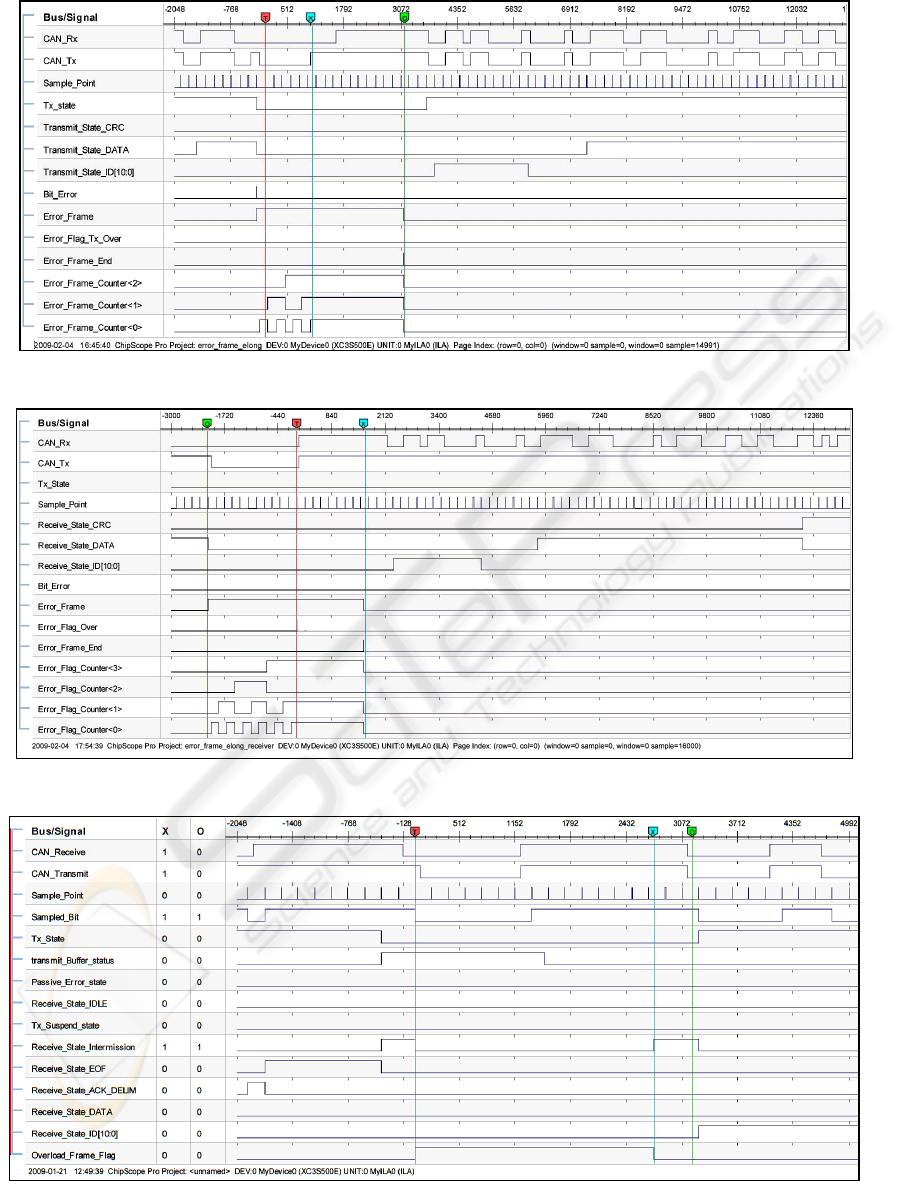

Figure 3: Transmitter snapshot for Test Case 1.

Figure 4: Receiver snapshot for Test Case 1.

igure 5: Transmitter snapshot for Test Case 2.

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

102

5. Normal reception of the message should take

place.

This test was successful with desired results as

stated in the purpose of the test; the observation on

the transmitter node from the Chipscope - shown in

figure 5 – is as follows:

1. Left of Marker ‘T’ The Tx_state flag is high

indicating ongoing transmission,

Receive_state_Data and ACK_DELIM

indicating a successful transmission while the

node is error active.

2. At Marker ‘T’ there is an error on the

Receive_state_intermission field generating an

overload frame with Overload Flag of six

dominant and Overload delimiter of 8 bits as can

be seen by the count of sample point.

3. After the Overload frame an intermission field

signal can be seen at the Marker ‘X’.

4. The third bit of intermission field is is a

dominant bit as can be counted between Markers

‘X’ and ‘O’ the number of sample points is 2 and

the third sample point is a dominant bit.

5. Just after the Marker ‘O’ we can see the

Receive_State_ID [10:0] going high without any

SOF. The Identifier first 4 bits are dominant as

required by the Test case.

5 COMPARATIVE STUDY

When comparing the proposed testbed with previous

methods, the first observation is that the current

facility does not require the use of expensive CAN

PC interface cards which are normally required for

CAN conformance testing (Lawrenz, 1998b). Such

cards also require specialized software (along

hardware and interface cables) which can adds to the

cost and complexity of the setup. In the proposed

implementation the internal state of CAN IUT is

analyzed directly using Chipscope, and also by using

the Keil uVision to debug on the ARM boards. In

addition, there are several key advantages of our

proposed test bed using Chipscope over hardware

logic analyser systems:

1. The standard bench analyzers doesn’t show

enough signals as required in case of CAN

conformance as illustrated in section 4. There are

Logic analyzer systems which can show large

number of signals simultaneously with large data

widths but there prices are 10 times more than

Integrated Logic analyzer.

2. Normal Bench analysers can show Mega

samples, while the Chipscope is limited to a

Sample width of 16K, we overcome this problem

by using Digital clock Manager which can divide

or multiply the system clock by ‘n’ times, the

board we used in our system can divide the

system clock by 16 times hence we were able to

capture 16 times more sample than on system

clock which can easily capture 3 to 4 complete

CAN messages in a single trigger.

3. Additional probes with wide numbers of I/O pins

are required to interface with the Logic analysers

while Chipscope can carry magnitude of these

signals using a simple JTAG cable, although

there are few solution like Agilent’s FPGA trace

port (Agilent, 2003) which use a simple interface

to analyse multiple signals but it also requires a

specialized hardware and Chipscope pro tool.

4. Not only all I/O signals are accessible through

Chipscope but also internal wires can be traced

(Lee, 2007) which are really helpful in

Conformance testing specially when setting up

triggering conditions we have lot more options to

setup a trigger condition for example in the test

cases discussed it is really easy to setup a trigger

condition to wait for an Error Frame flag signal

goes to high to analyze an error condition, while

for external Logic analyzers only I/O signals are

available.

6 CONCLUSIONS

In this paper we have presented a low cost and

flexible approach to CAN conformance testing in

accordance with the ISO standards. It has been

shown that the facility is capable of performing the

full range of test required to show conformance to

the relevant CAN standard (Bosch, 1991), (ISO,

2003). In conclusion, this facility can be assembled

and used for a fraction of the cost of a ‘regular’ test

facility for CAN conformance. A full list of the how

each individual test may be implemented when using

a facility such as this has been described in a

technical report (Sheik & Short, 2009), allowing the

facility to be implemented by any third-parties

requiring a low-cost methodology to test for

conformance of a CAN soft-core.

As a final note, it can be seen that test facility

that has been described is not restricted to the CAN

protocol, and – with suitable modifications – can be

used to test conformance of many alternate network

protocols, for example TTP/C (TTA, 2003).

A LOW COST AND FLEXIBLE APPROACH TO CAN CONFORMANCE TESTING

103

ACKNOWLEDGEMENTS

This Paper is part of Imran Sheikh’s PhD studies

which is financed by NWFP University of

Engineering & Technology Peshawar, Pakistan.

REFERENCES

Agilent Technologies, 2003. Deep Storage with Xilinx

Chipscope Pro and Agilent Technologies FPGA Trace

Port Analyzer. http://cp.literature.agilent.com/litweb/

pdf/5988-7352EN.pdf

Bosch, R., 1991. CAN Specification 2.0, Postfach,

Stuttgart, Germany: Robert Bosch GmbH.

CAN 2.0 eVC, 2005. Yogitech SPA.

Carmes, E., Junier, C., and Aussedat, F., 1996. CAN

Conformance: Methodology and Tools, Keynote

speech, CAN in Automation Proceedings of 3rd iCC

1996, Paris, October 1996

Di Blasi, A., Colucci, F., and Mariani, R., 2003. Y-CAN

Platform: A Re-usable Platform for Design,

Verification and Validation of CAN-Based Systems

On a Chip, ETS- 2003 Symposium, May2003

Ferreira, J., Oliveira, A., and Fonesca, J., 2005. An

Experiment to Assess Bit Error Rate in CAN, In

Proceedings of 3rd International Workshop of Real-

time Networks (RTN 2004), Catania, Italy.

IEEE, 2001. Standard for Verilog Hardware Description

Language, IEEE standard 1364.

ISO, 1994. DIS 9646-1 The International Organization for

Standardization. Information technology-Open

Systems Interconnection-Conformance testing metho-

dology and framework.

ISO, 2000. DIS-16845, Road Vehicles- Controller Area

Network (CAN) - Conformance Test Plan

ISO, 2003. DIS 11898-1 Road vehicles – Controller area

network (CAN) – Part 1: Controller area network data

link layer and physical signalling.

Kirschbaum, A.; Renner, F.M.; Wilmes, A.; Glesner, M.,

1996. Rapid-prototyping of a CAN-Bus controller: a

case study, Rapid System Prototyping, 1996.

Proceedings. Seventh IEEE International Workshop on

, vol., no., pp.146-151, 19-21 Jun 1996.

Lawrenz, W., Kinowski, P., and Kircher,G., 1998a. CAN

Conformance Testing-The Developing ISO Standard

and Necessary Extensions, In Proceedings of

International Truck and Bus Meeting and Exposition

Indianapolis, Indiana, November 16-18, 1998.

Lawrenz, W., Kinowski, P. and Kircher, G., 1998b. CAN

Conformance Testing - State of the Art and Test

Experience, In Proceedings of 5th International CAN

Conference iCC’98, San Jose, California, November

1998.

Lee, T., Fan, Y., Yen, S., Tsai, C., and Hsiao, R., 2007. An

Integrated Functional Verification Tool for FPGA

Systems, Second International Conference on

Innovative Computing, Information and Control,

ICICIC '07, pp.203-203 5-7 Sept. 2007.

Nimsub, K., Dawi, K., Kyuhyung, C., Jinsang, K., and

Wonkyung, C., 2005. Design and Verification of a

CAN Controller for Custom ASIC, CAN in

Automation Proceedings of 10th iCC 2005.

Oltu, O., Milea, P., Simion, A., 2005. Testing of digital

circuitry using Xilinx Chipscope logic analyzer, In

Proceedings International Semiconductor Conference,

CAS 2005, vol.2, no., pp. 471-474, 3-5 Oct. 2005.

Sheikh, I., Short. M, and Pont, M., 2008. Hardware

Implementation of a Shared Clock Protocol for CAN:

A Pilot Study, In proceedings of 4th UK Embedded

Forum, Southampton, September, 2008.

Sheikh, I., and Short, M., 2009. CAN Conformance

Testing-A New approach, tech-report ESL-09-01,

ESL, Engineering Department, University of

Leicester.

TTA-Group, 2003. Time-Triggered Protocol TTP/C High-

Level specification Doc. Protocol Ver. 1.1, 1.4.3 ed.

Vienna, Austria, TTTECH.

Xilinx Inc, 2000. Chipscope integrated logic analyzer, San

Jose, CA 95124-3400. http://www.xilinx.com/ise/

optional_prod/cspro.htm

Woodward, J., 2003. The in-circuit debug of FPGAs,

CMP Media LLC, New York, Embedded Systems

Europe, vol 7, No 49, pp.16-17.

Zarri, G., Colucci, F., Dupuis, F., Mariani, R.,

Pasquariello, M., Risaliti, G. and Tibaldi,C., 2006. On

the verification of automotive protocols, In

Proceedings of Design, Automation and Test in

Europe, 2006. DATE '06. , vol.2, no., March 2006,

pp.6-10.

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

104
