Process-Oriented Tool-Platform for Distributed

Development

Kolja Markwardt, Lawrence Cabac and Christine Reese

University of Hamburg - Department of Informatics, Germany

Abstract. Many software projects today are executed geographically distributed

with teams of developers, designers, testers, etc. in different countries all over

the globe. This requires a development environment that allows easy and ﬂexible

adaptation to different kinds of teams and their processes. This paper presents

an architecture for a distributed software development environment, that allows

users to collaborate on ﬂexible processes. The focus is put on providing dis-

tributed tools and organising the processes needed to successfully produce soft-

ware with these tools.

1 Introduction

Distributed software development is one of the major concerns today. Many different

approaches are made for the creation of ﬂexible environments to solve the different

challenges encountered here. A distributed software development environment needs

to offer users powerful tools to handle their tasks, as well as allow the interaction and

coordination of distributed partners working together on a project.

Some examples for distributed software development environments are Jazz [6] by

the Eclipse [4] project or Microsoft Visual Studio Team System [10]. In these cases ex-

isting IDEs are enhanced with collaboration features to address the needs of distributed

development.

We try to start from an inherently distributed system, namely a multi-agent system.

On that basis we ﬁrst build a tool platform, which can be used for any kind of distributed

collaborative work. Our goal and case study is then the distributed software develop-

ment environment.

Other tools focus on certain aspects of distributed development, for example D-

Meeting [1] supports distributed meetings and the gathering of meeting results. While

synchronous processes are possible in our approach and a tool for synchronous com-

munication has been implemented [14], the focus here lies on asynchronous processes.

This paper describes the POTATO (Process-Oriented Tool Agents for Team Organi-

zation) system for distributed software development. It is a tool platform, designed to

integrate different kinds of tools into one process-oriented environment. The tools can

either be standalone or collaboration tools. The interaction between the users is con-

trolled by a process infrastructure that allows the deﬁnition and execution of process-

based applications. This tool platform can then be used to build a distributed software

development environment. Tool agents are used to build tools that can be used to exe-

cute tasks in the system.

Markwardt K., Cabac L. and Reese C. (2009).

A Process-Oriented Tool-Platform for Distributed Development.

In Proceedings of the 7th International Workshop on Modelling, Simulation, Veriﬁcation and Validation of Enterprise Information Systems, pages 43-52

DOI: 10.5220/0002219200430052

 SciTePress

The underlying technology used for the development are reference nets, a special class

of colored Petri nets suitable for the modelling and execution of complex concurrent

systems. Within these nets, Java code can be used for inscriptions. Based on the runtime

environment RENEW, CAPA is a complete multi-agent system platform implemented in

Petri nets, which is then used to build a system of tool and material agents as well as a

process infrastructure. These subsystems are then combined into the POTATO-system,

which offers these functionalities to application programs.

Section 2 describes the agent platform that is the basis for the system, highlight-

ing how nested agents/platforms can be used to structure the system on an intuitive yet

powerful way.

Following in section 3 is the process infrastructure used to create process-oriented

applications. Processes are designed as entities in their own right, controlling their own

execution. The architecture for tool agents can be seen in section 4. Section 5 outlines

the integration of the process infrastructure with the tool agent platform. In the end,

section 6 shows some example scenarios to show how the components work together,

followed by a conclusion and a view on future work.

2 Agent Systems

For the design of concurrent, distributed systems agents and multi-agent systems pro-

vide very useful tools and metaphors. They are especially useful where different parties

work together in a heterogenous environment. This is often the case in distributed soft-

ware development, when different companies work together on a project. This section

describes the agent platform CAPA on which the POTATO system is built.

Agent Platforms. The POTATO system is built on the MULAN agent platform [13].

MULAN is implemented using reference nets [7] as a modelling and execution lan-

guage. Reference nets are a special formalism of colored Petri nets, in which references

to nets can be used as tokens within other nets. This allows the building of very com-

plex models. Thanks to the integration of Java commands within the formalism, it is

possible to graphically model a system and use this model as actual, executable code.

The extension CAPA [3] augments this platform to a complete FIPA-compliant [5] agent

platform.

The basic model of MULAN/CAPA deﬁnes agents, which reside on agent platforms.

They own a knowledge base in which their knowledge is kept. The behavior is deter-

mined by a number of agent protocols and decision components within the agent.

Protocols. Even though in theory agents possess autonomy, they need to adhere to

agreed-upon communication standards to enable meaningful interaction. In CAPA each

agents’ behavior is speciﬁed by a set of agent protocols. The term protocol in CAPA

is used for one agent’s part in an interaction, which works together with other agents’

protocols to form a conversation.

Modelling an agent system then consists of two orthogonal dimensions, designing

the agents that are part of the system (the structure) and designing their protocols (the

behavior). If both parts have their own identity, agent and workﬂow deﬁnitions, it is

easier to focus on one at a time and get to a cleaner design. The next section shows how

workﬂow processes are handled in the POTATO system.

3 Processes

To organise the cooperation of different people working together on a project, workﬂow

processes can be deﬁned and enacted. An agent-based process infrastructure has been

created to take care of this important aspect of collaborative systems. [11].

The process infrastructure offers the services of deﬁnition and execution of work-

ﬂow processes in the development environment. It models a complete workﬂow man-

agement system (WfMS) using agent technology. This allows to make use of agent-

based features, like distribution and mobility, so that the resulting WfMS is much more

ﬂexible than a normal stand-alone one.

Not only the different parts of the WfMS are modelled as agents, the workﬂow it-

self is, too. Once a workﬂow is instantiated, a workﬂow agent is created, that holds the

process deﬁnition as well as any speciﬁc case data. This agent then takes care of the

execution of the contained process, interacting with any other agents which play a part

in the process.

Process Infrastructure. The process infrastructure is a subsystem within the POTATO

tool platform which offers workﬂow execution services. This allows the explicit mod-

elling of structure elements of the application (agents) and behavior elements (pro-

cesses). The elements of a classical workﬂow management system (WfMS) have been

implemented as cooperating agents, thus allowing easier distribution among different

platforms as well as a consistent execution environment.

At the center of the WfMS is the execution of workﬂow process deﬁnitions, which

are speciﬁed as Petri nets. Since the CAPA platform itself is implemented with Refer-

ence nets (see section 2), this allows a very smooth integration.

The execution of process deﬁnitions is handled by workﬂow engine agents. They

are instantiated by a workﬂow enactment agent, which has knowledge of the different

process deﬁnitions within the system and creates new workﬂows on demand. Usually a

workﬂow engine agent can handle several workﬂow processes.

The workitem dispatcher agent handles the worklists of all registered workﬂow par-

ticipants and updates them whenever changes occur. Participants can select tasks for

execution and inform the dispatcher of their completion. Whenever an update of the ac-

tivation state of a task transition happens the dispatcher sends an update of all relevant

worklists to the participants.

Another agent is used for the handling of roles, rules and rights (RRR agent). It de-

cides who can access which functionality in the system, for example executing certain

tasks or deﬁne new processes and tasks. The RRR agent also performs security checks

on operations and when a user logs in into the WfMS.

Security issues will be handled by the security subsystem, which is another multi-

agent system due to the complexity of security in distributed systems. The RRR agent

strongly cooperates with the security multi-agent system.

Workﬂow Agents. The workﬂow agent plays a special role in the process infrastruc-

ture, as it is essentially a process deﬁnition which gets elevated to the status of an agent.

Usually the interaction between agents is regulated by protocols, which are implicitly

agreed upon, and whose parts are distributed between the participating agents. With the

workﬂow agent, this implicit understanding is encapsulated into an own entity, putting

it into the focus and allowing a single point of access.

Whenever a new process instance is created in the process infrastructure, the work-

ﬂow enactment agent creates a new workﬂow agent and initialises it with a process

deﬁnition (a workﬂow Petri net). Additional information about the process context, like

participants, case data, distribution aspects etc. can be stored as information within the

net.

The workﬂow agent is then connected to a workﬂow engine agent and makes sure

the process is executed correctly. If needed, the workﬂow can be fragmented [12] and

migrated to different platforms and other WfMSs to e.g. ensure the correct execution of

an interorganizational workﬂow.

In this way designing the interactions between agents is much easier. It is no longer

necessary to check that all interfaces are correct and every agent protocol ﬁts together

with the others, since everything can be designed in one central place and distributed

at runtime. Of course the process infrastructure is more complicated then a traditional

WfMS due to the higher ﬂexibility.

4 Tool Agents

The main goal of the POTATO system is to facilitate the work of different people work-

ing together to produce software. To achieve this, users can use different tools to ma-

nipulate materials, which are over the course of a project transformed into work results.

This follows the notions of the tools and materials approach [15], applied to multi-agent

systems to address distributed workplaces.

Overview. The main idea about the tool agent concept is that each user controls a user

agent (UA), which can be enhanced by different tool agents (TA). [8] The user agent

provides basic functionality like a standard user interface and the possibility to load new

tool agents. Those tool agents can then plug into the user agents UI with their own UI

parts, offering their functionality to the user. By choosing the speciﬁc set of tool agents,

the user can tailor his workspace to his speciﬁc needs. A developer for example needs

a completely different workplace then a tester or someone writing documentation.

Material agents (MA) are used to represent and encapsulate the materials or work

objects that are currently worked on. Materials are manipulated by tools and can be cre-

ated, deleted and moved between workplaces. Tools and materials populate the workspace

of the user.

User Agent. The user agent is every user’s starting point into the distributed develop-

ment environment. Its role is therefore a dual one; one part is the UI component which

allows the user to access the system, the other part is the connection to the multi-agent

system.

The user interface needs to be ﬂexible enough to allow easy integration of new tools

and materials. In the prototype currently worked on, the user interface is implemented

as an Eclipse plugin using the Rich Client platform and SWT. [4] Other systems would

of course be possible, as long as user and tool agents agree on one standard.

Tool Agents. To access functionality in the system, tool agents are used. This can be

an encapsulated legacy application, local handling of a material, cooperation with other

users via connected tool agents or access to a remote service provider (see ﬁgure 1).

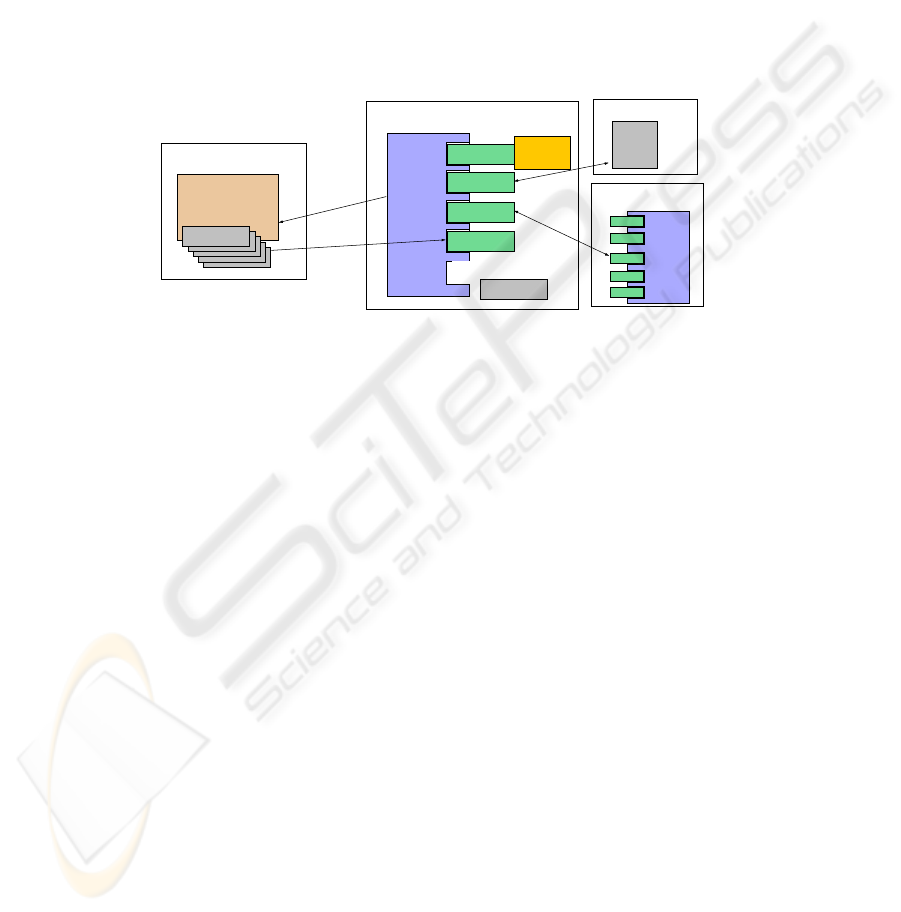

Tool Agent

Legacy

Application

Server

Agent

Tool Agent

User Agent

Interface

(part of the

platform)

Platform B

Platform A (User Agent)

Platform C

(Other User Agent)

Tool Agent

Tool Factory

Tool Agent

Mobile Agent

Platform D

UAI

Fig. 1. User and Tool agents.

They are created within the user agent or migrate there in order to offer certain func-

tions to the user. A tool agent is usually explicitly ordered by a user agent. It is also

possible to send a tool agent to the user agent to request certain actions from him. This

is for example the case with tool agents used within the process infrastructure for task

execution. When a user accepts an open task, a tool agent for handling that task can be

sent directly to the user.

Tool Factory. Not every user agent platform needs to know all possible tool agents. A

repository can be used to store tool deﬁnitions and generate new tools on demand. User

agents can query this tool factory for available tool types and the tool factory generates

new tool instances on demand. If the tool factory is located on a different platform than

the user agent, the tools can be migrated over the network to the target platform.

Material Agents. Material agents represent work objects in the system, such as a piece

of source code, a documentation item, a system speciﬁcation etc. Materials are handed

over between user agents, who can then work on them, transforming and modifying

them using tool agents.

A material agent allows access to its internal data over an interface speciﬁc to this

material, like an object in object-oriented programming. For creating materials a spe-

cial repository like the tool factory is conceivable, otherwise certain types of tools can

create new materials.

The workﬂow agent (section 3) is a special, complex material. It encapsulates the work-

ﬂow process deﬁnition and the current execution status, but can also contain other ma-

terials needed in the course of the process, like work documents generated and manip-

ulated.

5 Integration

This section describes the integration and interaction between our process infrastructure

and the tool agents architecture. These two concepts are essential for the development

environment envisaged and need to work together smoothly.

A user of the system has to achieve anything by the use of tool agents. His workspace

offers him different tools to use, some of which involve using workﬂows in one way or

another. For most of the interfaces a WfMS has to offer according to the WfMC refer-

ence model (see ﬁgure 2), tool agents can be applied.

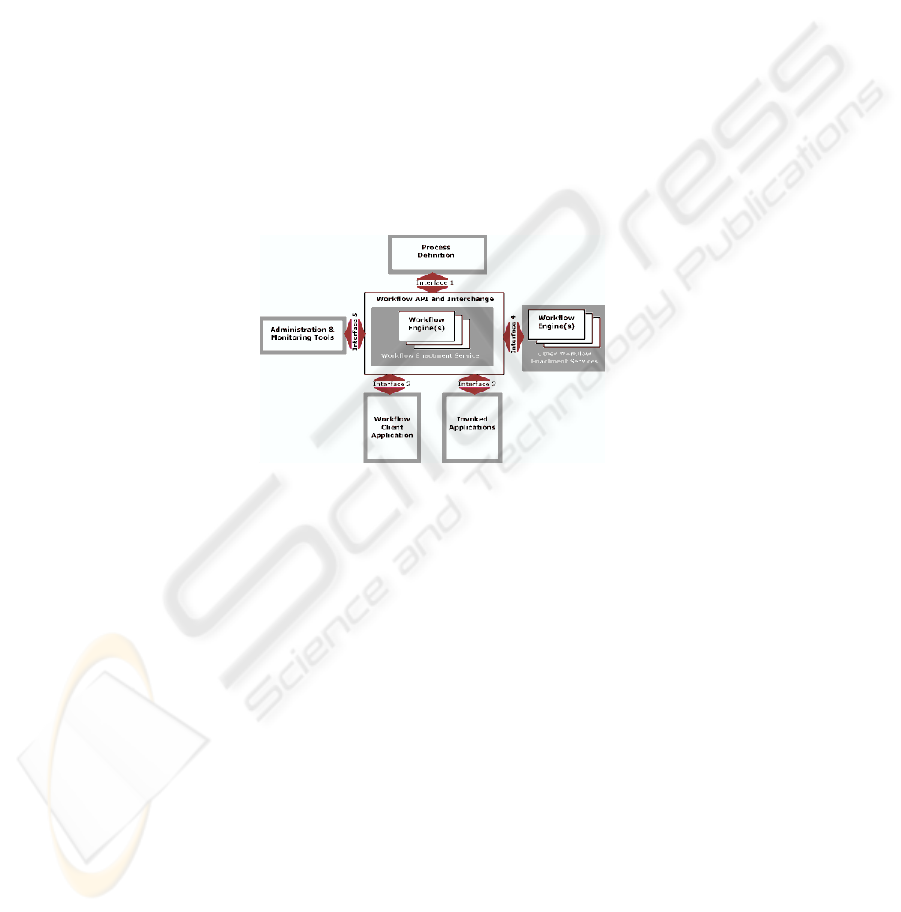

Fig. 2. Workﬂow Interfaces [2].

Workﬂow Deﬁnition Tools. The ﬁrst interface is the workﬂow process deﬁnition.

Users who are allowed to deﬁne their own processes can do so by using a process

deﬁnition tool. The created process pattern is a material, which is then handed over to

the workﬂow database agent. The workﬂow enactment agent can access and instantiate

it then.

At the current time, no such tools exist yet. The process deﬁnitions are usually de-

signed directly in the RENEW tool and added to the workﬂow database manually.

Workﬂow Client Application Tools. The workﬂow client application and invoked ap-

plication interfaces are used to trigger the actual work to be executed in the course of the

workﬂow execution. Once a user selects a task for execution, the process infrastructure

creates a tool agent speciﬁcally for this task instance. The tool can be tailored to the

task and contains all necessary context information to allow the successful handling.

Invoked applications do not require user interaction. Service agents are used to ex-

ecute these tasks, but the same interface as for tool agents can be used here as well.

Workﬂow Engine Interface. The fourth interface of the reference model is used to

connect a WfMS with other, remote workﬂow engines. This interface can be used to

construct distributed workﬂows or execute parts of a process in a remote WfMS. With

the notion of workﬂows as tools (see below), subprocesses can be achieved by simply

calling a remote WfMS as a tool.

More complex interaction has to be negotiated directly between the WfMS’, though.

This is still an open topic for further research.

Workﬂow as Tool. Tool agents cannot only be called by the WfMS, they can initiate

and control a workﬂow, too. A tool can offer some functionality to the user, which relies

on the execution of a (sub-)workﬂow. So when the functionality is called from within

the tool agent, a new workﬂow agent is created. During the course of its execution, other

tool agents might be called.

Yet another tool can offer monitoring functionalities over workﬂow instances the

user owns. Both the starting and monitoring of processes uses the administration and

monitoring interface of the WfMS.

6 Scenarios

To understand the purpose of the system, this section describes some usage scenarios.

The process for Change Management has been implemented as an example subprocess

of distributed development. It shows how the different parts of the system work together.

The complete process envisaged for distributed development is outlined afterwards.

6.1 Change Management

An important process in software development and maintenance is the handling of

changes in the software. Changes can originate from bugs found during testing, chang-

ing requirements or enhancement of the software with new functionality. To success-

fully execute a change it is important, that all parties involved follow the predeﬁned

processes, because only then transparency can be ensured.

A basic change management application has been built based on the POTATO tool

platform. [9] The exact processes used in change management are very dependent on

the actual context, like involved parties (internal and external), quality of service agree-

ments, additional bug tracking software, company policies etc.

In our scenario, the workﬂow starts with a change requester (for example a user rep-

resentative) opening a new change request (CR) via his CR tool. This connects to the

Workﬂow enactment service and requests a new workﬂow of the type “Change Request

handling” to be started. The workﬂow enactment agent looks up the process deﬁnition,

adds the requester to the list of participants and starts a new workﬂow agent. The be-

ginning of the workﬂow is shown in ﬁgure 3.

Now the CR could be assessed, categorized and edited, cost estimates be made and

negotiated, before the CR is actually worked upon. In this example all CRs are imme-

diately executed, as might be the case in a small internal CR cycle. So the next task in

line is the implementation of the required change.

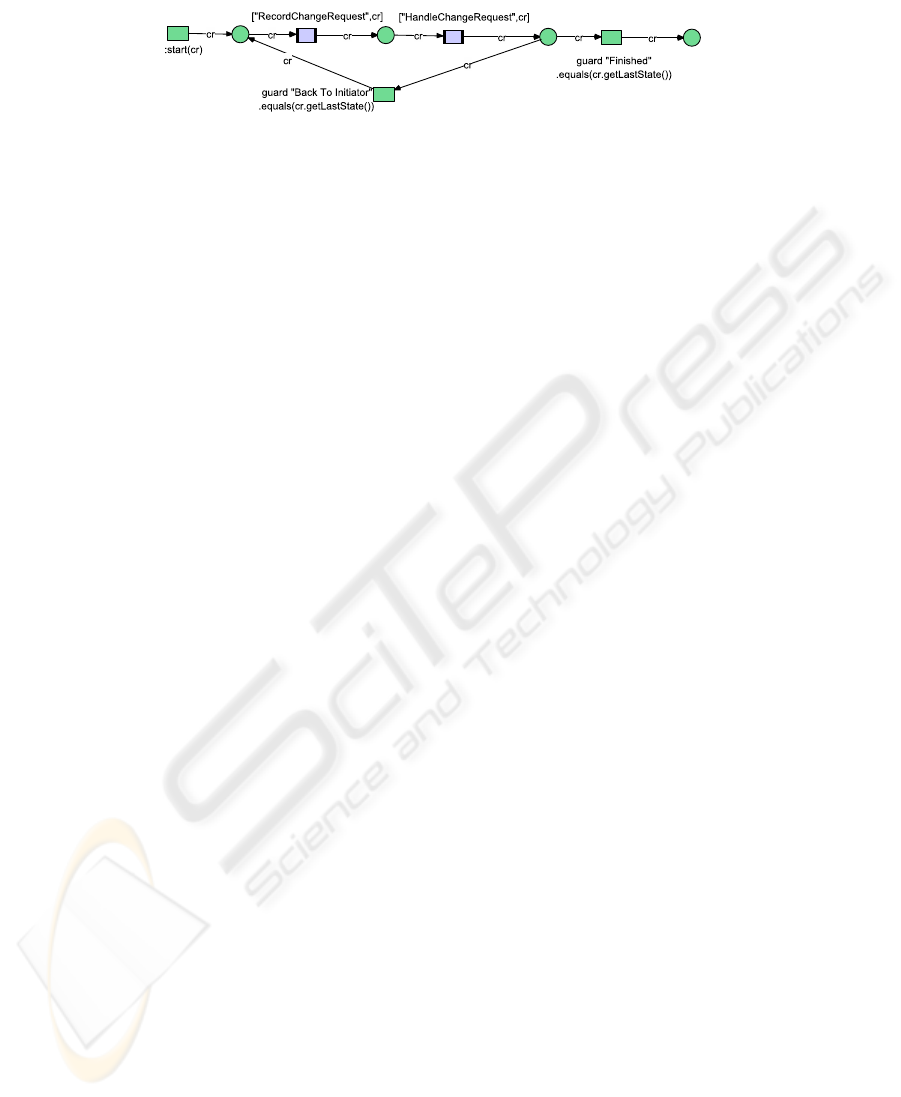

Fig. 3. Change Management Workﬂow (detail).

At some point the process is ﬁnished and the CR is closed. The tool which started the

workﬂow is notiﬁed of this and can provide some feedback about this. Of course a real

Change Management workﬂow would be more complex and require different tools.

6.2 Distributed Development

The eventual goal of the POTATO system is to support the complete process of dis-

tributed software development. The aspect of Change Management has just been shown,

other processes are yet to implement. The overall structure is also more complex than

was necessary in the last example.

Different companies working together at different places will all have their own

agent platforms. These platforms are interconnected and share some resources, but cer-

tain information will be kept private. For example a process spanning two companies

can be deﬁned as public information, but the detailed subprocesses each company uses

internally is private information.

To implement a distributed project, either a standard process is selected or a new

process deﬁnition is tailored for the speciﬁc project. Since most distributed projects are

very complex, this will usually be necessary in order to address all the speciﬁc circum-

stances of the project. This global process is then enacted on either a shared platform

for the project or one of the participants’ platform.

The different activities are then assigned to the relevant parties and handled accord-

ingly. For example a service provider will be assigned the task of writing documenta-

tion. This task could be handled by some kind of tool agent, it is more likely however,

that it spawns a whole new subprocess on the side of the service provider.

In a complex network of collaborating companies, changing teams can be put to-

gether to work on different projects, each time designing new processes and creating

new temporary collaboration platforms.

7 Conclusions and Outlook

In this paper the process-oriented tool platform POTATO has been described. It has been

stated, how such a tool can be used to support distributed collaborative software devel-

opment processes. The different constituent parts have been described as well as their

interaction.

The process infrastructure as well as the tool agent architecture have been described

as the constituent parts of the system. The integration of these two parts was described

and motivated with two scenarios.

At the current time, a prototype of this system exists, the test application for change

management processes in the context of distributed development has been built [9]. To

facilitate other processes of distributed software development, the different processes

used in this domain have to be described in detail and implemented as workﬂow deﬁni-

tions. In parallel tool and material agents have to be implemented to enact the processes.

References

1. Naoufel Boulila, Allen H. Dutoit, and Bernd Bruegge. D-meeting: an object-oriented frame-

work for supporting distributed modelling of software. In International Workshop on Global

Software Development, International Conference on Software Engineering, 5 2003.

2. Workﬂow Management Coalition. Wfmc workﬂow reference model, 1995.

3. Michael Duvigneau, Daniel Moldt, and Heiko R

olke. Concurrent architecture for a multi-

agent platform. In Agent-Oriented Software Engineering III: Third International Workshop,

AOSE 2002, Bologna, Italy, July 15, 2002. Revised Papers and Invited Contributions, number

2585 in Lecture Notes in Computer Science, pages 59–72, Berlin Heidelberg New York,

2003.

4. eclipse project. www.eclipse.org, 2008.

5. Foundation for intelligent physical agents. URL http : www.fipa.org, 2008.

6. Jazz project. http : www.jazz.net, 2008.

7. Olaf Kummer. Referenznetze. Logos Verlag, Berlin, 2002.

8. Kolja Lehmann and Vanessa Markwardt. Proposal of an agent-based system for distributed

software development. In Daniel Moldt, editor, Third Workshop on Modelling of Objects,

Components and Agents (MOCA 2004), pages 65–70, Aarhus, Denmark, October 2004.

9. Kolja Markwardt, Daniel Moldt, Sven Offermann, and Christine Reese. Using multi-agent

systems for change management processes in the context of distributed software develop-

ment processes. In Shazia Sadiq, Manfred Reichert, and Karsten Schulz, editors, The 1st

International Workshop on Technologies for Collaborative Business Process Management

(TCoB 2006), pages 56–66, 2006.

10. Microsoft visual studio team system. http : msdn.microsoft.com/vsts2008/products,

2008.

11. Christine Reese, Jan Ortmann, Daniel Moldt, Sven Offermann, Kolja Lehmann, and Timo

Carl. Architecture for distributed agent-based workﬂows. In Brian Henderson-Sellers and

Michael Winikoff, editors, Proceedings of the Seventh International Bi-Conference Work-

shop on Agent-Oriented Information Systems (AOIS-2005), Utrecht, Niederlande, as part of

AAMAS 2005 (Autonomous Agents and Multi Agent Systems), July 2005, pages 42–49, 2005.

12. Christine Reese, Jan Ortmann, Daniel Moldt, Sven Offermann, Kolja Lehmann, and Timo

Carl. Fragmented workﬂows supported by an agent based architecture. In Manuel Kolp,

Paolo Bresciani, Brian Henderson-Sellers, and Michael Winikoff, editors, Agent-Oriented

Information Systems III 7th International Bi-Conference Workshop, AOIS 2005, Utrecht,

Netherlands, July 26, 2005, and Klagenfurt, Austria, October 27, 2005, Revised Selected

Papers, volume 3529 of Lecture Notes in Computer Science, pages 200–215. Springer-Ver-

lag, 2006.

13. Heiko R

olke. Modellierung und implementation eines multi-agenten-systems auf der basis

von referenznetzen. Diplomarbeit, Universit

at Hamburg, 1999.

14. Steven Willmott et al. Netdemo: opennet networked agents demonstration. In Michael Pe-

choucek, Donald Steiner, and Simon Thompson, editors, AAMAS 2005. Proceedings (Indus-

try Track), pages 129–130, 2005. 2 individual demos: (1) CAPA: The CAPA Mobile Chat

Agent & Web Services Gateway Agent and (2) Settler: AgentBased Settler Game.

15. Heinz Z

ullighoven. Object-Oriented Construction Handbook. dpunkt Verlag, 2005.
