Towards the Use of Formal Ontologies in Enterprise

Architecture Framework Repositories

Aurona Gerber and Alta van der Merwe

Meraka Institute, Pretoria, South Africa

Abstract. An enterprise architecture (EA) framework is a conceptual tool that

assists organizations and businesses with the understanding of their own struc-

ture and the way they work. Normally an enterprise architecture framework takes

the form of a comprehensive set of cohesive models or enterprise architectures

that describe the structure and the functions of an enterprise. Generically, an ar-

chitecture model is the description of the set of components and the relationships

between them. The central idea of all architectures is to represent, or model (in

the abstract) an orderly arrangement of the components that make up the sys-

tem under question and the relationships between these components. It is clear

within this context that the models within an enterprise architecture framework

are complex. However, recent advances in ontologies and ontology technologies

may provide the means to assist architects with the management of this complex-

ity.

In this position paper we want to argue for the integration of formal ontologies

and ontology technologies as tools into enterprise architecture frameworks. On-

tologies allow for the construction of complex conceptual models, but more sig-

nicant, ontologies can assist an architect by depicting all the consequences of her

model, allowing for more precise and complete artifacts within enterprise archi-

tecture framework repositories, and because these models use standardized lan-

guages, they will promote integration and interoperability with and within these

repositories.

1 Introduction

An enterprise architecture (EA) framework is a conceptual tool that assists organiza-

tions and businesses with the understanding of their own structure and the way they

work. It provides a map of the enterprise and is a route planner for business and tech-

nology change. Normally an enterprise architecture framework takes the form of a com-

prehensive set of cohesive models or enterprise architectures that describe the structure

and the functions of an enterprise [1,2].

Probably the most widely adopted deﬁnition for enterprise architecture (EA) is the

IEEE deﬁnition where EA is described as a widely adopted means for coping with orga-

nizations’ ever-increasing complexity and for ensuring that organizations appropriately

use and optimize their technical resources. EA is an integrated and holistic vision of

a system’s fundamental organization, embodied in its elements (people, processes, ap-

plications, and so on), their relationships to each other and to the environment, and the

principles guiding its design and evolution [3].

Gerber A. and van der Merwe A. (2009).

Towards the Use of Formal Ontologies in Enterprise Architecture Framework Repositories.

In Proceedings of the Joint Workshop on Advanced Technologies and Techniques for Enterprise Information Systems, pages 114-124

DOI: 10.5220/0002220801140124

 SciTePress

The term Enterprise Architecture (EA) originated from the thinking around both the

terms ’business’ and ’architecture’. EA describes the business process of IT by creating

a relationship between the IT structure that is used in the organization and in each

speciﬁc system [4].

Within this context, an enterprise is regarded as a company, business, organization,

or other purposeful endeavour. An enterprise has the following characteristics [5]:

– An enterprise consists of people, information, and technologies.

– An enterprise performs business functions.

– An enterprise has a deﬁned organizational structure that is commonly distributed in

multiple locations.

– An enterprise responds to internal and external events.

– An enterprise has a purpose for its activities.

– An enterprise provides speciﬁc services and products to its customer.

The enterprise is thus an holistic term for ’business entity’ in all its facets.

Generically, architecture is the description of the set of components and the relation-

ships between them [6]. The central idea of all architectures is to represent, or model

(in the abstract) an orderly arrangement of the components that make up the system

under question and the relationships or interactions of these components [5]. A further

deﬁnition of an architecture is that an architecture is deﬁned by the recommended prac-

tice as the fundamental organization of a system, embodied in its components, their

relationships to each other and the environment, and the principles governing its design

and evolution [3]. A system architecture is an essential mechanism required to con-

ceptualise, analyse and design systems [7, 8] and there is consensus among researchers

and system architects that the determination of the architecture of a system is crucial

to the successful understanding and development thereof, especially when the system

envisaged is intricate and multifaceted [9,7].

In this paper, we want to emphasize the notion from the deﬁnitions above that an

architecture is a model, and an EA is also a model or set of models in that it is an

integrated and holistic vision of a system’s fundamental organization, embodied in its

elements (people, processes, applications, and so on), their relationships to each other

and to the environment, and the principles guiding its design and evolution. An EA

framework is a comprehensive set of EA models used by the architect.

But what is a model? Dijkstra introduced the concept of models into computer sci-

ence in the early ’70s [10]. Models were recommended to simplify unmastered com-

plexity. He argued that the programmer and his mind are an important part of the com-

puting process and that modularised, goto-less programs lead to more efﬁciency in the

use of the computer [11]. Avison and Fitzgerald deﬁne a model as an abstraction and

representation of part of the real world [12]. Abstraction is the process of stripping an

idea or a system of its concrete or physical features for a simpliﬁed representation of a

complex application. Models are used at various levels of system abstraction. A model

provides a way of viewing the important aspects of a system at a speciﬁc level in such a

way that higher levels depict the essence of the system and the lower levels show detail

that does not compromise the essence. The conceptual level is a high-level overview

description of the universe of discourse (UoD) or the domain of interest such as the

overall information system, the business system, or even the society [12].

115

Furthermore, Lipitt deﬁnes a model as a symbolic representation of all the aspects,

as well as their interrelationships, of a complex event or situation. The true value of

any model lies in the fact that is an abstraction or representation of reality that is useful

for analytical purposes [13]. According to Lippitt (1973, p.9) modelling will help expe-

dite problem-solving and change because it enables those involved to conceptualize the

multiple factors through visualized thinking. The interrelationship between the cogni-

tive process of thinking cannot be separated from perception: problem-solving involves

cognition, and cognition includes perception. Visualization improves the capability to

perceive and, therefore, assists the cognitive process.

Since EA models within EA frameworks depict an integrated and holistic vision

of a system’s fundamental organization, embodied in its elements (people, processes,

applications, and so on), their relationships to each other and to the environment, these

models are complex and multi-faceted, and need to depict all elements on different

levels of abstraction, as well as the relationships between elements. In general, tools

do not exist that can assist an enterprise architect to manage the complexity of EA

architectures.

In the past ten to ﬁfteen years, advances in reasoning and modeling technologies

have ensured that issues regarding the complexity of models can be addressed. It is

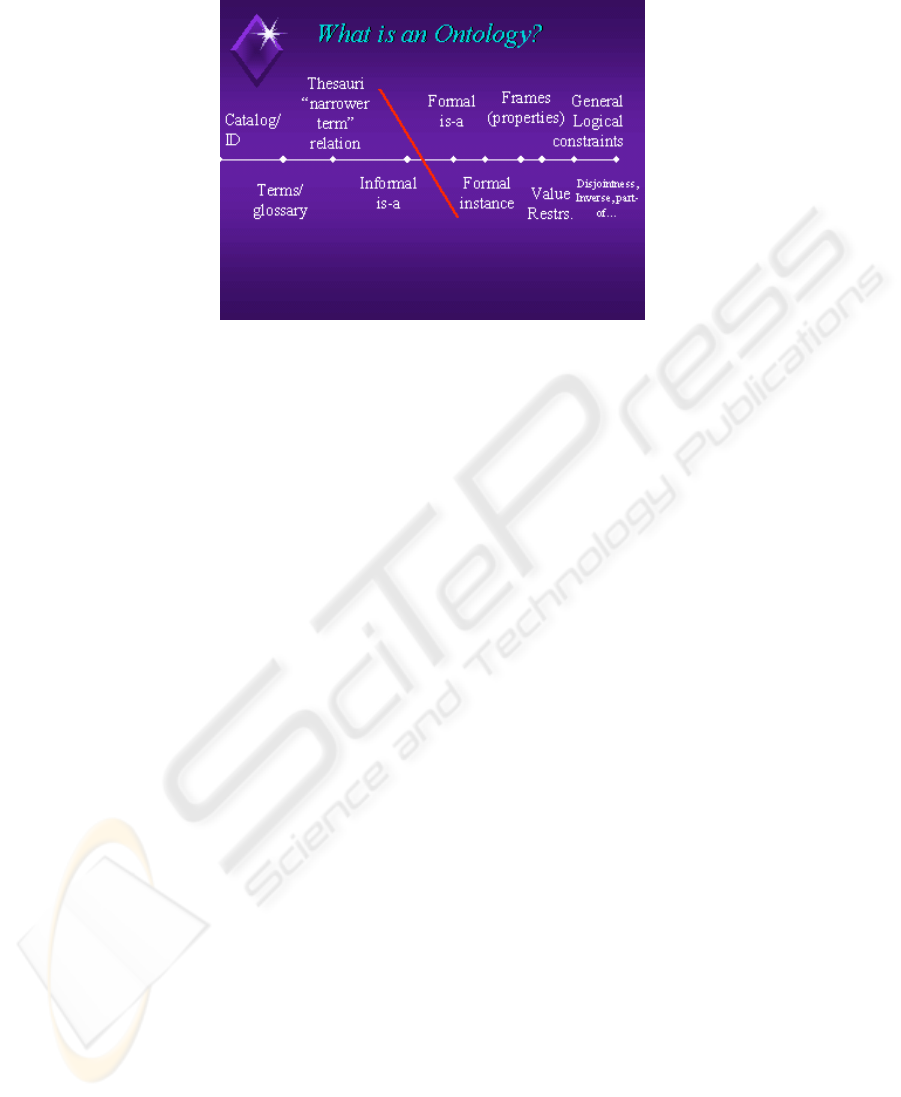

here that ontologies play a crucial role. Roughly speaking, an ontology structures a

conceptual model in ways that are appropriate for a speciﬁc application domain, and in

doing so, provides a way to attach meaning to the terms and relations used in describing

the domain. A more formal and widely used deﬁnition is that of Gr¨uber who deﬁnes an

ontology as a formal speciﬁcation of a conceptualisation [14]. The importance of this

technology is evidenced by the growing use of ontologies in a variety of application

areas, and is in line with the view of ontologies as the emerging technology driving the

Semantic Web initiative [15].

In this position paper we want to argue for the integration of formal ontologies and

ontology technologies as tools into enterprise architecture frameworks. Ontologies al-

low for the construction of complex conceptual models, but more signiﬁcant, ontologies

can assist an architect by depicting all the consequences of her model. Formal ontolo-

gies also allow an architect to view and understand the implicit consequences of explicit

statements and the reasoning technologies can help to ensure that a model is consistent.

In this section we have argued that conceptual models are an integral part of an EA.

The rest of the paper is structured as follows: Section 2 will provide background infor-

mation on enterprise architectures and ontologies (Sections 2.1, 2.2 and 2.3). Section 3

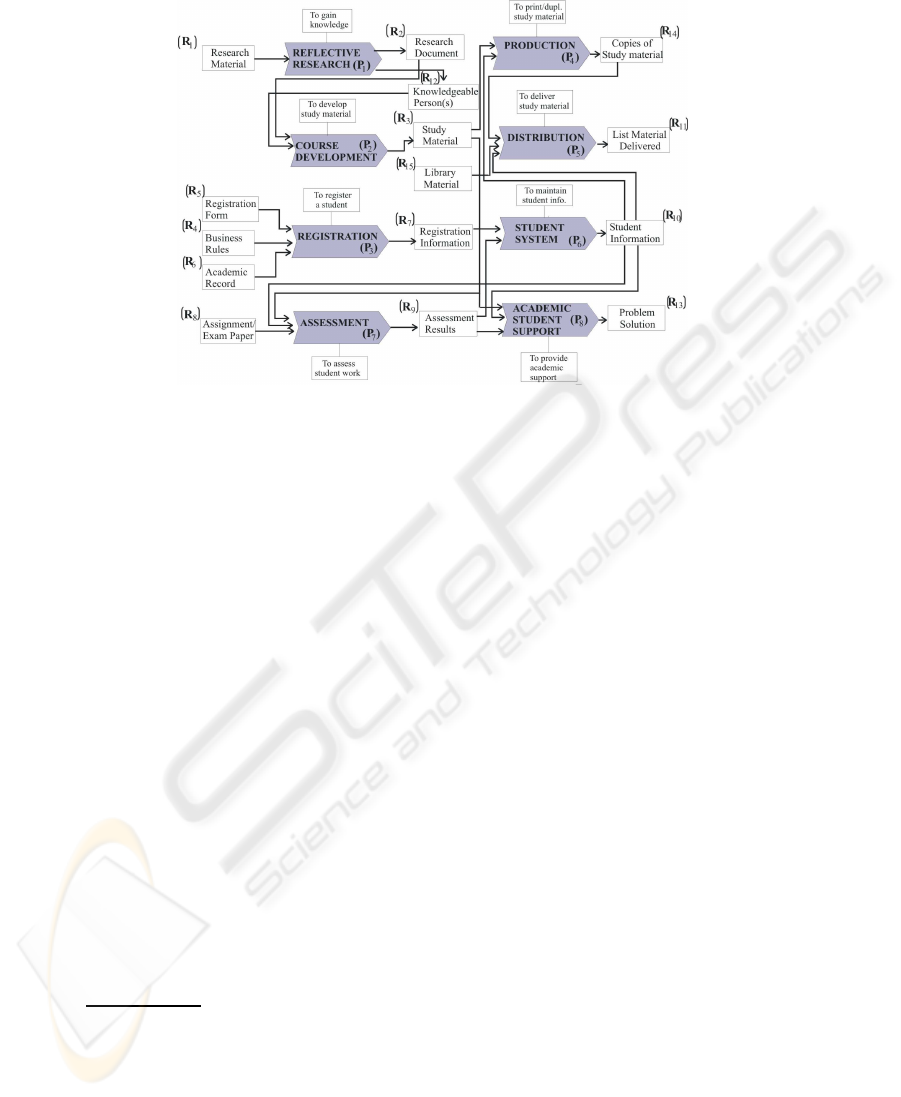

describes a proof-of-concept experiment where we modeled a process diagram using a

formal ontology. Section 4 discusses the ﬁndings, as well as perceived advantages and

disadvantages, and the paper concludes in Section 5.

2 Background

This section provides some background into enterprise architectures (Section 2.1), en-

terprise architecture frameworks (Section 2.2) and ontologies (Section 2.3).

116

2.1 Enterprise Architectures

As mentioned in the introduction, the IEEE deﬁnition describes enterprise architecture

as an integrated and holistic vision of a systems fundamental organization, embodied

in its elements (people, processes, applications, and so on), their relationships to each

other and to the environment, and the principles guiding its design and evolution [3].

For completeness, we list the more prominent of the numerous deﬁnitions for the

concept enterprise architecture (EA):

– Chung and McLeod (2002) describe EA as a comprehensive model of an enter-

prise: a master plan, which acts as a planning, structuring, and integrating guideline

and force for an organization. EA covers business structure and context, informa-

tion technology dimension and organizational structure, and workﬂow dimension

in achieving the organization’s goals and strategies. It seeks to promote synergy

between the various dimensions, aligned with achieving overall business purposes

[16].

– According to Kaisler, Armour et. al (2005) an EA identiﬁes the main components

of the organization, its information systems, the ways in which these components

work together in order to achieve deﬁned business objectives, and the way in which

the information systems support the business processes of the organization. The

components include staff, business processes, technology, information, ﬁnancial

and other resources, etc. [6].

– Barnett, Presley et. al. (1994) deﬁnes an EA as a ’blueprint’ or ’picture’ which

assists in the design of an enterprise [17].

– Rood (1994) argues that an EA shows the primary components of an enterprise

and depicts how these components interact with or relate to each other. An EA is a

conceptual framework that describes how an enterprise is constructed by deﬁning

its primary components and the relationships among these components [5].

Kaisler, Armour et. al. (2005) describes enterprise architecting as the set of pro-

cesses, tools, and structures necessary to implement an enterprise-wide coherent and

consistent IT architecture for supporting the enterprise’s business operations. It takes a

holistic view of the enterprise’s IT resources rather than an application-by-application

view [18]. According to Ernst, Lankes et. al. (2006) EA management is a continuous

and iterative process controlling and improving the existing and planned IT support for

an organization. The process not only considers the information technology (IT) of the

enterprise, but also business processes, business goals, strategies, etc. are considered

in order to build a holistic and integrated view on the enterprise. The goal is a com-

mon vision regarding the status quo of business and IT as well as of opportunities and

problems arising from these ﬁelds, used as a basis for a continually aligned steering of

IT and business [19]. These two deﬁnitions place more emphasis on the way in which

enterprise architectures are used.

The primary focus of this paper is on the notion in the above deﬁnitions that an

enterprise architecture is an architecture of an enterprise, and that an architecture is a

model. Furthermore, an EA framework is a comprehensive set of EA models used by an

enterprise architect.

117

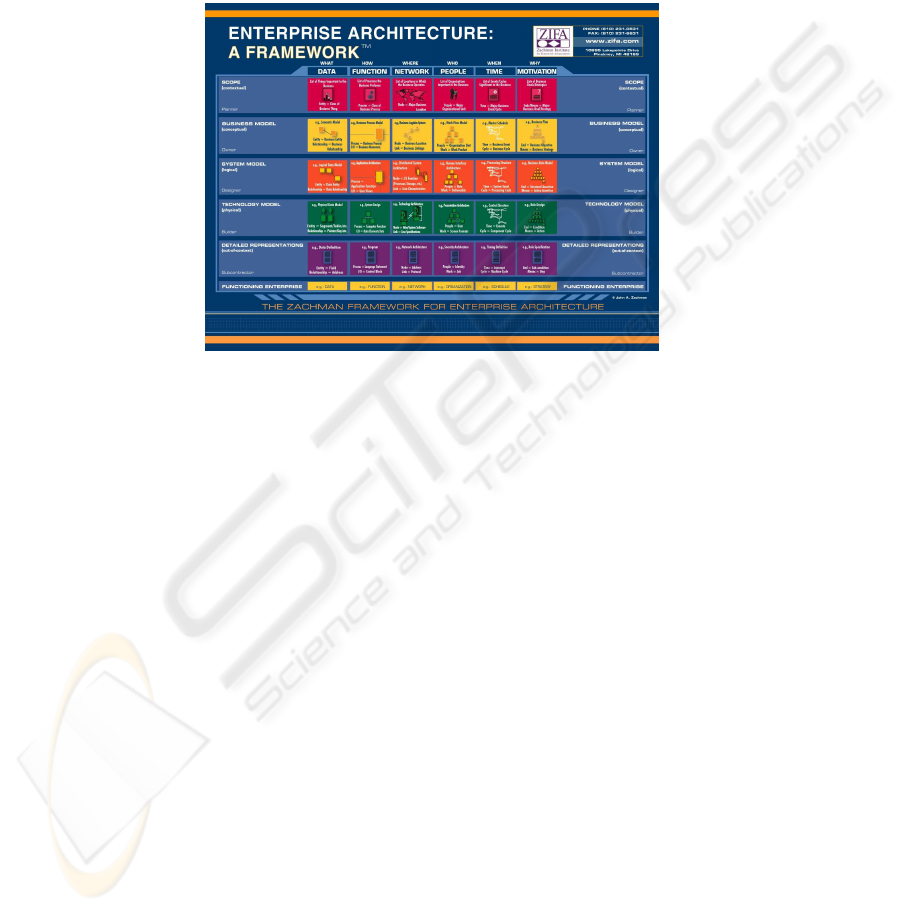

2.2 Enterprise Architecture Frameworks

An enterprise architecture (EA) framework is a conceptual tool that assists organiza-

tions and businesses with the understanding of their own structure and the way they

work and it often takes the form of a comprehensive set of cohesive models or enter-

prise architectures that describe the structure and the functions of an enterprise [1,2].

Fig.1. The Zachman Enterprise Architecture Framework.

Within the ﬁeld of Enterprise Architecture, several popular frameworks are used

to architect enterprises [20], including the Department of Defense Architecture Frame-

work (DoDAF), the Federal Enterprise Architecture Framework (FEAF), the Treasury

Enterprise Architecture Framework (TEAF), the ANSI/IEEE 1471 Standard [21] and

the Zachman framework [22,23].

The focus of the Zachman framework for enterprise architecture originated with the

idea of the classical architectural representation and production of a complex engineer-

ing product. When developing an information technology system, various parties are

involved [24]. The Zachman framework proposes a logical structure for classifying and

organizing the descriptive representations of an enterprise, in different dimensions, and

each dimension can be perceived as a different perspective. The Zachman framework is

depicted in Figure 1.

According to Bahill et. al [20], the Zachman framework is a classiﬁcation schema

consisting of six rows and six columns, used for organizing descriptive representations

of an enterprise. The rows focus on the different stakeholder perspectives of an enter-

prise, while the columns focus on different areas of interest within those perspectives.

According to Zachman [23], the Zachman Framework is an ontology ”a theory of the

existence of a structured set of essential components of an object for which explicit ex-

pressions is necessary and perhaps even mandatory for creating, operating, and chang-

ing the object (the object being an Enterprise, a department, a value chain, a sliver,

118

a solution, a project, an airplane, a building, a product, a profession or whatever or

whatever)”.

The forte of the Zachman framework (Figure 1) is that it is a normalized schema

[20]; it provides an even coverage of important topics and does not have redundancy

built into it. Each cell in the schema can be thought of as having two dimensions: scope

(width) and level of detail (depth). Each cell in the schema contains at least one ’prim-

itive’ model or artifact. The rows represent different perspectives, including the Scope,

Business model, System model, Technology model, detailed representationand the Real

system. In contrast, the columns (with no signiﬁcance in the order, focus on the data,

functions, networks, people, time and motivation (or also referred to as the What, Why,

When, How, Where and Who. In building the enterprise model, a frameworksuch as the

Zachman frameworkguides the architect in constructing the differentmodels applicable

to each perspective being modelled.

Since EA models within EA frameworks depict an integrated and holistic vision

of a system’s fundamental organization, embodied in its elements (people, processes,

applications, and so on), their relationships to each other and to the environment, these

models are complex and multi-faceted, and need to depict all elements on different

levels of abstraction, as well as the relationships between elements. In general, tools

do not exist that can assist an enterprise architect to manage the complexity of EA

architectures.

2.3 Ontologies

The concept of an ontology was inherited from philosophy and only recently became

commonplacein computer systems technology descriptions where an ontology speciﬁes

a machine readable vocabulary. Ontologies on the Semantic Web and expert systems or

AI (artiﬁcial intelligence) technologies of the 1980s are based on the same motivations

but they emerged from different architectures which implies that the technologies are

deployed or applied differently [25]. The term ontology has become widespread within

ICT and refer to anything from a taxonomy, a domain vocabulary and a conceptual

model, to a formal ontology. Lassila and McGuinness gave a spectrum of ontologies

as depicted in Figure 2 [26]. Even Zachamn refers to his enterprise architecture frame-

work as an ontology, but this is in the sense that it depicts a conceptual model of the

architecture models necessary to depict an enterprise [23]. In this paper we use the term

ontology when we mean a formal ontology based on one of the OWL standards which

is DL-based.

A formal ontology speciﬁes a machine-readable vocabulary in computer systems

technology descriptions. Generally such an ontology is deﬁned as a shared, formal,

explicit speciﬁcation of a conceptual model of a particular domain [27,28]. A formal

ontology typically describes a hierarchy of resource concepts within a domain and as-

sociates each concept’s crucial properties with it and therefore ontologies are used to

deﬁne and manage concepts, attributes and relationships in a precise manner [29].

The construction and maintenance of formal ontologies greatly depend on the avail-

ability of ontology languages equipped with a well-deﬁned semantics and powerful rea-

soning tools. Fortunately there already exists a class of logics, called description logics

or DLs, that provide for both, and are therefore ideal candidates for ontology languages

119

Fig.2. Web ontologies may be viewed as a spectrum of detail in their speciﬁcation [26].

[30]. That much was already clear ﬁfteen years ago, but at that time, there was a funda-

mental mismatch between the expressive power and the efﬁciency of reasoning that DL

systems provided, and the expressivity and the large knowledge bases that ontologists

needed. Through the basic research in DLs of the last ﬁfteen years, this gap between

the needs of ontologists and the systems that DL researchers provide has ﬁnally become

narrow enough to build stable bridges. In fact, the web ontology language OWL, which

was accorded the status of a World Wide Web Consortium (W3C) recommendation in

2004, and is therefore the ofﬁcial Semantic Web ontology language, is based on an

expressive DL [31].

Due to the advances in DL research mentioned above, there is growing interest in

the use of ontologies and related semantic technologies in a wide variety of application

domains. Arguably the most successful application area in this regard is the biomed-

ical ﬁeld [32,33]. Some of the biggest breakthroughs in ontological reasoning can be

traced back to the pioneering work of Horrocks [34] who developed algorithms specif-

ically tailored for medical applications. And recent advances have made it possible to

perform standard reasoning tasks on large-scale medical ontologies such as SNOMED

CT—an ontology with more than 300 000 concepts and more than a million semantic

relationships—in less than half an hour; a feat that would have provoked disbelief ten

years ago [35].

At present the ultimate vision of the Semantic Web based on expressive ontologies

as formulated by Berners-Lee et al. [36] remains largely a research initiative. However,

the vision initiated signiﬁcant interest with regards to the required technologies for the

enabling of the Semantic Web [2, 3, 4, 5]. Notably, the W3C recommended a number

of standards for languages of increasing expressivity as depicted by the Semantic Web

layered architecture [36,27]. One of these is OWL, the Web Ontology Language[10]

used as a standard to express formal ontologies [37,31].

One of the consequences of the standardisation of OWL by die W3C is the develop-

ment of several tools and reasoners that support the development of formal ontologies

based on the OWL standard. Notable ontology editors are Prot´eg´e 4 [38] and SWOOP

120

[39]. Reasoners provide computable and complete reasoning for OWL ontologies, and

some are integrated into the ontology editors. Notable reasoners are Fact++ [40] and

Pellet [41]. A summary of a substantial number of Semantic Web tools, including

OWL ontology editors and reasoners can be found at http://esw.w3.org/topic/ Seman-

ticWebTools, From the above it is clear that, even though these tools are still under

development, the momentum generated will soon ensure that formal ontologies with

their supporting technologies and tools enter mainstream modeling approaches.

The next section will argue for the incorporation of these tools and technologies into

the modeling of the architectures necessary in an enterprise architecture framework.

3 The use of Formal Ontologies to Model Enterprise Architectures

in EA Frameworks

In the previous sections we discussed enterprise architectures (EA) as models, and their

relationships within enterprise architecture frameworks (EAF), as well as the recent

technologies in computer science used for formal model building (ontologies). In this

section we discuss a proof-of-concept experiment conducted to investigate the use of a

state-of-the-art ontology editing tool namely Prot´eg ;e 4 with its associated reasoners

(Fact++ and Pellet 1.5) to model an existing process model developed as part of PhD

thesis research work to extract generic process models [42].

Within the Zachman framework, one of the tools used to model column two (the

How or FUNCTION column (refer to Figure 1 and row two and three (Business model

(Conceptual) and System model (Logical))is the process model.. Curtis et. al [43] de-

ﬁne a process model as an abstract description of an actual or proposed process that

represents selected process elements that are considered purpose of the model. Jacobs

[44] argues that there are three types of models, those used for enterprise architectures,

those used as framework models for standardization and those for applying methods.

The process model developed focus on models used to view the behaviour of processes

for workﬂow application development, similar to those published in articles by Weske,

Goesmann, Holten and Striemer [45] and Wu, Deng and Li [46].

The process model depicted in Figure 3 was compiled from a case study environ-

ment to derive process reference models was the higher education institution (HEI)

application domain. The goal was to identify this high-level process reference model

and also to do a more in-depth analysis of one of the high-level processes, in order to

comment on the generic nature of sub-processes [42]. This is a typical process model

that will be extracted to depict the high-level processes of an enterprise in the Zachman

framework.

3.1 Approach

For the proof-of-concept experiment, we used the process model discussed in the previ-

ous section and depicted in Figure 3 and used Protg´eg´e 4 to translate this process model

into an OWL 2.0 ontology. We used the Beta build 106 of Prot´eg´e 4 on a MacBook.

Level of ontology engineer could be described as low intermediate if we have three

levels: beginner, intermediate and advanced.

The steps within Prot´eg´e 4 could be summarised as follow:

121

Fig.3. The high level process model of Higher Educational Institutions.

1. We ﬁrst identiﬁed the components Process, ProcessGoal and ProcessInputOutput

as concepts.

2. We identiﬁed the object properties hasGoal, hasInput and hasOutput

3. We then deﬁned a Process as having at least one (or none)

goals, inputs and out-

puts.

4. Next all the process goals and process inputs and outputs were entered, ﬁrst as

individuals and then as concepts

5. In the last step of the ﬁrst iteration, a new concept NamedProcess was created, and

all the speciﬁc processes in the process model were entered. The class hierarchy is

depicted in Figure 4.

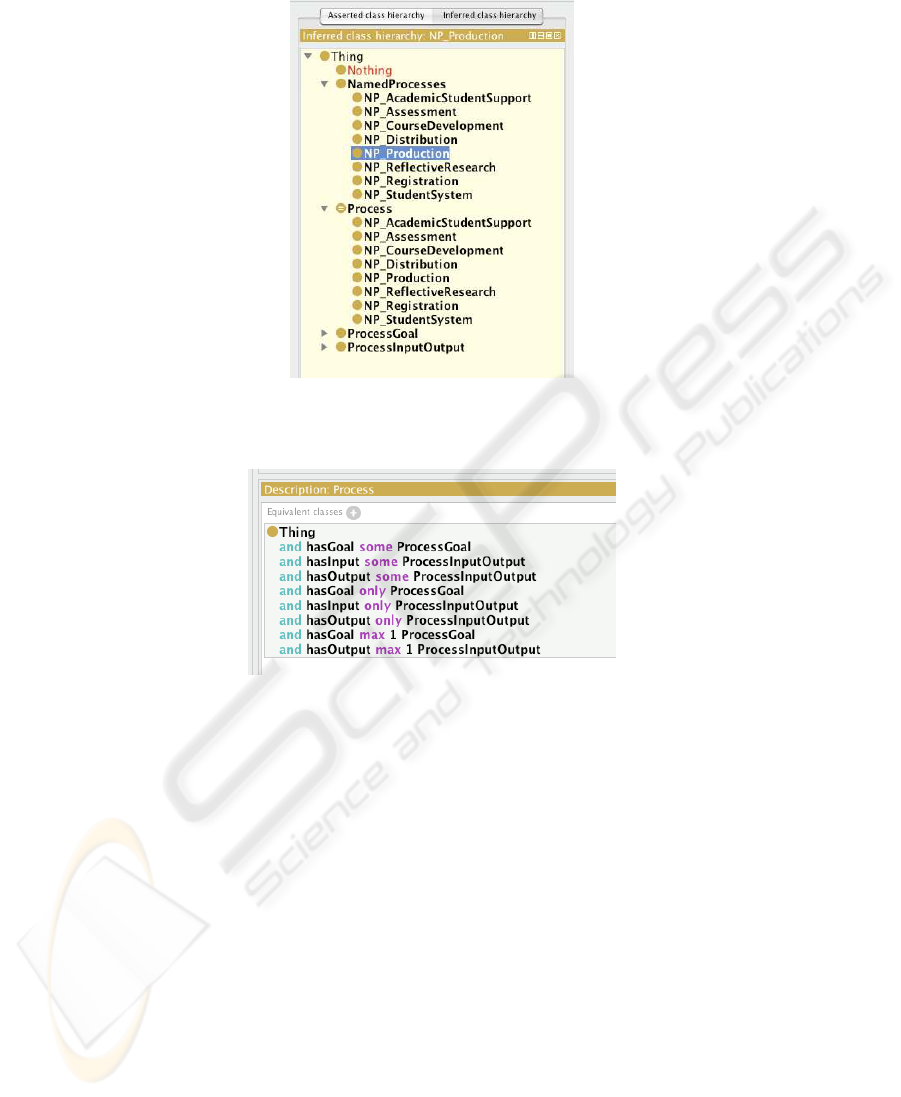

6. During the modeling, both reasoners (Fact++ and Pellet 1.5) were used to debug the

ontology and ensure that it is consistent. This ensured that a NamedProcess is also

classiﬁed as a Process when it conformed to the deﬁnition as is evident in Figure 5.

7. During the second iteration we investigated the use of individuals versus concepts

for speciﬁc processes, process goals and process inputs and outputs.

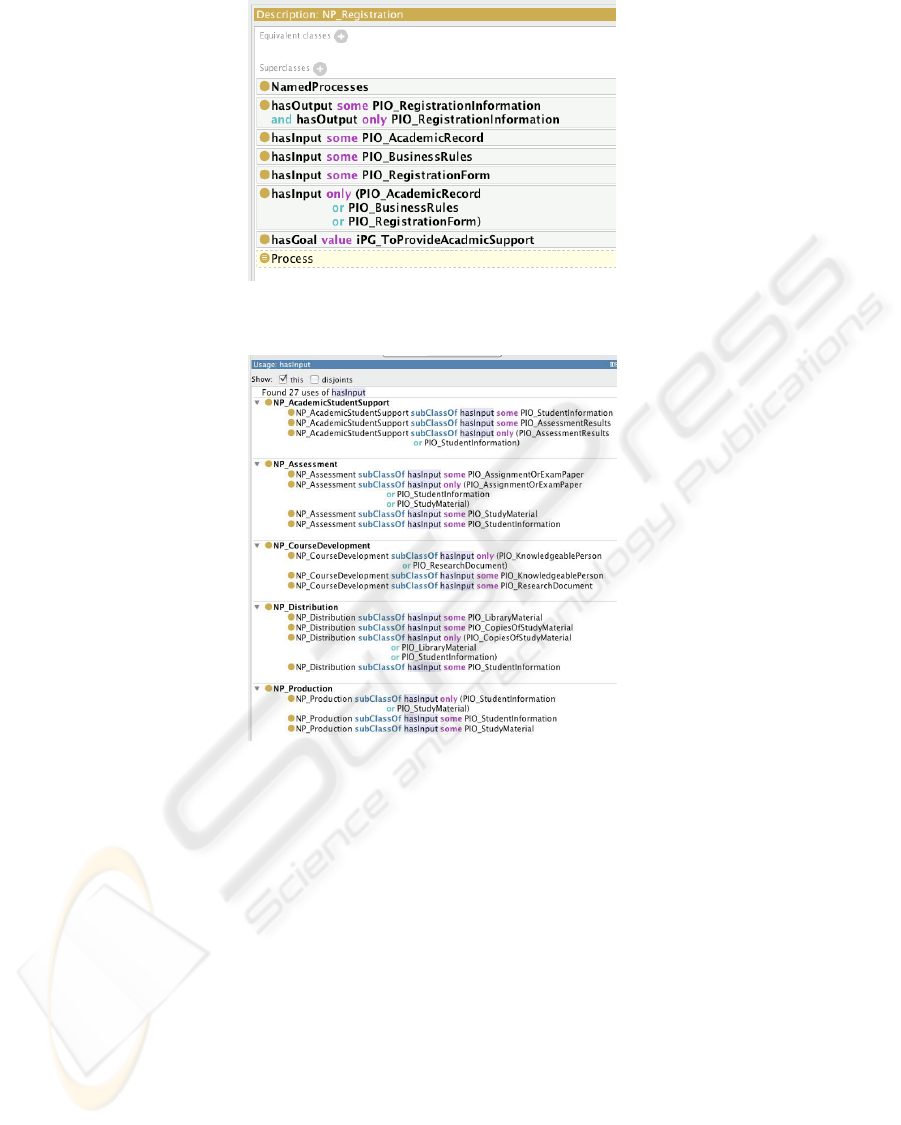

8. During the third iteration, we tightened the deﬁnition of a Process to have at least

one ProcessGoal and only ProcessGoals as goals, and similarly for process inputs

and outputs via the hasGoal, hasInput and hasOutput properties as depicted in

Figure 6.

The next section discusses some experiences and ﬁndings.

This is a DL or OWL / Prot´eg´e phenomenon in the modeling of existential quantiﬁcation

An individual in OWL is an assertion in the ABox or an instantiation of a concept e.g. Susan

as an instance of the concept Person. A concept (or class) resides in the TBox and can be

reﬁned further in the model.

122

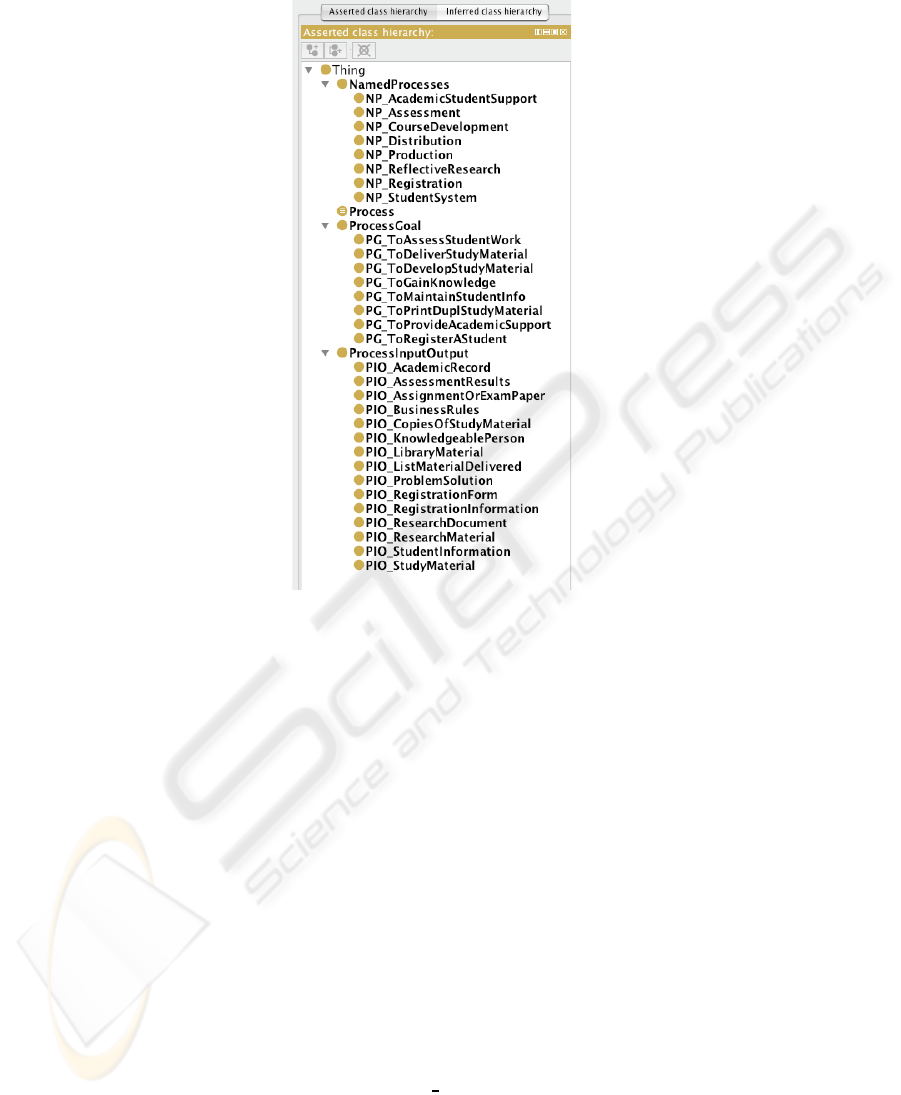

Figure 4: The process model concept hierarchy

Fig.4. The process model concept hierarchy.

3.2 Experience

The following are noted experiences during the construction of an formal ontology for

a process model using Prot´eg´e 4.

– It was problematic to know how to model a process with its components and to

make reusable modeling decisions. Is it necessary to deﬁne another level of ab-

straction, or should the process components be on the highest level of the concept

hierarchy? Are the components depicted sufﬁcient for all process models? In the

end we were guided by the KISS principle for this experiment - Keep It Simple and

Straightforward.

– The old problem of ontology engineering also cropped up - should we deﬁne all

the ’things’ as concepts, or are some individuals? During the ﬁrst iteration we went

as far as to classify all processes, process inputs and outputs, and process goals

as individuals, but this constrained the reﬁning of concepts and querying, so we

decided to keep most processes and process inputs and outputs as concepts. Process

goals could be modeled as individuals, and we use some goals as individuals to test

the approach as is evident in Figure 7 where hasGoal use the value property to link

to a ProcessGoal individual called iPG ToProvideAcademicSupport.

123

Fig.5. The inferred process model concept hierarchy depicting all NamedProcesses also classi-

ﬁed as Processes according to the deﬁnition of a process.

Fig.6. The ﬁnal deﬁnition of a Process.

– It is clear that the construction such a formal model would require several iterations

and the input from domain experts both with regardsto modeling and the processes.

This is not different from the construction of the original process model, however,

since ontology deﬁnitions are concise and both implicit and explicit consequences

are depicted and often unexpected, more iterations would probably be required.

This would however, result in a more concise model where the precise meaning of

concepts are expressed.

– The ontology tool lost the ﬂow that was depicted in the original diagram. This was

experienced as a huge drawback since this is one of the key elements of a process

diagram. The process ﬂow knowledge are captured in the model as is evident in

Figure 8, but it could not be displayed graphically and in a holistic view. In Figure

8 we view the usage of the hasInput object property and we can drive what inputs

are used for which processes.

124

Fig.7. Using individuals and the value property for hasGoal.

Fig.8. The usage of the hasInput object property.

4 Findings

The experiment conducted for the proof-of-concepts for this position paper was very

basic and it is clear that the use of formal ontologies as enterprise architecture models

require extensive research. However, the following became evident:

– It was relatively easy to capture the knowledge in the chosen process model dia-

gram in an ontology. This is probably because a high-level process model is not

very precise. An example thereof is the process outputs Knowledgeable person and

Student information that are clearly very different. It would be possible to deﬁne

much more elegantly what is meant by these terms, but that would complicate the

model substantially, and it is not knowledge that was in the original diagram. To

125

model both these as sub-concepts of a ProcessInputOutput concept was straight-

forward and captured the same knowledge as contained in the original diagram.

– Prot´eg´e 4 was easy to use and enabled us to easily create the formal ontology. The

only drawback was the graphical rendering of the process ﬂow information that was

evident in the original diagram and which cold not be rendered satisfactorily.

4.1 Advantages

From the experiment, the following evident advantages could be listed, but the list is by

no means complete:

– The use of this approach allows an architect to specify concise deﬁnitions of con-

cepts. In our experiment we deﬁned a Process speciﬁcally, and this deﬁnition could

be used to ensure that all the speciﬁc processes are indeed processes when we used

the reasoning support.

– The use of a precise deﬁnition also assisted with debugging. When a speciﬁc pro-

cess was not classiﬁed as a Process, we knew there was something wrong in our

process description or in the deﬁnition. this enables us to ensure that the model is

complete and consistent.

– The reasoners depict all consequences of our model, not only the explicit statements

we made, but also implicit consequences. In our experiment these are relatively

trivial, but it was evident that implicit consequences will be very valuable once the

models are complex.

– The Prot´eg´e 4 environment was easy to use if one knew what one wanted to do, but

for that familiarity with the modeling language is a prerequisite.

– Ontology editors such as Prot´eg´e 4 assists architects to specify models in a stan-

dardised language (usually OWL) which will promote interoperability.

4.2 Disadvantages

From the experiment, the following disadvantages were evident:

– One of the ﬁrst observations in this regard is that there are currently no ﬁrmly

established methodologies for ontology engineering. It is generally recognised that

this is a research topic that warrants urgent attention [47]. Within an enterprise

architecture framework, this is even more important and will probably have to be

tailored towards the speciﬁc architecture model required within the framework

– There are still only a limited number of tools available. These tools have matured

substantially over the past few years, but their availability remains a disadvantage.

– Tied to the above is the limited functionality of ontology tools. The most evident

was the ability to generate a graphical display of the ontology, and speciﬁcally

in our experiment - the ability to view the process ﬂow that was contained in the

model but could not be easily extracted. Graphical displays are very important for

conceptual modeling.

– It was also evident that, although a variety of tools exist for ontology construction

and maintenance [48,49,38], these tools remain accessible mainly to those with

specialised knowledge about the theory of ontologies.

126

– It was difﬁcult to debug the model because the reasoner would only depict a con-

cept as inconsistent and would not show a reason or explanation. One had to resolve

errors using trial and error, and these errors were often due to unexpected conse-

quences of statements made earlier.

5 Conclusions

From the proof-of-concept experiment it is clear that formal ontologies and the as-

sociated technologies can play a substantial role to enhance the models required for

enterprise architecture frameworks, because the models are more explicit, precise and

consequences can be exposed. These models are also based on standardised languages

and will promote interoperability of models within an enterprise architecture frame-

work.

With this position paper, we want to set the agenda for further research in this ﬁeld.

The proof-of-concept experiment yielded some promising insights, and we identiﬁed

the following areas of interest for immediate research attention:

– It is necessary to do research into deﬁning base models or vocabularies for all the

architectures in an enterprise architecture framework. For example, it is necessary

to precisely deﬁne a process precisely and ensure that all models using the process

concept adhere to the deﬁnition.

– It is necessary to do research into the development of methodologies, techniques

and tools that support the development of formal models within an enterprise ar-

chitecture framework.

– It is necessary to investigate integration and interoperability between architecture

models within an enterprise architecture framework.

References

1. Zachman, J.: The zachman framework for enterprise architecture, primer for enterprise en-

gineering and manufacturing. Zachman International (2003)

2. Session, R.: A comparison of the top four enterprise-architecture methodologies, building

distributed application. Web (2007)

3. IEEE: Recommended practie for architectural description of software-intensive systems.

IEEE Report (2000)

4. Kim, J.W., Kim, Y.G., Kwon, J.H., Hong, S.H., Song, C.Y., Baik, D.K.: An enterprise archi-

tecture framework based on a - common information technology domain (eaﬁt) for improv-

ing interoperability among heterogeneous information systems. In: Third ACIS Int’l Confer-

ence on Software Engineering Research, Management and Applications, Central Michigan

University, Mount Pleasant, Michigan, USA. (2005)

5. Rood, M.: Enterprise architecture: deﬁnition, content and utility. In: Third Workshop on

Enabling Technologies: Infrastructure for Collaborative Enterprises, Morgantown, West Vir-

ginia. (1994)

6. Armour, F., Kaisler, S., Liu, S.: A big-picture look at enterprise architectures. IEEE: IT

Professional January/February 1999, 1 Issue 1 (1999) 35 – 42

7. Fowler, M.: Patterns of Enterprise Application Architecture. Addison-Wesley, Boston, MA,

USA (2003)

127

8. Garlan, D., Shaw, M.: An introduction to software architecture (1994) Last accessed

15/9/2006.

9. Bass, L., Clements, P., Kazman, R.: Software Architecture in Practice. Addison Wesley

Professional (2003) Last accessed 12/8/2006.

10. Dijkstra, E.W.: The end of computing science? Communications of the ACM, 44 (2001) 92

11. Weiner, L.H.: The roots of structured programming. In: Papers of the SIGCSE/CSA technical

symposium on Computer science education, New York, NY, USA, ACM Press (1978) 243–

254

12. Avison, D., Fitzgerald, G.: Information Systems Development: Methodologies, Techniques

and Tools. third edn. McGraw-Hill, UK (2003)

13. Lippitt, G.L.: Visualizing Change: Model Building and the Change Process. University

Associates, Inc. (1973)

14. Gr¨uber, T.: A translation approach to portable ontology speciﬁcations. Knowledge Acquisi-

tion, 5 (1993) 199–220

15. Berners-Lee, T., Hendler, J., Lassila, O.: The semantic web. Scientiﬁc American, 284 (2001)

34–43

16. Chung, M., McLeod, G.: Enterprise architecture, implementation, and infrastructure man-

agement. In: 35th Annual Hawaii International Conference on System Sciences, Hawaii.

(2002)

17. Barnett, W., Presley, A., Johnson, M., Liles, D.H.: An architecture for the virtual enterprise.

In: IEEE International Conference on Systems, Man, and Cybernetics, Piscataway, New Jer-

sey. (1994)

18. Kaisler, S., Armour, F., Valivullah, M.: Enterprise architecting: Critical problems. In: 38th

Hawaii International Conference on System Sciences, Hawaii, USA. (2005)

19. Ernst, A.M., Lankes, J., Schweda, C.M., Wittenburg, A.: Tool support for enterprise ar-

chitecture management - strenghts and weaknesses. In: 10th IEEE International Enterprise

Distributed Object Computing Conference, Hong Kong. (2006) 13 – 22

20. Bahill, T., Botta, R., Daniels, J.: The zachman framework populated with baseball models.

Journal of enterprise architecture (2007)

21. Maier, M., Emery, D., Hilliard, R.: Ansi/ieee 1471 and systems engineering. Systems Engi-

neering, 7(3) (2004) 257–270

22. Zachman, J.: A framework for information systems architecture,. IBM Systems Journal,

26(3) (1987)

23. : The zachman frameworkł: The ofﬁcial concise deﬁnition. Zifa website (2009) last accessed

26/2/2009.

24. Goethals, F.: An overview of enterprise architecture framework deliverables. Web (2003)

last accessed 26-02-2009.

25. Palmer, S.B.: The semantic web: An introduction. W3C Web site (2001) Last accessed

16/9/2006.

26. Lassila, O., McGuinness, D.L.: The role of frame-based representation on the semantic web.

Technical report, Knowledge Systems Laboratory Report KSL-01-02, Stanford University

(2001)

27. Broekstra, J., Klein, M., Decker, S., Fensel, D., van Harmelen, F., Horrocks, I.: Enabling

knowledge representation on the web by extending rdf schema. In: Proceedings of the 10th

International World Wide Web Conference (WWW10), Hong Kong. Volume ACM 1-58113-

348-0/01/0005. (2001) 467 last accessed 18/3/2006.

28. Decker, S., Melnik, S., van Harmelen, F., Fensel, D., Klein, M., Broekstra, J., Erdmann, M.,

Horrocks, I.: The semantic web: The roles of xml and rdf. IEEE Internet Computing, 4

(2000) 63–74

29. Bussler, C., Fensel, D., Maedche, A.: A conceptual architecture for semantic web enabled

web services. ACM SIGMOD, SPECIAL ISSUE: Special section on semantic web and data

management, 31, issue 4 (2002) 24 – 29

128

30. Baader, F., Calvanese, D., McGuinness, D., Nardi, D., Patel-Schneider, P.: The Description

Logic Handbook: Theory, Implementation, and Applications. Cambridge University Press

(2003)

31. McGuinness, D.L., van Harmelen, F.: Owl web ontology language overview. W3C Web site

(2004) Last accessed 13/9/2006.

32. Wolstencroft, K., Brass, A., Horrocks, I., Lord, P., Sattler, U., Stevens, R., Turi, D.: A little

semantic web goes a long way in biology. In: Proceedings of the 2005 International Semantic

Web Conference (ISWC 2005). LNAI, Springer (2005)

33. Hahn, U., Schulz, S.: Ontological foundations for biomedical sciences. Artiﬁcial Intelligence

in Medicine, 39 (2007) 179–182

34. Horrocks, I.: Semantic web: the story so far. In: W4A ’07: Proceedings of the 2007 inter-

national cross-disciplinary conference on Web accessibility (W4A), New York, NY, USA,

ACM (2007) 120–125

35. Suntisrivaraporn, B., Baader, F., Schulz, S., Spackman, K.: Replacing SEP-Triplets in

SNOMED CT using Tractable Description Logic Operators. In: Proceedings of AIME 2007.

(2007)

36. Berners-Lee, T., Hendler, J., Lassila, O.: The semantic web. The Scientiﬁc American, 5

(2001) Last accessed 20/9/2006.

37. Bechhofer, S., van Harmelen, F., Hendler, J., Horrocks, I., McGuinness, D.L., Patel-

Schneider, P.F., Stein, L.A.: Owl web ontology language reference. W3C Web site (2004)

Last accessed 15/3/2005.

38. Prot´eg´e: The prot´eg´e Ontology Editor. http://protege.stanford.edu/ (2009)

39. : Swoop - semantic web ontology editor. Web (2009)

40. : Fact++ ontology reasoner. Web (2009)

41. : Pellet: The open source owl dl reasoner. Web (2009)

42. van der Merwe, A., Kotz´e, P.: A systematic approach for the identiﬁcation of process ref-

erence models. In: In Proceedings of the IASTED International Conference on Software

Engineering SE 2009 , Innsbruck, Austria. (2009)

43. Curtis, B., Kellner, M., Over, J.: Process modeling. Communication of the ACM, 35(9)

(1992) 75–90

44. Jacobs, D.: Towards a business process model warehouse framework. In: School of Com-

puting, University of South Africa: Pretoria. (2008)

45. Weske, Goesmann, Holten, Striemer: A reference model for workﬂow application develop-

ment processes. In: The International Joint Conference on Work Activities coordination and

Collaboration. (1999) 1–10

46. Wu, Z., Deng, S., Li, Y.: Introducing eai and service components into process m anagment.

In: The 2004 IEEE International Conference on Service Computing (SCC ’04). (2004) 271

– 276

47. G´omez-P´erez, A., Fern´andez-L´opez, M., Chorco, O.: Ontological Engineering. Springer

(2004)

48. Sirin, E., Parsia, B., Grau, B.C., Kalyanpur, A., Katz, Y.: Pellet: A practical OWL-DL rea-

soner. Journal of Web Semantics, 5 (2007)

49. Kalyanpur, A., Parsia, B., Sirin, E., Cuenca-Grau, B., Hendle, J.: Swoop: A Web Ontology

Editing Browser (2005)

129
