CONTEXT AWARENESS USING ENVIRONMENTAL SOUND

CUES AND COMMONSENSE KNOWLEDGE

Mostafa Al Masum Shaikh, Keikichi Hirose

Dept. of Information and Communication Engineering,University of Tokyo, 7-3-1 Hongo, Bunkyu Ku, Tokyo, Japan

Helmut Prendinger

Digital Contents and Media Sciences Research Div., National Institute of Informatics,Chiyoda Ku, Tokyo, Japan

Keywords: Acoustic Event Detection, Context Awareness, Activity Detection, Sound Cues, Auditory Scene Analysis,

Commonsense Knowledge, Ambient Communication, Life-Logging.

Abstract: Detecting or inferring human activity (e.g., an outdoor activity) by analyzing sensor data is often inaccurate,

insufficient, difficult, and expensive. Therefore, this paper explains an approach to infer human activity and

location considering the environmental sound cues and commonsense knowledge of everyday objects usage.

Our system uses mel-frequency cepstral coefficients (MFCC) and their derivatives as features, and

continuous density hidden Markov models (HMM) as acoustic models. Our work differs from others in

three key ways. First, we utilize both indoor and outdoor environmental sound cues which are annotated

according to the objects pertaining to the sound samples to build the idea regarding sounds and the objects

which produce that particular sound. Second, use of portable microphone instead of having a fixed setup of

an array of microphones to capture environmental sound we can also infer outdoor environments like being

on the road, in a train station, etc., which previous research was limited to perform. Thirdly, our model is

easy to incorporate new set of activities for further needs by adding more appropriately annotated sound

clips and re-training of the HMM based recognizer. A perceptual test is made to study the human accuracy

in the task and to obtain a baseline for the assessment of the performance of the system. Though the direct

comparison of the system’s performance to human performance is somewhat worse but the preliminary

results are encouraging with the accuracy rate for outdoor and indoor sound categories for activities being

above 67% and 61% respectively.

1 INTRODUCTION

Although speech is the most informative acoustic

event, other kind of sounds may also carry useful

information regarding the surrounding environment.

Many sources of information for sensing the

environment as well as activity are available (Kam

et al., 2005; Temko and Nadeu, 2005). In this paper

our primary objective is, sound-based context

awareness, where the decision is based merely on

the available acoustic information at the surrounding

environment of the user where the system detects

particular sounds and an activity is inferred thereby

at that particular time. Acoustic Event Detection

(AED) is a recent sub-area of computational

auditory scene analysis (Wang and Brown, 2006)

that deals with the first objective. AED processes

acoustic signals and converts those into symbolic

descriptions corresponding to a listener's perception

of the different sound events that are present in the

signals and their sources. In this paper, we describe a

listening test made to facilitate the direct comparison

of the system’s performance to that of human

subjects. A forced choice test with identical test

samples and reference classes for the subjects and

the system is used. Since we are dealing with a

highly varying acoustic material where practically

any imaginable sounds can occur, we have limited

our scope in terms of limited number of locations of

our interest and the activities to recognize at a

particular location.

193

Al Masum Shaikh M., Hirose K. and Prendinger H. (2009).

CONTEXT AWARENESS USING ENVIRONMENTAL SOUND CUES AND COMMONSENSE KNOWLEDGE.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 193-196

DOI: 10.5220/0002230901930196

 SciTePress

2 ACOUSTIC MEASUREMENT

The sound data set, the annotation of the sound

samples, and the features used to train the HMM

based recognizer.

2.1 Date Set

A number of male and female subjects collected the

sounds of interest; each subject would typically go

into the particular situation as depicted in Table 1

with the sound recording device and the generated

sounds are recorded. We used the digital sound

recorder of SANYO (ICR-PS380RM) and signals

were recorded as Stereo, 44.1 KHz, .wav formatted

files. According to the location and activities of our

interest mentioned in Table 1, we have collected 114

types of sounds. Each of the sound types has 15

samples of varying length from 10 second to 25

seconds.

Table 1: List of locations and activities of our interest.

location Activities

Living Room

Listening Music, Watching TV, Talking,

Sitting Idle, Cleaning (vacuum-cleaning)

Work Place

Sitting idle, Working with PC, Drinking

Kitchen

Cleaning, Drinking, Eating, Cooking

Toilet

Washing, Urinating

Gym

Exercising

Train Station

Waiting for Train

Inside Train

Travelling by Train

Public Place

Shopping, Travelling on Road

On the Road

Traveling on Road

2.2 Annotation

A list of 63 objects is used in the annotation to

denote their pertinence in a given sound sample. In

our case, a sound sample usually contains different

kind of sounds eventually produced by different kind

of objects. An annotator selected a particular portion

of the sample sound by listening that represented

any of the 63 listed objects and thus that region of

the signal is annotated by assigning a short name of

a particular object which was producing or

associated with that sound portion. For example if a

sound portion is produced by a “plate” object, that

portion is annotated as “plt”. If an annotator found

that there was an overlapping sounds of more than

one objects in a selected portion, for example, if a

selected audio portion was found representing both

“human coughing”, “music”, and “tv program”

sound, in this case an annotator tagged this portion

of the sound as either “ppl_mus” or “ppl_tel” or

“ppl_tel” or “mus_tel” according to the prominence

of the sounds of the pertaining objects.

2.3 Feature

According to (Okuno et al., 2004; Eronen et al.,

2003), it is concluded that MFCC might be the best

transformation for non-speech environmental sound

recognition. The input signal is first pre-emphasized

with the FIR filter 1, -0.97z-1. MFCC analysis is

performed in 25 ms windowed frames advanced

every 10 ms. For each signal frame, the following

coefficients are extracted as a feature vector:

 The 12 first MFCC coefficients [c1,…, c12]

 The “null” MFCC coefficient c0, which is

proportional to the total energy in the frame

 13 “Delta coefficients”, estimating the first

order derivative of [c0, c1,…, c12]

 13 “Acceleration coefficients”, estimating the

second order derivative of [c0, c1,…, c12]

Altogether, a 39 coefficient vector is extracted from

each signal frame window.

2.4 The HMM based Recognizer

We have chosen an approach based on HMM as the

model has a proven track record for many sound

classification applications (Okuno et al., 2004). We

modelled each sound using a left-to-right 88-state

(63 for simple object tag + 25 for complex object

tag) continuous-density HMM without state

skipping. Each HMM state was composed of two

Gaussian mixture components and trained in eight

iterative cycles. The recognition grammar (denoted

partially) used is as follows:

(<alr|amb|ann|bsn|ckl|bln|boi|btl|bwl|bus|car|reg|c

dp| … |flu|fwt|sus|srb| …. |shr|sng|snk|tap|wnd

means that there is no predefined sequence and each

label may be repeated many times at any sequence.

3 SYSTEM DESCRIPTION

The goal of the system is to detect activities of daily

living (e.g., laughing, talking, travelling, cooking,

sleeping, etc.) and situational aspects of the person

(e.g., inside a train, at a park, at home, at school,

etc.) by processing environmental sounds.

SIGMAP 2009 - International Conference on Signal Processing and Multimedia Applications

194

3.1 System Architecture

According to the system’s architecture given in

Figure 1, sound signal is passed through a signal

processing and each input sound sample is detected

as a set of object labels by the 88 trained HMM

classifiers. Based on the detected list of objects and

commonsense knowledge regarding human activity,

object interaction, along with temporal information

(e.g., morning, noon etc.) are applied to infer both

the activity and the surrounding environment of the

user.

3.2 Notes on Commonsense Knowledge

Once we get the list of objects involved in

recognized sound samples, we must define the

object involvement probabilities with respect to the

activities of our interest. Requiring humans to

specify these probabilities is time consuming and

difficult. Instead, the system has utilized a technique

adopted from Semantic Orientation (SO)

(Hatzivassiloglou and McKeown, 1997), employing

NEAR search operator of AltaVista’s web search

result.

List of objects, O = {O

, O

, … O

} (K=63)

List of locations, L = {L

, L

, …L

} (M=9)

List of activities, A = {A

, A

, … A

} (N=17)

Each location is represented by a set of English

synonym words. WL

= {W

, W

, … , W

}. For

example, L

= “kitchen” and it is represented by,

kitchen

= {“kitchen”, “cookhouse”, “canteen”,

“cuisine”}

SA(O

) = Semantic Associative value representing

the object O

to be associated with location L

SA(O

) = Semantic Associative value representing

the object O

to be associated with activity A

The formulae to get the SA values are,

( NEAR )

(|)log( )

log ( ( ))

WWL

hits O W

SA O L

hits W

∈

∏

(1)

( NEAR )

(|)log( )

log ( ( ))

hits O A

SA O A

hits A

(2)

The obtained values support the concept that if an

activity name and location co-occurs often with

some object name in human discourse, then the

activity will likely involve the object in the physical

world. Thus, for example, if the system detects that

the sound samples represent frying, saucepan, water

sink, water, and chopping board from consecutive

input samples the commonsense knowledge usually

Figure 1: The Architecture of the System.

infers a cooking activity located in kitchen.

3.3 Inference Engine

For example, the system recorded six sound clips of

10 second long in two minutes to infer an activity

and location. The HMM model recognized the

following objects.

 clip 1Æ {knife, chopping board, people}

 clip 2Æ{knife, spoon, chopping board, people}

 clip 3Æ{water sink, water, wind, male voice}

 clip 4Æ{spoon, frying, people, wind}

 clip 5Æ{frying, saucepan, spatula, people}

 clip 6Æ{frying, saucepan, spoon, water}

The unique list of objects obtained from the

clips, U= {chopping board, frying, knife, male

voice, people, saucepan, spatula, spoon, water sink,

water, wind}. This list of objects is dealt with

commonsense knowledge by obtaining a normalized

SA values for each Activity and Location. In the

above example the objects yield a maximum SA

value of having a relationship with “cooking”

activity in “kitchen” location and the near candidates

are “eating”, “drinking tea/coffee” as activities.

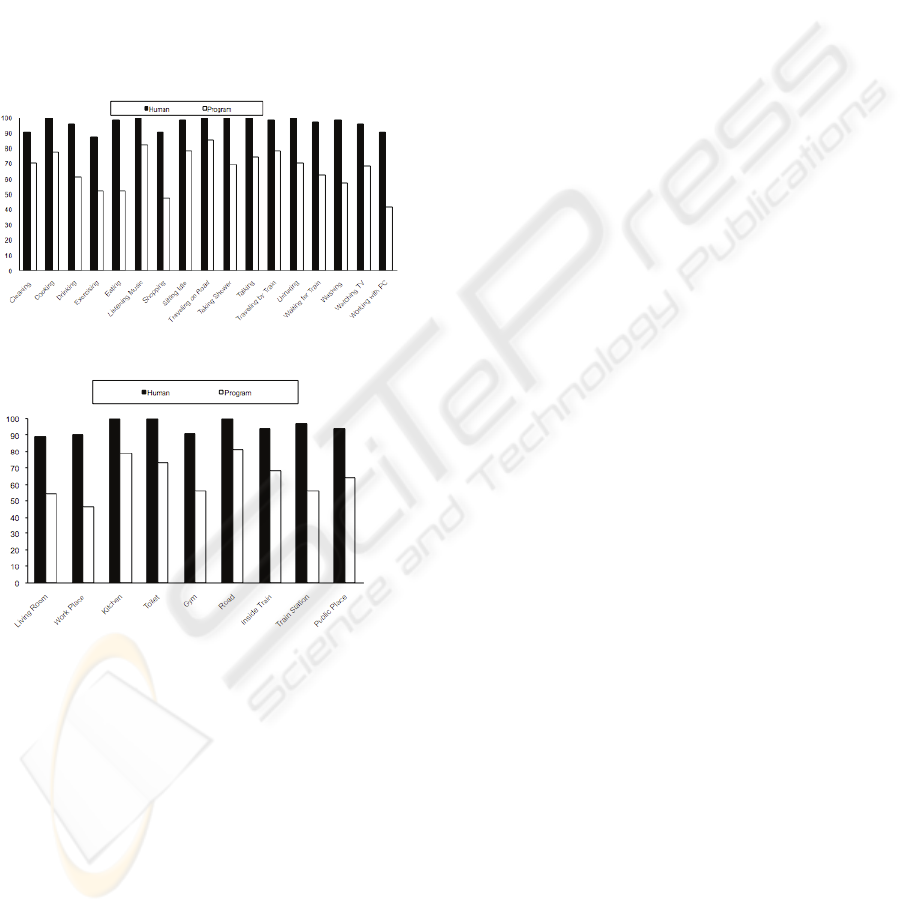

4 EXPERIMENT RESULT

We developed perceptual testing methodology to

evaluate the system’s performance on continuous

sound streams of various sound events to infer

location and activity. 420 test signals were created,

each of which contained a mixture of three sound

clips of respective 114 sound types. Since these 420

test signals are the representative sound clues for the

63 objects to infer 17 activities, we grouped these

420 test signals into 17 groups according to their

Sound Corpus

HMM based Training

Label Recognizer

Inference Engine

Commonsense

Knowledgebase

.mfcc files

hmm0 .... hmm9

Each sound clip is labelled by a se

of interacting objects

Input Sound

[processed to .mfcc file]

Location and Activity Information

CONTEXT AWARENESS USING ENVIRONMENTAL SOUND CUES AND COMMONSENSE KNOWLEDGE

195

expected affinity to a particular activity and location.

Ten human (i.e., five male, five female) judges were

engaged to listen to the test signals and judge an

input signal to infer the activity from the given list

of 17 activities (i.e., forced choice judgment) as well

as the possible location of that activity from the list

of given nine locations of our choice. Each judge

was given all the 17 groups of signals to listen and

assess. Therefore a judge listen each test signal to

infer the location and activity that the given signal

seemed most likely to be associated with. In the

same way the signals were given to the system to

process. Recognition results for activity and location

are presented in Figure 2 and 3 respectively.

Figure 2: Comparisons of recognition rates for 17

activities of our interest with respect to human judges.

Figure 3: Comparisons of recognition rates for 9 locations

of our interest with respect to human judges.

The recognition accuracy for activity and

location is encouraging with most being above than

66% and 64% respectively. From Figure 4 and 5,

we notice that humans are skillful in recognizing the

activity and location from sounds (i.e., for humans’

the average recognition accuracy of activity and

location is 96% and 95% respectively). It is also

evident that the system receives the highest accuracy

(i.e., 85% and 81% respectively) to detect “traveling

on road” activity and “road” location respectively,

which is a great achievement and pioneer effort in

this research that no previous research attempted to

infer outdoor activities with sound cues. The correct

classification of sounds related to activity “working

with pc” and location “work place” were found to be

very challenging due to the sounds’ shortness in

duration and weakness in strength, hence the

increased frequency for them to be wrongly

classified as ‘wind’ type object recognition.

5 CONCLUSIONS

In this paper, we described a novel acoustic indoor

and outdoor activities monitoring system that

automatically detects and classifies 17 major

activities usually occur at daily life. Carefully

designed HMM parameters using MFCC features

are used for accurate and robust sound based activity

and location classification with the help of

commonsense knowledgebase. Preliminary results

are encouraging with the accuracy rate for outdoor

and indoor sound categories for activities being

above 67% and 61% respectively. We believe that

integrating sensors into the system will also enable

acquire better understanding of human activities.

The enhanced system will be shortly tested in a full-

blown trial on the neediest elderly peoples residing

alone within the cities of Tokyo evaluating its

suitability as a benevolent behavior understanding

system carried by them.

REFERENCES

Kam, A. H., Zhang, J., Liu, N., and Shue, L., 2005.

Bathroom Activity Monitoring Based on Sound. In

PERVASIVE’05, 3rd International Conf. on Pervasive

Computing. Germany, LNCS 3468/2005, pp. 47-61.

Temko, A., Nadeu, C., 2005. Classification of meeting-

room acoustic events with Support Vector Machines

and Confusion-based Clustering. In ICASSP’05, pp.

505-508.

Wang, D., and Brown, G., 2006. Computational Auditory

Scene Analysis: Principles, Algorithms and

Applications. Wiley-IEEE

Okuno, H.G., Ogata, T., Komatani, K., and Nakadai, K.,

2004. Computational Auditory Scene Analysis and Its

Application to Robot Audition. In International

Conference on Informatics Research for Development

of Knowledge Society Infrastructure, pp., 73–80

Eronen, A., Tuomi, J., Klapuri, A., Fagerlund, S., Sorsa,

T., Lorho, G., and Huopaniemi, J., 2003. Audio-based

Context Awareness-Acoustic Modeling and Perceptual

Evaluation. In ICASSP '03, Int’l Conference on

Acoustics, Speech, and Signal Processing, pp. 529-532

Hatzivassiloglou, V. and McKeown, K. R., 1997.

Predicting the Semantic Orientation of Adjectives. In 35th

annual meeting on ACL, pp.174-181

SIGMAP 2009 - International Conference on Signal Processing and Multimedia Applications

196
