AN ADAPTIVE COMPUTATION-AWARE ALGORITHM FOR

MULTI-FRAME VARIABLE BLOCK-SIZE MOTION

ESTIMATION IN H.264/AVC

Mariusz Jakubowski and Grzegorz Pastuszak

Institute of Radioelectronics, Warsaw University of Technology, 15/19 Nowowiejska Str., Warsaw, Poland

Keywords: Video compression, Motion estimation, Computational awareness.

Abstract: Block-matching motion estimation (BME) is the most computationally expensive process in every video

codec. The algorithm proposed in this paper takes into account almost all key elements of BME including

integer-pixel ME (IPME), sub-pixel ME (SPME), variable block-size ME (VBSME) and multiple reference

frame ME (MRFME). The algorithm is developed by adding MRFME method to the multi-path adaptive

computation-aware ME strategy (MPS) introduced in our previous papers. The algorithm implemented in

the H.264/AVC reference software achieves comparable results as the fast full search (FFS) method within

less than 3% of execution time required by FFS.

1 INTRODUCTION

Block-matching motion estimation (BME) is an

efficient and popular technique for reduction of

temporal redundancy within video sequences

adopted in various video coding standards, such as

ITU-T H.26x and ISO/IEC MPEG-1, -2, and –4

(ITU-T, 2003), (Huang et al., 2006). It is also the

most computationally expensive element of video

coders. BME always involves the integer-pixel

motion estimation (IPME) and usually the sub-pixel

motion estimation (SPME) with a half-pixel

accuracy. In the H.264/AVC standard, several

improvements have been introduced regarding BME

(ITU-T, 2003):

• variable block-size motion estimation (VBSME)

• quarter-pixel accuracy motion estimation

• multiple reference frame motion estimation

(MRFME)

• weighted prediction

To decrease the computational burden related to

each of these elements many fast algorithms have

been developed (Huang et al., 2006 and following).

In this paper, the multi-path adaptive computation-

aware motion estimation strategy (MPS) described

in our previous papers (Jakubowski and Pastuszak,

2007), (Jakubowski and Pastuszak, 2008)

embedding the MRFME technique is presented as

the solution which takes into account almost all

these aspects of BME in H.264/AVC (except

weighted prediction). The proposed scheme utilizes

the efficiency of MPS to determine an optimal

reference frame (RF) on the early stage of the search

process and is characterized by the ability to adapt to

computation-variant conditions (computational

awareness) and to achieve similar results as the

exhaustive search using only a fraction of execution

time, required by the full search (FS) scheme.

The rest of the paper is organized as follows. In

Section 2, the MPS algorithm is described. In

Section 3, the proposed MRFME method is

introduced. Experimental results are presented in

Section 4. Section 5 gives a conclusion.

2 MULTI-PATH STRATEGY

Multi-path adaptive computation-aware strategy

(MPS) is the motion estimation (ME) algorithm

developed and presented in a few our previous

papers. In this section all the key elements of this

strategy are described.

2.1 Allocation of Computational

Resources

Number of search points (SPs) available for the

whole frame is divided into two parts. The first one

122

Jakubowski M. and Pastuszak G. (2009).

AN ADAPTIVE COMPUTATION-AWARE ALGORITHM FOR MULTI-FRAME VARIABLE BLOCK-SIZE MOTION ESTIMATION IN H.264/AVC.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 122-125

DOI: 10.5220/0002231401220125

 SciTePress

provides exactly the same number of SPs for each

macroblock (MB) for the basic computation. The

second one provides some extra points for each MB

in proportion to the initial sum of absolute

differences (InitSAD) in the starting SP divided by

the average minimum SAD of previously processed

MBs (AvgMinSAD). The bigger this ratio is, the

more extra points are allocated to the MB. If some

SPs are left after a given MB processing they are

added to the computational pool of the next MB.

2.2 Starting Search Point Selection

The starting SP is chosen from the prediction set

which contains motion vectors (MVs) of left, left-

upper, upper, and right-upper neighbors, zero motion

point, and the co-located block in the previous

frame. The vector which gives the smallest SAD is

selected.

2.3 Adaptive Search Strategy Selection

The strategy used in the first step is selected on the

basis of a few factors: the number of available SPs,

the ratio of InitSAD to AvgMinSAD, and the

standard deviation of neighboring MVs around their

median. If the standard deviation is greater than 5,

the high-motion activity is assumed and three step

search (TSS) (Koga et al., 1981) is used. Otherwise,

either diamond search (DS) (Zhu and Ma, 1997) or

kite-cross-diamond search (KCDS) (Lam et al.,

2004) is selected on the basis of the ratio of InitSAD

to AvgMinSAD and the number of available SPs.

All values of the parameters which affect the

strategy selection where adjusted experimentally

(Jakubowski and Pastuszak, 2007).

If the amount of resources is sufficient,

surroundings of all the points from the prediction set

are investigated using TSS. This phase of search is

called the multi-path search. If after the multi-path

search some resources are still available they can be

utilized in the last step by the full search.

2.4 Variable Block-Size and Sub-Pixel

Since MVs of all partition modes are usually highly

correlated, the probability of finding the optimal MV

in the close neighborhood of MV for mode 16×16 is

on average larger than 80% (Jakubowski and

Pastuszak, 2008). Therefore, similarly like in the fast

full search (FFS) method adopted in the H.264/AVC

reference software, all modes are checked in parallel

in each point of the search path for mode 16x16.

Firstly, all SADs of 4×4 blocks are computed and

then reused to compose SADs for other modes.

However, in FFS, after IPME, each mode gets its

own search center for SPME which leads to a

substantial increase of computational cost. In our

approach, search centers for integer-pixel, half-pixel,

and quarter-pixel ME for all modes are the same as

for mode 16×16 and the best MV for each mode is

selected from among SPs checked for mode 16×16.

It makes it possible to check all modes in parallel

also during SPME with a relatively small coding

efficiency degradation.

3 MULTIPLE REFERENCE

FRAME ME

The goal of the MRFME method added to the MPS

algorithm is to select the optimal reference frame

(RF) at the early stage of ME process. In the MPS

algorithm the test of the prediction set and the first

strategy are the most crucial elements for the

algorithm performance. These two steps require

about 30 SPs/MB/Frame on average (including

SPME) and give over 90% contribution to the final

outcome. Thus, it has been assumed that they are

sufficient to determine the optimal RF. Initially, it

has been supposed that SPME will not be necessary

to select the optimal RF, however, it turned out that

SPME has a significant influence on the optimal RF

selection and even after half-pixel ME about 20% of

selected frames is inconsistent with the optimal

ones.

Since the probability that the nearest RF is the

optimal one is in general much greater than 50%

(Huang et al., 2006), this frame takes priority over

the others and gets more resources in the first step. A

simplified flowchart of the method is shown in Fig.

1. At the beginning, the prediction set and the first

strategy are checked in the closest RF up to the

quarter-pixel accuracy. In the next step, the

prediction set is checked in the remaining frames up

to the integer pixels. If the cost for the best point is

smaller than in the previous frame – the first strategy

is also checked up to the quarter pixels. This way,

the optimal frame is selected and ME is continued in

this frame until it is finished or computational

resources are exhausted. If some resources are still

available, the ME process can be continued in the

remaining frames. Additionally, the best point found

in a given frame is included to the prediction set of

the next frame.

AN ADAPTIVE COMPUTATION-AWARE ALGORITHM FOR MULTI-FRAME VARIABLE BLOCK-SIZE MOTION

ESTIMATION IN H.264/AVC

123

Table 1: Reduction of the execution time and differences in PSNR with reference to FFS with five RFs.

Algorithm FFS 1 RF MPS 25 SPs/MB, 5 RFs MPS 150 SPs/MB, 5 RFs

Sequence RET [%] maxPSNRdiff

[dB]

RET [%] maxPSNRdiff [dB] RET [%] maxPSNRdiff [dB]

Mobile 80.00 1.15 99.60 1.10 97.58 0.30

Football 80.00 0.04 99.67 1.02 98.00 0.30

Foreman 80.00 0.80 99.62 1.15 97.74 0.40

Crew 80.00 0.08 99.89 0.25 99.33 0.07

Harbor 80.00 0.12 99.89 0.20 99.31 0.06

Soccer 80.00 0.13 99.89 0.57 99.32 0.15

Check the

remaining SPs

Check the

prediction set

and 1st strategy

in RF(t-1)

Check the

prediction set

in RF(t-n)

YES

STOP

START

n = 2,3,...,N

Cost

RF(t-n)

Cost

RF(t-n-1)

Check the 1st

strategy

Select the best

n == N

YES

Figure 1: The flowchart of proposed MRFME method.

4 EXPERIMENTAL RESULTS

The algorithm is implemented in the H.264/AVC

reference software (JM12) and its performance is

compared with FFS with one and five RFs. For

MPS, always five RFs are used, however, with two

different values of the SPs/MB parameter: 25 and

150, regardless of the spatial resolution of the

sequence. In the experiments, three CIF (Foreman,

Football, and Mobile) and three 4CIF (Crew, Harbor

and Soccer) sequences, 150 frames each, are used.

Search range is set at ±15 and ±31 points for CIF

and 4CIF sequences, respectively. GOP structure is

I-P-P-P. Rate-distortion curves for selected

sequences are presented in Fig. 2 and 3. Values of

the reduction of execution time and the maximal

differences in PSNR with reference to FFS with five

RFs are placed in Table 1. RET represents the

percentage of reduction of execution time, and

maxPSNRdiff represents the maximal difference in

PSNR in dB. This difference for MPS with 150

SPs/MB is never greater than 0.4 dB (Foreman). The

magnitude of this difference depends mainly on

correlation between MVs of different modes. The

more they are correlated, the smaller this difference

is. Note that for most of the sequences, except

Foreman and Mobile, the gain introduced by

Football CIF

500 1000 1500 2000 2500 3000 3500 4000

Bit-rate [kb/s]

Y-PSNR [dB]

FS - 5 RFs

MPS - 5 RFs, 25 SPs/MB

FS - 1RF

MPS - 5 RFs, 150 SPs/MB

Mobile CIF

0 1000 2000 3000 4000 5000 6000 7000

Bit-rate [kb/s]

Y-PSNR [dB]

FS - 5 RFs

MPS - 5 RFs, 25 SPs/MB

FS - 1RF

MPS - 5 RFs, 150 SPs/MB

Figure 2: Rate-distortion curves for CIF sequences.

SIGMAP 2009 - International Conference on Signal Processing and Multimedia Applications

124

Harbor 4CIF

0 2000 4000 6000 8000 10000 12000 14000 16000 18000

Bit-rate [kb/s]

Y-PSNR [dB]

FS - 5 RFs

MPS - 5 RFs, 25 SPs/MB

FS - 1RF

MPS - 5 RFs, 150 SPs/MB

Soccer 4CIF

0 2000 4000 6000 8000 10000 12000

Bit-rate [kb/s]

Y-PSNR [dB]

FS - 5 RFs

MPS - 5 RFs, 25 SPs/MB

FS - 1RF

MPS - 5 RFs, 150 SPs/MB

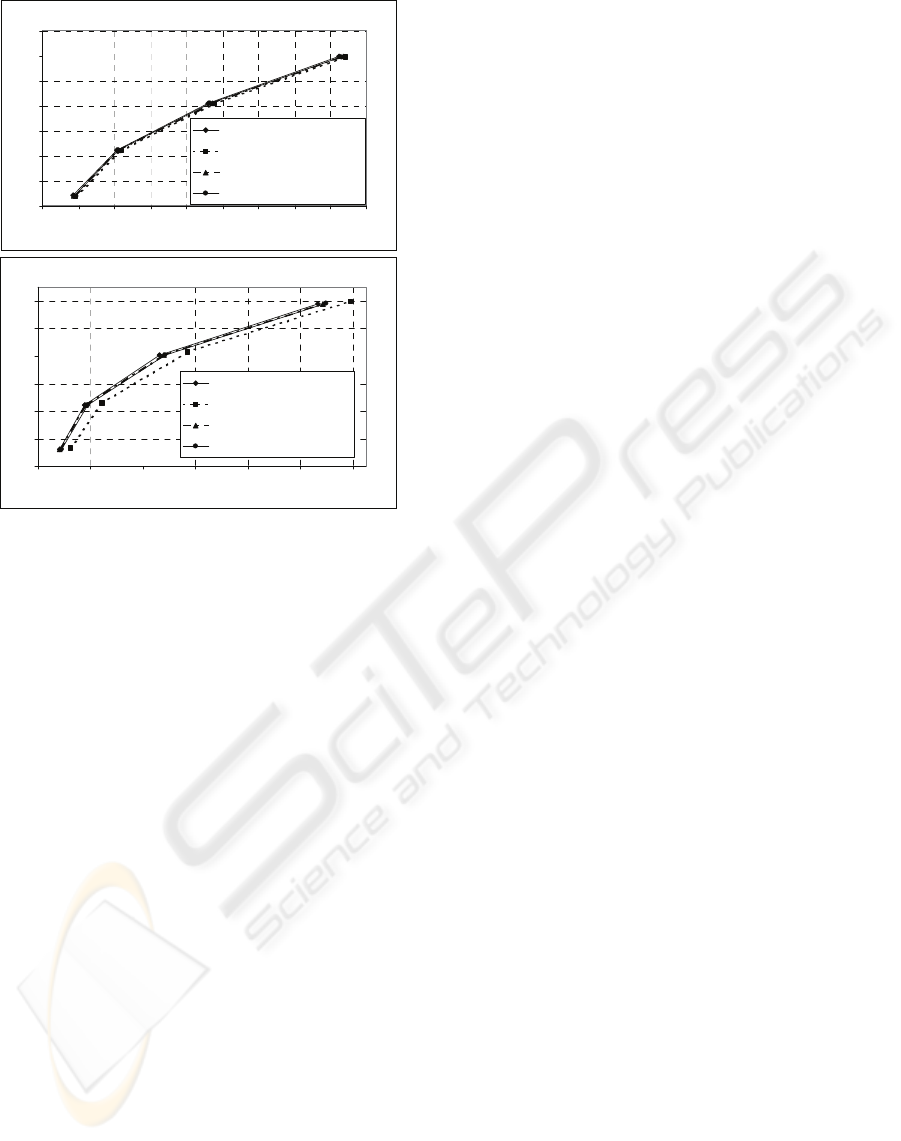

Figure 3: Rate-distortion curves for 4CIF sequences.

MRFME is relatively small. It is especially true for

the sequences with low and high motion activity

(Crew and Football). In such sequences, the nearest

frame is generally the best choice since its

resemblance to the next frame is the biggest.

Obtained reduction of execution time is

significant especially for 4CIF sequences where

exceeds 99% since MPS uses totally 150 SPs/MB

both for IPME and SPME in all RFs. Even in case of

4CIF sequences the difference in PSNR remains

small without increasing computational resources

which demonstrates the efficiency of the MPS

algorithm and its insensitivity on changes of

resolution.

5 CONCLUSIONS

The adaptive computation-aware MPS strategy in

conjunction with MRFME method presented in this

paper creates the solution which takes into account

almost all major aspects of BME in the H.264/AVC

standard. The algorithm was implemented in the JM

12.0 H.264/AVC reference software and compared

with FFS method with one and five RFs. Tests

showed that within less than 3% of execution time

required by FFS, MPS is able to achieve similar

results. Additionally, computation-aware feature

allows the algorithm to accomplish almost exactly

the same results as the exhaustive search if the

computational recourses are sufficient.

ACKNOWLEDGEMENTS

The work presented was developed within activities

of VISNET II, the European Network of Excellence,

(http://www.visnet-noe.org), founded under the

European Commission IST 6FP programme.

REFERENCES

ITU-T Recommendation H.264 and ISO/IEC 14496-10

MPEG-4 Part 10, Advanced Video Coding (AVC),

2003.

Huang, Y.W., Chen, C.Y., Tsai, C.H., Shen C.F., and

Chen L.G., 2006. Survey on Block Matching Motion

Estimation Algorithms and Architectures with New

Results. J. VLSI Signal Proc., vol. 42, pp. 297-320.

Koga, T., Iinuma, K., Hirano, A., Iijima, Y., and Ishiguro,

T., 1981. Motion Compensated Interframe Coding for

Video Conferencing. In Proc. Nat. Telecom. Conf., pp.

C9.6.1–C9.6.5.

Zhu, S. and Ma, K. K., 1997. A New Diamond Search

Algorithm for Fast Block Matching Motion

Estimation. In Proc. IEEE Int. Conf. Image Processing

(ICIP’97), pp. 292–296.

Lam, C. W., Po, L. M., Cheung, C. H., 2004. A Novel

Kite-Cross-Diamond Search Algorithm for Fast Block

Matching Motion Estimation. In Proc. IEEE Int.

Symp. Circuits Syst. (ISCAS’04), vol. III, pp. 729–732.

Jakubowski, M., Pastuszak, G., 2007. Multi-Path Adaptive

Computation-Aware Search Strategy for Block-Based

Motion Estimation. In Proc. IEEE EUROCON 2007,

The International Conference on Computer as a Tool,

pp. 175-181, 2007.

Jakubowski, M., Pastuszak, G., 2008. A Hardware-

Oriented Variable Block-Size Motion

EstimationMethod for H.264/AVC Video Coding. In

Proc. 12th AES Symposium New Trends in Audio and

Video (NTAV) 2008, pp. 151-156.

Huang, Y. W., Hsieh, B. Y., Chien, S. Y., Ma, S. Y., and

Chen, L. G., 2006. Analysis and Complexity

Reduction of Multiple Reference Frames Motion

Estimation in H.264/AVC. IEEE Trans. Circuits Syst.

Video Technol., vol. 16, no. 4, pp. 507-522.

AN ADAPTIVE COMPUTATION-AWARE ALGORITHM FOR MULTI-FRAME VARIABLE BLOCK-SIZE MOTION

ESTIMATION IN H.264/AVC

125
