SLA-DRIVEN SERVICE MARKETPLACE MONITORING WITH

GRAND SLAM

Josef Spillner and Jan Hoyer

Chair for Computer Networks, TU Dresden, N

othnitzer Str. 46, Dresden, Germany

Keywords:

Web services, SLA compliance, SOA

Abstract:

Today, the number of functional equivalent web services increases rapidly. Service search engines and mar-

ketplaces are opening up to guide users to their preferred service providers. The question of what is the

best service for the user’s demand cannot be answered sufﬁciently. While semantic matchmaking techniques

attempt to solve this question mainly for functional aspects, it is also important to know non-functional proper-

ties of a service like its availability and response time as well as the provider’s level of fulﬁlment of contractual

obligations regarding these properties. To realise the automated monitoring of services and contracts on ser-

vice marketplaces, we introduce a standalone and easily integratable software component which is able to

monitor non-functional properties and the adherence to negotiated contracts.

1 INTRODUCTION TO SERVICE

MARKETPLACE

MONITORING

Monitoring is an automated process of checking the

condition of a system. For systems offering services

to users, the term service monitoring refers to giving

providers and consumers of these services the ability

to check its behaviour and optionally match it against

a set of requirements and expectations. If the require-

ments relate to participants who interact with the sys-

tem, service-level agreements (SLA) are often used to

manifest them on a contractual basis.

Web service and grid-based hosting environments

with integrated monitoring and SLA management fa-

cilities are already widely available. However, when

aiming at ﬂexible, internet-scale web service hosting

and trading, there are several aspects not yet cov-

ered by existing approaches. These include SLA-

driven monitoring and aggregation as well as auto-

mated adjustments of service offerings based on non-

functional property monitoring and prediction results.

Grand SLAM has been designed to resolve these

problems and be usable as a core component for re-

searchers and builders of service marketplaces.

2 EXISTING MONITORING

CONCEPTS AND PROJECTS

Conventional monitoring systems in production use

perform server and service checks based on adminis-

trated conﬁguration ﬁles. Sometimes, they allow ser-

vice users to control the results of the checks. It is

however not common among them to treat SLA as

ﬁrst-class objects. Nagios (Pervil

a, 2007) is a widely

used IT systems monitor which falls into this category

and despite many extensions and a modular sensor de-

sign is not targeting service marketplaces. Keywatch

(Keymind, 2008) is based on OSGi for modular de-

ployment of sensors and ﬁlters, and offers a real-time

query interface. SLA are similarly underrepresented

in its design. Behavioural monitoring of BPEL pro-

cesses is supported by Dynamo, which uses the WS-

CoL rule language to deﬁne properties (Baresi et al.,

2008). Rule languages are powerful but not sufﬁcient

to declare legally binding agreements.

Academic approaches have already acknowledged

the weaknesses of conventional service monitoring

and proposed SLA-centric designs. Fundamental is-

sues related to SLA monitoring include a precise

SLA speciﬁcation language, ﬂexible metric calcula-

tion, separation of the computation and communi-

cation infrastructure and violation detection services

(Molina-Jimenez et al., 2004). Several projects exist

to take these issues into account. SALMon is a sys-

Spillner J. and Hoyer J. (2009).

SLA-DRIVEN SERVICE MARKETPLACE MONITORING WITH GRAND SLAM.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 71-74

DOI: 10.5220/0002232300710074

 SciTePress

tem for monitoring services, analysing the results and

taking decisions based on the outcome of the anal-

ysis (Ameller and Franch, 2008). It builds on the

ISO/IEC 9126 quality model for non-functional prop-

erties, which is a very complete model but only con-

tains a small subset of deterministically monitorable

properties. Only two properties have been imple-

mented into the monitor. The results are stored in

a database, there is no interface for real-time noti-

ﬁcations. Furthermore, SALMon does not seem to

be publically available, making it difﬁcult to assess

the suitability of its internal design and architecture.

Another project, SLAngMon, provides a monitor for

SLA speciﬁed in the SLAng and WS-Agreement lan-

guages as part of the PLASTIC platform (Bertolino

et al., 2009). It is based on a framework for online

and ofﬂine testing of functional and non-functional

service properties. Its tool PUPPET related to con-

tinuous monitoring on service marketplaces. How-

ever, the implementation only implements sensors for

response time and reliability. The prototype is also

lacking integration points for SLA management and

access to monitoring data.

Particular challenges like SLA monitoring ef-

ﬁciency, accuracy and scalability have been anal-

ysed by theoretical work and validation tools, e.g.

for network-related measurements (Sommers et al.,

2007). Compared to this, only few integratable mon-

itors exist. Due to our requirements on SLA-centric

monitoring and integration, we have decided on pro-

viding an alternative framework which provides ex-

actly these features and is aimed at being reusable by

other projects by offering web service interfaces for

SLA management and access to measurement data.

3 ARCHITECTURE OF GRAND

SLAM

Grand SLAM is a modular system and web service

monitor based on Java EE. The core of the monitor

and the associated parts run on the OSGi Service Plat-

form and use the OSGi framework for standardised

module management. We decided for OSGi because

it offers some advantages compared to an implemen-

tation in pure Java. On account of the OSGi Hot

Deployment and the modular implementation of the

framework, a higher fault tolerance is granted while

starting, stopping, installing and updating measure-

ment bundles. Defect bundles can be detected and

stopped without terminating the whole monitor sys-

tem. Therefore a higher stability of the monitor is

granted. On the base of the service-oriented program-

ming model of OSGi, it is possible to develop cus-

tom measurement bundles which are adapted to local

server and web service speciﬁcations. For this mat-

ter, the framework provides a minimum of interfaces

which have to be implemented. The monitor consists

primarily of ﬁve parts as can be seen in Figure 1.

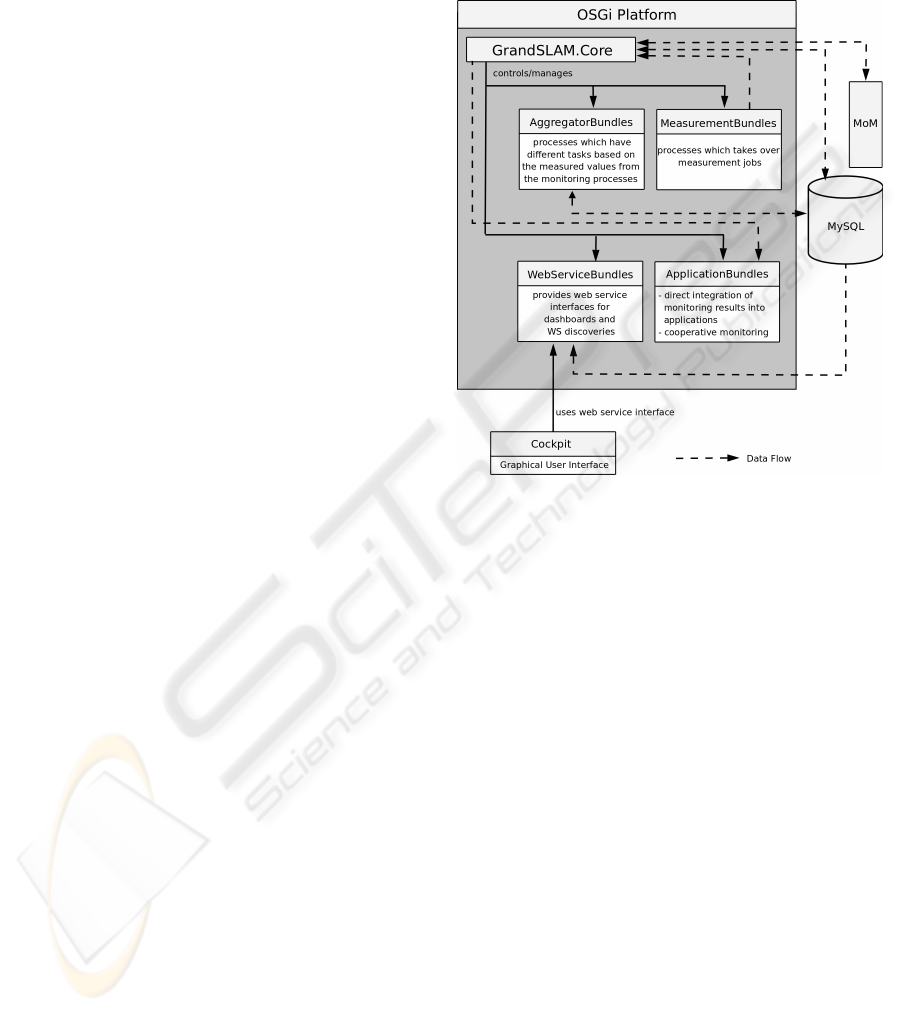

Figure 1: OSGi-based architecture of Grand SLAM.

• A core monitor bundle manages and controls the

other bundles and it is responsible for the supervi-

sion of the contracts which are stored in the local

database. It installs a trigger on the database and is

being notiﬁed of additions or removals which are

caused by external SLA management and nego-

tiation components attached to the Grand SLAM

web service interface. The core bundle also stores

raw data of the measurements and current states

of the affected services into the database.

• Measurement bundles take over the measurement

of one or multiple QoS parameters which are

speciﬁed in the contracts and return these values

to the core bundle.

• The third part of Grand SLAM are the aggrega-

tors. They are implemented as OSGi bundles and

will be started by the monitor core but work in-

dependently from it. Resulting from this, there is

no concrete default speciﬁcation for their imple-

mentation, so it is possible that every aggregator

has a different task. In the current implementa-

tion of Grand SLAM there are three aggregators:

One which generates aggregated values like aver-

age, minimum and maximum, a second one which

creates scalar vector graphics which contain pie-

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

and line charts and a last one which creates XML

ﬁles with a ranking of the monitored services.

• The fourth part is an Axis 2 server provided by

the open source OSGi Service Platform Knopﬂer-

ﬁsh. On this server, a web service is deployed

which allows an invocation from a service discov-

ery. Its task is to register and unregister service

level agreements which have to be observed.

• The last part is optional and contains application-

speciﬁc bundles for cooperative monitoring. Ser-

vices which are aware of the presence of the mon-

itor can adapt to its results explicitly. Apart from

this integration, services monitoring is always en-

forced and adaptation must be triggered from ex-

ternal components.

Monitoring results are stored in a SQL database

attached to the monitor via JDBC. Access to this

data is provided by a SOAP query interface dubbed

Monitoring-as-a-Service (MaaS). It offers conve-

nience methods for retrieving historic data on ser-

vices, contracts and providers, thus avoiding the need

for direct access to the database. A cockpit with SVG

charts has been created as a useful sample MaaS con-

sumer. The MaaS interface also manages subscrip-

tions to a message-oriented middleware for delivery

of monitoring events in real-time. This communi-

cation channel is also usable to connect several in-

stances of the monitor with each other. This way,

a scalable hierarchical monitoring with a central ser-

vice marketplace and decentralised service execution

environments becomes possible. This aspect is not

yet fully implemented but obviously needed for large

service hosting sites. Service marketplaces can have

many active contracts between various parties, as can

be seen in Figure 2.

4 MONITORING OF SLA

Grand SLAM is able to observe Service Level Agree-

ments (SLA) which are negotiated between service

provider and service user. Based on our experience

with evolving SLA languages, we have designed an

SLA abstraction library which is able to extract ob-

jectives, expiration dates and other key data from both

WS-Agreement and WSAG derivates.

An aspect central to all of these languages is

the deﬁnition of measurement targets and their cor-

responding quality of service (QoS) parameters. A

measurement target includes such information like

service name, endpoint and server address. For each

QoS parameter there also exist two ranges of values.

The ﬁrst one describes an allowed area for a mea-

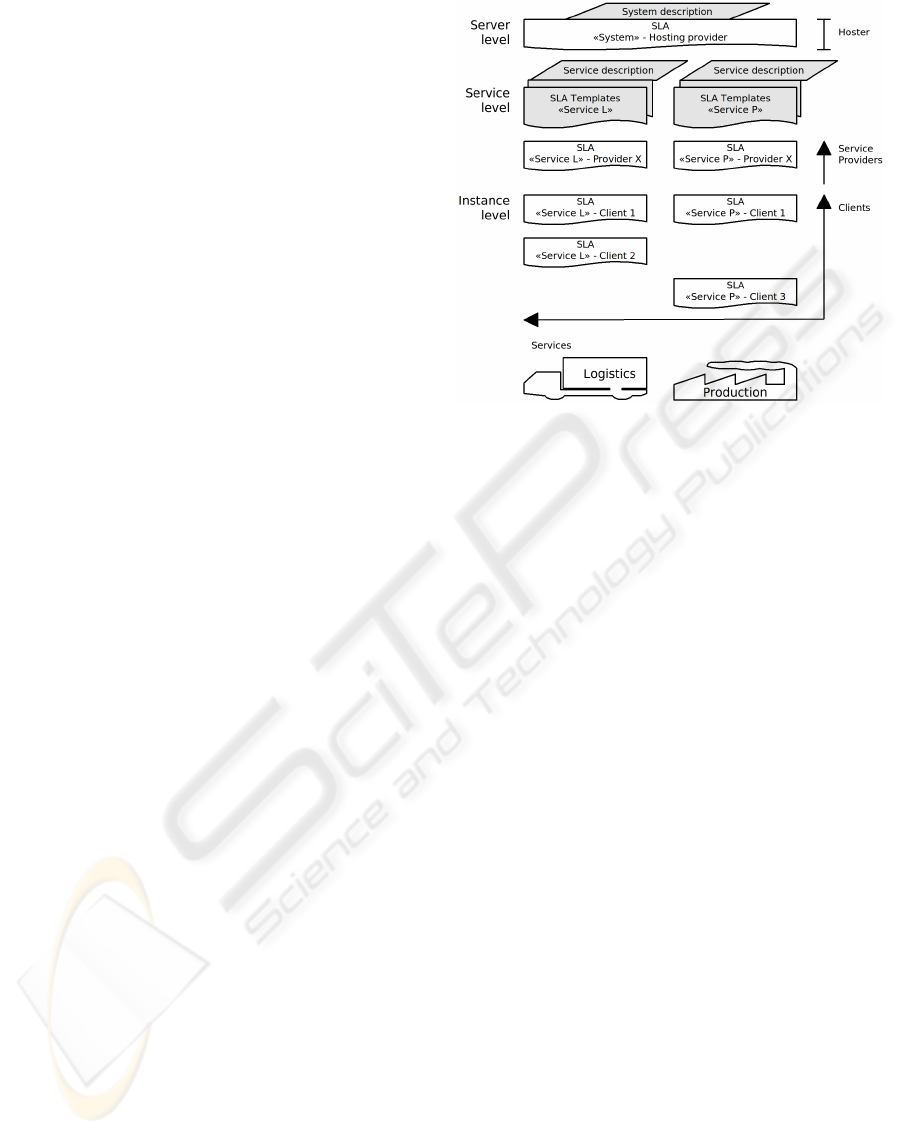

Figure 2: SLA between marketplace operator and service

providers, consumers and server hosters.

surement. If a measured value exceeds this area, the

agreement is breached. The second one deﬁnes a crit-

ical area. A measured value will be marked as criti-

cal if the upper or lower threshold is exceeded. An-

other existing information is the scheduling parameter

which deﬁnes how often a QoS parameter has to be

measured. At the current implementation of Grand

SLAM simple intervals in milliseconds can be de-

ﬁned. For the future we propose a complex schedul-

ing mechanism where it is possible to set intervals in

days or weeks or it would be possible to set concrete

timestamps for when Grand SLAM has to measure

the properties. This allows for deﬁning the quality of

the measurement process itself which could become

part of the agreement pricing model.

Grand SLAM divides measurements into two

groups. The ﬁrst one, local monitoring, includes

server speciﬁc measurements like the usage of a CPU.

In this case only one instance of a measurement pro-

cess exists to reduce the usage of resources allocated

by Grand SLAM. The second group, remote measure-

ments, are web service speciﬁc measurements like up-

time or response time. These are individual QoS pa-

rameters of a service and, resulting from this, for ev-

ery referenced parameter one instance of a measure-

ment process exists.

The already existing measurement sensors and ag-

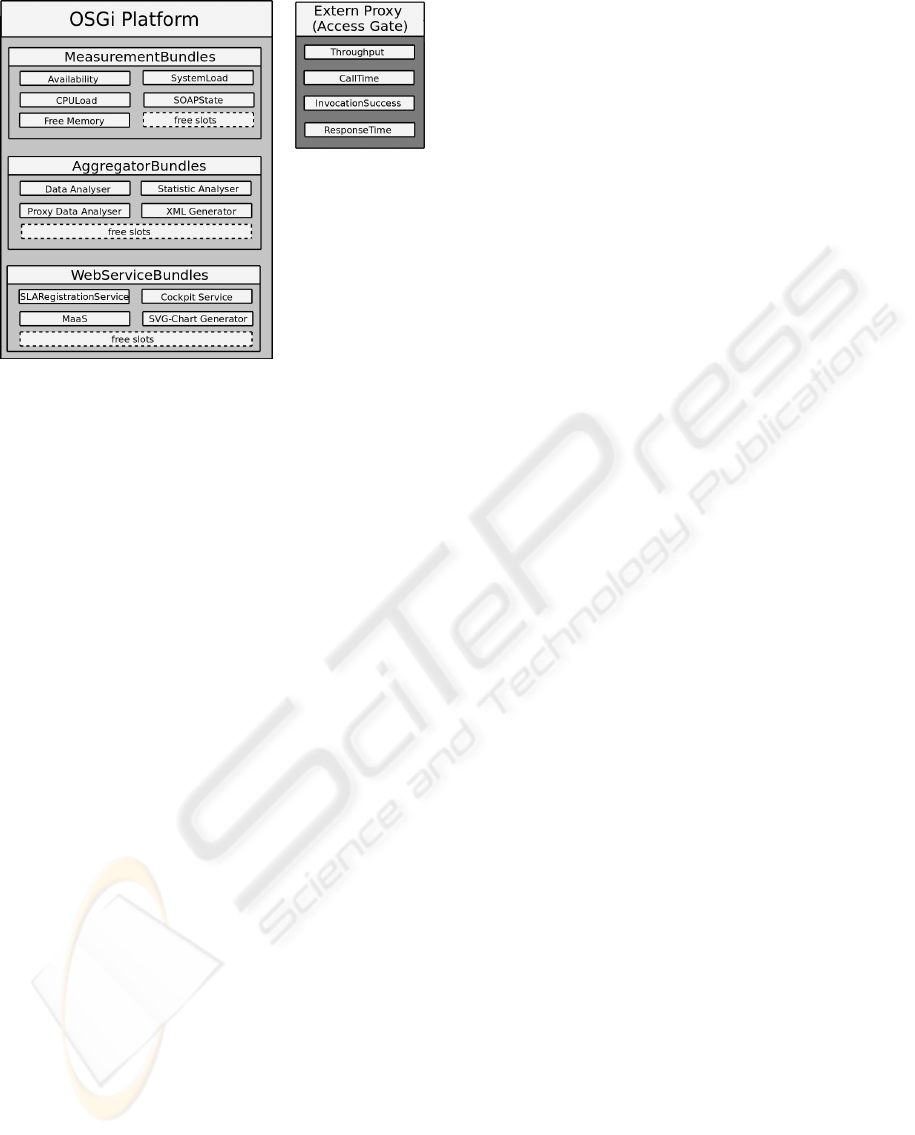

gregation bundles are depicted in Figure 3. A par-

ticular design decision has been to integrate mea-

surements from external system or marketplace com-

ponents wherever they exist already. For example,

the best place to measure service invocation response

time and throughput for local services is a web service

SLA-DRIVEN SERVICE MARKETPLACE MONITORING WITH GRAND SLAM

Figure 3: Measurement and aggregation bundles shipped

with Grand SLAM.

proxy. If no proxy is in use, the service SOAP stacks

would have to be instrumented, which is not feasible

for dynamically deployed (tradable) services. Simi-

larly, operating system-level service execution prop-

erties like per-instance CPU usage can be injected by

external tools for locally executed services.

Whenever a new contract becomes active, Grand

SLAM parses the SLA and extracts the guaranteed pa-

rameters. Any measurement bundle not yet running

will be activated at this point. Each bundle then pro-

vides a measurement task to the core bundle. Using

an observer pattern, the core bundle will be notiﬁed of

any new measurement as soon as it occurs. The core

bundle is then able to evaluate the data, store it in its

database and use a message-oriented middleware to

forward it to a higher-level instance of Grand SLAM

for further aggregation.

5 CONCLUSIONS AND FUTURE

WORK

Grand SLAM has been introduced to perform SLA

monitoring on service marketplaces. The collection

and aggregation of monitoring information from the

system, installed services and running contracts as

well as the access to both real-time and historic infor-

mation are essential features implemented by the pro-

totype. Compared to existing projects, Grand SLAM

offers good integration with usual service market-

place and SOA components like monitoring dash-

boards, service registries and execution adaptation.

A number of service-related metrics can already be

collected and reported with the included bundles.

The addition of custom measurement and aggregation

bundles is possible at runtime whenever required by

additional negotiated SLA.

In the near future, it is planned to develop a mech-

anism which generates forecasting models from the

collected measured values. Furthermore, the MaaS

query interface will be extended to become more

generic and efﬁcient for a variety of monitoring data

consumers. Finally, the already initiated implementa-

tion for distributed operation will be completed.

ACKNOWLEDGEMENTS

The project was funded by means of the German Fed-

eral Ministry of Economy and Technology under the

promotional reference “01MQ07012”. The authors

take the responsibility for the contents.

REFERENCES

Ameller, D. and Franch, X. (2008). Service Level Agree-

ment Monitor (SALMon). In Proceedings of the Sev-

enth International Conference on Composition-Based

Software Systems (ICCBSS), volume 00, pages 224–

227. Madrid, Spain.

Baresi, L., Guinea, S., Kazhamiakin, R., and Pistore, M.

(2008). An Integrated Approach for the Run-Time

Monitoring of BPEL Orchestrations. In Towards a

Service-Based Internet/ServiceWave. Madrid, Spain.

Bertolino, A., Angelis, G. D., Frantzen, L., and Polini, A.

(2009). The PLASTIC Framework and Tools for Test-

ing Service-Oriented Applications. In Software Engi-

neering: International Summer Schools, ISSSE 2006-

2008, Salerno, Italy, Revised Tutorial Lectures, pages

106–139.

Keymind (2008). Keywatch - an open source, ﬂexible, osgi-

based monitoring system. http://www.keywatch.org.

Molina-Jimenez, C., Shrivastava, S., Crowcroft, J., and

Gevros, P. (2004). On the Monitoring of Contrac-

tual Service Level Agreements. In First IEEE Inter-

national Workshop on Electronic Contracting (WEC),

pages 1–8. San Diego, California, USA.

Pervil

a, M. A. (2007). Using Nagios to monitor faults in

a self-healing environment. Seminar on Self-Healing

Systems, University of Helsinki.

Sommers, J., Barford, P., Dufﬁeld, N., and Ron, A. (2007).

Accurate and Efﬁcient SLA Compliance Monitoring.

In ACM SIGCOMM Computer Communication Re-

view, volume 37, pages 109–120. Kyoto, Japan.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies
