PANORAMIC IMMERSIVE VIDEOS

3D Production and Visualization Framework

W. J. Sarmiento and C. Quintero

Multimedia Research Group, School of Engineering, Militar Nueva Granada University, Bogota D.C., Colombia

Keywords:

Panoramic videos, Immersive video, 3D production.

Abstract:

Panoramic immersive video is a new technology, which allows the user to interact with a video beyond simple

production line, because it enables the possibility to navigate in the scene from different points of view. Al-

though many devices for the production of panoramic videos have been proposed, these are still expensive.In

this paper a framework for production of virtual panoramic immersive videos using 3D production software

is presented. The framework is composed by two stages: panoramic video production and immersive visu-

alization. In the former stage the traditional 3D scene is taken as input and two outputs are generated, the

panoramic video and path sounds to immersive audio reproduction. In the latter, a desktop CAVE assembly is

proposed in order to provide an immersive display.

1 INTRODUCTION

Lately, immersive video technologies have become

increasingly signiﬁcant in the multimedia entertain-

ment industry. One of them is the type in which the

user has the power to control not only the time line but

also his viewing position, this allows him to observe

the scene from any point of view. Moreover, in higher

immersion levels, the user can interact with the envi-

ronment as if being present in it. These features offer

the user a higher degree of immersion and interaction

sensations. Panoramic video is the simplest version

of immersive video. In which, videos are generated

from scenes captured by a set of cameras, this allows

to reconstruct the 360 degree video, but the only avail-

able points of view are those of the capturing cameras.

Another important element of immersive sensation is

sound, because one more of the user’s senses is in-

volved in the experience. To implement it, a multiple

channel recording and a surround playing system are

necessary.

The acquisition and displaying of panoramic

videos present a great quantity of research challenges.

At displaying level, many spatially immersive dis-

plays have been proposed (Gross et al., 2003; Katkere

et al., 1997; Moezzi et al., 1996a; Neumann et al.,

2000). Many of them are based on the Automatic Vir-

tual Environment (CAVE) proposed by the Electronic

Visualization Laboratory (EVL) of the University of

Illinois in 1992 (Cruz-Neira et al., 1992; Cruz-Neira

et al., 1993). It consists of a room in which video

scenes are projected from behind the walls i.e. the

user is surrounded by the projected images, giving the

sensation of being immersed on the scene. At acqui-

sition level, different applications are commercially

available, like wide angle lenses or polycameras (Lin

and Bajcsy, 2001; Nielseni, 2002; Nielsen, 2005),

which capture different videos simultaneously from

real scenes to assemble the panoramic video (Moezzi

et al., 1996a). These systems are composed by a spa-

tial conﬁguration of cameras for each particular ap-

plication. Some applications like Google Street View

or immersivemedia demos are produced using these

devices.

On the other hand, the implementation of 3D tech-

nology has allowed to reduce costs in audiovisual pro-

duction. By using tools such as Maya, Softimage or

3D Studio, it is not necessary to built physical stages

for production anymore, because they can be built and

assembled in digital 3D post-production stage. Like-

wise, these tools allow to place virtual cameras on the

scene, which have parameters that can be adjusted ac-

cording to the needs of the producer and are usually

in line with real cameras. Currently, these tools are

low cost and accessible by even multimedia develop-

ers. Moreover, free software like Blender, Anim8or

or DAZ 3D produce similar results and are available

on the web.

173

Sarmiento W. and Quintero C. (2009).

PANORAMIC IMMERSIVE VIDEOS - 3D Production and Visualization Framework.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 173-177

DOI: 10.5220/0002235901730177

 SciTePress

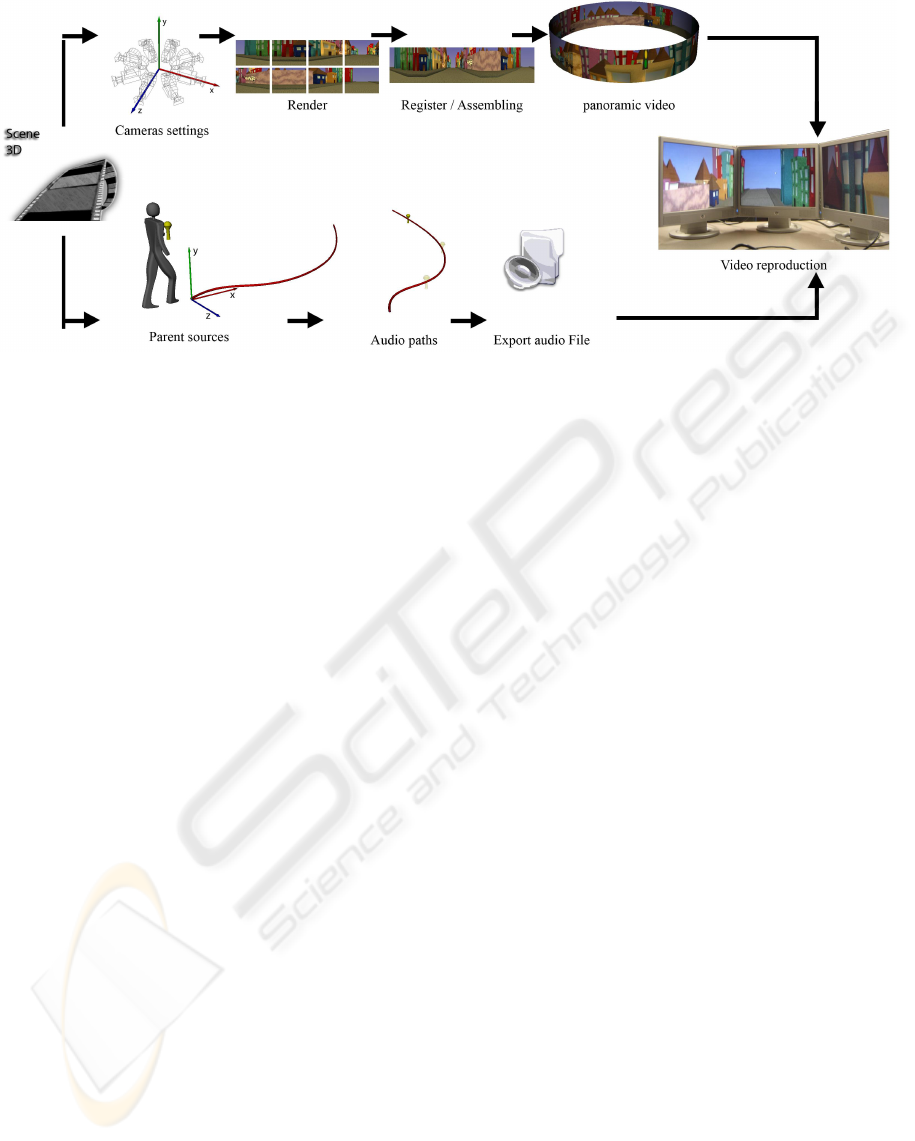

Figure 1: Schema of general architecture of proposed framework.

In order to make this applications closer to multi-

media developers and ﬁnal users, this paper presents

a framework for production of virtual immersive

panoramic videos, using only 3D production soft-

ware. The second section introduces the proposed

framework. In the third section details of the virtual

panoramic video production are presented. Likewise,

details of a low cost CAVE assembly, in which the

panoramic video can be reproduced, are illustrated in

section four. Finally, section ﬁve presents conclusions

and future work.

2 PROPOSED FRAMEWORK

Figure 1 illustrates a scheme of the proposed frame-

work. The initial point is a traditional 3D scene, cre-

ated after pre-production stage. This 3D scene deﬁnes

the background scenario, characters, objects and cam-

era path. With all these parameters already set, the

framework presents two independent branches, which

may be implemented in parallel: video creation and

audio path generation. The panoramic view produc-

tion process starts with the building of the camera set-

tings, followed by a rendering process which should

be carried out individually for each camera and ﬁ-

nally, a video registration process that stitches all ren-

dered images together. On the other hand, audio path

is generated parenting the sounds to the virtual scene,

the 3D software creates the path where the virtual

sound is placed and exported. Finally both panoramic

video and audio paths are reproduced in a simpliﬁed

desktop CAVE system.

3 VIDEO PRODUCTION

3.0.1 Building of Camera Setting

In order to obtain a panoramic view, this framework

requires covering at least 360

degrees in the horizon-

tal line of vision. Therefore, N cameras are created

with a different rotation value over the y axis from

the main camera in the 3D scene. The number (N) of

cameras depends on the horizontal aperture angle of

the main camera. For example, a 35mm format cam-

era has a horizontal angle of 49.3

. Because of this,

the implementation of 8 virtual cameras, with rota-

tions of 45

from the main camera, for covering the

360

degrees, is needed. This assembly is similar to

the hardware device used to capture real panoramic

videos. Figure 2 shows an illustration of a camera set-

ting corresponding to this example: a conﬁguration of

8 cameras.

3.0.2 Rendering of Multiple Point of View

Scenes

Before performing the rendering process it is required

that each N

camera is parented with the main cam-

era, this way each of them has the camera path drawn

by any traditional 3D production software. Then, N

videos of the same scene are produced by rendering

images generated by each camera separately. These

videos correspond to the different points of view of

the scene. Figure 3 shows an example of 8 images

obtained by carrying out the rendering process on the

camera set proposed in ﬁgure 2.

SIGMAP 2009 - International Conference on Signal Processing and Multimedia Applications

174

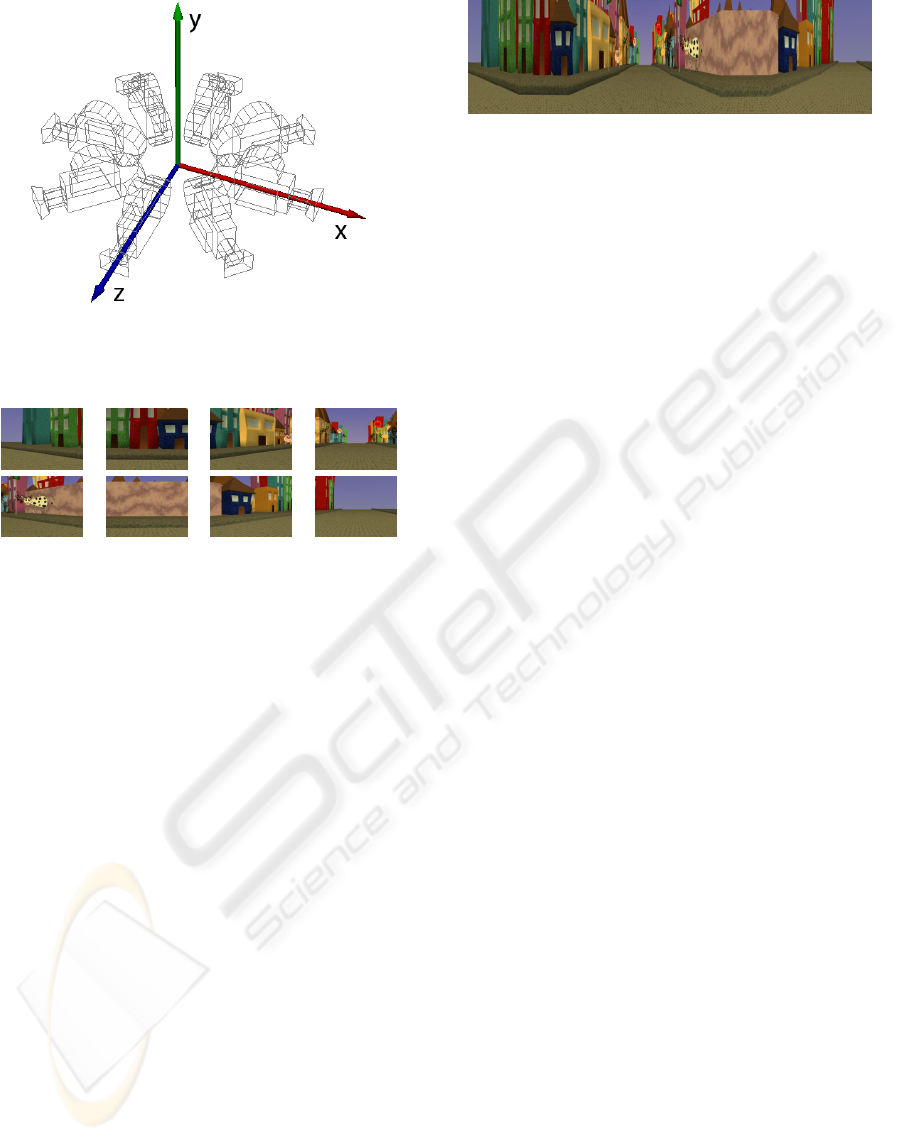

Figure 2: Camera conﬁguration to production of panoramic

3D videos. Each camera is a rotated version of the principal

camera.

Figure 3: Scene render results obtained using the proposed

set of cameras.

3.0.3 Registration of Rendered Image

Registration stage allows to stitch the scenes rendered

in the previous stage in order to generate a single

panoramic scene. The approach used in this stage

depends on the camera features used to generate the

scenes. If the rendering was performed using real

camera features, resulting scenes are overlapped in

the y axis. In this case a video registration approach

should be applied (Shah and Kumar, 2003) . A sim-

ple registration approach which maximizes a similar-

ity measure between adjacent scenes can be sufﬁcient

for stitching the videos in this case because the vir-

tual cameras can be ﬁxed on selected places in the

scene. Figure 4 shows a portion of the panoramic

scene generated by registering the images in ﬁgure

3. In this case a mutual information similarity mea-

sure was used, and minimization process was opti-

mized assuming that at most a 10% overlapping ex-

ists. However, users not trained on image process-

ing topics, can adjust the overlapping manually be-

tween images in a post-production software which

can be batch propagated to all cameras. Moreover,

if cameras are virtually placed on integer angle sep-

arations (45

, 30

) the rendering process is perfectly

adjustable, simplifying the registration process.

Figure 4: Image obtained by registration of scenes at ﬁgure

3.1 Audio Path Generation

3.1.1 Parent Audio Sources

In this framework, audio production requires that an

audible atmosphere was deﬁned in pre-production

stage of the 3D scene. Likewise, a set of mono-

phonic sounds should be deﬁned for speciﬁc moments

in the video. This can correspond to moving au-

dible sources such as people steps or object move-

ments. The sounds should be parented with their 3D

object generator. For this, a graphical primitive (a

sphere) should be created in the 3D production soft-

ware which represents the sound in the scene. Any

deﬁned audio source should be parented with the cor-

responding object in the scene.

3.1.2 Export Sound Animation Curves

Once the audio primitives are parented with the ob-

jects on the 3D scene, these get the objects move-

ment features i.e. they are moved according to de-

veloped animations. In this way, for any animated au-

dio source in the scene a movement path is generated.

Then, this can be exported to a text ﬁle indicating the

sound position in each frame with respect to the posi-

tion of the main camera.

4 IMMERSIVE PROJECTION

For panoramic video visualization an application that

generates a cylindrical surface used as video projec-

tion canvas based on a texture mapping strategy is

necessary. According to the video that is reproduced

the texture is updated to a new video frame. Nav-

igation is achieved by the rotation and scaling of a

3D volume view which is located in the center of the

projection surface as illustrated in ﬁgure 5. This de-

velopment requires tools for generating 3D graphics

and audio. For this, libraries such as openGL or Di-

rectX3D can be used.

Simultaneously immersive audio is reproduced,

keeping in mind that the audio movement path for

each source was built by the 3D production software

PANORAMIC IMMERSIVE VIDEOS - 3D Production and Visualization Framework

175

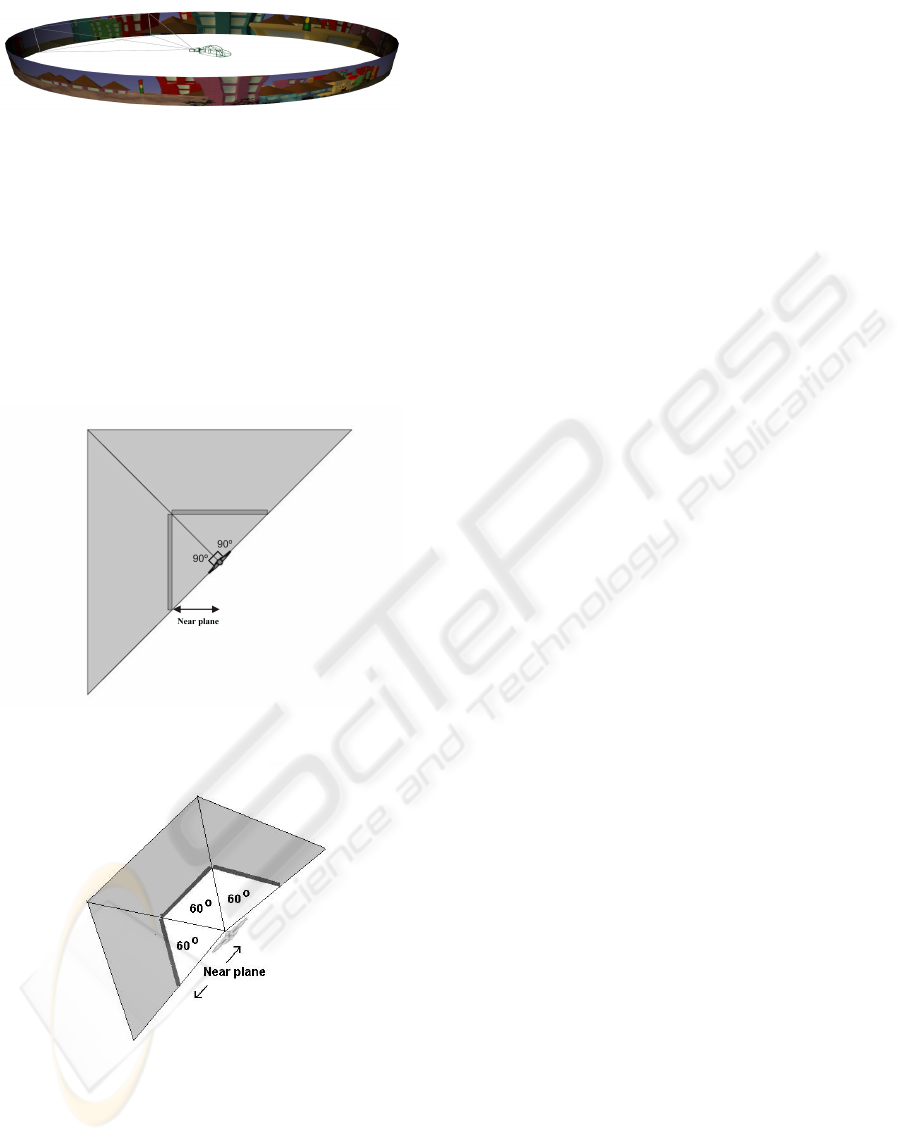

Figure 5: Visualization surface, the frame of video update

the surface texture and the user may be change the camera

zoom and rotation.

and exported to a ﬁle. Using the library for devel-

opment of applications with 3D audio, each sound

is placed in its spatial coordinate, which is changed

when the video is in reproduction. Perception of sur-

round sounds is achieved by the use of a 5.1 audio

system with a sound board that codes the channels

adequately. Systems with these features are commer-

cially available and their costs are low.

(a)

(b)

Figure 6: Simplify CAVE system diagrams, (a) show a im-

mersive volume view with 2 screen, an the (b) show a im-

mersive volume view with 3 screen.

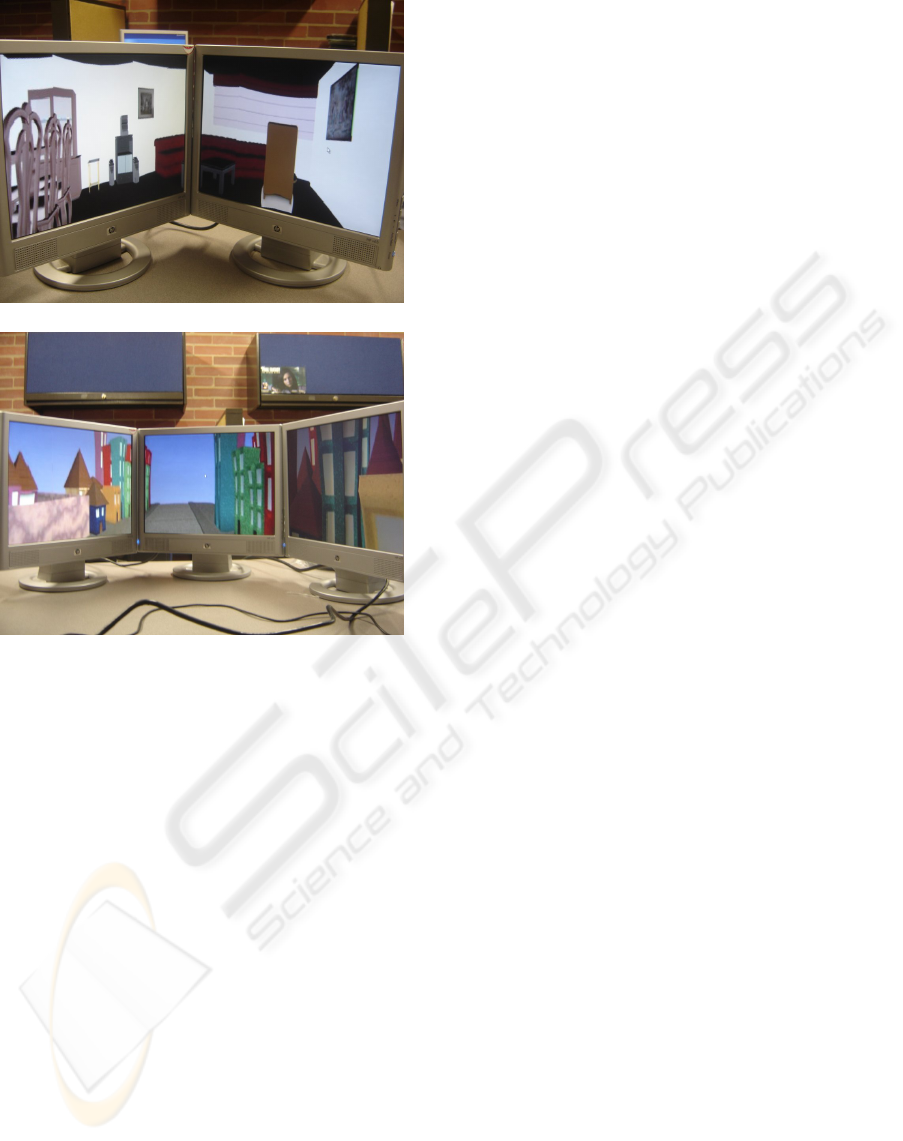

In order to fool the user, to provide a feeling of

immersion in the virtual environment, a large display

device is required that allows the user to navigate on a

full vision ﬁeld, as well as an enveloping audio repro-

duction. Immersion environment can be achieved dis-

playing the panoramic video in any CAVE assembly

(Quintero et al., 2007; McGinity et al., 2007; Moezzi

et al., 1996b). However, in order to provide an af-

fordable solution, we proposed the implementation of

a desktop cave, which can be constructed using cor-

rectly placed ﬂat panels. The only additional tech-

nical requirement is that the PC used for playing the

video needs multiple independent video outputs (at

least two) (Cer

on et al., 2007; Jacobson et al., 2005;

Quintero et al., 2007). Different immersive environ-

ments can be used according to the number of ﬂat

panels. Figure 6 shows the top view of two possible

assemblies with 2 and 3 panels. The main parameters

that should be set are the aperture angle and the near

plane. Clearly, in a scheme all volume views have

the same conﬁguration parameters and coordinate ori-

gin, only the observation angle is changed. Based on

the selected scheme a volume view is created for each

designed panel using the 3D graphic library, keeping

in mind that the video navigation should update the

volume views simultaneously. Figure 7 shows two

photographies of desktop CAVES with 2 and 3 pan-

els displaying immersive videos generated using this

framework.

5 CONCLUSIONS

In this paper a simple framework for producing and

displaying virtual immersive videos has been pro-

posed, which can be used without any specialized

acquisition hardware device. On the contrary, this

framework proposes the use of conventional functions

on available 3D production software as 3D animation

developing applications and 3D graphics and audio li-

braries. Video production is achieved by a sequence

of simple implementation stages, which do not re-

quire advanced knowledge of mathematical issues.

This fact allows this framework to be used by mul-

timedia and art developers of any area. On the other

hand, immersive videos are displayed on affordable

equipments that allow immersive sensations similar

to those achievable in complex visualization devices.

This framework can be used for developing and

displaying immersive applications in restricted condi-

tions of space and economical resources allowing a

major access to these technologies to developing re-

gions and research areas such as basic education and

training environments.

SIGMAP 2009 - International Conference on Signal Processing and Multimedia Applications

176

(a)

(b)

Figure 7: Pictures to desktop CAVE system corresponding

to schema with the ﬁgure 6, (a) 2 screens and (b)3 screens.

REFERENCES

Cer

on, A. C., Sarmiento, W., and Sierra-Ballc, E. L. (2007).

Computer graphics application for virtual robotics. In

23rd ISPE International Conference on CAD/CAM

Robotics and Factories of the Future, pages 574–577.

Cruz-Neira, C., Sandin, D. J., and DeFanti, T. A. (1993).

Surround-screen projection-based virtual reality: the

design and implementation of the cave. In SIGGRAPH

’93: Proceedings of the 20th annual conference on

Computer graphics and interactive techniques, pages

135–142, New York, NY, USA. ACM.

Cruz-Neira, C., Sandin, D. J., DeFanti, T. A., Kenyon, R. V.,

and Hart, J. C. (1992). The cave: audio visual experi-

ence automatic virtual environment. Commun. ACM,

35(6):64–72.

Gross, M., W

urmlin, S., Naef, M., Lamboray, E.,

Spagno, C., Kunz, A., Koller-Meier, E., Svoboda, T.,

Van Gool, L., Lang, S., Strehlke, K., Moere, A. V.,

and Staadt, O. (2003). Blue-c: a spatially immersive

display and 3d video portal for telepresence. ACM

Transactions on Graphics, 22(3):819–827.

Jacobson, J., Kelley, M., Ellis, S., and Seethaller, L.

(2005). Immersive displays for education using

caveut. In Proceedings of World Conference on Ed-

ucational Multimedia, Hypermedia and Telecommu-

nications 2005, pages 4525–4530. AACE.

Katkere, A., Moezzi1, S., Kuramura, D. Y., Kelly, P., and

Jain, R. (1997). Towards video-based immersive en-

vironments. Multimedia Systems, 2(2):69–85.

Lin, S.-S. and Bajcsy, R. (2001). True single view point

cone mirror omni-directional catadioptric system. In

Eighth IEEE International Conference on Computer

Vision, ICCV 2001., volume 2, pages 7–14. IEEE.

McGinity, M., Shaw, J., Kuchelmeister, V., Hardjono, A.,

and Favero, D. D. (2007). Avie: A versatile multi-

user stereo 360 interactive vr theatre. In Proceedings

or Emerging Display Technologies Conference.

Moezzi, S., Katkere, A., Kuramura, D., and Jain, R.

(1996a). Immersive video. In Virtual Reality Annual

International Symposium, pages 17 – 24, 265. SPIE.

Moezzi, S., Katkere, A., and Kuramura, D.Y. Jain, R.

(1996b). An emerging medium: interactive three-

dimensional digital video. In Proceedings of the Third

IEEE International Conference on Multimedia Com-

puting and Systems, pages 358 – 361. IEEE.

Neumann, U., Pintaric, T., and Rizzo, A. (2000). Immersive

panoramic video. In MULTIMEDIA ’00: Proceedings

of the eighth ACM international conference on Multi-

media, pages 493–494, New York, NY, USA. ACM.

Nielsen, F. (2005). Surround video: a multihead camera

approach. The Visual Computer, 21(1-2):92–103.

Nielseni, F. (2002). High resolution full spherical videos. In

International Conference on Information Technology:

Coding and Computing, 2002. Proceedings., pages

260 – 267. IEEE.

Quintero, C. D., Sarmiento, W. J., and Sierra-Ball

en, E. L.

(2007). Low cost cave simpliﬁed system. In Proceed-

ings of Human Computer Interaction International,

HCI International 2007, pages 860 – 864.

Shah, M. and Kumar, R. (2003). Video Registration. Kluwer

Academic Publishers.

PANORAMIC IMMERSIVE VIDEOS - 3D Production and Visualization Framework

177
