SEMANTIC PROFILE BASED SERVICE DISCOVERY FOR

ABSTRACT PROCESS COMPOSITION

Shuying Wang, Miriam A. M. Capretz and Hany El Yamany

Department of Electrical and Computer Engineering, Faculty of Engineering, University of Western Ontario

London, Ontario, N6A 5B9, Canada

Keywords: Business Process Composition, Semantic Web services, Service Oriented Architecture.

Abstract: WSBPEL (Web Services for Business Process Execution Language) is a process modelling language for

composing Web Services. Abstract processes can be used in WSBPEL as process templates, which describe

abstract activities without specifying the execution details and the service bindings. However, it is a

challenge to refine an abstract process into a concrete executable process for the purpose of adapting to

different business requirements. In order to discover the potential business partners and Web Services, we

propose a profile-based service matching and discovery approach for semi-automatic semantic process

representation that occurs during design time. Specifically, our approach utilizes semantic profiles to specify

the semantic descriptions of process activities. Consequently, our methodology provides substantial

flexibility for abstract process composition while reusing existing processes and services.

1 INTRODUCTION

The service-oriented computing paradigm is

transforming traditional workflow management from

a close, centralized control system into a dynamic

information exchange and business process. In fact,

the complexity involved in the establishment of

business processes necessitates the reuse of similar

processes within organizations. Process reuse

minimizes errors and reduces costs, since a process

can be constructed from other processes already

designed and used by specialists. Therefore, when a

process is well-established, it can be shared by

service designers or developers for the creation of a

similar process.

In order to achieve the reuse of processes,

generic templates are often used to create different

processes for specific cases. For example, WSBPEL

(Web Services for Business Process Execution

Language) (WSBPEL, 2007) uses executable

processes and abstract processes to ensure that

different business processes can understand one

another in a Web Services environment. The abstract

processes are used to describe the order in which

business partners may invoke operations without

specifying the execution details and service

bindings. Moreover, abstract processes allows for

the modelling of common parts and disparate

elements of processes in order to enable their

configuration in specific cases (Tao and Yang,

2007). Therefore, the abstract process allows

designers to create a process template and enables

developers to refine the execution details at a later

stage.

Incorporating the Semantic Web Services

(McIlraith, et al., 2001) with BPM (Business Process

Management) (BPM, 2008) provides a semantically

enriched environment and a set of tools to help

processes respond to the business changes. Some

researchers have tried to combine semantic Web

Services with WSBPEL in order to reap the benefits

of both standards. Liu et al. (2004) present a one-

way mapping from the OWL-S (2004) process

model to WSBPEL for creating composite and

atomic processes. Furthermore, Hepp et al. (2005)

present a semantic business process management

(SBPM) framework and utilizes semantic Web

Services with the existing BPEL processes. More

specifically, Sivashanmugam et al., (2004) partially

define and then annotate a process with semantic

information that may be analyzed at runtime to find

missing data and derive a completely executable

BPEL process.

Although the combination of BPM and the

Semantic Web Services provides significant

potential for business flexibility, there is still

uncertainty in how to synthesize them. In particular,

258

Wang S., A. M. Capretz M. and El Yamany H. (2009).

SEMANTIC PROFILE BASED SERVICE DISCOVERY FOR ABSTRACT PROCESS COMPOSITION.

In Proceedings of the International Conference on e-Business, pages 258-263

DOI: 10.5220/0002236002580263

 SciTePress

there are three major challenges in combining these

features:

1. How to formally represent descriptions of

potential service providers.

2. How to use such descriptions to discover

appropriate service providers.

3. How to integrate discovered services into the

WSBPEL engine.

In this paper, we propose a semantic profile-

based abstract process composition. Specifically, we

use abstract processes, which are independent of the

service description and process definition, to

instantiate an executable process during process

design. Also, in order to dynamically discover the

business partners and Web Services before the

execution, process requirements are represented as

semantic profiles. Specifically, any service that

satisfies the semantic requirements of an activity can

be potentially used to perform that specific activity

in the process. Therefore, the abstract processes can

be refined into concrete executable processes based

on the activity and the associated Web Services

requirements. Finally, our approach works during

design time, where the goals are to reuse the existing

process and reduce the process redesign cost.

The paper is organized as follows: Section 2

presents a case study in the automotive retail

domain. Next, in Section 3, we illustrate our system

architecture, which includes mapping from

WSBPEL to the OWL-S profile, the semantic

representation for adding process profiles to the

WSBPEL extension as well as profile matching and

process refinement. Finally, Section 4 provides a

conclusion and describes future work.

2 A BUSINESS CASE SCENARIO

This section describes a business case scenario in the

automotive retail industry. In this industry, there is

an increasing need for information exchange and

unified service sharing between business partners.

STAR (Standards for Technology in Automotive

Retail) (STAR, 2009) is a non-profit, unionized

organization whose members include dealers,

manufacturers, retail system providers and

automotive-related industrial organizations. The

STAR domain ontology, which is based on STAR

metadata, is formalized in OWL DL and serves as a

source of background knowledge in the automotive

retail business domain.

A DMS (Dealer Management System), created

specifically for vehicle dealers, includes the finance,

sales, parts, inventory and maintenance components

of sales. Moreover, a DMS provides multiple Web

Services interfaces so that it can be integrated with

potential business partners. These Web Services are

composed in a unified manner to provide a

configurable business process for the quoting,

ordering, delivery, and payment of vehicles and

parts.

For example, the parts order process describes

the transactional data exchanged between the DMS

and other service providers. When a dealer receives

a parts order from a customer, he/she searches the

service repository for both parts and delivery

providers, locates the services and initiates an order

process with the Web Services of the factory and

delivery company. However, the customer’s parts

order may be a specific requirement for which the

dealer has to find a factory with the capability of

producing it. Consequently, the factory’s service

interface may not match with the dealer’s service,

necessitating the DMS to generate an alternative

service in order to interoperate with the parts

providers’ services.

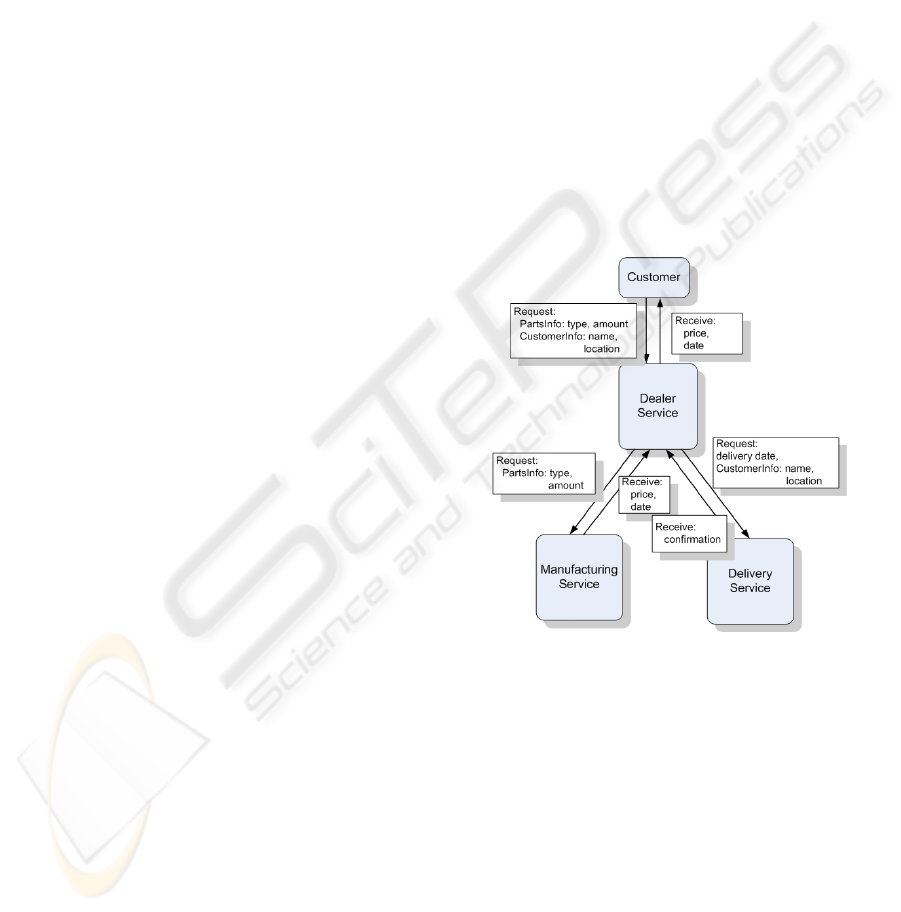

Figure 1: An Example of Parts Order Process.

Figure 1 represents a simple example of an

abstract parts order request process. A car parts

order process is separated into a customer’s order

request, the order and the delivery activities.

Accordingly, the process can be accomplished by

three corresponding Web Services: the Dealer

Service, the Manufacturing Service, and the

Delivery Service. However, without knowing the

manufacture and delivery services in advance, it is

impossible to define an executable WSBPEL

process, since the WSBPEL process has to define

the service participants specified by the port types in

the process definition.

SEMANTIC PROFILE BASED SERVICE DISCOVERY FOR ABSTRACT PROCESS COMPOSITION

259

3 ABSTRACT PROCESS-BASED

SERVICE COMPOSITION

As shown in Figure 2, we are aiming to provide a

profile-based service discovery for abstract process

composition. During business process modelling, the

semantic process profiles, which are compatible with

the OWL-S profile model (OWL-S, 2004), are

defined for the WSBPEL process activities. These

profiles are used to provide semantic descriptions for

activities that do not entail service binding.

Subsequently, the profiles are sent to the

matchmaker to find potential service matches

through the domain ontology and the service

repository. The matchmaker will then return the

candidate service list for further process refinement.

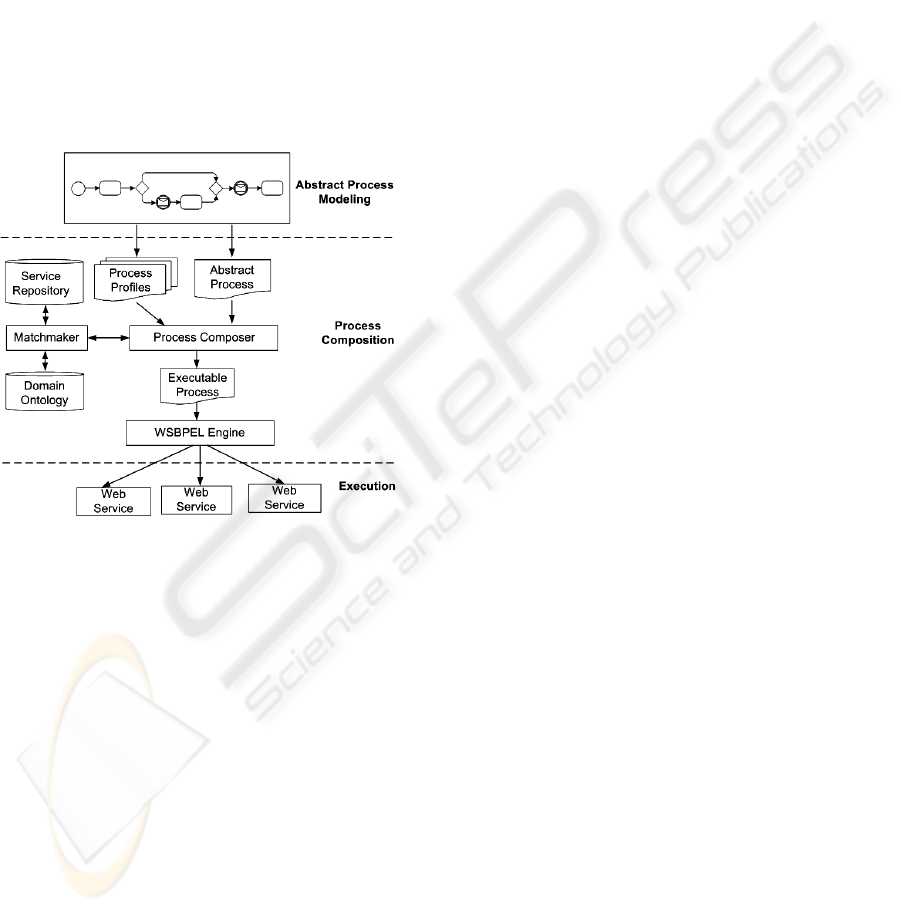

Figure 2: Architecture of the Semantic Profile-Based

Abstract Process Composition.

The approach includes the following steps:

y First, the process designer models abstract

processes for defining the generic activities that

are required by all users regardless of their

various contexts.

y Second, the semantic description of a business

process is defined in the process profiles. These

profiles are based on the mapping from

WSBPEL to the OWL-S profile model as well as

the user-specified domain ontology.

y Next, the process composer will search for the

related service providers in the service repository.

In fact, our profile-based service matching

algorithm uses the domain ontology to expand

the profile and thus increase the mapping

precision and the number of candidate services.

y Finally, the executable WSBPEL process and

Web Services are generated through process

refinement. Specifically, a WSBPEL engine

provides a run-time execution environment for a

process instance.

Currently, we are in the process of developing a

set of components for this procedure. One key

component is the process composer, which plays a

central role in process composition. When a process

requirement originates from the service requester,

the composer retrieves the abstract process template

and its related process profiles from the repository.

Subsequently, the process profiles are sent to the

matchmaker for retrieving the relevant services. As a

result, the outputs of the process composer entail a

concrete process definition that can be executed by

the WSBPEL process engine.

3.1 OWL-S based Profile for Abstract

WSBPEL Process

A semantic process profile provides a semantic

description of the process activities associated with a

Web Service. Specifically, it introduces the IOPE

descriptions, which are equivalent to the details that

the OWL-S profile supplies. Moreover, the semantic

process profile can use a domain specific ontology

as a parameter for describing the concise activity

requirements. In fact, since WSBPEL allows a

process to compose one or more services, an abstract

process may contain one or more profiles; the

activities corresponding to one web service are

bundled as one profile. Consequently, the process

profile specifies the activity requirements which are

used for discovering the potential services in order

to refine an abstract process into a concrete

executable process.

As shown in Table 1, we map the corresponding

WSBPEL variables to the OWL-S profile. The

process profile mapping contains the following

matches:

y The Input/Output variables of Invoke are related

to the Inputs/Outputs of the OWL-S profile.

y The other attributes of Invoke, such as Operation

and partnerLink, can be mapped to the Inputs if

there are only input variables or they can be

mapped to the Outputs if there are only output

variables. Lastly, they can be mapped to both the

Inputs and the Outputs if there are both input and

output variables or if neither variable exists.

y The attributes of Receive, such as Operation and

its related variables, are mapped to the Inputs of

the OWL-S profile.

ICE-B 2009 - International Conference on E-business

260

y The attributes of Reply, such as Operation and its

related variables, are mapped to the Outputs of

the OWL-S profile.

y The <onMessage> attributes of Pick are similar

to a <receive> activity, since both attributes wait

for the receipt of an inbound message.

y The Precondition, Effects, and QoS constraints

can be defined by the user, but they cannot be

automatically transferred from the WSBPEL

process definition to the profile.

y In the process profile, the process name will be

defined as the service name.

Table 1: A Reference Mapping of WSBPEL Activities to

an OWL-S Profile.

WSBPEL OWL-S profile

Input variables of <Invoke> Inputs

Output variables of <Invoke> Outputs

Other attributes of <Invoke>

Inputs or Outputs or Both

Attributes of <Receive>

Inputs

Attributes of <Reply>

Outputs

<onMessage> attributes of

Pick

Inputs

Precondition/Effect

In this mapping, there are four activities in the

WSBPEL process that provide the inputs and

outputs of a process: Invoke, Receive, Reply, and

onMessage of Pick. For each activity, the user can

define one or more attributes in the corresponding

process profile. Moreover, since control structures,

such as sequence, flow, fork, and repeat, as well as

internal activities, such as the fault handler, have no

direct relations with IOPE, we do not provide a

mapping for them. The generation of a process

profile is a semi-automatic procedure, since the

attributes of mapped activities can be automatically

retrieved from the defined WSBPEL abstract

processes. However, the user is responsible for

manually defining the Precondition, Effects and

domain-specific ontology, since there are no direct

definitions in WSBPEL.

3.2 An Example

A WSBPEL abstract process, shown in Figure 3.a,

models the parts order process described in the

scenario. After receiving a customer’s request, the

dealer places the order with the manufacturing

service, using PartsOrder_Request, and receives

back the details through PartsOrder_Receive. Since

the dealer may not have the service information for

the manufacturing, the parnterLink, inputVariable

and Variable are all marked as ##opaque, which

identifies unknown variables in WSBPEL. Similarly,

opaqueActivity is another keyword for unknown

control activity structures. Additionally, the same

process of activities occurs for delivery services.

1. <sequence>

2. <opaqueActivity name="parts order"/>

3. <opaqueActivity name="parts delivery"/>

4. <invoke operation="PartsOrder_Request"

5. partnerLink="##opaque"

6. inputVariable="##opaque"

7. p:profileURI="partsorder_profile"/>

8. <receive operation="PartsOrder_Receive"

9. partnerLink="##opaque"

10. Variable="##opaque"

11. p:profileURI="partsorder_profile"/>

12. <invoke operation="PartsDelivery_Request"

13. partnerLink="##opaque"

14. inputVariable="##opaque"

15. p:profileURI="partsdelivery_profile"/>

16. <receive operation ="PartsDelivery_Receive"

17. partnerLink=" ##opaque"

18. Variable="##opaque"

19. p:profileURI="partsdelivery_profile "/>

20. </sequence>

Figure 3.a: An Example of Abstract Process.

1. <profile:serviceName>

2. PartsOrder</profile:serviceName>

3. <profile:hasInput>

4. <process:Input rdf:ID="#PartsOrder_Request">

5. <process:parameterType>

6. STAR.owl#PartsOrder

7. </process:parameterType>

8. </process:Input>

9. </profile:hasInput>

10. <profile:hasOutput>

11. <process:Output rdf:ID="#PartsOrder_Receive">

12. <process:parameterType>

13. STAR.owl#PartsOrder

14. </process:parameterType>

15. </process:Output>

16. </profile:hasOutput>

Figure 3.b: An Example of a Process Profile.

In our approach, we add the semantic process

profile to the WSBPEL elements for representing the

semantics of a process or an activity. The fragment

of the WSBPEL process, in Figure 3.a, specifies the

profile as p:profileURI. This is used to define the

extension to support the use of process profile.

Further, the activities of the same service use the

same profile. Therefore, the PartsOrder_Request and

PartsOrder_Receive components use the same

SEMANTIC PROFILE BASED SERVICE DISCOVERY FOR ABSTRACT PROCESS COMPOSITION

261

profile, partsorder_profile; whereas

PartsDelivery_Request and PartsDelivery_Receive

use partsdelivery_profile.

As illustrated in Figure 3.b, a process profile is

constructed for the PartsOrder

_Request and

PartsOrder

_Receive activities. The profile, which

service name is PartsOrder, uses the invoke

operation name of PartsOrder

_Request as the input

and PartsOrder_Receive as the output. Moreover, the

STAR.owl#PartsOrder, which specifies the concept

of the STAR ontology, is referred to as

parameterType.

3.3 Profile based Service Matching

The profile based matching that we are proposing is

a semi-automatic approach similar to the OWL-

S/UDDI matchmaking algorithm presented in

Paolucci et al. (2002). OWL-S/UDDI matchmaking

requires service providers to create and register their

service profiles for service searching. However, this

is very rare in actual applications. Most of services

are still registered directly using their service

descriptions instead of OWL-S profiles. Therefore,

in order to support generic service matching, we

propose a profile-based service matching algorithm.

The algorithm firstly expends the profile concepts

using domain ontology and then searches services

with updated profiles. The algorithm can be

summarized in four steps:

Step 1: Profile Extraction. This step includes

extracting the terms defined in the profile. As shown

in Figure 4, these terms are categorized as four sets:

inputV, outputV, preconditionV, and effectV. These

sets correspond to the instances of IOPE, including

the input, the output, the precondition and the effect

of the profile. Each IOPE instance is extracted as a

set, which includes <id, parameterType

, parameter

Type

>, where id is the instance name,

parameterType

represents the ontology name and

parameter Type

is the associated ontology concept.

For example, according to our defined profile in

Figure 3.b, the profile is transformed into an input

and output set; the input set includes

"PartsOrder_Request", "STAR.owl", "PartsOrder">, and

the output set contains <

"PartsOrder_Receive",

"STAR.owl", "PartsOrder">.

Step 2: Profile Expansion. The second step is to

expand the profile by searching relevant concepts in

the domain ontology. For example, for the concepts

"PartsOrder_Request" and "PartsOrder" in the input set,

the search function supported by STAR ontology

match engine is used to find the equivalent concepts

"STAR.owl". Subsequently, new input sets are

constructed according to the discovered concepts,

and these new concepts will be the id of new sets

with parameterTypes from the original set.

Step 3: Profile Reforming. This step involves

reforming the profile using the updated vector sets.

A rewrite function writes the four vector sets as

corresponding IOPE parts. For example, each vector

in the input set will be added as an input instance of

hasInput. Consequently, the new profile can be used

for service matching.

Input:SP //semantic profiles

2. Output:SL //candidate service list

3. Begin:

4. SL = ∅;

5. if ( SP ≠ ∅ ){

6. for(∃p ∈ SP){

7. /*Step1:Profile Extracting*/

8. inputV=p.inputs;

9. outputV=p.outputs;

10. preconditionV=p.preconditions;

11. effectV=p.effects;

12. /*Step2:Profile Expansion*/

13. inputV=inputV∪search(inputV);

14. outputV=outputV∪search(outputV);

15. preconditionV=preconditionV∪

16. search(preconditionV);

17. effectV=effectV∪search(effectV);

18. /*Step3:Profile Reforming*/

19. np=rewrite(inputV,outputV,

20. preconditionV, effectV);

21. /*Step4:Profile Matching*/

22. ServiceSet = match(np);

23. for(∃s ∈ ServiceSet)

24. if ( s ≠ ∅ ){

25. /*Filtering out incompatible

26. results*/

27. if(s==“exact“||s==“plugIn“)

28. SL = SL ∪ s;}

29. }

30. }

31. }

2. End.

Figure 4: Profile Based Service Matching Algorithm.

Step 4: Profile Matching. During profile

matching, the expanded profiles are matched with

the registered Web Services. The result set is then

ranked based on the semantic similarity between the

input concepts of the process profile and the

returned Web Services. Consequently, the algorithm

obtains a result expressing the degree of semantic

similarity. We set the similarity value to four

possible results:

exact, which means that the profile concept

and discovered service concept being compared

are identical,

y plugIn, which indicates that the profile concept

subsumes the registered service concept,

subsumes, which occurs when the registered

service concept subsumes the profile concept

ICE-B 2009 - International Conference on E-business

262

contained in the request, and

fail, which happens when none of the other

relationships occur.

As shown in Figure 4, we consider the results of

exact and plug-in as semantically compatible

with the matching request. Consequently, the results

fail and subsume will be filtered out. The final

result will be one selected service from a list of

compatible Web Services.

3.4 Process Refinement

The objective of process refinement is to refine the

abstract processes and generate the executable

process definition according to the discovered

services. This is a semi-automatic process since

some human decisions are needed to select the

proper services and update the processes, such as

partnerlink, activities, message correlations, and

exception handling. For example, the abstract

activity of parts order, presented in Figure 3.a, will

be refined as follows.

2. <partner name="manufacturer"

3. serviceLinkType="lns:PartsOrderLinkType"

4. partnerRole="manufacturer"/>…

5. </partners>

6. <sequence>

7. <while><assign name="parts order">…</assign>

8. </while>

9. <flow>

10. <invoke operation="PartsOrder_Request"

11. partnerLink="PartsOrder"

12. inputVariable="PartsOrder_Request" />

13. <receive operation="PartsOrder_Receive"

14. partnerLink="PartsOrder"

15. Variable=" PartsOrder_Receive "/>

16. </flow>…

17. </sequence>

Figure 5: A Fragment of the Refined Parts Order Process.

As shown in Figure 5, at first, partner name,

serviceLinkType, and partnerRole are updated.

Then, the concealed activities that organize the

message sent from or to the manufacturer are

replaced by the assigned activities. Next, the invoke

activities sending the requests to the manufacturer

are embedded into a flow activity. Finally, the

keyword opaque is replaced by the concrete

variable.

4 CONCLUSIONS

In this paper, we presented a semantic profile-based

approach for abstract process composition. By

developing semantic profiles for business processes,

we propose a semi-automatic method for

interpreting these processes with substantial

flexibility and exploiting the reusability of existing

processes and services with a minimum amount of

redesign and redevelopment. In our work, the

activities defined in an abstract WSBPEL process

use semantic profiles, which contain IOPE

descriptions of OWL-S compatible profile model for

performing the discovery of services. We are

currently developing the process composition tool to

enable the semantic profile definition, profile based

service discovery, and abstract process refinement.

Future work will also focus on extending the

utilization of the proposed approach by

incorporating business rules.

REFERENCES

BPM, 2008. Business Process Management Initiative,

http:// www.bpmi.org.

Liu, S., Khalaf, R., Curbera, F., 2004. From DAML-S

Process to BPEL4WS, In Proc. of the 14th

International Workshop on Research Issues on Data

Engineering: Web Services for E-Commerce and E-

Government Applications (RIDE’04).

McIlraith, S.A., Son, T.C., Zeng, H., 2001. Semantic web

services, IEEE Intelligent Systems, 16, 46–53.

Hepp, M., Leymann, F., Domingue, J., Wahler, A., Fensel,

D., 2005. Semantic Business Process Management: A

Vision Towards Using Semantic Web services for

Business Process Management, IEEE International

Conference on e-Business Engineering, pp. 535 – 540.

OWL-S, 2004. Web Ontology Language for Web services

http://www.w3.org/Submission /OWL-S/.

Paolucci, M., Kawamura, T., Payne, T.R., Sycara, K.,

2002. Semantic Matching of Web Services

Capabilities, ISWC 2002, LNCS 2342, pp. 333-347.

Sivashanmugam, K., Miller, J., Sheth, A., Verma, K.,

2004-5. Framework for Semantic Web Process

Composition, International Journal of Electronic

Commerce, Vol. 9(2) pp. 71-106.

STAR, 2009. Standards for Technology in Automotive

Retail, http://www.starstandard.org/.

Tao, T. A., Yang, J., 2007. Supporting Differentiated

Services With Configurable Business Processes. In

Proc. of IEEE International Conference on Web

Services (ICWS 2007).

WSBPEL, 2007. Web Services Business Process

Execution Language Version 2.0, http://docs.oasis-

open.org/wsbpel/2.0/OS/wsbpel-v2.0-OS.html.

SEMANTIC PROFILE BASED SERVICE DISCOVERY FOR ABSTRACT PROCESS COMPOSITION

263
