A PSYCHOACOUSTICALLY MOTIVATED SOUND ONSET

DETECTION ALGORITHM FOR POLYPHONIC AUDIO

Balaji Thoshkahna and K.R.Ramakrishnan

Dept of Electrical Engg, Indian Institute of Science, Bangalore, India

Keywords:

Moore’s loudness model, Psychoacoustics, Onset detection, Polyphonic audio.

Abstract:

We propose an algorithm for sound onset detection applying principles of psychoacoustics. A popular model

of loudness perception in human auditory system is used to compute a novelty function that allows for a more

robust detection of onsets. The psychoacoustics paradigm also allows us to deﬁne thresholds for the novelty

function that are both physically and perceptually meaningful and hence easy to manipulate according to the

application. The algorithm performs well with an overall accuracy of detection of 86% for monophonic audio

and 82% for polyphonic audio.

1 INTRODUCTION

A sound onset is a temporal event in an audio when

a new sound enters the auditory scene. Based on

either physical or perceptual properties onsets can

be classiﬁed as physical onsets (when a signiﬁcant

sound is generated by a sound source) or perceptual

onsets (when the onset is perceived). The problem of

detecting an onset is then to identify the time instant

of the sound’s entry in the audio stream.

To accomplish this, a common technique is to convert

the audio to a downsampled mid-level representation

called the detection / novelty function that highlights

the sound onsets as peaks while suppressing steady

state sounds(J.P.Bello et al., 2005). Onset detection

is achieved by picking local peaks in the detection

function. Onsets can also be classiﬁed as hard or soft

depending on the energy in the onset(J.P.Bello et al.,

2005), with hard onsets resulting from large energy

changes over a short time and soft onsets due to small

energy changes. A new onset can be the result of a

sudden change in the total signal energy or a shift in

the signal energy to a different set of frequencies.

To be able to detect an onset on account of either

of the above said reasons, an audio signal is usually

analyzed using a ﬁlterbank. A number of detection

functions are built separately for the subbands and a

joint decision is taken across the subbands to locate

onsets(J.P.Bello et al., 2005; N.Collins, 2005).

An onset is usually accompanied by a sudden change

in the subband signal energy. Using energy within

short time frames of the signal as the detection

function, onset detection can be performed (J.P.Bello

et al., 2005). Amplitude envelope differential too has

been used as a detection function (A.Klapuri, 1999)

in the place of signal energy. But the main problem

with this approach is that ’soft’ onsets are not well

detected by using energy alone(M.Gainza et al.,

2005). A new algorithm(Zhou and J.D.Reiss, 2007)

uses a decision based technique to detect onsets using

a time-frequency analysis tool for determining hard /

soft onsets using either energy or pitch.

To overcome this problem, usually signal phase

based features have been used either alone(J.P.Bello

and M.Sandler, 2003) or in tandem with the energy

feature (J.P.Bello et al., 2004; C.Duxbury et al.,

2003). The phase of the signal changes abruptly at an

onset while it tends to remain relatively stable during

the steady state.

A few newer methods of solving the onset detection

problem include using linear prediction on the signal

(Lee and Kuo, 2006), using comb ﬁlters to ﬁnd the

spectral ﬂux of the signal across frames (M.Gainza

et al., 2005) and non-negative matrix factorization

based method on the magnitude spectrum (W.Wang

et al., 2006). A comprehensive list of onset detection

algorithms and their relative performances can be

Thoshkahna B. and R. Ramakrishnan K. (2009).

A PSYCHOACOUSTICALLY MOTIVATED SOUND ONSET DETECTION ALGORITHM FOR POLYPHONIC AUDIO.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 94-99

DOI: 10.5220/0002238400940099

 SciTePress

found in (N.Collins, 2005; J.P.Bello et al., 2005;

S.Dixon, 2006).

One of the main disadvantages of the above men-

tioned techniques is the need to set thresholds at

many stages in the algorithm especially during the

peak picking stage and the need to jointly optimize

these thresholds for best performance. Most of the

times these thresholds are empirically selected for

speciﬁc databases or audio (like wind instruments or

percussion) . These thresholds do not always seem

to have a perceptual correspondence to the audio.(

Ex: Using α times the median energy as a thresh-

old(C.Duxbury et al., 2003) doesn’t always imply

that the onsets selected are perceptually relevant.

Also α is a constant that is empirically selected for a

particular class of audio.).

We propose a psychoacoustically motivated onset

detector that is a modiﬁcation of our previous onset

detector(Thoshkahna and K.R.Ramakrishnan, 2008)

that picks perceptually relevant onsets. The algorithm

performs a normalization on every audio so that the

thresholds set remain the same for any input audio.

Our thresholding schemes have a strong physical

correlation to the signal. We compare our system

to a previous onset detection system by Klapuri

(A.Klapuri, 1999) and show that we improve on his

method.

The paper is organized as follows. Section 2 outlines

our method along with the model of loudness used

in this work. We discuss the differences between our

method and Klapuri’s method in section 3. Experi-

ments to show the performance of the proposed algo-

rithm are detailed in section 4.

2 LOUDNESS MODEL BASED

ONSET DETECTION

ALGORITHM

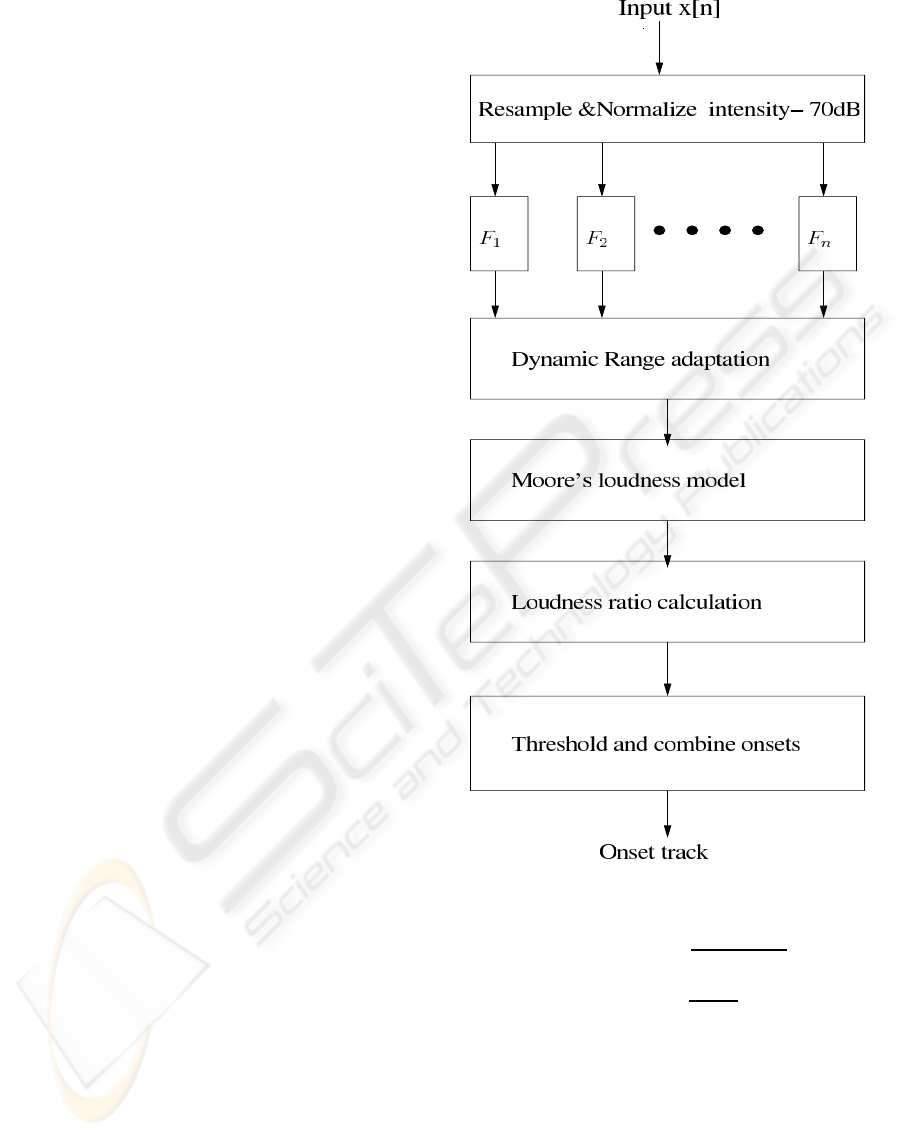

A block diagram of our system is shown in Fig.1 and

we explain each of the blocks in detail below.

2.1 Normalization of Input Audio

This ﬁrst step takes care of various recording and sam-

pling conditions. All audio are resampled to 16kHz

and their rms(root mean squared) SPL( sound pres-

sure level) scaled to 70dB to simulate a comfortable

hearing level among humans(A.Klapuri, 1999). We

have,

Figure 1: Onset detector.

rms

= 20∗ log

∑

N−1

x[i]

N ∗ 0.00002

(1)

norm

= 10

70−X

rms

(2)

′

[n] = A

norm

.x[n] (3)

where X

rms

is the rms of the signal x, and A

norm

is the

normalization factor used to scale the audio and N is

the number of samples in the signal.

A PSYCHOACOUSTICALLY MOTIVATED SOUND ONSET DETECTION ALGORITHM FOR POLYPHONIC

AUDIO

2.2 ERB (Equivalent Rectangular

Bandwidth) Filterbank

We follow a frame based processing to allow for the

dynamic nature of hum signals. The normalized au-

dio is split into frames of 30ms with an overlap of

10ms to ensure a smooth variation in signal charac-

teristics. This signal is passed through an ERB ﬁl-

terbank stretching from 50Hz to 8kHz. There are

126 uniform 0.25 ERB apart ﬁlters in the ERB scale

in the frequency range of interest. Signal rectiﬁca-

tion and energy integration within the 30ms window

is performed to simulate the workings of the inner

ear(B.C.J.Moore et al., 1997). Each frame of audio

now has 126 excitation energy features that are fed to

the range adaptation block that simulates a time local-

ized dynamic range adaptation.

2.3 Dynamic Range Adaptation

A large window of 5 secs is chosen to adjust the

dynamic range of hearing. Within each 5 second

window there are 2500 frames of audio. Each frame

of audio has 126 bins called the T-F bin. To simulate

the dynamic range adaptation, we choose the T-F

bin that has the maximum energy over a 5s window.

Even though humans have a huge dynamic range

of over 100dB, the dynamic range within the 5

second window is restricted to 35dB, by choosing the

maximum energy bin and neglecting all audio bins

below 35dB of this. This enables us to neglect low

energy bins that may experience a substantial change

in partial loudness but would be inconsequential for

the total loudness that is ﬁnally perceived(See .2.4

for details).

Furthermore, for each frame in this 5s window, we

choose a maximum T-F bin and retain only those

T-F bins whose energies are within 25dB of this

maximum and make the rest of the T-F bin energies

zero. This step has the effect of neglecting low

energy sub-bands from contributing to the actual

onset detection process. We clarify this step with

an example. Let us say sub-band j of frame i has a

loudness of 0.05 sones, while the maximum loudness

in frame i is 1 sone contributed by sub-band k. Let,

for frame i + 1 the loudness in sub-bands j and k

are 0.1 and 1.5 respectively. Then, as explained in

Sec.2.5, unless we weigh the sub-bands or even if

we take relative changes, the loudness change in

sub-band j is more signiﬁcant than that in sub-band

k. But it is obvious that sub-band k contributes more

than sub-band j to the total loudness at frame i and

hence is more appropriate to consider the changes

occurring there.

This dynamic range adaptation gives us around 7%

improvement in onset detection for polyphonic au-

dio over a previous version of the same algo-

rithm(Thoshkahnaand K.R.Ramakrishnan, 2008) and

hence this step was retained even though the ear does

not display such a short term adaptation phenomenon

that we know of. The empirical values of 35dB and

25dB were arrived at after testing on a variety of au-

dio. This modiﬁed audio signal is used as the ex-

citation signal to the loudness model(B.Moore and

B.Glasberg, 1983). We use the model of loudness

for human auditory system proposed by Moore et

al(B.C.J.Moore et al., 1997) to detect onsets in poly-

phonic audio.

2.4 Moore’s Model of Loudness

We have used the modiﬁcations done by Timoney et

al (J.Timoney et al., 2004) to the Moore’s loudness

model with certain changes as explained below. The

equation to compute loudness within each subband is

as follows;

(k) = C.(E

sig

(i, k)

− E

(i)

) (4)

where L

(k) is the partial loudness in the i

sub-

band of the ERB ﬁlterbank for the k

frame, E

sig

(i, k)

is the excitation of the i

subband of the k

frame

and E

(i) is the excitation due to the threshold of

hearing at the i

subband. We get the E

(i) by pass-

ing pure sinusoids ( of rms MAF ( Minimum Audible

Field ) values at the ﬁlter centres ) through the ERB

ﬁlterbank. The constant α does the audibility range

compression that occurs in the human auditory sys-

tem and has a value of 0.093 and the constant C is

used to calibrate the model and has a value of 0.583.

Calibration involved the same procedure provided in

(J.Timoney et al., 2004), except that the model is

adapted to our requirements of a higher sampling rate

and lower ERB ﬁlter distance. The model ﬁnally pro-

vides the loudness in sones and positive values ( i.e

only L

> 0) from each subband is weighed by the

ERB distance and added to provide the total loudness

of the frame.

2.5 Using the Loudness Lodel for Onset

Detection

As noted in section.1, the output loudness of each sub-

band is used to ﬁnd the potential onsets. Since the

loudness in each subband is speciﬁed in sones, an on-

set will be seen as a sudden change in the partial loud-

ness. Thus we ﬁnd the increase in subband loudness

SIGMAP 2009 - International Conference on Signal Processing and Multimedia Applications

from (k− 1)

frame to the k

as our detection func-

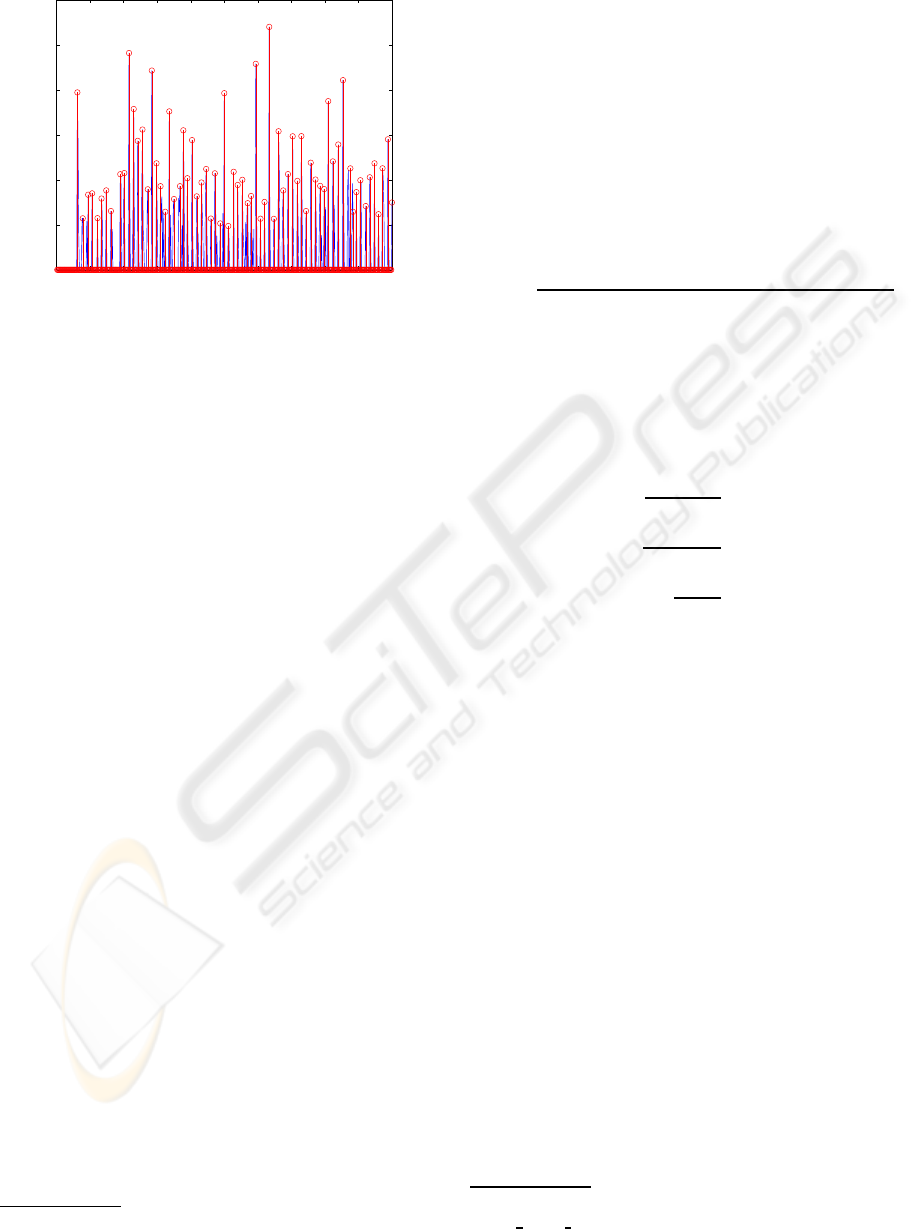

tion SLR

for the i

subband as shown in Fig.2.

SLR

(k) =

(k)

(k− 1)

(5)

SLR

(k) > Thr

loud

(6)

We now choose a suitable threshold (a threshold of

Thr

loud

= 1.25 i.e the current frame is 1.25 times

louder than the previous frame which indicates an on-

set in the current frame) to search for potential onsets.

Only frames k that satisfy the threshold condition are

retained and grouped as potential onsets. A second

thresholding method is implemented to eliminate the

modulation effects that might be present only in cer-

tain subbands. This is done by summing the detection

function across the subbands as follows;

onset

(k) =

126

∑

i=1

SLR

(k) (7)

filt

(k) >= Thr

filt

(8)

onset

(k) > Thr

final

(9)

We now consider an onset to have occurred only

if F

onset

has signiﬁcant contributions from multiple

subbands ( meaning that the sound onset is simul-

taneously occurring at different frequencies- like

say a new note on a violin). A signiﬁcant loudness

change in atleast 15 subbands is used as the threshold

for this step. Monophonic sounds have sufﬁcient

spectral disturbance when a new sound is generated.

We found that generally 3 or 4 1-ERB separated

subbands experience spectral changes during an

onset. Thus, Thr

filt

= 15 subbands are chosen to

be the threshold ( since the ﬁlters have a heavy

frequency overlap, 3-4 1ERB ﬁlters span the same

frequency range as 12-16 0.25 ERB ﬁlters). We now

have a modiﬁed detection function from which we

choose only those peaks that have a value greater

than Thr

final

= 24 ( We desire an effective doubling

of loudness in atleast 12 subbands. This 12 is the

lower limit on the number of subbands that would

experience a signiﬁcant loudness change, as noted in

the previous statement). Using the F

onset

as our new

detection function we now retain only those frames

which satisfy the threshold given in Eqn(10) as the

onset locations (Fig.3). Onsets lying within 50msecs

of each other are grouped and represented by the

onset with the highest loudness as shown in Fig.4.

This ﬁnal set of onsets are declared as the output

onsets for the audio.

The only thresholds that need to be set are Thr

loud

Thr

filt

and Thr

final

. Thr

loud

denotes how strong an

onset we wish to choose, while Thr

filt

describes the

0 50 100 150 200 250 300 350 400 450 500

Subband Loudness Ratio function

SLR value

Frame number

Figure 2: Detection function S

, superimposed for all the

126 bands.

0 50 100 150 200 250 300 350 400 450 500

100

150

200

250

300

Frame number

Detection function value

Detection function

Threshold

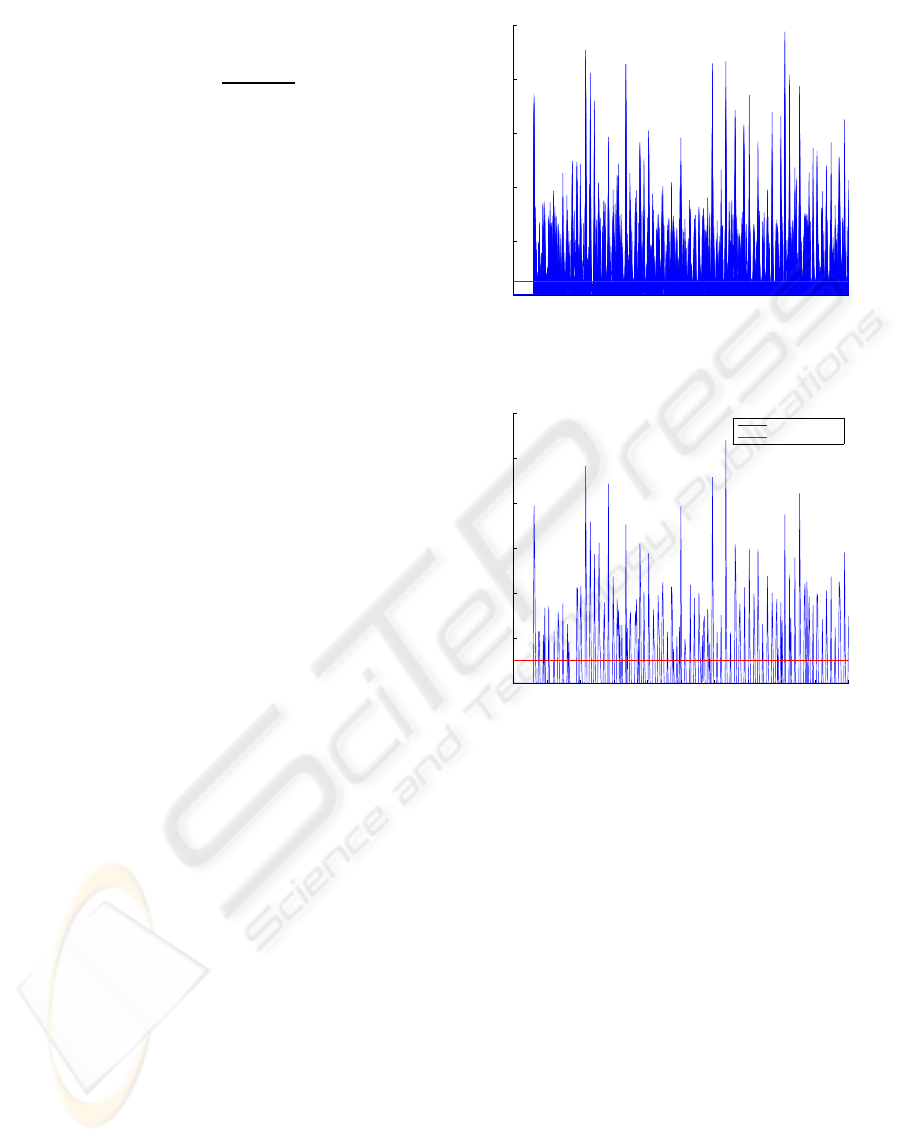

Figure 3: Detection function F

onset

-the threshold is also

shown.

spectral spread of the onset generating source ( fre-

quency localized sounds/musical instruments need to

have a lower Thr

filt

to be detected while the con-

verse is true of texture rich instruments ).Similarly

the Thr

final

indicates what total loudness change we

wish to detect and is an indicator for the spectral dis-

turbance that occurs during sound / note onsets. A

higher value indicates that timbre rich onsets only are

detected while a lower value indicates even relatively

shallow sounds/ musical instruments can be detected.

3 DIFFERENCES WITH

KLAPURI’S WORK

Klapuri (A.Klapuri, 1999) proposed an onset detec-

tor based on psychoacoustics that used the amplitude

envelope difference function as the excitation input

to the loudness model. Since the loudness model is

A PSYCHOACOUSTICALLY MOTIVATED SOUND ONSET DETECTION ALGORITHM FOR POLYPHONIC

AUDIO

0 50 100 150 200 250 300 350 400 450 500

100

150

200

250

300

Final detection function

Frame number

Detection function value

Figure 4: Final onset locations marked by circles.

non-linear, it’s response to the envelope difference

function will not be the same as the difference of

the response to the envelope function. Thus the on-

set detection is not proportional to the actual onset

strength but only indicative of it. Another reason for

the above method to be only indicative of Moore’s

model is because the ear perceives sounds indepen-

dently without any of the pre-processing that is as-

sumed in (A.Klapuri, 1999) i.e the differencing oper-

ation on the envelope.

We did a few empirical simulations comparing both

Klapuri’s implementation and our method and found

that Klapuri’s method does not pick soft onsets that

well compared to our method in audio like Indian

classical music while our system seems to be con-

fused if there are moderate to heavy modulations in

a certain number of subbands.

4 EXPERIMENTS AND RESULTS

A database of recordings of various solo instruments

and polyphonic audio clips from CD recordings

was collected. We use a total of 18 monophonic

clips belonging to 6 classes of instruments, each of

length 10 seconds and 15 polyphonic clips of various

genres(ﬁlm, pop, rock and Indian classical), each

of length 5 seconds to evaluate our algorithm. The

database has a total of 954 onsets, with an average of

33.4 onsets in each monophonic clip and 23.5 onsets

in each polyphonic clip. We have 33 audio ﬁles with

a total of 4.25 minutes of audio. Each of the database

audio clip was manually annotated using Praat

for

close analysis, after repeated listening by an amateur

musician using the gating technique(D.J.Hermes,

http://www.fon.hum.uva.nl/praat/

1990). The annotation was done independently three

times and only those onsets annotated atleast twice

were taken as true onsets.

For polyphonic audio, we changed the Thr

final

to 75

with the assumption that atleast 3 instruments would

be simultaneously active at any onset location, thus

leading to a three fold increase in the threshold ( The

remaining thresholds were unchanged).

The accuracy of the algorithm was calculated as fol-

lows(A.Klapuri, 1999);

Accu =

CorrectDetection(CD) − FalsePositive(FP)

ActualOnsets(AO))

(10)

To compare the performance of our algorithm with

standard procedures followed in the popular MIREX

competition

we also calculated the Precision ( P ),

Recall ( R ) and F- measure ( F ), with CD ( Correct

Detection ), FP ( False Positive ) and FN ( False Neg-

ative ) values as follows;

P =

CD+ FP

(11)

R =

CD+ FN

(12)

F =

2PR

P+ R

(13)

Results are tabulated in Table.1 and Table.2 for each

instrument class followed by overall performance for

monophonic and polyphonic clips.

On both the set of monophonic instrument clips and

polyphonic instrument clips the algorithm gave an ac-

curacy of 86.2% and 81.9% respectively..On wind

instruments like the ﬂute that can have very ’soft’

onsets and quite a lot of subband modulations, the

accuracies were very low for certain audio pieces (

around 50%) but on most other instruments the ac-

curacies were above 90%. We achieved an average

P = 0.95, R = 0.91 and F = 0.93 for monophonic au-

dio and P = 0.89, R = 0.94 and F = 0.91 for poly-

phonic audio. These results better that of MIREX-

07 onset detection competition

. Our algorithm still

needs exhaustive testing since our database has only

4.25 minutes of total audio as against the 14 minutes

of MIREX-07 data.

5 CONCLUSIONS

In this paper we have presented a simple algorithm

using psychoacoustics to detect perceptually relevant

http://www.music-ir.org/mirex/2007/index.php/

Audio Onset Detection

SIGMAP 2009 - International Conference on Signal Processing and Multimedia Applications

Table 1: Accuracy of the onset detection algorithm.

Instrument class A.O CD FN FP Accu

WoodWind 80 64 16 3 76.25

BrassWind 52 47 5 2 86.45

Bowed String 134 117 17 0 87.31

Keyboard/Struck 141 136 5 7 91.94

Reedwind 96 82 14 4 81.25

Plucked String 99 99 0 10 89.9

Monophonic 602 545 57 26 86.21

Polyphonic 352 331 20 43 81.82

Table 2: P,R and F-measure of the onset detection algo-

rithm.

Instrument class P R F

WoodWind 0.96 0.81 0.88

BrassWind 0.96 0.9 0.93

Bowed String 1 0.87 0.93

Keyboard/Struck 0.95 0.96 0.96

Reedwind 0.95 0.85 0.9

Plucked String 0.91 1 0.95

Monophonic 0.95 0.91 0.93

Polyphonic 0.89 0.94 0.91

onsets in polyphonic audio. The same algorithm has

been modiﬁed to ﬁnd offsets as well. This can be

used for the source separation problem in harmonic

mixtures of music. We have shown here that the al-

gorithm has a very good performance on a range of

instruments and music genres and hence is applicable

for the purpose of onset detection in a general sce-

nario. The algorithm has been modiﬁed to detect on-

sets in free singing for Query by Humming(QBH) ap-

plications and for percussion detection in polyphonic

audio.

REFERENCES

A.Klapuri (1999). Sound onset detection by applying psy-

choacoustic knowledge. IEEE Conference on Au-

dio,Speech and Signal Processing (ICASSP).

B.C.J.Moore, B.Glasberg, and T.Baer (1997). A model

for the prediction of thresholds,loudness and par-

tial loudness. Journal of Audio Engineering Soci-

ety(JAES),Vol.45,No.4.

B.Moore and B.Glasberg (1983). Suggested formulae for

calculating auditory-ﬁlter bandwidths and excitation

patterns. Journal of the Acoustical Society of Amer-

ica(JASA),Vol.74,No.3.

C.Duxbury, J.P.Bello, M.Davies, and M.Sandler (2003).

Complex domain onset detection for musical sig-

nals. International Conference on Digital Audio Ef-

fects(DAFx).

D.J.Hermes (1990). Vowel onset detection. Journal of the

Acoustical Society of America(JASA),Vol.87,No.2.

J.P.Bello, C.Duxbury, M.Davies, and M.Sandler (2004). On

the use of phase and energy for musical onset detec-

tion in the complex domain. IEEE Signal Processing

Letters,Vol.11,No.6.

J.P.Bello, L.Daudet, S.Abdallah, C.Duxbury, M.Davies, and

M.B.Sandler (2005). A tutorial on onset detection in

music signals. IEEE Transactions on Speech and Au-

dio Processing, Vol.13(No.5).

J.P.Bello and M.Sandler (2003). Phase based note onset

detection for music signals. IEEE Workshop on Ap-

plications of Signal Processing to Audio and Acous-

tics(WASPAA).

J.Timoney, T.Lysaght, M.Schoenwiesner, and L.McManus

(2004). Implementing loudness models in mat-

lab. International Conference on Digital Audio Ef-

fects(DAFx).

Lee, W.-C. and Kuo, C. (2006). Improved linear pre-

diction technique for musical onset detection. In-

telligent Information Hiding and Multimedia Signal

Processing(IIH-MSP).

M.Gainza, E.Coyle, and B.Lawlor (2005). Onset detection

using comb ﬁlters. IEEE Workshop on Applications of

Signal Processing to Audio and Acoustics(WASPAA).

N.Collins (2005). A comparison of sound onset detection

algorithms with emphasis on psychoacoustically mo-

tivated detection functions. Proceedings of Audio En-

gineering Society Convention.

S.Dixon (2006). Onset detection revisited. International

Conference on Digital Audio Effects(DAFx).

Thoshkahna, B. and K.R.Ramakrishnan (2008). A psy-

choacoustics based sound onset detection algorithm

for polyphonic audio. International Conference on

Signal Processing(ICSP).

W.Wang, Y.Luo, J.A.Chambers, and S.Sanei (2006). Non-

negative matrix factorization for note onset detection

of audio signals. IEEE International Workshop on

Machine Learning for Signal Processing(WMLSP).

Zhou, R. and J.D.Reiss (2007). Music onset detec-

tion combining energy based and pitch based ap-

proaches. Music Information Retrieval Evaluation eX-

change(MIREX).

A PSYCHOACOUSTICALLY MOTIVATED SOUND ONSET DETECTION ALGORITHM FOR POLYPHONIC

AUDIO
