TOWARDS UNIFIED SERVICE HOSTING

Josef Spillner, Iris Braun and Alexander Schill

Computer Networks, TU Dresden, N

othnitzer Str. 46, Dresden, Germany

Keywords:

SOA, Service provisioning, Heterogeneity.

Abstract:

Service-oriented computing is increasingly assuming an important role in the research on distributed sys-

tems and software engineering. It has also reached application and service hosters by now who need to be

able to host off-the-shelf services as well as custom services. Thus, they are faced with a variety of service

descriptions, service package formats and runtime demands. Each service technology usually requires a sep-

arate execution platform which eventually leads to a high complexity for the administration and management

of services. Similar to the uniﬁcation of invocation of web services through protocol adapters, it is clearly

needed to unify management aspects like monitoring and adaptation of services. We therefore propose an

abstraction, a formalisation and a uniﬁcation layer for hosting environments with the intent to pave the way

for technology-agnostic, uniﬁed service hosting.

1 INTRODUCTION

Software applications can run either locally on a

user’s computer or remotely on a server. Histori-

cally, each remote application required its own pro-

tocol with binary or text-based data transmission.

More recently, the use of extensible protocol formats

like XML or JSON with a predeﬁned structure and

application-speciﬁc content has become popular es-

pecially in web-centric environments. In combination

with a discoverable uniform interface, such applica-

tions are now known as web services.

Legacy software is often made accessible through

the web for interaction with users, or as a web service

for programmatic access. Such additions are known

as application service provisioning (ASP) and lately

as software as a service (SaaS). Despite this evolution

of interface additions, the server-side installation pro-

cedure and consecutive service management has not

become easier. To date, there are no uniform inter-

faces available for managing heterogeneous services,

essentially preventing the consideration of services as

distributable entities.

On the other hand, a growing number of service

offerings is being created with an internet of services

(Petrie, 2007) in mind. Easy installation, often just

consisting of hot-deploying a self-containing service

archive, and registration at a web service directory

are among the characteristics of such services (Win-

kler, 2008). Due to the popularity of this develop-

ment model, various different service execution tech-

niques and programming languages as well as pack-

aging formats for service deployment have been cre-

ated and are widely used. Additionally, the runtime

environments for such services range from operating-

system level execution to highly sophisticated con-

tainers, execution engines and middleware infrastruc-

tures. In spite of the differences, they all provide a

managing container for the deployed services. This

assumption contrasts with recent research ideas for

distributed, self-managed hosting (Harrison and Tay-

lor, 2005) without containers, which is not widely

used yet. We therefore refer to the individual mid-

dleware implementations of hosting environments for

service execution and management as containers.

For service providers, this variety makes it difﬁ-

cult to offer the same level of hosting support and

availability guarantees for any service. Even basic

management tasks like retrieving a list of available

services and service instances is not easily possible

with today’s systems. A uniﬁcation of the contain-

ers into a Uniﬁed Hosting Environment (UHE) is thus

needed. In this paper, we propose such a uniﬁcation

and will show how heterogeneous service hosting in

the internet of services becomes possible without ex-

cluding the existing service development community.

Our contributions herein are threefold: First, we

explain how to assess containers at an abstract level

Spillner J., Braun I. and Schill A. (2009).

TOWARDS UNIFIED SERVICE HOSTING.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 31-36

DOI: 10.5220/0002238700310036

 SciTePress

by focusing on the most important service hosting and

management aspects. Second, we propose a formal

notation in UML based on these abstractions. Third,

we outline the concept of a UHE using this notation

and well-known software design patterns.

2 RELATED WORK

Background information on the challenges of intro-

ducing new network-level and application-level ser-

vices into existing infrastructures is given in (Vil-

lanueva and Touch, 2000). Both deployment and

management, reﬁned by us to cover monitoring and

adaptation, has thus already been known to raise is-

sues for about a decade.

A common issue with new technologies like SOA

is the lack of widespread methodologies. The main

contributing factors to this issue are heterogeneous

stakeholders, programming languages, protocols, in-

terfaces and implementation frameworks. The OASIS

Framework for Web Service Implementation (FWSI)

has been designed and extended to cover the require-

ments analysis, development and testing of services,

but the subsequent phases of deployment and opera-

tion are not yet covered (Lee et al., 2006). The gap is

shown in ﬁgure 1.

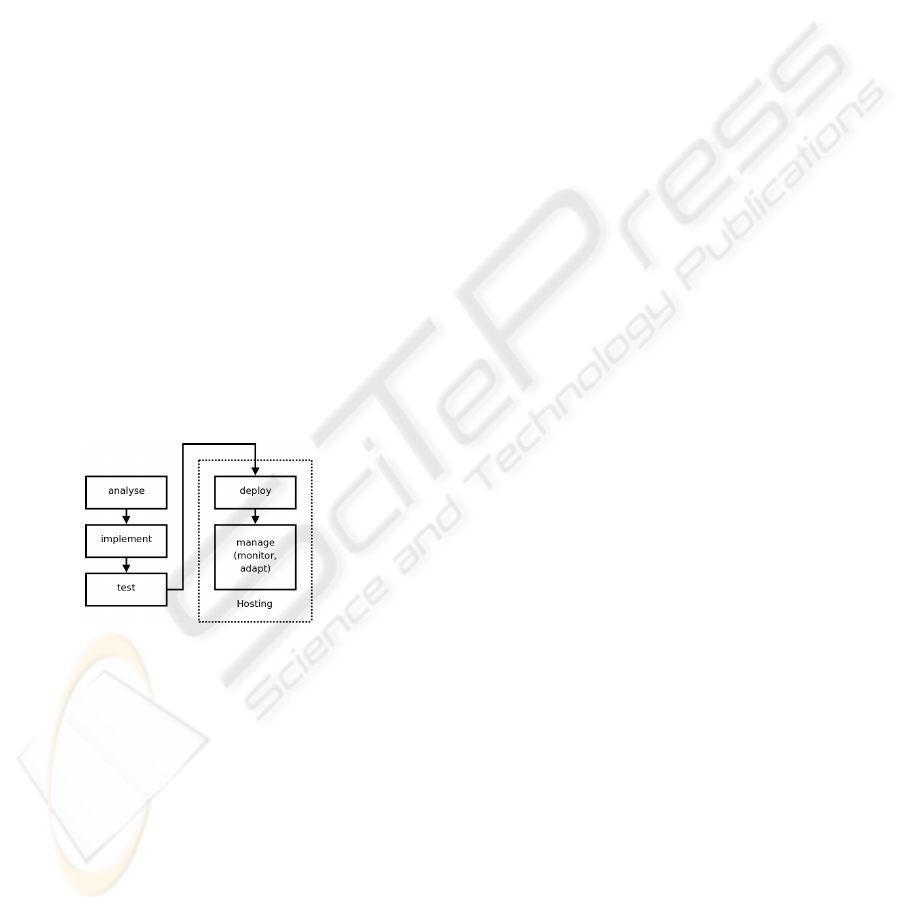

Figure 1: Typical service hosting lifecycle.

An approach to ﬁll the gap is the Service Grid In-

frastructure (SGI) (B

ome and Saar, 2005). Its pur-

pose is the deployment and execution of heteroge-

neous services under a number of requirements: dy-

namic deployment, stateful services and considera-

tion of non-functional properties. By restricting the

service implementation technology to OSGi and EJB,

the approach fails to take advantage of its otherwise

sound decoupled management and execution of state-

ful services in a grid context. On the management

layer, it offers uniﬁed access to monitoring data, but

no uniﬁed adaptation interface. Despite an extension

to .NET services later on (Tr

oger et al., 2007), to-

day’s needs for dynamic service hosting range from

small CGI scripts and BPEL ﬁles to complex, pre-

conﬁgured virtual machines and corresponding SOA-

aware management interfaces.

The Service Component Architecture (SCA) is an

approach for uniﬁcation of development and deploy-

ment of services. It wraps each service into a uniform

component and deﬁnes dependencies between those

(Kr

amer, 2008). However, there are several shortcom-

ings with SCA regarding uniﬁed hosting. It requires

the presence of the wrapper as part of the distributed

service package. Furthermore, while a conﬁguration

interface is available, it does not cover dynamic re-

conﬁguration at run-time. The omission of this capa-

bility leads to restrictions on adaptation mechanisms.

Other dynamic aspects like switching connection pro-

tocols are supported, though. Therefore, we will not

base our proposal on SCA but rather treat SCA as yet

another concrete container in which SCA-compliant

packages can be deployed.

Based on the evaluation of existing works, we for-

malise uniﬁed service hosting and propose a more

complete and more suitable system which honours na-

tive service packages and hence doesn’t require de-

velopers to learn additional technologies. Our pro-

posal maintains a separation of concerns between ac-

cess to services from clients and their management

from hosting agents.

3 ABSTRACTION OF

CONTAINERS

The abstract notation of containers shall be derived

from a comparison of their commonalities. The va-

riety of containers makes it hard to compare all of

them. We selected typical representatives with a suf-

ﬁciently high popularity in real-world deployments.

This includes Java servlet containers, OSGi service

platforms, conventional web servers for web appli-

cations, operating systems implementing the Linux

Standard Base (LSB) service interface, BPEL engines

and virtualised machines. Most of them expect ser-

vices to be deployed in a format not understood by

the other ones, and they also differ in their implemen-

tation languages, execution models and management

interfaces. Table 1 shows a number of containers, im-

plementations thereof and the accepted package for-

mats for service deployment. For each package type,

repositories are listed if they exist and are commonly

used.

The capabilities of service packages differ widely.

Automatic and semi-automatic functional testing, for

example, requires a formal syntactical description of

the service interface. In the case of BPEL archives,

the corresponding WSDL ﬁles are generally included,

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

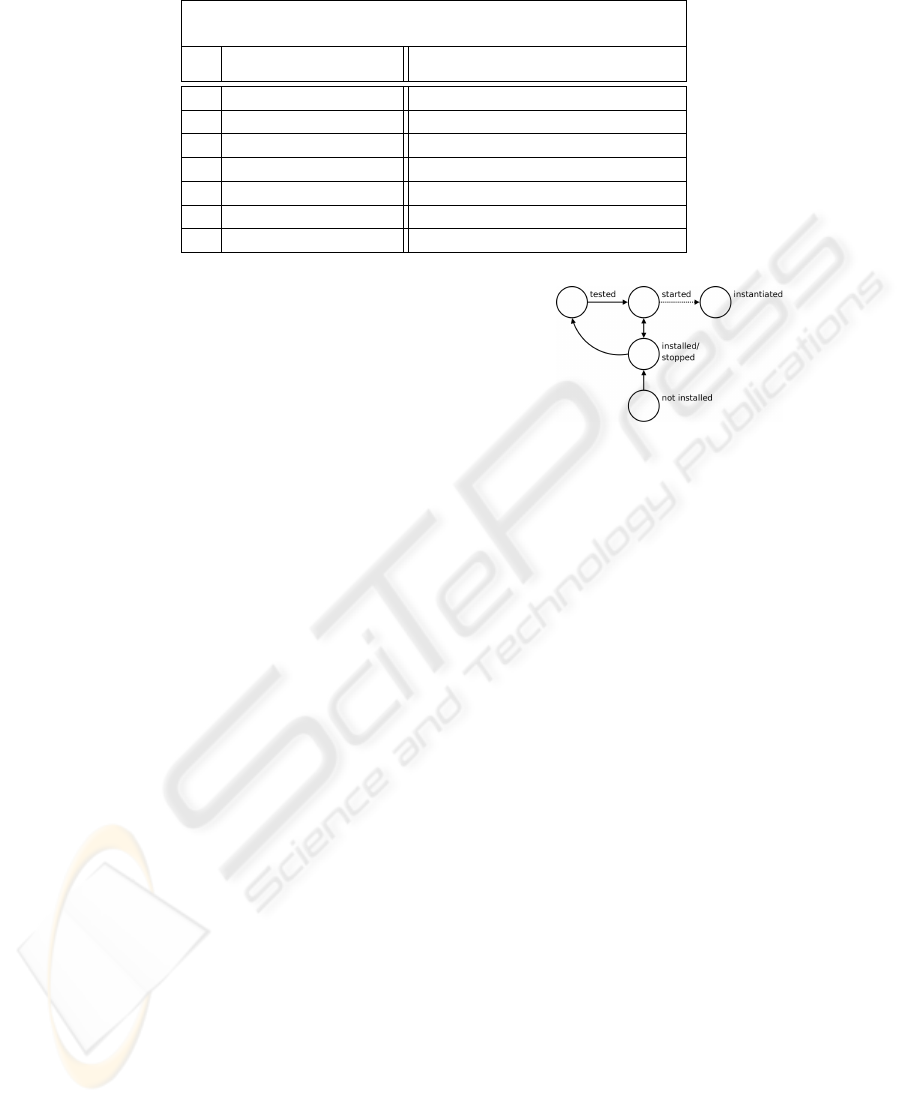

Table 1: Overview on service containers.

Container Overview

Container Implementations Deployment Repository

1. OSGi Knopﬂerﬁsh, Equinox bundle, PAR OBR

2. Servlet Jetty, Tomcat servlet none

3. Web server Apache, thttpd LSB package Debian

4. OS Linux

5. BPEL engine ActiveBPEL, ODE BPEL archive none

6. SCA runtime Tuscany, Fabric3 SCA composite none

7. VM Eucalyptus Cloud Disk image none

1) OSGi Bundle Repository, http://www.osgi.org/Repository/HomePage

2) Debian Package Search, http://www.debian.org/distrib/packages

whereas LSB packages don’t contain such descrip-

tions in most cases. A study conducted by us found

that among more than 24,000 packages of the Debian

GNU/Linux distribution, 7,121 are registered as be-

ing applications and 267 as being network services.

These numbers are likely higher in reality since the

process of categorising the packages is ongoing. Yet,

despite many of the service packages offering RPC,

XML-RPC, SOAP or REST interfaces, only a total of

two packages (Sympa and phpWiki) ship with WSDL

descriptions.

More differences can be found in the runtime fea-

tures of the containers. Some allow for a dynamic ex-

ternal reconﬁguration or multiple instantiation, while

others don’t, as can be seen in table 2.

There is clearly a need to unify the access to such

containers so that service hosters can cope with the

heterogeneity imposed by the preferences of service

developers.

4 A FORMAL NOTATION FOR

CONTAINERS

Considering the variety of properties even of abstract

views on containers, a symbolic expression will not

be able to capture all aspects. On the other hand, ex-

tensible and machine-readable notations are hard to

understand by humans and are unable to selectively

focus on important details. Therefore, we use an

UML notation to express a common model for ser-

vice containers. An excerpt is shown in ﬁgure 2. The

model refers to a single container which can deploy

any number of packages. Each package contains n

services which are each described by m formal ser-

vice descriptions and l endpoints. For each service

srv

each invocation yields an instance inst

il j

. By ex-

tension, the invocation properties can be guaranteed

with contracts sla

for each client for any service. We

will however leave discussion of handling contracts

out of this paper for brevity.

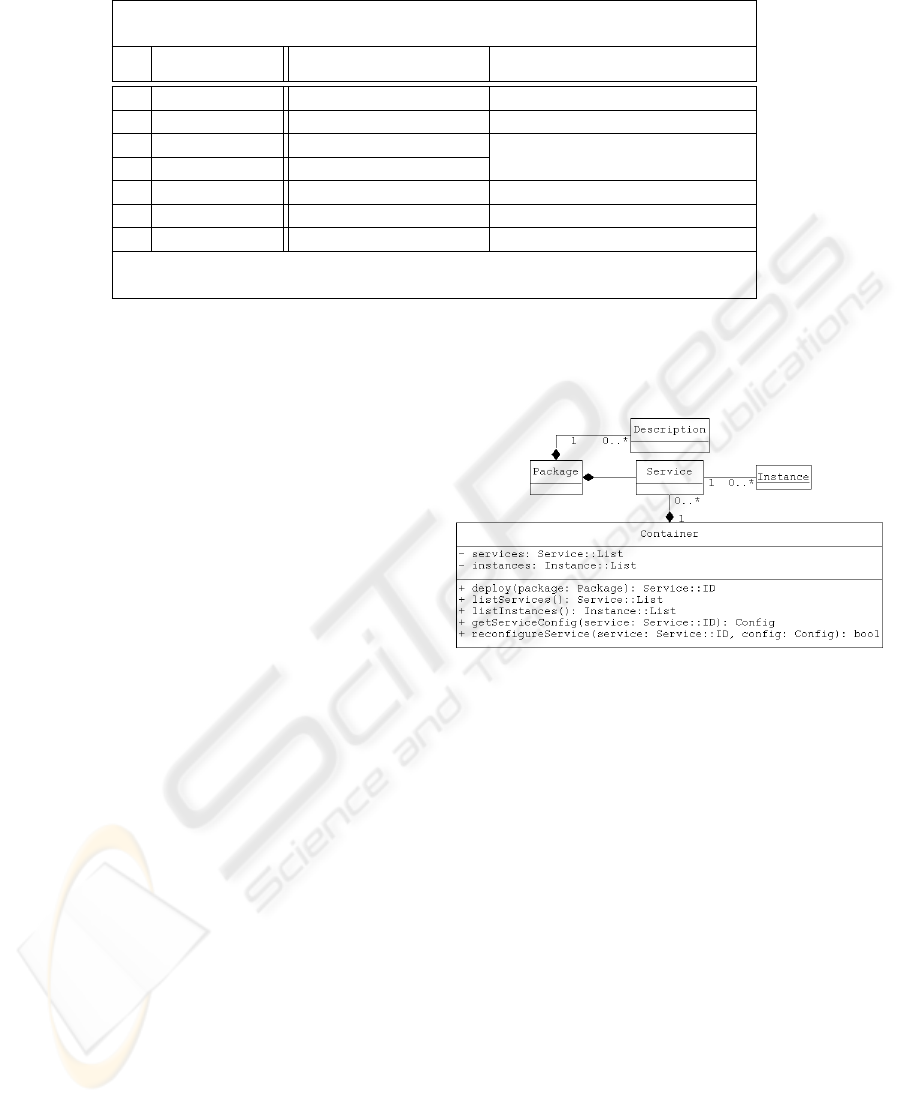

Figure 2: Formal notation of service containers.

Today’s package formats support this model only

to a certain degree. For example, the description

and endpoint of a servlet-based service cannot be in-

ferred from the servlet metadata automatically. In-

stead, heuristics need to be applied to ﬁnd the cor-

rect information inside the package. OSGi-based and

LSB services already provide rich metadata, includ-

ing the licence which is important for the considera-

tion of service migration. Still, the packaging formats

could be improved to cover the needs of dynamically

deployable services.

5 A UNIFIED HOSTING

ENVIRONMENT

Based on the abstract notation of containers, a collec-

tion of a number of them uniﬁed behind a delegating

proxy yields a more powerful environment capable of

handling more kinds of services.

For the deployment, a package containing the ser-

vice is routed to the respective container. For exam-

TOWARDS UNIFIED SERVICE HOSTING

Table 2: Dynamic aspects in service containers.

Container Dynamics

Container Conﬁguration Reconﬁguration Instantiation

1. OSGi manifest ﬁle messages singleton

2. Servlet web.xml servlet reload per call

3. Web server /etc conﬁg server reload per call

4. OS /etc conﬁg SIGHUP per call

5. BPEL engine none none per call

6. SCA runtime properties none various

7. VM /etc conﬁg SIGHUP singleton

ple, a BPEL ﬁle is written to the BPEL server’s hot-

deployment directory, whereas a web application is

stored on the disk followed by a notiﬁcation of the

web server. If the deployment at the container fails

or no suitable container has been found, the UHE de-

ployment fails.

Similarly, the reconﬁguration either uses an ap-

propriate mechanism of the respective container, or

fails if either the mechanism fails or no container can

be found. While the heterogeneous nature of contain-

ers and service concepts might pose a challenge to

such combinations, preliminary ﬁndings suggest that

at least among the considered implementations there

are no hard discrepancies.

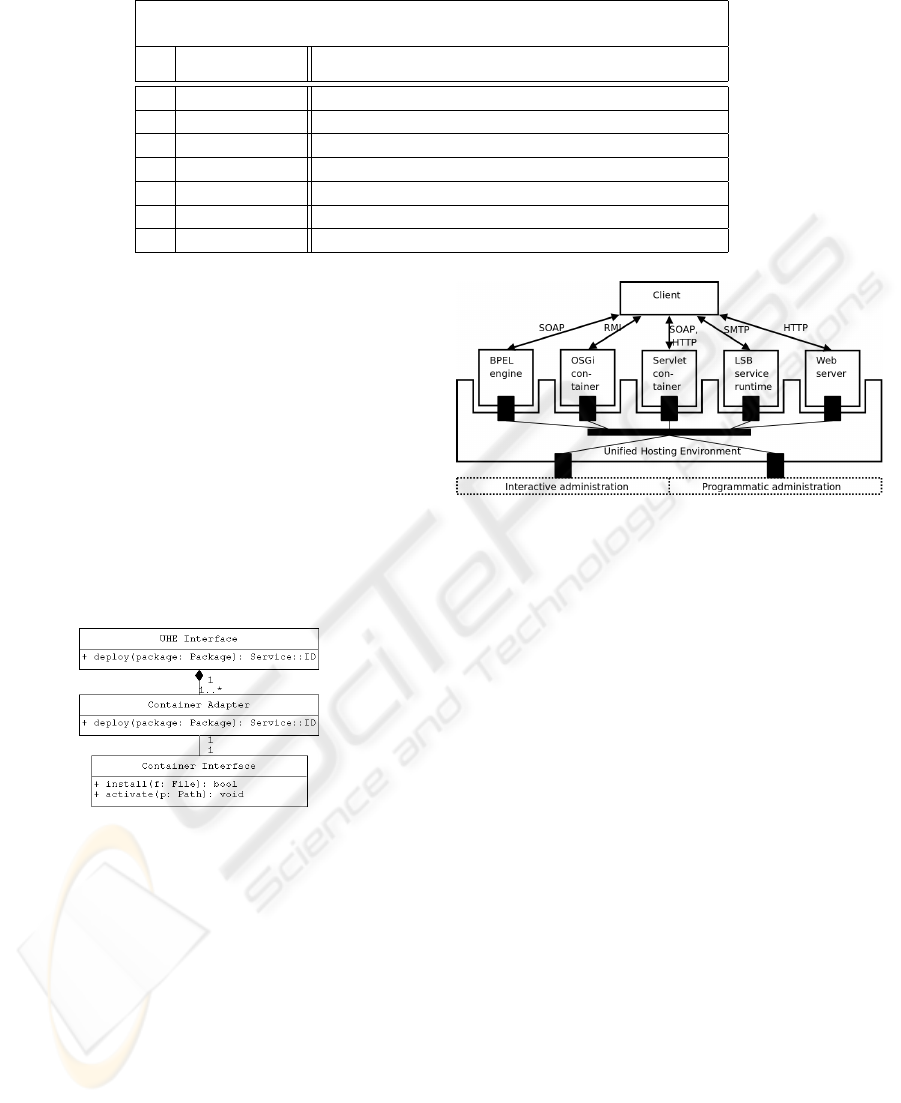

Figure 3: Design pattern notation of container abstraction.

The architecture of the environment can thus be

assumed to follow the pattern in ﬁgure 3, leading to

ﬁgure 4. In terms of software design patterns, UHE is

deﬁned as a proxy connected to a number of adapters,

each of which wraps a speciﬁc container. Any con-

tainer method can be invoked on the uniﬁed environ-

ment, and depending on the service type is redirected

to the container which handles the service. While the

server administrator or corresponding tools communi-

cate with the services through UHE, clients still com-

municate with each container directly, thus the intro-

duced overhead is being minimised.

A possible extension here is to introduce a

recursive-hierarchical distributed UHE by adding a

UHE adapter which accepts all package formats and

Figure 4: Hosting environment architecture.

redirects requests to other UHE installations, thereby

creating a composite environment. Due to the many

implications like globally unique identiﬁers, we will

not discuss this topic in this paper.

In the following subsections, we will explain the

implications of the uniﬁcation on a number of aspects

in hosting environments.

5.1 Deployment

Service packages are assumed to be either self-

contained, as can often be seen with servlets and as-

sociated libraries in WAR packages, or to rely on a

dependency resolution and conﬁguration mechanism

as is the case with LSB package managers or OSGi

bundle loaders (Cosmo et al., 2008). We thus deﬁne

the self-contained property of the package and the

dependency-resolving property of the respective

container. In both cases, additional restrictions have

to be assumed about the existence and versions of the

installed system software, including language-level

virtual machines, container behaviour and system call

interfaces. This assumption can be weakened if the

implementation supports a recognition of the required

environment conﬁguration and setup of a matching

environment using a virtualised operating systems or

other techniques. This distinction shall be expressed

by the virtualisable property of the container, and

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

Table 3: Properties of service packages.

Service package properties

Package type self-contained self-described

1. OSGi bundle possibly yes

2. Axis WAR possibly no

3. Webapp/DEB no yes

4. System/RPM no yes

5. ODE BPEL archive no yes

6. SCA composite possibly no

7. VM image yes no

the corresponding self-described property of the

package.

Therefore, the following property matches are

considered a requirement depending on the desired

universality of the hosting environment: If any pack-

age is not self-contained, then the container must

be dependency-resolving, otherwise the service

will not run. If a package is not self-described,

then the container must meet all its implicit require-

ments, otherwise the service will not run either.

The table 3 shows the varying degree of self-

containedness and self-description of service pack-

ages, corresponding to the containers in the previous

tables. It is interesting to see that no service pack-

age format mandates self-containedness, yet a couple

of them usually ship with dependency libraries while

others do not.

5.2 Monitoring and Adaptation

A number of software components on a typical host-

ing system can be considered stakeholders in a uni-

ﬁed environment. Adaptation mechanisms, for ex-

ample, implement abstract adaptation strategies for

a controlled change of either the system, the ser-

vices or contract offers and running contracts, within

well-deﬁned limits. Likewise, monitoring agents

need ways to capture system-level, container-level

and service-level indicators about running service in-

stances, avoiding to directly provide supporting im-

plementations for the growing variety of containers

and preferring to use the available query interfaces.

Such requirements reach beyond a uniﬁcation on the

messaging level, as is provided by enterprise service

buses. UHE is a suitable layer to unify monitoring and

adaptation aspects. Adaptation mechanisms on the

middleware level may include load balancing (Lodi

et al., 2007). In such cases, having a uniﬁed interface

to deploy packages across machines is beneﬁcial as

well.

Figure 5: Service state transitions.

5.3 Testing

Another requirement from hosting companies is that

each service must ﬁrst run in a quarantined environ-

ment, also known as sandbox, to ﬁnd out potential

issues. None of the containers we have evaluated sup-

ports a sandbox. Therefore, we consider it manda-

tory and architecturally sound to provide such a fea-

ture within the UHE, as shown in ﬁgure 5.

Migrating an installed and conﬁgured service into

the production container will take a small amount of

work compared to the overall conﬁguration efforts

(Sethi et al., 2008).

5.4 Interfaces

A hosting environment should be accessible both by

humans and by software. In both cases, the interfaces

should not depend on the actual variety and number

of containers installed. Instead, the interface should

remain stable whenever new technology demands the

addition or removal of containers, thus guaranteeing

the same level of usability.

For administrators, an interactive interface for ba-

sic management tasks like uploading services, listing

installed services and running instances and modify-

ing the service states is proposed. It could be im-

plemented as a web interface or as a desktop appli-

cation integrated into a general system management

framework. In addition, we propose having a suitable

web service interface to the UHE so that its service

management capabilities can be offered to any remote

TOWARDS UNIFIED SERVICE HOSTING

agent. Among the potential users, a service registry

could beneﬁt from a formal way of interacting with

the containers which collectively can be considered

the service repository.

6 DISCUSSION

AND CONCLUSIONS

We have explored commonalities and disparities be-

tween various containers acting as hosting environ-

ments, and based on a comparison presented an ab-

stract view on their structures and abilities. Using a

formal notation, we were able to deﬁne the notion of

a Uniﬁed Hosting Environment which acts as a proxy

and adapter to all concrete containers. UHE allows for

deployment and management of heterogeneous ser-

vices without any additional service development ef-

fort and run-time execution overhead. The concept of

UHE is complementary to recent progress towards de-

velopment methodologies for distributable services.

It is supported by specialised implementation tech-

niques with mobile code (Liu and Lewis, 2005) and

the tradable service archive format SAR.

Conceptual extension points including contract

handling and distributed operation have been identi-

ﬁed and will be analysed regarding their uniﬁcation

potential in the future. By now, we have already im-

plemented the deployment part of UHE which will

help service providers to keep up with the high vari-

ety of development methods and packaging formats

in service offerings. The easier service hosting be-

comes, the faster the vision of an internet of services

can be turned into a real infrastructure.

ACKNOWLEDGEMENTS

The project was funded by means of the German Fed-

eral Ministry of Economy and Technology under the

promotional reference “01MQ07012”. The authors

take the responsibility for the contents.

REFERENCES

ome, H. and Saar, A. (2005). Integration of heteroge-

nous services in the Adaptive Services Grid. In GI-

Edition - Lecture Notes in Informatics (LNI), P-69:

NODe 2005/GSEM 2005. 2nd International Confer-

ence on Grid Service Engineering and Management,

Erfurt, Germany.

Cosmo, R. D., Trezentos, P., and Zacchiroli, S. (2008).

Package upgrades in FOSS distributions: details and

challenges. First ACM Workshop on Hot Topics

in Software Upgrades (HotSWUp). Nashville, Ten-

nessee, USA.

Harrison, A. and Taylor, I. (2005). Dynamic web service

deployment using WSPeer. In Proceedings of 13th

Annual Mardi Gras Conference - Frontiers of Grid

Applications and Technologies, pages 11–16. Baton

Rouge, Louisiana, USA.

amer, B. J. (2008). Component meets service: what does

the mongrel look like? In Innovations Syst Softw Eng,

pages 385–394. Springer.

Lee, S. P., Chan, L. P., and Lee, E. W. (2006). Web Ser-

vices Implementation Methodology for SOA Appli-

cation. In Proceedings of the 4th IEEE International

Conference on Industrial Informatics (INDIN). Sin-

gapore.

Liu, P. and Lewis, M. J. (2005). Mobile Code Enabled Web

Services. In Proceedings of the IEEE International

Conference on Web Services (ICWS), pages 167–174.

Orlando, Florida, USA.

Lodi, G., Panzieri, F., Rossi, D., , and Turrini, E.

(2007). SLA-driven clustering of QoS-aware appli-

cation servers. IEEE Transactions on Software Engi-

neering, 33(3).

Petrie, C. (2007). The world wide wizard of open source

services. Fourth International Workshop on Semantic

Web for Services and Processes (SWSP). Salt Lake

City, Utah, USA.

Sethi, M., Kannan, K., Sachindran, N., and Gupta, M.

(2008). Rapid deployment of SOA solutions via auto-

mated image replication and reconﬁguration. IEEE In-

ternational Conference on Services Computing. Hon-

olulu, Hawaii, USA.

oger, P., Meyer, H., Melzer, I., and Flehmig, M. (2007).

Dynamic Provisioning and Monitoring of Stateful

Services. In Proceedings of the 3rd International Con-

ference on Web Information Systems and Technologies

- WEBIST. Barcelona, Spain.

Villanueva, O. A. and Touch, J. (2000). Web Service

Deployment and Management Using the X-bone.

In Spanish Symposium on Distributed Computing

(SEID). Ourense, Spain.

Winkler, M. (2008). Service description in business value

networks. Doctoral Symposium of the 4th Interna-

tional Conference Interoperability for Enterprise Soft-

ware and Applications (I-ESA). Berlin, Germany.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies
