DETECTING REGULATORY VULNERABILITY

IN FUNCTIONAL REQUIREMENTS SPECIFICATIONS

Motoshi Saeki

Tokyo Institute of Technology, Ookayama 2-12-1-W8-83, Meguro, Tokyo 152-8552, Japan

Haruhiko Kaiya

Shinshu University, Wakasato 4-17-1, Nagano 380-8553, Japan

Satoshi Hattori

Tokyo Institute of Technology, Ookayama 2-12-1-W8-83, Meguro, Tokyo 152-8552, Japan

Keywords:

Requirements elicitation, Regulation, Model checking, Use case, Computational tree logic, Regulatory vul-

nerability.

Abstract:

This paper proposes a technique to apply model checking in order to show the regulatory compliance of

requirements speciﬁcations written in use case models. We deﬁne three levels of regulatory vulnerability of a

requirements speciﬁcation by the situation of its non-compliance with regulations. For automatic compliance

checking, the behavior of business processes and information systems are speciﬁed with use cases and they

are translated into ﬁnite state transition machines. By using model checker SMV, we formally verify if the

regulations that are represented with computational tree logic can be satisﬁed with the state machines.

1 INTRODUCTION

Information systems to support business processes us-

ing Internet have been developed and have come into

wide use recently. In this situation, more laws and

regulations related to information technology (simply,

regulations) are being made and maintained in order

to avoid the dishonest usage of information systems

by malicious users, and we should develop informa-

tion systems that are compliant with these regulations.

If we developed an information system that was not

compliant with the regulations, we could be punished

and its compensation could be claimed to us, as a

result we could take much ﬁnancial and social dam-

age. Furthermore, if we would ﬁnd that the informa-

tion system that is being developed was not compliant

with its related regulations, we have to re-do its devel-

opment and its development cost and efforts seriously

increase. It is signiﬁcant to check if a functional re-

quirements speciﬁcation of the information system to

be developed is compliant with regulations as early as

possible, in order to reduce its development cost. In

an earlier stage of development, we should verify that

a functional requirements speciﬁcation of the infor-

mation system do not have any vulnerability to regu-

lations. Vulnerability means the weak parts that can

be attacked so as to cause damages, and threats pro-

vide the damages by exploiting the vulnerability. In

this paper, we call vulnerability that results from reg-

ulations regulatory vulnerability. For example, com-

pensation may be claimed and the ﬁnancial damage of

paying its compensation may occur, if your informa-

tion system is not compliant with regulations. These

non-compliantparts of the informationsystem are one

of regulatory vulnerability.

We propose the technique to detect formally reg-

ulatory vulnerability using a model checker just after

specifying functional requirements of an information

system. In (Saeki and Kaiya, 2008), in order to de-

tect the possibilities of non-compliance, its authors

have developed the technique to represent speciﬁca-

tion statements and regulatory ones with case frames

of Fillmore’s case grammar and then to match these

case frames. However, it dealt with itemized assertive

sentences as speciﬁcation statements only and it did

not consider behavioral aspects such as execution or-

105

Saeki M., Kaiya H. and Hattori S. (2009).

DETECTING REGULATORY VULNERABILITY IN FUNCTIONAL REQUIREMENTS SPECIFICATIONS.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 105-114

DOI: 10.5220/0002240001050114

 SciTePress

der of actions in the system. In this paper, we model

the behavior of an information system with use case

modeling i.e. a use case diagram and use case descrip-

tions which express the behavior of use cases. A use

case model is translated into a ﬁnite state transition

machine. Regulatory statements are formally repre-

sented with temporal logical formulas and a model

checker veriﬁes if these logical formulas are true in

the state transition machine or not. If the logical for-

mulas are true, we can judge the use case model to

be compliant with the regulations. If the formulas are

false, since the model checker outputs counterexam-

ples showing the use case behavior unsatisfying the

regulations, we can recognize where its regulatory

non-compliance exists.

The rest of the paper is organized as follows. Sec-

tion 2 presents how to represent regulatory statements

with branching time temporal logic (another name,

CTL: computational tree logic, and we use the abbre-

viation CTL below) and the typology of regulatory

vulnerability based on the structure of logical formu-

las. In particular, we adopt the new type of regula-

tory vulnerability to misuse cases. We explain the

overview of our detection process for regulatory vul-

nerability and illustrate its details together with sup-

porting tools in section 3. It includes the translation

of use cases into a state transition machine and the

terminology matching to retrieve the relevant regula-

tory statements to be veriﬁed. Section 4 shows the

regulatory vulnerability to misuse cases using an ex-

ample. Sections 5 and 6 are for related work and

concluding remarks respectively. The essential con-

tribution of this paper is the following three points: 1)

the representation of regulations with CTL so that we

can use a model checker, 2) the terminology match-

ing technique based on case frames and 3) the usage

of misuse cases to detect a speciﬁc type of regulatory

vulnerability.

2 REGULATION

2.1 Representing Regulations

A typical example of regulations related to IT tech-

nology is Japanese Act on the Protection of Personal

Information (Cabinet Ofﬁce, Government of Japan,

2003) that speciﬁes the proper handling of personal

information such as names, addresses and telephone

numbers of persons in order to prevent from making

misuse of this information. For example, the Article

18, No. 1 of Act on the Protection of Personal Infor-

mation provides that

Article 18, No. 1 of Act on the Protection of

Personal Information:

When having acquired personal information,

an entity handling personal information must,

except in cases in which the Purpose of

Use has already been publicly announced,

promptly notify the person of the Purpose of

Use or publicly announce the Purpose of Use.

According to (Eckoff and Sundby, 1997), a regulatory

statement consists of 1) the descriptions of a situation

where the statement should be applied and 2) the de-

scriptions of obligation, prohibition, permission and

exemption of an entity’s acts under the speciﬁed sit-

uation. In the above example, we can consider that

“when having acquired personal information, except

in cases in which the Purpose of Use has already

been publicly announced” is a situation where this

act should be applied, while “notify” and “announce”

represent the acts of “the entity”. These acts are obli-

gations that the entity should perform.

The ﬁrst thing that we should address is how to

deal with four modalities, obligation, prohibition, per-

mission and exemption using mathematical notation

such as formal logic. We use the temporal operators

of CTL to representthese modalities. Suppose that we

specify the behavior of an information system with a

ﬁnite state transition machine. Since state transitions

occur non-deterministically in it, there exist several

execution paths in the information system. When we

deﬁne the states as nodes and the transitions as edges,

we can get a tree called computational tree that spec-

iﬁes these execution paths. The properties that hold

on the tree can be deﬁned with CTL formulas. Sup-

pose that R is a logical formula. We use four types

of temporal operators AF, AG, EF and EG and their

intuitive meanings are as follows. AF R is true iff R

is eventually true for every path, AG R is true iff R is

always true for every path, EF R is true iff there is a

path where R is eventually true, and EG R is true iff

there is a path where R is always true.

The value of a proposition is either true or false

at a node. Let P and Q be propositions of a situation

and an act respectively. Q is true if the act is being

executed. By using the above four operators, we can

represent a regulatory statement with the modalities

as follows.

Obligation : P → AF Q

Prohibition : P → AG ¬Q

Permission : P → EF Q

Exemption : P → EG ¬Q

In the case of obligation, we should perform Q if the

situation P is true, whatever execution path we take.

Therefore Q should be eventually true for every path

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

106

outgoing from the node P. On the other hand, a reg-

ulatory statement of prohibition says that we are not

allowed to execute Q on any path. ¬ Q should con-

tinuously be true on any node of every path outgoing

from P, i.e. Q is always false for every path. If there

exists a path where Q is eventually true, Q is permit-

ted to be executed. If there exists a path where Q is al-

ways false, we are exempted from executing Q. Note

that CTL has binary temporal operators based on un-

til and we can represent with these operators time in-

tervals such as the deadline when an obligation keeps

on holding. For simplicity, we will not refer to them

throughout this paper but we can deal with them in

the same way.

In the cases of permission and exemption, al-

though the regulatory statement is not true on an in-

formation system, we cannot say that it violates the

regulation. For example, if “P → EF Q” (permission

of Q) is not true, there are no paths where Q can be ex-

ecuted. Even though the act Q is permitted, we don’t

always need to execute Q and non-execution of Q is

not a regulatory violation. Thus we can have some

categories of the cases where logical formulas of reg-

ulations are not true. In the above example, we can

have two categories: regulatory violation and regula-

tory non-violation. The details of these categories will

be discussed as a typology of regulatory vulnerability

in the next sub section.

We continue to discuss how to represent a regula-

tory statement with a CTL formula, using as an ex-

ample the Article 18, No. 1 of Act on the Protection

of Personal Information, mentioned in the beginning

of this sub section. This article claims the obligation

of the acts “announce” or “notify”. The situation part

and the act one in a regulatory statement can be de-

scribed with logical combinations of case frames as

shown in (Saeki and Kaiya, 2008). The technique

of case frames was originated from Fillmore’s Case

Grammar to represent the semantics of natural lan-

guage sentences. A case frame consists of a verb and

semantic roles of the words that frequently co-occur

with the verb. These semantic roles are speciﬁc to a

verb and are called case. For example, the case frame

of the verb “get”, having the cases “actor”, “object”

and “source”, can be described as “get(actor, object,

source)”, where “get” denotes the acquisition of the

thing speciﬁed by the object case. The actor case rep-

resents the entity that performs the action of “get” and

that will own the thing as the result of the “get” action.

The source case denotes the entity from which the ac-

tor acquires the object. By ﬁlling these case slots with

the words actually appearing in a sentence, we can ob-

tain its semantic representation. In the example of the

sentence “an entity handling personal information ac-

quires from a member her personal information”, we

can use the case frame of “get” and have “get(entity

handling personal information, personal information,

member)” as its intermediate semantic representation.

Finally, we can represent the example statement of

Article 18, No.1 using case frames and CTL as fol-

lows;

get(x, Personal information, y)

∧ ¬ announce(x, Purpose of use)

∧ aggregation(y, Personal information)

∧ handle(x, Personal information, Purpose of use)

→ AF (notify(x, Purpose of use, y)

∨ announce(x, Purpose of use))

Note that the identiﬁers of lower case characters such

as “x” and “y” stand for variables, and we can ﬁll

them with any words. In this sense, the formula can

be considered as a template.

2.2 Regulatory Vulnerability

We can classify regulatory vulnerability into the fol-

lowing categories using the four modalities of regula-

tions.

Type 1: The entity (an information system) may not

execute the acts that are made obligations by reg-

ulations, or the entity can execute the acts that are

prohibited by regulations.

Type 2: The entity cannot execute the acts that are

permitted by regulations, or the entity is obligated

to execute the acts that are exempted by regula-

tions

Type 3: The misuse cases (wrong or malicious us-

ages) of the entity are permitted by or made obli-

gations by regulations.

The regulatory vulnerability of type 1 is a regula-

tory violation and this type of vulnerability is a seri-

ous problem. On the other hand, the vulnerability of

type 2 is not a regulatory violation, as mentioned in

section 2.1. However, if the information system will

not have the function to execute the act permitted by a

regulation, it may have a disadvantage to competitors’

products having this function in the market. More-

over, there is a possibility that its users may accuse

it of inconvenience because they cannot use the func-

tion. Type 3 is not also a regulatory violation. This

type may be considered as the weakness of the regu-

lations and therefore they should be improved. Since,

however, it takes much longer time to improve them

and enforce their improved version ofﬁcially, rather

we select a way of redesigning the underlying busi-

ness process from technical and/or management as-

pects so as to mitigate these misuse cases. The risk of

DETECTING REGULATORY VULNERABILITY IN FUNCTIONAL REQUIREMENTS SPECIFICATIONS

107

type 1 is the highest in the regulatory vulnerability of

three types.

3 DETECTION TECHNIQUE

3.1 Overview

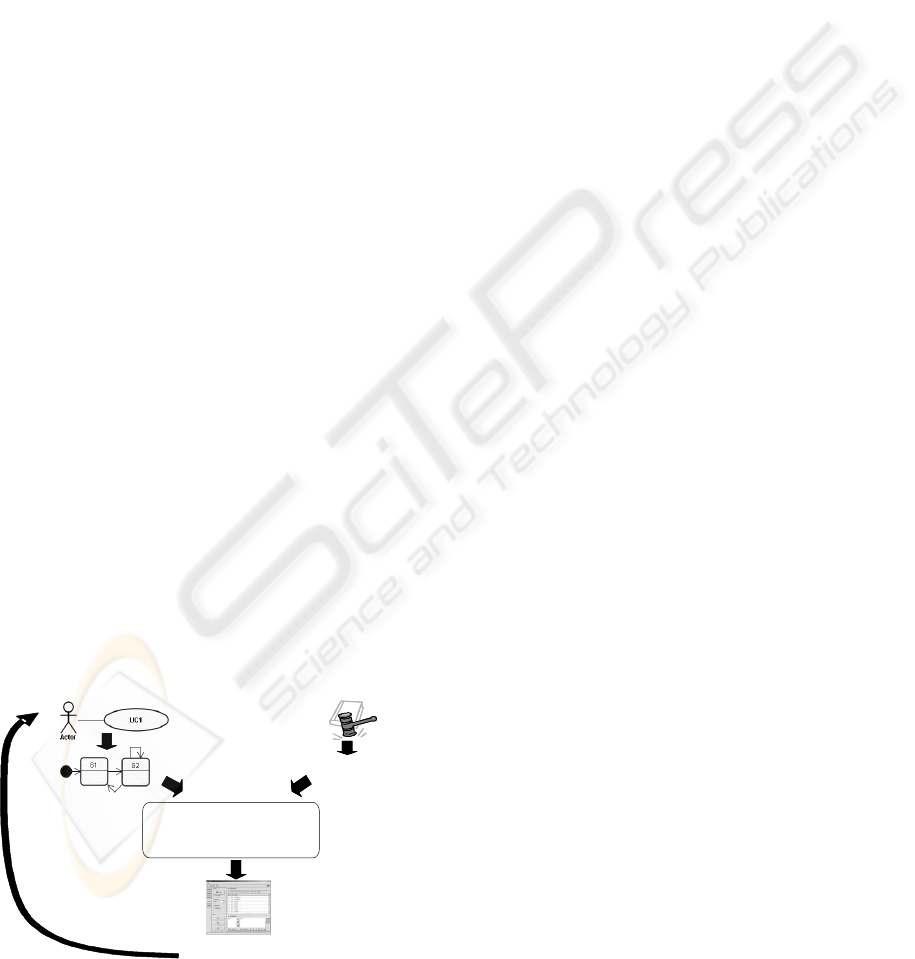

Figure 1 shows the process of detecting regulatory

vulnerability in an information system. The behav-

ior of the information system is speciﬁed with use

case modeling. The description of a use case con-

sists of pre condition, normal ﬂow, post condition and

alternate ﬂow, and they are written with simple natu-

ral language sentences. These descriptions are trans-

lated into a ﬁnite state transition machine. In our ap-

proach, we also translate regulatory statements into

CTLs as shown in section 2.1, and verify if the CTLs

are true on the state transition machine by using a

model checker. If the model checker ﬁnds that the

CTLs are false, it produces the examples where the

CTLs are false, i.e. the counterexamples. We can ex-

plore the counterexamples and identify which parts of

the use case descriptions may cause the detected vul-

nerability.

The reason why we adopt use case modeling is

that it includes natural language descriptions in ad-

dition to its popularity. However, the words, terms

and phrases (terms, hereafter) appearing in regula-

tory statements are different from the terms in the use

case descriptions, but they may have the same mean-

ing. We need a task for identify the terms having the

same meaning and unify them into a single expres-

sion. “Terminology matching” is for matching the

terms appearing in the CTLs to those in the state tran-

sition machines by using synonym dictionaries such

as WordNet. The supporting technique for this task

will be illustrated in section 3.4.

→

AF q

Functional Requirements Regulations

Finite State

Machine

CTL Template

Terminology Matching

Model Checking

Checking results

Figure 1: Overview of a Detection Flow.

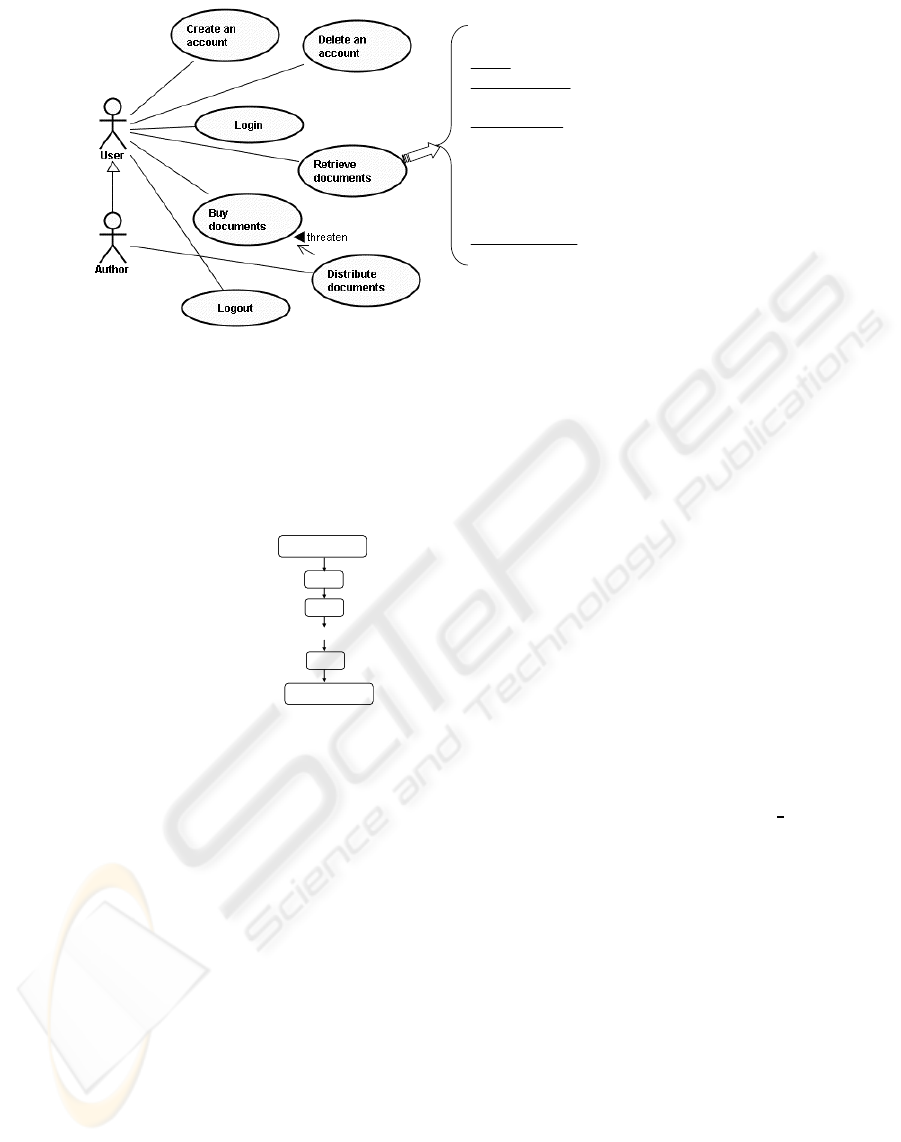

3.2 Example

In this subsection, we explain an example that will be

used throughout this section and the next one. The

example is an on-line shop for documents like IEEE

Digital Library, and Figure 2 depicts its use case di-

agram and the use case description of “Retrieve doc-

uments”. A user retrieves documents in the database

of the shop. If she can ﬁnd a document necessary

for her, she buys it from the shop. The user ﬁrst cre-

ates her account (Create an account) and then logs in

her account (Login). She inputs retrieval information

to the system (Retrieve documents) to get the neces-

sary documents. If the documents are found, the sys-

tem shows her their abstracts (3rd action of Normal

Flow in Retrieve documents). She reads the shown

abstracts, and buys the documents by inputting her

credit card information if the abstracts are what she

wants (Buy documents).

Note that the use case “Distribute documents” is a

misuse one that threatens the achievement of the aim

of “Buy documents”, and its details will be explained

in section 4. Ignore it in this section.

3.3 Translating to FSMs

We use the model checker SMV (NuSMV, 2007), be-

cause it can deal with CTLs. In SMV, a system to be

checked is represented as a set of concurrent sequen-

tial processes and each process is deﬁned as a non-

deterministic ﬁnite state transition machine (FSM).

In a FSM, state transitions are deﬁned as changes of

values of explicitly declared state variables. SMV

has two types of process models: one is called syn-

chronous model where state values are synchronously

changed over all of the processes and another is called

asynchronous model where state values are changed

one by one at each process. Since actions of use cases

are asynchronously performed, we adopt an asyn-

chronous model in this paper and a use case model

is transformed into asynchronous FSMs.

Each use case is translated into a FSM. In our

translation technique, we have only one global state

variable that store the current state. We consider an

action currently executed in a use case as a current

state in the whole system, and the global variable

holds the name of the currently executed action. If

this action ﬁnishes and the next action starts being ex-

ecuted, the name of the next action is assigned to the

variable. As for pre and post conditions in a use case,

by assigning the name of the condition to the vari-

able, we represent the state where it comes to be true.

Suppose that a use case consists of a pre condition,

a normal ﬂow A1, A2, ..., An (where A1, ..., An are

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

108

Retrieve documents

Actor: User

Pre condition

The user is logged in.

Normal flow

1. The user sends the key information

to retrieve the documents.

2. The system retrieves the documents.

3. The user gets an abstract of

the retrieved document.

Post condition

The user gets the abstract.

Figure 2: On-line Document Shop.

sequentially executed in this order) and a post condi-

tion. Its translation is a FSM whose state transitions

occur as the sequence of pre condition ⇒ A1 ⇒ A2,

..., ⇒ An ⇒ post condition, as shown in Figure 3.

MODULE use_case(state)

ASSIGN

next(state) :=

case

state = pre condition : A1;

state = A1 : A2 ;

state = A2 : ...

state = An : post condition ;

1 : state ;

esac;

FAIRNESS running

pre conditionpre condition

A1A1

A2A2

AnAn

post conditionpost condition

...

Figure 3: Translating a Use Case Description to a FSM.

The left part of the ﬁgure shows the description of

a FSM for SMV, and it has only one global variable

named “state”. The expression “next(state)” denotes

the value of “state” at the next state. A case block

(case · · · esac) sets the value of the next state accord-

ing to the current value. The values before and after

the colon (:) expresses the current value and the next

one respectively. For example, if the current value is

“pre condition”, the next value is set to “A1” after a

transition. The ﬁnal action “An” is executed and then

the “post condition” comes to be true. The bottom

line of the case block includes “1” before the colon

and it means “otherwise”. If the current state is nei-

ther “pre condition”, “A1”, “A2”, ..., “An” nor “post

condition”, the value of the state is not changed. Fi-

nally, we can get the translation of the use case model

by combining the FSMs of use cases as asynchronous

concurrent processes.

Note that we don’t intend to propose a new tech-

nique to translate use cases into a state transition ma-

chine. In fact, more elaborated translation techniques

can be found in (Whittle and Jayaraman, 2006; Nebut

et al., 2006) and they may be used. The purpose of

this sub section is just to show that a use case model

can be transformed into a FSM of SMV.

3.4 Terminology Matching

The goal of terminology matching task is 1) retriev-

ing the regulatory statements relevant to a use case

description by unifying terms of the regulatory state-

ments to the terms of the use case description, and

2) generating the CTL formulas in SMV-acceptable

form from the uniﬁed formulas of the regulatory state-

ments.

Suppose that a use case has the sentence “The user

sends his personal informationto the system”. We can

get a case frame “send(User, Personal information,

System)” as its semantic representation after parsing

the sentence. In this example, the verb “get” in the

case frame of Article 18, No.1 is semantically the

same as “send” but the ﬂow of the object (personal

information) of this act is reverse to “send”. We have

a dictionary of case frames, and it includes informa-

tion on synonym verbs and their case slots. It also has

the rules of replacing a verb and its case slot values,

keeping the same meaning. For example, a rule says

that the frame “get(actor:x, object:y, source:z)” can be

replaced with “send(actor:z, object:y, target:z)”. Af-

ter this replacement, we ﬁll the variables “x” and “y”

with “System” and “User” respectively so as to match

with the example sentence the resulting case frame

(the situation part of the Article 18, No.1). From the

context of the use case descriptions, since it is obvious

that the system (“x”) handles with personal informa-

tion and that the user (“y”) has personal information,

we can omit the predicates “handle” and “aggregate”.

DETECTING REGULATORY VULNERABILITY IN FUNCTIONAL REQUIREMENTS SPECIFICATIONS

109

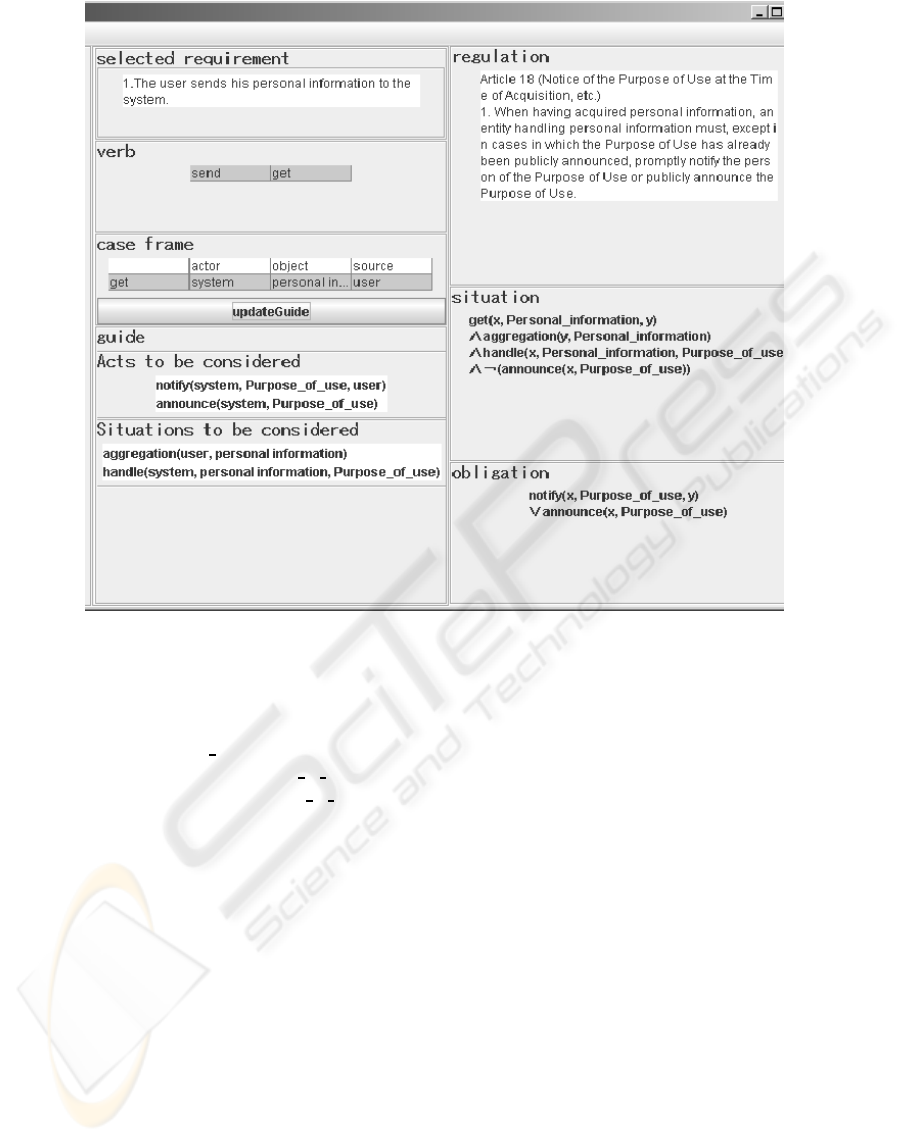

Figure 4: Supporting a Terminology Matching Task.

Finally we have the following CTL as the result of

this Terminology Matching task.

state = “send(User, Personal information, System)”

→ AF (state = “notify(System, Purpose of use, User)”

∨ state = “announce(System, Purpose of use)”)

The above is just the CTL formula to be checked if

the use case has regulatory vulnerability or not, and

an input to a model checker.

Since Terminology Matching task deals with the

semantics of sentences, we cannot fully automate

it. However, we have a computerized tool to sup-

port this task, based on the technique in (Saeki and

Kaiya, 2008). The tool has the following functions;

1) analyzing use case descriptions and extracting their

case structures, 2) having a dictionary of case frames

of regulatory statements, 3) retrieving the regulatory

statements which can be matched to case frames of

use case descriptions, and 4) generating the CTL for-

mula of regulatory statements by unifying the terms

and simplifying it. Figure 4 shows a screen shot of

our tool. The tool suggests a pair of use case de-

scriptions and the related regulatory statements after

matching their case frames. This matching process

uses Japanese-English translation dictionary and syn-

onym ones. We have extracted case frames from the

Articles 15 - 36 of Act on the Protection of Personal

Information and stored them in a dictionary before-

hand. The tool checks if the verb phrases appearing

in the use case descriptions can be matched to these

case frames. As a result, the left and right areas of

the window of Figure 4 show the sentence “The user

sends his personal information to the system” of the

use case “Create an account” and the Article 18 No.1

respectively, because they can be matched. Some in-

formation helpful to produce the input CTL formula

is displayed in the other area of the window, e.g. situ-

ations and acts to be considered during producing the

formula.

3.5 Model Checking

The model checker of SMV is called NuSMV. Since

NuSMV checks if a formula is true at the initial state

of a FSM, we attach the operator AG in the head of

the formula that was obtained in the Term Matching

task.

The NuSMV shows that the CTL of Article 18

No.1 is false, and we can recognize that our exam-

ple has a regulatory violation. Since the veriﬁed CTL

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

110

is an obligation, this violation is the regulatory vul-

nerability of type 1. The counterexample that the

NuSMV outputs suggests the instance of execution

paths where the CTL comes to be false. According to

it, as shown in Figure 5, we can recognize that the fol-

lowing scenario caused the regulatory violation. After

executing the use case Create an account, Login is ex-

ecuted and then its login is successful. After that, the

Logout use case is immediately executed. Login and

logout are iterated as a loop. This path does not satisfy

the CTL of Article 18 No.1 specifying the obligation

of the action “notify” or “announce”.

Figure 6 illustrates the veriﬁcation example men-

tioned above. Note that we used abbreviated lit-

eral forms instead of string data types to represent

the values of “state” variable for brevity and the

ability of NuSMV. For example, we used the lit-

erals send personal info and notify purpose in the

NuSMV tool instead of the strings “send(User,

Personal information, System)” and “notify(System,

Purpose of use, User)” respectively. The ﬁgure in-

cludes two windows; one is the veriﬁcation result and

another is a counterexample. The rear window shows

that the CTL of Article 18 No.1 is false (the CTL

numbered with 0 in the Property tab), and we can rec-

ognize that our example has a regulatory violation.

The counterexample is shown in the front window of

the ﬁgure. According to it, after executing the use

case Create an account (step 21: issue ID, which de-

notes “3. The system issues login ID and password

to the user” in Figure 5), Login is executed (steps 24-

30: input ID, denoting “1. The user inputs login ID

and password to the system” in Figure 5) and then its

dition of the Login use case). After that, the Logout

use case is immediately executed (step 32: exit). Lo-

gin and logout are iterated as a loop (step 23 → 33 →

23).

　Actor

: User

　Pre condition

　the user is not logged in.

　 Normal flow

　　1. The user inputs login ID

　　　　 and password to the system.

　Post condition

　The user is logged in.

Logout

Actor

: User

Pre condition

the user is logged in.

Normal flow

　　1. The user exits.

Post condition

The user is not logged in.

Create an account

Actor

: User

Pre condition

　　There are no accounts yet.

Normal flow

　1. The user sends his personal

　　　　information to the system.

　2. The system checks the validity

　　　 of the personal information.

　3. The system issues login ID and

　　　　 password to the user.

Post condition

The user gets an account and

　　 the user is not logged in yet.

Figure 5: A Counterexample.

By investigating the counterexamples, we can

identify where regulatory vulnerability is in the use

case descriptions and what parts we should correct.

In this example, we can ﬁnd that there is regulatory

vulnerability in either Create an account, Login or Lo-

gout and that we can resolve it by inserting the obli-

gation act “notify(System, Purpose of use, User)” to

either of them. We add this act to the use case Create

an account.

4 USING MISUSE CASES

Let’s move to regulatory vulnerability of type 3. We

add one or more misuse cases to a normal use case

model compliant with a regulation and check if the

regulation has ability to legally prevent the execution

of the added misuse cases. If it has no ability, the use

case model includes regulatory vulnerability of type

3 for the regulation. Figure 7 shows the cases of the

results of checking. Suppose that a normal use case

model U is compliant with the regulation p as shown

in the case (a) of the ﬁgure. Under this case, we add a

misuse case MU and get the case (b), i.e. a false value

as a result of checking. The case (b) asserts that the

regulation p can legally prevent the execution of MU,

because adding MU causes the regulatory violation.

On the other hand, the case (c) may be problematic.

Its detail including case (d) will be explained below

using the example.

Our example shown in Figure 2 contains a mis-

use case “Distribute documents”. When a user of the

on-line document shop wants the full texts of the re-

trieved documents, she should buy them. There is an-

other alternative to get the full text without any fee

by asking its author to send it to her. The use case

“Distribute documents” speciﬁes this behavior and it

threatens the achievement of “Buy documents”. Its

description is shown as follows.

Distribute documents

Actor: User, Author

Pre condition

The user gets the abstract.

Normal flow

1.The user asks for the author

to send the document.

2.The author sends the document to the user.

3.The user gets the full text of the document.

Post condition

The user gets the document.

After executing “Retrieve documents” and getting

the abstract of the document that she wants, she exe-

cutes “Distribute documents”. She ﬁrst asks its author

to send its full text to her, and the author sends the full

text to her. As a result, she can get the full text of the

DETECTING REGULATORY VULNERABILITY IN FUNCTIONAL REQUIREMENTS SPECIFICATIONS

111

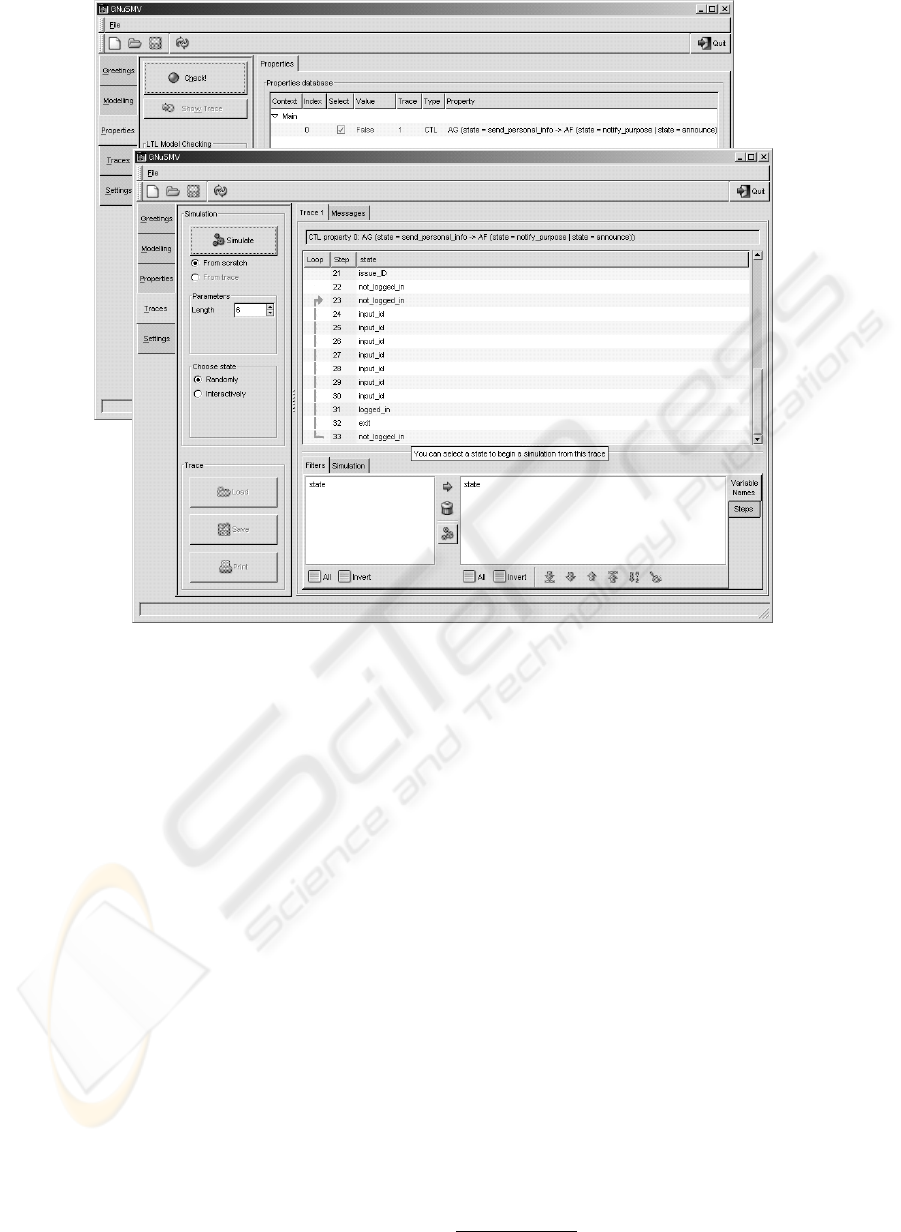

Figure 6: Veriﬁcation Example with NuSMV.

document free of charge and this use case obviously

prevents the aim of the on-line document shop, i.e.

earning money by “Buy documents”.

Suppose that a regulation related to copyright pre-

scribes the following;

By request, an entity can send the contribu-

tions produced by the entity itself to a third

party acting in good faith.

This statement, denoting a permission, can be trans-

formed to a logical combination of case frames as fol-

lows.

request(x, y, z) ∧ produce(z,y) → EF send(z,y,x)

where “x”, “y” and “z” are a person who wants the

document, the document and the author of the doc-

ument respectively. Through terminology matching

process, we replace “request(x,y,z)” with “ask(x,y,z)”

using the synonym dictionary because the ﬁrst sen-

tence of the use case description includes the verb

“ask”, and get the following formula to be checked.

AG (state=“ask(User, Document, Author)”

→ EF state=“send(Author,Document,User)”)

NuSMV returns the value true and it means that

our on-line document shop together with the misuse

case is compliant with the regulation. That is to say,

the regulation cannot legally prevent the execution of

the misuse case “Distribute documents” and this is

the case (c) shown in Figure 7. Although this case

includes the possibility of type 3 vulnerability, there

may be the possibility that the regulation p can be

thoroughly irrelevant to MU, e.g. the acts of the reg-

ulation p are not included in MU at all. To investigate

the relevance of p to MU, we should check if the ex-

ecution paths compliant with p include the situations

and the acts of p. We negate p and obtain counterex-

amples from the model checker. If a counterexample

includes the situations and the acts of p, p is relevant

to MU and permits the execution of MU, i.e. a regu-

latory vulnerability of type 3. However, NuSMV out-

puts many useless counterexamples where the situa-

tion is false only. In fact, it outputs many counterex-

amples that do not include state=“ask(User, Docu-

ment, Author)”. To ﬁlter out these useless counterex-

amples, we negate the act part of the CTL and get

the counterexamples where the situation holds. The

counterexamples of AG (s → ¬ a) make EF (s ∧ a)

¬ AG (s → ¬ a) = EF (s ∧ a)

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

112

Use Case

Regulation

true

Use Case

Regulation

false

Misuse

Case

(b) p is useful for preventing from MU(a) Compliant with p

true

false

(d) Vulnerability on MU for p (= s

→ a)

Use Case

Regulation

Misuse

Case

→ ￢ a

Use Case

negating

act of

Regulation

Misuse

Case

counterexample

s (situation

of p)

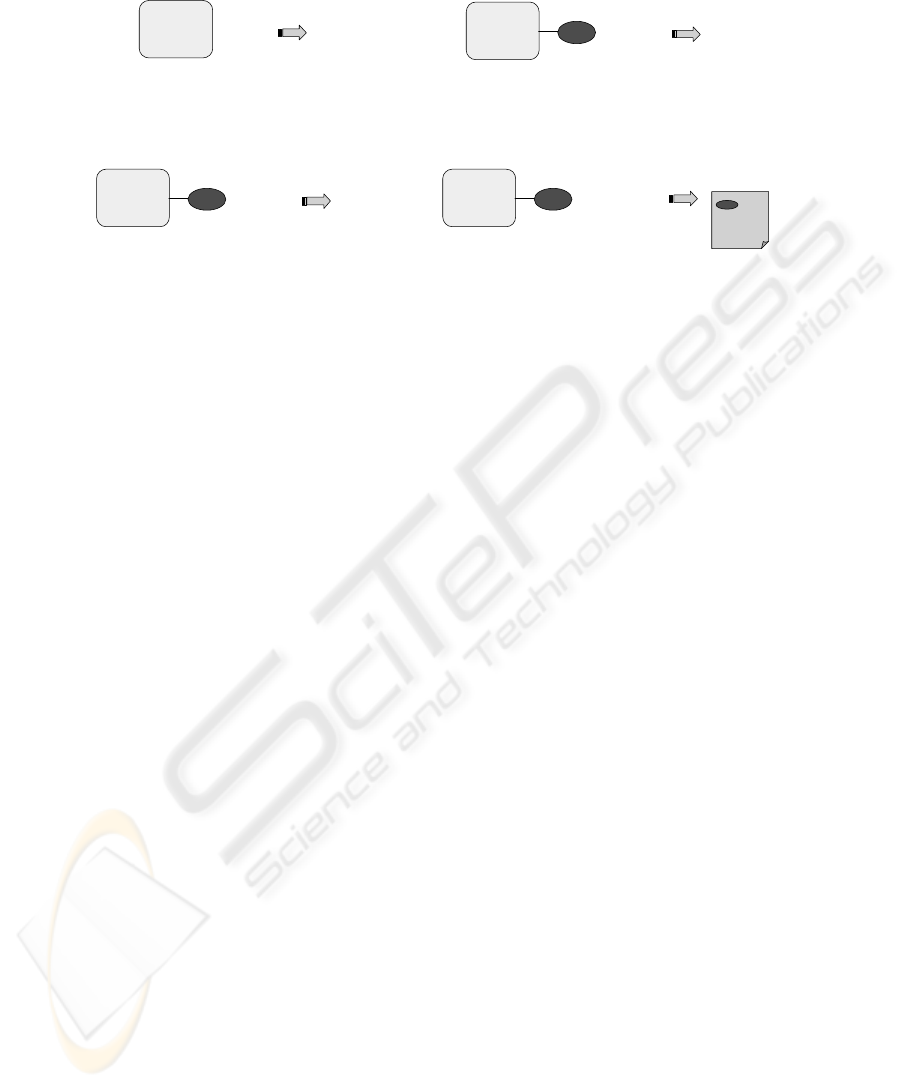

Figure 7: Computation Tree and Modality of Regulations.

true, and we can get the execution paths where both

the situation s is true and the act a is executed. This is

shown in the case (d) of Figure 7.

In our example, we negate the act part of the CTL

of the regulation and input it to NuSMV in order to

obtain counterexamples. The input formula is as fol-

lows:

AG (state=“ask(User, Document, Author)”

→ ¬EF state=“send(Author,Document,User)”)

If the obtained counterexamples have the execu-

tion paths where the misuse case is included, the

regulation permits the execution of the misuse case

and there is a regulatory vulnerability of type 3.

NuSMV has produced a counterexample where

the action “send(Author,Document,User)” in the mis-

use case is executed after the execution of “Retrieve

documents”. That is to say, the regulation permits the

execution of this misuse case. It is not a regulatory

violation, but an undesirable case because the misuse

case can be performed and as a result causes ﬁnancial

damages to the shop. To avoid it, we can consider two

alternatives: one is to modify the related regulations

and another is to change this underlying business pro-

cess. As the example of the second alternative, i.e.

changing the business process, we can take the way

of getting a fee from an author when she registers her

contributions to this shop. It could mitigate ﬁnancial

damage to the on-line shop. Note that it is just an

example and that we can take the other ways to mit-

igate the ﬁnancial damage of the shop. Detection of

type 3 vulnerability is signiﬁcant to evolve a business

process and an information system incrementally into

more robust one.

5 RELATED WORK

The research topics related to regulatory compliance

in requirements engineering area being actively fo-

cused on. The state of the art of this area and some

achievementscan be found in (Otto and Anton, 2007).

We can ﬁnd many approaches to represent regula-

tions with formal expressions (REMO2V, 2006; RE-

MOD, 2008; RELAW, 2008), and many of them used

classical logic as formal representations of regula-

tions. For example, Hassan et al. used logical for-

mula to represent regulatory statements and enterprise

requirements, and Alloy analyzer to check the con-

sistency between them (Hassan and Logrippo, 2008).

Although they beneﬁted from powerful and well-

established theorem provers and model checkers, an

issue on the treatment of the modalities of regulatory

statements still remains. Furthermore, they did not

consider the classiﬁcation of regulatory vulnerability,

in particular, the detection of type 3 vulnerability. An-

alyzing regulatory compliance of misuse cases leads

to the elicitation of a class of non-functional require-

ments such as security, safety, reliability etc. Deontic

logic is one of the alternativesto represent the modali-

ties of obligation and prohibition more intuitively and

comprehensively (Jones and Sergot, 2004). However,

its theorem prover or model checker has been less es-

tablished yet rather than CTL (Dinesh et al., 2008;

Castero and Maibaum, 2008). There are some stud-

ies on applying goal-oriented analysis to regulations

in order to identify the rationales of and the depen-

dencies among regulatory statements. (Darimont and

Lemoine, 2006). Although their aim does not have

the same direction as ours, we can consider deeper

analysis by checking regulatory compliance from the

viewpoints of rationales of regulations and require-

ments speciﬁcations.

DETECTING REGULATORY VULNERABILITY IN FUNCTIONAL REQUIREMENTS SPECIFICATIONS

113

6 CONCLUSIONS AND FUTURE

WORK

This paper presents the technique to detect regulatory

non-compliance of an information system by using a

model checking. In addition, we classiﬁed regulatory

non-compliance as regulatory vulnerability into three

categories and emphasized type 3 vulnerability. The

future work can be listed up as follows.

1. Elaborating the automated technique to translate

use case models including alternate action ﬂows

into SMV FSMs. In addition, we also consider the

other types of descriptions such as UML Activity

Diagram and are developing its translation tool.

2. Elaborating the supporting tool and its assessment

by case studies, in particular NuSMV is not so

powerful to retrieve and manage counterexam-

ples. The functions on manipulating counterex-

amples are signiﬁcant to resolve regulatory vul-

nerability and the methodology how to ﬁnd from

the counterexamples the solutions to mitigate reg-

ulatory vulnerability should be developed.

3. Developing a supporting technique for the pro-

cesses to translate correctly regulatory statements

into CTL formulas. In addition, since regulatory

documents include meta level descriptions such

as application priority of the statements, the tech-

nique to model them should be more elaborated.

4. Considering how to deal with scalability problems

on the techniques of model checking.

5. Dealing with non-functional requirements such as

security.

6. Combining tightly our approach to requirements

elicitation methods such as goal-oriented analysis

and scenario analysis,

7. Developing the technique to manage and improve

the requirements that have the potentials of regu-

latory non-compliance,

8. Developing metrics of measuring compliance,

in fact three types of regulatory vulnerability

can be considered as strength degrees of non-

compliance.

REFERENCES

Cabinet Ofﬁce, Government of Japan (2003). Act

on the protection of personal information.

http://www5.cao.go.jp/seikatsu/kojin/foreign/act.pdf.

Castero, P. and Maibaum, T. (2008). A Tableaux System for

Deontic Action Logic. In Lecture Notes in Computer

Science (DEON2008), volume 5076, pages 34–48.

Darimont, R. and Lemoine, M. (2006). Goal Oriented Anal-

ysis of Regulations. In REMO2V, CAiSE2006 Work-

shop, pages 838–844.

Dinesh, N., Joshi, A., Lee, I., and Sokolsky, O. (2008). Rea-

soning about Conditions and Exceptions to Laws in

Regulatory Conformance Checking. In Lecture Notes

in Computer Science (DEON2008), volume 5076,

pages 110–124.

Eckoff, T. and Sundby, N. (1997). RECHTSSYSTEME.

Hassan, W. and Logrippo, L. (2008). Requirements and

Compliance in Legal Systems: a Logic Approach. In

Requirements Engineering and Law (RELAW 2008),

pages 40–44.

Jones, A. and Sergot, M. (2004). Deontic Logic in the Rep-

resentation of Law: Towards a Methodology. Aritiﬁ-

cial Intelligence and Law, 1(1):45–64.

Nebut, C., Fleurey, F., Traon, Y., and Jezequel, J.-M. (2006).

Automatic Test Generation: A Use Case Driven Ap-

proach. IEEE Transaction on Software Engineering,

32(3):140–155.

NuSMV (2007). Nusmv: A new symbolic model checker.

http://nusmv.fbk.eu/.

Otto, P. and Anton, A. (2007). Addressing Legal Require-

ments in Requirements Engineering. In Proc. of 15th

IEEE International Requirements Engineering Con-

ference, pages 5–14.

RELAW (2008). 1st international workshop

on requirements engineering and law.

http://www.csc2.ncsu.edu/workshops/relaw/.

REMO2V (2006). International Workshop on Regula-

tions Modelling and Their Validation and Veriﬁcation

(REMO2V), CAiSE2006 Workshop. http://lacl.univ-

paris12.fr//REMO2V/.

REMOD (2008). Interdisciplinary workshop: Regula-

tions modelling and deployment. http://lacl.univ-

paris12.fr/REMOD08/.

Saeki, M. and Kaiya, H. (2008). Supporting the elicitation

of requirements compliant with regulations. In Lec-

ture Notes in Computer Science (CAiSE’2008), vol-

ume 5074, pages 228–242.

Whittle, J. and Jayaraman, P. (2006). Generating Hierarchi-

cal State Machines from Use Case Charts. In Proc.

of 14th IEEE Requirements Engineering Conference

(RE2006), pages 19–28.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

114
